SIIG AV-GM09C3-S1 User manual

3G/HD/SD-SDI 5.7”LCD Monitor
P/N: AV-GM09C3-S1

Safety and Notice
The AV-GM09C3-S1 3G/HD/SD-SDI 5.7” LCD Monitor has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all
electronic equipments,AV-GM09C3-S1 should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION................................................................................................................ 1
FEATURES ........................................................................................................................ 1
PACKAGE CONTENTS...................................................................................................... 1
SPECIFICATIONS.............................................................................................................. 2
IR REMOTE CONTROL ..................................................................................................... 3
PANEL DESCRIPTIONS.................................................................................................... 4
BOTTOM DIP SWITCH...................................................................................................... 5
CONNECTION DIAGRAM.................................................................................................. 5
HARDWARE INSTALLATION ............................................................................................ 6
DEFAULT SETTING........................................................................................................... 6
FIRMWARE UPDATE PR................................................................................................... 6
APPENDIX –SUPPORTED RESOLUTION ....................................................................... 9
APPENDIX –SUPPORTED RESOLUTION ..................................................................... 10
LIMITED WARRANTY...................................................................................................... 11

1
INTRODUCTION
The AV-GM09C3-S1 3G/HD/SD-SDI 5.7” LCD Monitor offers the highest compatibility among SDI,
including 3G/HD/SD formats. This device also supports composite (NTSC/PAL) input through the
same input. With the embedded advanced de-interlacer, interlaced video inputs, such as SD-SDI or
composite, can be further improved. For SDI, AV-GM09C3-S1 can display support up to 8 channel
audio bars to indicate the embedded digital audio channel in SDI stream and make AV-GM09C3-S1
a perfect mini monitor to watch closely on SDI signal quality.
AV-GM09C3-S1 is especially designed to ease the SDI security monitoring with affordable cost.
With AV-GM09C3-S1, SDI will not become a bottleneck in your advanced SDI applications, such as
SDI video editing and HD surveillance system. The handy SDI monitoring includes CRC status,
SMTPE 352M indicator, audio bars, EDH, video format detection, and Sync status etc. With versatile
IR remote control and push buttons, AV-GM09C3-S1 offers a very easy way to control the display
layout and status demonstration.
FEATURES
●SD/HD/3G SDI compliant
●Up to 8 SDI channel audio bar display
●Built-in advanced scaler to scale up and down the input to fit on screen
●Advanced video processing supports: noise reduction, color management, fleshtone control,
dynamic contrast control, closed caption support for CVBS, 3-D de-interlacing, 3:2/2:2 pull down
detection and recovery.
●RS-232 Firmware upgradable to guarantee the functionality revised.
●Supports two up to 3G SDI loop-outs
●Versatile IR control
●Push button control
●Wall-mounting ear for easy installation
PACKAGE CONTENTS
●1x AV-GM09C3-S1 ●1x 5V 4A interlocked power adapter
●2x 75 ohm terminator ●1x IR Remote control
●1x RCA to BNC connector ●1x User Manual

2
SPECIFICATIONS
Model Name
AV-GM09C3-S1
Technical
LCD size & resolution
5.7” & 640x480
LCD color depth
18 bit RGB
Composite bandwidth
13.5MHz
Audio support
Up to 8 CH decoding and audio bar display
SDI Support
SD/HD/3G
Input
1 x SDI [CVBS]
Output
2x SDI [Loopout]
Audio FS support
48KHz
ESD protection
[1] Human body model —±19kV [air-gap discharge] &
±12kV [contact discharge]
[2] Core chipset —±2kV
PCB stack-up
6-layer board [impedance control —differential 100; single 50]
IR remote control
Electro-optical characteristics: = 25/ Carrier frequency: 38kHz
HDMI connector
HDMI type A
RS-232 connector
DE-9 [9-pin D-sub female]
BNC connector
75inter-locked socket
DIP switch
Restore default
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
172 x 148 x 46mm [6.8” x 5.8” x 1.8”]
Package
200 x 325 x 93 mm [7.9” x 12.8” x 3.7”]
Carton
495 x 440 x 380mm [1’7” x 1’5” x 1’3”]
Weight
Model
1000g [2.2 lbs]
Package
1800g [3.9 lbs]
Fixedness
Wall-mounting case with screws
Power supply
Interlocked 5V 4A DC
Power consumption
10 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

3
IR REMOTE CONTROL
The buttons not listed above are not in use for this model.

4
PANEL DESCRIPTIONS
Front Panel Rear Panel
1. DIO: Reserved.
2. Dip Switch: Mode setting
3. RS-232: Serial control
4. SDI BNC loop-out connectors: SDI loop outs
5. SDI BNC input connector: Input SDI/CVBS
6. Power LED: Indicate power up and signal lock
7. HDMI: HDMI loop out
8. 5V DC power jack
Top Panel Buttons
9. IR: Remote control
10. Menu: OSD Menu
11. Down/Left: OSD up or left operations
12. Up/Right: OSD down or right operations
13. Enter/Mode: OSD selection or zoom/pan
14. INC+: Zoom in or move the center of zoomed
video to left or up
15. DEC-: Zoom out or move the center of
zoomed video to right or down
16. Display: Display mode selection
17. Status: SDI status indicator
18. Source: SDI/CVBS selection
19. 19. Reset: Reset error flags of SDI status
indicator

5
BOTTOM DIP SWITCH
CONNECTION DIAGRAM
DIP Switch Position
Description
Pin#1
Pin#2
OFF []
OFF []
Normal Operation
ON []
ON []
For Firmware Update

6
HARDWARE INSTALLATION
Connect your SDI/CVBS video sources to the input connectors.
1. Connect your HDMI enabled monitors into the device’s HDMI output port.
2. Power up the AV-GM09C3-S1.
DEFAULT SETTING
1. Power up the AV-GM09C3-S1.
2. To reset AV-GM09C3-S1 back to the factory default values, pull up-and-down the DIP switch 1&2
from OFF to ON to complete the process. You NEED to pull back the DIP switch back to OFF in
order to get AV-GM09C3-S1 work normally.
FIRMWARE UPDATE PR
Software Interface:
ComPort Settings:
Select ComPort of PC
connected to the device.
Push “auto scan”to start the
automatic scan on each
ComPort.

7

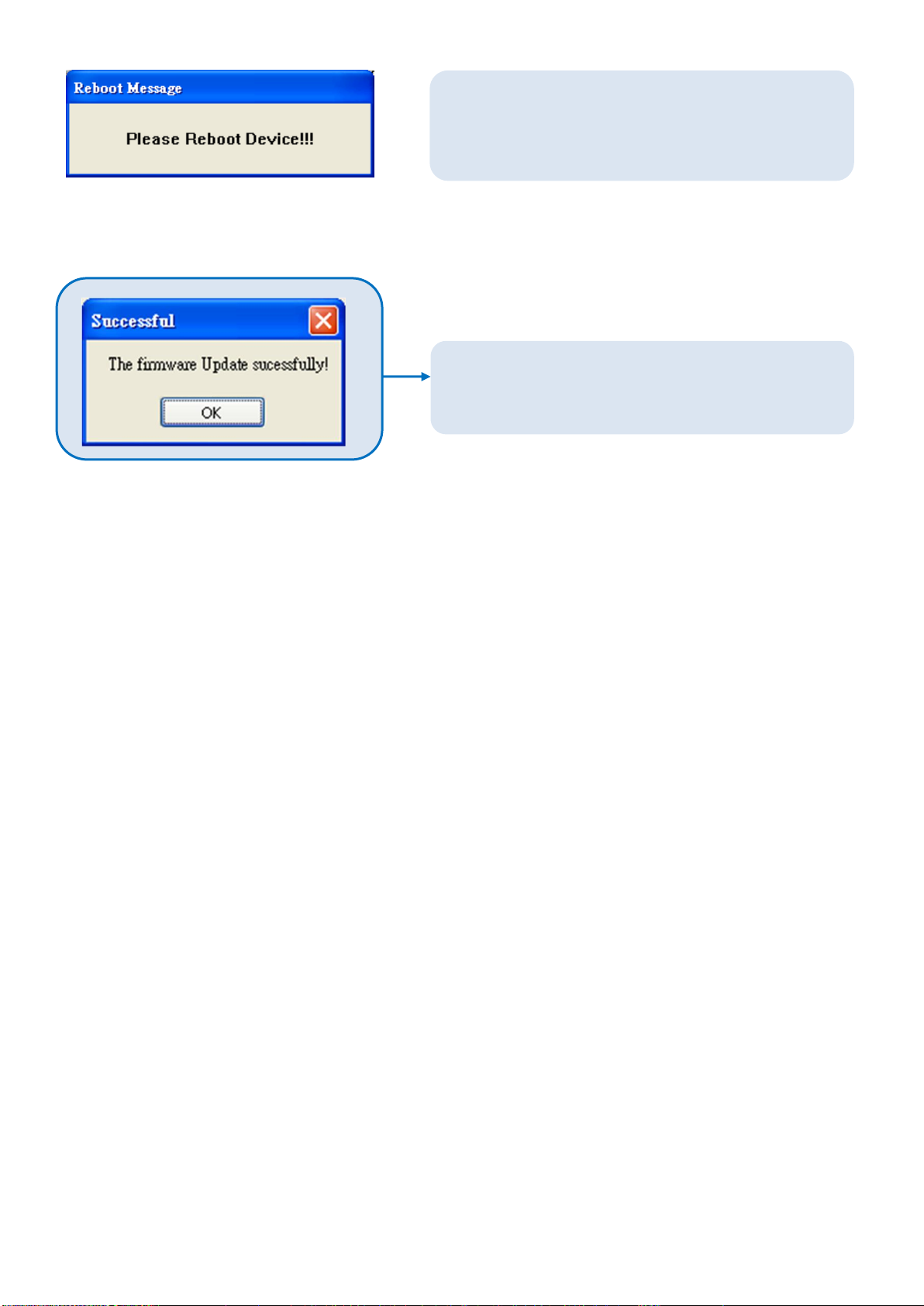

Window Messages
1024 bytes as the default.
Please check all the power
and serial port connection to
avoid any further unexpected
damages during firmware
update. Check “Agree”to
enable the firmware update
procedure.
Execute firmware update.
The connection is not correct. Please check:
Power
Cable
Baud Rate
Baud Rate is default as 115200.
The whole firmware update procedure fails. Please check
Power
Cable
Baud Rate

8
The firmware update procedure requires a power cycle.
Please turn off the device, wait for a couple of seconds,
and power on the device.
Congratulations. The whole process is successfully
completed!

9
APPENDIX –SUPPORTED RESOLUTION
[SDI-IN] Socket
Supported Mode
Resolution
(SDTV) 625i
625i @50Hz
(SDTV) 525i
525i @59.94Hz
(HDTV) 720p
1280x720 @50Hz
(HDTV) 720p
1280x720 @59.94Hz
(HDTV) 720p
1280x720 @60Hz
(HDTV) 1080i
1920x540 @50Hz
(HDTV) 1080i
1920x540@59.94Hz
(HDTV) 1080i
1920x540 @60Hz
(HDTV) 1080p
1920x1080 @25Hz
(HDTV) 1080p
1920x1080 @30Hz
(3G) 1080p
1920x1080 @50Hz
(3G) 1080p
1920x1080 @59.94Hz
(3G) 1080p
1920x1080 @60Hz

10
APPENDIX –SDI DIALOG
Dialog 1 –SDI Information
□□: □□: □□ [System timer]
EDH error number and error rate [SD only]
CRC error number and error rate
SDI input total width and height
SDI input active width and height
SDI input format
Dialog 2 - SDI SYNC information
EDH Status:
Frame CRC error
Active picture CRC error
General error 1
General error 2
SYNC Status:
SAV error
SAV 3G error
EAV error
EAV 3G error
SMTPE 352M Bytes:
Dialog 3 - SDI Video Information
Chroma Status:
1. ANC 3G checksum error.
2. ANC checksum error.
3. 3G CRC error.
4. CRC error.
Luma Status:
5. ANC 3G checksum error.
6. ANC checksum error.
7. 3G CRC error.
8. CRC error.
9. Line number error

11
LIMITED WARRANTY
The SELLER warrants the AV-GM09C3-S1 3G/HD/SD-SDI 5.7” LCD Monitor to be free from
defects in the material and workmanship for 3 years from the date of purchase from the SELLER or
an authorized dealer. Should this product fail to be in good working order within 3 years warranty
period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized modifications including static discharge
and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty
and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AV-GM09C3-S1 features
and specifications is subject to change without further notice.
