Silicon power Sky Share H10 User manual

H10 Android App V2.0
User Manual

2
1. Spec and System Requirements..........................................................3
2. Setting up H10 Device .........................................................................4
3. Android App V2.0 Overview................................................................8
4. Regarding File Format .......................................................................13
5. How to Play and View Your Media Files ...........................................14
6. Downloading Content to Your Wi-Fi Device....................................139
7. Uploading Content from Your Wi-Fi Device......................................20
8. H10 Setup Page ...............................................................................219
9. How to Delete Files Stored in H10 ....................................................30
10. How to Safely Disconnect H10 from Your Computer ......................31
11. Troubleshooting ..............................................................................32

3
1. Spec and System Requirements
Capacity: 500GB, 1TB
Dimension: 133 x 86 x 23.5 mm
Weight: 255g +/- 5%
Wi-Fi Interface: IEEE 802.11b/g/n Standard
Build-in 2T2R Antenna, up to 300 Mbs
Build-in USB 3.0 (Compatible with USB 2.0),
up to 5Gb/s Transfer rate (USB 3.0 Mode)
Wi-Fi connection: up to 8 users
Connection range: up to 100 Feets
Power Supply: DC 5V/2A (Power supplied through AC-to-DC adapter)
Battery: Build-in Lithium Battery for up to 5 hours multimedia streaming (1 device)
Operating Temperature: 5℃~ 45℃
Storage Temperature: -10℃~ 70℃
Wireless security: WPA+WPA2
Operation system: Support Win 7, Win 8, Win XP, Win Vista, Mac OS X (10.5.X+), iOS
6.0+ iPhones and iPads, Android 2.3+ smart phones and Tablets
Browsers: Support Safari 5 or later version, Webkit (Android), Internet Explorer 8 or
later version, Firefox, and Google Chrome
File system: FAT32/NTFS
Supporting file types:
You can store any file in H10, but need your Wi-Fi device to support the file format
and resolution you want to play or view.
H10 Android App: The following file types can be recognized. As for playback, it
conforms to the Wi-Fi device used to connect with H10.
Video: AVI, m4v, mp4, mov, wmv, MKV, DiVX, XVid, rmvb, 3gp
Photo: JPG, BMP, PNG, GIF
Music: mp3, m4a, wma,wav, aac
Document: DOC, XLS, PPT, PDF
For other file types, you can find them in “ALL”Directory and play them if it’s
supported by your device application.
H10 Web UI:
Play any file supported by your device applications and recommended browsers

4
2. Setting up H10 Device
This setting up procedure is also provided in User Quick Guide.
If you have already completed the installation process, you may skip this section.
Step 1:
Fig. 1 Connect H10 to your computer by USB 3.0 cable
Plug in USB 3.0 cable into USB port (compatible with USB 2.0 device) to your
computer to have faster data transfer in Portable Hard drive mode (PHDD Mode).
Step 2:
Fig. 2 Copy files to Sky Share from your computer in PHDD mode
In PHDD mode, you can find video/photo/music/document sub-folders under H10

5
default directory. Copy your video, photo, music, document files into the respective
default folders.
Note: You can copy any file to the H10, but the device you use to connect H10 will
only play or view the file formats it supports.
There are some software applications to convert video files into different formats.
You may want to convert the files into the formats compatible with your device
before copying them to H10.
Step 3:
Remove USB cable, and press on the power button on the H10.
Once you power on H10, the system will automatically go into Wi-Fi mode.
After pressing the power button, the data/Wi-Fi access LED will blink in purple for
about 1 min. Once the status is ready for use, this LED will turn blue.
Power Button LED indicator:
Solid Green:
Full battery
Blinking Orange:
Half full
Solid Red:
Low battery, charging is required
Solid Orange:
Charging
Data/Wi-Fi Access LED indicator:
Wi-Fi mode (Power on)
Blinking Purple:
During setup
Solid Blue:
Ready for access
Blinking Blue:
Wi-Fi access
Solid Red:
System error
PHDD mode (Connected to PC/NB by USB cable)
Fast Blinking Blue:
During setup
Solid Blue:
Ready for access
Blinking Blue:
Data Access
LED off:
Hard drive Safety removal
Fig. 3 LED indication table

6
The H10 build-in battery is partially charged during the shipment, enabling
immediate access to H10.
When the power button turns red, please charge your H10 with the included USB to
DC cable and USB Wall adapter.
In order to use the battery efficiently, it’s recommended to activate the battery. For
battery activation, you will need to charge the battery from low to full for 3 to 5
cycles. After battery activation, you can have a longer battery hour, but will need to
take longer hours (up to 4 hours) to charge the battery from low to full status.
Step 4:
Fig. 4 Connect your Wi-Fi device to H10
For iPhone/iPad
1. Install H10 app (search for “Wi-Fi H10V2” on the app store and install it free of
charge.) Keyword: Wi-Fi H10V2
2. On the iPhone/iPad, Select Settings > Wi-Fi and then select and connect H10
from the wireless network list.
3. Tap the H10 app to open the application from iPhone/iPad home screen.

7
For Android Smartphone/Tablet:
1. Install the H10 app (search for “Wi-Fi H10V2” on the Google Play and install free
of charge).
2. On the Android Smartphone/Tablet, Select settings and then enable Wi-Fi
3. Select and connect H10 from the wireless network list
4. Tap the H10 app to open the application from Android smartphone/tablet home
screen
For Other Tablets, Smartphones and Computers
1. Enable Wi-Fi
2. Select and connect H10 from your device’s wireless network list.
3. Launch your device’s Web browser and type 192.168.49.73 on URL column. The
Web UI (user interface) will pop up for your use.
Safari of iPhone/iPad and Web kit of Android smartphone/tablet are also supported if
H10 app is not installed.

8
3. Android App V2.0 Overview
The H10 apps are available on Apple store and Google Play for free download.
For the download and setup instructions, please refer to the section 2, Setting up
H10 device.
Fig. 5 Android App Front-page
Android App four functions on the front page:
1. H10 Content
2. Local drive content
3. Setup
4. Help
Tap the “H10”icon to operate all contents stored in H10 and tap “Local drive”icon
to operate all contents transferred to your Wi-Fi device from H10.
If you want to change the setting of H10, tap the “Setup”icon.
If you need some help tips, tap the “Help”icon.

9
Fig. 6 Android App Overview
All:
To view all files stored.
Default Media Folders:
Video:
To view video files.
Photo:
To view photo files.
Music:
To view music files.

10
Document:
To view document files.
H10 Android App avoids sorting the whole hard drive during each power-on to have
a quick setup. Instead, a user is necessary to organize files into the respective
default folders: Video, Photo, Music, and Document.
If you mix your file types and cannot find them in these four folders, you can go to
“All”to view a complete listing of stored files.
Search:
Input keyword in the search column. H10 will display all files associated with the
keyword.
Sort:
The files can be sorted by the file type, file size or creation date.
Select:
Tap “Select”icon to select media files for further operation. Tap “Back”icon to
cancel “Select”.
Select all:
To select all files, tap “Select all”.
Deselect all:
To clear all selections, tap “Deselect all”.
Delete:
To delete selected files, tap “Delete”.

11
Download:
After selecting the files, you can tap “download”icon to have a further operation.
This function allows you to download your selected files to the local drive folder
from H10.
Attach to email:
Select files, and then tap “attach to email”to send to via email.
Upload :
In local drive folder of App, you can select the files and then tap “Upload”icon to
have a further operation.
1. “Upload to H10”: allow you to upload your selected files to H10.
2. “Upload to Google drive”: allow you to upload your selected files to Google drive.
3. “Upload to drop box”: allow you to upload your selected files to drop box.
Note: for Google drive and drop box functions, Internet service is required. You may
switch on H10 “Network connection (Outgoing Wireless)”function to connect with
the available network nearby or disconnect H10 first to release your Wi-Fi for
Internet service.
Copy:
Tap “Select”, tick the files you would like to copy, and then select the target folder.
The selected files will be copied to the target folder.
Move:
Tap “Select”, tick the files you would like to move, and then select the target folder.
The selected files will be moved to the target folder.
Folder View:
View the files presented in a file list and folder structure from your computer.

12
Thumbnail view:
View the files presented in thumbnail size.
Refresh:
If you cannot find your updated contents in H10, you can tap refresh icon on the
bottom of the screen to refresh the contents.
Back:
You can tap “Back”icon on the bottom of the screen to go back to the previous page.
It’s the same function as the “Back”button on your Android Smartphone/Tablet.
Setup: You can setup H10 device from “Setup”function. Please refer to Section 8 –
H10 setup page for the detail operation.
Help:Help page provides some tips for frequently asked questions.

13
4. Regarding File Format
The H10 hard drive is formatted to FAT32 format, a Windows standard.
FAT32 file system can only support the file size up to 4GB. If you want to play the file
bigger than 4GB, you can format H10 into NTFS file system, remove USB cable,
power-on H10, and then the default folders will be automatically created. Both of
NTFS and FAT32 are supported by H10. But, Mac OS will only be able to read NTFS
files. In order to write NTFS files in Mac OS, a 3rd party NTFS driver will be required.
Warning: Do not allow Time Machine® to use H10 for backup. Time Machine will
attempt to reformat the hard drive inside H10.

14
5. How to Play and View Your Media Files
Section 2 described how to link to H10 Web UI and how to download and launch H10
app. This section further provides instructions for playing videos, music and viewing
photos and documents by using the H10 app.
Playing Videos
1. Connect to H10
2. Open the H10 app.
3. Tap “Video”icon on the bottom of the screen
4. Tap the video you want to watch. Android App allows two types of play.

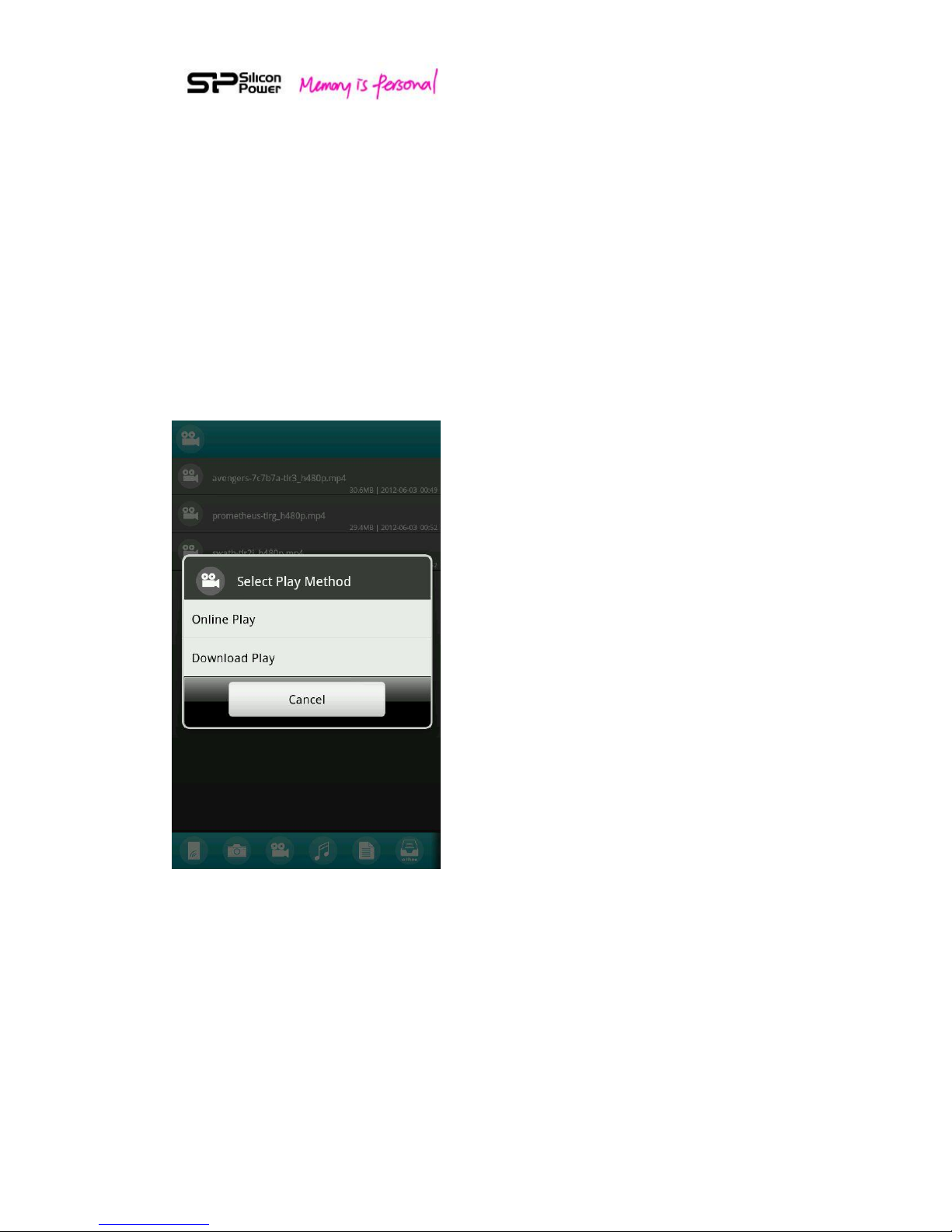

Fig. 7 Video Playback
On-line Play: The video will be played immediately without the full file download.
Download Play: The video file will be downloaded to your Wi-Fi device first and then
played.
Please select either one and then App will call the media players available on your
smartphone or tablet for your choice.

15
Fig. 8 Select the suitable media player for playback
Note: If a video file you’ve copied to the H10 device cannot be played, it may be
related to the file format not being supported by your media player or the device
you use to connect to the H10.
To pause a video:
Tap the screen and then tap the pause icon.
To stop playback of a video:
Tap the screen and then tap “Back”button on your smartphone or tablet.
Playing Music
1. Connect to H10
2. Open the H10 app.
3. Tap “Music”icon on the bottom of the screen
4. Tap the music file you want to listen to.
5. The play list will pop-up for your further operation. (Referring to Figure 9)
Playing multiple music files
1. Following item 1~3 above
2. Tap “Select”icon on the bottom of the screen.

16
3. Select the music files you want to play.
4. Tap the “Play”icon on the bottom of the screen.
5. The play list will pop-up for your further operation. (Referring to Figure 9)
Note: If a music file you’ve copied to the H10 device cannot be played, it may be
related to the file format not being supported by your media player or the device
you use to connect to the H10.
Fig. 9 Music play list
: To repeat selected music file play
: To repeat all selected music files play in playlist
: To play the music file / Tap again to pause the file
: To stop the file

17
Viewing Photos
1. Connect to H10
2. Open the H10 app.
3. Tap “Photo”icon on the bottom of the screen
4. Tap the Photo you want to view and then the photo will be displayed.
Note: If a photo file you’ve copied to the H10 device cannot be displayed, it may be
related to the file format not being supported by your media player or the device
you use to connect to the H10.
5. Photo slide show:
Following item 1 ~ 4, you can further tap “Menu”button of your smart phone or
tablet, and then select “Slide show”to have a photo slide show. If you tap “Menu”
button again, you will be able to further select the different transition effects of the
slide show and also decide the interval time in-between each slide. (Referring to
Figure 10 and 11)
Fig. 10 Photo Slide Show

18
Fig. 11 Transition Effect of Photo Slide Show
To stop playback of a photo slide show:
Tap the screen and then tap the “Back”button on your smartphone or tablet.
Viewing Documents
1. Connect to H10.
2. Open the H10 app.
3. Tap “Document”icon on the bottom of the screen.
4. Tap the Document you want to view and then the document will open.
Note: If a document file you copied to the H10 device cannot be opened, it may be
related to the file format is not supported by the device you use to connect to H10.
Please check your device’s specification for its supported document types.

19
6. Downloading Content to Your Wi-Fi Device
In addition to streaming your content from the H10 device, you can download files
from H10 to your media device.
Android App:
“download to local folder”:
1. Tap “Select”icon to select the files you want to download.
2. Tap “Download”to select the target folder.
3. Tap “OK”, the selected files will be downloaded to the target folder from H10.
Fig. 12 Download to local folder of your Wi-Fi device

20
7. Uploading Content from Your Wi-Fi Device
In addition to streaming your content from the H10 device, you can upload files
from your media device to H10.
Android App:
1. Tap “Local drive”from the main page
2. Tap “select”icon to select the files you want to upload.
3. Tap “Upload”icon and then you can select “Upload to H10”, “Upload to Google
Drive”, or “Upload to Dropbox”.
4. Select the target folder and tap “OK”, the selected files will be uploaded to the
target folder. (Referring to the figure 11)
Fig. 13 Upload files
