Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyande󰀩ciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts. Inspect saddle
assembly for proper operation. Perform necessary load test,
inspections, operator training, etc.
CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3
Installation Instructions. . . . . . . . . . . . . . . . . . 3
Controls. . . . . . . . . . . . . . . . . . 4
Operating Instructions. . . . . . . . . . . . . . . . . . . . 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5

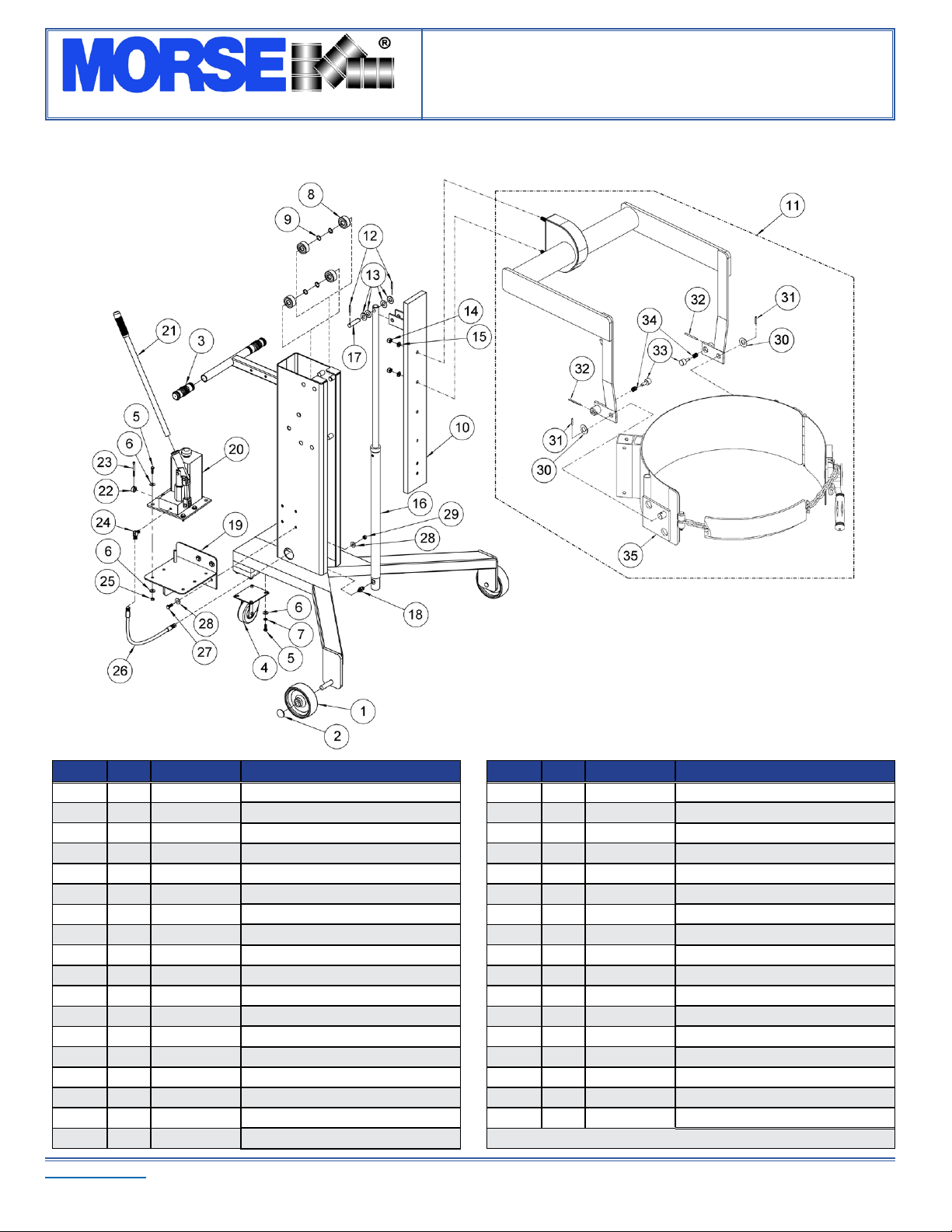

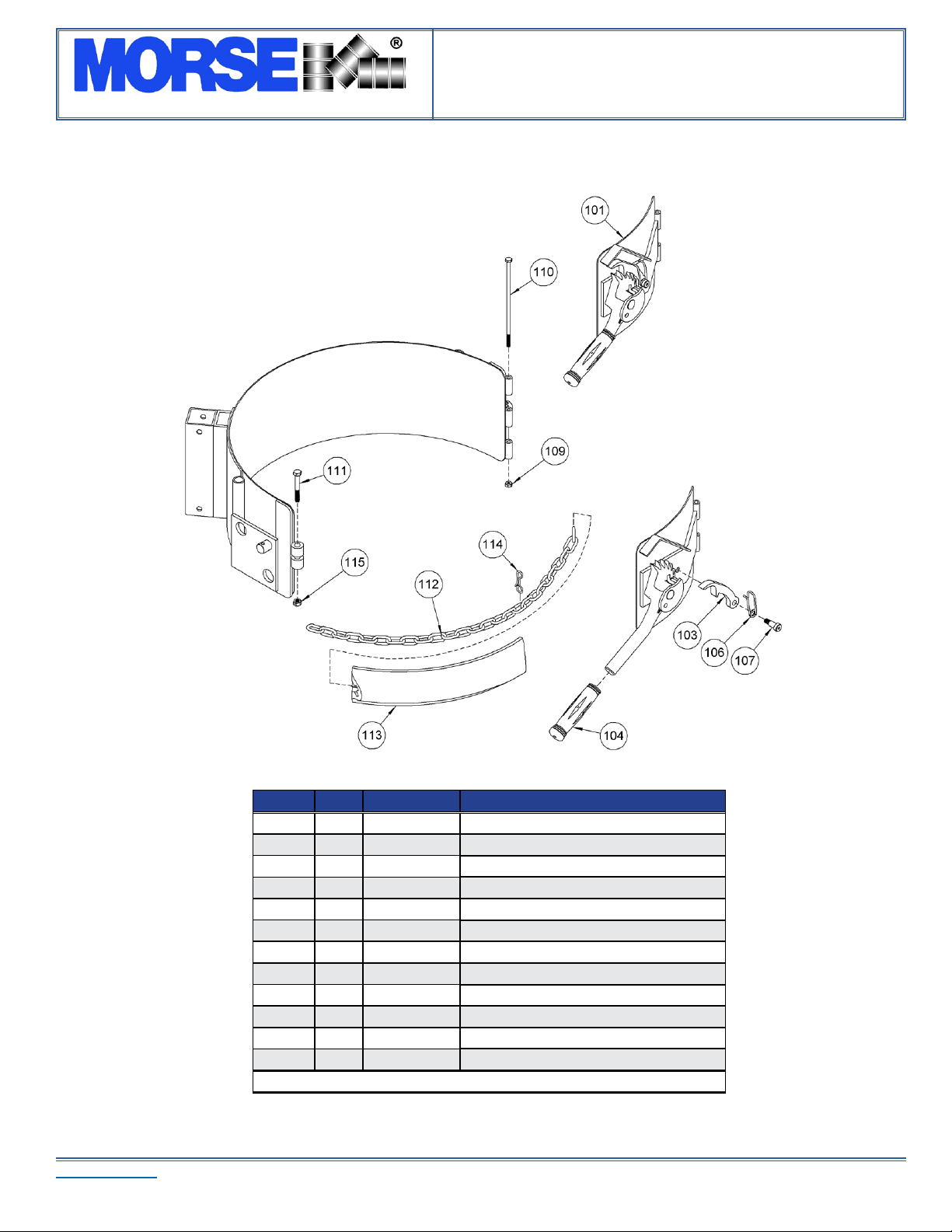

Parts Lists and Diagrams. . . . . . . . . . . . . . . . . . 6 - 7
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 USA
morsedrum.com [phone]

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
WARNING - The Mobile-Karrier / Palletizer is designed to handle one drum of the types listed at the
top of page 3. Machine Description. DO NOT attempt to handle any other type of drum or object.
DO NOT exceed the weight capacity of 600 Lb. (272 kg)
WARNING - Level Floors Only
Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.Donotuseonslopedsurfaces,
ramps,irregularordebrisstrewnoors.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorsemachinerywithoutfactoryauthorization.Anymodicationsmayvoidthewarranty.This
machinewasdesignedtoperformaspecicjobandalterationsmayresultininjurytooperatoror
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escapinghydraulicuidunderpressurecanpenetratetheskin,causingseriousinjury.Avoidthe
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholesandnozzles,whichejectuidunderhighpressure.Useapieceofcardboardtosearchfor
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear safety shoes with non-slip soles and hard toe protection.
CAUTION -DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.
WARNING: This product can expose you to chemicals including cobalt, titanium dioxide, and 2-methylimidazole,
which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of
California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 3
Machine Description
The Mobile-Karrier / Palletizer is designed to lift, transport, and dispense a
ribbed 55-gallon steel drum 22.5” in diameter. The maximum capacity is 600
Lb. (272 kg)
Options
A smaller diameter drum can be handled with the correct size 55/30M•
Series Diameter Adaptor installed (see Diameter Adaptor literature).
The• Bracket Assembly (Part # 4556M-P) is required to handle a
plasticdrumwithoutatoprim(seegure2.1).Itisalsorecommended
to more securely handle a ber drum. You can use the Bracket
Assembly with a 55-gallon plastic, steel or ber drum. The brace
at top and bottom of the drum prevent it from slipping lengthways
through the drum holder. It adjusts for a drum 31” to 37” tall.
The• Top Rim Clamp (Part # 4560M-P) grips the upper rim of your drum
topreventitfromslippingthroughthedrumholder(seegure2.2).To
handle a 55-gallon plastic drum with top rim, you must install either
theBracketAssemblyortheTopRimClamp.YoucanusetheTopRim
Clampwitha55-gallonplastic,steelorberdrumwithsuitabletoprim
Installation Instructions
Figure 2.2
Plastic drum being
lifted with part number
4560M-P Top Rim Clamp
Assembly installed.
Figure 2.1
Plastic drum being
lifted with part number
4556M-PBracket
Assembly installed.
WARNING
Hydraulic pump is shipped with a plug in the•
reservoir to prevent spillage in transit
Prior to operation, replace the shipping plug•
with provided breather plug
Failure to properly install breather plug will void•
manufacturer’s Limited Warranty
© 2012 - Morse Mfg. Co., Inc. Part # PLTAG-04

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 4
Controls
The Morse Hydra-Lift Karrier is manually propelled and steered.
There are two functions for the operator to control:
“LIFT” and lower function for vertical positioning of the drum1.
“TILT” function to control the degree of rotation of the drum2.
LIFT and Lower Function (Figure 2.3)
To raise the drum
Insert pump lever handle into pump socket.1.
With the release valve closed, begin to pump the lever handle. The drum2.
will lift.
To lower the drum
Open the release valve slowly, a part of a turn. Allow the drum to descend at a
controlled rate. The valve may be reclosed to hold the drum at any height.
TILT Function
To tilt the drum
Either one of the two spring loaded plunger tilt-locks may be locked to1.
hold the drum upright. It is not necessary to lock both of them.
Position drum at pouring station.2.
Beforeunlockingthetilt-lock(s)topermittiltingthedrum,itis  3.
recommended that you steady the drum and be prepared for its possible
tendency to tilt toward its heavier side.
With both tilt-locks unlocked, manually tilt the drum for pouring. The drum4.
pouring angle may be varied or it can be locked in horizontal position by
one of the tilt-locks.
WARNING: Keep hands and ngers clear of tilt lock hole, as a pinch point will occur when drum rotates.
Figure 2.3

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 5
Operating Instructions
Roll drum lifter to drum. Steer unit so drum holder meets middle of drum. Operate1.
hydraulics as necessary. Roll the unit forward and push drum holder so it slips around
the drum.
WARNING: Keep hands and other objects away from top opening of lifting frame.
To secure drum: drape cinch chain across face of drum and engage a link into notch in2.
hub of ratchet. Pull up on ratchet handle to tighten chain. If ratchet turns to extent that
pawl is beyond last ratchet tooth and chain is not tight, back up and try putting next link
in notch. Chain should tighten as ratchet turns and be held tight by teeth of ratchet &
pawl.Firmhandpressureonratchethandleshouldtensionchainsu󰀩cientlytosecure
drum. DO NOT use mechanical aids such as a pipe to extend ratchet handle for extra
leverage.
Operateliftfunctiontoraisedrumo󰀨theoor,pushdrumliftertodeliverdrum.3.
Avoid unreasonably rough or non-level surfaces. Move at moderate speed. Carry
drumonlyhighenoughtoavoidcontactwiththeoororobstacles.Pushloadedunit
when possible for transporting. Pulling unit should be limited to maneuvering at short
distance.
Either one of the two spring loaded plunger tilt locks may be4.
locked to hold drum upright. Unlocking both will permit drum
to be tilted. Drum pouring angle may be varied or drum can be
locked in horizontal position by inserting one tilt lock. It is not
necessarytolockbothtiltlocks.Beforeunlockingtiltlockitis
recommended that you steady drum and prepare to resist its
tendency to tilt toward its heavy end.
WARNING: Keep hands and ngers clear of tilt lock hole,
as a pinch point will occur when drum rotates.
Beforeunloadingdrum,releasetiltlocksandreturndrumto5.
upright. Lower drum at a controlled rate.
To remove drum: pull ratchet handle clockwise to relieve6.
pressure on ratchet teeth. Lift pawl handle to release teeth
engagement and rotate ratchet counterclockwise to loosen
chain and allow its removal from notch. Pull unit away and park
onleveloor,outoftra󰀩claneswhennotinuse.
Adjustment for Shorter Drums: The drum holder assembly is factory set in upper position for handling typical 55 gallon drums. For7.
handling shorter drums such as typical 30 gallon drums, relocate drum holder assembly downward as follows: Detach by removing
nuts that hold it to lifting assembly. Reattach at alternate location 6” lower.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeande󰀩cientoperation.•
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or•
replace parts as necessary to prevent failure and maintain proper function.
Inspectthehydraulicsystemforoildrips,hosedamage,orothersignsofwear.Inspectthelevelandconditionofthehydraulicuid.•
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: Tilt locks, fulcrum shafts, the hinge pin, and the ratchet•
and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.•
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)is•
available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent
for indoor use (Mobil dte 13 for outdoor use).

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 6
ITEM QTY. PART # DESCRIPTION
1* 2 8160-P WHEEL,6”,3/4”BRG,81,82
2* 2 705-P CAP,HUB,PUSH-ON,3/4”
3 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2
4* 2 3308-P CASTER,4”SWIVEL,DBLRACE
5 12 35-P HHCS, 5/16-18 X 1 GR2
6 16 1570-P WASHER, 5/16 USS 7/8 OD
7 8 1650-P WASHER, 5/16 SPLIT LOCK
8* 4 3194-P BEARING,3/4ID,82,500,600
9 4 166-P SNAP RING, EXTERNAL, 82
10 1 5177-P RISER WELD, 82 SERIES
11 1 3371ZM-P OVERHEAD ASM, 82 SR
12 2 64-P ROLL PIN, 3/16 X 1-1/4
13 4 17-P WASHER, 5/8 SAE FL 1-5/16 OD
14 2 91-P NUT, 1/2-13 FIN HEX
15 2 1644-P WASHER, 1/2 SPLIT LOCK
16 1 3611-P CYLINDER, 1 X 24, SAE 82
17 1 8260-P PIN, CLEVIS, CYL, 5/8, 82
18 1 3612-P HYD FIT, SAE ADAPTER
ITEM QTY. PART # DESCRIPTION
19 1 8281-P PUMP PLATE WELD, STAR, 82
20 1 96MK1939-P PUMP, HYD, HAND STAR
21 1 96CP13-23 HANDLE, LEVER W/ GRIP, STAR
22 1 1035-P COLLAR, 1/2”
23 1 1040-P SHCS, 1/4-20 X 2-1/2
24 1 765-P HYDFIT,MALEELBOW,FLARE400
25 4 491-P NUT, 5/16-18 REV HEX LOCK
26 1 2576-P HYD HOSE ASM, 20”, 310, 82 ML
27 4 1572-P HHCS, 3/8-16 X 1 GR2
28 8 1166-P WASHER, 3/8 USS 1” OD
29 4 1169-P NUT, 3/8-16 REV HEX LOCK
30 2 62-P WASHER, 3/4 SPRING
31 2 64-P ROLL PIN, 3/16 X 1-1/4
32 2 61-P ROLL PIN, 3/16 X 2-1/2
33 2 59-P PLUNGER, 80, 85
34 2 60-P SPRING, PLUNGER, 80, 85
35 1 101ZM-P SADDLEASM,SRSOCKETTUBE
* Recommended spare parts.

The Specialist In Drum Handling Equipment
Model 82AM
Mobile-Karrier / Palletizer
with Spark Resistant Parts
Operator’s Manual for Model 82AM Morse Mobile-Karrier / Palletizer with Spark Resistant Parts
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82AM (0212-0213) (Updated 24 May, 2019 11:58 AM) 7
ITEM QTY. PART # DESCRIPTION
101* 1 727AM-P HINGE PLATE CPT, 1/4” SR
103 1 168-P PAWL, WITH DRILLED HOLE
104 1 4409-P GRIP, HANDLE 7/8” X 4-3/4” RED
106 1 169-P SPRING, PAWL
107 1 170-P SCREW, 3/8 DIA X 5/8 SHOULDER
109* 1 1297-P NUT, 1/4-20 REV HEX LOCK
110* 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5
111* 1 4079-P HHCS, M8 X 60 MM CL8.8, 8MM
112* 1 4408-P CHAIN, 9/32 CINCH, SS, 38 LINK
113* 1 4414-P COVER, CINCH CHAIN, FLEX PVC
114 1 4710-P PIN,BOWTIECOTTER,MOR
115* 1 4081-P NUT, M8 ESNA, 8MM
* Recommended spare parts
