Silvercrest SFB 80 A1 User manual

FOOT SPA
Operation and safety notes
IAN 400503_2107
FOOT SPA SFB 80 A1

GB/IE/NI Operation and safety notes Page 5


B
15 15
11121314
A
1
2
3
4
5
6
8
7
9
10

C
18
17
16

5GB/IE/NI
Warnings and symbols used ............................................Page 6
Introduction ...............................................................Page 6
Intended use.................................................................Page 6
Scope of delivery .............................................................Page 7
Description of parts ...........................................................Page 7
Technical data ...............................................................Page 7
Safety instructions........................................................Page 7
Before first use ............................................................Page 10
Preparation ...............................................................Page 10
Operation..................................................................Page 11
Switching the product on/off ....................................................Page 11
Choosing a mode ............................................................Page 11
Using the product without pedicure attachment......................................Page 11
Using the product with pedicure attachment ........................................Page 11
After use....................................................................Page 11
Cleaning and care ........................................................Page 12
Storage ....................................................................Page 12
Disposal....................................................................Page 12
Warranty ..................................................................Page 13
Warranty claim procedure......................................................Page 13
Service .....................................................................Page 13

6 GB/IE/NI
Warnings and symbols used
The following warnings are used in this user manual and on the packaging:
DANGER! This symbol in combination
with the signal word “Danger” marks a
high-risk hazard that if not prevented could
result in death or serious injury.
Alternating current/voltage
Hertz (supply frequency)
WARNING! This symbol in combination
with the signal word “Warning” marks a
medium-risk hazard that if not prevented
could result in death or serious injury.
Watts
NOTE: This symbol in combination
with “Note” provides additional useful
information.
Symbol for a Protection Class II product
UKCA mark indicates conformity with
relevant Great Britain regulations
applicable for this product
(The UKCA mark logo is valid in Great
Britain only).
CE mark indicates conformity with relevant
EU directives applicable for this product.
FOOT SPA
Introduction
We congratulate you on the purchase of your new
product. You have chosen a high quality product.
The instructions for use are part of the product. They
contain important information concerning safety,
use and disposal. Before using the product, please
familiarise yourself with all of the safety information
and instructions for use. Only use the product as
described and for the specified applications. If you
pass the product on to anyone else, please ensure
that you also pass on all the documentation with it.
Intended use
This product is designed for relaxing, caring for and
refreshing tired feet.
The product is designed for household use; it is not
suitable for medical or commercial use.
The manufacturer accepts no liability for damages
caused by improper use.

7GB/IE/NI
Scope of delivery
After unpacking the product, check if the delivery
is complete and if all parts are in good condition.
Remove all packing materials before use.
1 Foot spa
1 Massager (pedicure attachment)
1 Callus remover (pedicure attachment)
1 Brush (pedicure attachment)
1 Pedicure attachments storage
1 Instruction manual
Description of parts

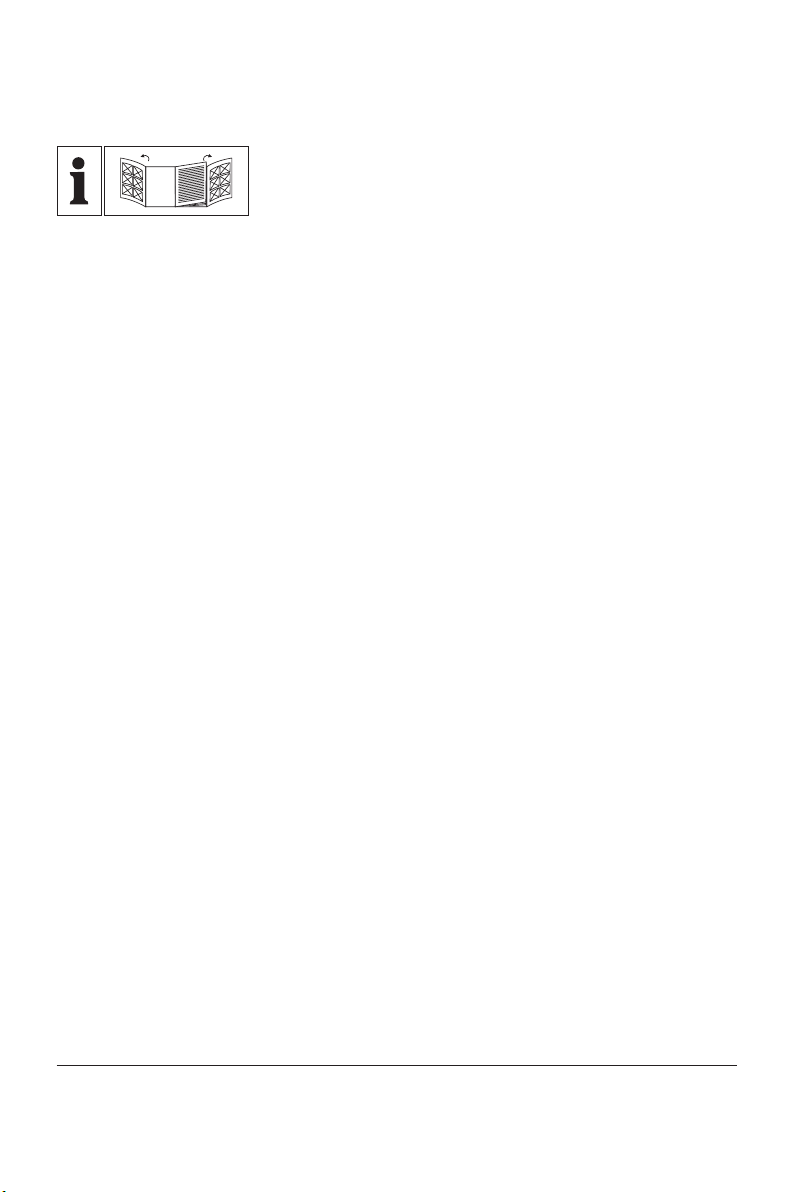

Before reading, unfold the page containing the
illustrations and familiarise yourself with all the
functions of the product.
Figure A
[1] Function button
[2] Splash guard
[3] Massager (pedicure attachment)
[4] Pedicure attachment adapter
[5] Pedicure attachments storage
[6] Callus remover (pedicure attachment)
[7] Brush (pedicure attachment)
[8] Water container
[9] MAX marking
[] ON/OFF indication light
Figure B
[] 0 (Off)
[]
Vibration massage
[]
Bubble bath while keeping the water warm
[]
Vibration massage and bubble bath while
keeping the water warm
[] Massage rollers
Figure C
[] Locking clips
[] Cord storage with holder for power plug
[] Supply cord with power plug
Technical data
Rated voltage: 220–240 V∼,
50–60 Hz
Rated power: 80 W
Safety instructions
BEFORE USING THE PRODUCT,
PLEASE FAMILIARISE
YOURSELF WITH ALL OF THE
SAFETY INFORMATION AND
INSTRUCTIONS FOR USE! WHEN
PASSING THIS PRODUCT ON TO
OTHERS, PLEASE ALSO INCLUDE
ALL THE DOCUMENTS!
In the case of damage resulting
from non-compliance with these
operating instructions the warranty
claim becomes invalid! No liability is
accepted for consequential damage!
In the case of material damage or
personal injury caused by incorrect
handling or non-compliance with
the safety instructions, no liability is
accepted!

8 GB/IE/NI
Children and persons with
limitations
mWARNING! DANGER OF
DEATH AND ACCIDENTS
FOR TODDLERS AND
CHILDREN!
Never leave children unsupervised
with the packaging material. The
packaging material represents a
danger of suffocation. Children
frequently underestimate the
dangers.
This product can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
product.
Cleaning and user maintenance
shall not be performed by children
unless supervised.
Electrical safety
mWARNING! Risk of electric
shock! Never attempt to repair
the product yourself. In case of
malfunction, repairs are to be
conducted by qualified personnel
only.
mWARNING! Risk of electric
shock! Do not immerse the
product’s electrical components in
water or other liquids. Never hold
the electric components of the
product under running water.
mWARNING! Risk of electric
shock! If water leaks from the
product, do not use the product
any longer.
mWARNING! Risk of injury!
Turn off the product and
disconnect it from the power
supply before cleaning and when
the product is not in use.
mWARNING! Risk of electric
shock! Do not use the product
if it is damaged. Disconnect the
product from the power supply
and contact your retailer in the
event of damage.

9GB/IE/NI
If liquid gets into the product’s
electrical components or the
product falls into the water,
immediately disconnect the plug.
Do not use the product any
longer.
Before connecting the product to
the power supply, check that the
voltage rating corresponds with
the power supply details shown
on the product’s rating label.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
Do not operate the product with
wet hands. Do not touch the
function button [1] or the power
plug with wet hands.
No action is needed from users to
shift the product between 50 and
60 Hz. The product adapts itself
for both 50 and 60 Hz.
Health
This product is not a medical
device.
mDANGER! Risk of injury!
Only use the product on an even,
stable, heat-resistant, clean, non-
slippery and dry floor.
Never stand up with your feet
inside the product.
mWARNING! Do not use this
product and consult your doctors
if you suffer from any of the
following conditions:
–Skin inflammations
–Wounds/swelling of the feet
–Skin reddening
–Diabetes
–Eczema/psoriasis
–Heart disease

10 GB/IE/NI
The product may have a hot
surface during operation. Persons
insensitive to heat must be careful
when using the product.
mATTENTION! Risk of product
damage! Do not add any
additives, like oil, to the water
container. After the water has
evaporated, these additives may
burn and damage the product.
Fire/burn hazard and heat
mDANGER! Risk of fire! Never
leave the product unattended
while it is plugged in.
Never select the keep warm
function if there is no water inside
the water container [8].
Before first use
Remove all packaging materials.
Clean the product and its accessories
(see “Cleaning and care”).
Preparation
Fill the water container [8] up to MAX [9] with
water in the desired temperature.
mATTENTION! Risk of product damage!
Do not fill in water at a temperature exceeding
42 ºC. Always check the water temperature
before placing your feet inside or switching on
the product.
Do not fill water above the MAX marking [9].
Do not splash water on the function button [1],
the ON/OFF indication light [] or the base of
the product.
Do not remove the massage rollers [] or splash
guard [2], except when cleaning the product
(see “Cleaning and care”).
NOTES:
Only use clean water. Do not add any soap,
bath salts or any other substances to the water
container [8].
Do not operate the product without having filled
in water first.
Before and after each use: Clean the product
(see “Cleaning and care”).
Place the product on an even, stable, heat-
resistant, clean, non-slippery and dry floor.
Connect the supply cord with power plug [] to a
suitable socket outlet.

11GB/IE/NI
Operation
Switching the product on/off
Switching the product on: Set the function
button [1] to an operation mode (see “Choosing
a mode”).
The ON/OFF indication light [] switches on to
confirm that the product is operating (Fig. A).
Switching the product off: Set the function
button [1] to 0[]. The ON/OFF indication
light [] switches off.
Choosing a mode
Set the function button [1] to the icons
corresponding to the desired mode (Fig. B).
Mode Function
button
Function
[] Mode 1 Vibration massage
[] Mode 2 Bubble bath*
[] Mode 3 Vibration massage and
bubble bath*
* While keeping the water warm
Using the product without
pedicure attachment
Move your feet back and forth on the massage
rollers [] for a reflex zone massage.
The recommended operation time is 15 minutes.
Using the product with pedicure
attachment
The product includes 3 pedicure attachments:
Pedicure attachment Function
[3] Massager Massage
[6] Callus remover Removing hardened
skin
[7] Brush Massage
Place the desired pedicure attachment [3] [6] [7]
onto the pedicure attachment adapter [4].
Place the remaining 2 pedicure attachments
onto the 2 slots on the pedicure attachments
storage [5].
Rub your foot with gentle pressure on the
pedicure attachment placed on the pedicure
attachment adapter [4].
You may vary the application area on your foot
by changing the position of your foot on the
pedicure attachment.
After use
Switch the product off (see “Switching the
product on/off”).
Disconnect the supply cord with power plug []
from the power outlet.
Empty the water container [8] into a large sink,
bathtub or shower.

12 GB/IE/NI
Cleaning and care
mWARNING! Risk of electric shock! Before
cleaning the product: Always disconnect the
supply cord with power plug [] from the wall
outlet. Never let the electrical components of the
product get in contact with water!
mATTENTION! Risk of product damage!
Do not splash water on the function button [1],
the ON/OFF indication light [] or the base of
the product.
NOTE: Clean the product after each use to
avoid the accumulation of water, grease and
other residues.
Removing the massage rollers []: Pull the
massage rollers upwards carefully.
Removing the splash guard [2]: Undo the locking
clips [] (Fig. C). Pull the splash guard upwards
carefully.
Part Cleaning method
Outer surface (foot spa) Wipe down with a
slightly moist cloth.
[6]* Callus remover
[2] Splash guard
Rinse with clean
water.
[3]* Massager
[5] Pedicure attachment
storage
[7]* Brush
[8] Water container
[] Massage rollers
* Pedicure attachment
Storage
Fix the supply cord with power plug [] on the
cord storage with holder for power plug []
(Fig. C).
Store the product in the original packaging when
it is not in use.
Store the product in a dry, secure location away
from children.
Disposal
The packaging is made entirely of recyclable
materials, which you may dispose of at local
recycling facilities.
Observe the marking of the packaging
materials for waste separation, which
are marked with abbreviations (a) and
numbers (b) with following meaning: 1–7:
plastics / 20–22: paper and fibreboard /
80–98: composite materials.
The product and packaging materials are
recyclable, dispose of it separately for
better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal
authority for more details of how to
dispose of your worn-out product.
To help protect the environment, please
dispose of the product properly when it
has reached the end of its useful life and
not in the household waste. Information on
collection points and their opening hours
can be obtained from your local authority.

13GB/IE/NI
Warranty
The product has been manufactured to strict quality
guidelines and meticulously examined before delivery.
In the event of product defects you have legal rights
against the retailer of this product. Your legal rights
are not limited in any way by our warranty detailed
below.
The warranty for this product is 3 years from the date
of purchase. The warranty period begins on the date
of purchase. Please keep the original sales receipt
in a safe location. This document is required as your
proof of purchase.
Should this product show any fault in materials or
manufacture within 3 years from the date of purchase,
we will repair or replace it – at our choice – free
of charge to you. This warranty becomes void if the
product has been damaged, or used or maintained
improperly.
The warranty applies to defects in material or
manufacture. This warranty does not cover product
parts subject to normal wear, thus possibly considered
consumables (e.g. batteries) or for damage to fragile
parts, e.g. switches, rechargeable batteries or glass
parts.
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
Please have the till receipt and the item number
(IAN 400503_2107) available as proof of
purchase.
You will find the item number on the rating plate, an
engraving, on the front page of the instructions for use
(bottom left), or as a sticker on the rear or bottom of
the product.
If functional or other defects occur, please contact the
service department listed either by telephone or by
e-mail.
You can return a defective product to us free of
charge to the service address that will be provided
to you. Ensure that you enclose the proof of purchase
(till receipt) and information about what the defect is
and when it occurred.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [e-mail]
Service Ireland
Tel.: [phone]
Service Northern Ireland
Tel.: [phone]
E-Mail: [email protected]

IAN 400503_2107
OWIM GmbH & Co. KG
Stiftsbergstraße 1
74167 Neckarsulm
GERMANY
Model No.: HG08655-BS
Version: 02/2022
