SilverStar SPOT 250 User manual

SPOT 250
USER MANUAL
www.
y
a
g
an
g
.com

1.Open the box and checking
2. Safety instructions
Congratulations on choosing our products! Please carefully read this instruction manual in its
entirety and keep it well for using reference. This manual contained about the installation and the
relative using information of this products. Please according to this manual's relative speaking when
using this equipment.
This equipment was made of new style, high intensity plastic . It fully shows the modem times
light characteristic with beauty structure. And it was made according to CE standard. Fully up the
international standard of DMX512 agreement. Master or slave in phase control. Can be use in large
entertainment, theater, performing and playing hall, etc.
This product uses MSD 250 or MSD 250/2 electrical arc lamp. When receiving this product
please carefully bring and put; and check that whether this equipment has been damaged or not
during transportation. And please also check the following thing was enclosed:
Signal line ----------------------- one piece Safety string -----------------------one piece
User Manual-----------------------one set Omega holder----------------------two pieces
Every person involved with installation and maintenance of this device have to:
- be qualilfied
- follow the instructions of this manual
eep this device away from rain and moisture!
nplug mains lead before opening the housing!
OR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
EFORE YOU INITIAL START - UP!
his device has left our premises in absolutely perfect condition. In order to maintain
this condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
he manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not
subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power-cord
and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Always plug in the power plug least. Make sure that the power-switch is set to OFF-
position before you connect the device to the mains. The power-plug has to be access
able after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the
device and the power cord from time to time.
CAUTION:
Important:
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
K
U
F
B
T
B
W
e careful with your operations.
ith a high voltage you can suffer a dangerous electric shock when touching the
wires!
T

¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
b
y the plug. Never pull out the plug by tugging the power-cord.
This device falls under protection class I. Thereforeit is essential to connect the
yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified
employee.
Do not connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp' s
life.
During the initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective.
Do not touch the device's housing bare hands during its operation (housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
CAUTION :
EYE DAMAGES !
Avoid looking directly into the light source(meant especially for epileptics) !
℃
3. Operating determinations
This device is a moving-head spot for creating decorative effects and was designed for
indoor use only.
If the device has been exposed to drastic temperature fluctuation (e.g.After transport-
ation), do not switch it on immediately.The arising condensation water might damage
your device.Leave the device switched off until it has reached room temperature.
Never run the device without lamp!
Do not shake the device.Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be
damaged.Always hold the fixture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to
extreme heat, moistureor dust. There should not be any cables lying around.You
endanger your own and the safety of others!
The minimum distance between light-output and the illuminated surface must be more
than 2 meters.
Make sure that the area below the installation place is blocked when rigging, derigging
or servicing the fixture.Always fix the fixture with an appropriate safety-rope.Fix the
safety-rope at the correct holes only.
Only operate the fixture after having checked that the housing is firmly closed and all
screws are tightly fastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as
discharge lamps may explose and emit a high ultraviolet radiation, which may cause
burns.
The maximum ambient temperature ta = 45 must never be exceeded. Otherwise, the
lamp is switched off and the fixture is out of operation for 5 minutes
..

4.Descri
p
tionof the device

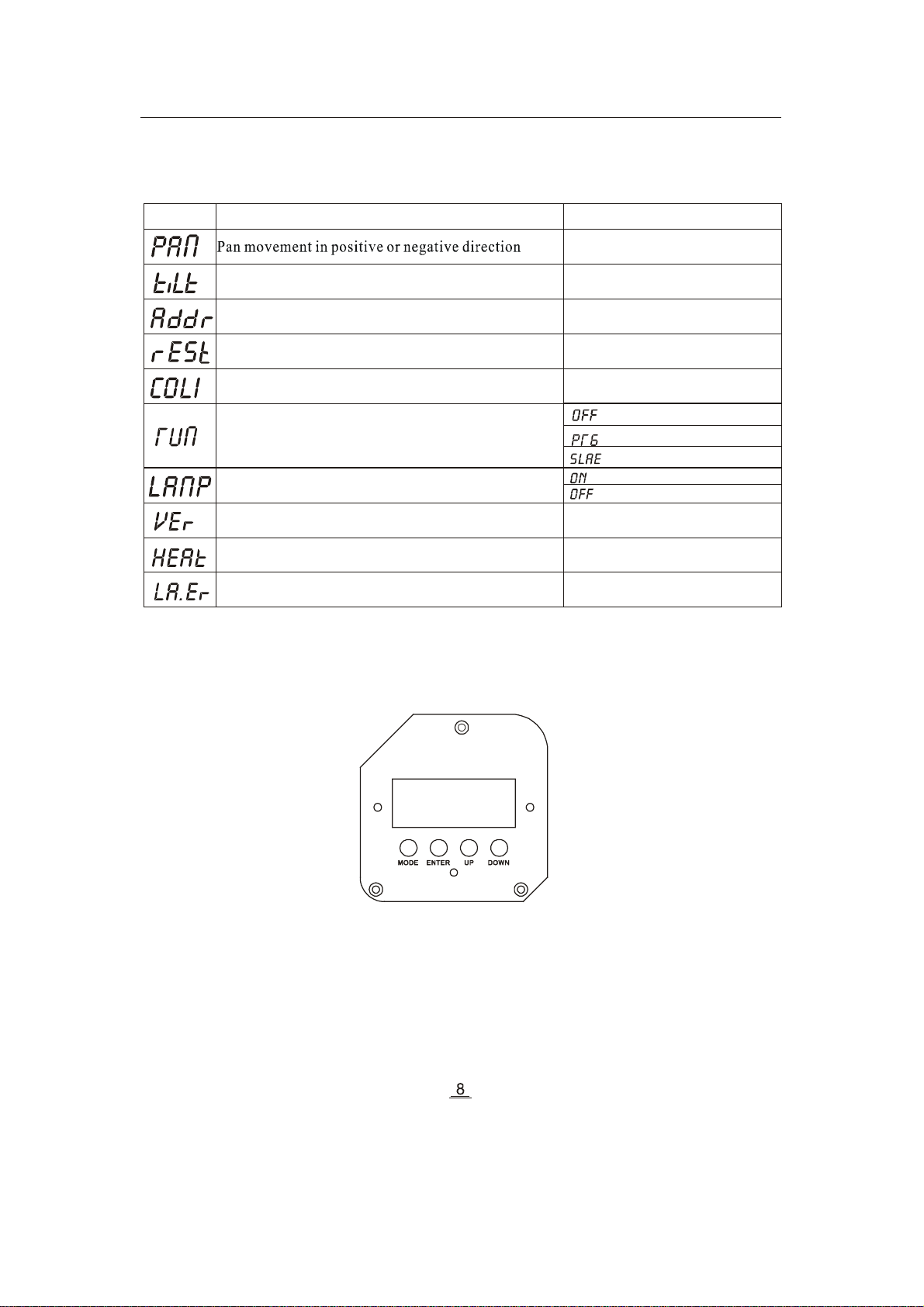

Front panel:
10 - Mode-button
11 - Enter-button
12 - Up-button
13- Down-button
14- Display
Rear panel:
5 -Power switch
6 -DMX output
7- DMX input
8- Power cord
9- Fuse holder
1- Moving head
2-Yoke
3- Carry handles
4 - Base
POWERSWITCH
POWER SUPPLY T3.15A@230V
T6.3A@120V
LAMP:MSD 250/2
MSD 250
FUSE
1=GND
2=SIG.-
3=SIG.+
SERIAL DATA LINK
LIGHTING CONTROL PROTOCOL:DMX512
Serial number:

5.Installion
Lamp assembly:
5.1 Fitting the lamp
To insert the lamp MSD 250 or MSD 250/2 open the top cover of the projector-head (see
the drawing to identify which cover is top) by loosening the 3 screws on the cover. Then
open the small lamp cover by loosening 2 fastening screws (see the drawing). If changing
the lamp, remove the old lamp from the socket. Insert the lamp to the socket. Do not
install a lamp with a higher wattage! A lamp like this generates temperatures the device is
not designed for. Damages caused by non-observance are not subject to warranty. Please
follow the lamp manufacturer s notes! Do not touch the glass bulb with bare hands
during the installation! Make sure that the lamp is installed tightly into the lampholder
system. Adjust the optimal distance 1-1.5 mm from the lens by turning the screw "A" (see
the drawings "Lamp adjustment" below) on the rear panel of the head. Then close the
small lamp cover by tighten 2 fastening screws again. Reclose the top cover of the head
and tighten the 3 screws.
‘
Fasteningscrews
Fastening screws
Lamp cover
Topcover
Lamp

5.2 Lamp adjust
The lamp holder is aligned at the factory. Due to differences between lamps , fine
adjustment may improve light performance. Strike the lamp, open the shutter and the iris,
setthe dimmerintensityonto 100% and focus the light ona flat surface (wall).As the
optimum distance of the lamp from lens was adjusted during theinstalling or changing the
lamp (by turning the screw ), it is necessary to adjust only the second position by
turning the screw , in order to center the hot-spot (the brightest part of the beam). If
the hot spotseems to be too bright, you can lower its intensity by moving the lamp closer to
the reflector. Do soby turningthe screw until the light isevenlydistributed. If the
light on the edgeseems to be brighter as in the center, the lamp is too close at the reflector.
In this case, you need to move the lamp away from the reflector until the light is evenly
distributed and the beam appears bright enough.
"A"
"B"
"A"
1-1,5mm
Optimumdistance
Screw B “”
Screw A “”
Correct
WARNING!
Lamp is hot! Risk of fire!Protecthandsand eyes.
Wait at least 15min. Before opening the covers
and removing lamp from the fixture.
Minimum distance to lighted object:
Maximum room temperature t=45
Minimum distance from flammable material d=0.5m.
Exterior surface temperature T=80 .
Not for domestic use.
℃
℃
Be surethat the lamp
bulb never touch the lens
Disconnect the fixture from AC power
beforere-lamping.
AB
A
djust lamp position byturningscrews and
Incorrect
Turn off the lamp and allow it to cool for at least 10 minutes. Disconnect the fixture from
power. To insert the gobos open the top cover of the moving-head by loosening the 3 screws
on the top cover and follow the instructions below:
Press the ends of the fixation-ring together withan appropriate tool and removeit.
Remove the gobo and insert the new gobo. Press the ends of the fixation-ring together and
insert it in the front of the gobo.
Rotating gobo-wheel:
5.3Inserting/Exchanging gobos

5.4 Rigging the fixture
DANGER TO LIFE:Please considerthe respective national norms during the
installation!The installation mustonly be carried outby an authorized dealer!
Caution:
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
¾
The installation of the projector has to be built and constructed in a way that it can hold 10
times the weight for 1 hour without any harming deformation.
Theinstallation mustalwaysbe secured with asecondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in a way that
nopart of the installation can fall down if the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the installation
place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are
approved by an expert before taking into operation for the first time andafter changes
before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are
approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are
approvedby a skilled person once a year.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE,
including (but not limited to)calculating working load limits, installation material being
used, and periodicsafety inspection ofall installationmaterial and the projector.If you
lack these qualifications, do not attempt the installation yourself, but instead use a
professional structural rigger. Improper installation can resultin bodily injury andor
damage to property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing
systems have tobe used.The projector must never be fixed swinging freely in the room.
Projectors may cause severe injuries whencrashing down! If you have doubts
concerningthe safety of apossibleinstallation, do NOT installthe projector!
Before rigging make sure that the installation area can hold a minimum point load of 10
times the projector s weight.
¾
¾
The projector can be placed directly on the stage floor or rigged in any orientation on a
truss without altering its operation characteristics.
For overhead use, always installa safety-rope that can hold at least 10 times the weight of
the fixture.You must only use safety-ropes with screw-on carabines. Pull the safety-rope
through the two apertures on the bottom of the base and over the trussing system etc.
Insert the end in the carabine and tighten the fixation screw.
Omega holder

5.5 Connection to the mains
Verify the power supply settingsbefore applying power!
If you wish to change the power supply settings,see the chapterAppendix.
Connect the fixture to the mains with the enclosed power cable and plug.
The earth has to be connected!
The occupation of the connection-cables is as follows:
Pin
Cable (EU) International
Brown
Lightblue
ellow/Green
Y
Black
White
Green
Live
Neutral
Earth
L
N
Cable (US)

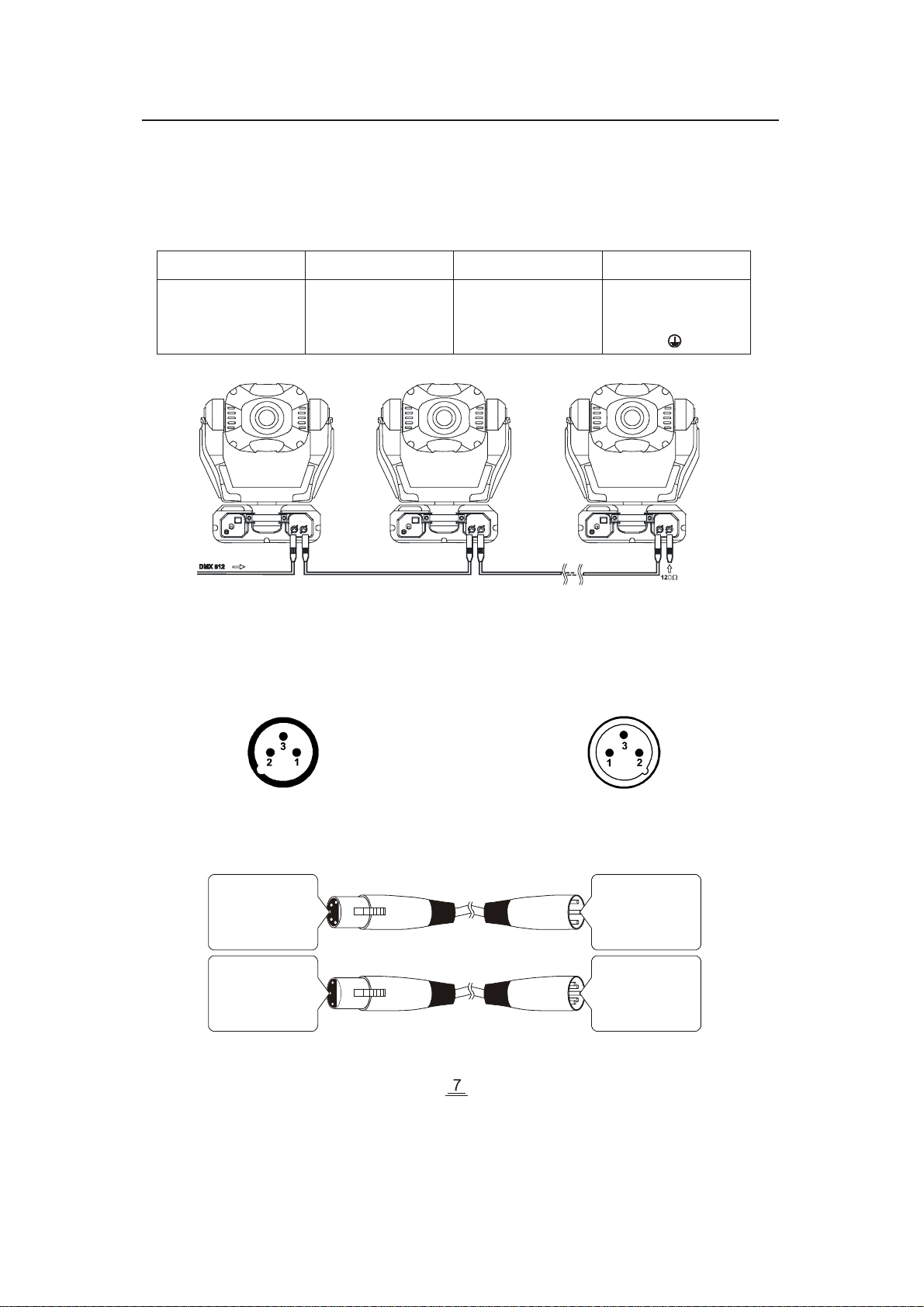

5.6 DMX-512 connection/connection between fixtures
Onlyuse a stereoshieldedcable and 3-pin XLR-plugs and connectors in order to connect the
controller with the fixture or one fixture with another.
DMX-OUTPUT DMX-input
1
2
3
- Ground
- Signal (-)
- Signal (+)
1 1
2
3
-Ground
- Signal (-)
- Signal (+)
Occupation of the XLR-connection:
XLR mounting-socket: XLR mounting-plug:
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a
120 resistor between Signal (-) and Signal(+) into a 3-pin XLR-plug andplug it in the
DMX-output of the last fixture.
Ω
5Pins canon( )plug
Pin 1: GND(SCREEN)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin 4: N/C
Pin 5: N/C
3
Pin 1: GND(SCREEN)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pins canon(socket)
5Pins canon(socket)
Pin 1: GND(SCREEN)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pin 4: N/C
Pin 5: N/C
3plug
Pin 1: GND(SCREEN)
Pin 2: Signal(-)
Pin 3: Signal(+)
Pins canon( )
The transform of the controller line of 3 pins and 5 pins (plug and socket)

Mode Function Condition
YES--negative direction
FunctionTable:
YES--negative direction
6. ControlBoard Operation
Vertical movement in positive or negative direction
Address code set
Reset
Rainbow color wheel change color linear or stepping
YES--reset
YES--linear
Working mode
DMX512 mode
Automatic
Slave mode
Lamp switch Lamp on
Lamp off
Software version
Lamp hot
Lamp error
Control board operation way:
1.Select working mode by pressing MODE.
2.Press ENTER to confirm the selection.
3.Press UP and DOWN to select workingcondition.
4.Press ENTER to confirm the selection.
LED

7. DMX512 Channel Function
CHANNEL
PAN
TILT
PAN FINE(proportional)
TILT FINE(proportional)
Speed of PAN/TILT movement
Lamp on/off & reset
Colors
Prism
Rotating gobos
otating g
/ strobe
Dimmer intensity(proportional)
R obo index, rotating goborotation
Focus(proportional)
Shutter
FUNCTION

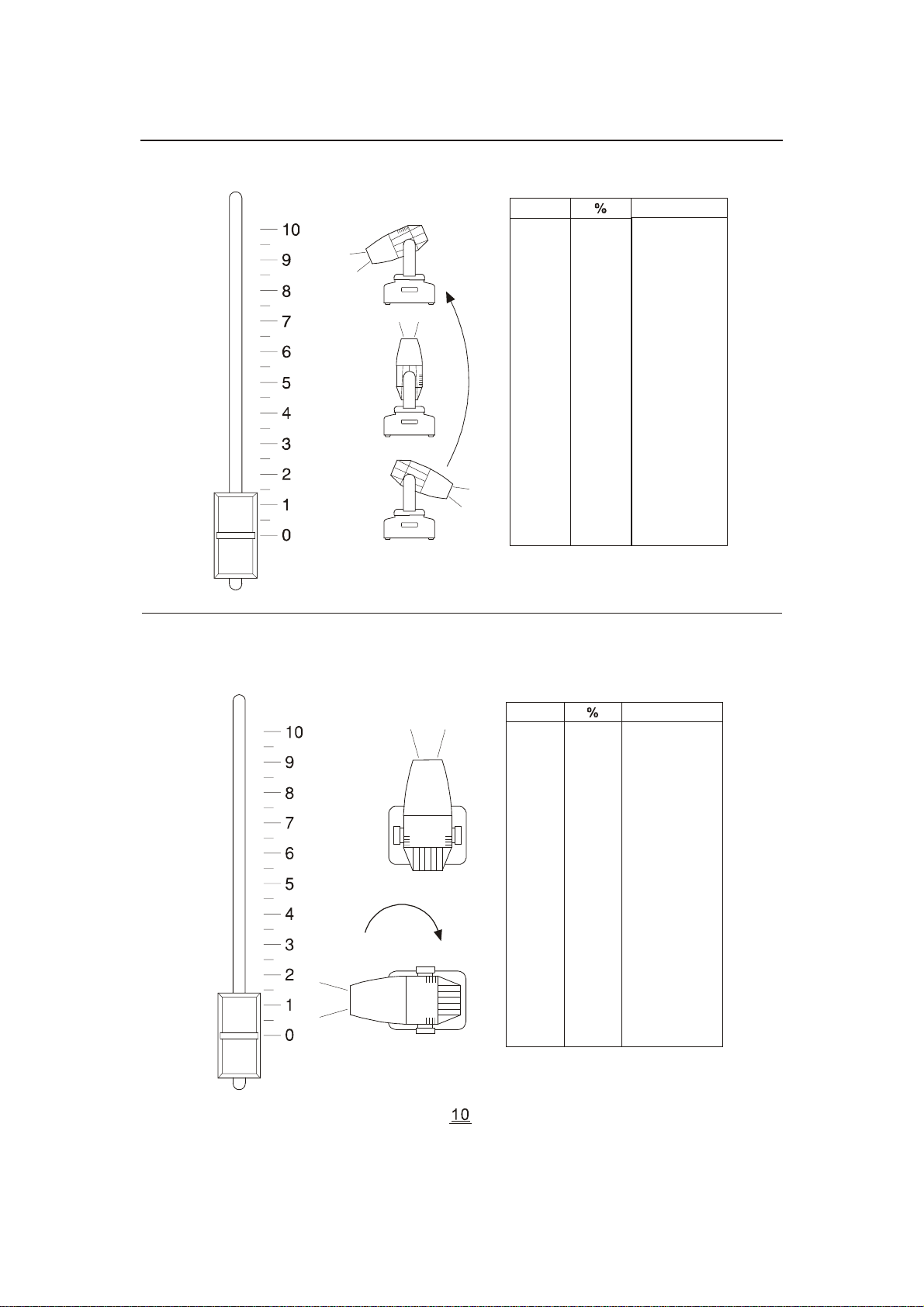

CHANNEL1: PAN
Value
Effect
Clockwise
rotate
0 ° 53
255
0
100
0

CHANNEL2: TILT
Value
Effect
Anti-clockwise
280 rotate
°
255
0
100
0
CHANNEL n3: PAN FINE (
p
ro
p
ortio al)
Fine controloftilt
movement
Value
Effect
255
0
100
0

CHANNEL FINE (proportional)4:TILT
Fine controlof tilt
movement
Value
Effect
255
0
100
0

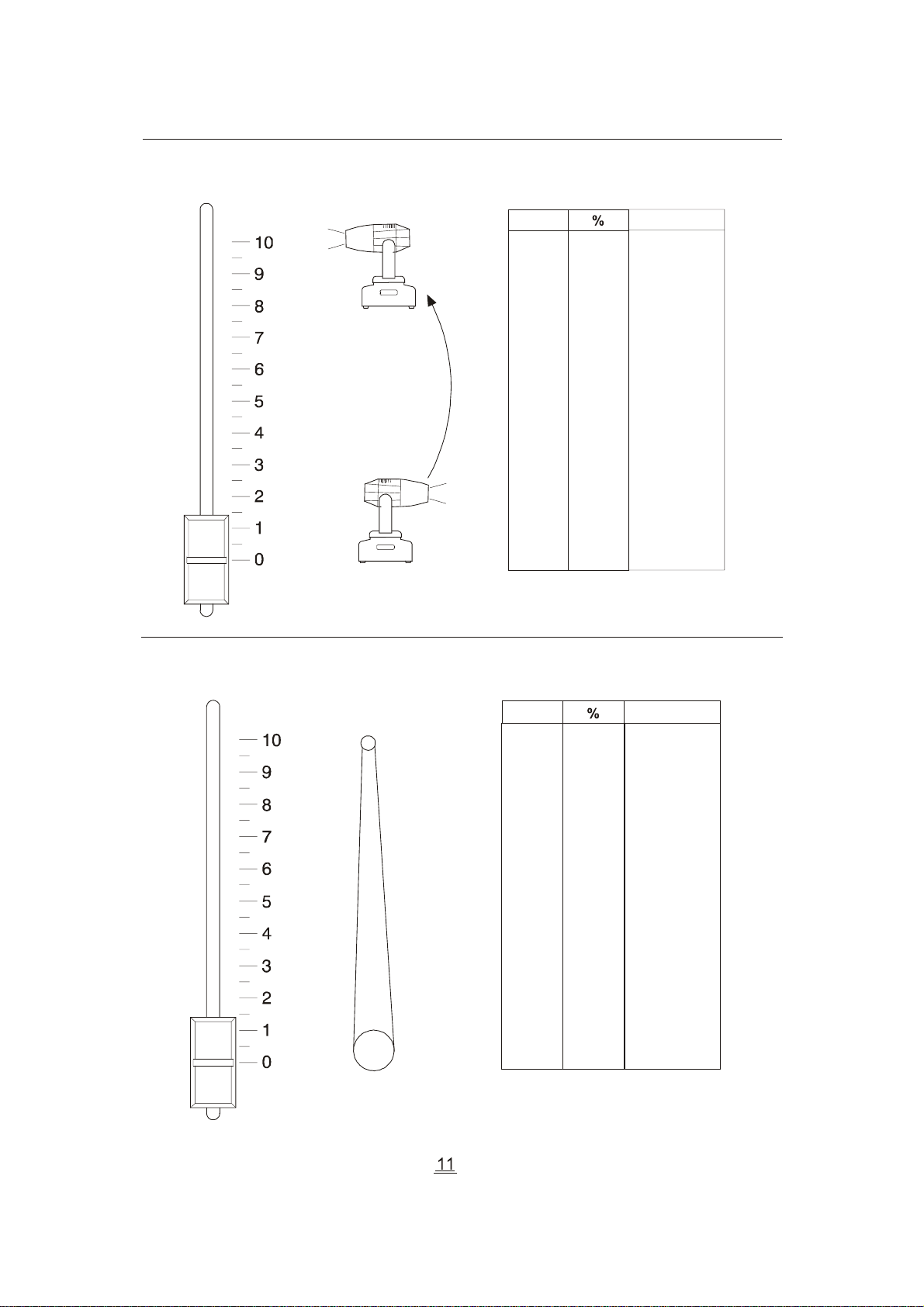

CHANNEL5: Speed of PAN/TILT movement
Value
Effect
fast
Slow
Fast
Slow
255
0
100
0

Value
Effect
CHANNEL6: Lamp on/off & reset
240-255
230-239
140-229
128-139
0-127 0-49
50-54
55-90
91-94
95-100
No function
No function
No function
Lamp off after 3
Lamp on after 3
CHANNEL7: Color
128-255
112-127
96-111
80-95
64-79
48-63
32-47
16-31
0-15
50-100
44-49
37-43
31-36
25-30
19-24
12-18
6-11
0-5
Forwards rainbow
Pink
Blue
Orange
Green
Magenta
Yellow
Red
Open/white
effect from slow to fast

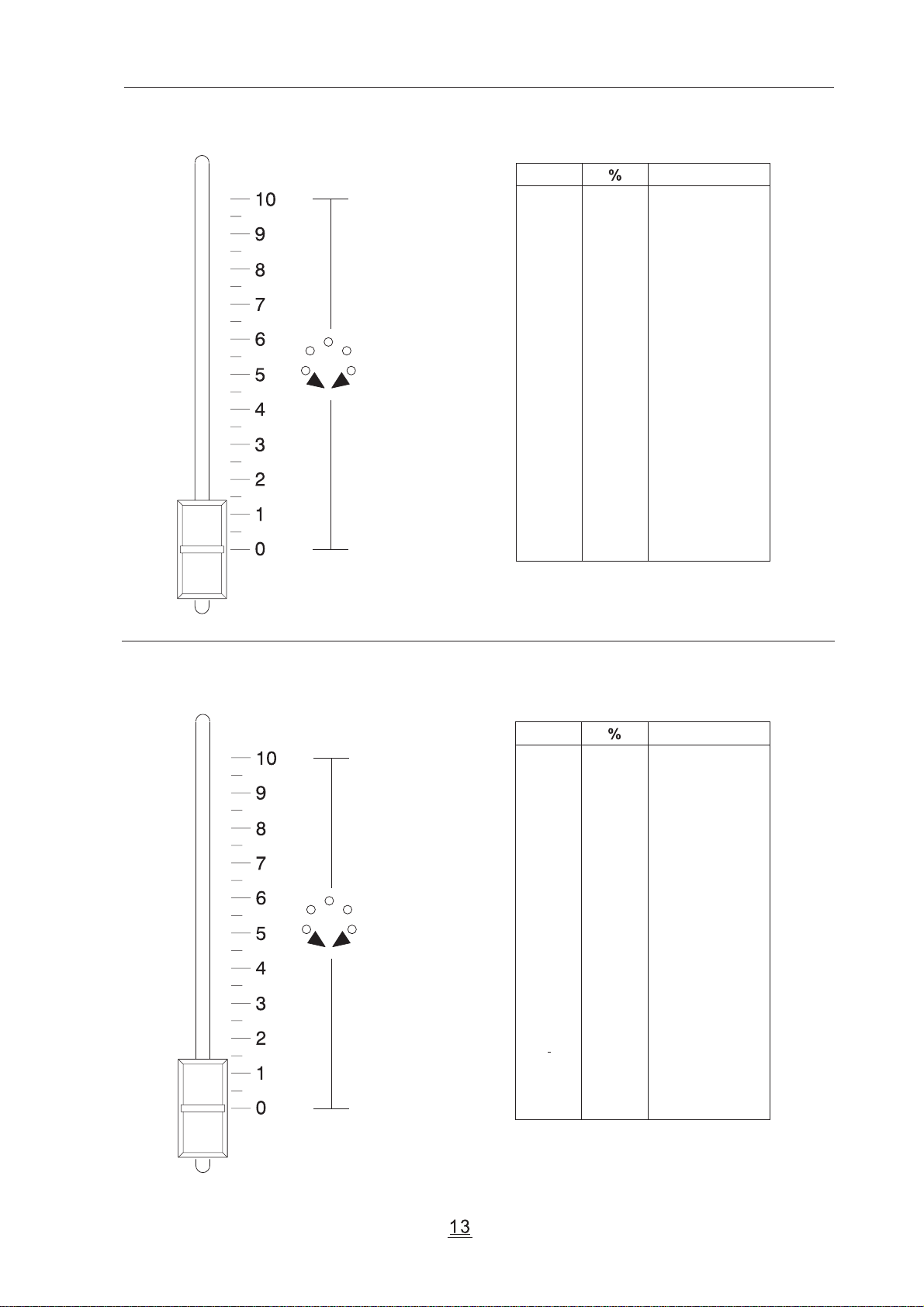

CHANNEL 8: Prism
Value Effect
CHANNEL 9: Rotating gobos
Value Effect
Rotate gobo wheel
4
gobo 3
1
Open/hole
Rotate gobo 5
Rotate gobo
Rotate
Rotate gobo 2
Rotate gobo
224-255
160-223
128-159
96-127
64-95
32-63
0-31
88-100
63-87
50-62
37-49
25-36
12-24
0-11
continue rotation
from slow to fast
133-255
128-132
5-127
0-4 0-2
3-50
51-52
53-100 Backwards rotation
No rotation
Forwards rotation
No rotation
from slow to fast
from fast to slow

CHANNEL10:Rotating goboindex, rotating gobo rotation
159-255
61-158
0-60
Value
Effect
0-23
62-100
24-61
Backwards gobo rotation
Forwards gobo rotation
Gobo indexing (0-540 )
°
from slow to fast
from slow to fast
CHANNEL11: Focus(proportional)
Value
Effect
Near
Far
closedistance
far distance
00
100
255

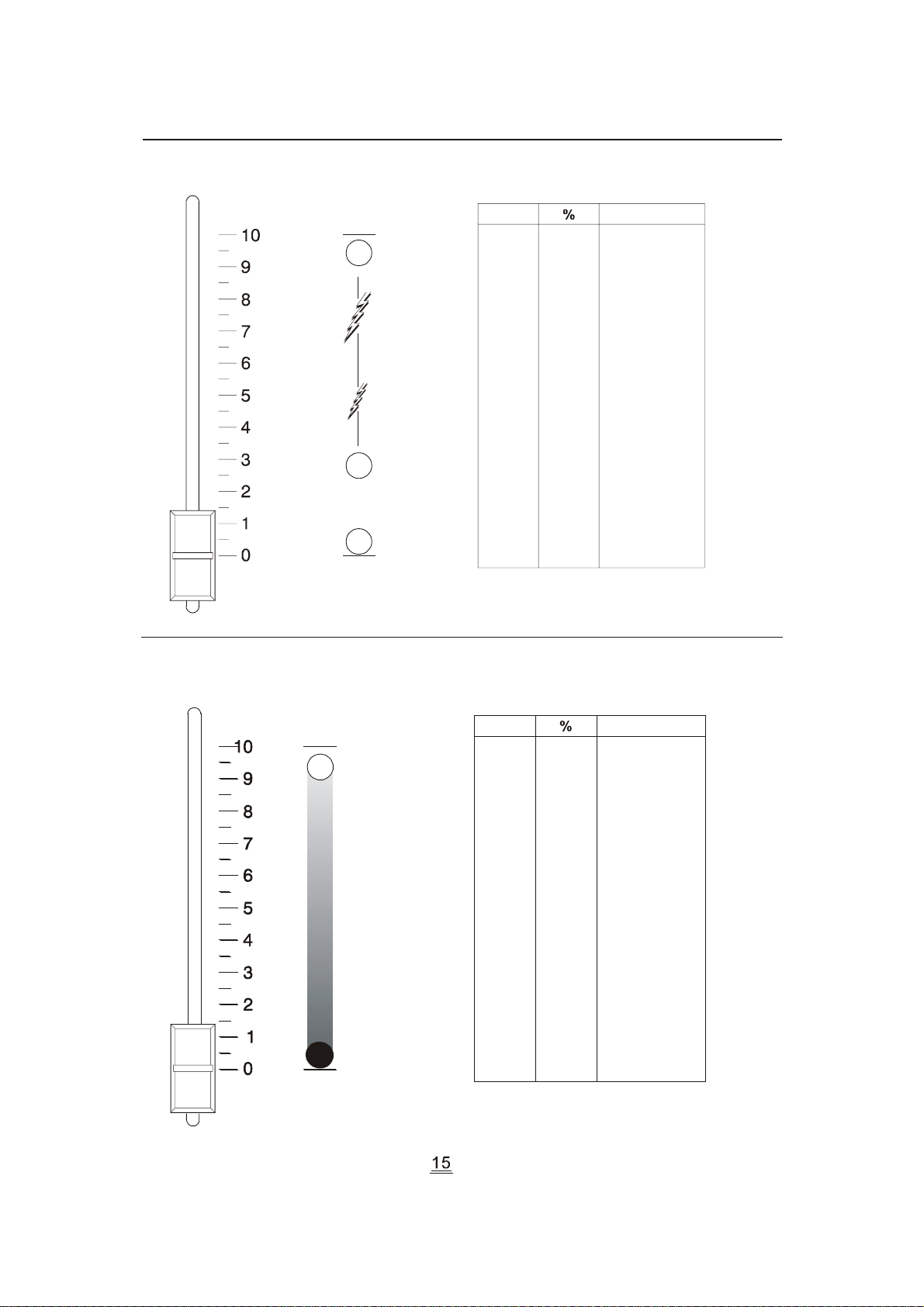

CHANNEL12:Shutter, strobe
Value
Effect
Value
Effect
Black
Brightest
Brightest
Black
CHANNEL13: Dimmerintensity(proportional)
Shutter Open
Random strobe-
Shutter Open
Pulse-effect in
Shutter Open
Strobe-effect from
Shutter Open
Shutter closed
224-255
192-223
160-191
128-159
96-127
64-95
32-63
0-31
87-100
75-86
62-74
50-61
37-49
25-36
12-24
0-11
effect from slow
to fast
sequences from
slow to fast
slow to fast (max
10flashes/s)
255
0
100
0

8. Technical specifications
US-model:
EU-model:
Voltage............................AC100/110/120V , 50/60Hz
Fuse................................ T 6.3A@120V
Voltage............................AC
................................
Philips MSD250/2 or MSD 250 GY9,5
Linear electric focus
7dichroic-filters plus white
: Variable speed (1-10 flashes/sec)
-Stands directly on the floor
-Mounts horizontally or vertically with 2 clamps
-1 truss orientation
-Safety chain/cord attachment bolt
-Maximum ambient temperature ta: 45
-Maximum housingtemperature tb (steady state):80
-Min.distance from flammable surfaces: 0.5m
-Min.distance to lighted object: 2.0m
-Pan 530 , Tilt 280
-Micro-step scan effect
-Auto-repositioning byphotoelectric repositioning system
-Linearity move speed adjust.
-Length of base(including handles):400 mm
-Width of yoke: 400 mm
-Height (head horizontal): 476 mm
-Weight (net): 25 kg
220/230/240V ,50/60Hz
Fuse T10
500W
13CHS
18000 LUX
Smooth dimmer 0-100%
RatedPower
DMX512 Channel
Luminous
：
：
：
Color:
Dimmer:
Pan / Tilt Movement:
Strobe
Minimum distances:
Dimensions and weight:
Rigging:
emperaturesT
℃℃
°°
A @230V
Lamp :
Optical System:

Beampath:
9. Maintenanceand cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid
residues must not buildup on orwithinthe fixture. Otherwise, the fixtures light-output will
be significantly reduced. Regular cleaning willnot only ensure the maximum light-output,
b
ut will also allow the fixture to function reliably throughout its life.Asoft lint-free cloth
moistenedwithany good glass cleaningfluid is recommended, under nocircumstances
should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up
residues, reducing thelight-output very quickly.The cooling-fans should be cleaned
monthly.
Thegobos may be cleaned with a softbrush.The interior of the fixture should be cleaned at
least annually usinga vacuum-cleaner or an air-jet.
Thedichroic colour-filters, the gobo-wheel and theinternal lenses should be cleaned
monthly.
To ensure a proper function of the gobo-wheel , we recommend lubrication in six month
intervals.The quantity of oil must not be excessive in order to avoid that oil runs out when
the gobo-wheel rotates.
There are no serviceable parts inside the device except for the lamp and the fuse.Please refer
to the instructions under "Fitting/Exchanging the lamp".Maintenance and service
operations are only to be carriedout by authorized dealers.
If the lamp burns out, the fine-wire fuse of the device might fuse, too.Only replace the fuse
bya fuse of same typeand rating.Before replacing the fuse, unplug mains lead.
1) Unscrew the fuseholder on the rear panel of the base with a fitting screwdriver from the
housing (anti- clockwise).
2) Remove the old fuse fromthe fuseholder.
3) Install the new fuse in the fuseholder.
4) Replace the fuseholder in the housing and fix it.
DANGER :Disconnect from the mains before startinganymaintenance work
Replacingthe fuse
Procedure:
