ZTA.50 Mains Track
Installation and Maintenance
Instructions
IMPORTANT: All wiring connections must be made before switching on mains power.
European Conformity
Please retain these instructions for future reference
This product should not be disposed of in your general waste
Class II - Double insulated fitting
Indoor Use Only
IP20
Xicato LED Module
All of our in-house printed paper
is 100% recycled and recyclable
ZTA.50 Mains Track.pdf 1 12/04/2021 11:00:05

Electrical Supply
Installation must be carried out by a qualified electrician in
accordance with BS 7671:2008 Wiring Regulations.
230/240V AC 50/60Hz mains supply to suitable lighting
track.
Site conditions: LED equipment is more susceptible to
static damage and over voltage than previous technology.
Before handling or connecting to the mains supply ensure
that all Stoane Lighting (SL) products are protected from
static discharge and that the mains supply is to regulation.
(230V +10 -6%)
This fitting is supplied with a Xicato LED module. Refer to
the fitting label for the module version and wattage. More
information on the module can be found at
www.xicato.com/support
Mains cables must be double insulated, strain relieved
and separated from E.L.V output cables.
Observe polarity:
Incorrect supply or reverse polarity can cause irreparable
damage.
All connections must be made before switching on mains.
If the supply is energised prior to making the connections
to the fitting then the resulting surge will damage the LED.
Maintenance:
All lighting equipment is delicate and easily damaged
through misuse or inappropriate installation (mechanical
or electrical). Repairs and replacements may cause
delays and will be chargeable. Contact SL for support if
required.
All Stoane Lighting products are covered by a five year
Warranty and a 25 year Duty of Care. Products are
designed to be upgraded, adapted and refreshed using
our comprehensive ReNew service. For more information
on our ReNew service and for full Warranty terms and
conditions visit stoanelighting.com or contact us at the
address shown.
The light source contained in this luminaire shall only be
replaced by the manufacturer or his service agent or a
similar qualified person.
Installation
Check that the track is mounted securely and is
capable of supporting the total weight of the
fittings on it.
Fitting Weight : 0.75kg.
Track must always be mounted to a horizontal ceiling,
mounting track vertically or on a wall or at an angle
will result in damage to the fittings.
Step 1 Insert the track adaptor into the track and
secure via the locking tab.
Whilst holding the fitting turn the locking tab
through 90° and the fitting will be locked in
place.
Step 2 Rotate the circuit selector to the required
circuit.
WARNING: Do not look at exposed LED lamps in
operation. Eye injury can result.
Additional items should not be hung or suspended
from this fitting. SL takes no responsibility for
additional items added by others or the consequences
of those items.
When supplying digital equipment with the potential to
be connected to networks, physically or wirelessly (i.e.
Bluetooth, WiFi, DMX radio etc.), SL does not take
responsibility for the digital security of the equipment
or associated networks. It is the customer’s
responsibility to select a protocol suitably robust for
their requirements and to ensure responsible
utilisation of passwords.
SL can provide assistance on dimming compatibility or
control systems by request. For advice on specific
dimming systems we recommend seeking assistance
from the commissioning engineer or the control
systems provider in the first instance.
Cleaning:
Fully isolate the fitting and allow to cool.
Clean the fitting with a slightly damp lint free cloth
from a mild solution of soap and water. The fitting
must be completely dry before reconnecting power.
Incompatible or abrasive chemicals can damage the
fitting, contact SL for advice if required.
ZTA.50 Mains Track.pdf 2 12/04/2021 11:00:05

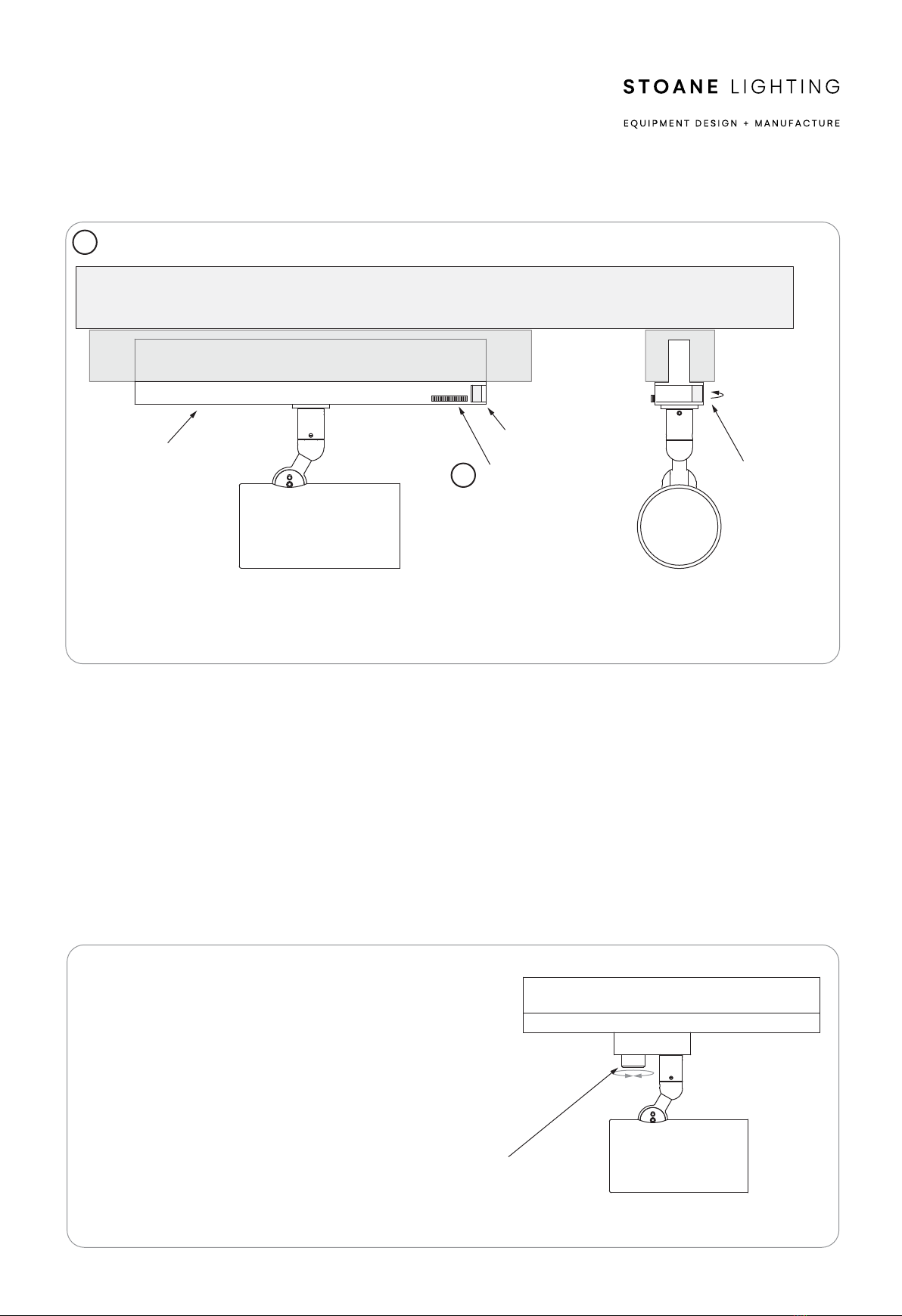

1
2Rotate
locking
tab 90
Locking tab
Circuit Select
Track adaptor
On board dimmer
ON BOARD DIMMING (optional)
On optional 1-10V dimming pot version is available.
Rotate the pot to dim as required.
For BLE fittings this pot can be configured during
commissioning to set a maximum light level.
ZTA.50 Mains Track.pdf 3 12/04/2021 11:00:05

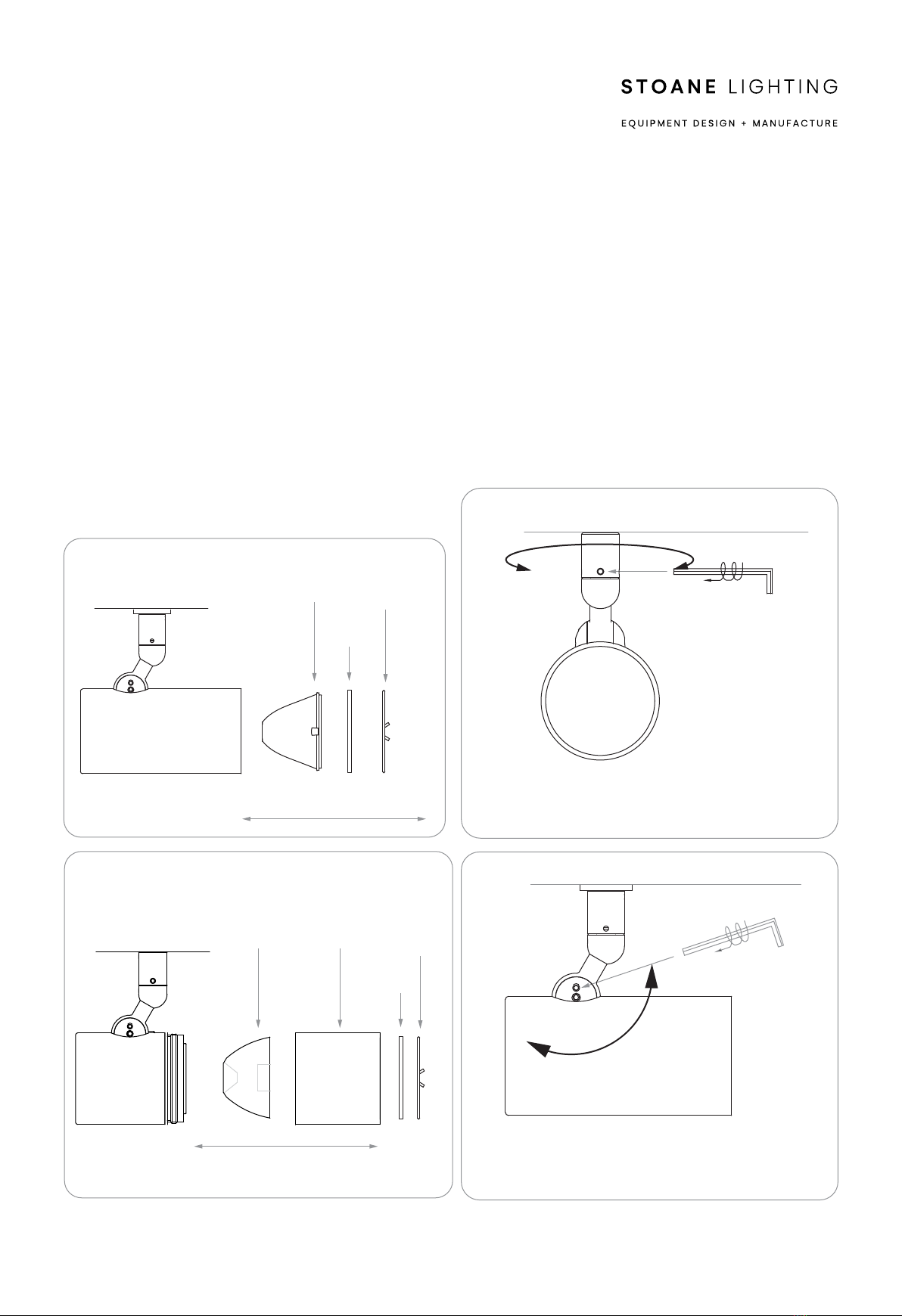

Circlip Accessories Optic
Pan
Tilt
MODULE AND ACCESSORIES
The colour temperature and lumen output can be found
on the product label on the fitting.
To add/remove accessories:
Isolate the fitting from the supply and allow to cool.
Step 1 Remove the circlip to access the optic and
accessories..
Step 2 Change optic/accessories as required and
replace circlip to secure.
To replace optic on split heatsink version;
Step 1 Unscrew bezel to access optic and replace as
required. Replace the bezel once optic is in
place.
ADJUSTMENT
To adjust the tilt and pan of the fitting use the supplied
2mm Allen key to loosen off the tilt and pan lock screws.
Once the desired angle is achieved lock off the screws.
DO NOT over tighten the screws as this could damage
the lock and cause it to no longer function.
Optic Bezel
Circlip Accessories
Split heatsink version
ZTA.50 Mains Track.pdf 4 12/04/2021 11:00:05

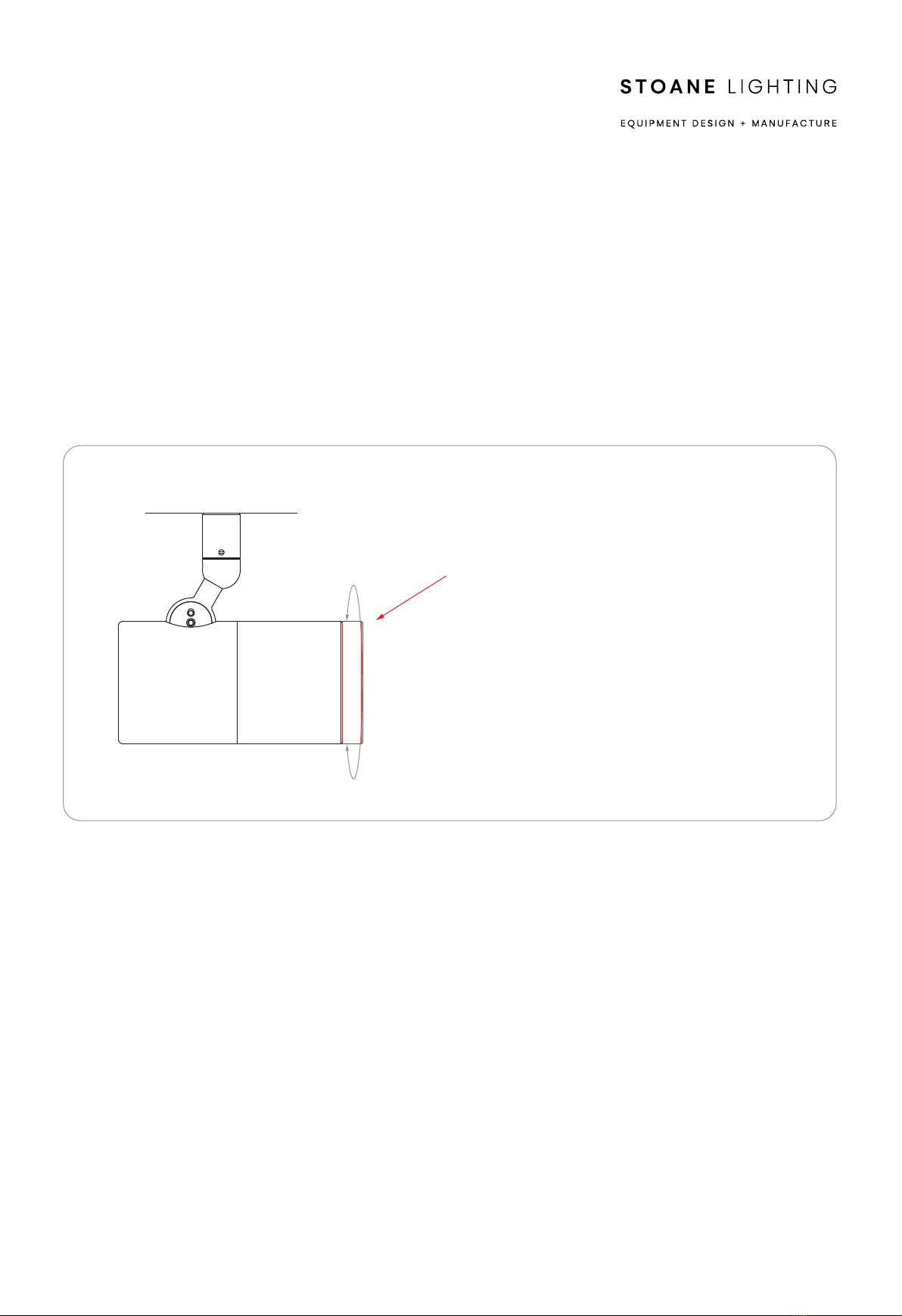

ZTA Zoom (Optional)
To adjust the angle of the beam rotate the lamptube;
Clockwise to widen the beam.
Anticlockwise to tighten.
This fitting will reach a soft stop when the fitting reaches
the tightest beam position. Forcing the lamptube to
rotate further will damage the fitting.
Rotate clockwise to widen beam
Rotate anticlockwise to tighten beam.
ZTA.50 Mains Track.pdf 5 12/04/2021 11:00:05

Stoane Lighting firmly believe that we have a responsibility as environmental
custodians, we believe that lighting equipment should be built to last, to be
repaired and to be reused. As a BCorp we believe that we must look to operate in
a business not aiming to just be best in the world but a business best for the world.
Stoane Lighting believe that the circular economy is a fundamental aspect of how
we approach the challenges we face. If you read this at the end of the product life
we encourage you to consider how you can ensure these products see an
extended life.
All Stoane Lighting products are supplied with a 5 year warranty and a 25 year
duty of care.
Stoane Lighting operate a ReNew division, which can take your existing fittings
and refurbish or upgrade without the need for replacing what you already have.
Through the ReNew service, Stoane Lighting provides general repair, deep cleans
and electrical safety checks on luminaires, as well as possible repainting if needed.
We will replace components that are nearing end of life, such as drivers, LEDs,
and optics. If the fittings are to be used in a new area, or the existing space is
undergoing a change in use, ReNew can offer a different mounting method or light
technical performance (such as colour tuning), if needed, alongside the addition of
on-board wireless control. ReNew as a service, depending on location, can be
done on site or by returning equipment to Stoane Lighting.
Once fittings have been repaired or upgraded through ReNew, they will start a new
five-year warranty period, and any unwanted parts will be recycled.
