Sime MURELLE ELITE HE 35 T ErP Manual

MURELLE ELITE
HE 30 - 35 - 35 T ErP
199838
USER, INSTALLATION AND SERVICING INSTRUCTIONS
ENSURE THAT THESE
INSTRUCTIONS ARE LEFT
FOR THE USER AFTER
COMPLETION OF THE
BENCHMARK SECTION
PLEASE READ THE
IMPORTANT NOTICE
WITHIN THIS GUIDE
REGARDING YOUR BOILER
WARRANTY
UK Cod. 6322860 - 07/2015

All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make changes and
improvements in our products that may affect the accuracy of the information contained in this manual.
This boiler may require 2 or more operatives to move it into its installation site, remove it from its packaging and
during movement into its installation location. Manoeuvring the boiler may include the use of a sack truck and
involve lifting pushing and pulling.
Caution should be exercised during these operations.
Operatives should be knowledgeable in handling techniques when performing these tasks and the following
precautions should be considered:
– Grip the boiler at the base
– Be physically capable
– Use personal protective equipment as appropriate e.g. gloves, safety footwear.
During all manoeuvres and handling actions, every attempt should be made to ensure the following unless
unavoidable and/or the weight is light.
– Keep back straight
– Avoid twisting at the waist
– Always grip with the palm of the hand
– Keep load as close to the body as possible
– Always use assistance
WARNING
Caution should be exercised when performing any work on this appliance.
Protective gloves and safety glasses are recommended.
– Avoid direct contact with sharp edges.
– Avoid contact with any hot surfaces.
NOTICE
Please be aware that due to the wet testing of the appliance, there may some residual water in the hydraulic circuit.
– Protect any surfaces, carpets or floorings.
– Use a suitable container to catch any water that escape when removing the protective caps from the connections.
SAFE HANDLING
IMPORTANT NOTICE
For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and
labour.
As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and
service.
To take advantage of any extended warranty offered, all you have to do is to adhere to these 3 simple conditions:
• The installation must be carried out to Manufacturers/Benchmark Standards by a Gas Safe Registered
Engineer, and recorded in the installation manual.
• The appliance must be registered with both Sime Ltd and Gas Safe within 30 days of installation.
• The appliance must be serviced every 12 months, within 30 days of the anniversary of the installation date, by
either Sime Ltd or a Gas Safe registered engineer- ensuring that the Benchmark service record in the
installation manual is completed.
Failure to comply with the above will result in only the 12 month warranty being offered.
In the absence of any proof of purchase, the 12 month warranty period will commence from the date of manufacture
of the boiler as shown on the appliance data plate.

Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and
commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise
safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
For more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist in the use and maintenance section
of the installation instructions supplied with the product and that you have signed it to say that you have received a
full and clear explanation of its operation.
The installer is legally required to complete a commissioning checklist as a means of complyng with the appropriate
Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons
Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance.
The service engineer should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work and as supporting documentation
relating to home improvements in the optional documents section of the Home Information Pack.
THE BENCHMARK SCHEME
Murelle ELITE HE
Profilo sanitario di carico dichiarato
D.H.W load profile declared
Classe efficienza energetica stagionale riscaldamento
C.H. energy efficiency class
Classe efficienza energetica sanitario
D.H.W. energy efficiency class
Potenza termica (kW)
Heat output (kW)
Consumo annuo di energia riscaldamento (kWh)
C.H. annual energy consumption (kWh)
Consumo annuo di combustibile sanitario (GJ)
D.H.W. annual combustible consumption (GJ)
Efficienza energetica stagionale riscaldamento (%)
C.H. seasonal energy efficiency (%)
Efficienza energetica sanitario (%)
D.HW. energy efficiency (%)
Potenza sonora dB(A)
Sound power dB(A)
Specifiche precauzioni da adottare al momento del montaggio, dell’installazione o della manutenzione del-
l’apparecchio sono contenute all’interno del manuale di istruzioni della caldaia
Specific precautionary measures to be adopted at the time of assembly, installation or maintenance of the
equipment are contained in the boiler instruction manual
Conforme all’allegato IV (punto 2) del regolamento delegato (UE) N° 811/2013 che integra la Direttiva
2010/30/UE
Conforming to Annex IV (item 2) of the Delegated Regulations (EU) No. 811/2013 which supplements
Directive 2010/30/EU
30 ErP
XL
29
152
18
92
82
53
35 ErP
XL
34
184
19
91
80
54
35 T ErP
34
184
92
54
PRODUCT DETAILS

Please refer to commissioning instructions for filling in the checklist at the back of this installation guide.
Note: All Gas Safe registered installers carry a ID Card.
You can check your installer is Gas Safe Registered by calling 0800 408 5577
CONTENTS
1 DESCRIPTION OF THE BOILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 6
2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 10
3 CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 23
4 USE AND MAINTENANCE, BENCHMARK AND COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 29
5 FAULT FINDING AND FUNCTIONING ERRORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 36
6 REPLACEMENT OF PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 37
7 EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 39
8 APPENDIX 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 52
9 APPENDIX 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 64
USER INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 65
SIME COMBINATION BOILERS
Installer checklist
Please remember to carry out the following checks after installation. This will achieve complete customer
satisfaction, and avoid unnecessary service calls. A charge will be made for a service visit where the fault
is not due to a manufacturing defect.
– Has a correct by-pass been fitted and adjusted?
– Has the system and boiler been flushed?
– Is the system and boiler full of water, and the correct pressure showing on the pressure gauge?
– Is the Auto Air Vent open?
–Has the pump been rotated manually?
– Is the gas supply working pressure correct?
– Is the boiler wired correctly? (See installation manual).
–Has the D.H.W. flow rate been set to the customer requirements?
– Has the customer been fully advised on the correct use of the boiler, system and controls?
–Has the Aqua Guard Filter been cleaned (see 4.5.2)?
– Has the Benchmark Checklist in the use and maintenance section of this manual, been completed ?
IMPORTANT INFORMATION:
IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES ARE INSTALLED BY COMPETENT PERSONS, IN
ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION). The
manufacturer’s instructions must not be taken as overriding any statutory requirements, and failure to comply with these
regulations may lead to prosecution.
No modifications to the appliance should be made unless they are fully approved by the manufacturer.
GAS LEAKS: DO NOT OPERATE ANY ELECTRICAL SWITCH, OR USE A NAKED FLAME. TURN OFF THE GAS SUPPLY AND
VENTILATE THE AREA BY OPENING DOORS AND WINDOWS CONTACT THE GAS EMERGENCY SERVICE ON 0800111999.
These appliances comply with the S.E.D.B.U.K. scheme, band “A”

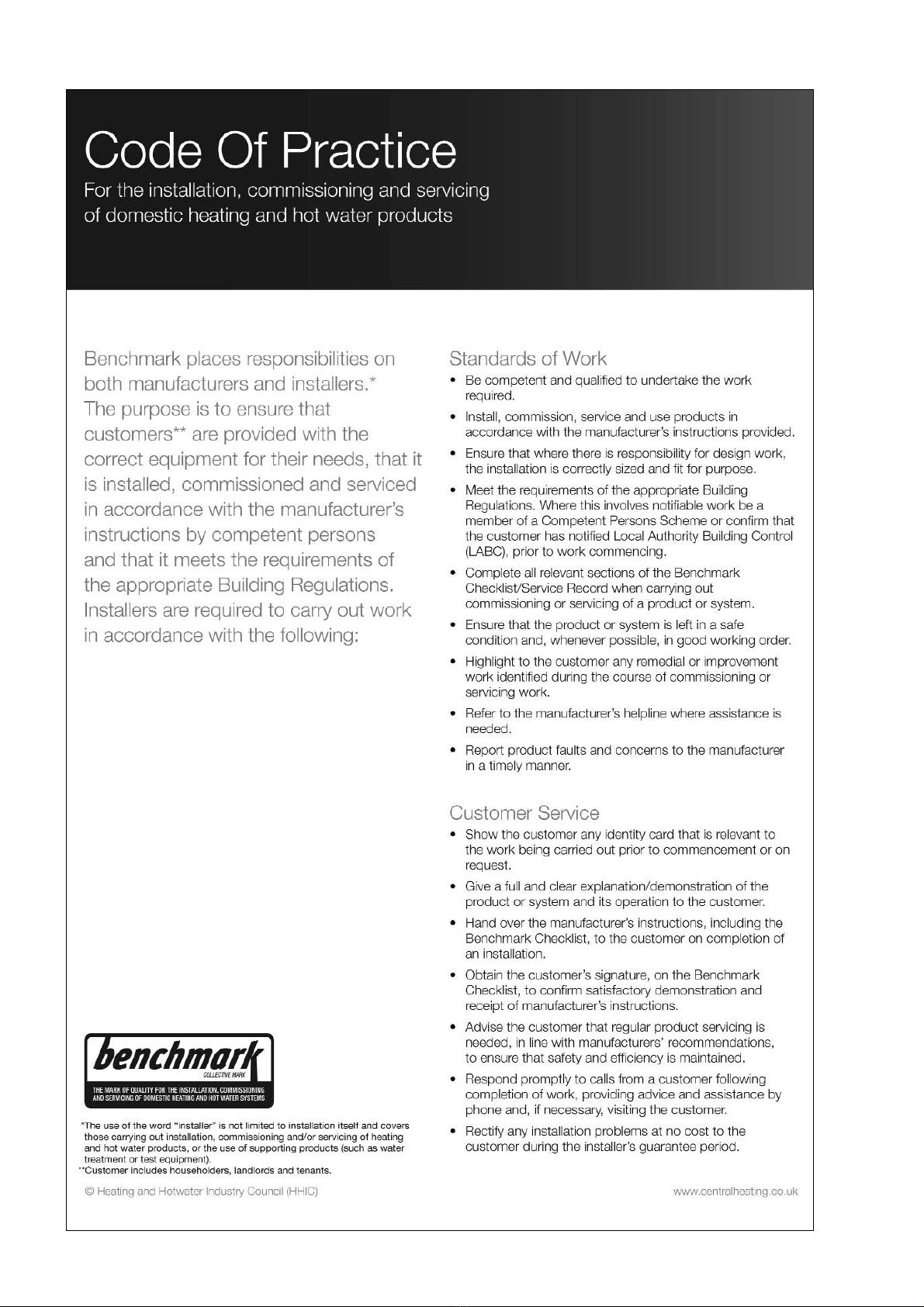

THE BENCHMARK SCHEME
Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that customers are
provided with the correct equipment for their needs, that it is installed, commissioned and serviced in accordance with the
manufacturer’s instructions by competent persons and that it meets the requirements of the appropriate Building
Regulations. The Benchmark Checklist can be used to demonstrate compliance with Building Regulations and should be
provided to the customer for future reference. Installers are required to carry out installation, commissioning and
servicing work in accordance with the Benchmark Code of Practice which is available from the Heating and Hotwater
Industry Council who manage and promote the Scheme.

385
65 65 65 65 =
=
=
=
92,5
125
350
42,5
450
170
60/100
13 5
125
125
70065
760
215
15
S3
65 700 125
60/100
15
760
213
92
65 65 65 65 =
=
=
=385
13 5
170
450
123
350
42,5

TABLE 2 - Minimum clearances
For servicing
Above the appliance casing 200 mm
At the R.H.S. 15 mm
At the L.H.S. 15 mm
Below the appliance casing 200 mm
In front of the appliance 500 mm
TABLE 1 - Connections
RC.H. return 22 mm Compression
MC.H. flow 22 mm Compression
GGas connection 15 mm Compression
ED.H.W. inlet 15 mm Compression
UD.H.W. outlet 15 mm Compression
S3 Condensation outlet ø 25
M2 D.H.W. tank flow
R3 D.H.W. tank return
6
1.1 INTRODUCTION
MURELLE ELITE HE ErP - MURELLE
ELITE HE ErP T are premixed gas
condensation thermal modules that
employ a microprocessor-based
technology to control and manage all the
functions. All modules are compliant
with European Directives 2009/142/CE,
2004/108/CE, 2006/95/CE and 92/42/CE.
For optimum installation and operation,
always follow the instructions provided in
this manual. The products manufactured
and sold by Sime do not contain any
banned materials or substances (ie they
comply with ISO9000:2000).
The Murelle ELITE HE ErP T is a system
boiler which is designed to be directly
connected to a domestic hot water
cylinder. When it is not directly connected
to a cylinder the two connections, R2 and
M2, need to be capped off, the cylinder
sensor SB disconnected from the PCB
and PAR 2 reset to value 4.
1 DESCRIPTION OF THE BOILER
Fig. 1
1.2 DIMENSIONS (fig. 1)
MURELLE ELITE HE 30-35 ErP
ATTENTION:
The “35 T” version is designed for the connection of a remote cylin-
der, to use it as a boiler ONLY FOR HEATING it is necessary:
– to disconnect the D.H.W. sensor (SB)
– set the PAR 2 to 4
– close off the connections R3 and M2
MURELLE ELITE HE 35 T ErP

7
Models MURELLE ELITE HE ErP 30 35 35 T
Heat output
Nominal (80-60°C) (Pn max) kW 28.9 34.1 34.1
Nominal (50-30°C) (Pn max) kW 31.6 37.2 37.2
Reduced G20 (80-60°C) (Pn min) kW 5.9 7.9 7.9
Reduced G20 (50-30°C) (Pn min) kW 6.6 8.8 8.8
Reduced G31 (80-60°C) (Pn min) kW 7.6 8.7 8.7
Reduced G31 (50-30°C) (Pn min) kW 8.5 9.6 9.6
Heat input (*)
Nominal (Qn max - Qnw max) kW 29.5 34.8 34.8
Reduced G20/G31 (Qn min - Qnw min) kW 6.2/8.0 8.2/9.0 8.2/9.0
Min./max. useful yield (80-60°C) % 95/98 96/98 96/98
Min./max. useful yield (50-30°C) % 107/107 107/107 107/107
Useful yield at 30% of the load (40-30°C) % 107 107 107
Termal efficiency (CEE 92/42 directive)   
Losses after shutdown to 50°C (EN 15502) W90 95 95
Supply voltage V-Hz 230-50 230-50 230-50
Adsorbed power consumption (Qn max) W83 93 93
Adsorbed power consumption (Qn min) W55 56 56
Electrical protection grade IP X4D X4D X4D
Energy efficiency
Seasonal energy efficiency class of the heating system A A A
Seasonal energy efficiency of the heating system % 92 91 92
Sound power of the heating system dB(A) 53 54 54
D.H.W. energy efficiency class A A --
D.H.W. energy efficiency % 82 80 --
D.H.W. load profile declared XL XL --
C.H. setting range °C 20/80 20/80 20/80
Water content boiler l 5.5 6.0 6.1
Maximum water head (PMS) bar 2.5 2.5 2.5
Maximum temperature (T max) °C 85 85 85
Capacity/Pressure expans. vessel l/bar 10/1 10/1 10/1
D.H.W. setting range °C 10/65 10/65 --
D.H.W. flow rate (EN 13203) l/min 13.6 16.1 --
Continuous D.H.W. flow rate (∆t 30°C) l/min 13.8 16.3 --
Continuous D.H.W. flow rate (∆t 35°C) l/min 11.8 14.0 --
Minimum D.H.W. flow rate l/min 2 2 --
D.H.W. pressure min./max. (PMW) bar 0.2/6.0 0.2/6.0 --
D.H.W. pressure min. nom. power bar 0.65 0.8 --
Exhaust fumes temperature
At max flow rate (80-60°C) °C 70 70 70
At max flow rate (50-30°C) °C 40 40 40
At min. flow rate (80-60°C) °C 65 65 65
At min. flow rate (50-30°C) °C 35 35 35
Smokes flow min./max. g/s 3.06/13.89 3.89/16.67 3.89/16.67
CO2at min./max. flow rate (G20) % 9.0/9.0 9.0/9.0 9.0/9.0
CO2at min./max. flow rate (G31) % 10.0/10.0 10.0/10.0 10.0/10.0
NOx measured mg/kWh 19 27 27
CE certification n° 1312BU5312
Category II2H3P
Type B23P - B53P - C13 - C33 - C43 - C53 - C83
NOx emission class 5 (<70 mg/kWh)
Weight when empty kg 45.0 46.6 45.2
Main burner nozzle
Quantity nozzles n° 2 2 2
G20 nozzle diameter diversified ø 2.8/3.8 3.5/4.0 3.5/4.0
G31 nozzle diameter diversified ø 2.2/2.9 2.8/3.0 2.8/3.0
Consumption gas at max./min. flow rate
Maximum/Minimum (G20) m3/h 3.12 / 0.66 3.68 / 0.87 3.68 / 0.87
Maximum/Minimum (G31) kg/h 2.29 / 0.62 2.70 /0.70 2.70/0.70
Gas supply pressure (G20/G31) mbar 20/37 20/37 20/37
(*) Heat input of the heating system measured using lower heating value (LHV)
1.3 TECHNICAL FEATURES

NON FORNITO
1.4 FUNCTIONAL DIAGRAM (fig. 2)
KEY
1 Fan
2 Limit thermostat
3 Primary exchanger
4 Gas valve
5 D.H.W. exchanger
6 Aqua Guard Filter System
7 C.H. sensor (SM)
8 Safety thermostat 100°C
9 Diverter valve
10 Pump high efficiency
12 D.H.W. sensor (SS)
13 D.H.W. flowmeter
14 Hot water inlet filter
15 ------
16 3 BAR safety valve
17 Pressure transducer
19 Drain vent
20 Expansion vessel
21 Condensate trap
23 D.H.W. isolation valve
24 Gas isolation valve
25 C.H. flow isolation valve
26 C.H. return isolation valve
CONNECTIONS
R C.H. return
M C.H. flow
G Gas connection
E D.H.W. inlet
U D.H.W. outlet
S3 Condensation outlet
Fig. 2
8
MURELLE ELITE HE 35 T ErP
KEY
1 Fan
2 Limit thermostat
3 Primary exchanger
4 Gas valve
6 Aqua Guard Filter System
7 C.H. sensor (SM)
8 Safety thermostat 100°C
9 Diverter valve
10 Pump high efficiency
12 D.H.W. sensor (SB)
16 3 BAR safety valve
17 Pressure transducer
19 Boiler discharge
20 Expansion vessel
21 Condensate drain trap
24 Gas isolation valve
25 C.H. flow isolation valve
26 C.H. return isolation valve
CONNECTIONS
R C.H. return
M C.H. flow
G Gas connection
E D.H.W. inlet
U D.H.W. outlet
S3 Condensation outlet
M2 D.H.W. tank flow
R3 D.H.W. tank return
MURELLE ELITE HE 30-35 ErP
NOT SUPPLIED
M2
R3

MODEL
SERIAL NUMBER
YEAR OF CONSTRUCTION
WATER CONTENT IN BOILER
HEAT INPUT MAX
HEAT OUTPUT MAX (80-60°C)
HEAT OUTPUT MAX (50-30°C)
MAX OPERATING PRESSURE
CONTENTS D.H.W.
HEAT INPUT MAX D.H.W.
MAX OPERATING PRESSURE D.H.W.
D.H.W. FLOW RATE
POWER SUPPLY
MAX POWER ABSORBED
COUNTRIES OF DESTINATION
CATEGORY
TYPE
CODE
DIRECTIVE OF REFERENCE
PIN NUMBER
HEAT INPUT MIN
HEAT OUTPUT MIN (80-60°C)
HEAT OUTPUT MIN (50-30°C)
MAX OPERATING PRESSURE
HEAT INPUT MIN D.H.W.
MAX OPERATING PRESSURE D.H.W.
ELECTRICAL PROTECTION GRADE
NOx CLASS
CODE GAS COUNCIL NUMBER (UK)
CERTIFICATION WRAS (UK)
TYPE OF GAS
GAS SUPPLY PRESSURE
CLASSIFICATIONS
9
Fig. 3/a
KEY
1 Control panel
2 Aqua Guard Filter System
3 Ignition transformer
4 Air pressure test point
6 Safety thermostat
7 C.H. sensor (SM)
8 Ignition electrode
9 Primary exchanger
10 Exhaust fumes sensor (SF)
11 Flue manifold
12 Expansion vessel
13 Ionisation electrode
14 Fan
16 Diverter valve
17 Pump high efficiency
18 Valve cover (optional)
1.5 MAIN COMPONENTS (fig. 3)
Fig. 3
1.6 TECHNICAL DATA PLATE (fig. 3/a)

The boiler must be installed in a fixed
location and only by specialized and
qualified person in compliance with all
instructions contained in this manual. The
installation of this boiler must be in
accordance with the relevant requirements
of the current Gas Safety (installation and
use), the local building regulations, and
and I.E.E. wiring regulations.
PLEASE NOTE: Before fitting the flue to
the boiler, the condensate trap should
be filled, see 2.4.1
2.1 VENTILATION REQUIREMENTS
Detailled recommendations for air
supply are given in BS5440:2. The
following notes are for general guidance:
It is not necessary to have a purpose
provided air vent in the room or
compartment in which the appliance is
installed.
2.2 ANTI-FREEZE FUNCTION
The boilers are equipped with anti-freeze
function which activates the pump and
the burner when the temperature of the
water contained inside the appliance
drops to below 6°C. The anti-freeze
function can only operate if:
– the boiler is correctly connected to the
gas and electricity supply circuits;
– the boiler is constantly fed;
– the boiler ignition is not blocked;
– the essential components of the boiler
are all in working order
In these conditions the boiler is protected
against frost down to an environmental
temperature of -5°C.
ATTENTION: In the case of installation in
a place where the temperature drops
below 0°C, the connection pipes must be
protected.
2.3 FIXING THE WALL
MOUNTING BRACKET (fig. 4)
– Mark the position of the two wall
mounting bracket fixing holes and the
flue/air duct hole on the appropriate
wall(s).
– Drill a top two fixing holes using a 10
mm masonry drill and fit the plastic
plugs provided.
– Accurately measure the wall
thickness, and note this dimension for
later use.
– Secure the wall mounting bracket in
position using the screws provided.
Ensure that it is the correct way up, as
indicated in fig. 4.
2.4 CONNECTING UP SYSTEM
Before connecting the boiler it is
recommended that the system be flushed
in accordance to BS 7593, to eliminate any
foreign bodies that may be detrimental to
the operating efficiency of the appliance.
When connecting up the boiler the
clearances in fig 1 should be respected.
The boiler is supplied with valve pack
5184817B- combi, 8091821- system T.
A safety valve set at 3 bar is fitted to the
appliance, the discharge pipe should be
extended to terminate safely away from
the appliance and where a discharge
would not cause damage to persons or
property but would be detected. The pipe
should be a minimum of 15 mm ø and
should be able to withstand boiling
water, and should avoid sharp corners
or upward pipe runs where water may be
2 INSTALLATION
10
1
2
3
4
KEY
1 Wall mounting bracket
2 Plastic wall plug (2 Off)
3 Woodscrew (2 Off)
4 Washer (2 Off)
Fig. 4

11
retained.
Gas Connection
The gas connection must be made using
seamless steel or copper. Where the
piping has to pass through walls, a
suitable insulating sleeve must be
provided. When sizing gas piping, from
the meter to the boiler, take into account
both the volume flow rates
(consumption) in m3/h and the relative
density of the gas in question.
The sections of the piping making up the
system must be such as to guarantee a
supply of gas sufficient to cover the
maximum output available from the
boiler, limiting pressure loss between
the gas meter and any apparatus being
used to not greater than 1.0 mbar for
family II gases (natural gas).
An adhesive data badge is sited inside the
front panel; it contains all the technical
data identifying the boiler and the type of
gas for which the boiler is arranged.
2.4.1 Connection of condensation
water trap
To ensure safe disposal of the condensate
produced by the flue gases, reference
should be made to BS6798:2009.
The boiler incorporates a condensate trap
which has a seal of 75 mm, therefore no
additional trap is required. The condensate
trap can be filled prior to the installation of
the flue by carefully pouring 1 litre of
water into the exhaust connection.
NOTE: All pipework must have a
continuous fall from the boiler and must
be resistant to corrosion by condensate,
copper or steel is NOT suitable. It should
be noted that the connection of a
condensate pipe to a drain may be
subject to local building control
requirements.
2.4.2 Dealing with condensate
See Appendix 1- industry guidance on
dealing with condensate.
the connection to the boiler condensate
trap should be made with 20mm waste
pipe using the connector provided.
2.4.3 Requirements for sealed water
systems MURELLE ELITE HE
The heating system design should be
based on the following information:
a) The available pump head is given in
fig. 14.
b) The burner starts when circulation is
detected by a small pressure
fluctuation measured by the pressure
transducer.
c) The appliance is equipped with an
internal by-pass that operates with
system heads (H) greater than 3 m.
The maximum flow through the by-
pass is about 300 l/h. If thermostatic
radiator valves are to be installed, at
least one radiator should be without a
thermostatic valve (usually the
bathroom radiator).
d) A sealed system must only be filled by
a competent person using one of the
approved methods shown in fig. 5. The
system design should incorporate the
connections appropriate to one of
these methods.
2.5 CHARACTERISTICS
OF FEEDWATER
NOTE: If the domestic water supply is
metered or should a water meter be
added at a later time, a small expansion
vessel should be included in the
METHOD OF FILLING A SEALED SYSTEM
Fig. 5

12
domestic water pipework.
– All recirculatory systems will be
subject to corrosion unless an
appropriate water treatment is
applied. This means that the
efficiency of the system will
deteriorate as corrosion sludge
accumulates within the system,
risking damage to pump and valves,
boiler noise and circulation problems.
– Before connecting the boiler the
associated central heating system
must be flushed in accordance with
the guidelines given in BS 7593
“Treatment of water in domestic hot
water central heating systems”.
– Sime Ltd recommend only the use of
FERNOX products for the flushing and
final treatment of the system water..
This is particularly important in hard
water areas.
Failure to flush and add inhibitor to
the system may invalidate the
appliance warranty.
C33
6
5
3
2
C43
3
42
x
y
x + y = L (m)
H (m)
C13
1
2
1
L (m)
2
Fig. 6
H (Horizontal) m
IMPORTANT:
– The insertion of each additional 90° bend with a diameter of 60/100 (code 8095850) reduces the available section by 1.5 meters.
– The insertion of each additional 90° bend with a diameter of 80/125 (code 8095870) reduces the available section by 2 meters.
– Each additional 45° curve installed a diameter of 60/100 (code 8095950) reduces the available length by 1.0 metres.
– Each additional 45° curve installed a diameter of 80/125 (code 8095970) reduces the available length by 1.0 metres.
HORIZONTAL FLUES MUST BE LEVEL
NOTE: Before connecting accessories, it is always advisable to lubricate the
internal part of the gaskets with silicon products. Avoid using oils and greases.
V (Vertical) m
Model Length of pipe
ø 60/100 (m) ø 80/125 (m)
HVHV
Min. Max. Min. Max.
30 5 1.3 7 10 1.2 13
35 4 1.3 6 8 1.2 11
35 T 4 1.3 6 8 1.2 11
LIST OF ø 60/100 ACCESSORIES
1a Coaxial duct kit L. 790 code 8096250
1b Special coaxial duct kit L. 695 code 8098604/05
2a Extension L. 1000 code 8096150
2b Extension L. 500 code 8096151
3 Vertical extension L. 140 with coupling code 8086950
5 Tile for joint code 8091300
6 Terminal for roof exit L. 1285 code 8091212 (includes 8086950)
LIST OF ø 80/125 ACCESSORIES
1 Coaxial duct kit L. 785 code 8096253
2a Extension L. 1000 code 8096171
2b Extension L. 500 code 8096170
3 Adapter for ø 80/125 code 8093150
5 Tile for joint code 8091300
6 Terminal for roof exit L. 1285 code 8091212A (includes 8093150)

Artificially softened water must not
be used to fill the heating system.
– It is important to check the inhibitor
concentration after installation,
system modification and at every
service in accordance with the
manufacturer’s instructions. (Test kits
are available from inhibitor stockists).
– At every service the Aquaguard Filter
(4.5.2) should be checked and
cleaned.
Flues must be installed in accordance
with BS 5440-1
2.6 INSTALLATION OF COAXIAL
DUCT ø 60/100 - ø 80/125 (fig. 6)
See 2.4.1 Filling the trap, before fitting the
flue. The coaxial suction and discharge
pipes are supplied in a special kit (that
can be purchased separately) along with
assembly instructions.
The diagrams of fig. 6 illustrate some
examples of different types of flue options
allowed and the maximum lengths that
can be reached. It is essential that a flue
gas analysis test point is made available
directly above the boiler.
2.7 INSTALLATION OF SEPARATE
DUCTS ø 80 (fig. 7)
See 2.4.1 Filling the trap, before fitting the
flue. The kit with dedicated pipes enables
to separate the exhaust fumes pipes from
the air intake pipes (fig. 7).
It is essential that a flue gas analysis test
point is made available directly above the
boiler.
– The kit with dedicated ø 80 pipes, code
8089912, includes a SUCTION
DIAPHRAGM THAT IS NOT used for
these models. To be able to use the air
inlet connection, cut its base with a tool
(A) and assemble it (B).
The maximum overall length, resulting
from the sum of all the intake and
discharge pipes, is determined by the
load losses of the single connected
accessories and should not exceed 15
mm H2O (version HE 30-35-35T)
(ATTENTION: the total length of each
pipe should not exceed 50 m, even if the
total loss is below the maximum
applicable loss.)
See Table 1 for information on the load
losses of single accessories.
13
Fig. 7
KEY
CA Inlet
CS Outlet
OPERAZIONE DA ESEGUIRE
SOLO NEL MONTAGGIO DEL
KIT Ø 80 COD. 8089912
A
B
4
1
3
2
6
4
5
C
ASSEMBLY OF THE KIT ø 80 code 8089912
277,5
67,5
169
148
112
134
236
CS
CA CA
ø 80
KEY
1 ø 125 Gasket
2 Fumes exhausts flange with tap
3 Fastening screw
4 ø 108 Gasket

2.7.1 Separate ducts kit (fig. 9)
The diagrams of fig. 9 show examples of
the permitted flue configurations.
2.8 POSITIONING THE
OUTLET TERMINALS (fig. 10)
The outlet terminals for forced-draught
appliances may be located in the external
perimeter walls of the building.
To provide some indications of possible
solutions, Table 2 gives the minimum
distances to be observed, with reference
to the type of building shown in fig. 10.
2.9 ELECTRICAL CONNECTION
The boiler is supplied with an electric
cable. Should this require replacement, it
must be replaced with one of similar type
and dimensions. The electric power
supply to the boiler must be 230V - 50Hz
single-phase through a 3A fused main
switch, with at least 3 mm spacing
between contacts. Respect the L and N
polarities and the earth connection.
NOTE: SIME declines all responsibility
for injury or damage to persons, animals
or property, resulting from the failure to
provide for proper earthing of the
appliance.
14
9
C
C33
11
10
3
11
3
3
7
3
12 12
12
Fig. 9
C13
3
2
3
1
14
12
13
12
NOTE
Before connecting accessories, it is always advisable
to lubricate the internal part of the gaskets with sili-
con products. Avoid using oils and greases.
LIST OF ø 80 ACCESSORIES
1 Coaxial duct kit code 8089912
3 a Extension L. 1000 code 8077351
3 b Extension L. 500 code 8077350
7 a Additional 45° MF curve code 8077451
7 b Additional 90° MF curve code 8077450
9 Manifold, code 8091401
10 Tile for joint code 8091300
11 Terminal for roof exit L. 1381 code 8091212B
12 --------
13 Union suction/exhaust code 8091401
14 Coaxial exhaust ø 80/125 L. 885 code 8096253A
TABLE 1 - ACCESSORIES ø 80
Accessories ø 80 Total head loss (mm H2O)
30 35
Inlet Outlet Inlet Outlet
Coaxial duct kit –– ––
90° elbow MF 0.25 0.30 0.30 0.40
45° elbow MF 0.20 0.20 0.25 0.25
Extension L. 1000 (horizontal) 0.20 0.20 0.25 0.25
Extension L. 1000 (vertical) 0.20 0.20 0,25 0.25
Wall terminal 0.10 0.35 0.15 0.50
Wall coaxial exhaust *
Roof outlet terminal * 1.10 0.15 1.50 0.20
* This loss includes the losses of the adaptor 8091401

15
– If the terminal discharges into a pathway or passageway
check that combustion products will not cause nuisance and
that the terminal will not obstruct the passageway.
– Where the lowest part of the terminal is fitted less than 2 m
(78 in) above ground, above a balcony or above a flat roof to
which people have access, the terminal MUST be protected
by a purpose designed guard.
– Where the terminal is fitted within 850 mm (34 in) of a plas-
tic or painted gutter, or 450 mm (18 in) of painted eaves, an
aluminium shield at least 1,500 mm (59 in) long must be fit-
ted to the underside of the painted surface.
– The air inlet/outlet flue duct MUST NOT be closer than 10
mm (0.4 in) to combustible material.
– In certain weather conditions the terminal may emit a
plume of steam. This is normal but positions where this
would cause a nuisance should be avoided.
Terminal position Minimum spacing
ADirectly below an openable window, air vent
or any other ventilation opening 300 mm 12 in
BBelow guttering, drain pipes or soil pipes (*) 75 mm 3 in
C/D Below eaves, balconies or carport roof (**) 200 mm 8 in
EFrom vertical drain pipes or soil pipes 75 mm 3 in
FFrom internal or external corners 300 mm 12 in
GAbove adjacent ground, roof or balcony level 300 mm 12 in
HFrom a boundary or surface facing the boiler 600 mm 24 in
IFrom a terminal facing the terminal 1,200 mm 48 in
JFrom an opening in the carport
(eg door, window into dwelling) 1,200 mm 48 in
KVertically from a terminal on the same wall 1,500 mm 60 in
LHorizont. from a terminal on the same wall 300 mm 12 in
MHorizont. from a vertical terminal to a wall 300 mm 12 in
NHorizont. from an openable window or other opening 300 mm 12 in
PAbove an openable window or other opening 300 mm 12 in
QFrom an adjacent vertical terminal 600 mm 24 in
TABLE 2
Fig. 10
(*) For condensing boilers this distance can be reduced to 25 mm without
effecting boiler performance, but it will be necessary to protect the sur-
faces from the effects of condensate
(**) This dimension to be used with ventilated soffits. With unvented soffits
this can be reduced to 75mm and further reduced to 25mm when a flue
shield is used to protect from the effects of heat and condensation.
2.9.1 External Controls
The heat demand can be by a "clean
contact" (conforming to EN607301), room
stat or programmer connected to the
"TA" connection (figs. 11 – 11/a), CN6
terminals 7 & 8 after removing the link. A
230v switched demand to terminal 14
CN7 and removal of the "TA" link on
terminals 7 & 8 on CN6.
MURELLE ELITE HE 35 T ErP version the
D.H.W. demand can be by either a
thermistor or thermostat depending on
configuration, see section 2.9.5 and 3.3.
A permanent power supply must be
maintained.
2.9.2 Remote control
SIME HOME
connection (optional)
The boiler is designed for connection to a
remote control unit, supplied on request
(SIME HOME code 8092280/81).
The remote control unit SIME HOME
allows for complete remote control of the
boiler.
The boiler display will show the following
message:
For installation and use of the remote
control, follow the instructions in the
package.
NOTE: Ensure PAR 10 set to 1 (PAR 10 =
1).
2.9.3 External sensor
connection
The boiler is designed for connection to
an external temperature sensor,
supplied on request (code 8094101) in
conjunction with remote control (code
8092226), which can automatically
regulate the temperature value of the
boiler output according to the external
temperature.
For installation, follow the instruction in
the package.
It is possible to make corrections to the
values by adjustment of PAR 11.
The flow temperature will be regulated
with respect to the external temperature,
for this reason external sensors should
only be used with system boilers used
only for heating( no DHW) and System T
boilers using all four pipe connections.
For guidance only, flues
should be installed in
accordance with BS5440

16
TA1
SE
RM
SE
TA
VZ
TA1
VZ1
TA2
VZ2
2 BASIC SYSTEM: MULTI-ZONE SYSTEM WITH PUMP, ROOM THERMOSTAT AND EXTERNAL SENSOR (Code 8094101)
2.9.5 D.H.W. sensor connection
in vers. “35 T”
The “MURELLE ELITE HE 35 T ErP”
version is provided with a D.H.W. sensor
(SB) linked to the connector CN5.
When the boiler is coupled to an external
cylinder, the sensor (SB) must be fitted
into a sleeve in the cylinder and PAR 2 set
to 3.
If the cylinder temperature is to be
controlled by a thermostat then PAR 2 is
set to 4.
Operations must be carried out by
authorized and qualified technicians.
2.9.6 Use with different
electronic systems
Some examples are given below of boiler
systems combined with different electro-
nic systems. Where necessary, the para-
meters to be set in the boiler are given.
The electrical connections to the boiler
refer to the wording on the diagrams (figs.
11 -11/a). The zone valve control starts at
every demand for heating of the zone 1 (it
is from part of the TA1 or the CR).
Description of the letters indicating the com-
ponents shown on the system diagrams 1 to
14:
M C.H. flow
R C.H. return
CR Remote control SIME HOME
(code 80922280/81)
SE External temperature sensor
TA 1-2-3-4 Zone room thermostat
CT 1-2 Zone room thermostat internal
time clock
VZ 1-2 Zone valve
RL 1-2-3-4 Zone relay
Sl Hydraulic separator
P 1-2-3-4 Zone pump
IP Floor system
EXP Expansion card Mixed Zone
(code 8092233) / SOLAR
(code 8092235)
VM Three-way mixer valve
R
M
SE
TA
CR
TA1
CR
SE
1 BASIC SYSTEM: SYSTEM WITH A DIRECT ZONE AND ROOM THERMOSTAT, OR WITH REMOTE CONTROL SIME HOME
(Code 8092280/81) AND EXTERNAL SENSOR (Code 8094101)

17
RM
SE
TA1 TA2
TA1
SE
TA
P2
RL
SI
RL1 RL2
P1
P
TA2
SE
RM
SE
TA
VZ
TA1
VZ1
TA2
VZ2
CR
CR
3 BASIC SYSTEM: MULTI-ZONE SYSTEM WITH PUMP, ROOM THERMOSTAT AND EXTERNAL SENSOR (Code 8094101)
4 BASIC SYSTEM: MULTI-ZONE SYSTEM WITH VALVE, ROOM THERMOSTAT, REMOTE CONTROL SIME HOME (Code
8092280/81) AND EXTERNAL SENSOR (Code 8094101)
PARAMETERS SETTINGS
To use the remote control SIME HOME
(CR) as remote control panel for the boiler
rather than as room reference, set:
PAR 7 = 0
TA2
SE
RM
SE
VZ VZ1
TA2
VZ2
CR
CR
VZ1
TA1
PARAMETER SETTING
To use the remote control SIME HOME
(CR) as room reference for a zone, set:
PAR 7 = 1
Set the opening time of the zone valve VZ:
PAR 33 = “OPENING TIME”
5 BASIC SYSTEM: MULTI-ZONE SYSTEM WITH VALVE, ROOM THERMOSTAT, REMOTE CONTROL SIME HOME (Code
8092280/81) AND EXTERNAL SENSOR (Code 8094101)

18
RM
SE
CT2
TA1
SE
CT1
SI
RL2
P2
P1
TA2
RL1
ZONA
GIORNO
(70°C)
ZONA
NOTTE
(50°C)
8 SYSTEM WITH DOUBLE TEMPERATURE OUTPUT: MULTI-ZONE SYSTEM WITH PUMP, ROOM THERMOSTAT INTERNAL
TIME CLOCK AND EXTERNAL SENSOR (Code 8094101)
DAY
ZONE
(70°C)
NIGHT
ZONE
(50°C)
RM
SE
CT2
TA1
SE
CT1
TA2
VZ1 VZ2
ZONA
GIORNO
(70°C)
ZONA
NOTTE
(50°C)
DURING NIGHT TIME THE BOILER USES
A LOWER OUTPUT TEMPERATURE IF DIF-
FERENT TIMES HAVE BEEN SET FOR DAY
AND NIGHT AREAS:
– with external sensor, set the climatic
curve of the day zone 1 with PAR 25
and the night zone at PAR 26.
– without external sensor, gain access
to setting the day zone 1 by pressing
the key and change the value with
the keys and . Gain access to
setting the night zone by pressing the
key twice and changing the value
with the keys and .
7 SYSTEM WITH DOUBLE TEMPERATURE OUTPUT: MULTI-ZONE SYSTEM WITH VALVE, ROOM THERMOSTAT INTERNAL
TIME CLOCK AND EXTERNAL SENSOR (Code 8094101)
DAY
ZONE
(70°C)
NIGHT
ZONE
(50°C)
SI
RM
SE
TA1 TA2
TA2
SE
TA
P2
RL RL1 RL2
P1
P
CR
CR
PARAMETER SETTING
To use the remote control SIME HOME
(CR) as room reference for a zone, set:
PAR 7 = 1
6 BASIC SYSTEM: MULTI-ZONE SYSTEM WITH PUMP, ROOM THERMOSTAT, REMOTE CONTROL SIME HOME (Code
8092280/81) AND EXTERNAL SENSOR (Code 8094101)

19
RM
SE
TA2
TA1
SE
TA1
SI
RL2
P2
P1
TA2
CR
CR
EXP
VM
EXP
IP
11 SYSTEM WITH MIXER VALVE: SYSTEM WITH ONE DIRECT ZONE AND ONE MIXED ZONE
PARAMETERS SETTINGS
To use the remote control SIME HOME
(CR) as remote control panel for the boiler
rather than as room reference, set:
PAR 7 = 0
R
M
SE
CR
CR
SE
SB
M2 R2
SB
BOLLITORE
PARAMETER SETTING
MURELLE ELITE HE 35 T ErP if with D.H.W
cylinderto be set: PAR 2 = 3
MURELLE ELITE HE 35 T ErP only for hea-
ting to be set:
PAR 2 = 4
An alternative to the CR would be to con-
nect a room thermostat to the TA 1 con-
nection
RM
SE
TA2
TA1
SE
TA1
SI
RL2
P2
P1
PB
RL1
BOLLITORE
PB
SB
SB
9 SYSTEM WITH REMOTE CYLINDER
10 SYSTEM WITH REMOTE BOILING UNIT AFTER THE HYDRAULIC SEPARATOR
CYLINDER
CYLINDER

20
RM
SE
TA1
SE
SI
P1
TA2
EXP VM
EXP
IP
TA1
TA2
P2
VM
IP
EXP
S1
SB
S2
SE TA1
SE
TA2
EXP
TA1
TA2
EXP (INSOL)
Vers. System / T
13 SYSTEM WITH MIXER VALVE: SYSTEM WITH TWO MIXED ZONES INDEPENDENT AND TWO KITS MIXED ZONE (CODE 8092234)
14 SYSTEM SOLAR: SYSTEM WITH KIT SOLAR (Code 8092235)
PARAMETER SETTING
PAR 44 = 1
PAR 2 = 3
vers. “MURELLE ELITE HE 35 T ErP”
RM
SE
TA3
TA1
SE
SI
RL3
P3
P2
TA2
IP
EXP
VM
EXP IP
P4
TA4
RL4
TA1 TA2
12 SYSTEM WITH MIXER VALVE: SYSTEM WITH TWO DIRECT ZONES AND TWO MIXED ZONES
