OPERATING INSTRUCTIONS FOR THE USER
1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 APPLIANCE OPERATION
1.3 OPERATING INSTRUCTIONS
1.4 ERRORS AND SOLUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.5 MINIMUM CLEARANCES
1.6 ROUTINE SERVICING
1.7 ELECTRICAL SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.8 VENTILATION
1.9 SAFETY

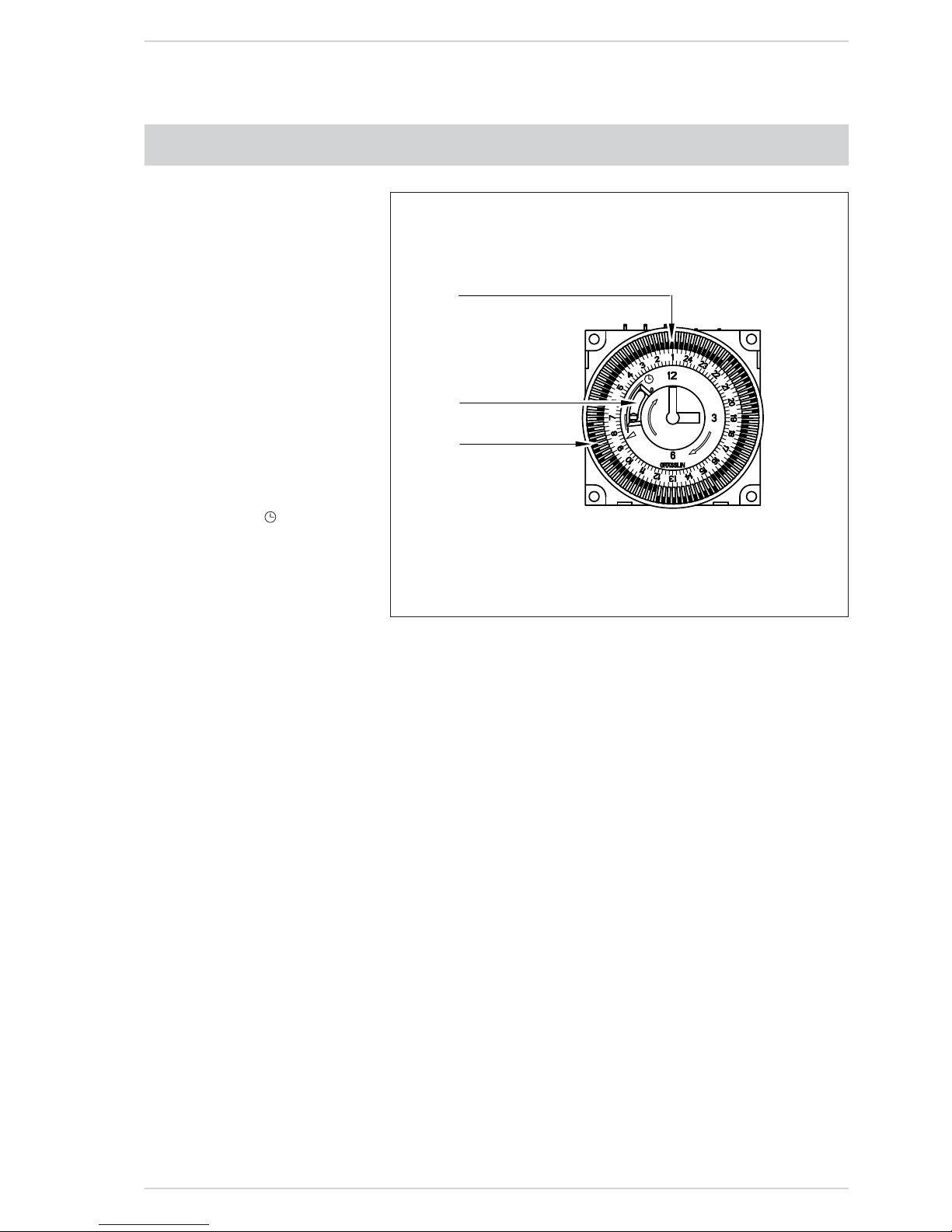

MECHANICAL TIME CLOCK (CODE 8092228) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DIGITAL TIME CLOCK (CODE 8092229) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ANALOGIC RF TIME PROGRAMMER (CODE 8092231) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DIGITAL RF TIME PROGRAMMER (CODE 8092232) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CONTENTS
VERY IMPORTANT!
PLEASE MAKE SURE YOUR BENCHMARK CHECKLIST IN THE
INSTALLATION GUIDE, IS FILLED IN CORRECTLY.
ALL GAS SAFE REGISTER INSTALLERS CARRY A ID CARD.
THE REGISTRATION NUMBER SHOULD BE
RECORDED ON THE CHECK LIST.
YOU CAN CHECK YOUR INSTALLER IS GAS SAFE
REGISTERED BY CALLING ON 0800 408 5577
These appliances comply with the S.E.D.B.U.K. scheme, band “A”
Murelle EV HE 12 System: Gas Council number 41-283-12
Murelle EV HE 20 System: Gas Council number 41-283-13
Murelle EV HE 25 System: Gas Council number 41-283-14
Murelle EV HE 30 System: Gas Council number 41-283-15
Murelle EV HE 35 System: Gas Council number 41-283-16
Murelle EV HE 12 T Gas Council number 41-283-19
Murelle EV HE 20 T: Gas Council number 41-283-20
Murelle EV HE 25 T: Gas Council number 41-283-21
Murelle EV HE 30 T: Gas Council number 41-283-22
Murelle EV HE 35 T: Gas Council number 41-283-23
Murelle EV HE 25: Gas Council number 47-283-17
Murelle EV HE 30: Gas Council number 47-283-18
Murelle EV HE 35: Gas Council number 47-283-19

6
OPERATING INSTRUCTIONS FOR THE USER
THE GAS SAFETY (INSTALLATION AND USE)
REGULATIONS 1996.
It is the law that all gas appliances are
installed by a registered person, in accor-
dance with the above regulations.
Failure to install appliances correctly could
lead to prosecution. It is in your own inter-
est, and that of safety, to ensure that the
law is complied with.
It is essential that the appliance is cor-
rectly earthed. An electricity supply of
240 V - 50 Hz fused at 3 A is required.
Read these instructions carefully before
attempting to operate the appliance.
1.1 INTRODUCTION
The Sime “MURELLE EV HE” family is a fully
automatic, wall mounted, room sealed, fan
assisted range of combination boilers.
When operating in winter mode, the appli-
ance provides central heating as required
and produces instantaneous hot water
upon demand.
When operating in summer mode, the cen-
tral heating is not operational however the
appliance continues to supply hot water
whenever it is required.
The Sime “MURELLE EV HE SYSTEM” fam-
ily is a fully automatic, wall mounted, room
sealed, fan assisted range of system boil-
ers. The appliance provides central heating
as required.
The Sime “MURELLE EV HE T” family is a
fully automatic, wall mounted, room sealed,
fan assisted range of system boilers. The
boiler is fitted with a divertor valve which
enables the boiler to be directly connected
to a hot water cylinder.
1.2 APPLIANCE OPERATION
“EV HE” - a demand of hot water will be
sensed by the appliance detecting water
flow (providing that the flow rate is above 2
l/m - 0.5 gal/min).
The fan will start and the burner will light
at full output. If the draw off rate is near
the maximum design flow rate the appli-
ance will run continuously at full output
until a tap is either turned off or the flow
rate is reduced in which case the heat
output will reduce accordingly to maintain
a steady temperature. Hot water is made
available almost immediately at the appli-
ance outlet, but the final temperature and
time taken for the hot water to reach a tap
depends upon the potentiometer setting,
the rate at which water is drawn off, and
the length of the pipe between the boiler
and the tap. When the tap is turned off, the
appliance will revert to C.H. mode (if set on
winter position) otherwise the burner will
be extinguished pending the next demand
for hot water.
“EV HE”, “EV HE System” & “EV HE T” - a
demand for heating will be sensed by the
boiler, The pump will start, and provide suffi-
cient circulation is detected, the fan will
start and the burner will light. The heat out-
put will be controlled by the heating sensor
and the user interface control.
1.3 OPERATING INSTRUCTIONS
1.3.1 Boiler ignition (fig. 24)
The first ignition of the boiler must be car-
ried out by qualified technical personnel.
Successively, if it is necessary to start up
the boiler again, adhere strictly to the fol-
lowing instructions: open the gas tap to
allow the flow of the fuel.
Move the main switch of the system to
“ON”. When fuel is fed to the boiler, a
sequence of checks will be carried out and
the display shows the normal condition of
the functioning, always indicating the pres-
sure of the system. If the blue luminous bar
is on, this indicates the presence of voltage.
N.B.: To the first pressure the keys of the
controls (2) the display is illuminated, to
the successive pressure the operation
modality is active.
Winter
Press the key of the controls (pos. 2)
to activate the winter mode functioning
(heating and D.H.W.). The display will be as
shown in the figure.
Summer
Press the key of the controls (pos. 2) to
activate the summer mode functioning
(only the production D.H.W.). The display will
be as shown in the figure.
Fig. 24
2
APRE
OPEN

7
1.3.2 Regulation
C.H. temperature (fig. 25)
To set the temperature of the water for
heating, press the key of the controls
(2). The first time the key is pressed, the
SET of heating circuit 1 is selected. The
second time it is pressed, the SET if second
zone fitted is selected. The display will be as
shown in the figure. Change the values with
the key and .
Standard visualisation will return to the
display by pressing the key again, or
after 10 seconds if no key is pressed.
Regulation of the external sensor
If an external sensor is installed, the value
of the output temperature is automatically
chosen by the system, which quickly adjusts
the environmental temperature on the
basis of the external temperature.
If you wish to change the value of the tem-
perature, increasing or decreasing that cal-
culated automatically by the electronic
card, proceed as indicated in the preceding
paragraph.
The level of various correction of a value of
temperature proportional calculated.
The display will be as shown in fig. 25/a.
1.3.3 Regulation D.H.W.
temperature (fig. 26)
To set the desired temperature of the
D.H.W., press the key of the controls
(pos. 2). The display will be as shown in the
figure.
Change the values with the key and
.
The display will return to the standard
visualisation by pressing the key again,
or after 10 seconds if no key is pressed.
1.3.4 To switch off the boiler (fig. 24)
In the case of a short absence, press the
key of the controls (pos. 2).
The display will be as shown in the fig. 24.
In this way, leaving the electricity and the
fuel supply connected, the boiler is protec-
ted from frost and from the pump beco-
ming jammed.
If the boiler is not used for a prolonged
period, it is advisable to disconnect the
electricity supply, by switching off the main
switch of the system, and to close the gas
tap and, if low temperatures are expected,
to completely empty the hydraulic circuits
to avoid pipes being broken by the forma-
tion of ice in the pipes.
2
Fig. 25
2
Fig. 26
Fig. 25/a

8
1.4 ERRORS
AND SOLUTIONS
When there is a functioning error, the
display shows an alarm and the blue lumi-
nous bar becomes red.
Descriptions of the errors with the relative
alarms and solutions are given below:
–ALL 01 (fig. 27)
Seek help and advice from a qualified
engineer.
–ALL 02 (fig. 27/a)
If the system pressure detected is lower
than 0.5 bar, the boiler will stop and the
display will show “ALL 02”. To proceed
increase the system pressure to
between 1 and 1.5 bar.
–ALL 03
The system pressure detected is more
than 2.8 bar. Ensure that the filling
loop is turned off and the pipe detat-
ched. Lower the system pressure by
draining from a radiator.
If problem persists seek help from a
qualified engineer.
–ALL 04
Seek help and advice from a qualified
engineer.
–ALL 05
Seek help and advice from a qualified
engineer.
–ALL 06 (fig. 27/c)
Press the key of the controls (2) to
re-start the boiler.
If the error persists seek help and advi-
ce from a qualified engineer.
–ALL 07 (fig. 27/d)
Press the key of the controls (2) to
re-start the boiler.
If the error persists seek help and advi-
ce from a qualified engineer.
–ALL 08
Seek help and advice from a qualified
engineer.
–ALL 09
If the boiler detects inadequate system
water circulation, the boiler will stop
and display AL 09. Ensure that at least
one radiator is turned on and that all
isolation valves are open.
If problem persists it could be due to a
blocked filter within the boiler, seek
help and advice from a qualified engi-
neer.
–ALL 10
Seek help and advice from a qualified
engineer.
–ALL 13 (fig. 27/e)
Press the key of the controls (2) to
re-start the boiler.
If the error persists seek help and advi-
ce from a qualified engineer.
–ALL 14
Seek help and advice from a qualified
engineer.
–ALL 15
Seek help and advice from a qualified
engineer.
–From “ALL 20” to “ALL 29”
Request assistance from qualified
technical personnel.
1.5 MINIMUM CLEARANCES
The following MINIMUM CLEARANCES
must be available for servicing the appli-
ance:
1.6 ROUTINE SERVICING
To ensure continued efficient operation of
the appliance, it is recommended that it is
checked and serviced as necessary at reg-
ular intervals.
The frequency of servicing will depend upon
the particular installation conditions and
usage but in general once a year should be
adequate.
It is the law that any service work must be
carried out by a Gas Safe Register regis-
tered engineer. Ensure that the service is
2
Fig. 27
Fig. 27/a
Fig. 27/d
2
Fig. 27/e
For servicing
ABOVE THE
APPLIANCE CASING 300 mm
AT THE R.H.S. 15 m m
AT THE L.H.S. 15 m m
BELOW THE
APPLIANCE CASING 200 mm
IN FRONT OF THE
APPLIANCE 500 mm
OPEN
Fig. 27/b
2
Fig. 27/c

9
recorded in the installation guide use and
maintenance section.
1.7 ELECTRICAL SUPPLY
THIS APPLIANCE MUST BE EARTHED. The
mains supply must be fused at 3 amp.
1.8 VENTILATION
If the appliance is installed in a cabinet, it
MUST NOT be used for storage purposes.
Any ventilation provided for the appliance
during installation MUST NOT be blocked
and a periodic check must be made to
ensure that the vents are free from
obstructions.
1.8.1 Cleaning
Use only a damp cloth and mild detergent
to clean the appliance outer casing. DO
NOT use abrasive cleaners.
1.9 SAFETY
It is essential that the instructions in this
booklet are strictly followed for the safe
and economical operation of this appli-
ance. The appliance functions as a fan
assisted balanced flue unit.
The flue terminal MUST NOT BE
OBSTRUCTED under any circumstances. If
damaged, turn off the appliance and con-
sult the installer, service engineer, or gas
supplier. If it is known or suspected that a
fault exists on the appliance it MUST NOT
be used until the fault has been rectified by
a competent person.
WARNING:
IF A GAS LEAK IS SUSPECTED OR
EXISTS, TURN OFF THE GAS SUPPLY TO
THE APPLIANCE AT THE GAS SERVICE
COCK.
DO NOT OPERATE ANY ELECTRICAL
SWITCHES.
DO NOT OPERATE ANY ELECTRICAL
APPLIANCE.
OPEN ALL WINDOWS AND DOORS. DO
NOT SMOKE.
EXTINGUISH ALL NAKED LIGHTS. CON-
TACT THE NATIONAL GAS EMERGENCY
SERVICE IMMEDIATLEY ON
0800111999.

10
Setting the time
The time of day can be set by grasping
the outer edge of the black dial and
turning it in a clockwise direction until
the correct time is in line with the white
pointer.
Setting the “switching time”
The “ON” periods are set by sliding the
blue tappets, adjacent to the time peri-
ods required, to the outer edge of the
dial.
The tappets that remain at the centre
of the dial will be the “OFF” periods.
N.B.: The smallest switching time (ON
or OFF) is 15 minutes.
– To select “Timed” mode move the
selector switch in the middle of the
clock face to the “”position.
– To select “Constant” mode move
the selector switch in the middle of
the clock face to the “I” position.
– To select “OFF” mode move the
selector switch in the middle of the
clock face to the “O” position.
MECHANICAL TIME CLOCK - Code 8092228
Slide blue tappets
OUT for ONperiod
Slide blue tappets IN for OFF period
Mode selector switch

When the selector is in the “AUTO” position, boiler func-
tioning is automatically controlled on the basis of the
temperature levels and time periods set. The second
selector must be in the “RUN” position to start.
The programming procedure is described below:
–Setting the time
Set the selector to the “CLOCK“ position. Press “h” to
change the hour on the display, or “m” to change the
minutes. To set the day, press the “1…7” button until
the arrow is pointing to the correct day (1 =
Monday… 7 = Sunday).
–Setting the program
The time clock has 8 on times and 8 off times. To
make it easier to use, the time clock is supplied with
3 on times and 3 off times already set for each day
of the week, as shown below:
To select programmes other than those already set,
move the selector to position “P”; “0:001” will appear
on the display, in which the first three digits indicate
the hour and minutes, while the fourth digit identifies
the program number. Odd-numbered programs iden-
tify requests for operation (day temperature), in
which case the light bulb symbol will appear on the
display, while even-numbered programs identify
drops in temperature (night). Use the “1…7” key to
select the day of the week (from 1 to 7) or days (1 ÷
5, 6 - 7; 1 ÷ 6 or every day if the program is to be
repeated every day of the week). Set the hour and
minutes with the “h” and “m” buttons.
Press “P” to store the operation in memory and go
on to the next program. Repeat the same procedure
to set the remaining programs.
When finished programming, set the selector to
“RUN” position.
–Deleting one or more programs
The on and off time must be deleted for each pro-
gram to be deleted.
Set selector (2) to position “P”. Select the desired
program with button (3), then press button (4) to
delete the day setting (the triangular symbols for the
days should go away). If part of the program is dele-
ted, when you set selector (2) back to the “RUN”
position an error will appear in the clock display,
referring to the program which is incorrect.
To delete all programs, put the selector in position
“P” and press buttons (3) and (5) at the same time.
–Setting the SKIP function
The SKIP function deactivates programs for the next
day and resumes regular programming 24 hours
later.
This function is useful if you will be out all day and
don’t need heating.
To start this function, press button (7), which is acti-
ve only when selector (2) is in “RUN” position.
Once you have selected the SKIP function, it will go
into effect at 0:00 of the next day for 24 hours.
You cannot turn it off once it has started, so regular
programming will not resume until 24 hours have
passed.
DIGITAL TIME CLOCK - Code 8092229
Program Time
1 06,00
2 09,00
3 12,00
4 14,00
5 18,00
6 22,00
NOTE: No program is set from 7 through 17.
or
1 Manual/automatic operation selector
2 Program/schedule setting selector
3 Program button
4 Day of the week button
5 Hour button
6 Minute button
7 SKIP button
8 Reset button
11

12
ANALOGIC RF TIME PROGRAMMER - Code 8092231

13
DIGITAL RF TIME PROGRAMMER - Code 8092232

14

Cod. 6274287 - 06/10 - Documentation Dpt.
Sime Ltd
1a Blue Ridge Park
Thunderhead Ridge
Glasshoughton, Castleford, WF10 4UA
Phone: [phone]
Fax: [phone]
www.sime.ltd.uk
Email: [email protected]
