PWS2000 Water Dispenser
User Manual

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 2
Notices & Safety Information
Throughout this manual there are paragraphs set off by special headings.
1. Notice is used to emphasize installation, operation or maintenance information which is important, but does
not present any hazard to persons or property.
2. Caution is used when failure to follow directions could result in damage to equipment or property.
3. Warning is used to indicate a hazard which could cause injury or death if ignored.
The CAUTION and WARNING paragraphs are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution, and careful attention are conditions which cannot be
built into the equipment.
•To ensure proper operation of your dispenser, carefully follow the instructions in this manual.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system.
•Check and follow the applicable plumbing codes and ordinances when installing this equipment. Local codes
may prohibit the discharge of acid or caustic solutions to drain. An extra solution tank should be used to
neutralize the solution before discharging to drain. Follow local codes if they differ from this manual.
•Regularly inspect the dispenser for water leaks. Water leaks can cause damage to home and property.
•Only connect the power cord to a properly grounded outlet and do not use an extension cord.
•Never pull the power plug from the outlet with a wet hand or allow the plug to get wet.
•Keep the power cord out of heavy traffic areas. To avoid a fire hazard, never put the power cord under rugs,
near radiators, stoves or heaters.
•Do not use a damaged power cord or plug. If damaged, a qualified service technician must replace it.
•To meet European CE requirements, fasten the unit to the floor with the expansion bolt M6x60.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This product should not be disposed with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 3
Table of Contents
Notices & Safety Information .............................................................................. 2
Table of Contents ................................................................................................ 3
PWS2000 Series Water Dispenser Overview ....................................................... 4
Water Dispenser ......................................................................................... 4
UV Light System .......................................................................................... 4
Leak Detection System................................................................................ 4
Filtration System ......................................................................................... 4
Main Storage Tank ...................................................................................... 4
Mechanical Components ............................................................................ 4
Unpacking ........................................................................................................... 5
Assembly Drawings.............................................................................................. 6
Installation .......................................................................................................... 8
Position & Level........................................................................................... 8
Install Filtration ........................................................................................... 9
Establish Water & Electrical Connections................................................. 10
Flush Filters ............................................................................................... 11
Sanitize Dispenser ..................................................................................... 11
Turn ON HOT & COLD Switches ................................................................ 11
Record Installation Date............................................................................ 11
Operation .......................................................................................................... 12
Service and Maintenance .................................................................................. 13
General Maintenance ............................................................................... 13
Sanitize Dispenser ..................................................................................... 13
UV System Bulb Replacement................................................................... 13
Reset Leak Detection System.................................................................... 14
Reset HOT Tank Element........................................................................... 14
Troubleshooting ................................................................................................ 15
Technical Specifications..................................................................................... 16
Flow Diagrams................................................................................................... 17
Electrical Diagram.............................................................................................. 18
Normal Service Replacement Parts.................................................................... 19
Warranty ........................................................................................................... 20

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 4
PWS2000 Series Water Dispenser Overview
Thank you for purchasing the PWS2000 Series Water Dispenser. The PWS2000 Series brings a unique, fresh
approach and a new look to point-of-use water treatment systems. The system’s contemporary color scheme
complements every office environment. Unlike a bottled water cooler, incoming tap water is treated as it is
needed, so the water is always fresh and great tasting. Best of all, there are no bottles to change and the supply is
virtually unlimited.
Water Dispenser
Depending on model, your PWS2000 Series Water Dispenser is configured to supply a clean and pure supply of
HOT, COLD, and if equipped, AMBIENT water. The heating system consists of a 0.5 gallon (2 liter) stainless steel
tank fitted with a 500 watt heating element and protected by a resettable bi-metal overload thermostat. The HOT
water being dispensed is factory set to 185°F (85°C). COLD water is chilled with a high capacity compressor using
R134a non-ozone depleting refrigerant gas. This compressor is controlled by an electromechanical thermostat,
which controls the water temperature in the 1 gallon (3.8 liter) stainless steel tank. The COLD water temperature is
factory preset to a nominal 41°F (5°C).
UV Light System
Most models of the PWS2000 Series Water Dispenser are fitted with a UV-C band light system between the tank
and dispenser spigot. This system is used to inhibit the growth of bacteria by compromising their DNA structure.
When dispensing water, you will notice a pulsating UV INSIDE light which simulates the UV light system activation.
The UV bulb is housed within a quartz sleeve which allows the UV light to pass through to the water. This bulb
should be replaced every 12 months and the quartz sleeve removed and cleaned.
Leak Detection System
All models of the PWS2000 Series Water Dispenser are fitted with a leak detect system. This system will generate
an audible and visual warning upon detecting water at the base of the unit due to failed tubing or connections. In
addition, the system will automatically close the incoming water supply valve to prevent further damage.
Filtration System
The PWS2000 Water Dispenser is shipped from the factory with no internal filtration. Consult with your local
dealer on the best filtration solutions for the local water conditions.
Main Storage Tank
Both HOT and COLD tanks are fed from a main 3 gallon (11 liter) storage reservoir located at the top of the water
dispenser. This tank is fed directly from the filtration system and is protected from overflow by a redundant float
system.
Mechanical Components
The dispenser is connected to the water supply by a 1/4” push-to-connect style bulkhead fitting. The entire
internal water circuit and all components which come in contact with water are NSF Standard 61 approved. The
molded panels are made from recyclable ABS plastic. All the ABS plastic panels are UV resistant and meet the
standards of both CE and ETL.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 5
This manual includes information on the following PWS2000 Series Water Dispenser models.
PWS2000-
HC
11RO
1
W
HC = Hot & Cold
HAC = Hot, Ambient, & Cold
AC = Ambient & Cold
HA = Hot & Ambient
11RO = w/ UV
01RO = w/o UV
1 = 120VAC w/ US plug,
2 = 220VAC w/ Euro plug
3 = 220VAC w/ UK plug
4 = 100VAC w/ JPN plug
5 = 220VAC w/ CCC plug
B = Black
G = Gray
W = White
Unpacking
The PWS2000 comes completely assembled and ready to operate upon installation of the appropriate filtration
cartridges. Remove the dispenser and save the carton and packaging materials. The carton contains the following
items.
Qty
Item
1
PWS2000 Series Water Dispenser
1
Cup Holder
1
M4 X 30 Tamper-proof Screw
1
M6 X 60 Expansion Bolt
1
User Manual
1. Inspect the outer panels for any damage which may have occurred during shipment.
2. To inspect the interior, remove the filtration service panel.
3. Visually inspect for any wires, tubing, or fittings which may have come loose during shipment.
4. Record the unit model and serial numbers in this manual for future reference.
Record your water dispenser part number here:
PWS2000-
Date
purchased
Date
installed
Products manufactured and marketed by SIMPLEMENTE AGUA SAS and its affiliates
are protected by patents issued or pending in the United States and other countries.
S.A reserves the right to change the specifications referred to in this literature at any time, without prior
notice.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 6
Assembly Drawings

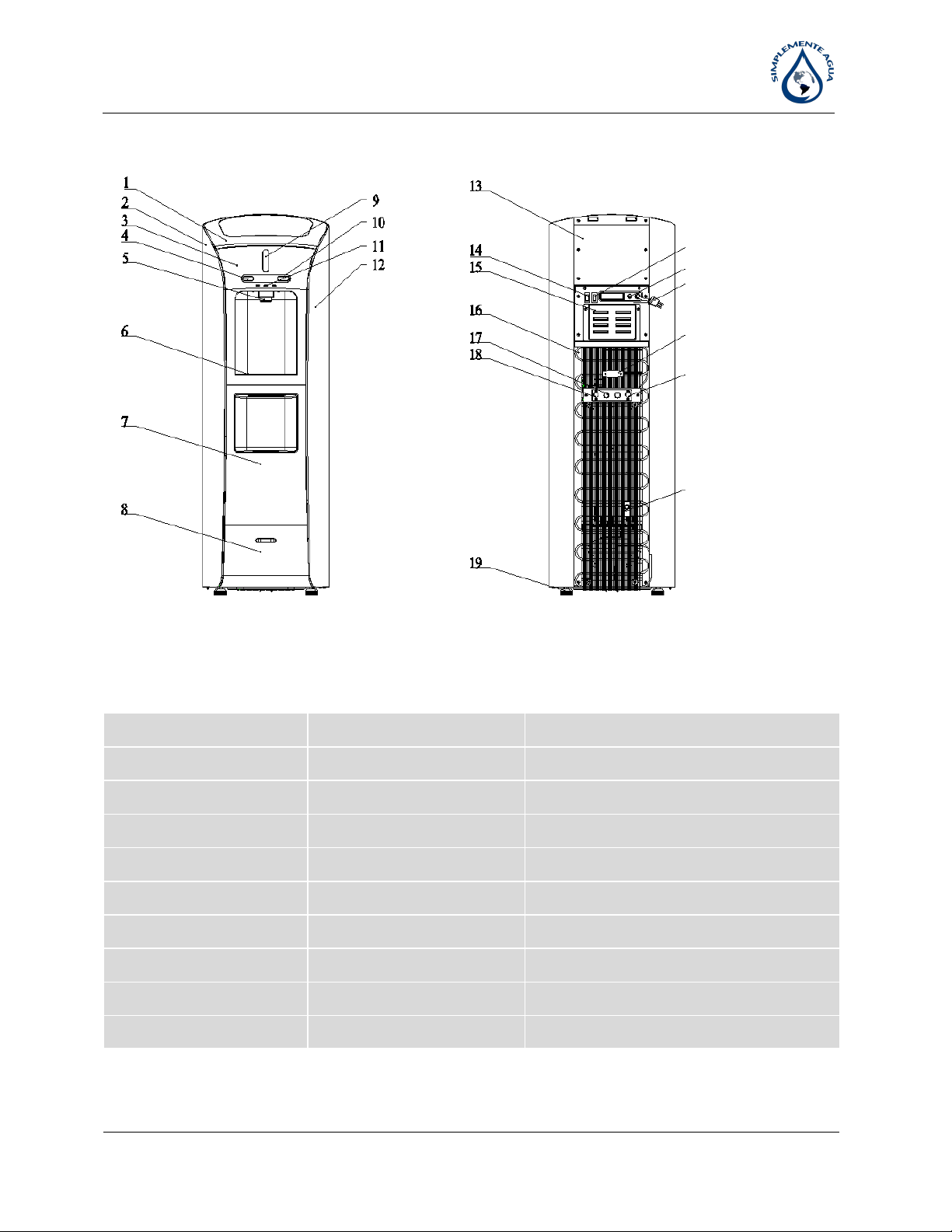

Figure 1. Side Views
1. Top Service Panel
11. Status Indicator - Power
21. Fuse
2. Side Panel Right
12. Side Panel Left
22. Power Cord
3. Front Top Panel
13. Rear Service Panel
23. Thermostat for Cooling
4. Hot Water Pushbutton
14. ON/OFF Switch (HOT)
24. Cold Tank Drain
5. Spigot
15. Main PCB Cover
25.RO Waste Drain
6. Drip Tray
16. Condenser
7. Filtration Service Panel
17. Hot Tank Drain
8. Front Lower Panel
18. Supply Inlet
9. UV Simulation Display
19. Adjustment Feet
10. Cold Water Pushbutton
20. ON/OFF Switch (COLD)
Top P

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 7
Figure 2. Exploded View
Figure 3. Dimensions
Leak Sensor
Main Tank
UV Chamber
Compressor
Filter Cartridge
Filter Manifold
Inlet Valve
HOT Tank
COLD Tank
Redundant Level
Sensor
Primary Level Sensor

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 8
Installation
Figure 4. Quick Start Guide.
Position & Level
1. Locate the dispenser as close to the water supply and the electrical connections as possible.
2. Level the dispenser using the adjustable leveling feet and built-in bubble indicator.
3. Keep the dispenser at least 3 inches from the wall to ensure adequate airflow.
W A R N IN G
T O C O M P L Y W I T H C E S T A N D A R D S , I T I S N E C E S S A R Y T O F A S T E N T H E U NI T T O T H E
F L O O R .
T H E A P P L I A N CE S H O U L D N O T B E E X P O S E D T O D I R E C T S U N L I G H T , H E A T S O U R C E S , O R
A N A M B I E N T A I R T E M P E R A T U R E A B O V E 9 0 ° F ( 3 2 ° C ) O R B E L O W 3 7 ° F ( 3 ° C ) O R
S T R U C T U R A L D A M A G E M A Y O C C U R .
4. To comply with CE standards, it is necessary to fasten the unit to the floor with an M6x60 expansion bolt.
1)Locate and drill a 43mm deep hole using an alloy drill bit with 9mm diameter.
2) Install the flat pad, the spring washer and the nut to the bolt, and then insert into the hole.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 9
3) Remove the Filtration Service panel and locate the alignment hole on the base plate.
4) Align the appliance with the expansion bolt using the hole in the base plate.
5)Using a wrench, secure the appliance to the expansion bolt.
6)Reinstall the Filtration Service panel.
Figure 5. Dispenser Leveling Feet and Installing the Expansion Bolt
5. Your PWS2000 Water Dispenser comes complete with a built-in cup holder under the water dispenser
section. This holder is designed to hold up to 20 standard size cups with a top diameter of between 2.8” and
3.0” (71 – 76mm).
Install Filtration
The PWS2000 Water Dispenser is shipped from the factory with no internal filtration installed. Consult with your
local dealer on the best filtration solutions for the local water conditions and follow the manufacturer’s
instructions on their installation, use, and servicing. Typical solutions include SED for the reduction of particulates,
CTO for chlorine, taste, and odor, and RO for the filtration of waterborne microorganisms, heavy metal, and other
inorganic contaminants. The steps below apply to a typical twist-lock style filtration system.
1. Open the filtration service panel.
2. Mount the manifold to the dispenser back-plate using two
mounting screws
3. Connect the yellow (supply water) tube to the inlet port of the
manifold.
4. Connect the blue tube (filtered water) to the manifold outlet
port.
5. Insert both filter cartridges to the manifold by pushing up and
turning clockwise.
6. Turn on water supply and check for leaks.
7. Reinstall the filtration service panel.
Figure 6. Example of 2-stage twist-lock filtration system installation.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 10
1. Open the filtration service panel.
2. Mount the manifold to the dispenser back-plate using two
mounting screws
3. Connect the yellow (supply water) tube to the inlet port of the
manifold.
4. Connect the blue tube (filtered water) to the manifold outlet
port.
5. Connect the red tube (RO drain) between the cartridge and the
drain port on the dispenser. Ensure that the flow restrictor is
properly sized and installed!
6. Insert filter cartridges to the manifold by pushing up and turning
clockwise.
7. Turn on water supply and check for leaks.
8. Reinstall the filtration service panel.

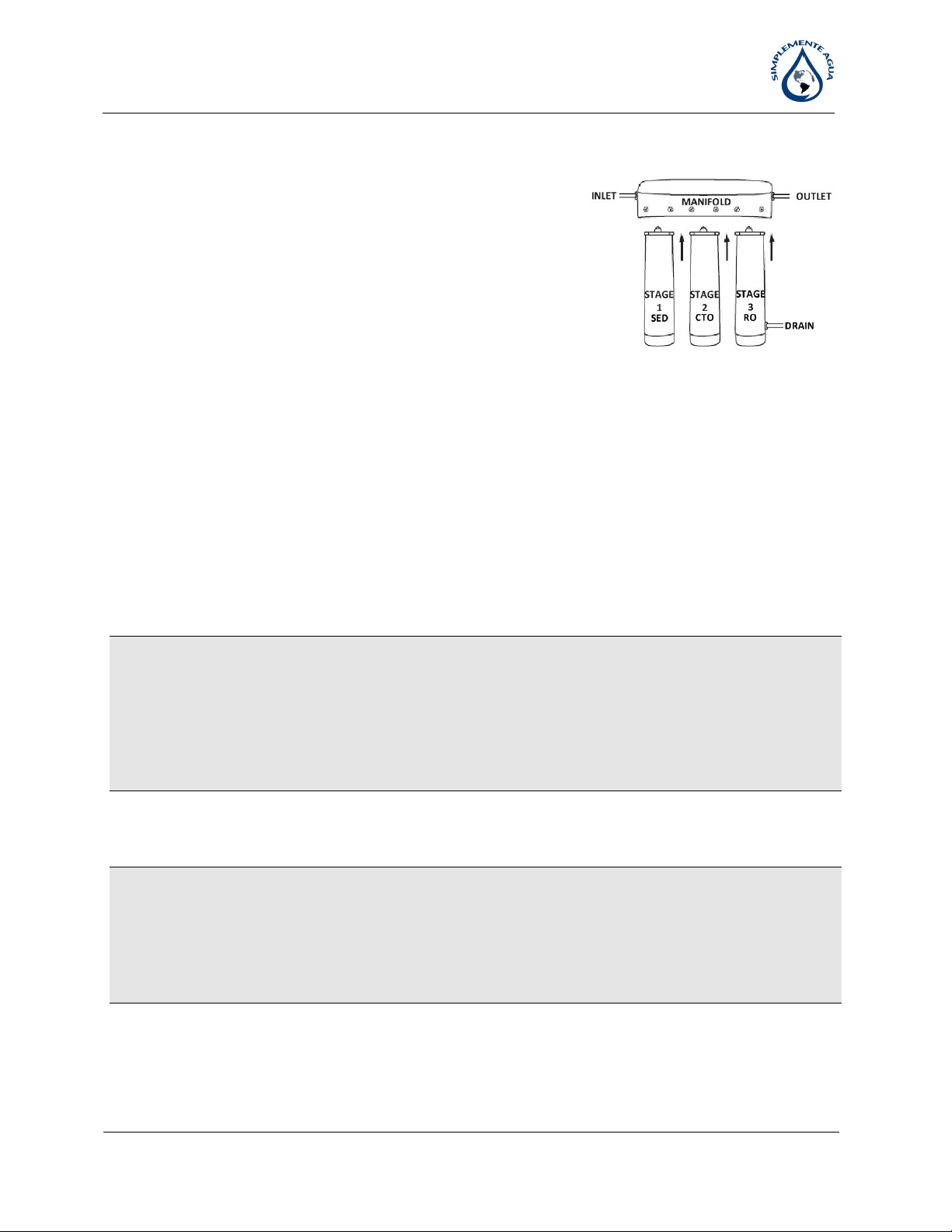

Figure 7. Example of 3-stage twist-lock RO filtration system installation.
Establish Water & Electrical Connections
The dispenser contains push-to-connect type fittings on the dispenser rear for the water supply and RO drain.
These fittings accept ¼” polypropylene plastic tubing. If copper tubing is to be used, then these fittings must be
replaced with a metal design. In addition, two drain ports are provided for the HOT and COLD tanks.
1. Connect a clean, soft water supply to the unit. Pressure must be 40-60psi (2.8-4.1 bar) and at a temperature no
more than 105°F (41°C).
2. Flush the water supply feed until it runs clear before making connection to the dispenser.
C A U T I O N
D O N O T C O N N E C T T H E D I S P E N SE R T O A W A T E R L I N E W H I C H E X C E E D S 1 0 5 ° F ( 4 1 ° C ) A S
S T R U C T U R A L D A M A G E M A Y O C C U R .
A P R E S S U RE R E G U L A TO R M U S T B E U S E D F O R W A T E R S U P P L I E S T H A T E X C E E D 6 0 P S I
( 4 . 1 B A R ) , A R E U N K N O W N , O R H A V E P R E S S U R E F L U C T U A T I O N S . T H I S S H O U L D B E
I N S T A L LE D O N T H E W A T E R S U P P L Y B E F O R E T H E D I S PE N S E R I N L E T.
3. Plug the dispenser into the wall outlet and verify that the green PWR status indicator is ON. A fuse located on
the rear service panel protects the internal circuits from damage.
C A U T I O N
D A M A G E T O T H E D I S P E N S E R W I L L R E S U L T IF H O T A N D C O LD S W I T C H E S A R E T U R N E D
O N W I T H O U T W A T E R I N S I D E T H E T A N K S
I F T HE U N I T W A S P L A C E D O N I T S S I D E , I T M U S T S T A N D U P R I G H T F O R A M I N I M U M O F
2 H O U R S B E F O R E O P E R A T I O N T O A L L O W T H E C O M P R E S S O R T O S T A B I L I Z E

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 11
Flush Filters
All filters must be flushed prior to use per manufacturer’s instructions. When using twist lock style cartridges, this
process may be combined with the initial dispenser sanitizing process below.
Sanitize Dispenser
Your dispenser is sanitized at the factory prior to shipment. However, it is recommended to sanitize again before
using your dispenser for the first time. Failure to do so may result in poor water taste. This is best accomplished
as outlined below (for a typical 3-stage filtration system) using the sanitizing kit from the dispenser supplier.
1. Soak RO cartridge in clean water while the dispenser is being sanitized.
2. Ensure both water connections –supply and RO drain –are made at the rear of the dispenser.
3. Open top service panel to gain access to the main storage tank and UV bulb.
4. Open filtration service panel, locate, and install the SED and CTO filters in positions 1 and 2 of the manifold.
5. Locate the SAN cartridge and pipette from the Sanitization kit. Using the pipette, draw 2ml of unscented, liquid
bleach (5% sodium hypochlorite) and dispense into the SAN cartridge.
6. Insert the SAN cartridge into position 3 of the manifold.
7. Slowly turn ON the water supply until the main storage tank is ½ full then turn OFF.
8. Carry out a visual inspection for any water leaks.
9. Lift the main storage tank lid taking care not to damage the level sensor.
10. Wearing gloves and using a clean, lint-free cloth, thoroughly wipe down the inside of the main storage tank.
11. Let stand for ten minutes.
12. Slowly turn ON the water supply.
13. Depress the dispenser buttons (alternate between HOT and COLD sides) to allow the solution to run through
the spigot and associated lines.
14. Drain the system until the chlorine bleach is no longer detected at the spigot.
15. Remove the SAN cartridge and replace with the RO cartridge.
N O T E
R E M E M B E R T O C O N N EC T T H E R O D R A I N L I N E T O T H E R O C A R T R I D G E . A L S O E N S U R E
T H A T T H E B L UE F L O W R E S T R I C T O R I S V I S I B L E I N S I DE T H E R O D R A I N L I N E
16. Record service date on the inside filtration panel for future reference.
17. Replace the filtration service panel.
Turn ON HOT & COLD Switches
With all tanks completely filled with water, both the HOT and COLD switches at the rear of the dispenser should be
turned ON. It will take approximately 30 minutes for the HOT water and 60 minutes for the COLD water to reach
their temperature presets.
N O T E
I F A N R O F I L T R A T I O N I S B E I N G U S E D A L L O W 4 5 M I N U T E S T O C O M P L E T E L Y F I L L A L L
T A N K S .
Record Installation Date
In order to ensure proper maintenance of your dispenser, a service tag is provided on the inside of the filtration
panel. This will ensure that maintenance intervals can be recorded and scheduled.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 12
Operation
Your PWS2000 Series Water Dispenser contains a simple, intuitive user interface for operation and status. All
buttons are backlit and a nightlight is provided in the dispenser area.
Figure 8. User Interface
Button/LED
ON
OFF
Flashing
POWER Indicator
Dispenser powered
Dispenser unpowered
n/a
HOT Illuminated
Pushbutton
Water heating
Dispenser unpowered or
water heated to preset
temperature
n/a
AMBIENT illuminated
Pushbutton
n/a
Dispenser unpowered or
ambient water ready to
dispense
n/a
COLD Illuminated
Pushbutton
Water chilling
Dispenser unpowered or
water chilled to preset
temperature
n/a
UV Simulation Light
UV system ready*
UV system ready
UV system active
UV Fault Indicator
UV bulb needs
replacement
UV system ready
System fault –i.e. leak,
short-circuit
*ON only when user is in front of dispenser.
N O T E
A C H IL D S A F E T Y L O C K O U T I S P R O V I DE D F O R T H E H O T W A T E R S I D E . T H E B U T T O N
M U S T B E H E L D F O R 3 S E C O N D S U N T I L A B E E P IS H E A R D . P R E S S T H E B U T T O N A G A IN
F O R W A T E R T O D I S P E N S E
COLD button
HOT button
POWER
status
UV light
simulator
System fault
indicator
Night light

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 13
Service and Maintenance
Once assembled, installed, and flushed properly, your PWS2000 Water Dispenser will provide years of trouble-free
operation. Normal service should only be carried out by a trained service professional. Depending on usage, the
filtration cartridges should be replaced every six (6) months or as directed by their manufacturer. In addition,
models with the UV system option should have the UV bulb replaced every twelve (12) months.
S E R V I C E N O T E S
D O N O T C L E A N T H I S A P P L I A N C E W I T H A W A T E R J E T .
R U B B E R G L O VE S M U S T B E W O R N W H E N H A N D L I N G T HE F I L T E R S , S T O R A G E T A N K S , U V
Q U A R T Z S L E E V E , O R A N Y C O M P O N E N T S T H AT H A V E C O N T A C T W I T H T H E D R I N KI N G
W A T E R .
General Maintenance
1. Wipe all surfaces on the front panels, dispenser buttons, dispenser area, faucet, and drip tray with a bacterial
cleaning wipe or spray.
2. Remove and clean the drip tray and grill. If the grill is damaged or heavily stained it should be replaced.
3. Wipe away any dust which may have accumulated on the condenser grill behind the dispenser.
4. Drain all tanks after long periods of non-use.
5. On RO models periodically inspect the flow restrictor to ensure it is clean an unrestricted.
W A R N IN G
T A K E P R E C A U T I O N S W H E N D R A I N I N G T H E H O T W A T E R .
Sanitize Dispenser
All tanks should be sanitized at regular intervals, especially after a long period of non-use. This is best
accomplished using a sanitization kit from the dispenser supplier as outlined on page 11.
UV System Bulb Replacement
The UV bulb is located under the top service panel and should be replaced every twelve months.
1. Disconnect power to the dispenser.
2. Turn OFF the water supply and activate the dispenser buttons to relieve any pressure in the system.
3. Turn OFF the HOT and COLD switches at the dispenser rear.
4. Drain all tanks using the drain ports at the dispenser rear.
5. Open top service panel to gain access to the main storage tank and UV bulb.
W A R N IN G
N E VE R L O OK I N T O T H E UV L I G H T A S U V R A D I A T I O N I S D A N G E R O U S T O T H E E Y E S A N D
S K I N .
D O N O T T O U C H T H E U V T H E Q U A R T Z S L E E VE W I T H B A R E H A N D S .
T H E T E M P E R A T U R E O F T H E W A T E R F L O W I N G A R O U N D T H E U V B U L B I S H O T .
6. Unplug the UV electrical connector from the UV assembly.
7. Unscrew the top four screws and carefully lift out the UV bulb from UV assembly.
8. Unscrew the quartz sleeve by turning counterclockwise.

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 14
9. Using a clean, lint-free cloth, thoroughly wipe down the outside of the quartz sleeve and reinstall.
10. Install a new UV bulb (FilterPro part number C080-00030) into the UV assembly and fasten the top four screws.
11. Plug in the UV electrical connector to the UV assembly.
12. Reconnect power to the dispenser.
13. Check that the UV lamp is functioning by observing a blue glow from the UV assembly inlet or outlet (Note that
the lamp only operates when the dispenser buttons are pressed).
14. Reinstall top service panel.
15. Slowly turn ON the water supply.
16. When all tanks are filled, turn ON the HOT and COLD switches at the dispenser rear.
Reset Leak Detection System
All models of the PWS2000 Series Water Dispenser are fitted with a leak detect system which will generate an
audible and visual warning upon detecting water at the base of the unit due to failed tubing or connections. In
addition, the system will automatically close the incoming water supply valve to prevent further damage. Normal
operation will return once the source of the leak is removed.
Reset HOT TankElement
All models of the PWS2000 Series Water Dispenser are fitted with a thermal overload switch to protect the HOT
tank system. If an audible “click” is heard within 5 minutes of turning ON the HOT on/off switch, OR if the
dispenser fails to make HOT water, then this switch has tripped. The overload switch is on the side of the hot tank
as shown below and must be manually reset. Ensure that the dispenser is unplugged before accessing this switch.
Figure 9. HOT Tank Reset Button Location
Overload Switch
HOT ON/OFF
Switch

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 15
Troubleshooting
Symptom
Possible Cause
Solution
No Power / Power
status indicator OFF
No electric current
flowing
External circuit
breaker has tripped
Blown fuse
Check outlet and plug for proper connection
Check external circuit breaker
Check fuse at rear of dispenser and replace as necessary
Tanks not filling
during initial setup
External water supply
is turned OFF
Leak detection
system activated
Blockage in filtration
system
RO filtration installed
Check external water supply valve for proper position
Remove source of leak and reset system
Remove source of blockage
Allow 45 minutes to fill tanks when RO filtration installed
Dispensed water is
neither HOT nor
COLD
HOT/COLD switches
turned OFF
Check position of the HOT/COLD switches on the dispenser
rear panel
No, or low flow from
COLD dispenser –
HOT is OK
Water inside
the cold tank frozen
Check to ensure that the thermostat is at the factory setting
Turn OFF the COLD switch for 4 hrs to melt ice inside tank
No or low flow from
HOT dispenser –
COLD is OK
HOT water tank
needs to
be de-scaled
De-scale HOT water tank
If problem persists, consult with your authorized service
provider about adding a de-scaling filter cartridge
No or low flow from
both HOT and COLD
dispensers
Filter cartridges may
need changing
Low pressure from
water supply
Change filter cartridge(s)
Check water supply pressure
Dispensed HOT water
is cold
HOT tank overload
switch has tripped
Follow the instructions in this manual on how to reset the
HOT water tank
Dispensed COLD
water is warm
Dispenser COLD
switch is OFF
Dispenser is not
positioned correctly
Condenser
refrigerant is low
Check that the COLD switch on the dispenser rear panel is in
the ON position
Check to ensure the dispenser is at least 3” from the wall,
not in direct sunlight or in a room with high ambient
temperature
Dispensed water has
a “bad” taste
Dispenser not
sanitized
Filters not flushed
Sanitize the dispenser
If the bad taste persists taste the water coming directly from
the filter cartridge and change as necessary
If still bad change the filter, or contact your service provider

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 16
Technical Specifications
Cabinet
Color
Black, white, gray
Material
Metal side panels, ABS front panels
Dimensions
16.6” x 17.1” x 48.8” (422 x 435 x 1240mm)
Empty Weight
65 Lbs (29.5 Kg)
Water Connections
1/4" push to fit style
Water Dispenser
Selections
Hot & Cold standard
Storage Tank Material
Stainless Steel (plastic for 3 gallon internal storage tank)
Hot
Temperature Range
176-185°F (85 °C)
Storage Capacity
0.5 Gallons (2 Liters)
Heating Capacity
Min. 0.26 Gallon (1000 ml) dispensed @160°F (70°C)
Cold
Temperature Range
39 –46°F (4 - 8°C)
Storage Capacity
1 Gallons (3.8 Liters)
Chilling Capacity
Min. 0.26 Gallon (1000 ml) dispensed @40°F (5°C)
Min/Max Water Pressure
40 - 60 psi (2.8 –4.1 bar)
User Interface
Electronic Controls / Status Indicators
Illuminated Pushbutton / Power LED
Adjustable Temperature Range
No
ON/OFF Switch
HOT and COLD
Safety Features
Child-proof HOT Water Dispenser
Standard
Leak Detect with Auto Shutoff
Standard
Antimicrobial Coating
Select models only
Bacterial Growth inhibitor
Models with UV option only
Electrical
Operating Voltage
US version: 120 VAC/60Hz (700W)
EUR version: 220-240VAC/50Hz (600-705W)
Energy Consumption
0.932 KwH (normal operation)
Environmental
Refrigeration Gas
R134a 1.4 Oz (40 grams)
Decibels
41 dB
Approvals
ETL to UL 399 standard, CE

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 17

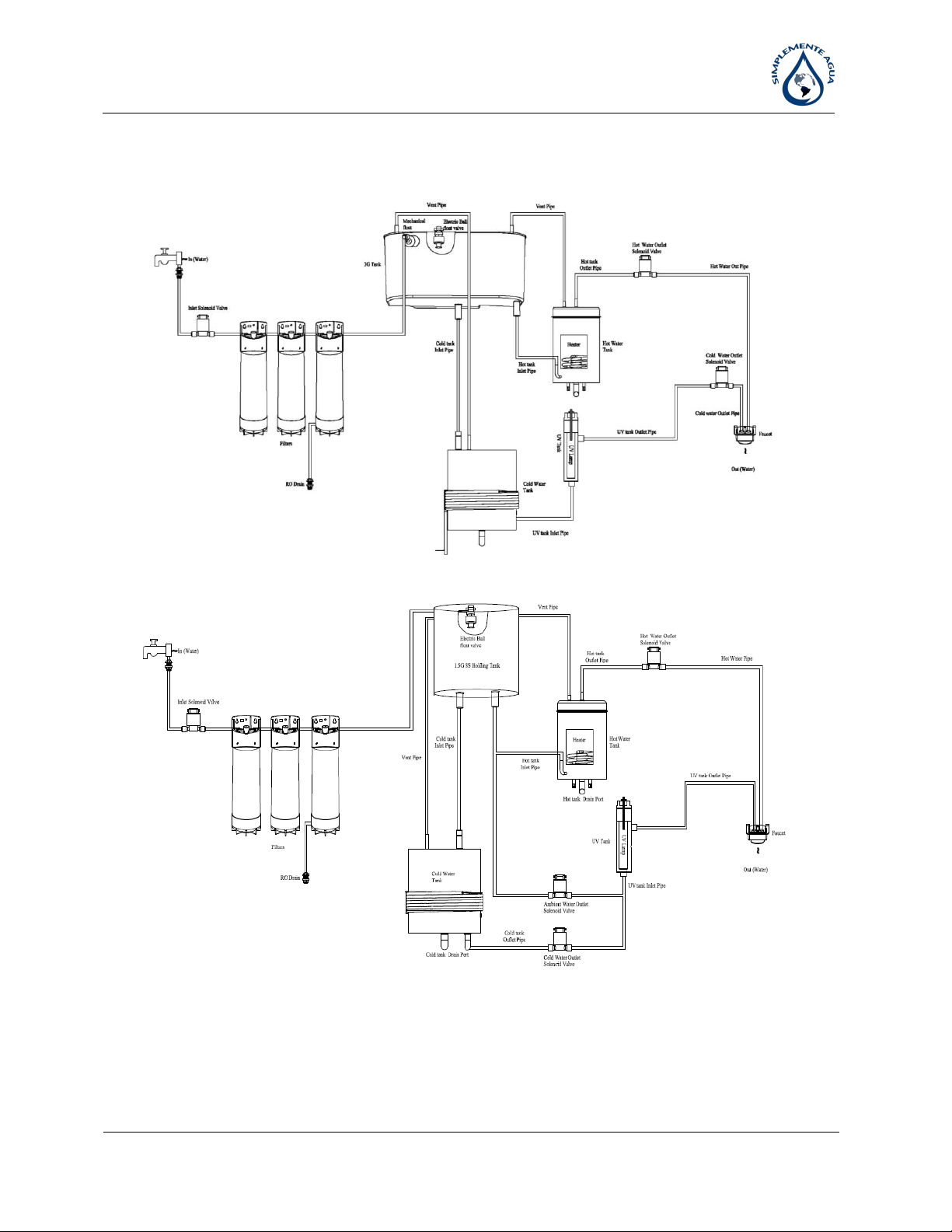

Flow Diagrams
Figure 10. Flow Diagram (HOT & COLD models)
Figure 11. Flow Diagram (HOT, AMBIENT, and COLD models)

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 18

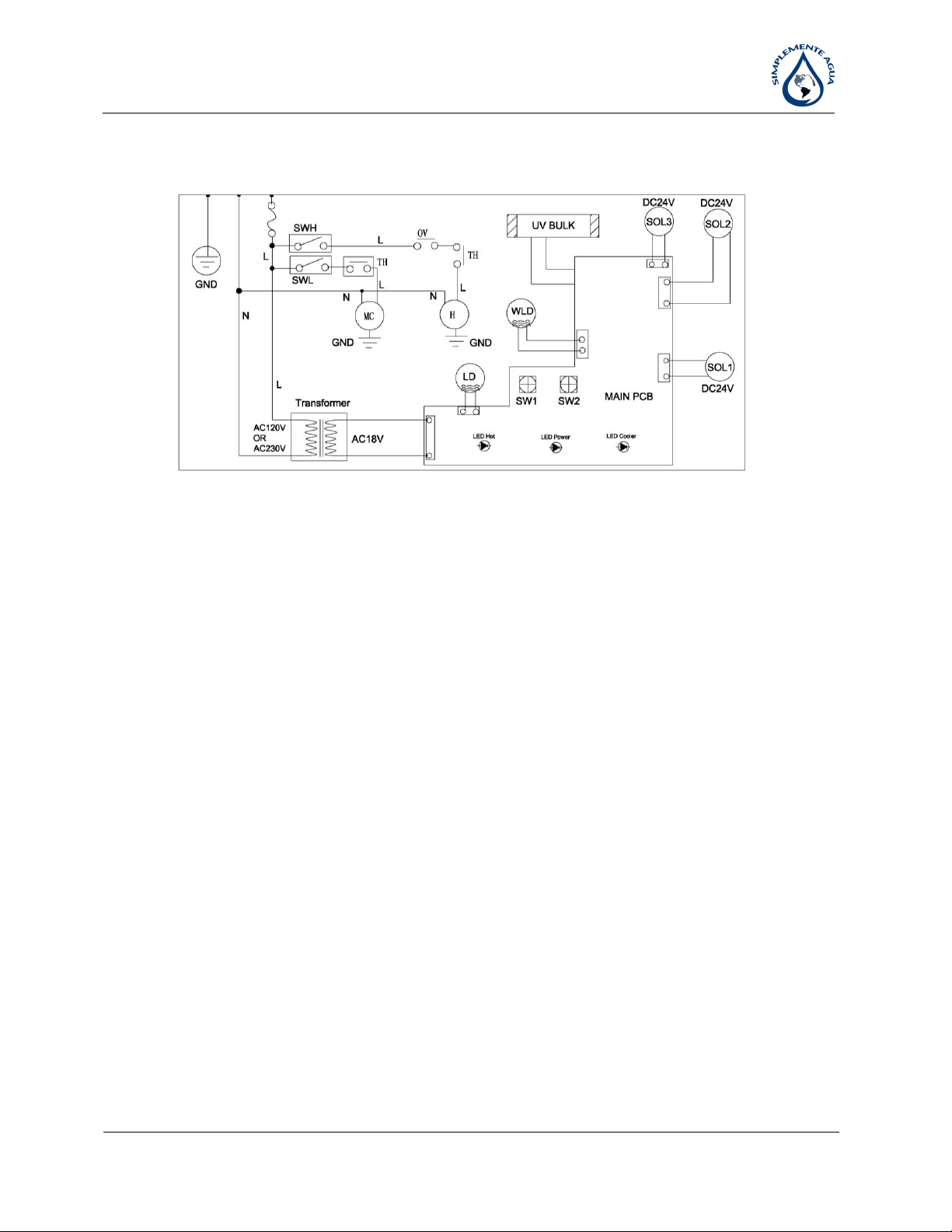

Electrical Diagram
Figure 12. Electrical Diagram (All models)
MC: motor compressor
H: Heater
SOL1: Inlet valve
SOL2: HOT inlet valve
SOL3: COLD inlet valve
SWL: compressor switch
SWH: Heater switch
SW1: HOT dispenser switch
SW2: COLD dispenser switch
LD: Water leak detector
WLD: Water level detector
OV: Low level control switch
TH: Temperature control switch

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 19
Normal Service Replacement Parts
Filtration Parts, FilterPro Clean & Pure Twist Lock Brand
TLSSH
Manifold, single stage
TLDSH
Manifold, double stage
TLRO3H-S-C
Manifold, triple stage (series)
TLROMC
Cartridge, RO, 35GPD
TLROROMC-75
Cartridge, RO, 75GPD
TLSSC
Cartridge, sediment
TLSC1
Cartridge, CTO level 1
TLSC2
Cartridge, CTO plus lead and cyst
TLSAN
Cartridge, sanitization
Water Dispenser Parts
C080-00030
UV Bulb
C080-00015
UV Ballast
C030-00091
HOT Tank Assembly 120AVC
C030-00093
HOT Tank Assembly 220AVC
C030-00094
COLD Tank Assembly
C010-00239
3G Tank Assembly
C080-00007
Transformer, 120VAC
C080-00017
Transformer, 220VAC
C080-00023
Fuse, 10A/120VAC
C080-00006
Fuse, 5A/220VAC
C010-00045
Drip Tray Grill, specify color
C010-00044
Drip Tray, specify color
C010-00039
Filtration Service Panel, specify color
C030-00002
Left Side Panels, specify color
C030-00003
Right Side Panels, specify color
C030-00001
Lower Front Panel, specify color
C010-00240
Cup Holder Assembly
C010-00055
Drain Plug (supply)
C080-00028
Inlet Solenoid Valve
C080-00052
Ambient Outlet Solenoid Valve
C080-00052
Cold Outlet Solenoid Valve
C080-00052
Hot Outlet Solenoid Valve
C080-00024
Electric Ball Float Valve
C080-00040
Mechanical Float Valve

PWS2000 Water Dispenser User Manual
C130-00049 OCT2013
Page 20
Warranty
This water treatment system is guaranteed to the original user only to be free of defects in materials and
workmanship for a period of one (1) year from the date of purchase, or initial lease, but in no event longer than
twenty-four (24) months from the date of manufacture. S.A will not be liable for any cost of removal, installation,
transportation, or any other charges which may arise in connection with a warranty claim. S.A will not be liable for
damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized
alteration or repair, or if the products were not installed in accordance with S.A’s printed installation and
operating instructions, or for any damage caused by hot water, freezing, flood, fire, or acts of God.
In the event of a claim for warranty, the defective part must be returned to S.A, together with proof of purchase,
installation date, failure date and supporting installation data. Any defective part returned to S.A incorporated
must be sent freight prepaid. Documentation to support the warranty claim and/or a Return Authorization form
must be included, if so instructed. S.A, at its sole discretion, will determine whether to correct the defect or
replace the unit, or will request that the unit be returned to S.A.
Provided a claim is based on a defect in materials or workmanship; and provided the claim is made within the
warranty period; and provided the user has used and maintained the equipment in accordance with the
manufacturer’s instructions, S.A will replace the parts free of charge. If the unit is returned to S.A for repairs, the
end user will pay the cost of freight in both directions.
This warranty does not apply to damage caused by, or resulting from, shipping, accident, alteration, misuse or
abuse, unauthorized or improper installation, or to units used outside the country where the unit was rented or
purchased. The effects from chlorine corrosion, scaling and normal wear are specifically excluded from this
warranty.
S.A hereby disclaims any and all implied warranties including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. The manufacturer or its agents shall not be liable for
consequential damages, whether economic or otherwise, resulting from breach of this limited warranty. Failure to
follow all instructions for operation and maintenance provided with this unit voids the warranty.
This warranty gives you specific legal rights and you may also have other rights which may vary from country to
country.
