Unpacking / Inspection
Be sure to check the entire system for any shipping damage or parts loss. Also note damage
to the shipping cartons. Contact US Water Systems at 1-800-608-8792 or visit
www.uswatersystems.com/returns to report any shipping damage within 24 hours of deliv-
ery. Claims made after 24 hours may not be honored.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
3 US Water Pulsar Bodyguard
Equipment Introduction
Pulsar Bodyguard™ Premium Whole House Chemical Removal Filter
The Pulsar BodyGuard is a non-electric carbon filter that removes chlorine, chloramines,
chemicals, pesticides and a multitude of other contaminants through Prolonged Contact to de-
liver the way nature intended it, using all NSF & WQA Certified Components.
The BodyGuard delivers clean, great-tasting water from every tap in your home by removing
chlorine, chloramines and other chemicals in your tap water. The Pulsar BodyGuard removes
the highest percentage of most contaminants of any filtration system on the market, due to the
large amount of carbon that it contains. In many cases, the BodyGuard has 2 or 3 times the
amount of carbon as our competitors*. It also reduces or removes other harmful contaminants
including the following:
 Chemicals
 Chlorine
 Chloramines
 Dioxin
 Heavy Metals
 Herbicides
 Odors
 Pesticides
 Pharmaceuticals
 Tastes
 TCE
 THM
 VOC’s
 … and many others
Benefits
 The system reduces or removes chlorine and other chemicals
 Unlike ordinary carbon filters it also removes or reduces chloramine
 Delivers great-tasting water from every tap in your house
 Softer skin and hair – You will see the difference after one shower
 Great tasting beverages, coffee and tea
 Eliminates Bad Tastes
 Eliminates Foul Odors
 Treats up to 1,000,000 Gallons or 5 Years
 Extremely User Friendly
 Easy to Install
 Wastes No Water
 Uses No electricity
 Lifetime Warranty on all Parts
 5-Year Performance Warranty
 90-Day Satisfaction Guarantee
Includes bypass valve and 1” MIP connection fittings. Installation kit is available.

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
4 US Water Pulsar Bodyguard
Pulsar Bodyguard systems are complete, self-contained, loaded with media and ready to use.
A simple inlet and outlet connection is all that is required for installation. Please review
operating pressures, temperatures and water chemistry limitations to ensure compatibility.
Specicaons
Inlet/Outlet Connection 1” NPT
Temperature 40° - 110°F
Water Pressure 15 min, 100 max (PSI)
*See note about iron, manganese and copper on page 5.

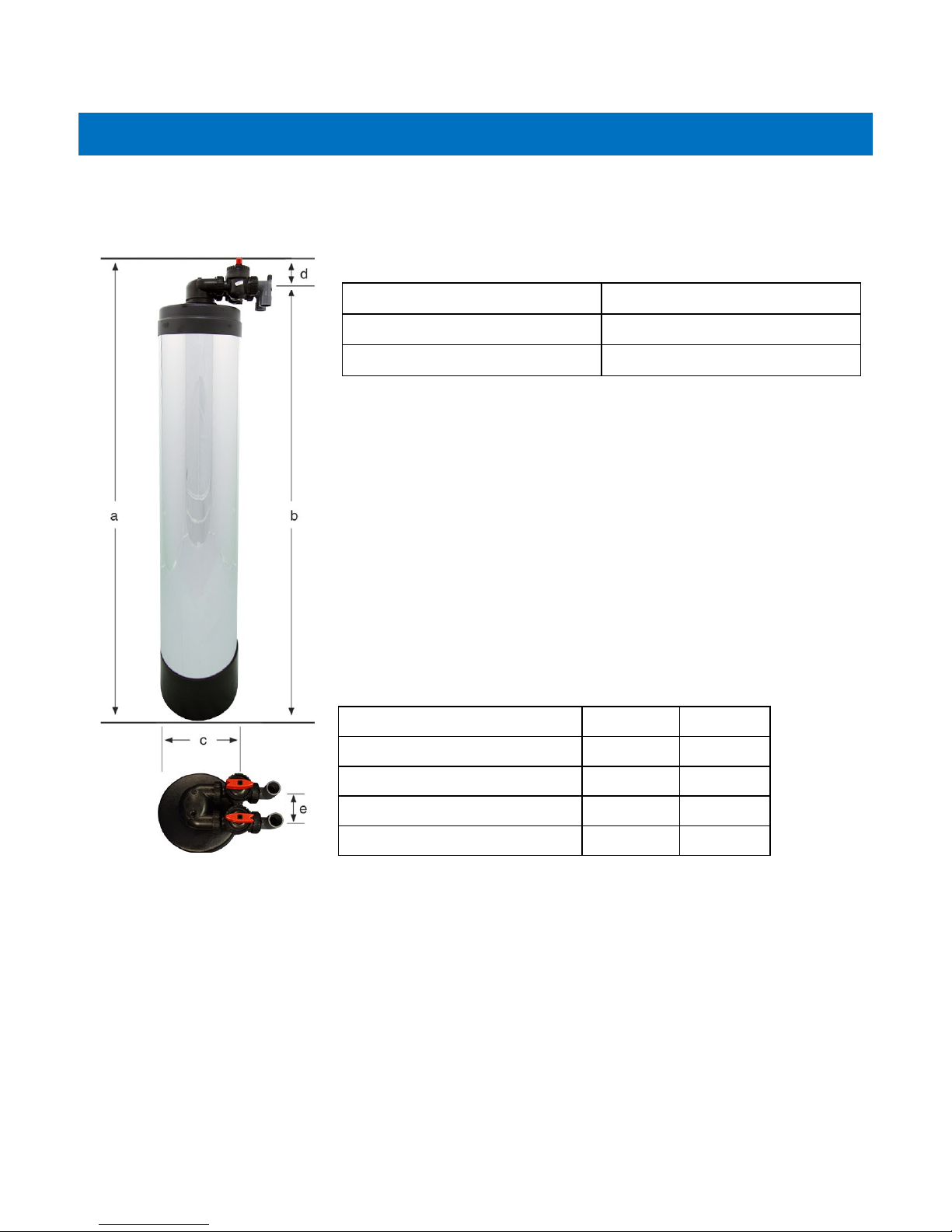

Dimensions (nominal - inches)
A58.5 72.5
B50 56
C12 16
D2.5 2.5
E3.0 3.0
Equipment Specifications

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
5 US Water Pulsar Bodyguard

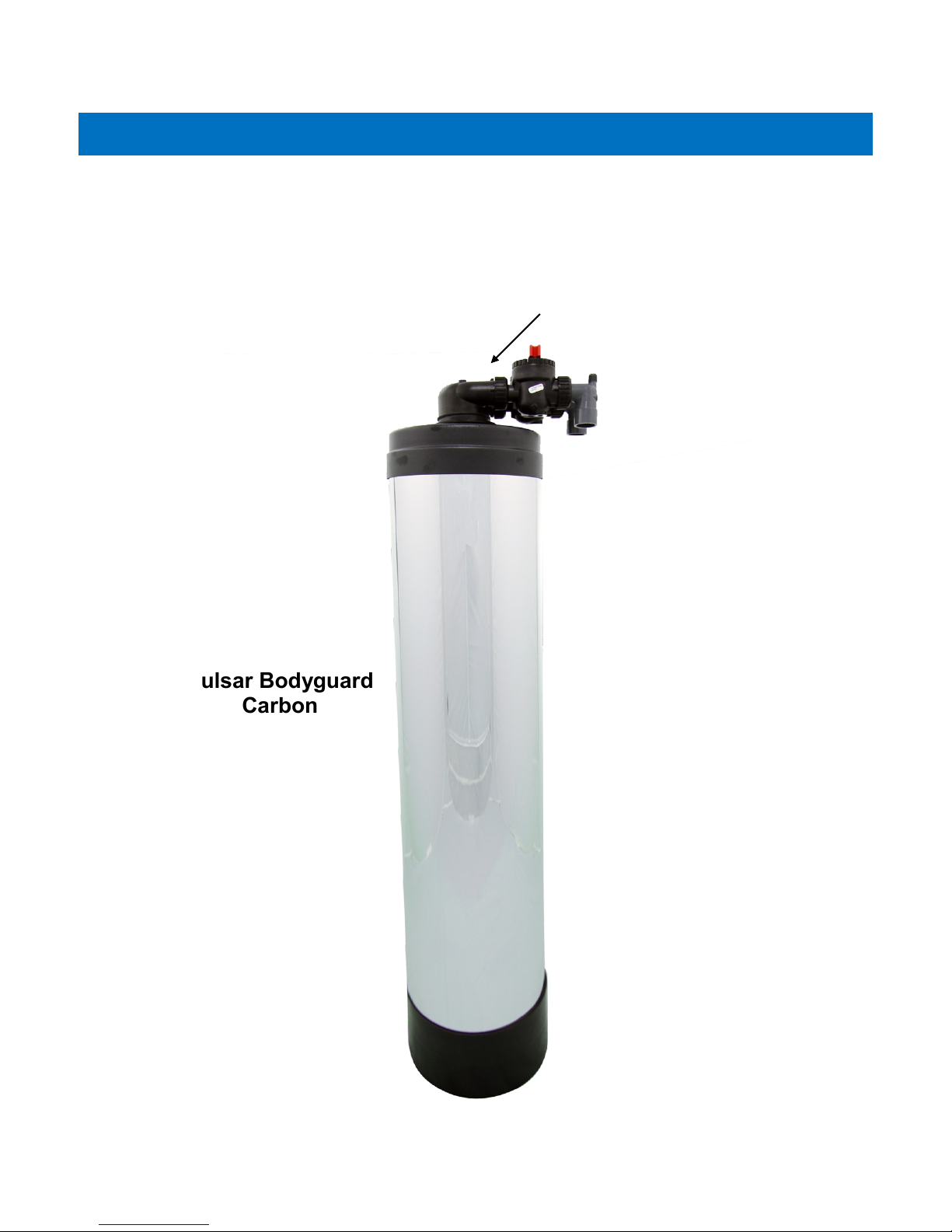

Pulsar Bodyguard
Carbon The Carbon Tank will be about 75-90% full of car-
bon.
Tank
Head
System Overview

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
6 US Water Pulsar Bodyguard
System Overview (Configuration)

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
7 US Water Pulsar Bodyguard

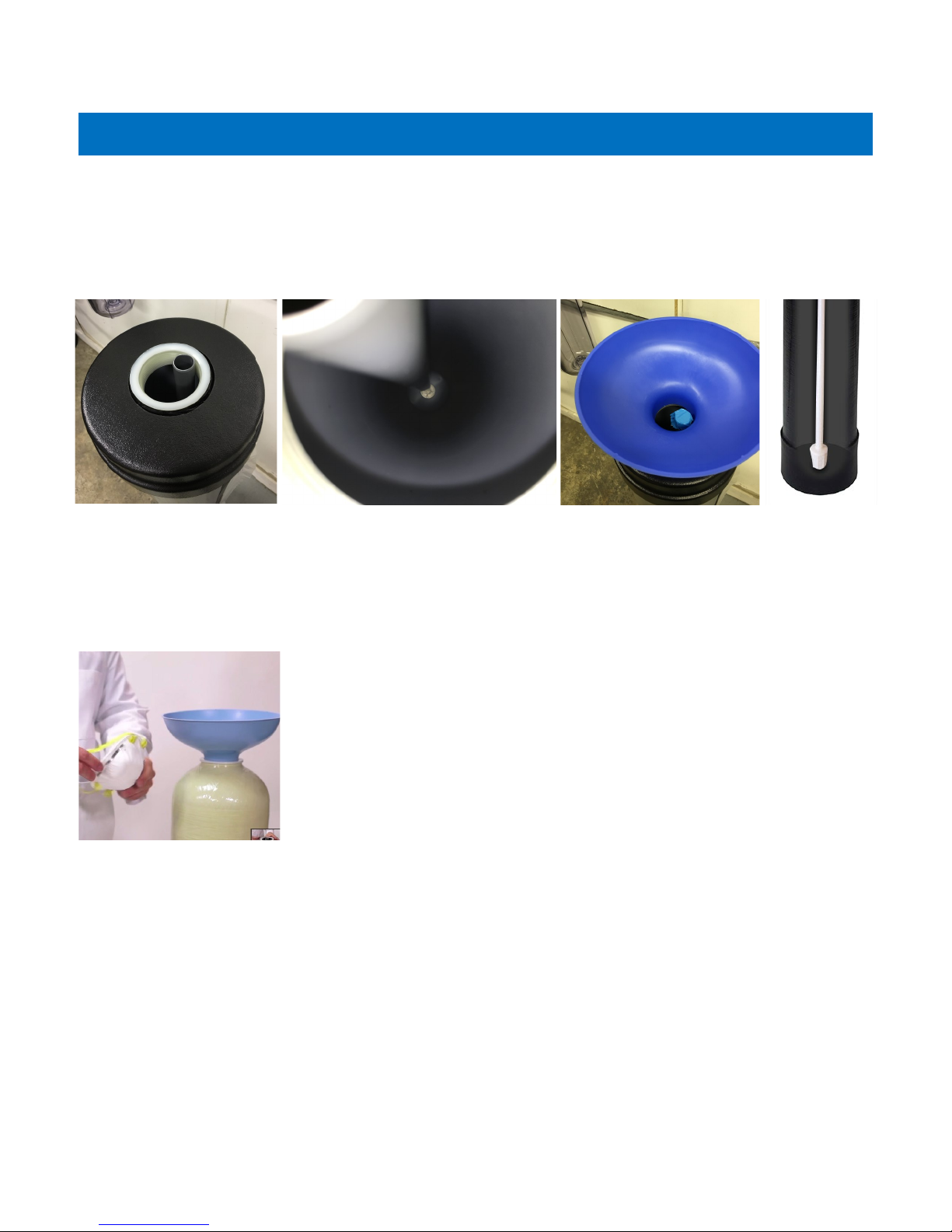

1. Make sure that the distributor tube (shipped inside the tank) is centered in the indent in the bottom
of the tank (use a flashlight if necessary).
2. The distributor tube should be even with the top of the tank. There is an o-ring inside the tank head
that seals around the distributor.
3. Cover the distributor tube opening with a cap or piece of tape. Duct tape works exceptionally well for
this.
NOTE: IT IS IMPERATIVE THAT NO MEDIA (carbon) BE ALLOWED INSIDE THE DISTRIBUTOR
TUBE. CARBON SHOULD NOT BE ALLOWED TO ENTER THE DISTRIBUTOR UNDER NO CIR-
CUMSTANCES.
4. Add the gravel & carbon.
5. Place the included funnel inside the tank opening securely. It is easiest to
do this if there are two people (one to hold the funnel and one to pour the
media), but one person can do it, especially if you secure the funnel to the
tank with duct tape, so as not to spill the media.
6. A mask or a cloth should be worn over the nose and mouth as the carbon
fines can cause irritation to the nose if breathed in. However, the carbon
is in no way toxic.
7. Pour all included gravel in the tank first followed by the all the carbon.
Carbon Tank Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
8 US Water Pulsar Bodyguard
The tank should now be filled approximately 70-80%. US Water does not send extra media.
8. Be sure to remove the tape and wipe the top of the tank and distributor tube with a clean cloth.
9. Fill the tank with water until it is approx. 4” from the top. Be sure to let the carbon soak for a mini-
mum of 2 hrs.
10. Lubricate the o-rings on the head with food grade silicone lubricant*. (part #995-1014081, not includ-
ed) Make sure that the upper basket (Figure B) is securely attached to the tank head. [* If food grade
silicone is not available, use corn or vegetable oil.]
11. Install the head back on the tank and tighten hand tight. Do not use tools to tighten the head or
damage may occur.
****NEVER USE A PETROLEUM BASED LUBRICANT OR VASOLINE****

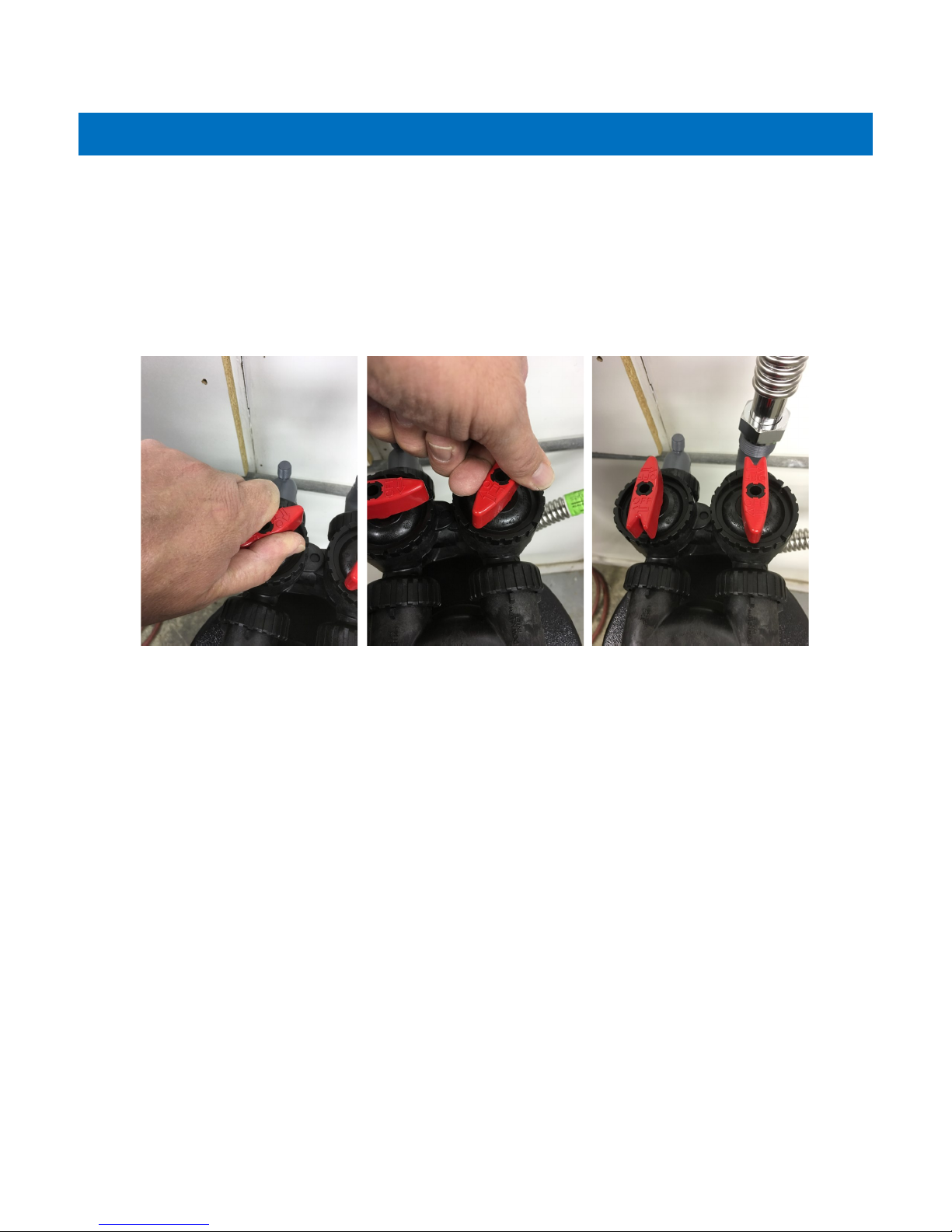

12. Install the bypass on the tank head. Lubricate the O-rings on the bypass and hand tighten the nuts.
Carbon Tank Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
9 US Water Pulsar Bodyguard

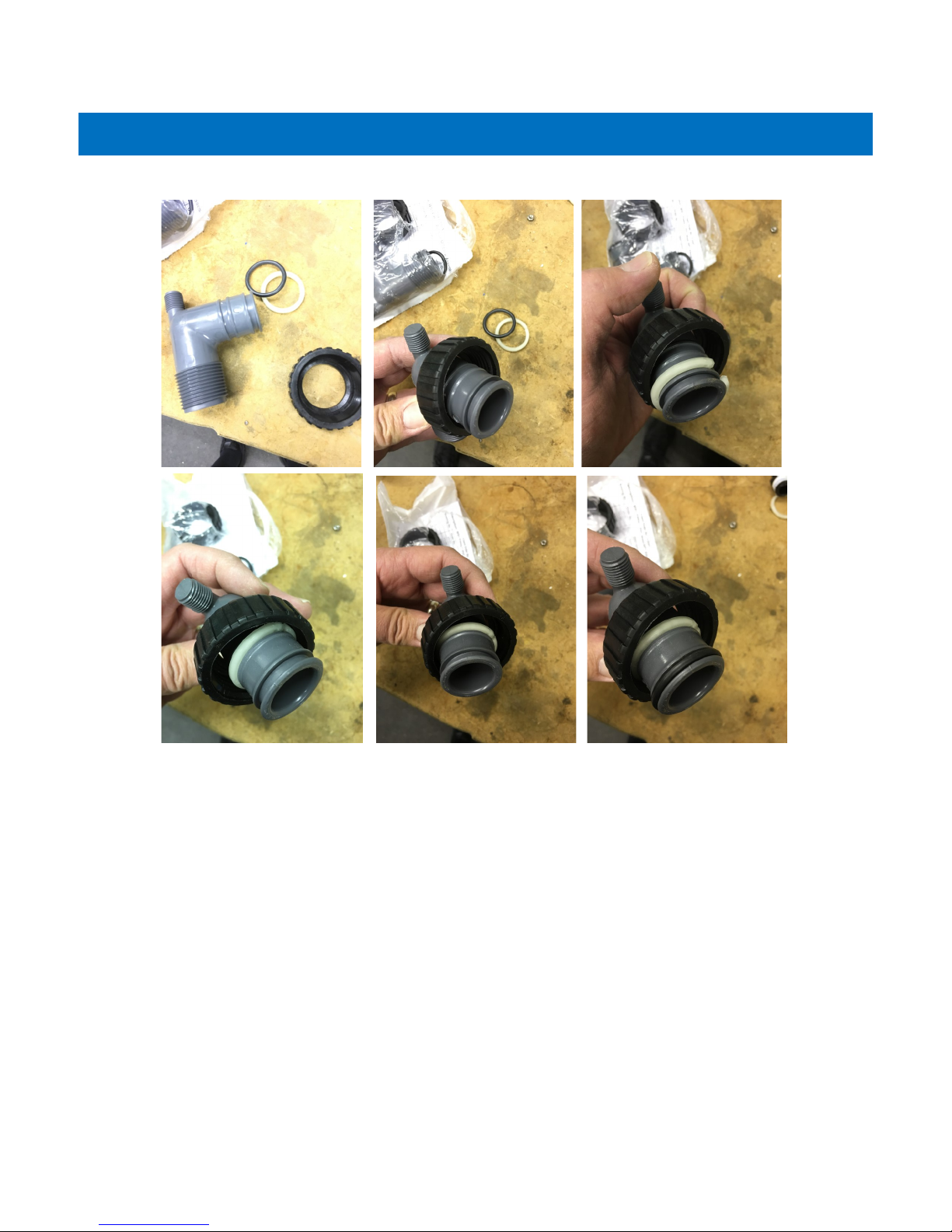

13. Assemble the tank connectors using the locking clip and the O-ring.
14. Make sure the O-ring isn’t twisted then lubricate it with silicone grease or corn oil. Hand tighten the
nuts on the bypass.
NOTE: It is normal for the bypass and connectors to move/float when the nuts are tightened.
This is an intentional design feature intended to allow flexibility with the connections and
possible tank deflection. These connections will be tight once the water is on and pres-
sure is applied.
Carbon Tank Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
10 US Water Pulsar Bodyguard
1. Place the Pulsar Bodyguard tanks in the desired location on a flat level surface.
2. Make sure the tank head is tightened securely by hand tightening—Do Not Use a Wrench.
Hand-tight is recommended.
3. Connect the inlet piping to the DOWNFLOW inlet on the Pulsar Bodyguard carbon tank.
4. Connect the outlet of the Pulsar Bodyguard carbon tank (marked upflow inlet) to the next piece
of equipment in the treatment system or to the plumbing distribution system.
5. Keep the Pulsar Bodyguard tank in the bypass position until startup.
6. Proceed to the Start-up.
Pulsar Bodyguard Tank Installation

Visit us online at www.USWaterSystems.com Give us a call at: 1-800-608-8792
11 US Water Pulsar Bodyguard
1. Slowly open the supply valve (user supplied) to the Pulsar Bodyguard Carbon Tank or slowly
open the Carbon Tank Bypass valves. Allow the tank to fill with water until all the air is purged.
Then, flush the carbon tank for 15-20 minutes or until water runs clear. If you see any carbon
(other than the “black tinted color”), immediately bypass the system. If pieces of carbon are
coming out of the carbon tank there could be an internal problem. Small fines or tinted water is
normal.
NOTE: A white Styrofoam or plastic cup can be used to observe the water color. This helps
determine when the carbon is flushed.
2. Open a faucet (preferably the tub or laundry sink faucet) downstream from the Pulsar Body-
guard system to relieve any trapped air and flush until clear.
3. Check for leaks. Repair as needed.
4. The Carbon System is now ready for service.
5. Install any cartridge filter downstream of the Bodyguard.
Start Up
