DanPure LUXE 75 User manual

RO WATER DISPENSER
USER MANUAL
please read this manual carefully
Model: DANPURE LUXE 75

To Dear Customers
Congratulations for choosing our RO water dispenser system .This model
puts end to bottled water deliveries by filtering your customer's own water
supply of contaminants and bacteria ,resulting in a virtually endless
supply of crystal clear, filtered water.
Note:The unit is not intended for use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection either before
or after the system.
Note:Check with your public works department for applicable local
plumbing and sanitation codes .Follow local codes if they differ from the
standards used in this manual. To ensure proper and efficient operation of
the unit to your full satisfaction,carefully follow the instructions in this
manual.
Caution
1.This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities,or lack of experience and
knowledge,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
2.If the supply cord is damaged,it must be replaced by the manufacturer,its
service agent or a similarly qualified person in order to avoid a hazard.
3.The new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.
4.Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
5.To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
6.This appliance is intended to be used in household only.
How to install the unit
Step1. Remove the screws located on the left and right-hand corner at the
bottom of the back board
Step2. Use the removed screws to fix the L-shape fixer on the left and right-hand
corner at the bottom of the back board at a suitable height.
Note:the end with a slot should be fixed to the back board
Step3. Drill two holes suit to the dimension of expansible tube (about φ7mm in
diameter) in the proper floor and insert the expansible tubes into the two holes .
Make sure it is inserted in place and firmly .The distance between the two holes
should be as following: 275 mm
Note: the centre line of the two holes should be at least 275 mm from the floor.
Step4.Lift up the unit and make the hole of the L-shape fixer aim at the hole
located on the floor, and then let down the unit. Use two screws provided to fix
the L-shape fixer on the floor

Unplug the power cord when not using for an extended period of time .
Also please cut off the water inlet valve and drain all the water inthe
storage tank to avoid the water go bad because not use for a long time .
1.Warning & attentions
Only connect the power cord to the voltage rating that matches the rating
plate on the product, otherwise, it may cause machinery damage and even
accident.
Be sure the power cord is notbend by force and do not put aheavy object
on itto avoid any electric shock or damage.
This product can not be used by child or people who are disabled on
physical sense or mentality unless with their guardian's foster care are
directing to avoid scald by hot water .
When the operation place has children, please take care of them and do
not let them play with the product.
Do not make the power cord wetly or pull the power plug outlet with a wet
hand to avoid electric shock .
Please do not use the plug or power cord when it is broken .Get in touch
with the after-sales service personnel to replace it.
Please must install the product as this user manual's request to avoid
accident caused by product unsteady.
Do not make the machine inversion or till exceed 45°C.
After installed, moved ,and severely shaken ,about 30 minutes are
needed for stabilization of the compressor before using the product.
Never splash the product with water directly to avoid the short circuit or
electric shock.
Do not disassemble or repair by yourself when the product is not working
as usual,please stabilize of the compressor before using the product.
When the water inlet pipe is aging, please use the new pipe in the
accessories pouch, do not use the old one, it may cause water leakage.
Note:
1. The unit is for indoor usage
2. For the condition of operation on uneven ground, a fixer should be
mounted to the unit and connect itto the wall.
3. Product code unconformity or product is not register.
4.0ur company offer maintain service lifetime,when warranty time is over,
you need to pay for material costs and maintenance costs.
5. The user manual can be used by the buyer only, transfer has no
efficiency .
6. If the user manual is lost,please contact us intime ,we will reissue it to
you depends on your invoice and customer information.

2. Product brief introduction
2.1 Product configuration and technical parameters

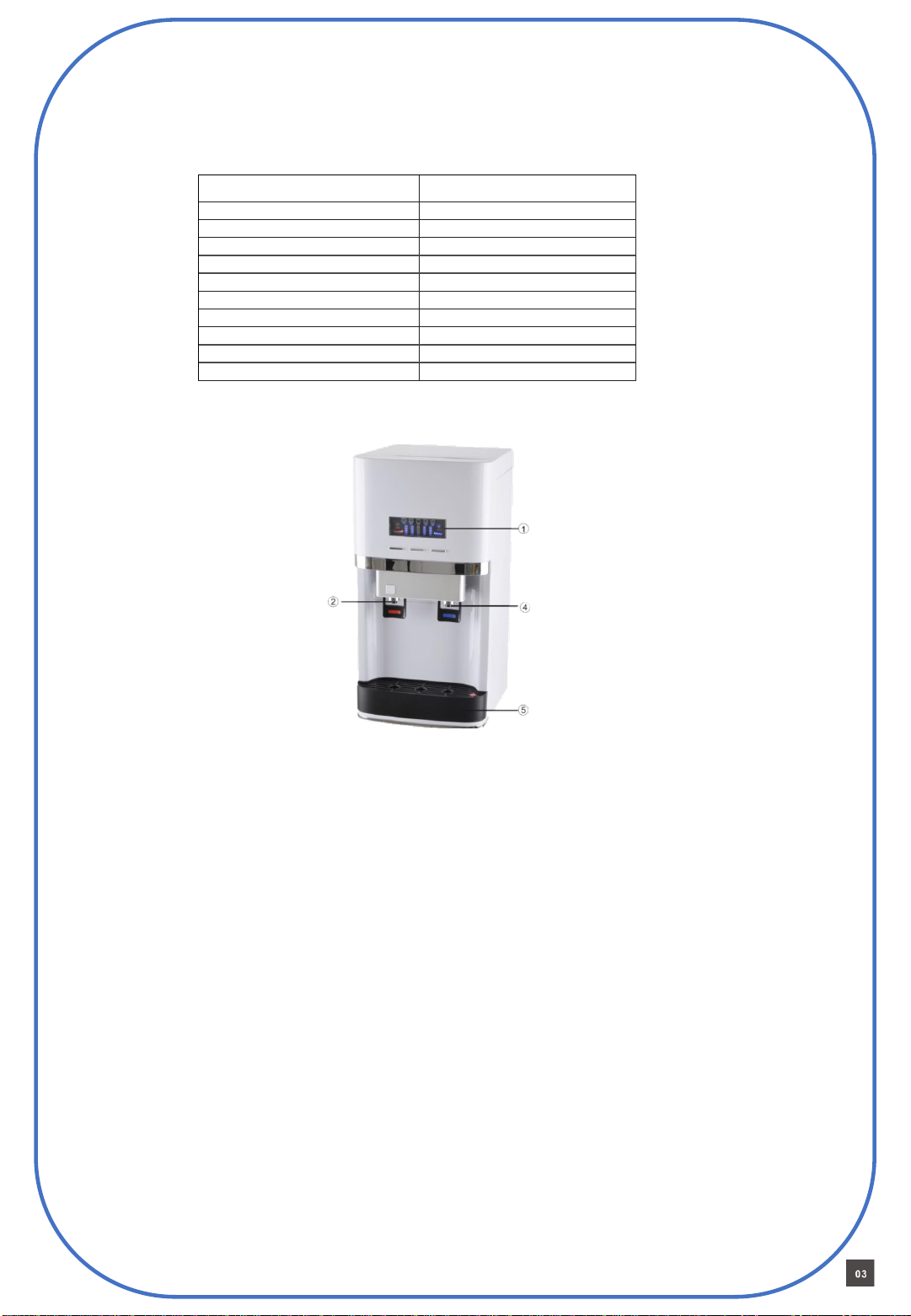

2.2 Structure
1.Display & Buttons
This area shows a general working status of the machine and buttons for different functions.
2.Hot water tap
If you want to get hot water, you can put cup or glass under it, and push the red lever, while
at the same time, push the button above
3.Normal water tap
If you want to get normal water, you can put cup or glass under it, and push the yellow lever.
4.Cold water tap
If you want to get cold water, you can put cup or glass under it, and push the blue lever.
5.Drip tray
This is a tray for holding a little waste water. You can take it out when it is full.
6.Lower panel
The lower panel is the cover for filters, can be disassembled for filters change. Please refer
to the instructions for filters replacement.
8.Cooling power switch
Switch on to start the water cooling.
9.Heating power switch heating.
Switch on to start the water heating
10.Condenser
This is part of cooling elements connect to compressor
11.Cold water outlet
It is used the first time you use the machine or long time without using it. You can screw out
the cap to release the water from the cold tank to clean the tank .
12.Hot water outlet
It is used the first time you use the machine or long time without using it. You can screw out
the cap to release the water from the hot tank to clean the tank.
13.Water inlet
It is connected with a PE tube to water tap, water then will come from your tap water into the
machine
14.Drain water outlet
There will be some drain water coming out from this outlet when machine operates
Model DANPURE LUXE 75
Description Hot and cold water dispenser
Mode type RO system
Power 220-240V/50Hz
Rated power 640W
Heating capacity 6L/H ( 90'C)
Cooling capacity 2L/H ( 10'C)
Applicable water quality Municipal tap water
Applicable water pressure 0.1-0.6 Mpa
Ambient temperature 5-38'C
Package size 320x360x933 mm

3. Installation Method
1) Open the package to check whether the product has been damaged
2) Find a three way ball valve in the accessories pouch which is made of
metal. Connect it to the municipal tap water 1/2" piping system
3) Find a 1/4"PE pip;connect it with the side hole of the three way ball valve
4) Connect the other end of the 1/4"CCK pipe to the water inlet hole. Cut
off the CCK pipe about 20-30cm from the machine and connect the mid
ball valve (in the accessories pouch) between these two CCK pipe.
5) Connect the power plug to the plug base.
6) Turn on the water inlet valve and power switch.Wait for the water tank
fully filled with water and drain all water,do itagain. Then you can use unit
normally.
adjust the feet to stabilize the machine connect the ball valve connectthe PE tube to input connection
4. Maintaining
4.1 water tank cleaning
a. Connect one side of the CCK tube to the water inlet and the other side to
water tap with a ball valve and a tri-way socket.
b. Plug in, and turn on the water inlet valve, then inject a proper amount of
water in to the water tank .Drain all the water ,and then do it all over again.
Note: because it will take 3-5 hours for RO system to fill the reservoir,you
can also take along a few jugs of freshly prepared RO water from your unit
to fill the reservoir for faster rinsing.
4.2 Clean the drip tray
Take out the drip tray vertically, empty it for waste water and clean it.

4.3 Replace of filters
In order to ensure the quality of the purified water,the filters need to be
replaced at fixed periods .
Operational approach :
a.Pull out the plug of power cord and shut down the water inlet valve first
b. Disassemble the lower panel. Use two hands. Press it down about 1cm.
Pull it out about 10 cm then you can lift it up diagonally.
c. Disassemble the quick connector
1. Take out the blue clamp ring on the quick connector
2. Keep pressing the insert of the quick connector, and pull out the CCK
pipe.
3. The blue clamp ring need to be take out also when you want to take out the
quick connector from the old filter. At the same time, you need to keep pressing
the insert of the quick connector by using a straight screwdriver
Note: The CCK pipe must be in place {about 17mm) when stick it into the
quick connector, otherwise it may cause water leakage.
4.4 Service life of filters

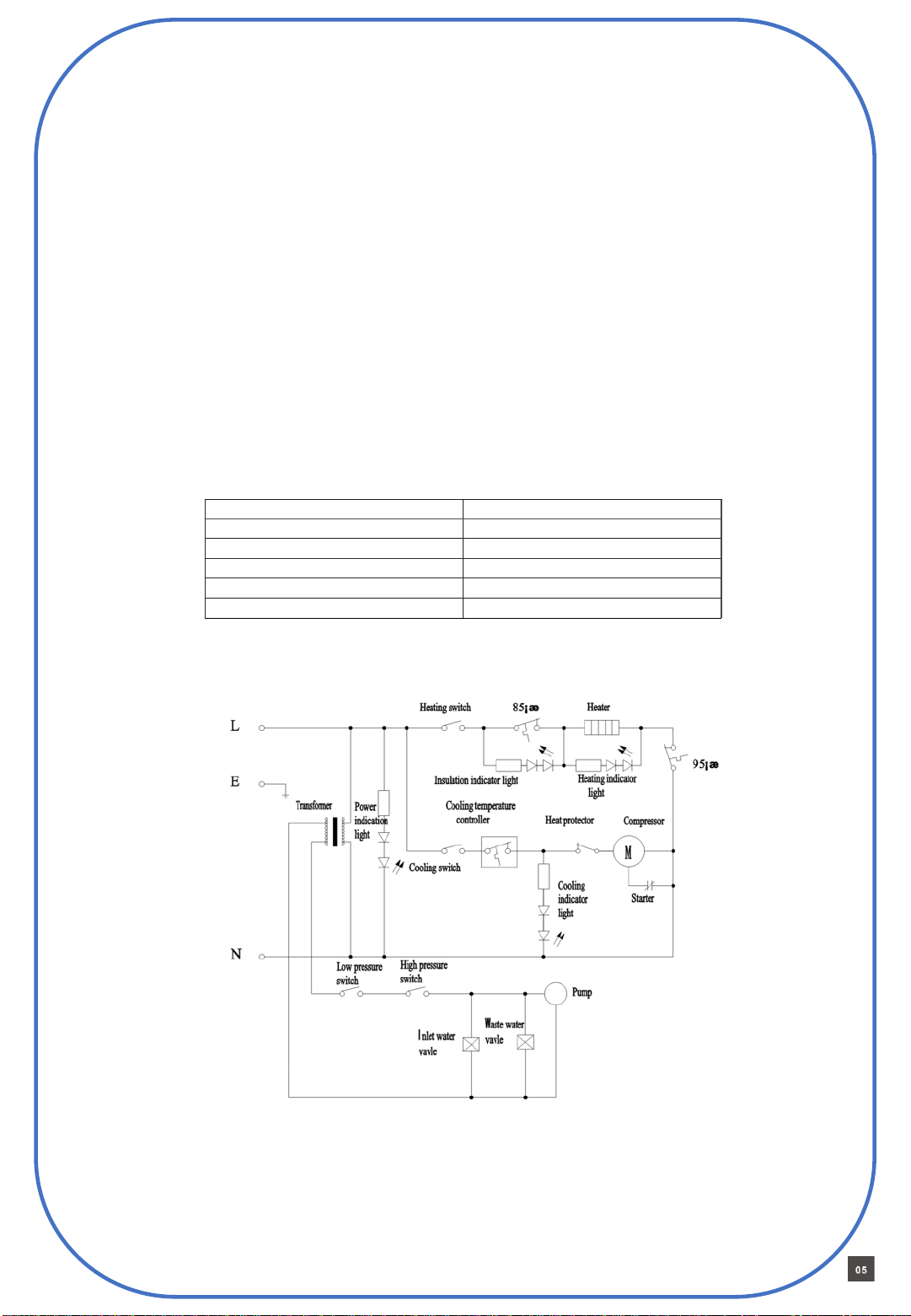

5. Electric Circuit
Name of filters Recommended Replacement Time
PP Filter 3-6 Months
UDF filter 6-8 Months
CTO filter 6-10 Months
RO filter 18-24 Months
Post -Carbon Filter (T33) 8-12 Months

6. Water Purification Theory &filter function
6.1 RO purification system theory
6. 2 Filter Function
(Stage 1) PP (5um)
With only five micron rating, it is effective in removing dirt, rust and sand
particles.
(Stage 2) UDF:
It remove some organic chemicals ,pesticides, floating substance, chloride,
unpleasant tastes,odors or colors as well as heavy metal particles.
(Stage 3) CTO:
Ittakes out 99% of the chlorine and organic chemicals. It provides enhanced
reduction of taste .Odor and color
(Stage 4) RO:
A thin film composite high quality membrane that processes 50 gallons per
day.It removes the following hard water contaminants that may be present
in your water: lead, cooper, barium, chromium, mercury, sodium, cadmium,
fluoride ,nitrite,and selenium.
(Stage 5) T33:
This carbon post filter removes objectionable tastes and odors to enhance
the quality of your drinking water.

7.After service
This product has one year warranty service for free from purchase date. Keeping the
user manual and valid invoice safe, so that you can trace and refer.
Attention:
1) Please Keep the user manual safe, it is the proof for warranty service and
preferential service
2) Please advise us in time when your telephone number or address is change
3) Warranty time for complete machine is 1 year (from purchase date)
4) Following circumstances are not in the warranty range
a.All the filters are belong to normal use consumable items, not in the
warranty range
b. The components and parts damaged by too high/low water pressure
c.The voltage rate didn't match with the rating plate
d. The loss caused by not using the power cord and plug seat as requested
e.Disassemble the product by yourself ,or not install it as the requirements in the user
manual
f.Not use the product as the requirements in the user manual
8. Before asking after service
Problem Possible causes What to do
No water
comes out Inspection inlet water
Pulling
out the pipe of
inlet
water to check if
have
water flow
Low water pressure Add the boost pump
Jammed filter Change the filter
No cooling No electricity
Plug
in the power cord
The
voltage rate didn't
match
with the rating place
Should
match with the
voltage
rate
No
water inthe storage
tank
Wait for the water level
of storage tank enough
The
water of storage
tank level
deficient
No heating No electricity
Plug
in the power cord
The
voltage rate didn't
match
with the rating plate
Should
match with the
voltage
rate
No water in the storage
tank
Wait for the water level
of storage tank enough
The
water of storage
tank l
evel deficient
