Simplicity 1695266 User manual

Parts Manual
Rev. 01/2009
Prestige
4WD Series Garden Tractors & Mower Decks
TP 400-4802-C-PR-S
Mf
g
. No. Descri
p
tion
27HP Product
2690735 Prestige, 27HP Hydro 4WD w/PS RMO TRACTOR ONLY
2690792 Prestige, 27HP Hydro 4WD w/PS RMO and 54" Mower Deck
Mf
g
. No. Descri
p
tion
Mower Decks
1695424 44" Mower Deck
1695390 50" Mower Deck
1695266 54" Mower Deck
1735721
Part No.:
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group - 4WD ....................................................................................................................... 4
Steering Group - Tilt Steering .............................................................................................................................. 8
Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler ........................................................................... 10
Transmission Group ............................................................................................................................................. 12
Transaxle SERVICE PARTS - Tuff Torq KXH10NC ............................................................................................ 16
Controls Group ..................................................................................................................................................... 22
Cruise Control Group ........................................................................................................................................... 24
Electrical Group .................................................................................................................................................... 26
Hood, Grille & Dash Group .................................................................................................................................. 28
Seat & Seat Deck Group ...................................................................................................................................... 30
Lift Group - Hydraulic Lift with Power Steering .................................................................................................... 32
Lift Group - Hydraulic Lift with Power Steering .................................................................................................... 36
Wheels & Tires Group .......................................................................................................................................... 40
Wheels & Tires Group .......................................................................................................................................... 42
Decals Group ....................................................................................................................................................... 44
Decals Group ....................................................................................................................................................... 46
44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 48
44" Mower Deck - Electric Height Adjustment & Roller Bar Group ..................................................................... 50
44" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 54
50" Mower Deck - Height Adjustment & Roller Group ......................................................................................... 58
50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 62
54" Mower Deck - Clutch & Support Group ......................................................................................................... 66
54" Mower Deck - Electric Height Adjustment &Roller Bar Group ..................................................................... 68
54" Mower Deck - Housing & Arbor Group .......................................................................................................... 72
Not for
Reproduction

Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
4
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
FRAME ASSEMBLY, Front & Rear 4WD1 1734731ASM 1
TOWER & SUPPORT ASSEMBLY2 1733139ASM 1
SUPPORT, Seat Deck3 1723528ASM 1
BACKPLATE, Hitch4 1722602ASM 1
BRACKET ASSEMBLY, Steering 4WD5 1733918ASM 1
BUMPER, 4GA6 1721805ASM 1
AXLE ASSEMBLY, Front7 1733480SM 1
PIVOT ASSEMBLY, Axle w/Bushings8 1734241ASM 1
CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G59 1960755SM 1
CARRIAGE BOLT, 3/9-16 x 3/4 G512 1931348SM 2
JOINT, Ball 1/2-2013 1702779SM 1
SPACER14 1708236SM 1
NUT, Hex Jam, 1/2-2015 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 1
BRACKET, Cylinder Mounting18 1733166ASM 1
SPACER20 2172914SM 1
CYLINDER, Hydraulic Steering21 1733759SM 1
CAPSCREW, Hex Head, M12-1-3/4 x 3522 197487SM 3
SHAFT & BRACKET ASSEMBLY, Axle Pivot23 1733863SM 1
WASHER, 5/824 1960035SM 2
STOP, "L" Steering25 1734511ASM 1
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/426 1664847SM 4
NUT, Hex Flange 5/8-11 Two-Way Lock27 2860646SM 2
SCREW, Hex Washer head, Taptite, 3/8-16 x 3/428 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock30 1928352SM 4
CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4
PIN, Dowel34 1733581SM 2
WASHER, 1/235 1960170SM 3
LOCKWASHER, Spring36 1916966SM 3
PIN, Cotter37 1923360SM 1
LOCKWASHER, Spring38 1960754SM 6
CAPSCREW, Hex Head39 1950036SM 6
SPACER, Powdered Metal40 1667812SM 1
FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-1641 1733403SM 2
HOSE ASSEMBLY, Hydraulic42 1733400SM 1
HOSE ASSEMBLY, Hydraulic43 1737063SM 1
BRACKET, Hose Mounting 10GA44 1733501ASM 1
FITTING, Bulkhead Union 13/16-1645 1733402SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G546 1931333SM 2
NUT, Hex KEPS, 5/16-1847 1960636SM 2
The above parts group applies to the following Mfg. Nos.:
5
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
6
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
NUT, Jam 13/16-1648 1733947SM 2
WASHER, 3/849 1960103SM 1
CARRIAGE BOLT, 3/8-16 x 2-1/4 G550 1931355SM 1
SUPPORT, Steering Unit 7GA51 1733044ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/252 1924856SM 4
The above parts group applies to the following Mfg. Nos.:
7
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Steering Group - Tilt Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
8
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Steering Group - Tilt Steering
Footnotes
STEERING WHEEL1 1733363SM 1
PLATE, Steering Mounting4 1724685ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G55 1960655SM 2
ADAPTER, Tilt6 1725294SM 1
SPACER7 1723898SM 2
NUT, Push Pal8 1933988SM 2
NUT, Hex Keps 5/16-189 1960636SM 2
STEERING UNIT, Tilt10 1734002SM 1
BELLOWS, Tilt Steering Unit w/Slot11 1724368SM 1
CAP, Steering Wheel12 1725024SM 1
DECAL, Power Steering (Not Shown)13 1716518SM 2
NUT, Hex Lock ESNA Light 5/8-1815 1960576SM 1
The above parts group applies to the following Mfg. Nos.:
9
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985906
The above parts group applies to the following Mfg. Nos.:
10
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler
Footnotes
ENGINE, 23HP Kohler Command - Model CV23S Spec PS-755531* 1
ENGINE, 25HP Kohler Courage Twin - Model SV730S Spec PS-SV730-00201* 1
ENGINE, 25HP Kohler Command Twin - Model CV730S1* 1
ENGINE, 27HP Kohler Command Twin - Model CV740S Spec PS-CV740-00401* 1
SEAL, Foam (Only used on 23HP Models)2 1719847SM 1
HOSE, Oil Drain3 1723165SM 1
BULKHEAD4 1722388ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/25 1924856SM 2
CONTROL, Throttle Double 39.0 LG w/Knobs (Used on all models except 25HP Kohler
Courage)
6 1727223SM 1
THROTTLE, Control Double 51.0 LG w/Knobs (Only used on 25HP Kohler Courage)6 1727375SM 1
CLAMP, Hose7 2860112SM 1
HOSE, Fuel8 1718678SM 1
TIE, Self Locking9 1701011SM 3
SHIELD, Side10 1722392ASM 2
MUFFLER, Kohler Twin11 1721705SM 1
DUCT, Muffler (Used on all models except 25HP Kohler Courage)12 1722390ASM 1
DUCT, Muffler (Only used on 25HP Kohler Courage)12 1733884ASM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 5/813 1960295SM 4
CLIP, Speed Wire14 2834683SM 2
DUCT, Muffler Top15 1722389ASM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 3/816 1927428SM 8
SHIELD, Muffler17 1722414ASM 1
NUT, Speed 1/4-20 Lug Type18 1960368SM 4/8
NUT, Speed 5/16-18 Lug Type19 1935255SM 2
LOCKWASHER, External Tooth 3/820 2820427SM 1
SCREW, Hex Washer Head Taptite 3/8-16 x 1 (Used only on 25HP Courage & 27HP
Command)
21 2827187SM 3/4
SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2 (Used on all models except 27HP)22 2830598SM 1/4
KEY, Hi-Pro23 1720463SM 1
PULLEY & HUB ASMY24 1722288SM 1
WASHER, Hex25 1708264SM 1
LOCKWASHER, Spring26 1918199SM 1
CAPSCREW, Hex Head 7/16-20 x 3-1/2 G527 1960649SM 1
CLUTCH, Electric28 1686883SM 1
TIE, Self Locking (Used only on 23HP models)29 2832747SM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 1/230 1925003SM 2
WASHER, 3/8 (Used on all models except 23HP)31 1924940SM 1
RETAINER, Clutch (Used on all models except 23HP)32 1732026SM 1
EDGING, Rubber (Used on all models except 23HP)33 1734166SM 1
Note * See your local Kohler distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
11
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

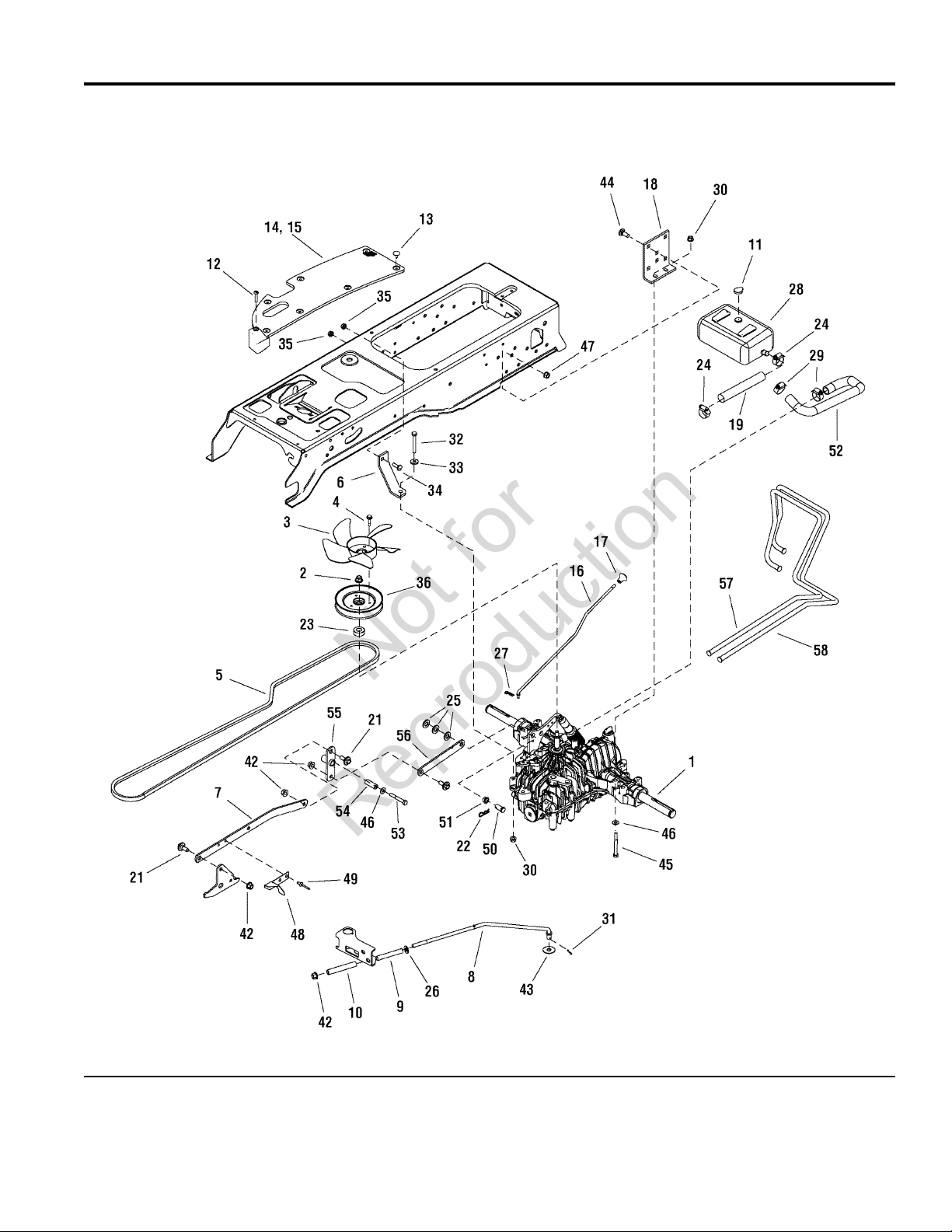

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
12
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
TRANSMISSION ASSEMBLY, K6641 1733478SM 1
PULLEY & HUB ASSEMBLY2 1722194SM 1
FAN3 1719233SM 1
SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/44 1933958SM 3
BELT, 94.055 1721392SM 1
STRAP, 4-1/4 Long6 1721593ASM 1
ARM, Control 7GA7 1733318ASM 1
ROD, 17-27/64 Long8 1721424SM 1
SPRING, Compression9 1722684SM 1
SPRING, Compression10 1729277SM 1
CAP, Expansion11 1722711SM 1
SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite12 1960676SM 2
FASTENER, Panel13 1704351SM 15
PAD, Footrest L.H.14 1722174SM 1
PAD, Footrest R.H.15 1722173SM 1
ROD, Free Wheel16 1721622SM 1
KNOB, Interior Thread17 1723126SM 1
SUPPORT, Transmission18 1721728ASM 2
HOSE, Hydraulic19 1733531SM 1
BOLT, Shoulder, 3/8-1621 1732129SM 3
CLIP, Hair Pin22 1960074SM 1
SPACER23 1734337SM 1
CLAMP, Hose Worm24 2860266SM 1
WASHER, 1/225 1960027SM 3
WASHER, 3/826 1924940SM 1
PIN, Quick27 1722460SM 1
TANK, Oil Natural28 1732989SM 1
CLAMP, Hose Worm29 1723214SM 2
NUT, Hex Flange 5/16-18 ESNA30 1960686SM 6
COTTER PIN31 1918447SM 1
CAPSCREW, Hex Head 5/16-18 x 2-1/2 G532 1921719SM 1
WASHER, 5/1633 1960141SM 1
CARRIAGE BOLT, 5/16-18 x 1 G534 1931335SM 1
NUT, Hex KEPS 5/16-1835 1960636SM 2
NUT, Hex Flange36 1719968SM 1
NUT, Hex Flange 3/8-16 ESNA42 1960687SM 4
WASHER, 7/1643 1918267SM 1
CARRIAGE BOLT, 3/8-16 x 1 G544 1931350SM 6
CAPSCREW, Hex Head 5/16-18 x 3 G545 1960590SM 4
WASHER, 5/1646 1919326SM 3
NUT, Hex Keps 3/8-1647 1960637SM 6
ACTUATOR, Switch48 1727215ASM 1
POP RIVET49 1960241SM 2
The above parts group applies to the following Mfg. Nos.:
13
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
14
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
PIN, Clevis50 1724107SM 1
BEARING51 1722648SM 1
HOSE, Hydraulic52 1722468SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/4 G553 1921160SM 1
SPACER54 1713588SM 1
PIVOT ASSEMBLY, Control55 1733320ASM 1
ARM, Control56 1733525ASM 1
TUBE, Hydraulic 4WD57 1733483SM 1
TUBE, Hydraulic Rear58 1733484SM 1
The above parts group applies to the following Mfg. Nos.:
15
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Transaxle SERVICE PARTS - Tuff Torq KXH10NC
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1733480
The above parts group applies to the following Mfg. Nos.:
16
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Transaxle SERVICE PARTS - Tuff Torq KXH10NC
Footnotes
FRONT AXLE1 1733480SM 1
MOTOR KIT 10CC2* 1
MOTOR COVER, Complete3* 1
FRONT GEAR BOX, Left, Complate4* 1
FRONT GEAR BOX, Right, Complete5* 1
O-RING 1A P1410 1707879SM 1
WASHER 1211 1708689SM 1
NUT 1212 1708692SM 1
SNAP RING13 1707912SM 1
PACKING P 14.014 1735417SM 1
BACK-UP RING15 1735418SM 1
JOINT PIPE16 * 1
FRONT AXLE CASE21 * 1
O-RING P1822 1707786SM 1
OIL CAP 2023 1735419SM 1
BOLT 8 x 2024 1724695SM 1
ELBOW25 1735420SM 1
FULCRUM27 * 1
ADJUST PLATE31 * 1
CONTROL LEVER32 * 1
NUT 833 1707898SM 1
SEAL TC 16260734 * 1
CONTROL SHAFT35 * 1
CAM LEVER36 * 1
MOTOR COVER37 * 1
GASKET COVER38 1735421SM 1
RETURN SPRING39 * 1
CONTROL ARM41 * 1
SPRING PIN 6 x 2542 1718097SM 1
SPRING PIN 6 x3243 * 1
BOLT 8 x 2544 1720867SM 1
BOLT 8 x 10045 * 1
BOLT 8 x 8546 * 1
BOLT 8 x 6547 * 1
WASHER 848 1707896SM 1
CONNECTING BLOCK49 * 1
BUSH 12 x 15 x 11.553 * 1
BEARING 6906 C354 * 1
BEARING 6908 C356 * 1
BOLT 10 x 3057 * 1
PIN 10 x 1871 * 1
BOLT 8 x 9072 1726291SM 1
MOTOR SHAFT 10CC73 * 1
Note* See your local authorized Tuff Torq dealership for parts and warranty or visit TuffTorqServices.com.
The above parts group applies to the following Mfg. Nos.:
17
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Transaxle SERVICE PARTS - Tuff Torq KXH10NC
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1733480
The above parts group applies to the following Mfg. Nos.:
18
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Transaxle SERVICE PARTS - Tuff Torq KXH10NC
Footnotes
BEARING 6001 C374 * 1
SNAP RING 1275 * 1
RING 2876 * 1
CYLINDER BLOCK KIT77 1718079SM 1
PIN 10 x 1381 * 1
SWASH SUPPORT RIGHT82 * 1
THRUST METAL83 1718089SM 1
SWASH PLATE84 * 1
THRUST BEARING 5110685 1718078SM 1
SWASH SUPPORT LEFT88 * 1
PACKING S 10.095 * 1
CENTER CASE 10CC CMP100 * 1
CHECK VALVE CMP101 * 1
COLLAR102 * 1
SCREEN103 1726116SM 1
JOINT SHAFT N116 * 1
SPLINE COLLAR B117 * 1
BEARING 6002 C3118 * 1
BEVEL GEAR KIT119 * 1
PIN 8 x 16122 1720848SM 1
AXLE FLANGE123 * 1
PACKING G 45.0124 1735422SM 1
SEAL TC466411126 * 1
FINAL PINION GEAR (9T)128 * 1
FRONT GEAR CASE129 * 1
SHAFT FRONT 2ND130 * 1
BEARING 6003 C3131 1735423SM 1
SEAL CAP 56132 1735424SM 1
WASHER 10134 1714658SM 1
TIE ROD COMPLETE N135 1735425SM 1
TIE ROD PIN LEFT136 * 1
NUT 10142 * 1
TIE ROD PIN RIGHT143 * 1
BUSHING 10144 * 1
STEERING ROD COMPLETE N145 1735426SM 1
SNAP PIN 10146 * 1
SEAL TC254708152 1735427SM 1
FRONT BEARING COVER154 * 1
FRONT AXLE SHAFT155 * 1
RING 47156 1735428SM 1
RING 24157 1735429SM 1
BEARING 6005 C3158 1735430SM 1
BEARING 6004 C3159 * 1
FINAL FEAR (51T)160 * 1
Note* See your local authorized Tuff Torq dealership for parts and warranty or visit TuffTorqServices.com.
The above parts group applies to the following Mfg. Nos.:
19
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction

Transaxle SERVICE PARTS - Tuff Torq KXH10NC
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1733480
The above parts group applies to the following Mfg. Nos.:
20
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
2690735 - Presti
g
e
2690792 - Prestige
TP 400-4802-C-PR-S
Not for
Reproduction
