Simplicity 1694769 User manual

Parts Manual
Rev. 03/2005
Citation
Series Zero Turn Riders & Mower Decks
TP 400-4197-00-CI-S
Mf
g
. No. Descri
p
tion
21HP Product
1694768 Citation, 21HP Zero Turn Rider
Mf
g
. No. Descri
p
tion
2
3
HP Product
1694769 Citation, 23HP Zero Turn Rider
Mf
g
. No. Descri
p
tion
Mower Decks
1694770 48" Mower Deck
1694771 52" Mower Deck

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Frame & Front Caster Group ...................................................................................................................... 4
Rear Bumper Group ............................................................................................................................................. 6
Engine & PTO Group ........................................................................................................................................... 8
Instrument Panel Group ....................................................................................................................................... 10
Pump Drive Group ............................................................................................................................................... 12
Motion Control Group ........................................................................................................................................... 14
Hydraulic Group ................................................................................................................................................... 18
Hydraulic Tank Mount Group ............................................................................................................................... 20
Electrical Group - Early Models ........................................................................................................................... 22
Electrical Group - Later Models ........................................................................................................................... 24
Seat Mount & Floor Group ................................................................................................................................... 26
Fuel Tank & Mount Group .................................................................................................................................... 28
Parking Brake Group ........................................................................................................................................... 30
Rear Suspension Group ...................................................................................................................................... 32
Deck Lift Group .................................................................................................................................................... 34
Wheel & Tire Group ............................................................................................................................................. 38
Decals - Brand & Model ....................................................................................................................................... 40
Decals - Safety & Operation ................................................................................................................................ 42
48" & 52" Mower Deck - Hanger Chains ............................................................................................................. 44
48" & 52" Mower Deck - Housing, Cover, Spindle & Blade ................................................................................. 46
48" & 52" Mower Deck - Pulleys, Belts & Idler Arm ............................................................................................. 48
48" & 52" Mower Deck - Rollers .......................................................................................................................... 50
48" & 52" Mower Deck - Spindle Service Parts Group ........................................................................................ 52

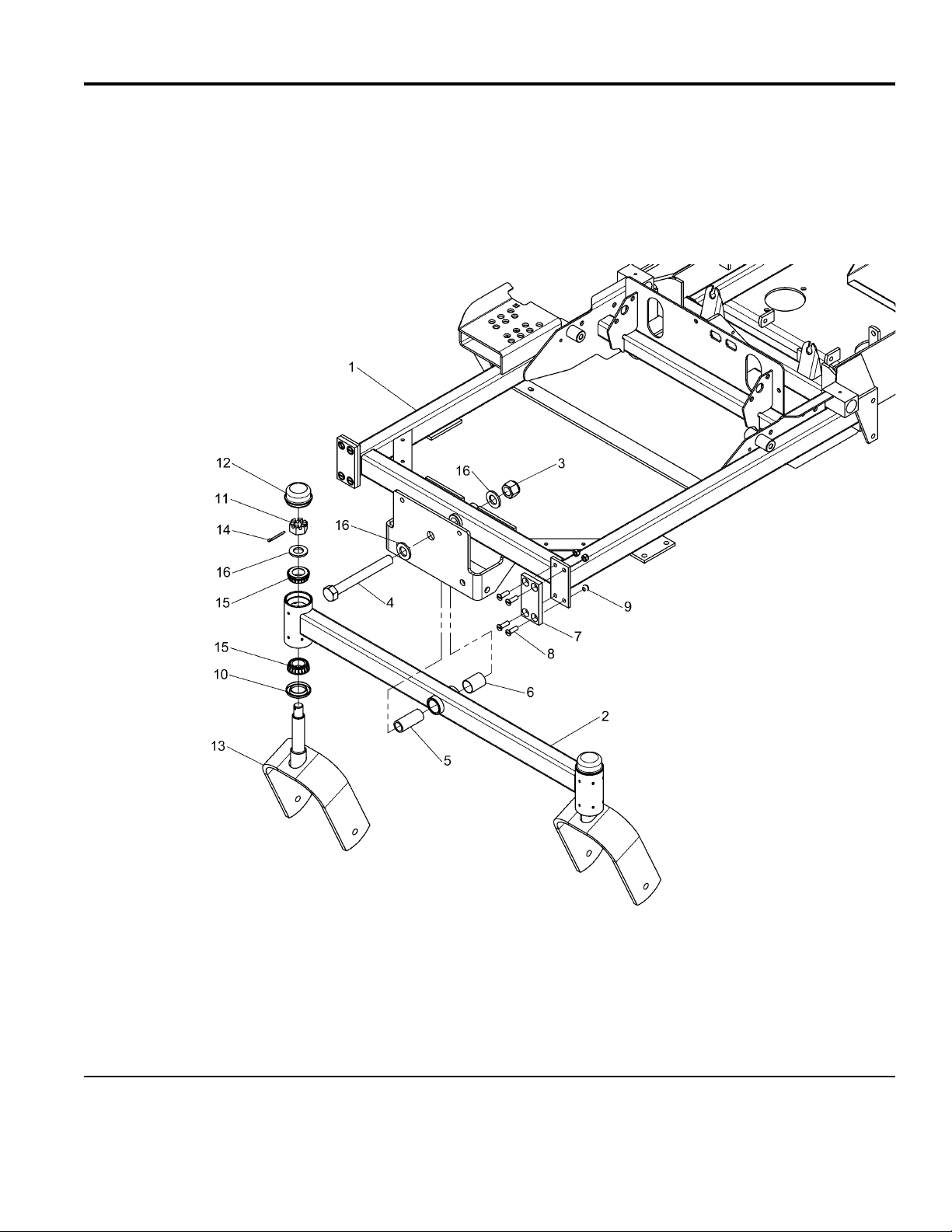

Main Frame & Front Caster Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197frm0
The above parts group applies to the following Mfg. Nos.:
2005 4 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Main Frame & Front Caster Group
Footnotes
1 503849958 1 MAIN FRAME ASSEMBLY
2 503861365 1 PIVOTING FRONT END ASSEMBLY
3 5025284 1 NUT, 3/4-16 Hex Nylon Lock
4 502526552 1 BOLT, 3/4-16 X 6-1/2"
5 5047489 1 SPACER, .75 X 1.00 X 2.38
6 5022852 1 PIVOT BEARING
7 5045990 2 FRICTION PLATE
8 5025303 8 SCREW, 5/16-18 X 1 FLAT HD SC
9 5025057 4 NUT 5/16-18 Hex Nylon Lock
10 5021072 1 GREASE SEAL
11 5025104 1 NUT, 3/4-16 Hex Slotted
12 5021073 2 CAP
13 5047049 2 CASTER YOKE
14 502520310 1 COTTER PIN, 1/4" x 1-1/4"
15 5020884 2 BEARING, Tapered Roller
16 5025160 3 WASHER, 3/4" SAE
The above parts group applies to the following Mfg. Nos.:
2005 5 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Rear Bumper Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197bmp0
The above parts group applies to the following Mfg. Nos.:
2005 6 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Rear Bumper Group
Footnotes
1 - - MAIN FRAME (See Main Frame Group)
2 503861732 1 BUMPER
3 5023484 6 PLUG, PANEL, 1.25 BLACK
4 502501810 4 BOLT, 1/2-20 X 1-1/4"
5 5025397 4 NUT, 1/2-20 Hex Nylock Flange
6 5025158 2 WASHER, 1/2" SAE
The above parts group applies to the following Mfg. Nos.:
2005 7 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Engine & PTO Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197engb0
The above parts group applies to the following Mfg. Nos.:
2005 8 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Engine & PTO Group
Footnotes
1 - - MAIN FRAME (See Main Frame Group)
2 * 1 ENGINE, 21HP Briggs & Stratton (Model# 385777, Type# 0115-E1)
2 * 1 ENGINE, 25HP Briggs & Stratton (Model# 386777, Type# 0114-E1)
3 - 1 CRANKSHAFT PULLEY (See Pump Drive Group)
4 5046845 1 SPACER, 1.13 X 1.75 X .97
5 5023432 1 CLUTCH
6 5045475 1 SPACER, .45 X 1.88 X .38
7 5044853 1 BOLT, CRANKSHAFT, 7/16" X 2"
8 505040728 1 KEY, 1/4" SQ. X 3-1/2"
9 5023389 1 MUFFLER
10 503861857 1 CLUTCH ANCHOR PLATE
11 5047027 2 SPACER, .51 X .75 X .56
12 5043636 1 CLUTCH ANCHOR PAD
13 5025155 11 WASHER, 5/16" SAE
14 50250118 5 BOLT, 5/16-18 X 1"
15 5044617009 3 WASHER, Clutch Anchor
16 5025057 3 NUT 5/16-18 Hex Nylon Lock
17 5025392 8 NUT, 5/16-18 Hex Nylock Flange
18 5048681 1 OIL DRAIN HOSE
19 5021500 1 CLAMP, Vinyl Insulated
20 50250106 1 BOLT, 1/4-20 X 3/4"
21 5025126 1 NUT, 1/4-20 Hex Serrated Flange
22 502501114 4 BOLT, 5/16-18 X 1-3/4"
23 502501112 2 BOLT, 5/16-18 X 1-1/2"
24 5025188 4 WASHER, 5/16" Internal Tooth Lock
25 5021379 1 GROMMET, 7/8"
* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2005 9 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Instrument Panel Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197ins0
The above parts group applies to the following Mfg. Nos.:
2005 10 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Instrument Panel Group
Footnotes
1 502861361 1 CONTROL PANEL
2 5020927 1 SWITCH, Ignition, Complete (See Electrical Group for parts breakdown)
3 5022180 1 SWITCH, PTO
4 5022222 2 SWITCH RETAINER RING
5 5046501 1 CABLE, CHOKE CONTROL
6 5048231 1 CABLE, Throttle, 40"
7 1725523 1 HOUR METER, DIGITAL
8 50250106 2 BOLT, 1/4-20 X 3/4"
9 5025126 2 NUT, 1/4-20 Hex Serrated Flange
10 50252994 3 SCREW, Allen Head, 1/4-20 x 1/2
11 1703799 1 SWITCH, Headlight
12 5025035 1 NUT, 3/8-24 Hex
The above parts group applies to the following Mfg. Nos.:
2005 11 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Pump Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197pdr0
The above parts group applies to the following Mfg. Nos.:
2005 12 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Pump Drive Group
Footnotes
1 - - MAIN FRAME (See Main Frame Group)
2 5023254 2 KEY, 5MM SQ. x 25MM w/ Round Ends
3 5047075 1 CRANKSHAFT PULLEY
4 5022314 2 BELT, Pump Drive (set of 2)
5 5025034 2 NUT, 3/8-16 Hex
6 5023497 1 EYE BOLT, 3/8-16 X 5"
7 502501332 1 BOLT, 3/8-16 X 4"
8 5022157 2 BUSHING, Brass
9 5025096 2 NUT, 3/8-16 Hex Nylon Lock
10 5025156 1 WASHER, 3/8" SAE
11 502501318 1 BOLT, 3/8-16 X 2-1/4"
12 502501314 1 BOLT, 3/8-16 X 1-3/4"
13 5025128 1 NUT, 3/8-16 Hex Large Serrated Flange
14 5025100 1 NUT, 3/8-16 Hex Side Lock
15 5022847 1 SPRING, Extension, Swivel End
16 5022621 1 PULLEY, Idler (Single Flange)
17 503846430 1 PUMP DRIVE IDLER ARM
18 5045135 1 SPACER, .39 X 1.00 X 2.55
19 5025305 1 WASHER, 3/8 x 1-3/4
20 50250108 4 BOLT, 1/4-20 X 1"
21 5022586 2 PULLEY, Pump Drive
22 5022587 2 BUSHING, Tapered Hub
23 5045475 1 SPACER, .45 X 1.88 X .38
The above parts group applies to the following Mfg. Nos.:
2005 13 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

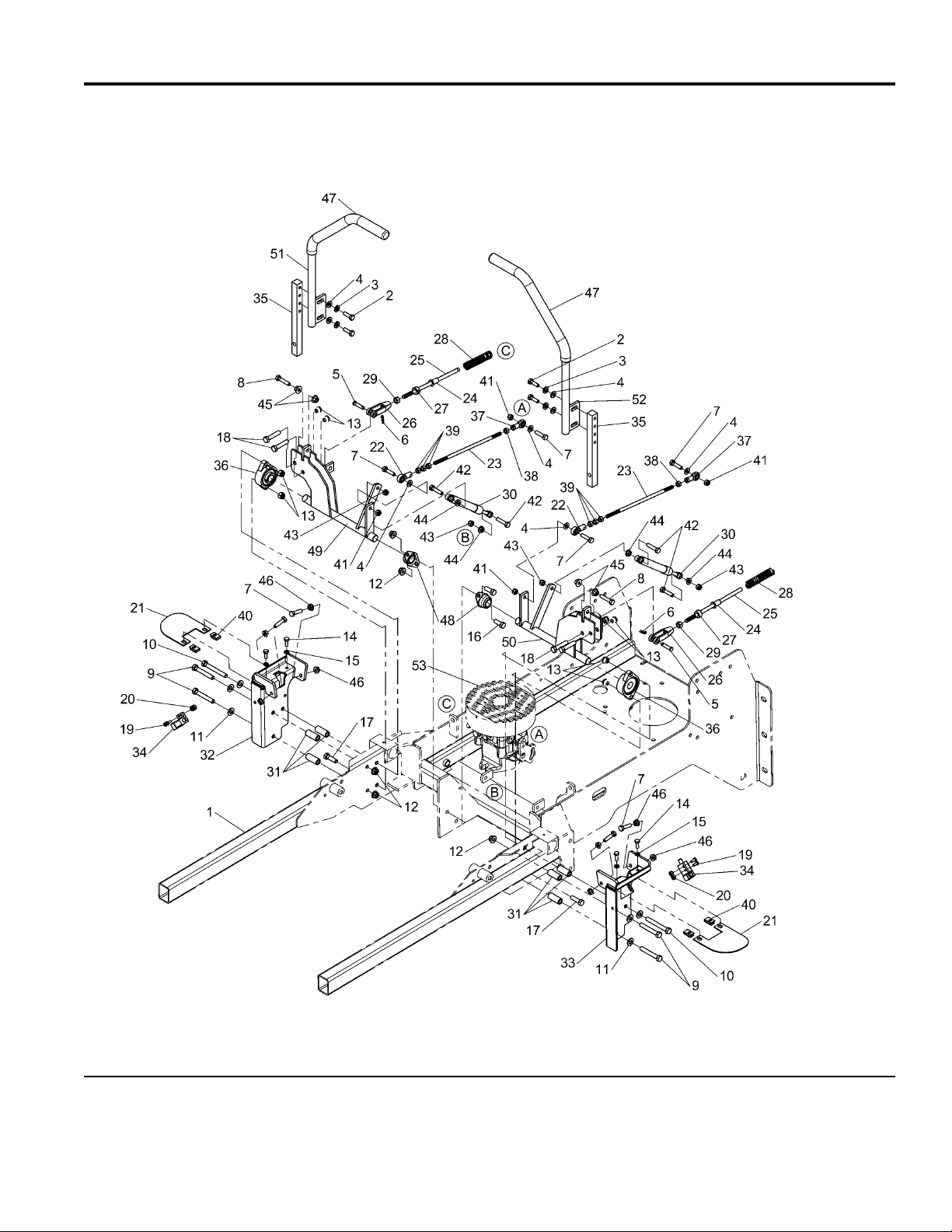

Motion Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197mcg0
The above parts group applies to the following Mfg. Nos.:
2005 14 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Motion Control Group
Footnotes
1 - - MAIN FRAME (See Main Frame Group)
2 50250118 4 BOLT, 5/16-18 X 1"
3 5025170 4 WASHER, 5/16" Lock
4 5025155 8 WASHER, 5/16" SAE
5 502523210 2 CLEVIS PIN, 5/16" X 1-1/4"
6 5025211 2 HAIR PIN
7 502501110 8 BOLT, 5/16-18 X 1-1/4"
8 502501112 2 BOLT, 5/16-18 X 1-1/2"
9 502501320 4 BOLT, 3/8-16 X 2-1/2"
10 502501324 2 BOLT, 3/8-16 X 3"
11 5025156 6 WASHER, 3/8" SAE
12 5025394 6 NUT, 3/8-16 Hex Nylock Flange
13 5025096 8 NUT, 3/8-16 Hex Nylon Lock
14 50250106 4 BOLT, 1/4-20 X 3/4"
15 5025154 4 WASHER, 1/4" SAE
16 50250138 2 BOLT, 3/8-16 X 1"
17 502501310 2 BOLT, 3/8-16 X 1-1/4"
18 502501314 4 BOLT, 3/8-16 X 1-3/4"
19 50251794 4 SCREW, #10-24 X 1/2"
20 5025029 4 NUT, #10-24 Hex
21 503861838 2 MOTION CONTROL GUARD
22 5021146 2 BALL JOINT, 5/16-24 Female
23 5046420 2 HYDRO CONTROL ROD
24 5023260 2 BUSHING, Flange
25 5049969 2 NEUTRAL CONTROL ROD
26 5021171 2 CLEVIS, 3/8-24, Plastic
27 5010546 2 COLLAR, 3/8" Set
28 5022645 2 SPRING, Compression
29 5025035 2 NUT, 3/8-24 Hex
30 5022978 2 DAMPENER
31 5048264 6 SPACER, .63 X .39 X 1.50
32 503849872 1 NEUTRAL LOCK PLATE, RH
33 503849873 1 NEUTRAL LOCK PLATE, LH
34 5022095 2 SWITCH, Plunger, NO/NC
35 5047004 2 CONTROL ARM MOUNT
36 5021499 2 BEARING, Flange
37 5022628 2 BALL JOINT, 5/16-24 Female LH
38 5023212 2 NUT, 5/16-24 Hex LH
39 5025033 6 NUT, 5/16-24 Hex
40 5022665 4 BODY CLIP, 1/4-20
41 5025057 4 NUT, 5/16-18 Hex Nylon Lock
42 5025335 4 BOLT, M8-1.25 x 35MM
43 5025354 4 NUT, M8-1.25 Hex Nylon Lock
44 5025355 4 NUT, M8-1.25 Hex Serrated Flange
The above parts group applies to the following Mfg. Nos.:
2005 15 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Motion Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197mcg0
The above parts group applies to the following Mfg. Nos.:
2005 16 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Motion Control Group
Footnotes
45 5025139 4 NUT, 5/16-18 Hex Large Serrated Flange
46 5025127 8 NUT, 5/16-18 Hex Small Serrated Flange
47 5022068 2 GRIP, Foam
48 5021098 2 BEARING, Flange
49 503849843 1 CONTROL SHAFT, RH
50 503849842 1 WCONTROL SHAFT, LH
51 503847056 1 MOTION CONTROL HANDLE, RH
52 503847055 1 MOTION CONTROL HANDLE, LH
53 - - HYDRAULIC PUMP (See Hydraulic Group)
The above parts group applies to the following Mfg. Nos.:
2005 17 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Hydraulic Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197hyd0
The above parts group applies to the following Mfg. Nos.:
2005 18 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

PART NO. DESCRIPTIONREF NO QTY.
Hydraulic Group
Footnotes
1 5100017 1 CAP, Hydraulic Oil Only
2 5061712 1 HYDRAULIC OIL RESERVOIR, Complete (Includes Ref No. 3 - 6)
3 5023118 1 FITTING, Elbow, 3/8"
4 5023120 1 GROMMET
5 5023121 1 GROMMET
6 5023119 1 FITTING, Elbow, 5/8"
7 5021164 2 CLAMP, #10 Hose
8 505093324 1 HOSE, Hydraulic, 24"
9 5022922 1 CLAMP, #4 Hose
10 505086018 1 HOSE, Hydraulic, 18"
11 5023268 11 CLAMP, Hose
12 5023370 2 HYDRAULIC HOSE ASSEMBLY, 25"
13 5022711 2 HYDRAULIC HOSE ASSEMBLY, 21"
14 5022633 2 FITTING, O-Ring Adapter
15 5022599 2 FITTING, O-Ring, 90 Deg.
16 5023316 2 HYDRAULIC WHEEL MOTOR, Complete (Includes Ref No. 17 & 18)
17 50220422 2 KEY
18 50220423 2 NUT & COTTER PIN
19 505086023 1 HOSE, Hydraulic, 23"
20 5023338 4 FITTING, O-Ring, 45 Deg.
21 5023267 2 FITTING, O-Ring, 90 Deg.
22 5022920 2 FITTING, TEE, 3/8" Hose
23 5023346 1 FITTING, O-Ring, 90 Deg.
24 5023461 3 FITTING, O-Ring, 45 Deg.
25 5023096 1 FILTER HEAD
26 1719168 1 FILTER
27 505086065 2 HOSE, Hydraulic, 6-1/2"
28 5023373 1 HYDRAULIC PUMP, RH
28 5023371 1 FAN SHROUD
29 5023372 1 HYDRAULIC PUMP, LH
29 5023371 1 FAN SHROUD
30 50508606 2 HOSE, Hydraulic, 6"
31 5025128 4 NUT, 3/8-16 Hex Serrated Flange
32 502501310 4 BOLT, 3/8-16 X 1-1/4"
The above parts group applies to the following Mfg. Nos.:
2005 19 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S

Hydraulic Tank Mount Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
197hyt0
The above parts group applies to the following Mfg. Nos.:
2005 20 © Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694768 - Citation
1694769 - Citation
TP 400-4197-00-CI-S
