Simplicity 09A4130202E1 User manual

Parts Manual
522E / 522EX
22" Single Stage Snowthrowers
Mf
g
. No. Descri
p
tion
Attachment
1695468522E, 22" Single Stage Snow Thrower
1695514522EX, 22" Single Stage SnowThrower
Not
for
Reproduction
Rev. 11/2008
TP 400-5004-00-ST-S
Part No.: 1737494

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame and Fuel Tank ........................................................................................................................................... 4
Engine Drive System ............................................................................................................................................ 6
Electric Starter ...................................................................................................................................................... 8
Body Covering ...................................................................................................................................................... 10
Wheel Assembly .................................................................................................................................................. 12
Decals .................................................................................................................................................................. 14
Auger and Housing .............................................................................................................................................. 16

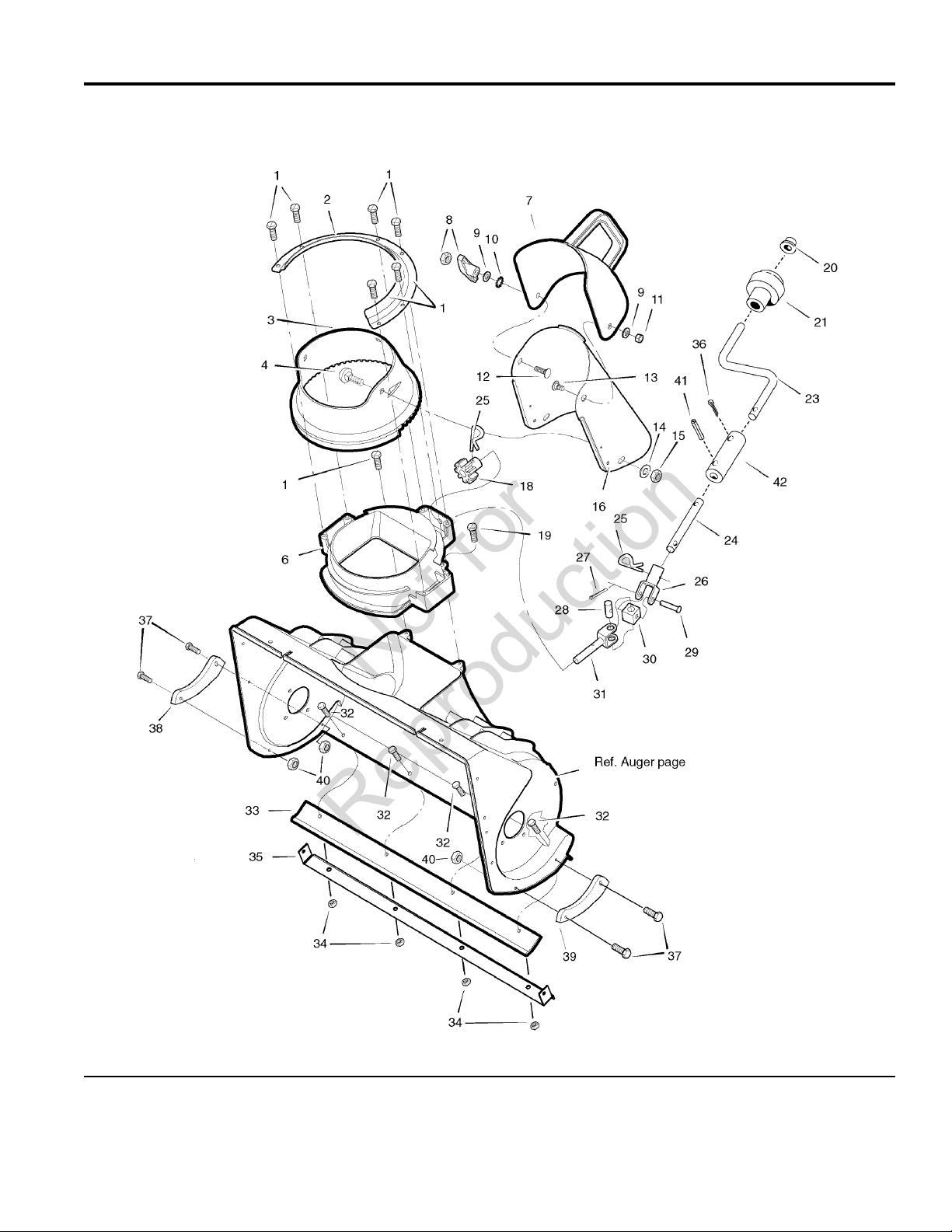

Chute System ....................................................................................................................................................... 18
Handle Assembly ................................................................................................................................................. 20
Not for
Reproduction

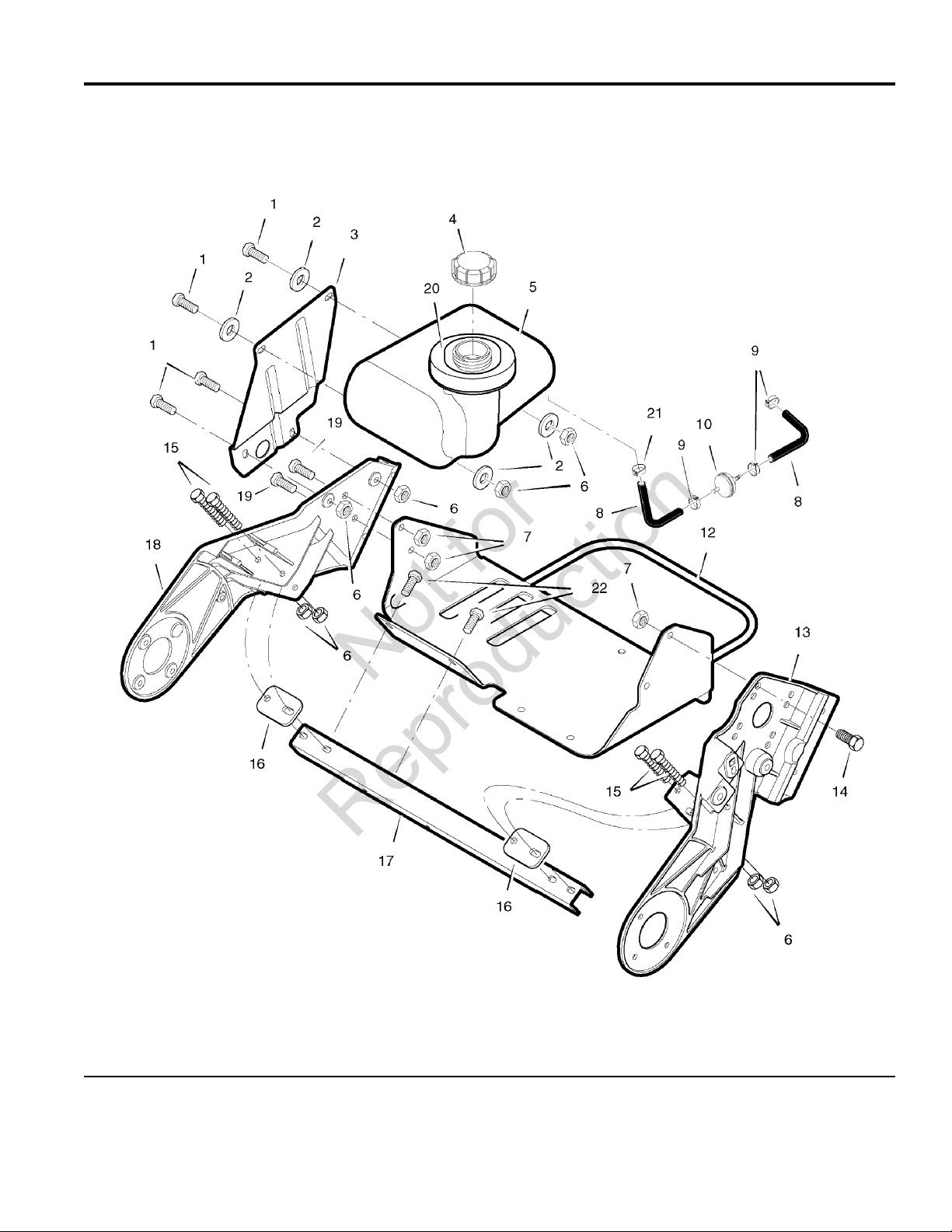

Frame and Fuel Tank
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0005
The above parts group applies to the following Mfg. Nos.:
4
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame and Fuel Tank
Footnotes
SCREW, 1/4 - 20 x 3/41 302628MA 9
WASHER2 71067MA 18
BRACKET, Fuel Tank3 1741771HYP 1
CAP, Fuel Tank4 1715917SM 1
TANK, Fuel5 1716634SM 1
NUT, Hex 1/4 - 206 73826MA 20
NUT, Hex 5/16 - 187 71391MA 6
HOSE, Fuel Line, Low Perm, 9" (Cut to length)8 7200111YP 1
CLAMP, Fuel Line9 323387MA 1
FILTER, Fuel Line10 298090S 1
CRADLE ASSEMBLY, Engine12 1741989HYP 1
FRAME, L.H.13 1501872E701MA 1
SCREW, 5/16-18 x 5/814 48901MA 1
SCREW, 1/4 - 20 x 215 180044MA 5
PLATE, Mounting Support16 335351MA 1
SUPPORT, Frame17 1501851MA 1
FRAME, R.H.18 1741988AYP 1
SCREW, 5/16-18 x 3/419 180077MA 2
RING, Foam20 1740032MA 1
CLAMP, Fuel Line21 47345MA 1
SCREW, 1/4 - 20 x 5/822 310169MA 2
The above parts group applies to the following Mfg. Nos.:
5
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

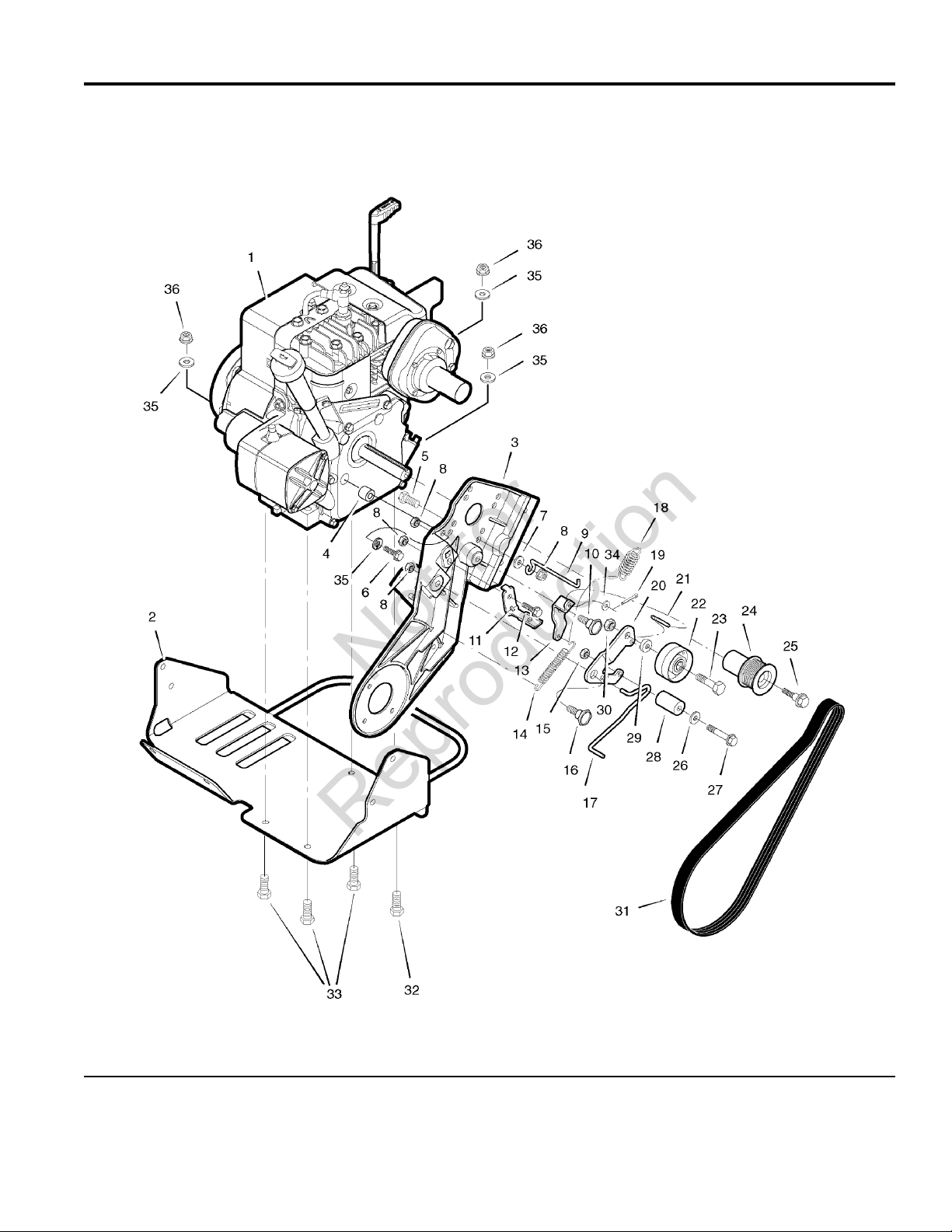

Engine Drive System
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0003
The above parts group applies to the following Mfg. Nos.:
6
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Drive System
Footnotes
ENGINE, 5.25GT 4CY B&S Electric Start * (Model # 09A4130202E1, Domestic Only)1 ----- 1
ENGINE, 5.25GT 4CY B&S Electric Start * (Model # 09A4130203E1, CE/Export Only)1 ----- 1
CRADLE ASSEMBLY, Engine2 1741989HYP 1
FRAME, L.H.3 1501872E701MA 1
ANTI-VIBRATION MOUNT, Engine4 1502027MA 1
BOLT, Hex, 5/16 - 1851X216MA 1
BOLT, Hex, 5/16 - 2466X118MA 1
WASHER, Flat7 71071MA 3
NUT, Hex Center Lock, 5/16 - 188 71391MA 6
GUIDE, Belt9 334079MA 1
BOLT10 333594MA 2
PAD, Brake11 333970MA 1
SCREW, 1/4 - 20 x 5/812 579052MA 3
IDLER, Arm Pivot13 313444MA 1
SPRING14 313473MA 1
NUT, Hex 1/4 - 2015 73826MA 20
BOLT16 333594MA 2
WIRE, Brake17 1501009MA 1
SPRING18 313471MA 1
PIN, Cotter19 121223MA 1
ARM, Idler20 1741727YP 1
ROD, Clutch Linkage21 313436MA 1
PULLEY, Idler22 48924MA 1
SCREW, 3/8 - 16 x 1-5/823 1741500MA 1
PULLEY, Engine24 1501908MA 1
BOLT, Engine Pulley25 1501907MA 1
WASHER, Flat26 71067MA 18
SCREW, 1/4 - 20 x 227 180044MA 5
PINCH ROLLER28 1501010MA 1
SPACER, Idler29 1741499MA 1
NUT, Hex30 590MA 1
BELT, Drive31 33721MA 1
BOLT, Hex, 5/16 - 1832 001X81MA 1
SCREW, 3/8 - 16 x 133 47792MA 3
WASHER, Flat34 414106MA 3
LOCKWASHER, Split35 71060MA 3
NUT, 5/16 - 1836 71037MA 6
Note* For information on Replacement Parts contact the engine
The above parts group applies to the following Mfg. Nos.:
7
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

Electric Starter
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0009
The above parts group applies to the following Mfg. Nos.:
8
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Electric Starter
Footnotes
SCREW, # 8 - 32 x 31 311633MA 2
WASHER2 414106MA 2
NUT, Keps3 271163MA 2
LEVER, Choke *4 791534 1
Muffler *5-1 699565 1
GASKET, Muffler *5-2 691880 1
SCREW, Torx, Socket-Head, Muffler *5-3 699554 1
WASHER, Split Lock5-4 71060MA 1
NUT, Hex, 5/16 - 185-5 71037MA 1
BOLT, Hex, 5/16 - 185-6 001X81MA 1
CORD, Extension (Domestic Only)6 6219MA 1
CORD, Extension (CE/Export Only)6 761332MA 1
GRIP, Mitten7 699334 1
Note* For information on Replacement Parts contact the engi
The above parts group applies to the following Mfg. Nos.:
9
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

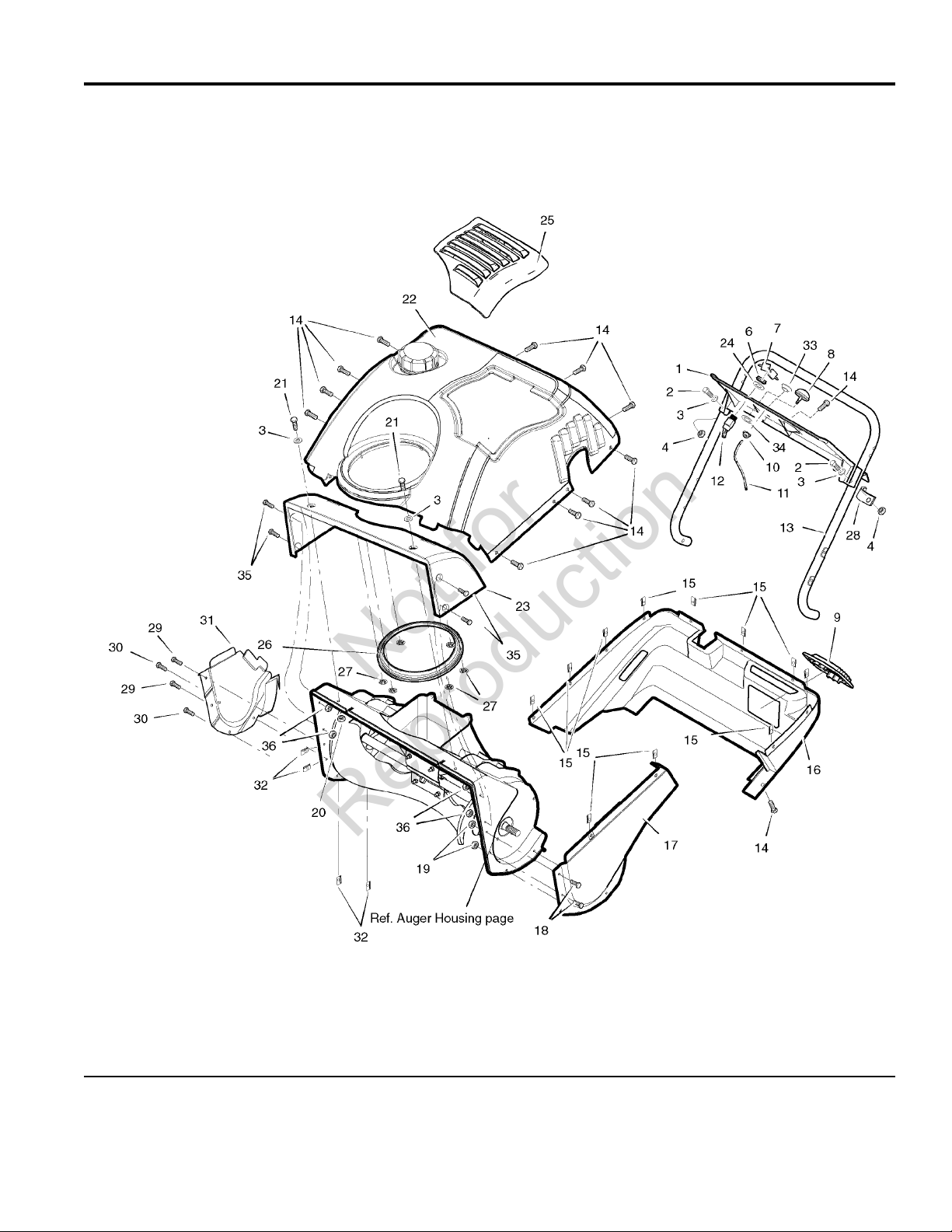

Body Covering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0015
The above parts group applies to the following Mfg. Nos.:
10
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Body Covering
Footnotes
PANEL, Control1 1740006MA 1
SCREW, 1/4 - 20 x 1-1/42 313674MA 4
WASHER3 71067MA 4
NUT, 1/4 - 204 15X143MA 1
NUT, 5/8 - 326 300193MA 1
KEYS & RING, Starter7 691959 1
BULB, Fuel Primer8 394281S 1
COVER, Access9 1501878MA 1
NUT, Keps 1/4 - 2010 271172MA 1
HOSE, Primer, 9.5"11 335507MA 1
SWITCH, Ignition12 56992MA 1
HANDLE, Lower13 1741982HYP 1
SCREW, 1/4 - 14 x 3/414 1740053MA 4
NUT, 1/4 - 1015 578109MA 14
COVER, Bottom16 1740004MA 1
COVER, Belt17 1740005MA 1
SCREW, 10 - 24 x 1/218 1740051MA 4
NUT, Hex Center Lock, 10 - 2419 1740052MA 4
LOCKNUT, Hex 1/4 - 2020 1740056MA 2
SCREW, 1/4 - 20 x 9/1021 1740425MA 2
COVER, Top22 1740058SM 1
COVER, Auger Top23 1740007MA 1
WASHER24 313683MA 1
COVER, Oil Access25 1740002MA 1
Gasket, Chute Ring26 1501995MA 1
NUT, Push Pal27 028X85MA 6
CLIP, Cable28 583435MA 1
SCREW, 10-24 x .7229 1740426MA 2
SCREW, 10-24 x .9530 1740427MA 2
COVER, R.H. Auger Housing31 1740071SM 1
J-NUT, 1/4-1032 1740407MA 4
GROMMET, Rope33 1502074MA 1
WASHER, Rope Grommet34 1502075MA 1
SCREW, 10-24 X 1/2"35 12342MA 4
NUT, Hex, Center-lock, 10-2436 312300MA 4
The above parts group applies to the following Mfg. Nos.:
11
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

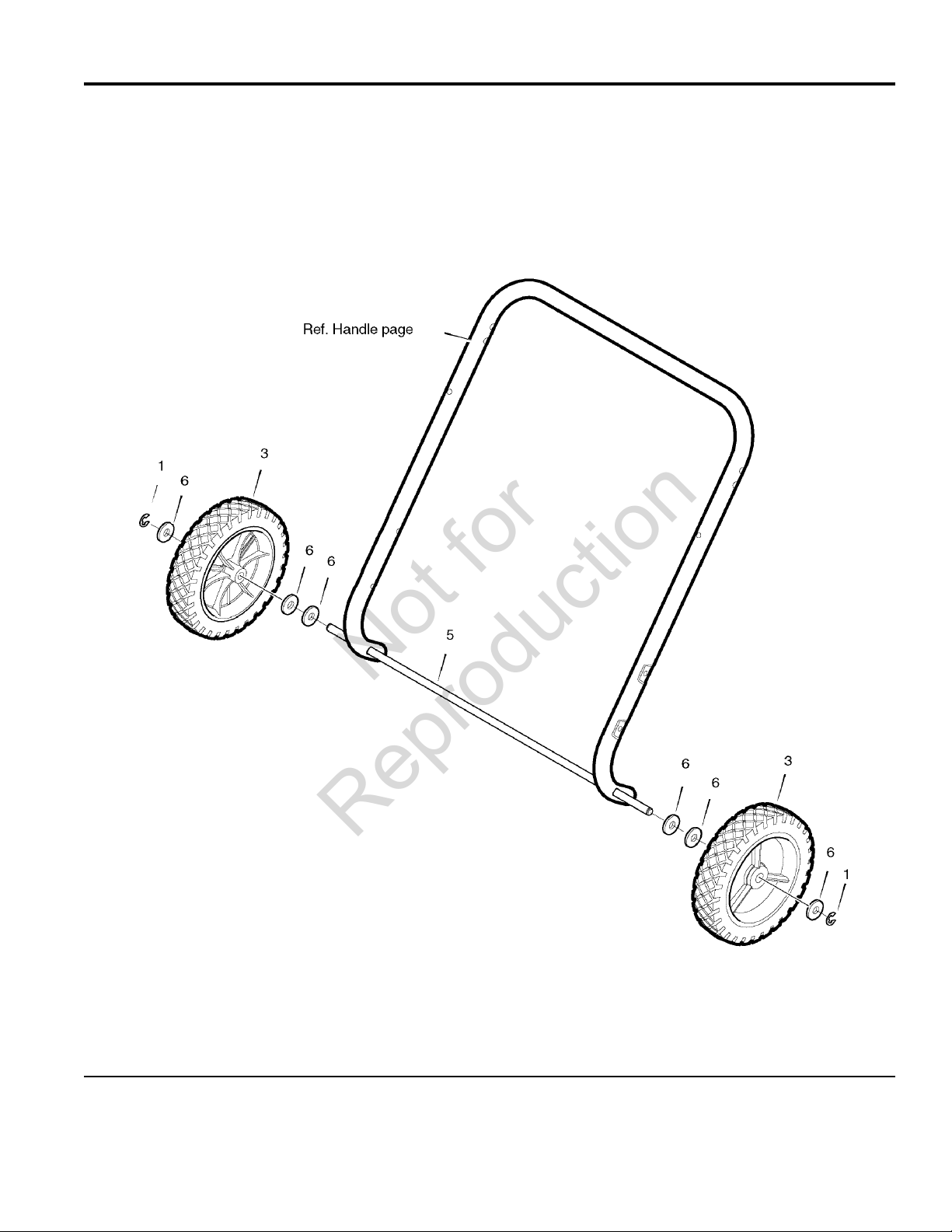

Wheel Assembly
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0017
The above parts group applies to the following Mfg. Nos.:
12
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Wheel Assembly
Footnotes
RETAINER, E-Ring1 577598MA 2
WHEEL & TIRE, 7" x 1-1/2"3 760713MA 2
ROD, Axle5 1501879MA 1
WASHER6 583409MA 6
The above parts group applies to the following Mfg. Nos.:
13
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

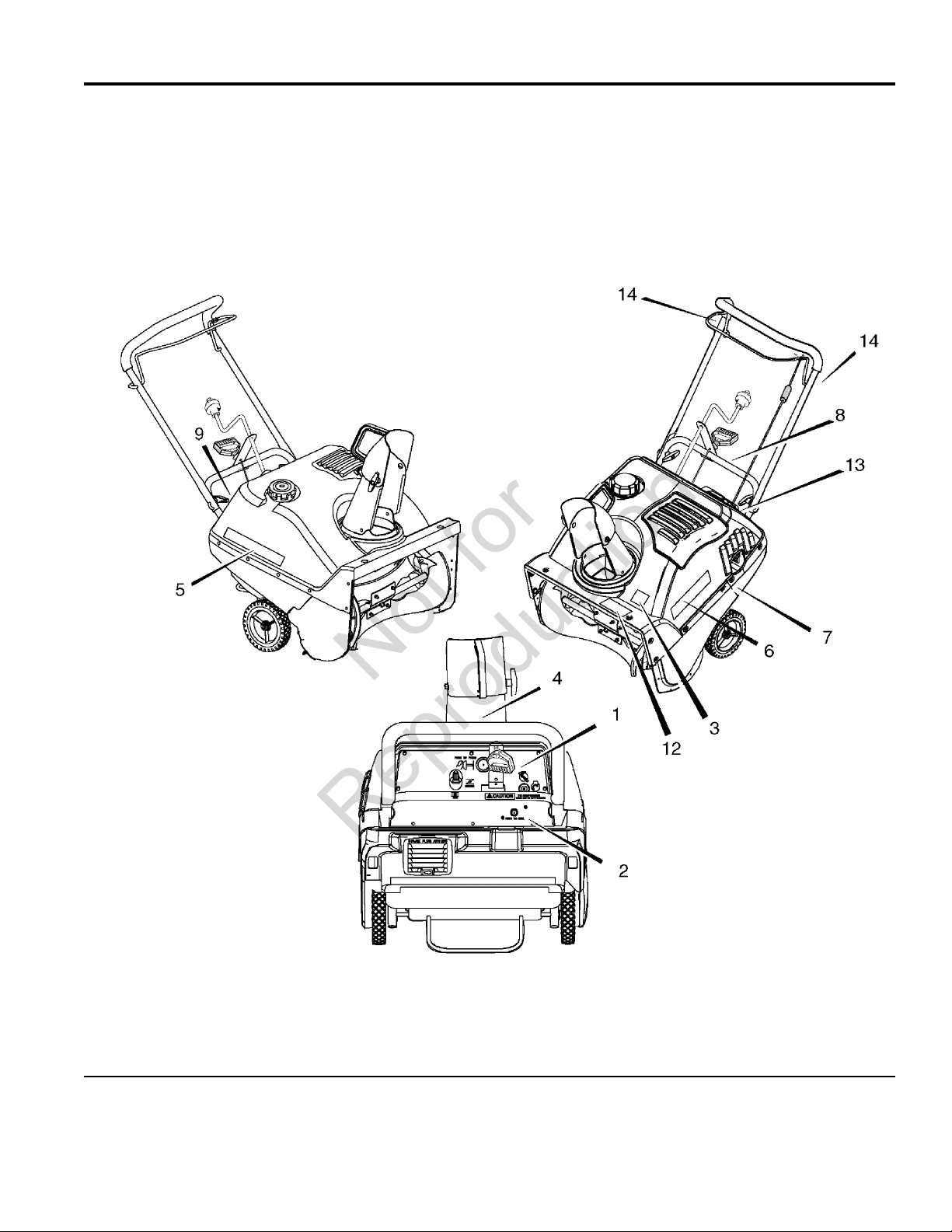

Decals
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0021
The above parts group applies to the following Mfg. Nos.:
14
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Decals
Footnotes
DECAL, Control Panel Electric Start (Domestic Only)1 1736343YP 1
DECAL, Control Panel Electric Start (CE/Export Only)1 1740400MA 1
DECAL, Electric Start2 48X5668MA 1
DECAL, Danger Auger3 70141MA 1
DECAL, Danger Chute4 48X5642MA 1
DECAL, 522 Simplicity R.H.5 1740061SM 1
DECAL, 522 Simplicity L.H.6 1740062SM 1
DECAL, Hot Muffler7 69880MA 1
DECAL, Auger Control8 761150MA 1
DECAL, Choke9 1740422MA 1
DECAL, 522E12 1740365SM 1
DECAL, Warning, Access Cover13 1742320MA 1
DECAL, Handle protector14 1741994YP 2
MANUAL, Operator's15 1742166 1
The above parts group applies to the following Mfg. Nos.:
15
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

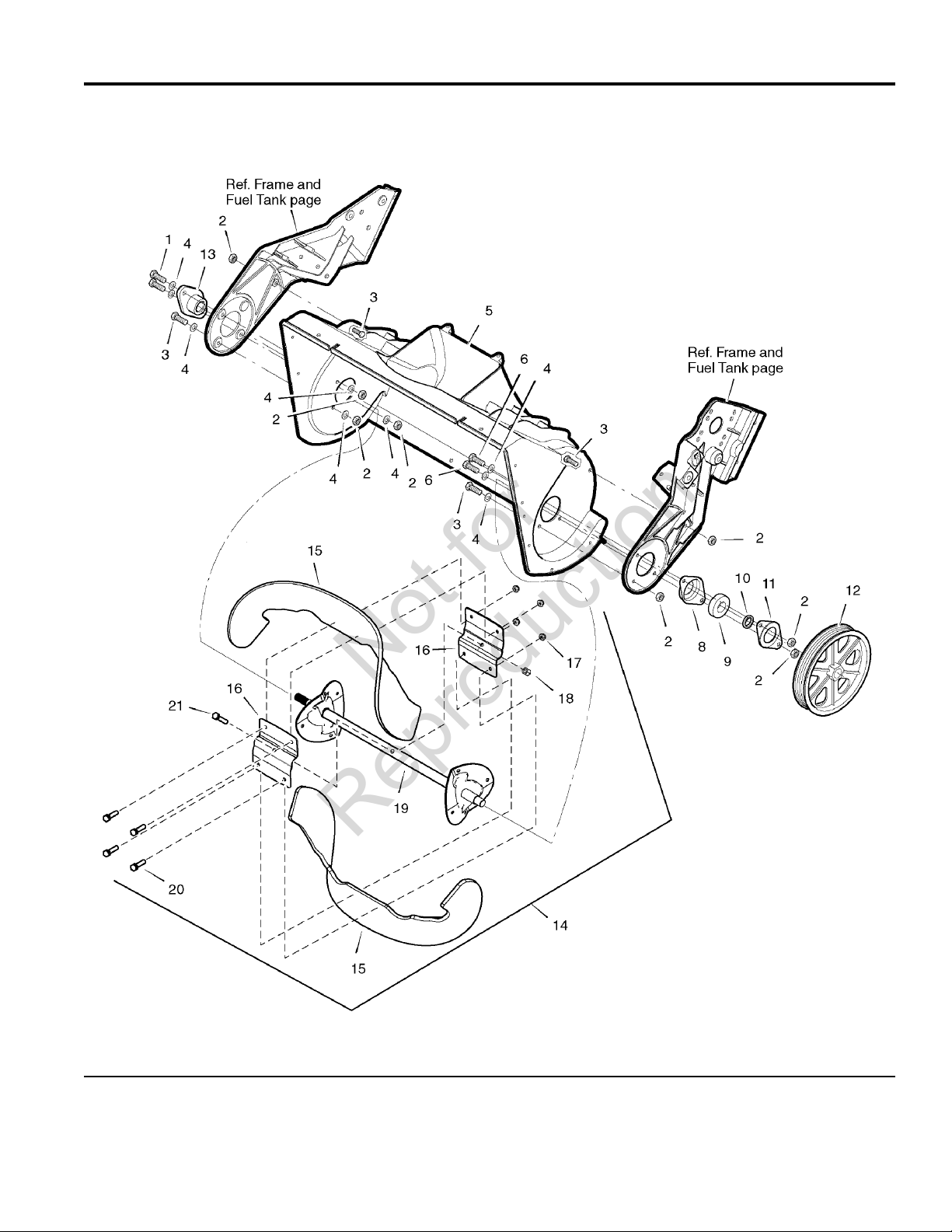

Auger and Housing
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0007
The above parts group applies to the following Mfg. Nos.:
16
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Auger and Housing
Footnotes
SCREW, 1/4 - 20 x 11 710263MA 2
NUT, Hex, 1/4 - 202 73826MA 2
SCREW, 1/4 - 20 x 3/43 302628MA 2
WASHER, Flat4 71067MA 4
HOUSING ASSEMBLY, Auger5 1736375YP 1
SCREW, 1/4 - 20 x 5/86 579052MA 2
BEARING, Retainer8 580251MA 1
Bearing9 43846MA 1
SLEEVE, Spacer10 578101MA 1
PLATE, Bearing Retainer11 334287MA 1
PULLEY, Auger Drive V612 333446MA 1
BEARING, Flange13 577023MA 1
AUGER HOUSING Incl. Ref. Nos. 15, 16, 17, 18, 19, 20, & 2114 1735771YP 1
BLADE, Auger, Black15 1735606YP 1
BRACKET, Auger, Center16 1735609YP 1
NUT, Nylock17 1920397SM 12
NUT, Hex-Lock, ESNA Light, 5/16-18, NC3B, Black18 1919438SM 1
SHAFT, Sub19 1735610YP 1
BOLT, 1/4-20 X 1"20 5025299X8YP 4
CAPSCREW, Hex-Head, 5/16-18 x 1-1/2, G5 Black21 1921221SM 1
The above parts group applies to the following Mfg. Nos.:
17
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

Chute System
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0013
The above parts group applies to the following Mfg. Nos.:
18
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Chute System
Footnotes
SCREW, 1/4 - 141 313685MA 2
RETAINER, Chute Ring2 1502131MA 1
RING, Chute3 1502132MA 1
BOLT, Carriage, 5/16 - 18 x 3/44 1740430YP 3
NECK, Chute6 1736069YP 1
CHUTE, 22" Upper7 1501918MA 1
KNOB, Wing8 1501260MA 1
WASHER9 71071MA 5
LOCKWASHER, Shakeproof10 1742155YP 1
LOCKNUT, Hex, 5/16 - 1811 71391MA 6
BOLT, Carriage, 5/16 - 1812 1742154YP 1
BOLT, Upper Chute13 1742157YP 1
WASHER, Flat, 11/1614 1740431YP 5
NUT, Nylock, 5/16-1815 1740432YP 4
CHUTE, Lower16 1736382YP 1
GEAR, 9-Tooth18 1501067MA 1
SCREW, 1/4 - 14 x 3/419 313685MA 8
NUT, Push20 1740420MA 1
KNOB, Sleeve21 1714084SM 1
CRANK, Chute Rotation23 1733369SM 1
HANDLE, Chute Rotator, Lower24 1720576SM 1
PIN, Hair25 1501293MA 2
YOKE ASSEMBLY, Adapter26 1741997YP 1
PIN, Cotter, .527 579493MA 1
PIN, Universal Joint28 578060MA 1
PIN, Clevis29 578309MA 1
HOUSING, Universal30 578063MA 1
ROD, Lower Crank31 1501873MA 1
SCREW, 1/4 - 20 x 3/432 302628MA 9
BLADE, Scraper33 1501863MA 1
LOCKNUT, Hex, 1/4 - 2034 15X143MA 3
PLATE, Reinforcement35 1734321SM 1
CLIP, Hairpin, 3/32 x 1-5/8"36 1740346MA 1
SCREW, 10-32 x 3/437 1741504YP 4
SKID SHOE, RH38 1740398MA 1
SKID SHOE, LH39 1740397MA 1
NUT, Nylock, 10-3240 1740382SM 4
PIN, Spring, 5/32 x 1"41 1740347MA 1
SPLICE, Chute Handle42 1720577SM 1
The above parts group applies to the following Mfg. Nos.:
19
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction

Handle Assembly
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
0011
The above parts group applies to the following Mfg. Nos.:
20
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695468 - 522E
1695514 - 522EX
TP 400-5004-00-ST-S
Not for
Reproduction
