Simplicity 1695515 User manual

Parts Manual
Rev. 12/2008
24" Dual Stage
Snowthrower
TP 400-5017-01-LW-S
Mf
g
. No. Descri
p
tion
Attachment
1695515 H924RX, 9TP 24" Snowthrower (CE/Export)
1737538
Part No.:
Not for
Reproduction

Not for
Reproduction

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Handle Assembly Group ...................................................................................................................................... 4
Engine Group ....................................................................................................................................................... 6
Frame Group ........................................................................................................................................................ 8
Auger Housing Group .......................................................................................................................................... 10
Wheel Group ........................................................................................................................................................ 12
Decals Group ....................................................................................................................................................... 14
Chute Rod Group ................................................................................................................................................. 16
Control Panel Group ............................................................................................................................................ 18
Discharge Chute Group ....................................................................................................................................... 20
Drive Group .......................................................................................................................................................... 22
Gear Case Group ................................................................................................................................................. 24
Shift Group ........................................................................................................................................................... 26
Not for
Reproduction

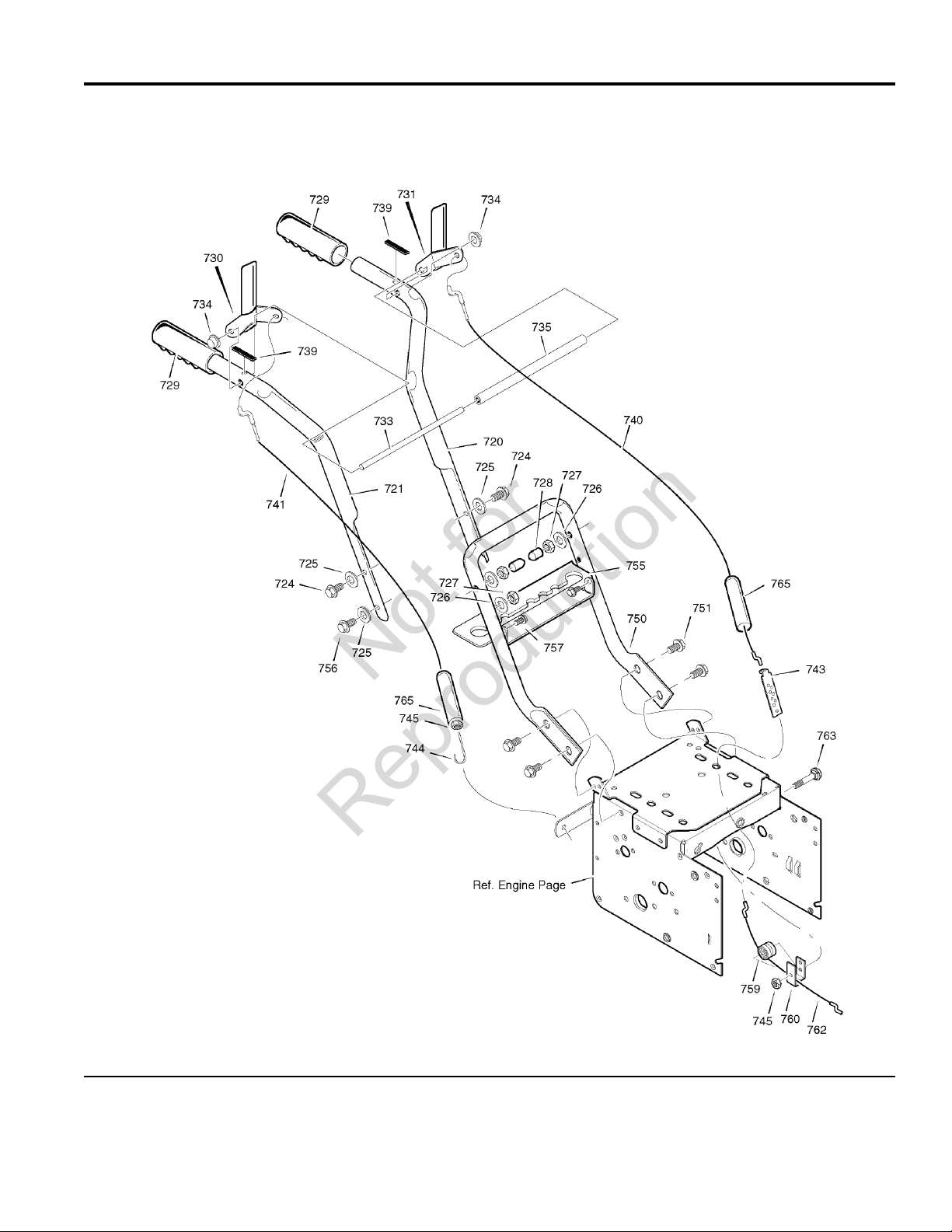

Handle Assembly Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742038
The above parts group applies to the following Mfg. Nos.:
4
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Handle Assembly Group
Footnotes
HANDLE, UPPER LH720 1740587ASM 1
HANDLE, UPPER RH721 1740573ASM 1
SCREW, 5/16-18 x 2.75724 11234MA 1
WASHER, FLAT725 71071MA 3
WASHER, SPTLK .31X.58X.08726 71060MA 1
NUT, 5/16-18 REGHEX727 15X144MA 3
STOP, RED PLASTIC728 11261MA 3
GRIP-HANDLE FINGER729 337399MA 2
LEVER, ASSY CLUTCH DRIVE RH730 1740700AYP 1
LEVER, ASSY CLUTCH DRIVE LH731 1740699AYP 1
ROD, PIVOT CLUTCH733 337381MA 1
NUT, PUSH ON CAP734 761105MA 2
SPACER-HANDLE735 337373MA 1
BUMPER, RECTANGLE739 4049MA 2
CABLE, CLUTCH 28.44L740 1501123MA 1
CABLE, AUGER CLUTCH741 761872MA 1
BRACKET, CABLE ADJUSTER743 313441MA 1
SPRING, AUGER CLUTCH744 1673MA 1
NUT, 1/4-20745 15X145MA 2
HANDLE, LOWER750 1740701ASM 1
SCREW751 25X021MA 4
BRKT, GEAR SELECTOR755 1740698ASM 1
SCREW, 5/16-18 x 2.00756 6751MA 2
SCREW, 1/4-20 X 0.63757 310169MA 2
SPOOL-CABLE, AUGER CLUTCH759 579860MA 1
BRACKET, CABLE SPOOL YZ760 1501059YZMA 1
CABLE, LOWER DRIVE 12"762 1501122MA 1
BOLT, HEX 1/4-20 X 1.50 YZ763 001798MA 1
BOOT, CLUTCH SPRING765 308146MA 2
The above parts group applies to the following Mfg. Nos.:
5
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

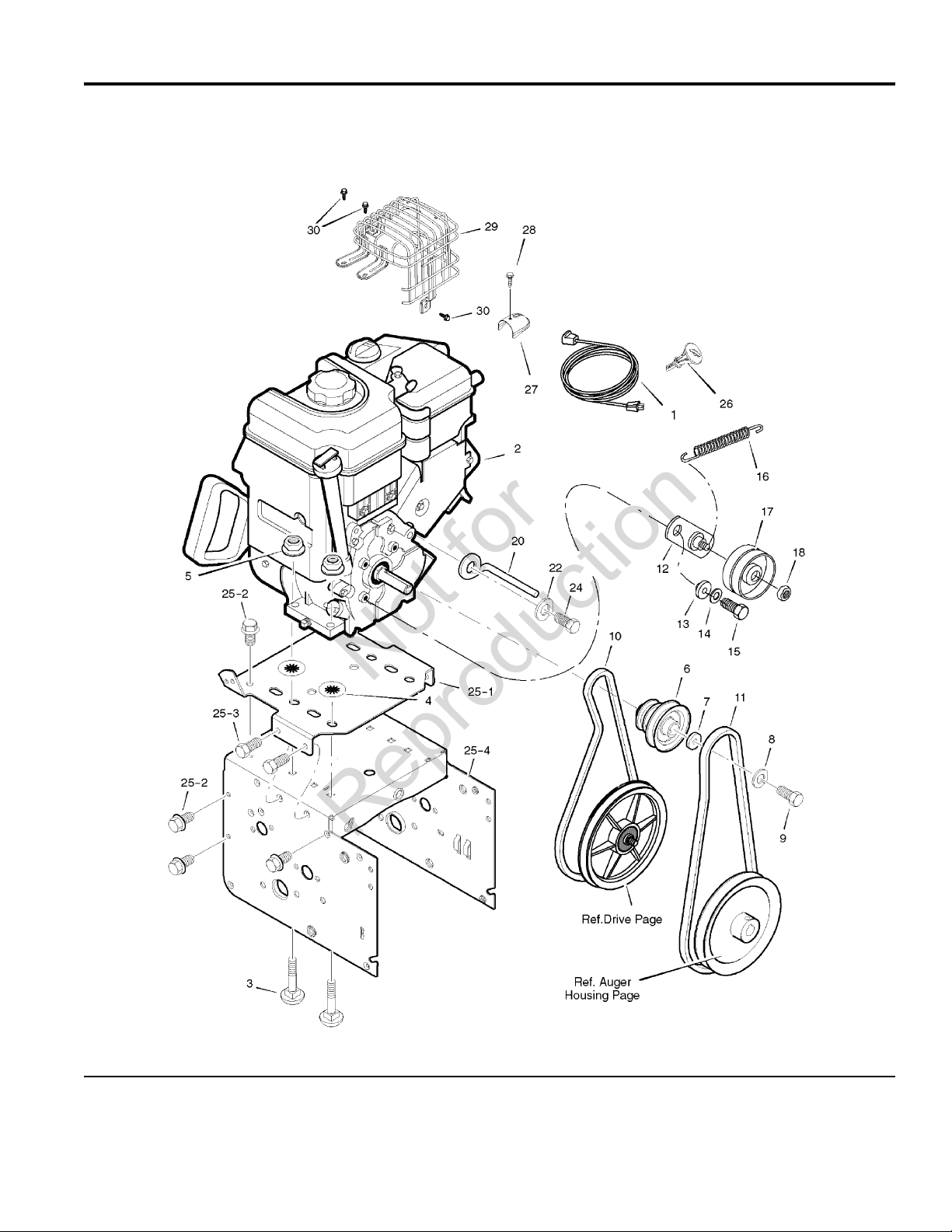

Engine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742202
The above parts group applies to the following Mfg. Nos.:
6
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Engine Group
Footnotes
CORD, Starter1 6219MA 1
ENGINE (Model# 12D1160124E8)2 ----- 1
BOLT, CARRIAGE 5/16-183002X97MA 4
RETAINER, PUSH4028X76MA 4
NUT 5/16-185 1960686SM 4
PULLEY, ENGINE6 1736102YP 1
WASHER7 17X146MA 1
WASHER .38ID8 71060MA 3
SCREW, 3/8-24 x 1.009 910828MA 1
BELT, V 3L10 1733324SM 1
BELT, V 4L11 1736421YP 1
BRACKET ASSEMBLY, IDLER12 1501112YZMA 1
BUSHING, IDLER BRACKET13 1501065MA 1
WASHER, SPLIT14 71060MA 1
SCREW 5/16-24 X 0.7515 710097MA 1
SPRING, IDLER TRACTION DRIVE16 53704MA 1
PULLEY, IDLER17 1502120MA 1
NUT, JAM 3/8-1618 590MA 1
GUIDE, BELT20 1501201MA 1
WASHER .31X.58X.0822 71060MA 1
SCREW, 5/16-24 x 0.7524 710097MA 2
FRAME, MOTORBOX (5-11HP)25 ----- 1
PLATE, ENGINE MOUNT25-1 1740574CYP 1
SCREW, TAP 1/4-20 X .6325-2 310169MA 1
SCREW, TAP 5/16-18 X .5025-3 25X020MA 1
FRAME, MOTOR BOX25-4 1735753CYP 1
KEY, BRIGGS ENGINE26 794696 1
DEFLECTOR, Muffler27 794213 1
SCREW,28 699854 1
HEAT SHIELD, Muffler29 1734732SM 1
SCREW, Hex-Washer30 1736103SM 1
Note* See your local Briggs & Stratton distributor for parts
The above parts group applies to the following Mfg. Nos.:
7
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

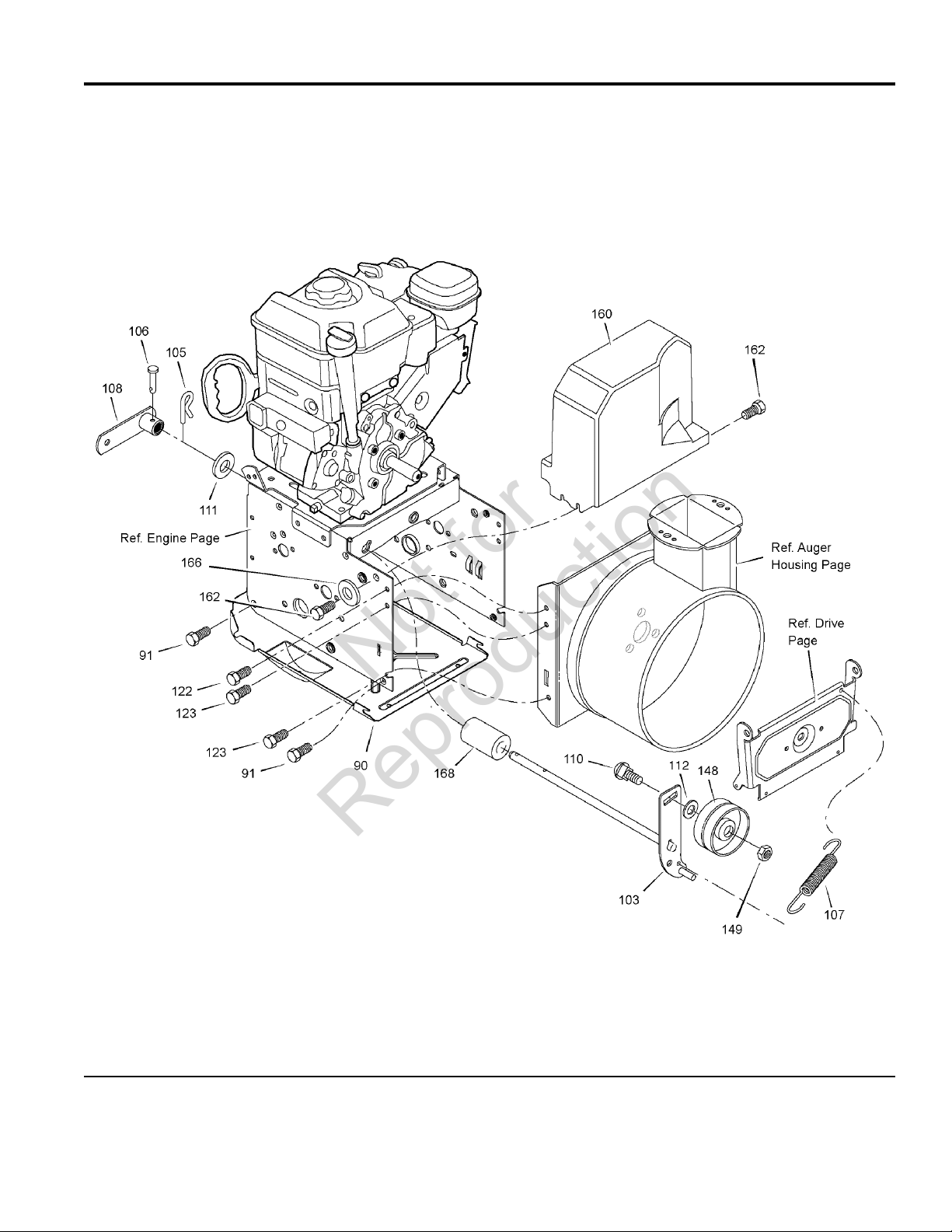

Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742203
The above parts group applies to the following Mfg. Nos.:
8
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Frame Group
Footnotes
COVER, BOTTOM90 1740906ASM 1
SCREW, 1/4-20X .6391 310169MA 12
IDLER ASSEMBLY, AUGER103 1501226YZMA 1
PIN, HAIR .38DIAX1.64LG105 711682MA 1
PIN, CLEVIS 3/16" DIA106 1736381YP 1
SPRING, TENSION107 165X159MA 1
ARM, CONTROL108 1733451SM 1
BOLT, 3/8-16X1.25 CARR.110 585781MA 1
WASHER, FLAT111 711617MA 2
WASHER112 017X48MA 1
SCREW, TAP 5/16-18 X 0.50122 25X020MA 8
SCREW, TAP 5/16-18 X 0.75123 25X021MA 2
PULLEY, IDLER148 1502120MA 1
NUT, JAM 3/8-16149 590MA 1
COVER, BELT160 1502169MA 1
SCREW, TAP162 26X306MA 1
WASHER, FLAT166 71067MA 1
SPACER, AUGER BRACKET168 1502041MA 1
The above parts group applies to the following Mfg. Nos.:
9
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

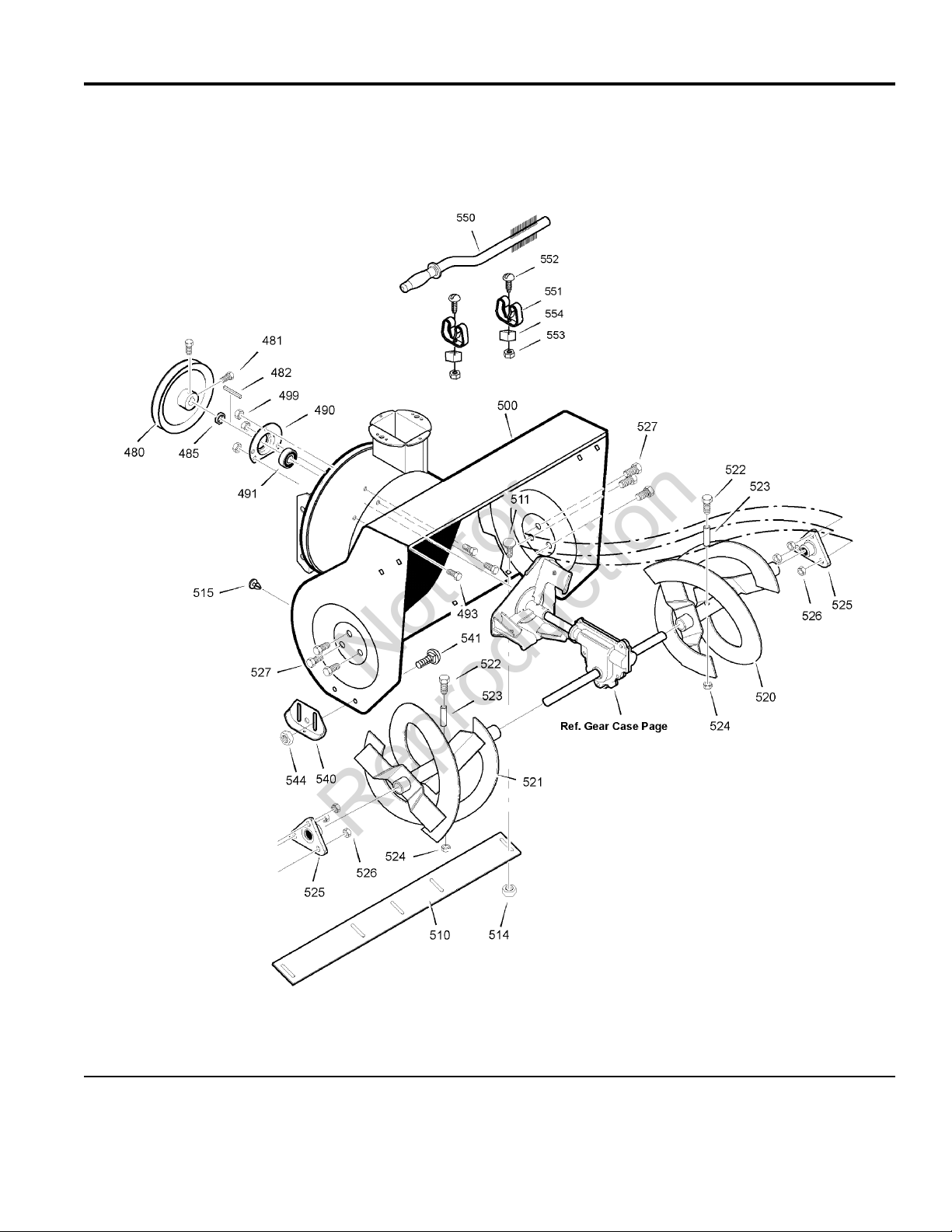

Auger Housing Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742204
The above parts group applies to the following Mfg. Nos.:
10
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Auger Housing Group
Footnotes
PULLEY, 4L 6.12X .67480 1501211MA 1
SCREW, 5/16-18 x 0.63481 577400MA 2
KEY, SQUARE 3/16 X 3/4482 2001022MA 1
SPACER, FRICTION PULLEY485 1501158MA 1
RETAINER, BALL BRNG490 582957YZMA 1
BEARING, BALL491 1705897SM 1
BOLT, HEX 5/16-18X .50493 001X45MA 3
NUT, 5/16-18 HEXWDFLLK499 710026MA 1
ASSY, HOUSING500 729061CYP 1
BLADE, SCRAPER510 760657E701MA 1
BOLT, 5/16-18X.75511 340720MA 5
NUT, 5/16-18514 710026MA 12
PLUG515 309235MA 2
ASSY, LH AUGER520 1501441E701MA 1
ASSY, RH AUGER521 1501440E701MA 1
SCREW, 1/4-20X1.75522 9524MA 2
SPACER, SLEEVE523 3943MA 2
NUT, 1/4-20524 73826MA 2
BEARING, FLANGE525 9517MA 2
NUT, 5/16-18526 711862MA 6
SCREW, 5/16-18 x 0.75527 9357MA 6
SKID, HEIGHT ADJUST540 1740912AYP 2
BOLT, 5/16-18 X .75541 7090799SM 4
NUT, 5/16-18544 710026MA 1
BRUSH, CLEANOUT550 1736094YP 1
CLIP, RETAINER551 1501672MA 2
SCREW552 06X115MA 2
NUT553 15X146MA 2
BLOCK554 578063MA 1
KIT, SHEAR BOLT-- 1501216MA 1
The above parts group applies to the following Mfg. Nos.:
11
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

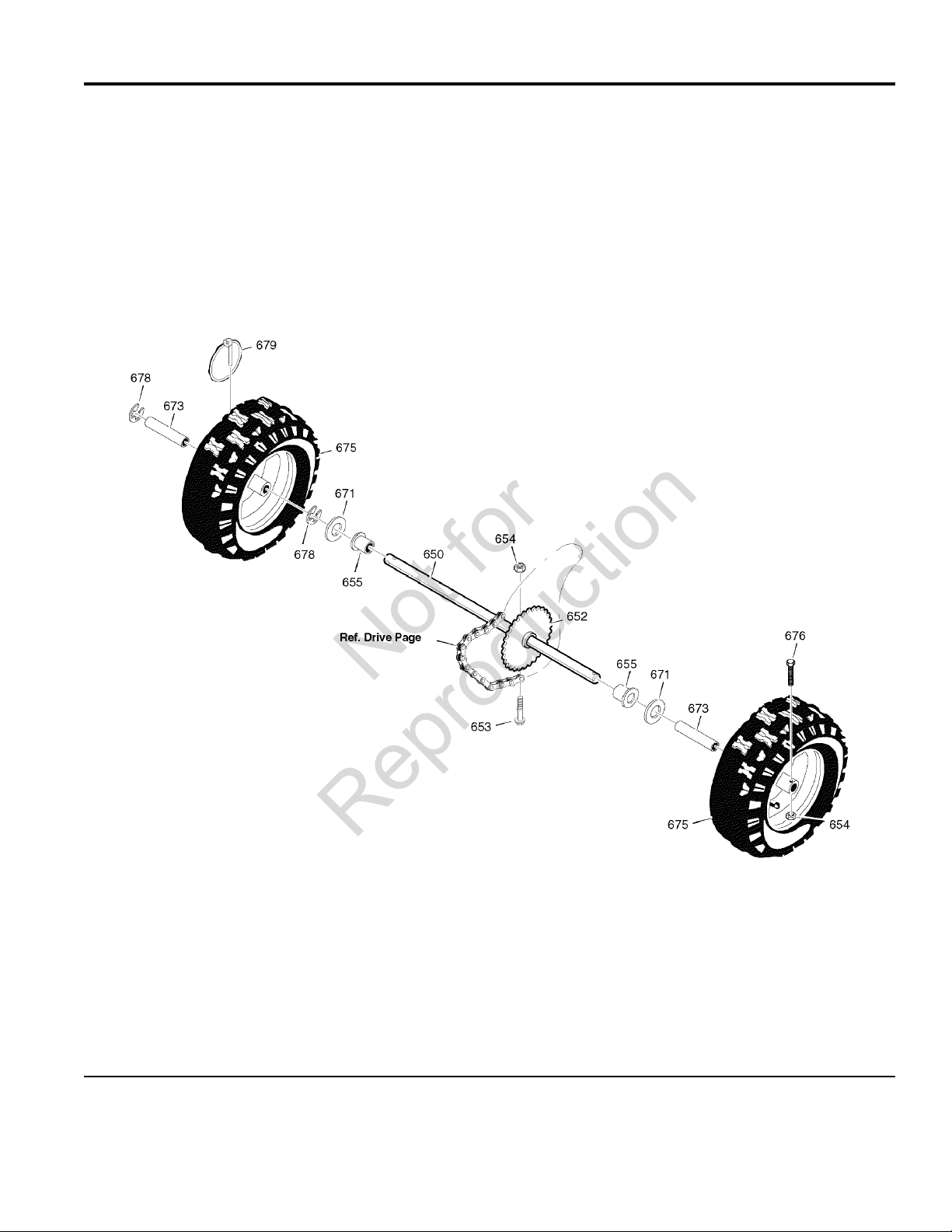

Wheel Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1741949
The above parts group applies to the following Mfg. Nos.:
12
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Wheel Group
Footnotes
SHAFT, AXLE650 1501562YZMA 1
SPRKT & HUB652 1501089MA 1
SCREW, 1/4-20 x 1.75653 01X193MA 1
NUT, 1/4-20 HEX NYLOCK654 15X145MA 1
BEARING, AXLE655 1501114MA 1
WASHER, FLAT671 017X83MA 2
BUSHING, WHEEL673 1501139MA 2
TIRE & RIM675 580349MA 1
SCREW, 1/4-20X1.75 HH676 577015MA 1
RING, RET678 239MA 1
PIN, KLIK .25 X 1.38 DIA679 73842MA 1
The above parts group applies to the following Mfg. Nos.:
13
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

Decals Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742207
The above parts group applies to the following Mfg. Nos.:
14
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Decals Group
Footnotes
DECAL, Gear Select1 1737053YP 1
DECAL, ISO Chute CE3 1742213YP 1
DECAL, 104db CE4 48X5386MA 1
DECAL, Face, Head Phones5 304427MA 1
DECAL, Model Number6 1742240YP 1
DECAL, ISO Auger CE7 1742212YP 1
DECAL, Traction, Auger8 48X5605MA 1
DECAL, Belt Adjustment9 5131MA 1
DECAL, Clean & Clear Brush10 48X5960MA 1
DECAL, Danger, Chute11 1740979MA 1
DECAL, Simplicity Swoosh12 1735113SM 1
DECAL, Simplicity Stripe13 1733071SM 1
OWNER’S MANUAL *-- 1742227 1
Note* Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
15
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

Chute Rod Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1741718
The above parts group applies to the following Mfg. Nos.:
16
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Chute Rod Group
Footnotes
ASSEMBLY, YOKE & ROD852-1 1501533YZMA 1
SPRING852-2 164X37MA 1
GEAR, CHUTE ROTATION 9T852-3 1501067MA 1
WASHER852-4 017X48MA 1
PIN, COTTER852-5 579493MA 1
BRACKET, CHUTE GEAR852-6 1740591AYP 1
PIN, HAIR852-7 1501293MA 1
ASSEMBLY, YOKE ADAPTER YZ852-8 1501075YZMA 1
PIN, HAIR852-9 711682MA 1
PIN, UNIVERSAL JOINT852-10 578060MA 1
PIN, CLEVIS852-11 578309MA 1
HOUSING, UNIVERSAL852-13 578063MA 1
KNOB, SLEEVE854 51443MA 1
FLATWASHER855 309312MA 1
NUT, PUSH ON 3/8"856 73664MA 1
EYE BOLT 3/8-16X6.50860 1501456MA 1
GROMMET, EYE BOLT861 148MA 1
NUT, 3/8-16 HEXJAM863 71045MA 1
FLATWASHER .406X.81X.066864 71072MA 1
NUT, 3/8-16 HEXNYL867 71046MA 1
BOLT, CARRIAGE 1/4-20 X 1.00868 02X101MA 1
NUT, 1/4-20869 15X145MA 1
CRANK, ASSY CHUTE870 1501074YZMA 1
The above parts group applies to the following Mfg. Nos.:
17
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

Control Panel Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742206
The above parts group applies to the following Mfg. Nos.:
18
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

PART NO. DESCRIPTIONREF NO QTY.
Control Panel Group
Footnotes
PANEL770 1740930CYP 1
BOLT, Carriage, 25-20 X 1-1/2"771 002X99MA 4
WASHER772 71067MA 4
NUT773 15X145MA 4
The above parts group applies to the following Mfg. Nos.:
19
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction

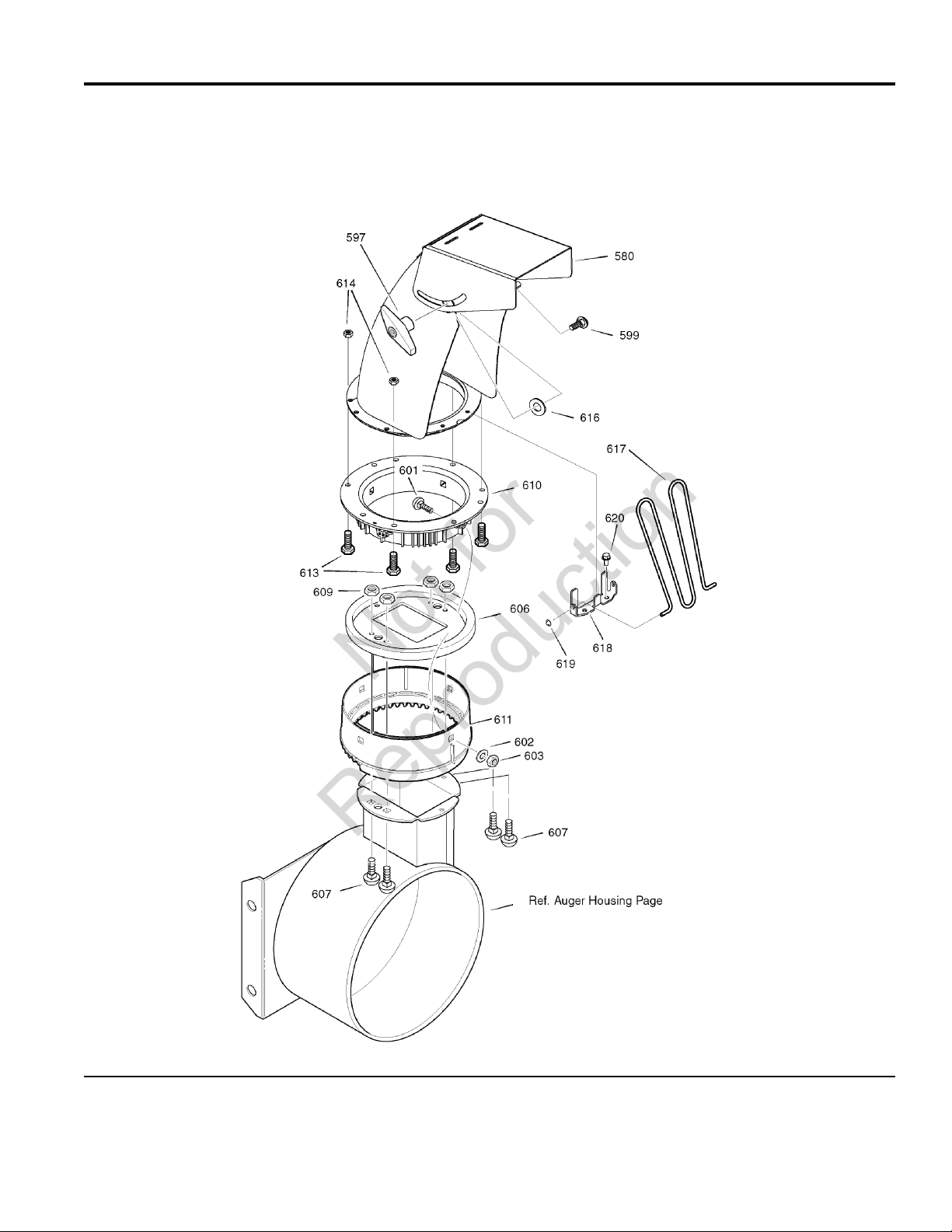

Discharge Chute Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1742205
The above parts group applies to the following Mfg. Nos.:
20
2008
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1695515 - H924RX
TP 400-5017-01-LW-S
Not for
Reproduction
