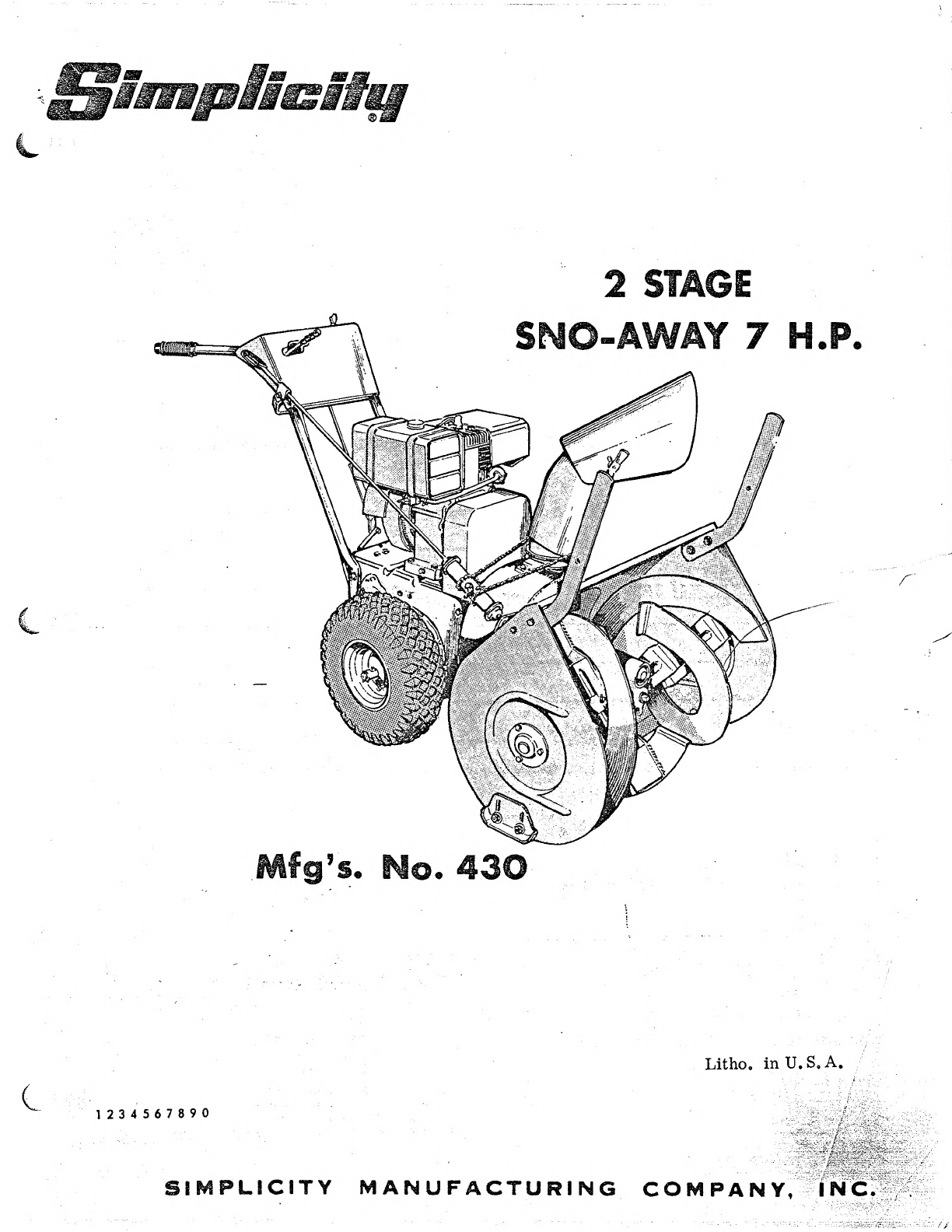

Simplicity Snow-Away 430 User manual
SNO-AWAY
7
H.P
Litho.
inU.S.A
1234567890
SIMPLICITY
MANUFACTURING
COMPANY,
INC

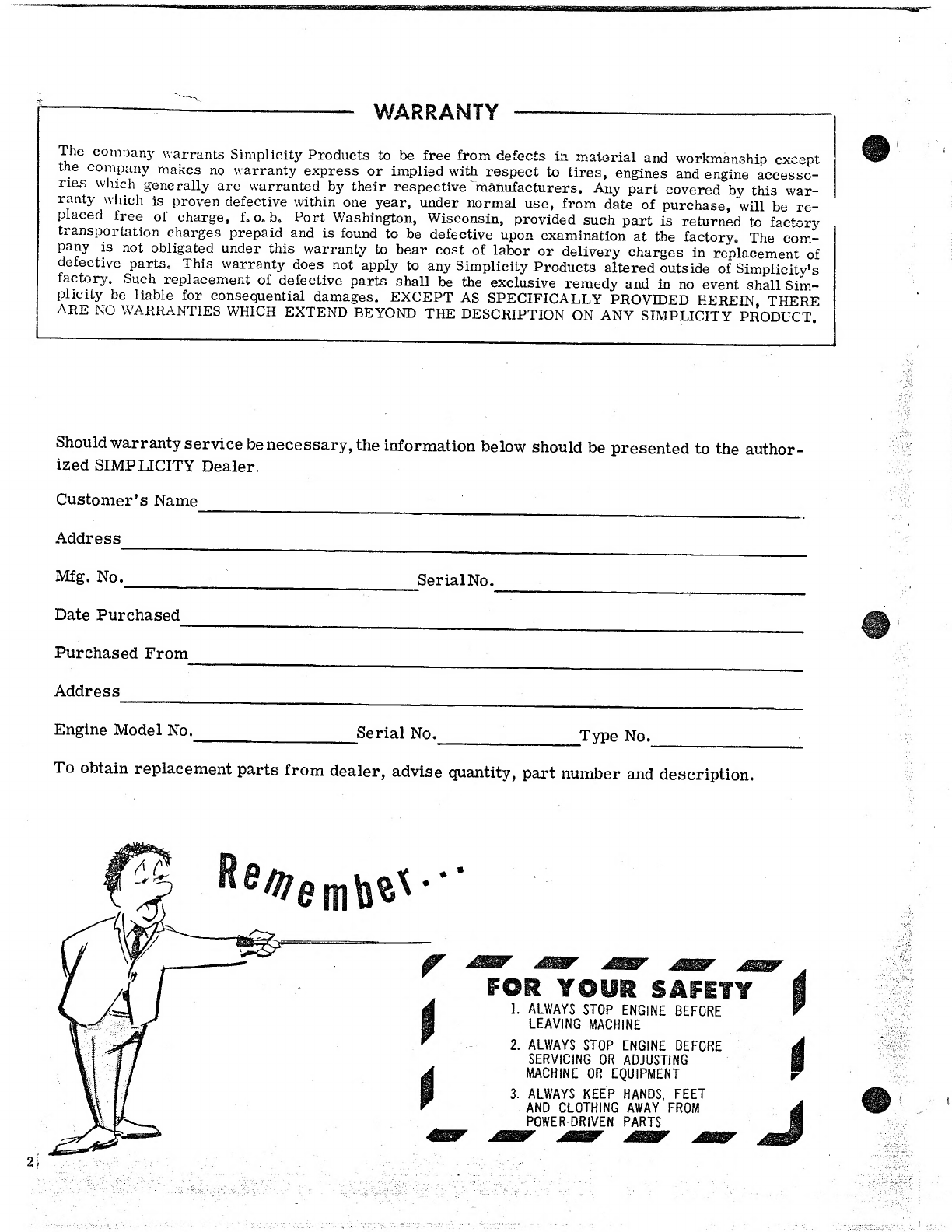

WARRANTY
The
company
warrants
Simplicity
Products
to
be
free
from
defects
in
material
and
workmanship
except
the
company
makes
no
warranty
express
or
implied
with
respect
to
tires,
engines
and
engine
accesso¬
ries
which
generally
are
warranted
by
their
respective
manufacturers.
Any
part
covered
by
this
war¬
ranty
which
is
proven
defective
within
one
year,
under
normal
use,
from
date
of
purchase,
will
be
re¬
placed
free
of
charge,
f.
o.
b.
Port
Washington,
Wisconsin,
provided
such
part
is
returned
to
factory
transportation
charges
prepaid
and
is
found
to
be
defective
upon
examination
at
the
factory.
The
com¬
pany
is
not
obligated
under
this
warranty
to
bear
cost
of
labor
or
delivery
charges
in
replacement
of
defective
parts.
This
warranty
does
not
apply
to
any
Simplicity
Products
altered
outside
of
Simplicity's
factory.
Such
replacement
of
defective
parts
shall
be
the
exclusive
remedy
and
in
no
event
shall
Sim-
plicity
be
liable
for
consequential
damages.
EXCEPT
AS
SPECIFICALLY
PROVIDED
HEREIN
THERE
ARE
NO
WARRANTIES
WHICH
EXTEND
BEYOND
THE
DESCRIPTION
ON
ANY
SIMPLICITY
PRODUCT.
Should
warranty
service
be
necessary,
the
information
below
should
be
presented
to
the
author¬
ized
SIMPLICITY
Dealer,
Customer's
Name
Address_
Mfg-
No.
____Serial
No.
Date
Purchased_
Purchased
From__
Address
Engine
Model
No.
Serial
No.
Type
No.
To
obtain
replacement
parts
from
dealer,
advise
quantity,
part
number
and
description.
TOW
SAFETY
1.
ALWAYS
STOP
ENGINE
BEFORE
LEAVING
MACHINE
2.
ALWAYS
STOP
ENGINE
BEFORE
SERVICING
OR
ADJUSTING
MACHINE
OR
EQUIPMENT
3.
ALWAYS
KEEP
HANDS,
FEET
AND
CLOTHING
AWAY
FROM
POWER-DRIVEN
PARTS
t
J
OIL
TRANSMISSION
CLUTCH
HANDLE
FIGURE
1
>
To
assemble
the
Sno-Away,
the
following
steps
should
be
followed:
1.
Fasten
the
Handle
Assembly
to
the
Frame
Assem,
as
shown
in
Fig.
1,
using
the
(3)
5/16"
x
7/8
cap-screws
&
5/16"
lockwashers
&
the
5/16"
x
1-1/2
cap¬
screw
&
5/16
lockwasher.
Pull
up
on
handles
and
tighten
screws
while
holding
in
this
position.
2.
The
Throttle
Cable
Assembly
is
coiled
around
the
engine
for
shipping
purposes.
Uncoil
the
cable
and
attach
to
the
Control
Housing
Assembly.
Install
the
Cable
Clamp
on
the
Left
Hand
Handle
approximately
5"
above
the
frame.
See
Fig.
2.
3.
A
ssemble
the
Shift
Rod
Assembly
to
the
Shift
Yoke
on
the
transmission
using
the
1/4"
x
1"
hardened
cap¬
screw
and
locknut.
Tighten
until
there
is
no
side
play
but
so
rod
is
free
to
pivot.
See
Fig.
3.
4.
A
ttach
the
Clutch
Rod
Assembly
to
the
Clutch
Auger
Rod
Assembly
using
the
1/4"
x
1"
hardened
capscrew
and
the
1/4"
locknut.
Tighten
until
there
is
no
side-
play
but
so
rod
is
free
to
pivot.
See
Fig.
3.
5.
R
emove
the
back
cover
(AR,
page
8)
by
removing
the
(3)
self
tapping
screws.
Insert
the
wire
extension
through
the
spring
on
the
Pivot
Assembly.
See
Fig.
4.
Install
wire
extension
through
upper
left
corner
of
back
cover.
Replace
back
cover.
3
6.
Install
both
the
spring
extension
and
the
wire
ex¬
tension
through
the
wire
clamp
and
fasten
with
the
10-24
x
3/8"
round
head
screw.
Remove
slack
from
both
wires
and
tighten.
7,
Attach
the
Spout
Control
Cable
as
shown
on
Pge.12
Insert
the
lower
end
of
the
Spout
Control
Rod
in
the
nylon
bearing
on
the
blower
housing
and
hold
in
place
with
two
cotter
pins.
Tighten
clamp
as
necessary
to
hold
spout
in
desired
position.
BLOWER
CLUTCH
ROD
CLUTCH
ROD
ASSY.
I
CAPSCREW
Uj
/
LOCK
WASHER
YX/HEX.
NUT
CAPSCREW
LOCK
NUT
CLUTCH
AUGER
ROD
ASSY.
SHIFT
ROD
^s\
TV
^
X
SHIFT
YOKE
kC
FIGURE
3
SPOUT
CONTROL
ROD
SUPPORT
BRACKET
TRANSMISSION
CLUTCH
LEVER
SPRING
EXTENSION
'
WIRE
CLAMP
WIRE
EXTENSION
:
T!
/
AUGER/BLOWER
CONTROL
LEVER
GREASE
FITTING
FIGURE
4
1.
Before
attempting
to
start
the
engine
or
to
oper¬
ate
the
Sno-Away,
refer
to
the
engine
manufacturers
Owners
Manual
for
the
proper
fuel
and
oil.
2.
Be
sure
petcock
under
gas
tank
is
open.
Follow
engine
instructions
to
prepare
engine
for
operation.
3.
Disengage
auger.
Place
shift
lever
in
neutral.
4.
Move
throttle
control
lever
to
1/2
throttle.
5.
Put
choke
lever
in
“Choke”
position.
6.
Pull
re-coil
starter
rope
to
start
engine.
1.
Engage
auger
control
lever.
2.
Shift
transmission
lever
to
Hi
or
Lo
as
desired.
3.
Squeeze
Touch-O-Matic
Control
Handle
to
start
machine
1
in
motion.
When
operating
in
heavy
snow
drifts,
machine
may
be
slowed
down
by
slipping
clutch
(Touch-O-Matic
Handle)
to
avoid
choking
out
engine.
4.
To
operate
the
Sno-Away
in
reverse,
release
the
Touch-O-Matic
Control
Handle
and
shift
into
reverse
gear,
then
squeeze
Touch-O-Matic
Control
Hnadlefor
reverse
motion.
5.
When
using
the
Sno-Away,
adjust
the
discharge
spout
so
that
the
snow
will
be
thrown
with
the
wind
and
never
into
the
wind.
Throwing
snow
into
the
wind
will
be
a
source
of
discomfort
to
the
operator.
To
alter
the
direction
of
discharge,
rotate
the
spout
by
means
of
the
Spout
Adjust
Handle.
The
distance
that
the
snow
may
be
thrown
may
be
adjusted
by
loosening
the
two
wing
nuts
on
the
Discharge
Spout
Extension
and
raising
or
lowering
the
extension
to
give
the
desired
angle.
After
adjusting,
push
the
extension
snugly
against
the
Spout
Assembly
to
prevent
snow
from
being
blown
backwards
against
the
engine
and
operator.
Slot¬
ted
holes
beneath
the
wing
nuts
will
allow
this
to
be
done.
Before
tightening
the
wing
nuts
to
hold
the
extension
in
the
desired
position.
6.
If
unit
creeps
after
releasing
the
Touch-O-Matic
Control
Handle,
Idler
Pulleymay
be
adjusted
to
remove
belt
tension,
further
adjustment
may
be
obtained
by
removing
washers
under
the
engine
base
to
lower
engine.
7.
If
one
of
the
wheels
slip
while
blowing
snow,
pressure
should
be
applied
to
the
handle
on
that
side.
In
extreme
slippery
conditions
tire
chains
are
recom¬
mended.!
-
8.
The
Auger
Control
should
be
released
immediately
if
an
object
becomes
lodged
or
hit
by
the
Auger.
9.
All
controls
are
positioned
at
the
handles
for
the
operators
safety.
10.
After
completion
of
plowing
operation,
allow
the
engine
to
operate
in
a
sheltered
area
for
about
5
min.
to
dry
itself
and
prevent
the
formation
of
ice.
When
possible,
store
the
Sno-Away
in
a
cold
area
so
that
clinging
snow
will
not
melt
and
refreeze
into
ice.
11.
T
he
following
points
should
be
followed
when
storing
unit
during
off
season.
1.
Run
engine
to
drain
Fuel
Tank,
(old
gas
leaves
deposits)
2.
Lubricate
bare
metal
to
prevent
rust.
3.
Change
engine
oil
-
recommend
use
type
10W-30W.

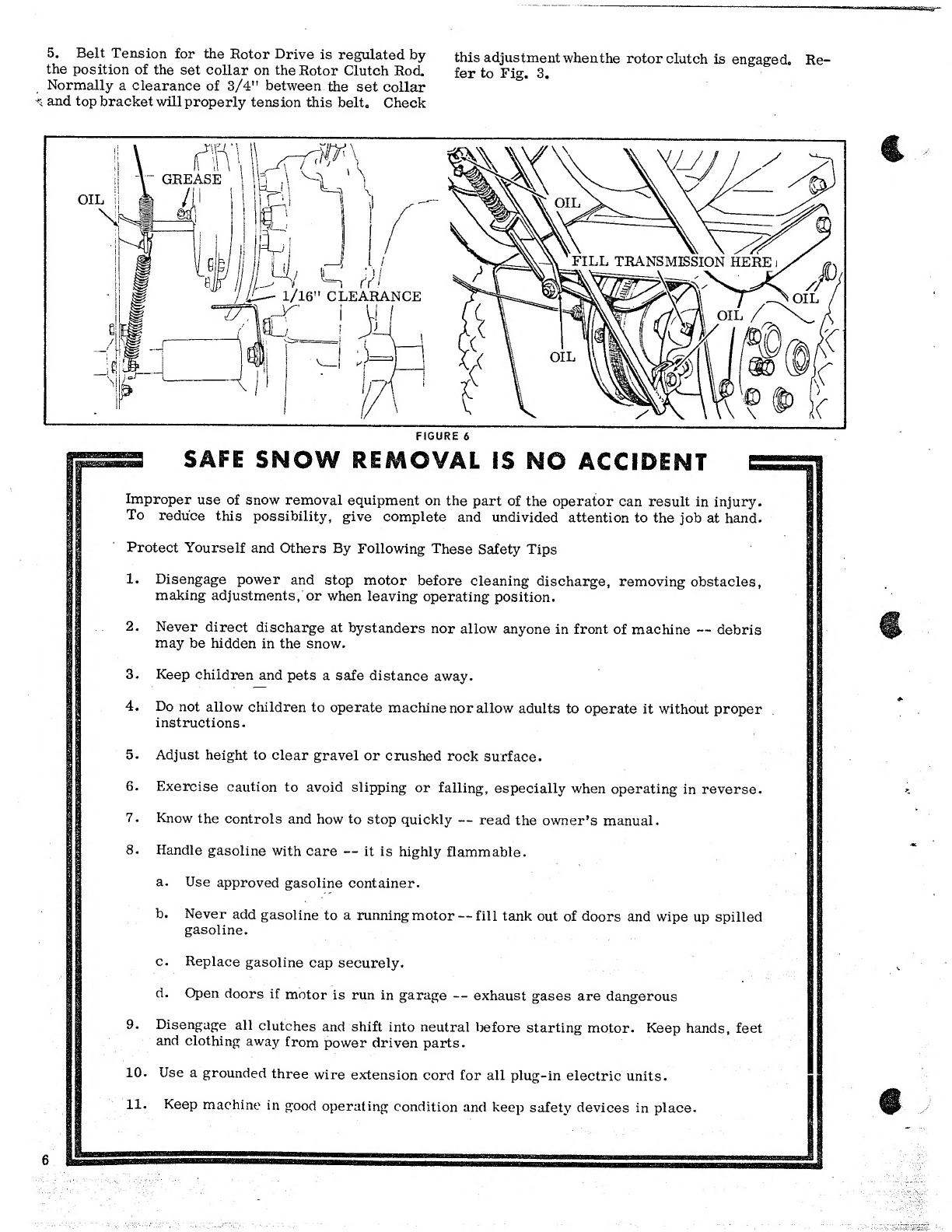

LUBRICATION
1.
There
is
one
grease
fitting
on
this
Sno-Away
(See
Fig.
6i).
Lubricate
with
a
general
purpose
auto¬
motive
type
grease
every
15
hours
of
operation.
Also
the
occasional
application
of
light
motor
oil
as
indicated
on
Figs.
1,
&
6j.
will
assist
in
operation
of
this
Sno-Away.
2.
Use
of
10W30
automotive
type
motor
oil
is
recommended
for
use
in
the
transmission
and
auger
worm
drive
in
this
Sno-Away.
3.
Oil
should
be
maintained
to
the
proper
level,
under
normal
condition
there
is
no
need
to
drain
and
refill
during
the
season.
4.
The
filler
plug
on
the
transmission
is
located
at
the
rear
of
the
unit
on
the
top
of
the
transmission.
The
transmission
should
be
filled
to
the
level
of
the
oil
level
plug
which
is
located
on
the
right
side
of
the
transmission.
(See
Fig.
6
)
The
drain
plug
is
locat¬
ed
at
the
bottom
of
the
transmission.
5.
The
Auger
Worm
Drive
Housing
oil
level
should
be
kept
level
with
the
pipe
plug
hole
located
in
the
front
of
the
housing.
TIRE
PRESSURE
Ten
(10)
lbs
of
tire
pressure
is
recommended.
ADJUSTMENTS
1.
Check
to
insure
that
the
engine
pulley
belt
guard
(AH,
page
8)
does
not
touch
the
belts
when
they
are
in
the
engaged
position.
2.
Check
to
insure
that
the
belt
guards
(M,
page
8)
on
the
idler
pulleys
do
not
touch
the
belts
when
in
the
engaged
position.
3.
Check
to
insure
that
the
belt
stop
(BG,
page
8)
in¬
stalled
on
the
side
of
the
transmission
assembly
has
a
clearance
of
1/16"
when
belt
is
engaged.
4.
The
left
and
right
hand
shoe
assemblies
should
be
adjusted
for
your
specific
needs
(Sno-Away
should
be
raised
when
using
on
gravel).
See
Fig.
1.
5
5.
B
elt
Tension
for
the
Rotor
Drive
is
regulated
by
this
adjustment
when
the
rotor
clutch
is
engaged.
Re
the
position
of
the
set
collar
on
the
Rotor
Clutch
Rod.
fer
to
Fig.
3.
Normally
a
clearance
of
3/4"
between
the
set
collar
and
top
bracket
will
properly
tension
this
belt.
Check
FIGURE
6
SAFE
SNOW
REMOVAL
IS
NO
ACCIDENT
Improper
use
of
snow
removal
equipment
on
the
part
of
the
operator
can
result
in
injury.
To
reduce
this
possibility,
give
complete
and
undivided
attention
to
the
job
at
hand.
Protect
Yourself
and
Others
By
Following
These
Safety
Tips
1.
Disengage
power
and
stop
motor
before
cleaning
discharge,
removing
obstacles,
making
adjustments,
or
when
leaving
operating
position.
2.
Never
direct
discharge
at
bystanders
nor
allow
anyone
in
front
of
machine
—
debris
may
be
hidden
in
the
snow.
3.
Keep
children
and
pets
a
safe
distance
away.
4.
Do
not
allow
children
to
operate
machine
nor
allow
adults
to
operate
it
without
proper
instructions.
5.
Adjust
height
to
clear
gravel
or
crushed
rock
surface.
6.
Exercise
caution
to
avoid
slipping
or
falling,
especially
when
operating
in
reverse.
7.
Know
the
controls
and
how
to
stop
quickly
—
read
the
owner’s
manual.
8.
Handle
gasoline
with
care
—
it
is
highly
flammable.
a.
Use
approved
gasoline
container.
b.
Never
add
gasoline
to
a
running
motor
—
fill
tank
out
of
doors
and
wipe
up
spilled
gasoline.
c.
Replace
gasoline
cap
securely.
d.
Open
doors
if
motor
is
run
in
garage
—
exhaust
gases
are
dangerous
9.
Disengage
all
clutches
and
shift
into
neutral
before
starting
motor.
Keep
hands,
feet
and
clothing
away
from
power
driven
parts.
10.
Use
a
grounded
three
wire
extension
cord
for
all
plug-in
electric
units.
11.
Keep
machine
in
good
operating
condition
and
keep
safety
devices
in
place.
6
Ref.
Let.
Part
No.
Description
A
161138
R.
H.
Handle
Bar
B
161139
L.
H.
Handle
Bar
C
106558
Grip
D
715073
Hex,
Cap
Screw,
5/16"-16
x
7/8’
E
720001
Lock
Washer,
5/l6"
F
161049
Control
Housing
Assembly-
G
161084
Handle
Cover
H
705025
Hex.
Cap
Screw,
l/4”-20x
1-1/2’
J
720003
Lock
Washer,
1/4”
K
717005
Full
Hex.
Nut,
l/4”-20
L
161085
Clutch
Auger
Handle
M
122005
Knob
Ball
N
159134
Nylon
Washer
P
.719006
Plain
Washer,
1/4”
Q
8061108
Cable
Clip.
705001
161035
161105
Hex.
Cap
Screw,
5/16”-18x
7/8”
Shift
Rod
Assembly
Handle
Grip
u
705002
Hex.
Cap
Screw,
l/4”-20xl/2”
V
720003
Lock
Washer,
1/4”
w
717005
Full
Hex.
Nut,
1/4”-20
Ref.
Let.
Part
No.
Description
X
161089
Throttle
Control
Assembly
Y
106524
Throttle
Support
Z
161052
Clutch
Rod
AA
722001
Cotter
Pin,
3/32”
Dia.
x
3/4’
AB
161041
Guide
Assembly
AC
8191045
Spring
AD
8191022
Set
Collar
AE
713001
Set
Screw,
1/4”
-
20
x
3/8”
AF
714003
Self
Tapping
Screw,
#10x1/2”
AG
718019
Speed
Nut
AH
714005
Self
Tapping
Screw,
#10-24x1/2”
AJ
118056
Clutch
Grip
AK
161090
Extension,
Spring
AL
161091
Extension
Wire
AM
161092
Wire
Clamp
AN
710006
Hd.
Rnd.
Screw,
#10-24x
3/8”
AP
161093
Spring
•
AQ
715078
Hex
Cap
Screw
5/16”-18x
1-1/2”
AR
717513
Full
Lock
Hex.
Nut,
l/4”-20
AS
717525
Nut
Stop,
5/16”-18
w/Nylon
Insert
AT
715051
Hex.
Cap
Screw
_
8

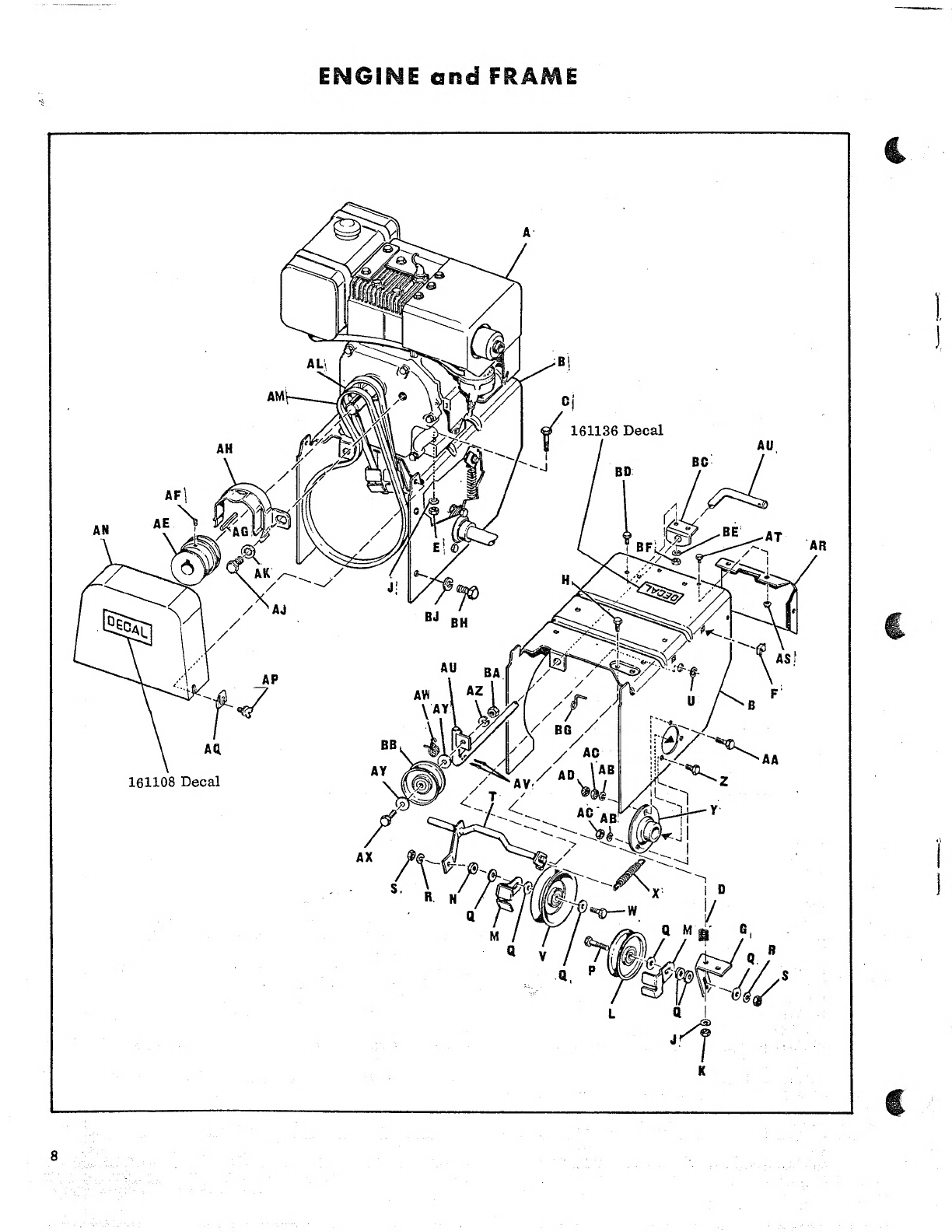

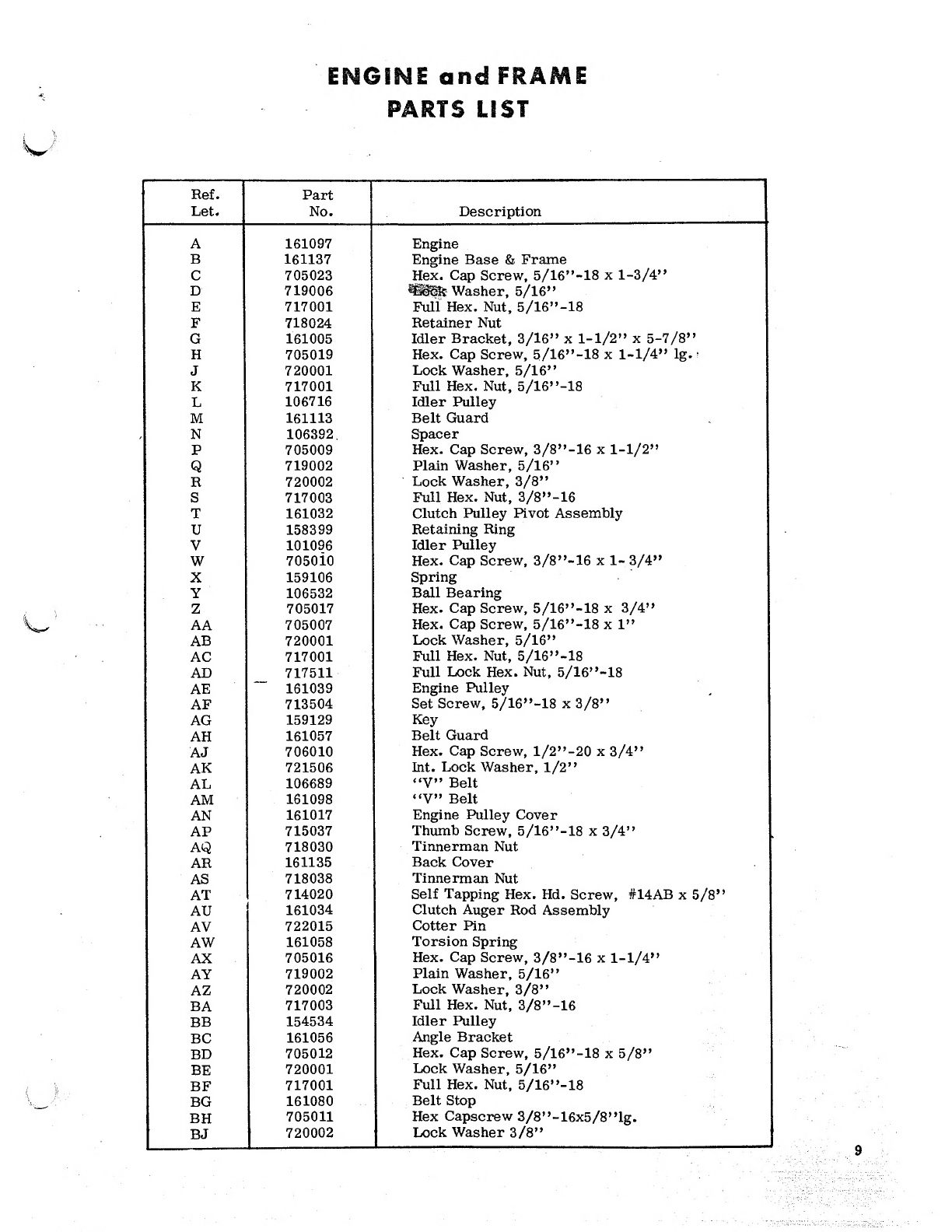

ENGINE
and
FRAME
PARTS
LIST
Ref.
Let.
Part
No.
Description
A
161097
Engine
B
161137
Engine
Base
&
Frame
C
705023
Hex.
Cap
Screw,
5/16”-18
x
1-3/4”
D
719006
Washer,
5/16”
E
717001
Full
Hex.
Nut,
5/16”-18
F
718024
Retainer
Nut
G
161005
Idler
Bracket,
3/16”
x
1-1/2”
x
5-7/8”
H
705019
Hex.
Cap
Screw,
5/16”-18
x
1-1/4”
lg.
•
J
720001
Lock
Washer,
5/16”
K
717001
Full
Hex.
Nut,
5/16”-18
L
106716
Idler
Pulley
M
161113
Belt
Guard
N
106392
Spacer
P
705009
Hex.
Cap
Screw,
3/8”-16
x
1-1/2”
Q
719002
Plain
Washer,
5/16”
R
720002
Lock
Washer,
3/8”
S
717003
Full
Hex.
Nut,
3/8”-16
T
161032
Clutch
Pulley
Pivot
Assembly
U
158399
Retaining
Ring
V
101096
Idler
Pulley
w
705010
Hex.
Cap
Screw,
3/8”-16
x
1-
3/4”
X
159106
Spring
Y
106532
Ball
Bearing
Z
705017
Hex.
Cap
Screw,
5/16”-18
x
3/4”
AA
705007
Hex.
Cap
Screw,
5/16”-18
x
1”
AB
720001
Lock
Washer,
5/16”
AC
717001
Full
Hex.
Nut,
5/16”-18
AD
717511
Full
Lock
Hex.
Nut,
5/16”-18
AE
161039
Engine
Pulley
AF
713504
Set
Screw,
5/16”-18
x
3/8”
AG
159129
Key
AH
161057
Beit
Guard
AJ
706010
Hex.
Cap
Screw,
l/2”-20
x
3/4”
AK
721506
Int.
Lock
Washer,
1/2”
AL
106689
“V”
Belt
AM
161098
“V”
Belt
AN
161017
Engine
Pulley
Cover
AP
715037
Thumb
Screw,
5/16”-18
x
3/4”
AQ
718030
Tinnerman
Nut
AR
161135
Back
Cover
AS
718038
Tinnerman
Nut
AT
714020
Self
Tapping
Hex.
Hd.
Screw,
#14AB
x
5/8”
AU
161034
Clutch
Auger
Rod
Assembly
AV
722015
Cotter
Pin
AW
161058
Torsion
Spring
AX
705016
Hex.
Cap
Screw,
3/8”-16
x
1-1/4”
AY
719002
Plain
Washer,
5/16”
AZ
720002
Lock
Washer,
3/8”
BA
717003
Full
Hex.
Nut,
3/8”-16
BB
154534
Idler
Pulley
BC
161056
Angle
Bracket
BD
705012
Hex.
Cap
Screw,
5/16”-18
x
5/8”
BE
720001
Lock
Washer,
5/16”
BF
717001
Full
Hex.
Nut,
5/16”-18
BG
161080
Belt
Stop
BH
705011
Hex
Capscrew
3/8”-16x5/8”lg.
BJ
720002
Lock
Washer
3/8”
TRANSMISSION
PARTS
LIST
Ref.
Let.'
Part
No.
Description
A
156017
...
Sub
Gear
Case
B
723007
Roll
Pin,
3/8”
dia.
x
1”
C
156072
Roller
Bearing
D
156073
Roller
Bearing
E
101042
Half
Ball
Bushing
F
156308
Sub
Roll
Pin
Assembly
G
156031
Shift
Rod
Assembly
H
726007
Pipe
Plug,
3/8”
J
726251
Pipe
Plug
K
156077
Rev.
Shift
Shaft
L
8061048
Retaining
Ring
M
156078
Hi-Lo
Shift
Shaft
N
717022
Full
Hex.
Nut,
7/16”-14
P
156079
Rev.
Shift
Fork
Q
156080
I
&
II
Shift
Fork
R
154262
Shift
Lock
Ball
S
154323
Spring
T
156081
Rev.
Pinion
Shaft
U
156020
Reverse
Pinion
V
156082
Roller
Bearing
w
156083
Pulley
Shaft
X
156084
Oil
Seal
Y
156085
Washer
z
8061048
Retaining
Ring
AA
156086
Key
AB
156087
Hi-Lo
Pinion
Assembly
AC
156089
Washer
AD
156090
Cluster
Gear
Assembly
AE
156292
Dowel
Pin
AF
156094
Drive
Gear
Assembly
AG
121311
Differential
Pinion
AH
121084
Differential
Spacer
AJ
121083
Differential
Pinion
AK
156002
Differential
Plate
AL
705003
Hex.
Cap
Screw,
3/8”-16x2-l/4”
AM
717510
Full
Lock
Hex.
Nut,
3/8”-16
AN
156096
Axle
Housing
Assembly
AP
118118
Oil
Seal
AQ
105195
Roller
Bearing
AR
156099
Oil
Seal
AS
705031
Hex.
Cap
Screw,
3/8”-16x7/8”
AT:-
162085
Spring
AU
105083
Washer
AV
161002
R.
H.
Axle
Shaft
Assembly
AW
161036
Gear
Case
Cover
(w/Brg.
AX,
AY
&
A2
AX
156102
Roller
Bearing
AY
705014
Hex.
Cap
Screw,
3/8"-16
x
2-1/2"
AZ
105195
Roller
Bearing
BA
156103
Case
Gasket
BB
705019
Hex.
CapScrew,
5/16”-18x
1-1/4”
BC
720001
Lock
Washer,
5/16”
BD
105083
Washer
BE
161024
L.
H.
Axle
Shaft
Assembly
BF
161096
Special
Bolt
BG
717013
Jam
Hex.
Nut,
3/8”-16
BH
719001
Plain
Washer
BJ
726002
Pipe
Plug,
l/4”-18
BK
161072
Cluster
Shaft
BL
161130
Special
Screw
BM
705011
Hex.
Cap
Screw
BN
720002
Lock
Washer
BP
713507
Set
Screw
SPOUT
and
CONTROLS
Ref.
Let.
Part
No.
Description
Ref.
Let.
Part
No.
Description
A
161099
Spout
Assembly
Q
161134
Tube
Assembly.
Spout
Control
B
703005
Carriage
Bolt,
5/8-16
x
3/4”
R
106512
Decal
C
106489
Spout
Extension
S
715067
Screw,
Self-tapping,
1/4-20
x
3/8'
D
719001
Plain
Washer,
3/8”
T
722009
Cotter
Pin,
1/8”
x
3/4”
lg.
E
721601
Lock
Washer,
3/8
’•>
Shakeproof
U
106221
Rod
Guide
F
106229
Wing
Nut
V
121175
Guide
Liner
G
106785
Washer,
Cup;
w
705019
Hex
Capscrew,
5/16”-18
x
1-1/4’
H
720001
Lock
Washer,
5/16”
X
717511
Hex
Lock
Nut,
Full,
5/16”-18
j
J
717001
Hex
Nut,
Full,
5/16”-18
Y
161101
Spout
Adjusting
Rod
Support
I
K
161133
Cable
Assy.
Z
705053
Hex
Capscrew,
1/4-20
x
1-3/4”
lg
L
106551
Bearing
AA
720003
Lock
Washer,
1/4”
M
705015
Hex
Capscrew,
l/4”-20
x
5/8”
lg.
i
AB
717005
Hex
Nut,
Full,
l/4”-20
N
P
720003
717005
Lock
Washer,
1/4”
Hex
Nut,
Full,
l/4”-20
1
AC
106516
Handle
Cover

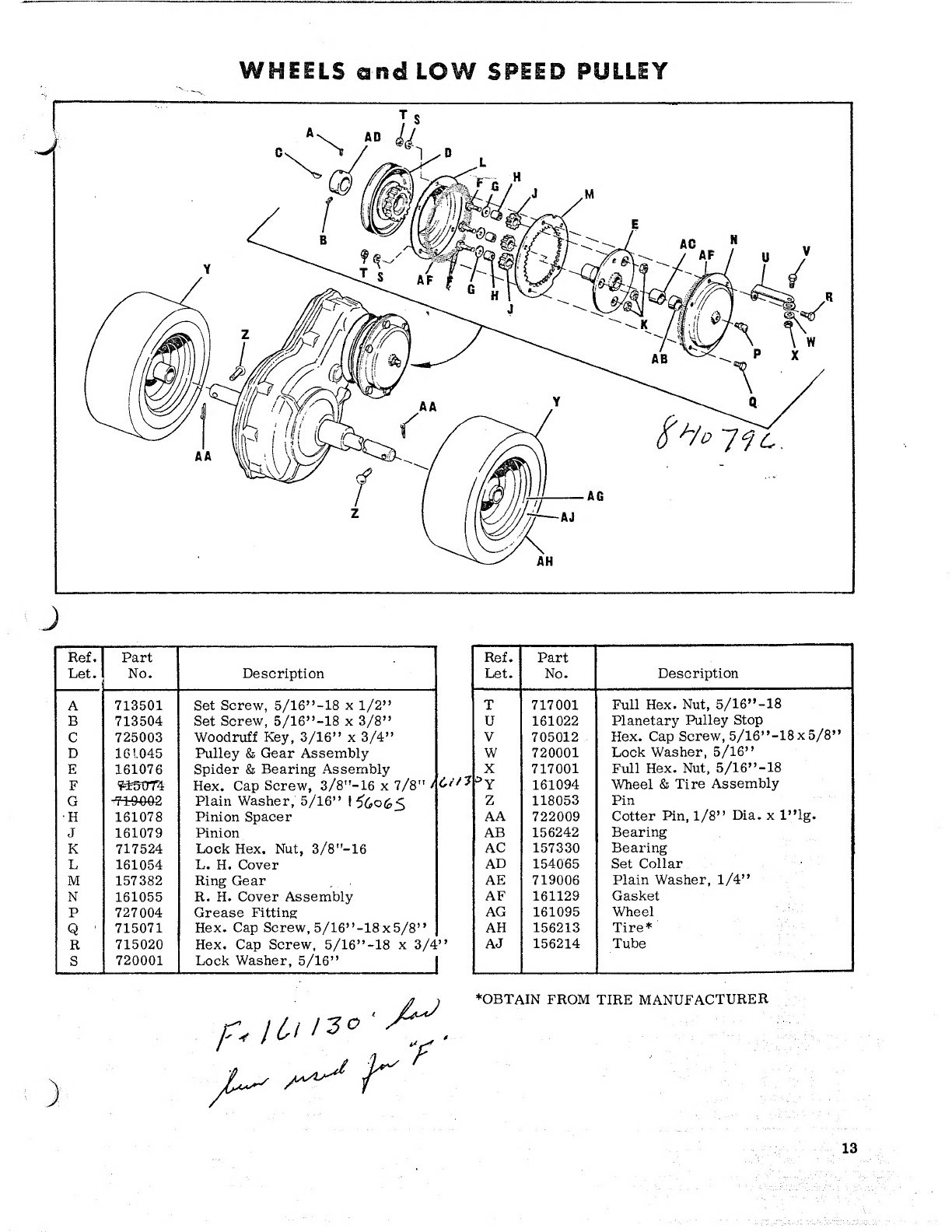

WHEELS
and
LOW
SPEED
PULLEY
Description
713501
Set
Screw,
5/16”-18
x
1/2”
713504
Set
Screw,
5/16”-18
x
3/8”
725003
Woodruff
Key,
3/16”
x
3/4”
161045
Pulley
&
Gear
Assembly
161076
Spider
&
Bearing
Assembly
?4f7tr74
Hex.
Cap
Screw,
3/8"-16
x
7/8"
-71-9W2
Plain
Washer,
5/16”
I
5c,o&S
161078
Pinion
Spacer
161079
Pinion
717524
Lock
Hex.
Nut,
3/8"-16
161054
L.
H.
Cover
157382
Ring
Gear
161055
R.
H.
Cover
Assembly
727004
Grease
Fitting
715071
Hex.
Cap
Screw,
5/16”-18
x
5/8”
715020
Hex.
Cap
Screw,
5/16”-18
x
3/4
720001
Lock
Washer,
5/16”
Part
No.
Description
717001
Full
Hex.
Nut,
5/16”-18
161022
Planetary
Pulley
Stop
705012
Hex.
Cap
Screw,
5/16”-18x5/8”
720001
Lock
Washer,
5/16”
717001
Full
Hex.
Nut,
5/16”-18
161094
Wheel
&
Tire
Assembly
118053
Pin
722009
Cotter
Pin,
1/8”
Dia.
x
l”lg.
156242
Bearing
157330
Bearing
154065
Set
Collar
719006
Plain
Washer,
1/4”
161129
Gasket
161095
Wheel
156213
Tire*
156214
Tube
♦
OBTAIN
FROM
TIRE
MANUFACTURER

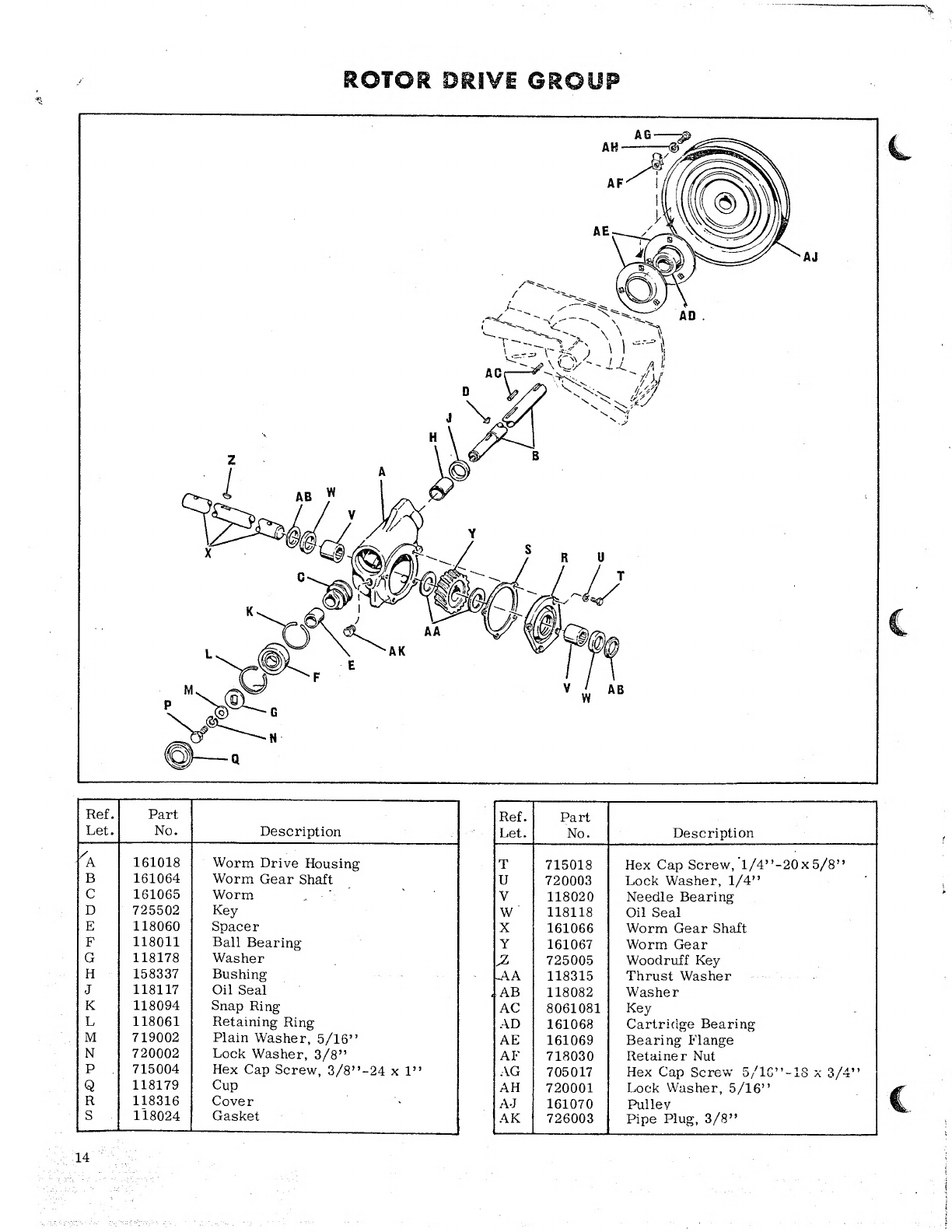

Ref.
Let.
Part
No.
Description
161018
Worm
Drive
Housing
B
161064
Worm
Gear
Shaft
C
161065
Worm
,
D
725502
Key
E
118060
Spacer
F
118011
Ball
Bearing
G
118178
Washer
H
158337
Bushing
J
118117
Oil
Seal
K
118094
Snap
Ring
L
118061
Retaining
Ring
M
719002
Plain
Washer,
5/16”
N
720002
Lock
Washer,
3/8”
P
715004
Hex
Cap
Screw,
3/8”-24
x
1”
Q
118179
Cup
R
118316
Cover
S
118024
Gasket
Ref.
Let.
Part
No.
Description
T
715018
Hex
Cap
Screw,
l/4”-20x5/8”
u
720003
Lock
Washer,
1/4”
V
*
118020
Needle
Bearing
w
118118
Oil
Seal
x
161066
Worm
Gear
Shaft
Y
161067
Worm
Gear
725005
Woodruff
Key
-A
A
118315
Thrust
Washer
AB
118082
Washer
AC
8061081
Key
AD
161068
Cartridge
Bearing
AE
161069
Bearing
Flange
AF
718030
Retainer
Nut
AG
705017
Hex
Cap
Screw
5/lC”-18
x
3/4”
AH
720001
Lock
Washer,
5/16”
AJ
161070
Pullev
AK
726003
Pipe
Plug,
3/8”
Ref.
Let.
Part
No.
Description
A
161001
Body
Assembly
B
161116
Hold
Down
Clip
C
720001
Lock
Washer,
5/16”
D
717001
Full
Hex
Nut,
5/16”-18
E
161059
Scraper
Blade
F
715018
.
Hex
Cap
Screw,
l/4”-20x5/8”
G
720003
Lock
Washer,
1/4”
H
717005
Full
Hex
Nut,
l/4”-20
J
161042
Cutter,
Drift.
3/16”
x
1-1/2
x
18-3/8
K
705004
Hex
Cap
Screw,
3/8”-16x3/4”
L
720002
Lock
Washer,
3/8”
M
717003
Full
Hex
Nut,
3/8”-16
N
161006
Skid
Ref.
Let.
Part
No.
Description
P
703004
Carriage
Bolt,
3/8”-16
x
3/4”
Q
719001
Plain
Washer,
3/8”
R
720002
Lock
Washer,
3/8”
S
717003
Full
Hex
Nut,
3/8”-16
T
106532
Ball
Bearing
U
705017
Hex
Cap
Screw,
5/16”-18x
3/4”
V
161060
Shaft
Auger
W
161020
R.H.
Auger
Assembly
X
161019
L.
H.
Auger
Assembly
Y
118053
Pin
z
722006
Cotter
Pin,
1/8”
Dia.xl”lg.
AA
161011
Impellar
Assembly
AB
713002
Set
Screw,
5/16”-18
x3/8”
Other manuals for Snow-Away 430
1
Table of contents
Other Simplicity Snow Blower manuals
Simplicity
Simplicity 561 User manual
Simplicity
Simplicity 520 Series User manual
Simplicity
Simplicity 1080S User manual
Simplicity
Simplicity 7555EX User manual
Simplicity
Simplicity 3190E Operation and maintenance manual
Simplicity
Simplicity 1694404 User manual
Simplicity
Simplicity 1693984 User manual
Simplicity
Simplicity Sno-Away 13781 & Up User manual
Simplicity
Simplicity 1695515 User manual
Simplicity
Simplicity 7800084 User manual
Simplicity
Simplicity I75246E Guide
Simplicity
Simplicity 1692243 User manual
Simplicity
Simplicity TP 100 User manual
Simplicity
Simplicity Snow-Away 372 User manual
Simplicity
Simplicity 990558 User manual
Simplicity
Simplicity 563 User manual
Simplicity
Simplicity 477 User manual
Simplicity
Simplicity 709 User manual
Simplicity
Simplicity 869 User manual
Simplicity
Simplicity Signature Series User manual
