Simplicity 514RT User manual

Parts Manual
Rev. 8/2001
TP 400-2407-00-RT-S
55HHPPRREEAARRTTIINNEETTIILLLLEERR
AANNDD
AATTTTAACCHHMMEENNTT
551144RRTT
MMffgg..NNoo..DDeessccrriippttiioonn
1693705 514RT, 5HP Rear Tine Tiller
AATTTTAACCHHMMEENNTT
MMffgg..NNoo..DDeessccrriippttiioonn
1692878 Hiller/Furrower

© Copyright 2001 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed In USA.
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA

1
TP-400-2407-00-RT-S
Table of Contents
REAR TINE TILLERS
Handle Bar Group......................................................2
Hood, Drag Stake & Tine Group................................4
Engine Mounting, Belts & Wheels Group..................6
Shifting Mechanism Group .......................................8
Transmission Group................................................10
Wheel & Tiller Shaft Group .....................................12
Decal Group ............................................................14
ATTACHMENT:
Hiller/Furrower Attachment.....................................16
REFERENCE INFORMATION:

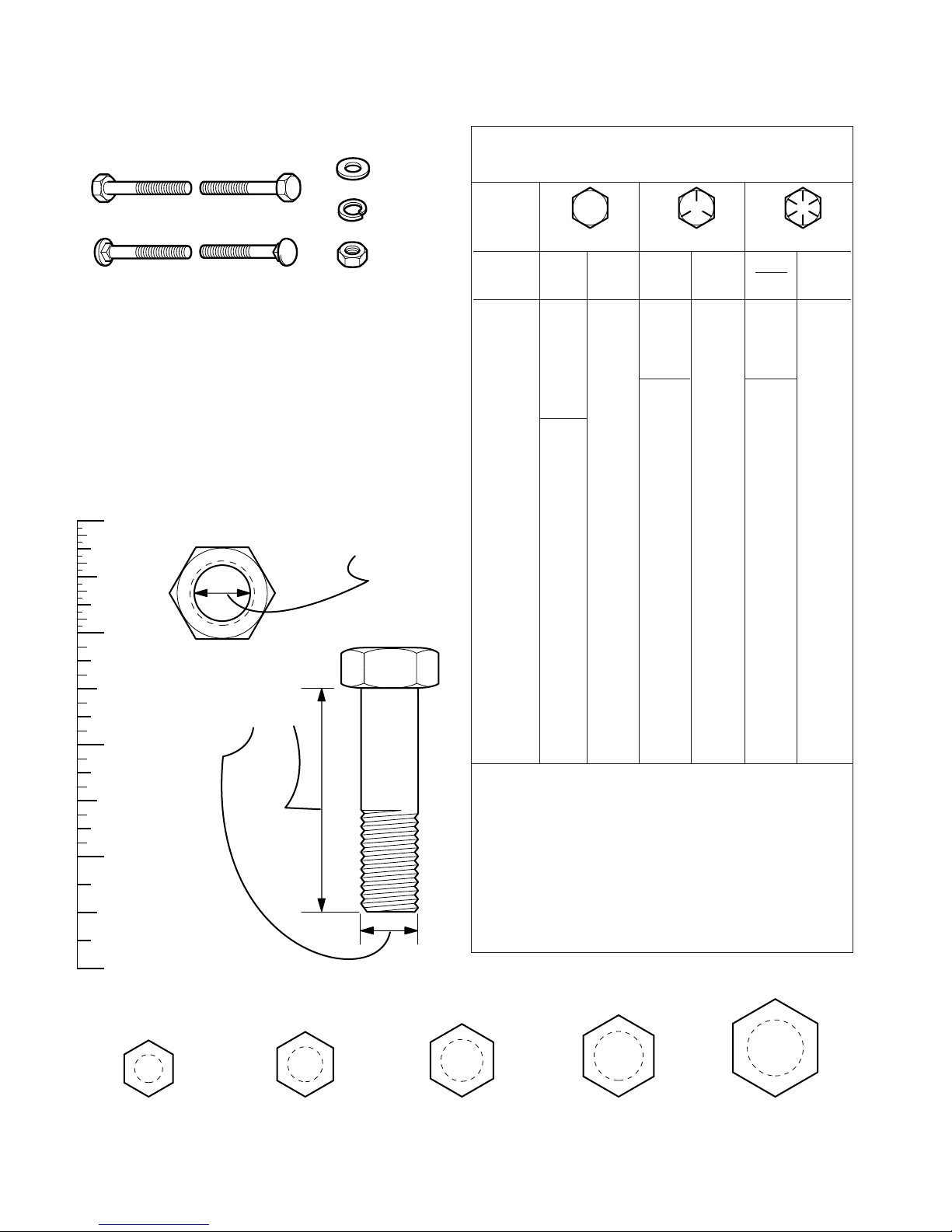

Torque Specification Chart..............Inside Back Cover
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

2
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

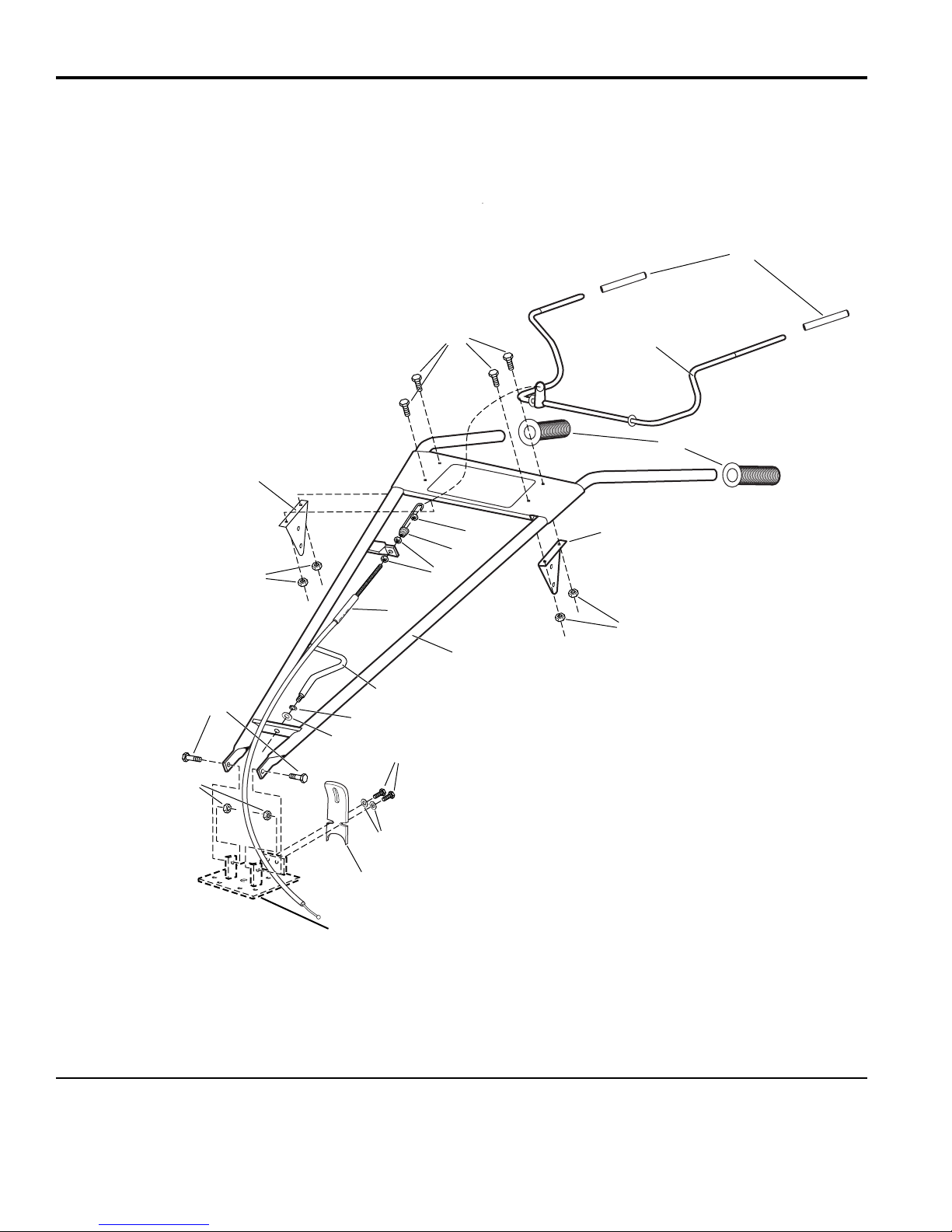

Handle Bar Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985764
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
See Transmission Group
1
7
5
9
2
8
4
6
3
10
20
20
11
17
15
19
12
14
16
13
19
6
66
2
111
4
10
15
18
16

3
TP-400-2407-00-RT-S
Handle Bar Group
1 1716731 4 CAPSCREW, Hex Head, 5MM X .8MM X 10MM
2 1716699 2 HANDLE GRIP, Drive Control Lever
3 1721520 1 LEVER, Drive Control
4 1719038 2 HANDLE GRIP
5 1716723 1 BRACKET, Drive Control Lever LH
6 1716732 4 NUT, Hex Nylok
7 1721518 1 HANDLE BAR ASSEMBLY, w/Tab
8 1933896 1 NUT, Hex Nylok
9 1716720 1 SPRING, Forward Cable Adjustment
10 920438 2 NUT, Hex Jam, 5/16”, 24NF, 2B
11 1719037 1 CABLE ASSEMBLY
12 1721517 1 CLAMP
13 1916965 1 LOCKWASHER, Spring 3/8”
14 1924940 1 WASHER, 3/8”
15 1716780 2 CAPSCREW, Hex Flange Head, 5/16”-18 x 3/4”
16 1960044 2 WASHER, 5/16”
17 1721519 1 PLATE, Height Adjust
18 1916950 2 NUT, Hex, 3/8”-16NC, 2B
19 1921210 2 CAPSCREW, 3/8”-16 x 1” G5
20 1716722 1 BRACKET, Drive Control Lever RH
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

4
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.
Hood, Drag Stake & Tine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985763
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
11
14
10
14
12
1
7
5
8
2
8
5
3
9
13
11
10
7
6
4
8

5
TP-400-2407-00-RT-S
Hood, Drag Stake & Tine Group
1 1721510 1 LEVER, Depth Regulator
2 1716743 1 KNOB, T handle, Drag Stake
3 1716742 1 PIN, Detent 5/16”-18 x 1”
4 1921958 2 CAPSCREW, 1/4”-20 x 1/2” G5
5 1721512 1 HOOD
6 1917356 2 LOCKWASHER, Spring 5/16”
7 1920787 2 CAPSCREW, 5/16”-18 x 1/2” G5
8 1921971 2 CAPSCREW, 3/8”-16 x 1 3/4” G5
9 1721513 1 TINE ASSEMBLY, LH
10 1916950 2 NUT, Hex, 3/8”-16NC, 2B
11 1935048 2 NUT, Hex Flange Head, 5/16”-18 Two, Way Lock
12 1721514 1 TINE ASSEMBLY, RH
13 1716701 2 CAPSCREW, Hex Flange Head, 5/16”-18 x 1/2”
14 1721511 1 BRACKET, Depth Regulator
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

6
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

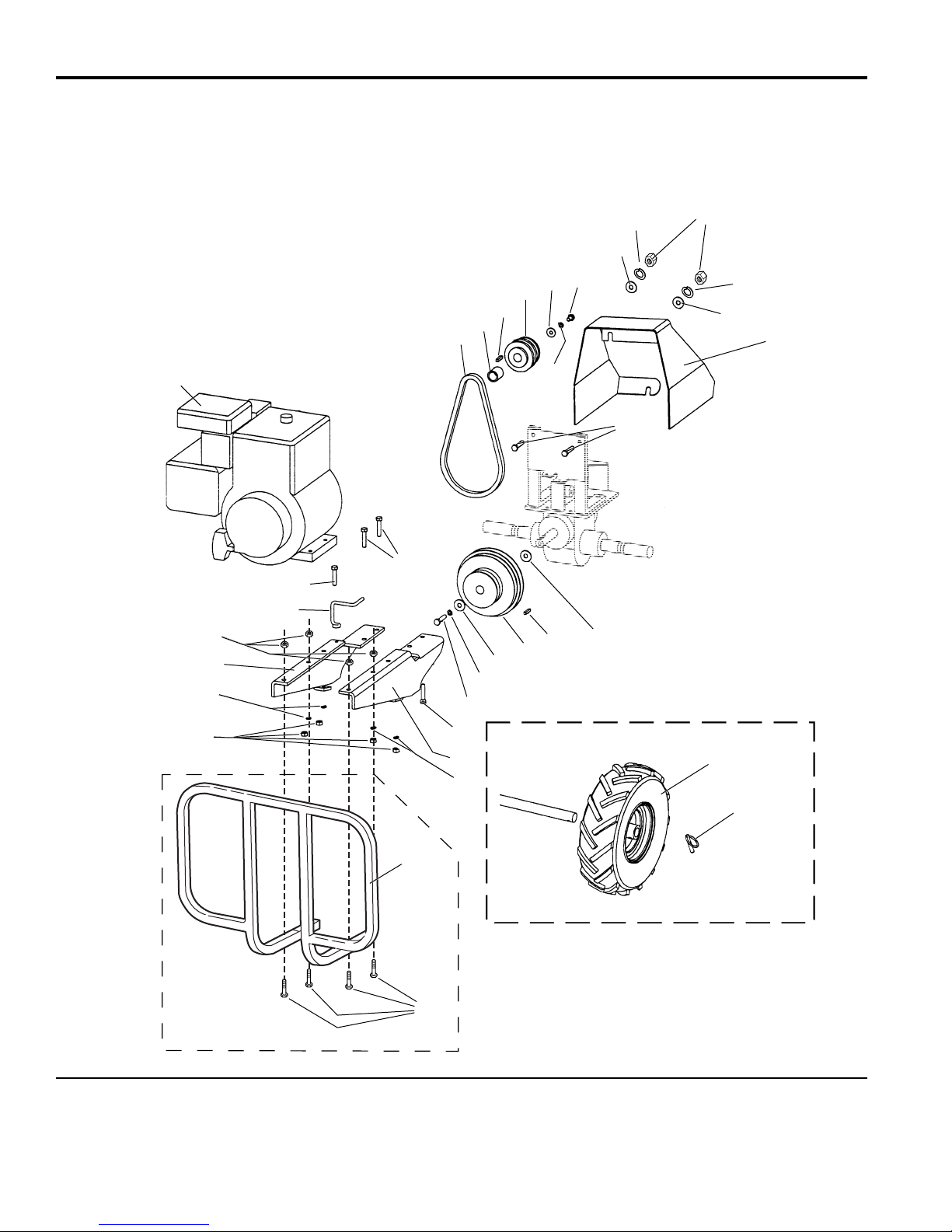

Engine Mount, Belts & Wheels Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985762
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
BRUSH BAR OPTION
3
4
7
8
6
9
10
11
2
12
13
14
16
17
18
2919
21
435
20
18
182
182
115
3
11
22 9
23 11
2
12
2
2
1
15
24
23
232325

7
TP-400-2407-00-RT-S
Engine Mount, Belts & Wheels Group
1 1917372 2 NUT, Hex, 5/16”-18NC, 2B
2 1917356 9 LOCKWASHER, Spring 5/16”
3 1960044 2 WASHER, 5/16”
4 1716784 1 COVER, Belt
5 1921978 2 CAPSCREW, 5/16”-18 x 2” G5
6 960164 1 WASHER, 5/8”
7 1721524 1 WHEEL & TIRE ASSEMBLY, Right
7 1721525 1 WHEEL & TIRE ASSEMBLY, Left
8 1716776 2 PIN, Lock
9 905850 2 KEY, Parrallel
10 1716768 1 PULLEY, Transmission
11 1716770 2 WASHER
12 1921515 2 CAPSCREW, 5/16”-24 x 3/4” G5
13 1960470 4 CAPSCREW, Hex Socket Head, 5/16”-18 x 11/4” G8
14 1716753 1 BRACKET, Engine Mount LH
15 1935048 8 NUT, Hex Flange Head, 5/16”-18 TWO, WAY Lock
16 1716752 1 BRACKET, Engine Mount RH
17 1716767 1 GUIDE, Belt Forward
18 1716756 1 CAPSCREW, 5/16”-24 x 1/2”
19 1922127 4 CAPSCREW, 5/16”-18 x 1 3/4” G5
20 * 1 ENGINE, 5.0HP Tecumseh - Engine Model 135392, Engine Type 1320-E1
21 1716765 1 V-BELT
22 1716762 1 SPACER, Engine Pulley
23 1716764 1 PULLEY, Engine, Forward
24** 1721528 1 BUMPER, Guard
25** 1922127 4 CAPSCREW, 5/16”-18 x 13/4” G5
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* See your local Tecumseh distributor for Parts & Service.
** The bumper guard is not standard with the 5HP tiller, but it is an option, just order the bumper guard (Ref# 24)
and 4 capscrews (Ref# 25).
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

8
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.
Shifting Mechanism Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985761
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
See Transmission Group
16 15
18 4
4
6
89101112
13
1
2
47
5
47
47
43
14
17
3
19

9
TP-400-2407-00-RT-S
Shifting Mechanism Group
1 1721531 1 CAPSCREW, 5MM x .8 x 16MM
2 1719063 2 C-CLAMP
3 1935048 6 NUT, Hex Flange Head, 5/16”-18 TWO, WAY Lock
4 1716807 1 BRACKET, Cable Mount
5 1716732 1 NUT, Hex Nylok
6 1721530 1 BRACKET, w/Forward Belt Guide
7 1921977 4 CAPSCREW, 5/16”-18 x 11/4”G5
8 1716702 1 PIN, Link Forward/Reverse
9 1716703 1 PIN, Cotter
10 1716804 1 ARM, Forward Idler
11 1924940 3 WASHER, 3/8”
12 1716803 1 PULLEY, Forward Idler
13 1916950 1 NUT, Hex Head, 3/8”-16
14 1716728 1 YOKE, Cable
15 1716704 1 BUSHING, Pivot 5/16”
16 1921978 1 CAPSCREW, 5/16”-18 x 2”G5
17 1721529 1 BOLT, Washer Head, 5/16”-18 x 1 1/4”
18 1716802 1 SPRING, Idler Arm
19 1716801 1 BAR, Shift Mounting
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

10
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

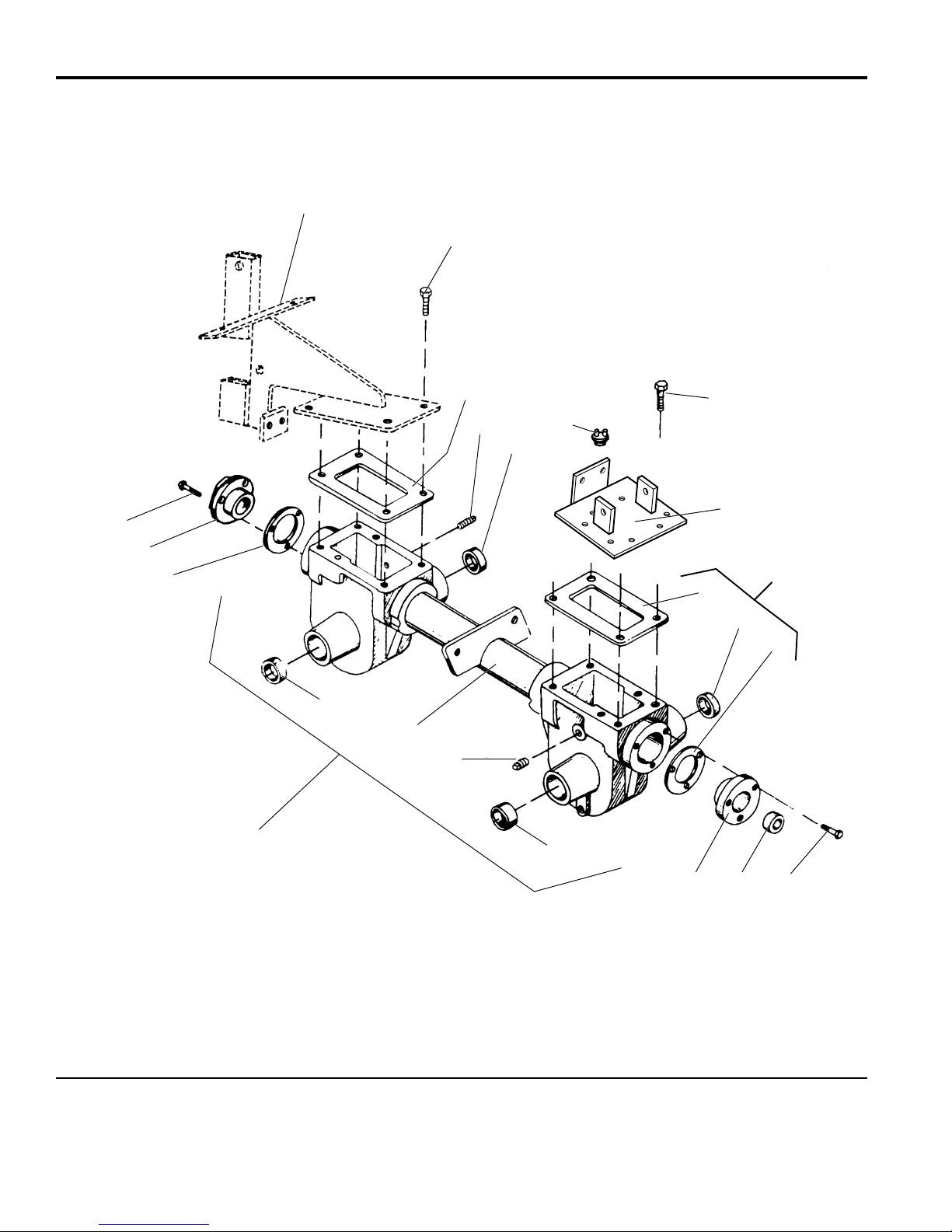

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985760
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
See Hood, Drag Stake & Bolo Tines Group
For Internal Components,
See Wheel and Tiller Shaft Group
Tine
Wheel
2
3
4
5
6
3
5
8
101112
5
4
5
8
13
14
2
1
7
9

11
TP-400-2407-00-RT-S
Transmission Group
1 1721505 1 TRANSMISSION ASSEMBLY
2 1716780 8 CAPSCREW, Hex Flange Head, 5/16”-18 x 3/4”
3 1716789 2 GASKET, Housing & Transmission Cover
4 1716790 2 PLUG, Pipe Socket Head 1/4”-18, Oil Check
5 1716791 4 SEAL, Housing
6 1716794 1 PLUG, Oil Fill
7 1721506 1 COVER, Transmission Wheel Housing
8 1716792 2 GASKET, Bearing Cap Front, Rear
9 1716799 1 GASKET KIT, Oil Seal (Includes Ref. Nos. 3, 5 and 8)
10 1716798 3 CAPSCREW, Hex Flange Head, 1/4”-20 x 3/4”
11 1716797 1 SEAL, Oil Drive Shaft
12 1716796 1 CAP, Front Bearing
13 1716793 1 CAP, Rear Bearing
14 1716795 3 CAPSCREW, Hex Flange Head, 1/4”-20 x 7/8”
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

12
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.
Wheel and Tiller Shaft Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985155
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
1
2
45
6
7
8
10
8
7
6
5
4
11
12
13
4
5
6
7
8
10
14
15
4
5
6
7
8
14
16
33
9
33

13
TP-400-2407-00-RT-S
Wheel and Tiller Shaft Group
1 1716793 1 CAP, Rear Bearing
2 1716825 1 SHIM SET, Rear Bearing Cap
2 1716826 1 SHIM, 0.062 Thickness x 1 3/4”(As Required)
2 1716827 1 SHIM, 0.030 Thickness x 1 3/4”(As Required)
2 1716828 1 SHIM, 0.015 Thickness x 1 3/4”(As Required)
2 1716829 1 SHIM, 0.010 Thickness x 1 3/4”(As Required)
3 1716810 2 BEARING, Tappered ( Cone & Race )
4 1716824 4 SPACER, 1”x 1 1/4”x 0.062 Thickness
5 1716816 4 BUSHING
6 1716815 4 SHIM SET, Axle Spacer
6 1716817 1 SHIM, 0.062 Thickness x 1 3/8”
6 1716818 1 SHIM, 0.030 Thickness x 1 3/8”
6 1716819 1 SHIM, 0.015 Thickness x 1 3/8”
6 1716820 1 SHIM, 0.010 Thickness x 1 3/8”
7 1716830 4 RING, Snap Internal Retainer
8 1716791 4 SEAL, Housing
9 1716809 1 SHAFT, Main Drive
10 1716821 2 RING, Snap External Retainer
11 1716797 1 SEAL, Oil Drive Shaft
12 1716814 1 GEAR, Worm Wheel Shaft
13 1716812 1 SHAFT ASSEMBLY, Wheel w/Lock Pin 5HP
14 1716813 2 KEY, Parrallel Pin
15 1716823 1 GEAR, Worm Shaft
16 1716822 1 SHAFT ASSEMBLY
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

14
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.
Decal Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985759
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller
1
2
6 3
3
22
4
4
5
5
6
1

15
TP-400-2407-00-RT-S
Decal Group
1 1722551 1 DECAL, Simplicity
2 1716733 1 DECAL, Console, Froward Instructions
3 1716747 1 DECAL, Hood, Operation Instructions
4 1716840 1 DECAL, Tine Hood
5 1721503 2 DECAL, Belt Cover
6 1716800 1 DECAL, Warning Belt Cover
7 1716839 1 DECAL, Brush Bar
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693705 514RT, Rear Tine Tiller

16
TP-400-2407-00-RT-S
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

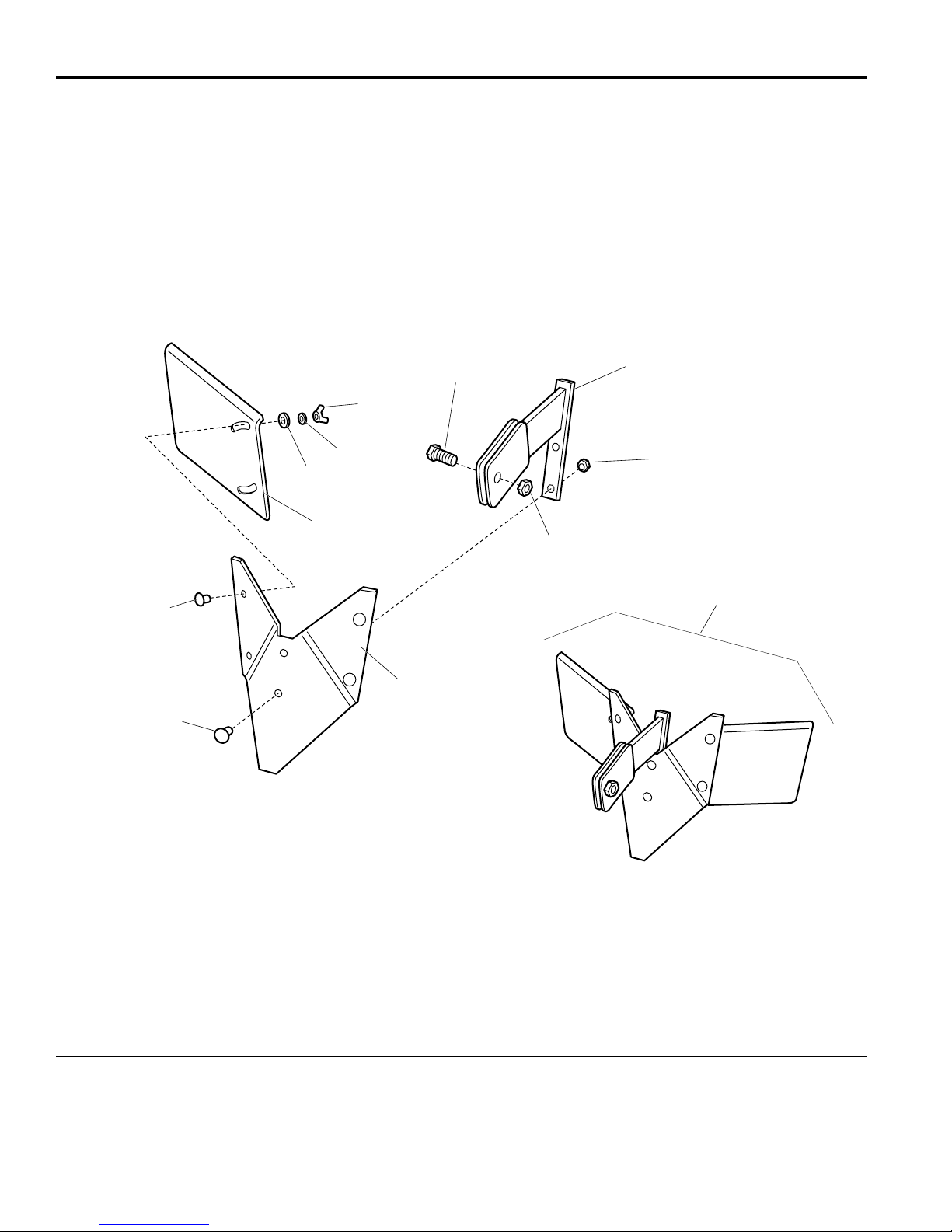

Hiller/Furrower Attachment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1692878
The above parts group applies to the following Mfg. Nos.:
1692878 Hiller/Furrower Attachment
1693705 514RT, Rear Tine Tiller
1
23
4
5
6
7
8
9
10
11
12

17
TP-400-2407-00-RT-S
Hiller/Furrower Attachment
1 1686802 1 HILLER/FURROWER, Complete (Order as Wholegood)
2 * 1 BOLT, Socket Head, 3/8”-16 x 1-1/4”
3 * 1 BRACKET
4 * 1 NUT, Hex, 3/8”- 16
5 * 2 NUT, Nyloc, 3/8”- 16
6 * 1 BLADE, Furrower
7 * 2 CARRIAGE BOLT, 3/8 - 16 x 1-1/2”
8 * 4 CARRIAGE BOLT, 5/16”- 18 x 3/4”
9 * 1 HILLER WING, Left
9 * 1 HILLER WING, Right (Not Shown)
10 * 4 WASHER, Flat, 5/16”
11 * 4 LOCKWASHER, External Tooth, 5/16”
12 * 4 WING NUT, 5/16”- 18
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* No servicable parts - components shown for reference only.
The above parts group applies to the following Mfg. Nos.:
1692878 Hiller/Furrower Attachment
1693705 514RT, Rear Tine Tiller

Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36 20 2.3 31 3.5 43 4.9
10-24 27 3.1 43 4.9 60 6.8
10-32 31 3.5 49 5.5 68 7.7
1/4-20 66 7.6 810.9 12 16.3
1/4-28 76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside
Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size , meaning the inside diameter is 1/2 inch; if a
second number is present it represent the
threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
Nominal size , or body diameter is 1/2 inch; the
second number represents the
threads per inch (16 in this
example, and the final number is the
body length of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
01/4 3/4
1/2 11/4 3/4
1/2 21/4 3/4
1/2 31/4 3/4
1/2 4
