Parts Manual
Rev. 04/2009
6HP Rear Tine Tillers
And Attachment
TP 400-2488-01-RT-S
Mf
g
. No. Descri
p
tion
6HP Product
1693704 616RT, 6HP Rear Tine Tiller
Mf
g
. No. Descri
p
tion
Attachment
1692878 Hiller / Furrower
1730818

Not for
Reproduction

Not for
Reproduction
Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Handle Bar Group ................................................................................................................................................ 4
Hood, Drag Stake & Tine Group .......................................................................................................................... 6
Engine Mount, Belts & Wheels Group ................................................................................................................. 8
Transmission Group ............................................................................................................................................. 10
Wheel & Tiller Shaft Group .................................................................................................................................. 12
Decal Group ......................................................................................................................................................... 14
Hiller/Furrower Attachment .................................................................................................................................. 16
Hiller/Furrower Attachment .................................................................................................................................. 18
Shifting Mechanism Group ................................................................................................................................... 20

Not for
Reproduction

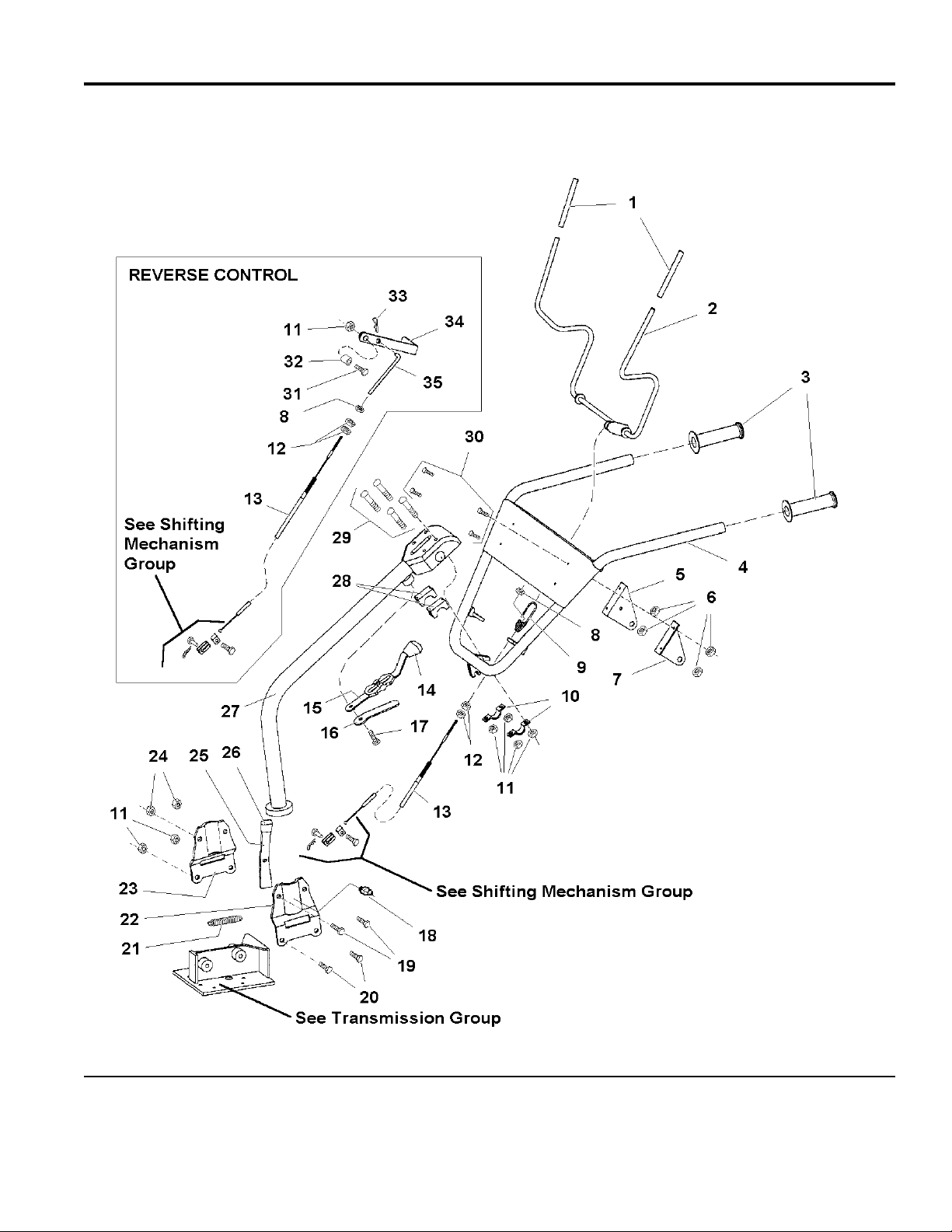

Handle Bar Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985769
The above parts group applies to the following Mfg. Nos.:
4
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Handle Bar Group
Footnotes
HANDLE GRIP, Drive Control Lever1 1716699SM 2
LEVER, Drive Control Walk-Behind Tiller2 1716721SM 1
GRIP, Handle Black3 1721516SM 2
HANDLE BAR ASSEMBLY4 1716718SM 1
BRACKET, Drive Control Lever, RH5 1716722SM 1
NUT, Hex Nylock6 1716732SM 4
BRACKET, Drive Control Lever, LH7 1716723SM 1
NUT, Hex Nylock8 1933896SM 2
SPRING, Froward Cable Adjustment9 1716720SM 1
CLAMP, Handle Bar Tilt10 1716709SM 2
NUT, Hex Flange 5/16"- 1811 1935048SM 7
NUT, Hex Jam 5/16"12 2820438SM 4
CABLE ASSEMBLY13 1719037SM 2
KNOB, Handle Bar Tilt Lever14 1716708SM 1
LEVER, Handle Bar Tilt15 1716707SM 1
STOP, Handle Bar Tilt Lever16 1716714SM 1
CAPSCREW, Hex Head, 8MM x16MM17 1716715SM 1
FITTING, Lube18 1716855SM 1
CAPSCREW, Hex Head, 10MM x 30MM19 1716716SM 2
CAPSCREW, 5/16"- 18 x 2-3/4" G520 1923141SM 2
SPRING, Handle Bar Swivel21 1716710SM 1
MOUNT, Handle Bar Stem, LH22 1716719SM 1
MOUNT, Handle Bar Stem, RH23 1716706SM 1
NUT, Hex Nylok 10MM24 1716717SM 2
LEVER, Handle Bar Swivel Walk-Behind Tiller25 1716712SM 1
KNOB, Handle Bar Swivel Lever26 1716711SM 1
STEM, Handle Bar27 1716713SM 1
FRICTION PAD, Tilt28 1716705SM 2
CARRIAGE BOLT, 5/16"- 18 x 2" G529 1931339SM 4
CAPSCREW, Hex Head, 5MM X .8MM X 10MM30 1716731SM 4
CAPSCREW, Hex Head 5/16-18 x 2 G531 1921978SM 1
BUSHING, Pivot 5/16"32 1716704SM 1
PIN, Cotter33 1716703SM 1
HANDLE, Reverse34 1716725SM 1
LINK, Reverse35 1716729SM 1
The above parts group applies to the following Mfg. Nos.:
5
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
Hood, Drag Stake & Tine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985768
The above parts group applies to the following Mfg. Nos.:
6
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hood, Drag Stake & Tine Group
Footnotes
GRIP, Handle, Black1 1719038SM 1
LEVER, Drag Stake, Walk-Behind Tiller2 1716745SM 1
KNOB, T Handle, Drag Stake3 1716743SM 1
PIN, DETENT, 5/16"- 18 x 1"4 1716742SM 1
CAPSCREW, 1/4"- 20 x 1/2" G55 1921958SM 2
HOOD6 1721515SM 1
NUT, Hex Flange 5/16"- 18 Two, Way Lock7 1935048SM 2
CAPSCREW, 3/8"- 16 x 1" G58 1921210SM 16
TINE BLADE, Left Side9 1716739SM 8
HOLDER, Tine Blade LH+RH10 1716741SM 2
NUT, Hex 3/8"- 16NC11 1916950SM 18
CAPSCREW, 3/8"- 16 x 1-3/4" G512 1921971SM 2
LOCKWASHER, Spring 3/8"13 1916965SM 16
CAPSCREW, 5/16"- 18 x 1" G514 1921333SM 2
TINE BLADE, Right Side15 1716737SM 8
CAPSCREW, Hex Flange Head, 5/16"- 18 x 1/2"16 1716701SM 2
BRACKET, Depth Regulator RT17 1721511SM 1
REPLACEMENT KIT, Tine Blade Holder18 1716749SM 1
The above parts group applies to the following Mfg. Nos.:
7
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction

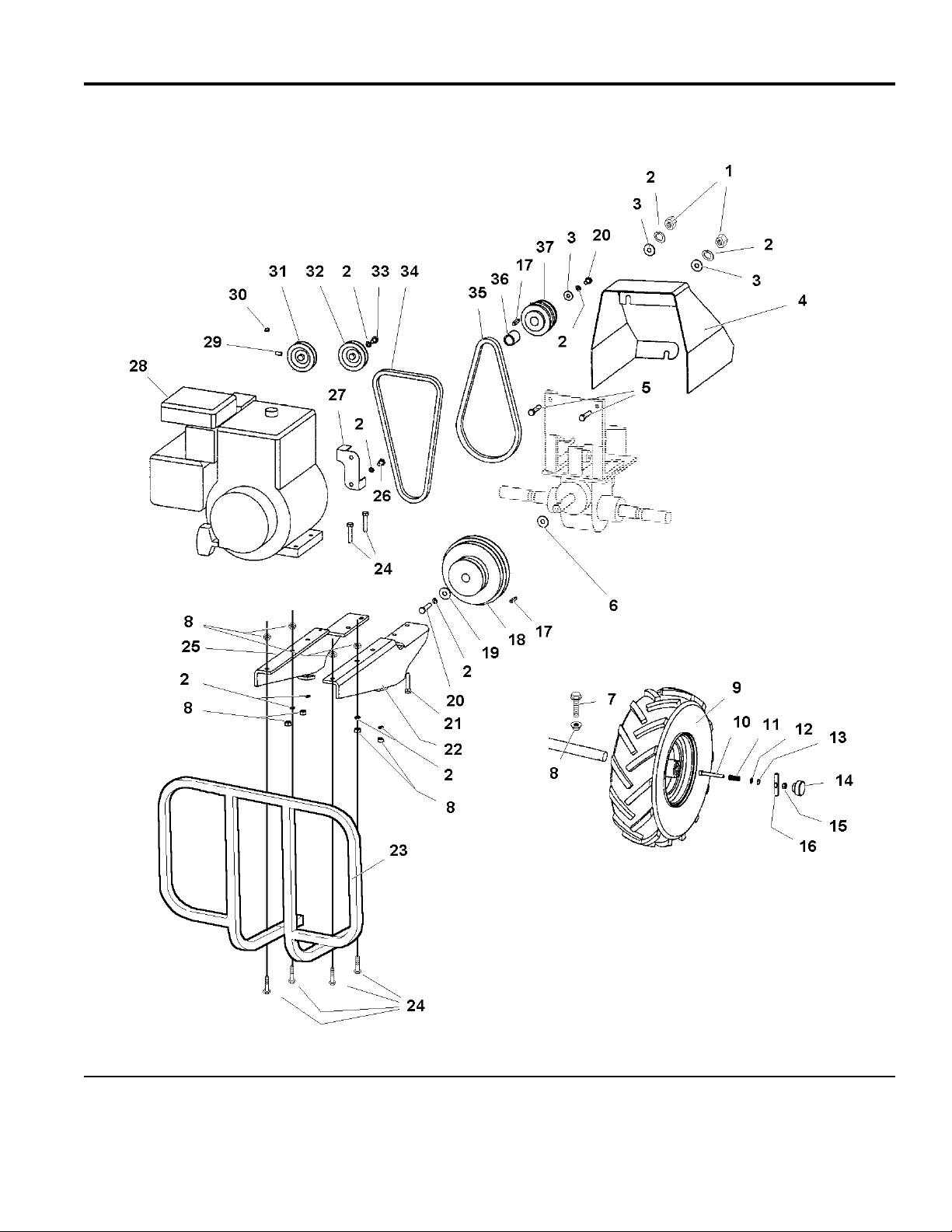

Engine Mount, Belts & Wheels Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985767
The above parts group applies to the following Mfg. Nos.:
8
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine Mount, Belts & Wheels Group
Footnotes
NUT, Hex 5/16" - 181 1917372SM 2
LOCKWASHER, Spring 5/16"2 1917356SM 10
WASHER, 5/16"3 1960044SM 2
COVER, Belt4 1716784SM 1
CAPSCREW, Hex Head 5/16-18 x 2 G55 1921978SM 2
WASHER, 5/8"6 2860164SM 1
CAPSCREW, Hex Flange Head, 5/16"- 18 x 3/4"7 1921332SM 2
NUT, Hex Flange 5/16"- 18 Two, Way Lock8 1935048SM 10
WHEEL & TIRE ASSEMBLY, Tiller LH9 1716773SM 1
WHEEL & TIRE ASSEMBLY, Tiller RH9 1716775SM 1
CAPSCREW, Hex Socket Head, 1/4"- 20 x 2-5/32"10 1716782SM 2
SPRING11 1716781SM 2
WASHER, 1/4"12 1960151SM 2
RING, Snap13 1716779SM 2
KNOB, Wheel Lock Out14 1716777SM 2
NUT, Hex Keps 1/4" - 2015 2828372SM 2
KNOB, Lock Out Set of Two16 1716778SM 1
KEY, Parrallel17 2805850SM 2
PULLEY, Transmission18 1716769SM 1
WASHER19 1716770SM 2
CAPSCREW, 5/16"- 24 x 3/4" G520 1921515SM 2
CAPSCREW, Hex Socket Head, 5/16"- 18 x 11/4" G821 1960470SM 4
BRACKET, Engine Mount LH22 1716753SM 1
BUMPER, Guard23 1721528SM 1
CAPSCREW, 5/16"- 18 x 1 3/4" G524 1922127SM 8
BRACKET, Engine Mount RH25 1716752SM 1
CAPSCREW, 5/16"- 24 x 1/2"26 1716756SM 1
GUIDE, Belt Forward27 1721527SM 1
ENGINE, 6HP Briggs & Stratton - Engine Model 120492, Engine Type 0119-E128 * 1
SCREW, Set 1/4"- 20 x 1/4"29 1716758SM 1
KEY, Woodruff30 2805121SM 1
PULLEY, Engine, Reverse31 1716757SM 1
PULLEY32 1716761SM 1
CAPSCREW, Hex Head, 5/16"- 24 x 1-1/2"33 1716760SM 1
V-BELT, Reverse34 1721523SM 1
V-BELT, Forward35 1716766SM 1
SPACER, Engine Pulley36 1716762SM 1
PULLEY, Engine, Forward37 1716764SM 1
Note* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
9
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985159
The above parts group applies to the following Mfg. Nos.:
10
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
TRANSMISSION ASSEMBLY1 1716788SM 1
CAPSCREW, Hex Flagne Head, 5/16"- 18 x 3/4"2 1921332SM 8
PLUG, Pipe Socket Head 1/4"- 18, Oil Check4 1716790SM 2
PLUG, Oil Fill6 1716794SM 1
COVER, Transmission Wheel Housing7 1716724SM 1
GASKET KIT, Oil Seal (Includes Ref. Nos. 3, 5, and 8)9 1716799SM 1
GASKET, Housing & Transmission Cover3 1716789SM 2
SEAL, Housing 15065 1716791SM 4
GASKET, Bearing Cap Front, Rear8 1716792SM 2
CAPSCREW, Hex Flange Head, 1/4"- 20 x 3/4"10 1716798SM 3
SEAL, Oil Drive Shaft11 1716797SM 1
CAP, Front Bearing12 1716796SM 1
CAP, Rear Bearing13 1716793SM 1
CAPSCREW, Hex Flange Head, 1/4"- 20 x 7/8"14 1716795SM 3
The above parts group applies to the following Mfg. Nos.:
11
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction

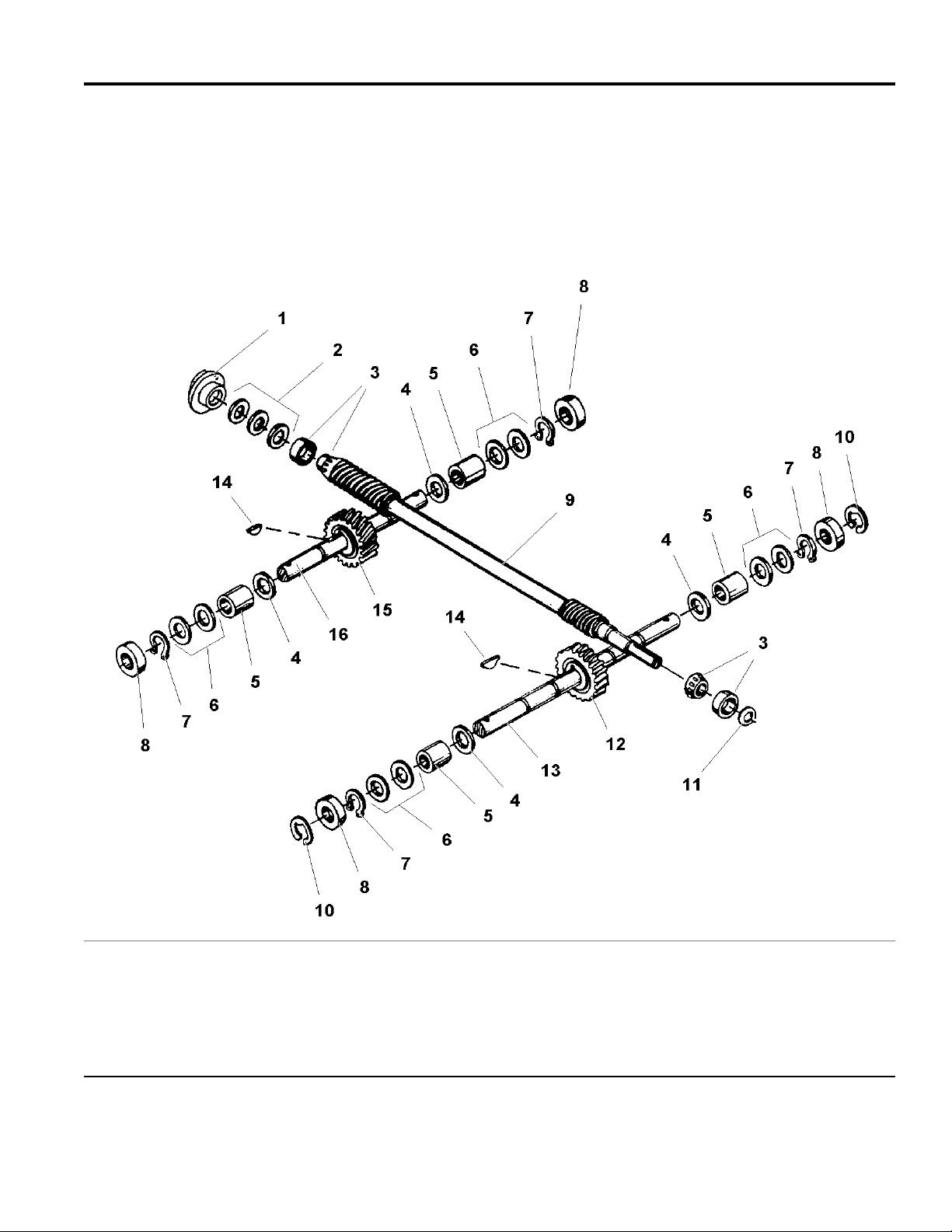

Wheel & Tiller Shaft Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985155
The above parts group applies to the following Mfg. Nos.:
12
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Wheel & Tiller Shaft Group
Footnotes
CAP, Rear Bearing1 1716793SM 1
SHIM SET, Rear Bearing Cap2 1716825SM 1
SHIM, 0.062 Thickness x 1 3/4" (As Required)2 1716826SM 1
SHIM, 0.030 Thickness x 1 3/4" (As Required)2 1716827SM 1
SHIM, 0.015 Thickness x 1 3/4" (As Required)2 1716828SM 1
SHIM, 0.010 Thickness x 1 3/4" (As Required)2 1716829SM 1
BEARING, Tappered ( Cone & Race )3 1716810SM 2
SPACER, 1" x 1 1/4" x 0.062 Thickness4 1716824SM 4
BUSHING5 1716816SM 4
SHIM SET, Axle Spacer6 1716815SM 4
SHIM, 0.062 Thickness x 1 3/8"6 1716817SM 1
SHIM, 0.030 Thickness x 1 3/8"6 1716818SM 1
SHIM, 0.015 Thickness x 1 3/8"6 1716819SM 1
SHIM, 0.010 Thickness x 1 3/8"6 1716820SM 1
RING, Snap Internal Retainer7 1716830SM 4
SEAL, Housing8 1716791SM 4
SHAFT, Main Drive9 1716809SM 1
RING, Snap External Retainer10 1716821SM 2
SEAL, Oil Drive Shaft11 1716797SM 1
GEAR, Worm Wheel Shaft12 1716814SM 1
SHAFT ASSEMBLY, Wheel w/Lock Pin 5HP13 1716812SM 1
KEY, Parrallel Pin14 1716813SM 2
GEAR, Worm Shaft15 1716823SM 1
SHAFT ASSEMBLY16 1716822SM 1
The above parts group applies to the following Mfg. Nos.:
13
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction

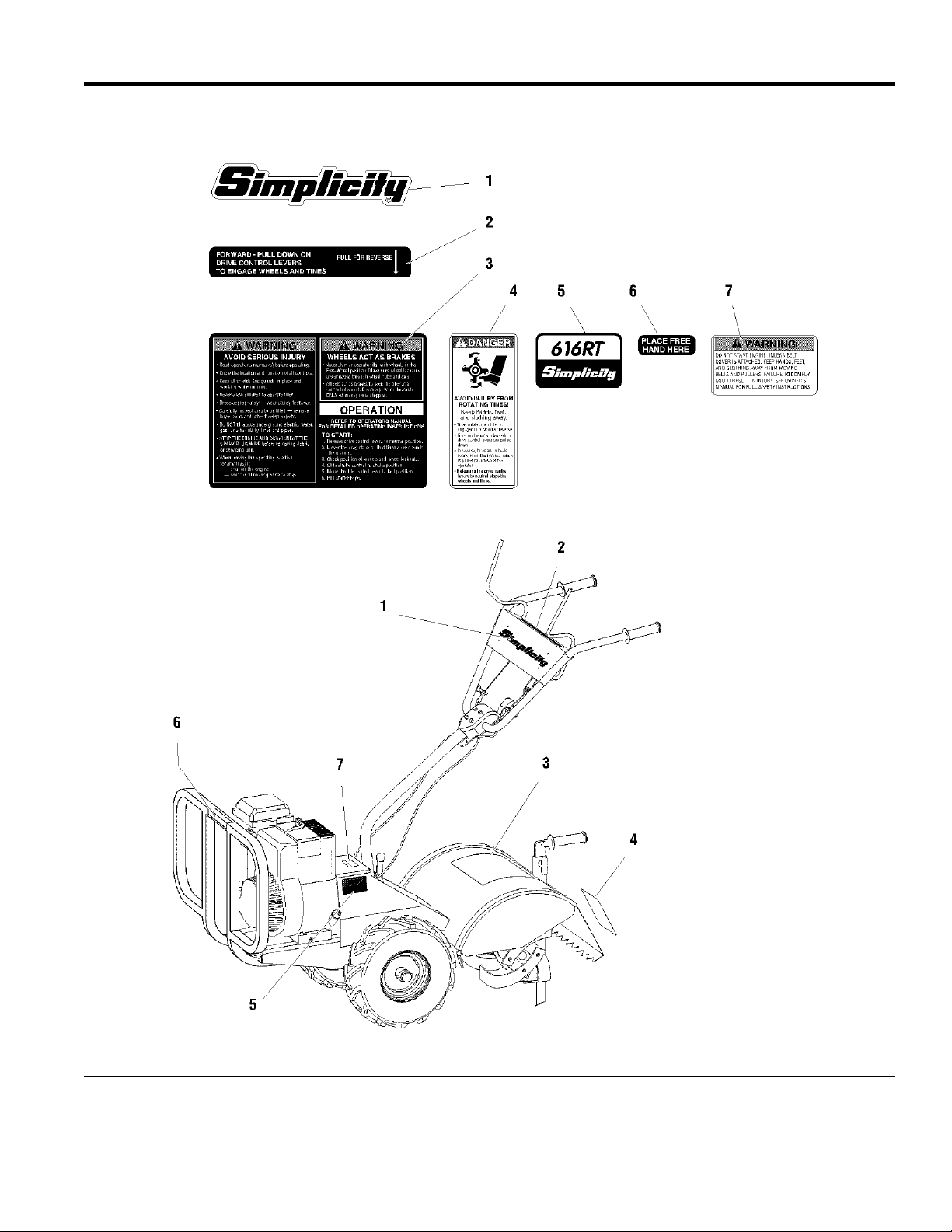

Decal Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985765
The above parts group applies to the following Mfg. Nos.:
14
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Decal Group
Footnotes
DECAL, Simplicity1 1722551SM 1
DECAL, Console Forward/Reverse Instructions2 1716734SM 1
DECAL, Hood, Operator Instructions3 1716747SM 1
DECAL, Tine Hood4 1716840SM 1
DECAL, Belt Cover5 1721504SM 2
DECAL, Brush Bar6 1716839SM 1
DECAL, Warning, Blet Cover7 1716800SM 1
The above parts group applies to the following Mfg. Nos.:
15
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction

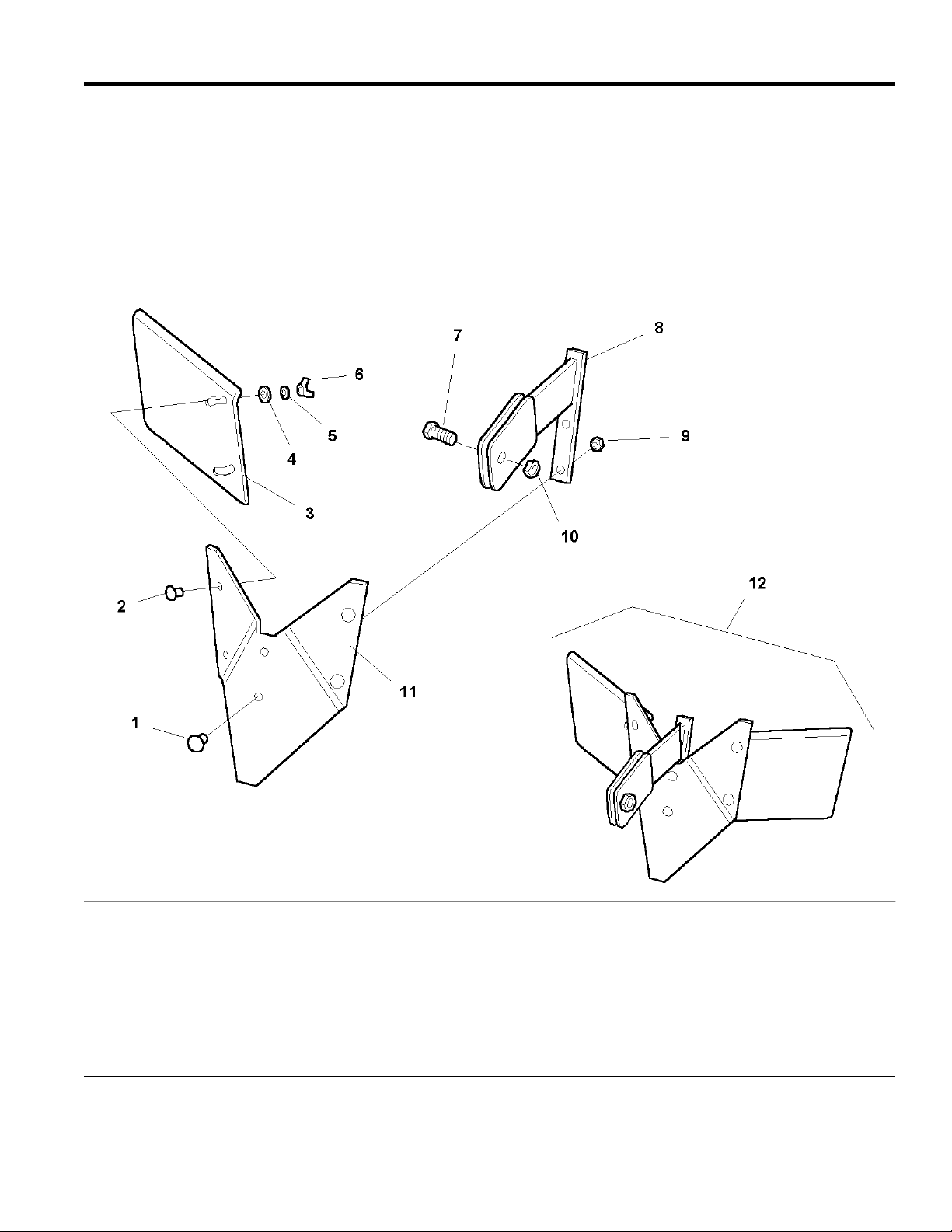

Hiller/Furrower Attachment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1692878
The above parts group applies to the following Mfg. Nos.:
16
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hiller/Furrower Attachment
Footnotes
HILLER/FURROWER, Complete (Order as Wholegood)1 1686802SM 1
BOLT, Socket Head, 3/8"-16 x 1-1/4"2* 1
BRACKET3* 1
NUT, Hex, 3/8" - 164* 1
NUT, Nyloc, 3/8" - 165* 2
BLADE, Furrower6* 1
CARRIAGE BOLT, 3/8 - 16 x 1-1/2"7* 2
CARRIAGE BOLT, 5/16" - 18 x 3/4"8* 4
HILLER WING, Left9* 1
HILLER WING, Right (Not Shown)9* 1
WASHER, Flat, 5/16"10 * 4
LOCKWASHER, External Tooth, 5/16"11 * 4
WING NUT, 5/16"- 1812 * 4
Note* No servicable parts - components shown for ref. only.
The above parts group applies to the following Mfg. Nos.:
17
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S

Not for
Reproduction
Hiller/Furrower Attachment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986035
The above parts group applies to the following Mfg. Nos.:
18
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1692878 - Hiller / Furrower
TP 400-2488-01-RT-S

Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Hiller/Furrower Attachment
Footnotes
BOLT, Carriage, 3/8-16 x 1-1/21 1931352SM 2
BOLT, Carriage, 5/16-18 x 3/42 1931333SM 4
HILLER WING, Left3 1723726SM 1
HILLER WING, Right (Not Shown)3 1723727SM 1
WASHER, Flat, 5/164 1960044SM 4
LOCKWASHER, External Tooth, 5/165 2820426SM 4
WING NUT, 5/16-186 1933126SM 4
BOLT, Socket Head, 3/8-16 x 1-1/47 1960268SM 1
BRACKET8 1723725SM 1
NUT, Nylock, 3/8-169 1919439SM 2
NUT, Hex, 3/8-1610 1916950SM 1
BLADE, Furrower11 1723724SM 1
HILLER / FURROWER ATTACHMENT, Complete12 1686802SM 1
The above parts group applies to the following Mfg. Nos.:
19
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1692878 - Hiller / Furrower
TP 400-2488-01-RT-S

Not for
Reproduction
Shifting Mechanism Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985766
The above parts group applies to the following Mfg. Nos.:
20
2009
Milwaukee, WI, USA. All rights reserved
© Copyright by Briggs & Stratton Corporation
1693704 - 616RT
TP 400-2488-01-RT-S
