Simplicity Symmetry User manual

(The chances are you’re
never going to read me)
Owner’s Manual
all models
www.simplicityvac.com

1
IMPORTANT SAFETY INSTRUCTIONS .............................................................. 2
Polarization instructions .................................................................................. 3
Description of the vacuum .............................................................................. 4
Before using your Symmetry for the first time ................................................ 6
Operation
Unwinding the power cord .............................................................................. 7
Turning vacuum on / off ................................................................................. 8
Vacuuming carpet ........................................................................................... 9
Vacuuming hard surfaces ............................................................................... 9
Carpet height adjustment ............................................................................... 9
Vacuuming under furniture .............................................................................. 10
Carrying the vacuum ...................................................................................... 11
Attachment Cleaning
Wand cleaning ................................................................................................ 12
Cleaning tools ................................................................................................. 13
Adjusting the suction power ........................................................................... 14
Optional cleaning tools ................................................................................... 15
Connecting attachment hose .......................................................................... 16
Maintenance and Care
When to change the vacuum bag/Full bag indicator light .............................. 17
Replacing the vacuum bag ............................................................................ 18
When to change the filters .............................................................................. 19
Replacing the filters ........................................................................................ 19
Removing and reinstalling bottom plate ......................................................... 21
Replacing the agitator belt ............................................................................ 22
Lifetime belt protection warranty ...................................................................... 23
Replacing the headlight bulb ......................................................................... 24
Edge cleaning ................................................................................................ 24
Annual checkup reminder ............................................................................... 24
Problem Solving Guide
Unclogging nozzle and hose .......................................................................... 25
Thermal motor protection ................................................................................ 26
Jammed brushroll ............................................................................................ 26
Trouble shooting .............................................................................................. 27
How to contact your Authorized Retailer ........................................................ 27
Visit Simplicity online ....................................................................................... 27
Warranty ................................................................................................................. 28
Contents

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions, or for uses other than those for which it
was intended.
To reduce the risk of fire, electric shock or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
• WARNING: ELECTRIC SHOCK COULD
OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If
appliance is not working as it should, has
been dropped, damaged, left outdoors,
or dropped into water, return it to your
Authorized Retailer for service.
• Do not pull or carry by cord, use cord as
a handle, close a door on the cord, or pull
cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that
may reduce air ow.
• Keep hair, loose clothing, ngers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Do not use without vacuum bag and/or
lters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or
combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
SAVE THESE INSTRUCTIONS.
WARNING:

3
POWER CORD, 2-WIRE POLARIZED CORD
Household Models: SYME, SYMENT, SYMST, SYMDL,
SYMPBP, SYM, SYMUSA, SYMCLNT,
SYMCL, SYMS, SYMD, SYMPNT &
SYMP
To reduce the risk of electric shock, this product
is equipped with a polarized alternating current
line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact a
qualified electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
Polarization Instructions
Grounding Instructions
Commercial Models: SYMCNT, SYMC & SYMCBP
This vacuum cleaner must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce the risk of
electric shock. This vacuum cleaner is equipped with a cord having an equipment-
grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
This vacuum cleaner is for use on a nominal 120-volt circuit and has a ground plug
(see illustration). Make sure the vacuum is connected to an outlet having the same
configuration as the plug. No adapter should be used with this vacuum.
Grounded
Outlet
Grounding
Grounded
Outlet Box
WARNING – Improper connection of
the equipment-grounding conductor
can result in the risk of electric shock.
Check with a qualified electrician or
service person if you are in doubt
as to whether the outlet is properly
grounded. Do not modify the plug
provided with the vacuum – if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.

4

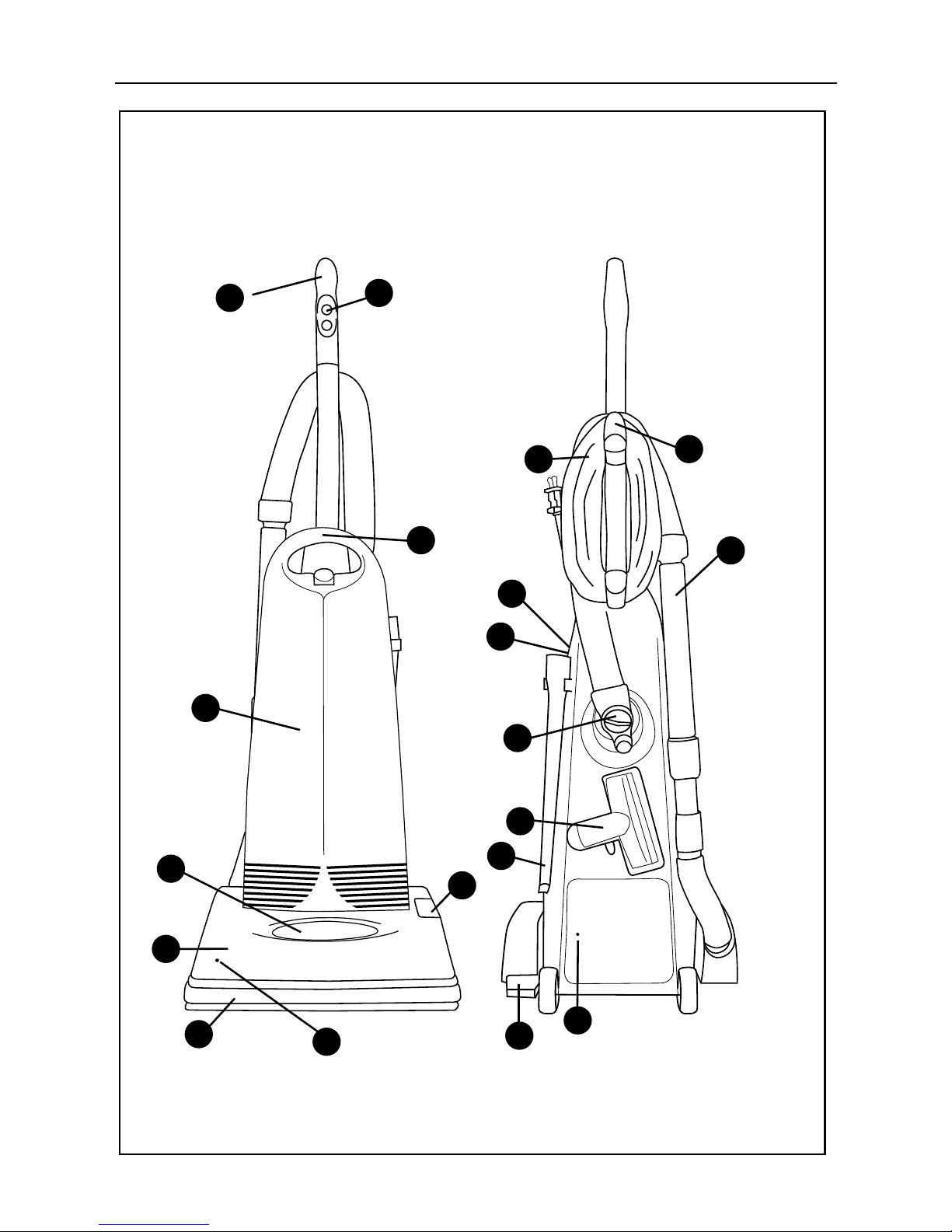

Description of the Vacuum
6
18
17
5
13
16
10
9
11
8
7
2
4
3
1
12
14
15
19

5
1 Ergonomic handle
2 Main on / off power switch
(for models SYMDL, SYMPBP, SYM, SYMS, SYMD, SYMPNT, SYMP,
SYMCNT, SYMC & SYMCBP)
3 Power Cord
4 Carrying handle
5 Bag compartment cover (to replace vacuum bag)
6 Xenon headlight (for all models except SYMUSA, SYME & SYMENT)
7 Vacuum nozzle
8 Furniture guard
9 Carpet / Floor selector (for models SYMDL, SYMPBP, SYM, SYMUSA,
SYMPNT & SYMP)
10 Quick release cord hook
11 Ready Reach™tools
(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,
SYMS, SYMD, SYMP, SYMC & SYMCBP)
12 Suction control dial
13 Combination dusting / upholstery brush
(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,
SYMS, SYMD, SYMP, SYMC & SYMCBP)
14 Crevice tool
(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,
SYMS, SYMD, SYMP, SYMC & SYMCBP)
15 Thermal reset button
16 Full bag / clog indicator
(for models SYMPBP, SYM, SYMD, SYMPNT, SYMP, SYMCNT, SYMC &
SYMCBP)
17 Main on / off power switch (for models SYME, SYMENT, SYMST, SYMCLNT,
SYMCL & SYMUSA)
18 Handle release pedal
19 Brushroll jam indicator (for models SYMPBP & SYMCBP)
Description of the Vacuum

6
Before Using your Symmetry for the First Time

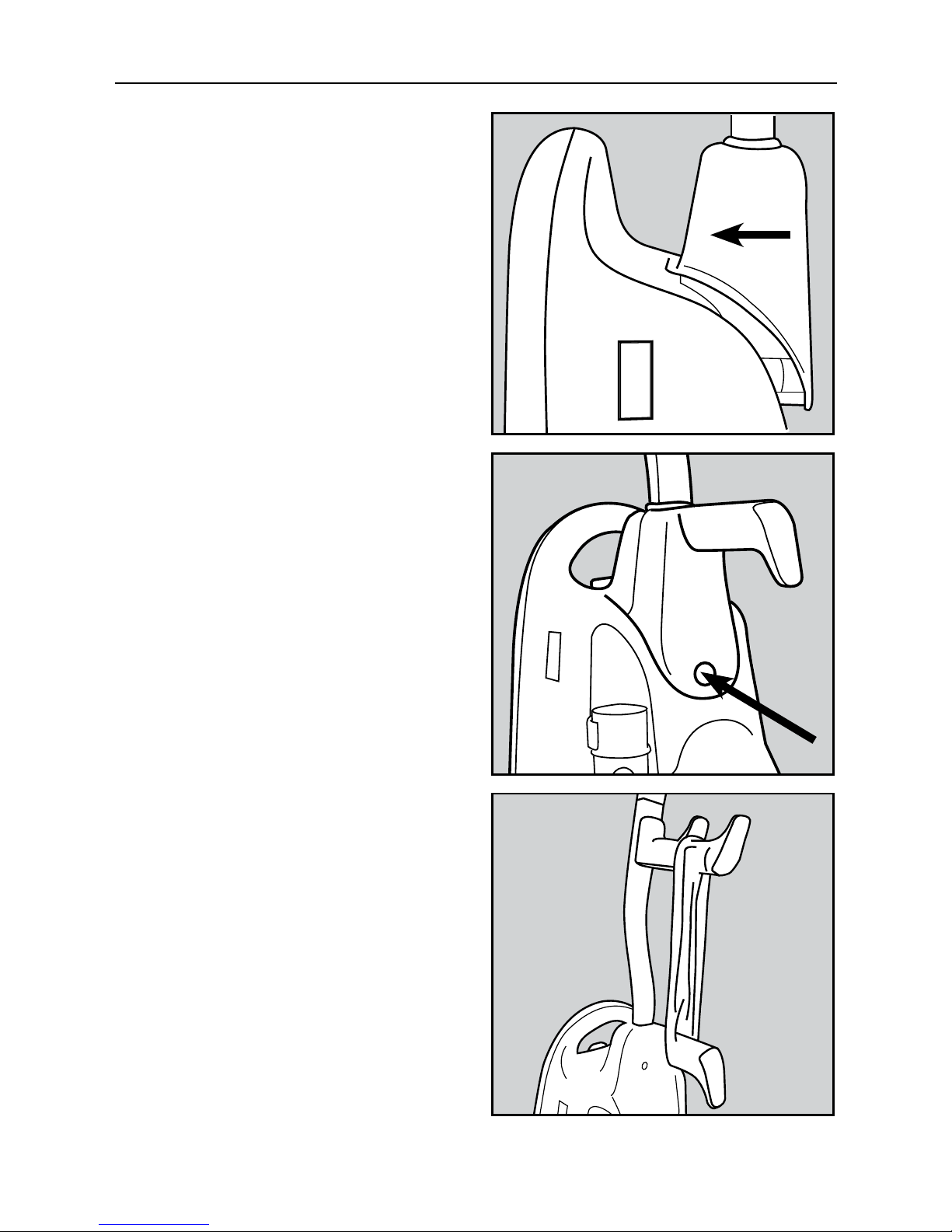

Attaching the handle to the vacuum
The vacuum cleaner and the handle are
packed separately.
• After first removing the handle screw,
position the handle behind the vacuum
cleaner and level with the top of the
unit. Hold the power cord down and
away from the vacuum while the handle
is being attached. Make sure that the
switch on the handle is positioned
toward the front of the vacuum cleaner.
• On the bottom of the handle are two
“T-shaped” rails that slide forward onto
two guides located on the top of the
vacuum cleaner. Line up the handle so
that the “T” rails will slide into the guides
and push the handle forward.
• Insert the handle screw and tighten
securely.
• Turn the upper cord storage hook to
the upright position and wind the power
cord around the cord storage hooks
when storing the vacuum cleaner.

7
Operation
Unwinding the power cord
• The upper cord hook rotates to allow for
quick access to the power cord.

8
Operation

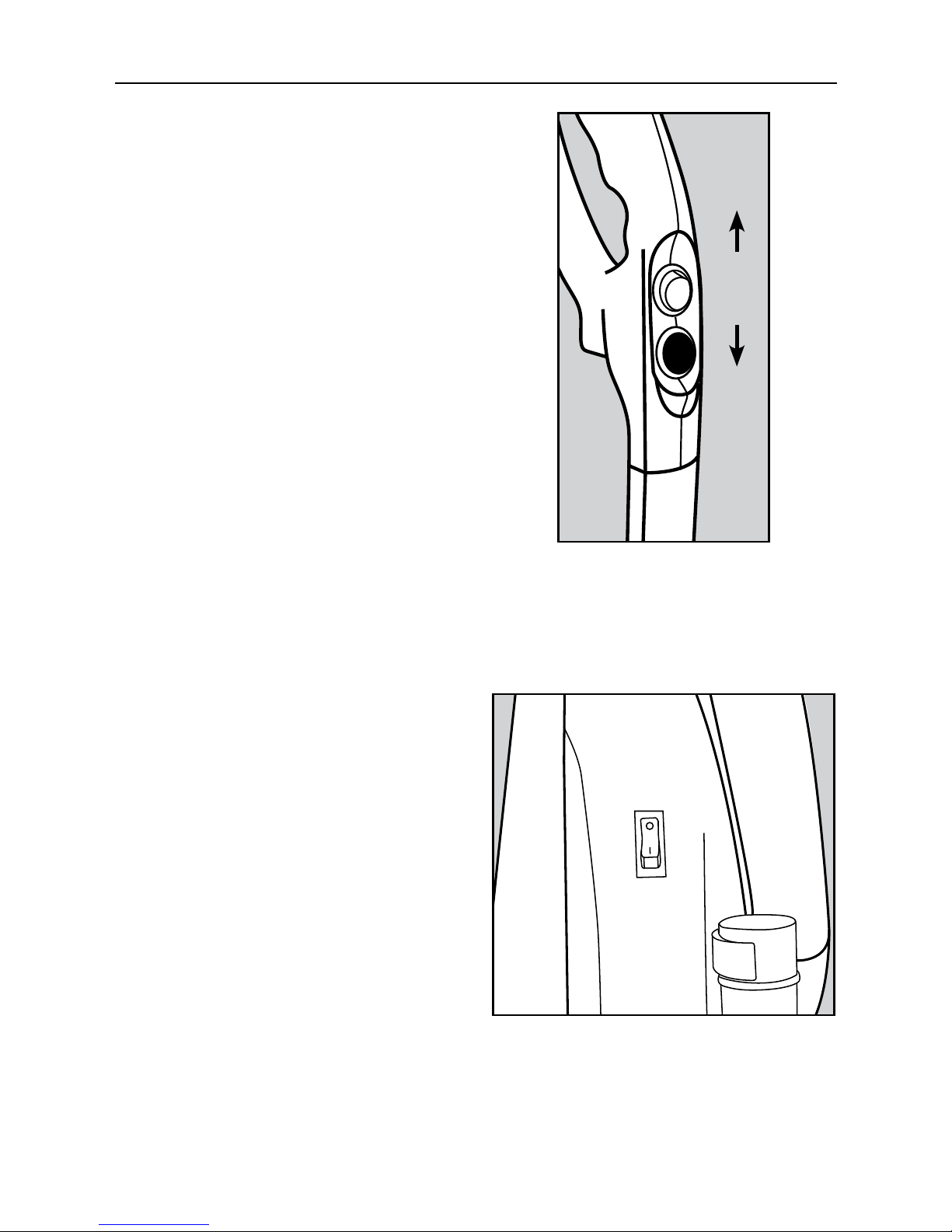

On / Off switch
Models: SYMDL, SYMPBP, SYM, SYMS,
SYMD, SYMPNT, SYMP, SYMCNT,
SYMC & SYMCBP
• To start the vacuum cleaner, ip the
“on / off” switch located on the handle
to the “on” position.
• To stop the vacuum cleaner, ip the “on /
off” switch to the “off” position.
• Turn the vacuum cleaner off before
unplugging from electrical outlet.

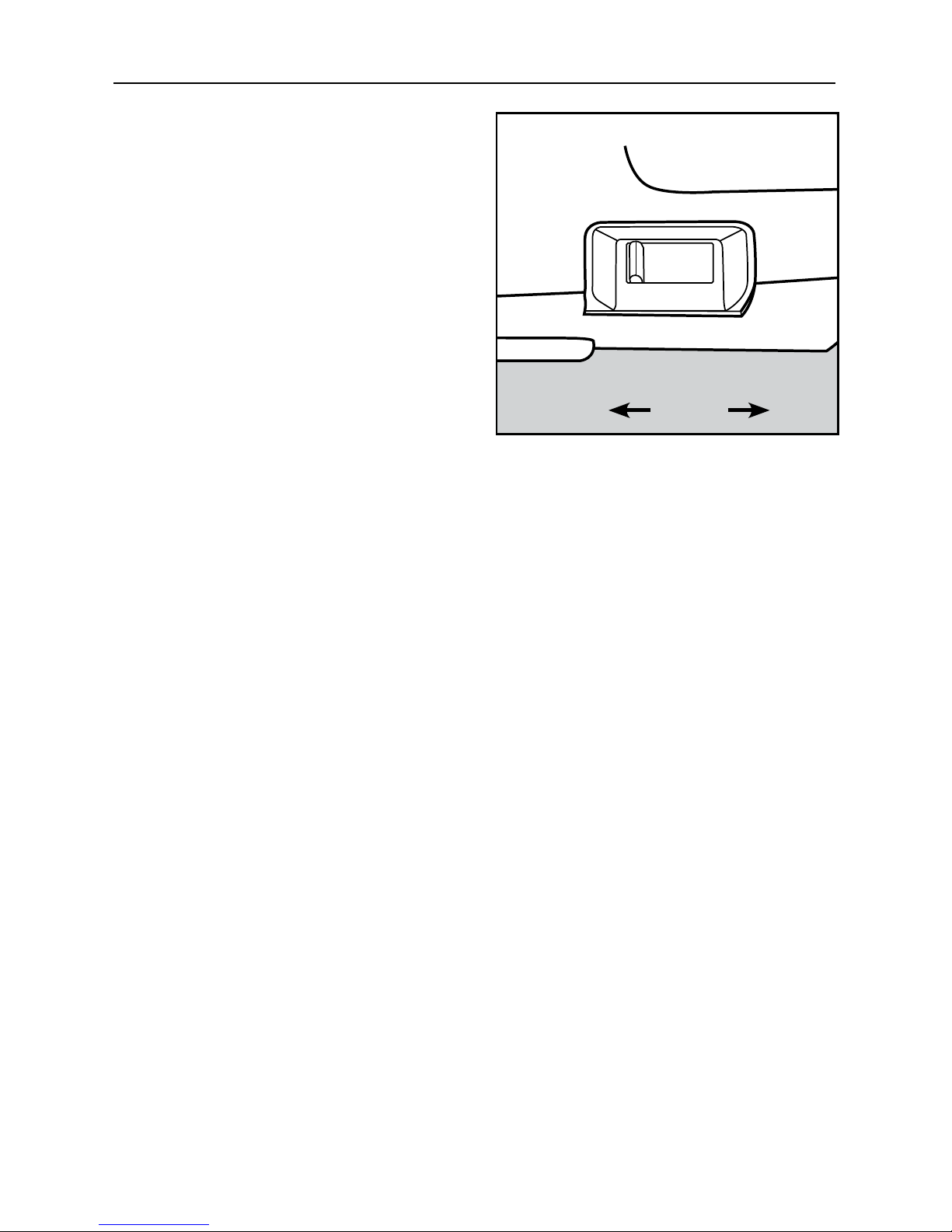

On / Off switch
Models: SYME, SYMENT, SYMST,
SYMUSA, SYMCLNT & SYMCL
• To start the vacuum cleaner, ip the
“on / off” switch located on the side of
the bag compartment to the “on” position
as indicated on the switch.
• To stop the vacuum cleaner, ip the
“on / off” switch to the “off” position
as indicated on the switch.
• Turn the vacuum cleaner off before
unplugging from electrical outlet.
Off
On

9
Operation
Vacuuming carpet
Models: SYMDL, SYMPBP, SYM,
SYMUSA, SYMPNT & SYMP only
• For carpet cleaning, slide the
carpet / oor selector toward the back
of the nozzle so that it reads “Carpet”.
Vacuuming hard surfaces
and using tools
Models: SYMDL, SYMPBP, SYM,
SYMUSA, SYMPNT & SYMP only
• To prevent brushroll from spinning when
cleaning bare oors or using tools, slide the
carpet / oor selector toward the front of the
nozzle so that it reads “Floor & Tools”.
Carpet height adjustment
Your Simplicity upright vacuum cleaner is
designed with an automatic self-adjusting
rug nozzle. No manual adjustments are
required. The height of the rug nozzle is
instantly and automatically adjusted to
carpet pile height. This self-adjusting feature
allows the rug nozzle to oat evenly over all
carpet pile surfaces.
CarpetFloor & Tools

10
Vacuuming under furniture
Your Simplicity Symmetry will lay flat on
the floor for effective cleaning under beds
and tables.
• Press the foot pedal release once for
normal vacuum cleaning.
• Press the foot pedal release a second
time to enable the vacuum to lay flat
on the floor.
Operation

11

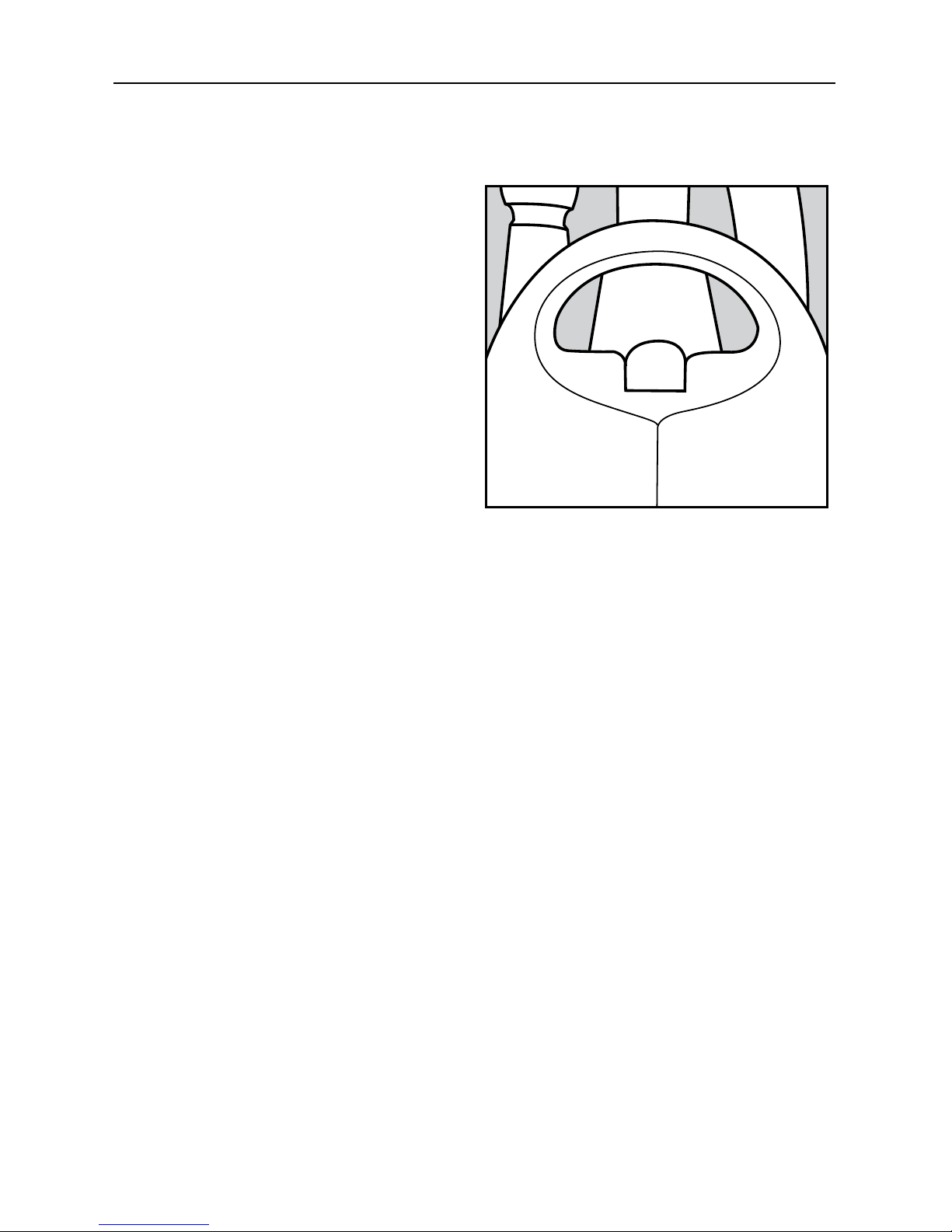

Carrying the vacuum
To safely transport your vacuum,
especially when carrying the vacuum up
and down stairs, use the carry handle.
Operation

12
Attachment Cleaning

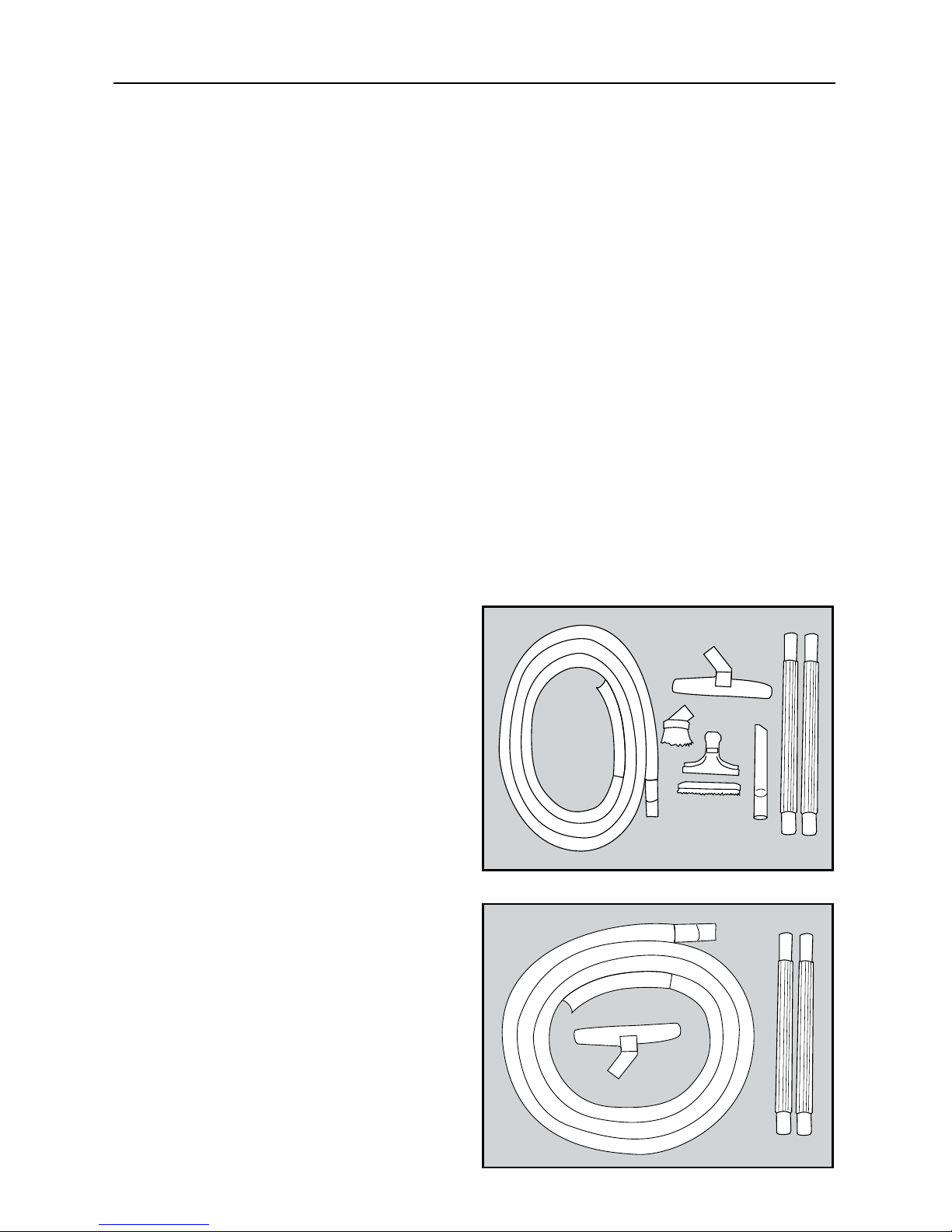

Wand cleaning
Models: SYME, SYMST, SYMDL,
SYMPBP, SYM, SYMUSA,
SYMCL, SYMS, SYMD, SYMP,
SYMC & SYMCBP
With the on-board cleaning tools and
vacuum wand, your Simplicity Symmetry
becomes a comprehensive cleaning system.
The models equipped with on-board tools
include an upholstery tool, dusting brush,
crevice tool, extension wand and stretch
hose.
• Remove the telescopic wand from the
body of the vacuum. Unlock the wand
collar (located on end of wand), extend
the wand and re-lock the wand collar.
NOTE: The wand collar locking rotation is
marked with arrows on the wand. The wand
collar lock and unlock functions require
only a 1/2 turn of the collar.
NOTE: You can connect any of the cleaning
tools to the end of the extension wand(s)
and twist for a secure fit. To remove the
cleaning tool from the extension wand(s),
simply twist and pull apart.

13
Attachment Cleaning
Ready Reach™ Cleaning tools
Models: SYME, SYMST, SYMDL, SYMPBP,
SYM, SYMUSA, SYMCL, SYMS,
SYMD, SYMP, SYMC & SYMCBP
Your vacuum is equipped with a dusting
brush, upholstery brush and crevice tool.
Other tools are available at your Authorized
Simplicity Retailer.
• Remove the cleaning wand from the
vacuum and turn the carpet / floor
selector to the “Floor & Tools” position
(SYMP model only, see page 9).
• Insert any of the tools onto the end
of the wand.
Dusting Brush:
Ideal for table tops, shelves, blinds or
hard surface floors.
Upholstery Tool:
Ideal for soft surfaces like chairs and
couches. Remove the dusting brush clip
for upholstery cleaning.
Crevice Tool:
Ideal for tight places like between seat
cushions or corners.
Crevice Tool
Dusting/Upholstery Tool
Wand with Dusting Brush

14
Adjusting the suction power for
tool cleaning
On the back of the vacuum, locate the
suction control dial and turn it to the
desired position. This reduces the suction
power coming through the hose. Close
the suction control dial when nished to
restore full suction power.
Attachment Cleaning

15
Attachment Cleaning
Optional cleaning tools
All Simplicity Symmetry vacuum cleaners offer
an attachment port that enables you to insert
optional cleaning tools (available through your
Simplicity Retailer). Should you have carpeted
stairs, for example, it is highly recommended
to use one of the two kits pictured, since each
offers either a 12- or 15-foot hose for safe
stair cleaning. These kits are effective overall
cleaning tools to address some of the hard to
reach areas of your home or car. Talk to your
Simplicity Retailer to see which tools might be
benecial for your home.
Deluxe Attachment Set (SDK12)
1. 12-foot hose
2. Curved wand
3. Extension wand (2 pieces)
4. Dusting brush
5. Crevice tool
6. Upholstery tool
7. Upholstery brush insert
8. Deluxe floor brush
Deluxe Attachment Set (SDK15)
1. 15-foot hose
2. Curved wand
3. Extension wand (2 pieces)
4. Deluxe floor brush

16
Attachment Cleaning
Connecting the attachment hose
to the vacuum cleaner
Pull out and open the suction control dial by
turning the lid located on the back of the vacuum
cleaner. Insert the soft, rubber end of the hose
into the cleaning attachment opening. Push in
while twisting the hose end to ensure the hose is
fastened securely.
NOTE: You can connect any of the cleaning tools
to the end of the extension wand(s) and twist for
a secure fit. To remove the cleaning tool from the
extension wand(s), simply twist and pull apart.
WARNING
Models SYMENT, SYME, SYMST, SYMCLNT,
SYMCL, SYMS, SYMD, SYMCNT, SYMC
& SYMCBP
There is no way to turn the brushroll off.
Therefore, when using the cleaning tools it is
important to keep your Simplicity vacuum from
running in the same spot for a period of time, as
carpet or flooring damage could result. If you
need to keep the vacuum in the same spot for a
period of time, such as at the base of the stairs
when cleaning the stairs, place something, like
a flattened cardboard box, under the vacuum to
prevent damage to the floor.

17
Attachment Cleaning
When to change the vacuum bag/
Full bag indicator light
Models: SYMPBP, SYM, SYMD,
SYMPNT, SYMP, SYMCNT,
SYMC & SYMCBP
The full bag indicator light is designed to
show when the bag is full or when there is
a clog in the vacuum.
The system measures airow and alerts
the user when airow is signicantly
reduced – most commonly from full bags
and clogs.
The light could also come on when
vacuuming ne powders such as our or
drywall dust. These materials can quickly
block the bag pores, signicantly reducing
airow before the bag appears to be full.
The vacuum bag should still be changed.
The light could also come on during
attachment cleaning.
Note: The vacuum bags are disposable
and intended to only be used once.
Do not attempt to reuse as suction
and ltration performance would be
greatly reduced.

18
Maintenance and Care

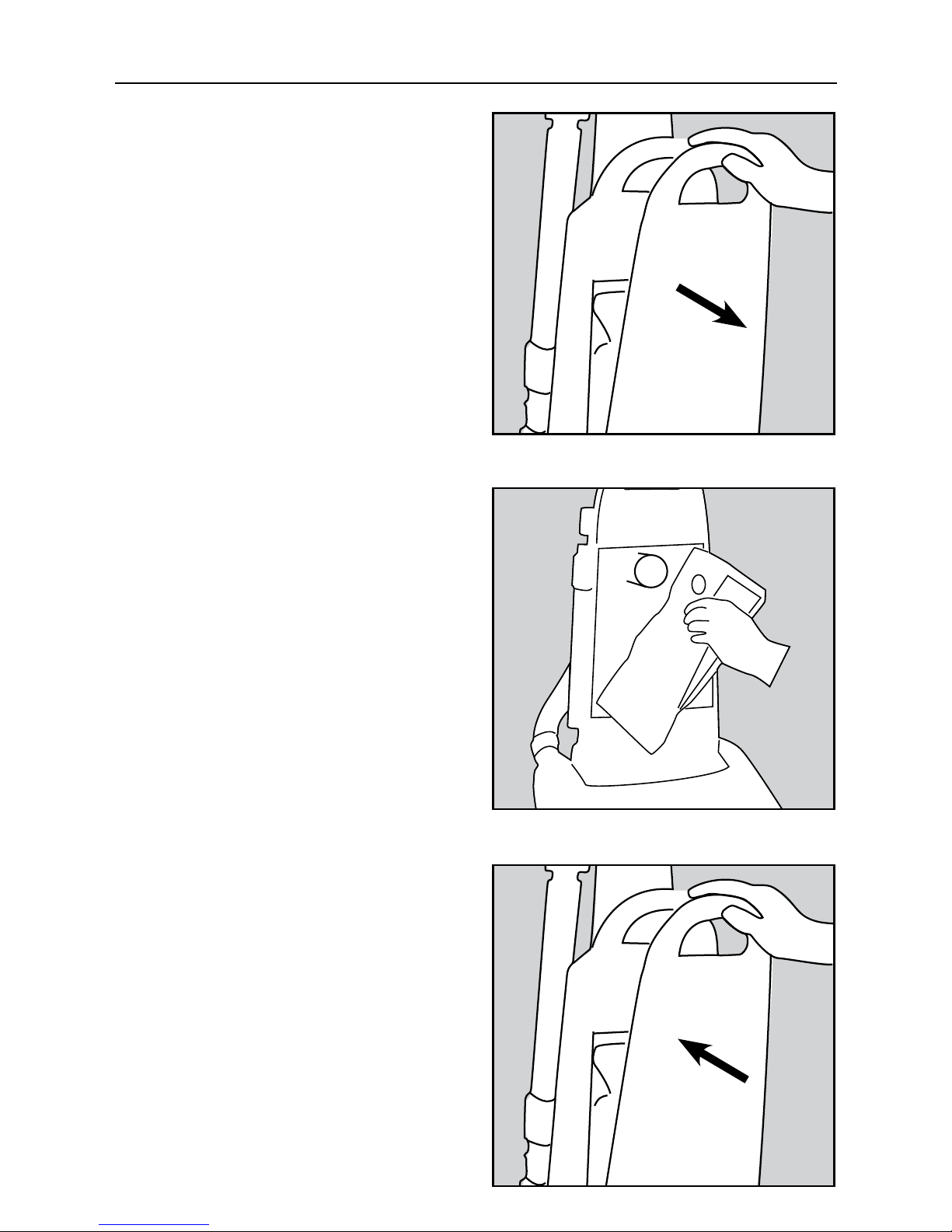

Replacing the vacuum bag
• Open the bag compartment lid.
• Remove vacuum bag by pulling bag
collar off the bag holder.
• Attach the new vacuum bag onto the
bag holder.
• Tuck the bag corners into the vacuum
before replacing the bag compartment
lid.
• Replace lid and press onto vacuum until
it snaps into place.
