SERVICE MANUAL
CASSETTE, FLOOR&CEILING, DUCT UNITS
DC INVERTER SERIES
OUTDOOR UNITS
OUTDOOR AND INDOOR UNITS

last actualization 2011

2
PRODUCT
1 MODELS LIST

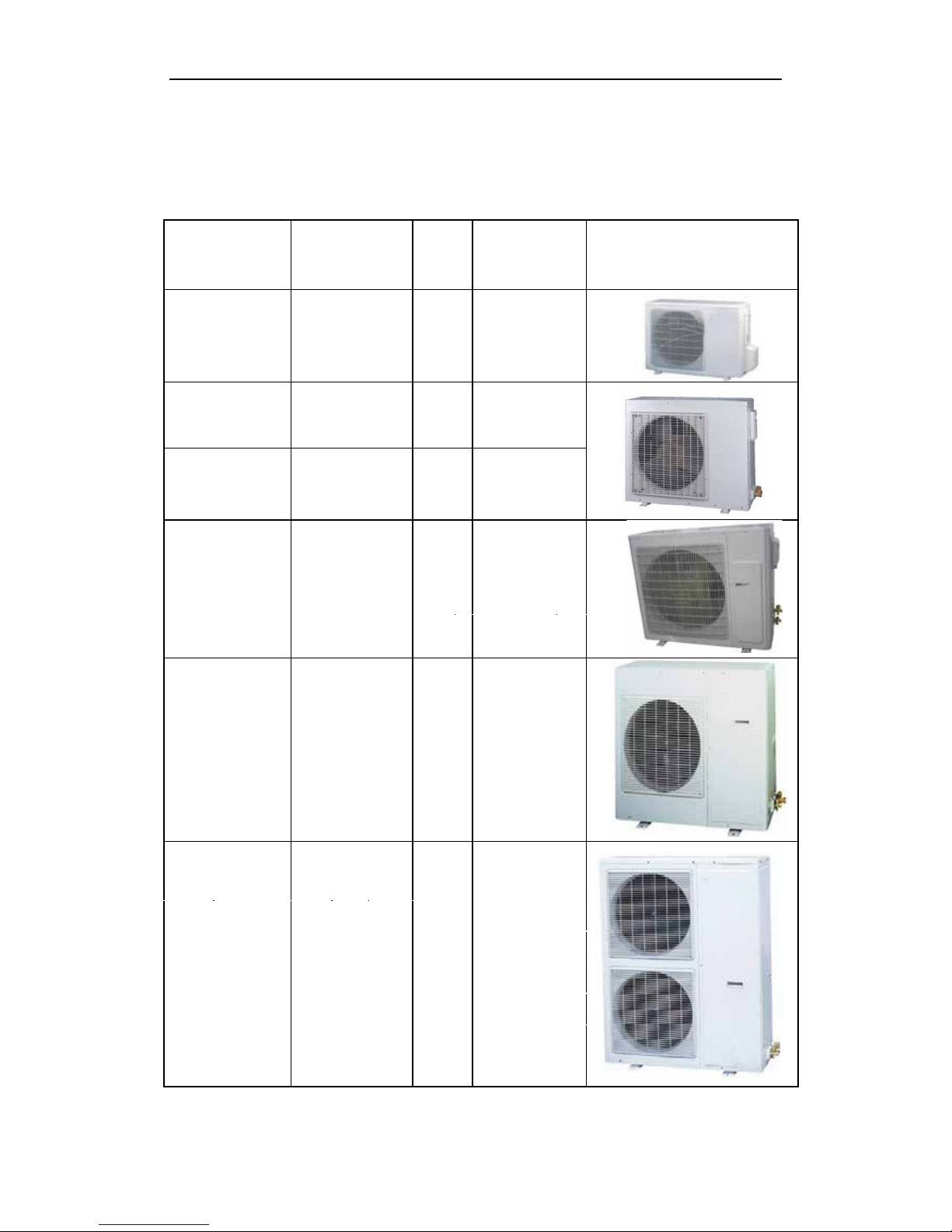

1.1 Outdoor Unit
Model Name
Nominal Capacity
Cooling/Heating
(Btu/h)
Ref. Power supply
(V, Ph, Hz) Appearance
ASGE-18AI 17060/19790 R410A 220-240,1,50
ASGE-24AI 23880/27330 R410A 220-240,1,50
ASGE-24AI S 23880/27330 R410A 220-240,1,50
ASGE-36AI S 34100/36800 R410A 220-240,1,50
ASGE-42AI-3 S 40600/40500 R410A 220-240,1,50
ASGE-36AI 36000/42000 220-240,1,50
ASGE-36AI-3 36000/42000 R410A 380-415,3,50
ASGE-42AI-3 42000/48000 380-415,3,50
Note:1 Ton =12000Btu/h = 3.517kW ASGE
ASGE-36AI-3 S
34100/36800 R410A 380-415~,3,50

NOTE: all indoor units are single phase
1.2 Indoor Unit
Type Model Name
Nominal Capacity
Cooling/Heating
(Btu/h)
Ref.
Power
supply
(V, Ph, Hz)
Appearance
ASD-18AI 17060/19790
ASD-24AI 23880/27330
ASD-36AI 36000/42000
ASD-36AI S 34100/36800
ASD-42AI
42000/48000
ASD-42AI S 40600/45000
Duct
Type
220-240
1Ph
50Hz
ASF-18AI 17060/19790
ASF-24AI 23880/27300
ASF-36AI 36000/42000
R410A
ASF-36AI S34100/36800
ASF-42AI 40940/44350
ASF-42AI S42000/48000
Ceiling
Type
ASC-18AI 17060/19790
ASC-24AI 23880/27300
ASC-36AI 36000/42000
ASC-36AIS 34100/36800
ASC-42AI 42000/48000
ASC-42AI S 40600/44350
Cassette
Type

2. Model Designation
A S C–36 A I -3 S
3phase
Inverter
Refrigeranttype(A-R410A)
CoolingCapacity in HP (x100) HP
Type
SINCLAIR
AirConditioner
2.1 Regulation of Units Classification
Units classification Code
Outdoor unit GE
Cassette type C
Floor/Ceiling type F
Duct type D
Model Designation
（1）ASGE-18AI means universal outdoor unit with nominal cooling capacity of 18000Btu, signle phase
power supply of 220~240V，50Hz, heat pump, DC inverter,T1 condition and refrigerant of R410a .
（2）ASGE-42AI-3 means universal outdoor unit with nominal cooling capacity of 42000Btu, three phase
power supply of 380~415V，50Hz, heat pump, DC inverter,T1 condition and refrigerant of R410a .
（3）ASD-24AI means duct type indoor unit with nominal cooling capacity of 24000Btu, single phase
power supply of 220~240V，50Hz, heat pump, DC inverter,T1 condition and refrigerant of R410a .
Note:1 Ton =12000Btu/h = 3.517kW
NOTES: The universal outdoor units means that the customer
can choose any of three kind of indoor unit to match
the outdoor unit without any change with it.
-small pipe diameter
（）ASD-42AI-3 S means duct type indoor unit with nominal cooling capacity of 42000Btu, single phase
power supply of 220~240V，50Hz, heat pump, DC inverter,T1 condition and refrigerant of R410a,
with small pipe diameter .

3 FUNCTION
Function Description
Memory function when unit restarts after power off, it will run on former status, the mode and
parameter are kept the same
Remote control function wireless controller and remote controller can be selected, and the maximum
control distance of remote controller is 10m.
Timing function it can timing ON/ OFF separately, meanwhile, it can also timing on circularly
Self-diagnosis with
alarm function
Once the unit has malfunction, the malfunction code will be indicated and alarm
rings immediately
Sleep function it can self control for saving energy in energy saving mode.
Automatic function the fan of indoor unit can adjust fan speed automatically based on actual
demand when cooling or heating under automatic mode
Cool air proof function the fan starts only when the temperature of indoor unit heat exchanger is higher
than indoor temperature under heating mode
Weekly Time
Centralized Control and Weekly Timer Functions: The centralized controller and
the weekly timer are integrated in the same wire controller. The system has both
the centralized control and the week timing functions. Up to 16 sets of units can
be controlled simultaneously by the centralized controller (weekly timer). The
weekly timer has the function of invalidating the lower unit. The weekly timing
function is able to realized four timing ON/OFF periods for any unit every day, so
as to achieve fully automatic operation. No timing control can be set for holidays.
High/low pressure
protection
when suction pressure is too low or discharge pressure is too high, compressor
will stop and unit display malfunction code
Overload protection
compressor has its own overheat protection.Once the temperature of
compressor is higher than allowable level, compressor will stop and only when
temperature recovery, compressor restart
Over current protection once the current of compressor is higher than normal level, compressor will stop
and unit display malfunction code
Discharge high
temperature protection
once the discharge temperature of compressor is higher than allowable value,
compressor will stop and unit display malfunction code
Reverse (open) phase
protection
once the phase sequence of power supply is incongruent or the phase is absent,
unit can’t work.
Anti-high temperature
protection
once the heat exchanger temperature of indoor unit is too high, compressor will
stop.
Timing ON/OFF display display and timing turn ON/OFF timeonly with wired controller have this
function
Fan speed display display the speed (high,medium,low) of fanonly with wired controller have this
function
Function model display cooling mode,dry mode,heating mode,fan modeonly with wired controller have
this function
Testing display display testing modeonly with wired controller have this function
Temperature display display room temperature and set temperatureonly with wired controller and
remoter board have this function

4 PRODUCT DATA
4.1 Product Data at Rated Condition
4.1.1 Duct Type
Indoor unit ASD-18AI
Model Outdoor unit ASGE-18AI
kW 5.0
Cooling Btu/h 17000
kW 5.8
Nominal
Capacity Heating Btu/h 19800
Cooling kW 1.57
wer
Input Heating kW 1.53
EER/COP W/W 3.18/3.79
Indoor Unit ASD-18AI
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.06
Air Flow m3/h 840
Fan
Ext. Static Pressure Pa 60
Sound Pressure Level(H/M/L) dB(A) 42/40/38
Air Filter Standard washable synthetic
Drain Piping mm φ32×1.5
Dimensions (W×H×D)
(Outline/Package) mm 1012×266×736 /1120×323×795
Weight(Net/Gross) kg 34/41
Outdoor Unit ASGE-18AI
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Axial fan
Motor Output kW 0.03
Fan
Fan Motor Speed rpm 850
Type ROTARY
Compressor Power Input W 1630
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 1.5
Dimensions (W×H×D)
(Outline/Package) mm 820×540×320 /870×590×360
Weight(Net/Gross) kg 36/40
Liquid mm 6.35
Gas mm 12.7
Max. Length m 20
Piping
Connections
Max. Height Difference m 15
Power

Continued: 1
Indoor unit ASD-24AI
ASD-36AI
Model Outdoor unit ASGE-24AI ASGE-36AI
kW 7.0 10.0
Cooling Btu/h 24000
34100
kW 8.0 12.0
Nominal
Capacity Heating Btu/h 27300 40900
Cooling kW 2.41 3.5Power
Input Heating kW 2.28 3.8
EER/COP W/W 2.90/3.51 2.86/3.16
Indoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.15 0.5
Air Flow m3/h 1600 2000
Fan
Ext. Static Pressure Pa 80 150
Sound Pressure Level(H/M/L) dB(A) 47/44/42 50/48/46
Air Filter Standard washable synthetic
Drain Piping mm φ20×1.2 φ20×1.2
Dimensions (W×H×D)
(Outline/Package) mm 1270×268×530
/1345×283×594
1226×290×775
/1335×305×834
Weight(Net/Gross) kg 37/43 54/61
Outdoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.068 0.092×2
Fan
Fan Motor Speed (H/M/L) rpm 840/620/400 940/-/700
Type ROTARY SCROLL
Compressor Power Input W 1630 3240
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 1.8 4.0
Dimensions (W×H×D)
(Outline/Package) mm 913×680×378
/994×750×428
1032×1250×412
/1110×1385×450
Weight(Net/Gross) kg 51/55 128/139
Liquid mm 9.52 12.7
Gas mm 15.8 19.05
Max. Length m 30 50
Piping
Connections
Max. Height Difference m 15 30
ASD-24AI ASD-36AI
ASGE-24AI ASGE-36AI
(old unit)

Continued: 2
Indoor unit ASD-36AI ASD-42AI
Model Outdoor unit ASGE-36AI-3 ASGE-42AI-3
kW 10.0 12.0
Cooling Btu/h 34100 41000
kw12.0 14.0
Nominal
Capacity Heating Btu/h 40900
48000
Cooling kW 3.3 4.45 Power
Input Heating kW 3.7 4.65
EER/COP W/W 3.05/3.3 2.70/3.01
Indoor Unit ASD-36AI ASD-42AI
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.5
Air Flow m3/h 2000
Fan
Ext. Static Pressure Pa 150
Sound Pressure Level(H/M/L) dB(A) 50/48/46
Air Filter Standard washable synthetic
Drain Piping mm φ20×1.2
Dimensions (W×H×D)
(Outline/Package) mm 1226×290×775
/1335×305×834
Weight(Net/Gross) kg 54/61
Outdoor Unit ASGE-36AI-3 ASGE-42AI-3
Power Supply 380-415V~/3 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.092×2 0.092×2
Fan
Fan Motor Speed (H/M/L) rpm 940/-/700 940/-/700
Type SCROLL
Compressor Power Input W 4160
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 4.0
Dimensions (W×H×D)
(Outline/Package) mm 1032×1250×412
/1110×1385×450
Weight(Net/Gross) kg 128/139
Liquid mm 12.7
Gas mm 19.05
Max. Length m 50
Piping
Connections
Max. Height Difference m 30

Continued: 4
Indoor unit
Model Outdoor unit
kW 7.0 10.0
Cooling Btu/h 24000 34100
kW 8.0 10.8
Nominal
Capacity Heating Btu/h 27300 36800
Cooling kW 2.41 3.50Power
Input Heating kW 2.28 2.90
EER/COP W/W 2.90/3.51 2.85/3.72
Indoor Unit
Power Supply －220~240V-50Hz-1Ph
Heat Exchange －Cross Fin Coil
Type －Centrifugal fan
Drive －Direct Driver
Motor Output kW 0.15×1 0.50×1
Air Flow m3/h 1600/1400/1200 2000
Fan
Ext. Static Pressure Pa 80 150
Sound Pressure Level(H/M/L) dB(A) 47/44/42 50/48/46
Air Filter －Standard washable synthetic
Drain Piping mm φ26×2
Dimensions (W×H×D)
(Outline/Package) mm 1270×268×530
/1345×283×594
1226×290×775
/1335×305×834
Weight(Net/Gross) kg 37/43 54/61
Outdoor Unit
Power Supply －220~240V-50Hz-1Ph
Heat Exchange －Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.068×1 0.093×1
Fan
Fan Motor Speed (H/M/L) rpm 840/620/400 780/-/500
Type －ROTARY
Compressor Output Input W 1630 3010±7.5%
Type －R410A
Control －Electronic expansion valve
Refrigerant
Charge kg 1.8 2.6
Dimensions (W×H×D)
(Outline/Package) mm 980×790×427
/1080×840×485
Weight(Net/Gross) kg 51/55 70/78
Liquid mm 9.52
Gas mm 15.88
Max. Length m 30
Piping
Connections
Max. Height Difference m 15
ASGE-24AI S
ASD-24AI ASD-36AI S
ASD-36AI S
ASGE-36AI S
ASGE-36AI S
ASD-24AI
ASGE-24AI S
(new unit)

Continued: 5
Indoor unit ASD-36AI S ASD-42AI S
Model Outdoor unit ASGE-36AI-3 S ASGE-42AI-3 S
kW 10.0 11.9
Cooling Btu/h 34100 40600
kW 10.8 13.2
Nominal
Capacity Heating Btu/h 36800 45000
Cooling kW 3.50 4.17Power
Input Heating kW 2.90 3.94
EER/COP W/W 2.85/3.72 2.85/3.35
Indoor Unit
Power Supply 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.5×1
Air Flow m3/h 2000
Fan
Ext. Static Pressure Pa 150
Sound Pressure Level(H/M/L) dB(A) 50/48/46
Air Filter Standard washable synthetic
Drain Piping mm 26×2
Dimensions (W×H×D)
(Outline/Package) mm 1226×290×775
/1335×305×834
Weight(Net/Gross) kg 54/61
Outdoor Unit
Power Supply 380~415V-50Hz-3Ph 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.93×1
Fan
Fan Motor Speed (H/M/L) rpm 780/-/500 820±20
Type ROTARY
Compressor Power Input kW 3010±7.5%
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 2.6 3.5
Dimensions (W×H×D)
(Outline/Package) mm 980×790×427
/1080×840×485
1107×1100×440
/1155×1220×490
Weight(Net/Gross) kg 70/78 88/98
Liquid mm 9.52 9.52
Gas mm 15.88 15.88
Max. Length m 30 50
Piping
Connections
Max. Height Difference m 15 30
ASD-36AI SASD-42AI S
ASGE-36AI-3 S ASGE-42AI-3 S

Note
Nominal capacities are based on the follow conditions.
Indoor Outdoor
Cooling
DB27 (80.6 )℃℉
WB19 (66.2 )℃℉
DB35 (95 )℃℉
WB24 (75.2 )℃℉
Heating
DB20 (68 )℃℉
WB-- (℃-- )℉
DB7(44.6)℃℉
WB6(42.8)℃℉
Piping Length 5m
The air volume is measured at the relevant standard external static pressure.
 Noise is tested in the Semianechoic Room, so it should be slightly higher in the actual
operation due to environmental change.

4.1.2 Ceiling Type
Indoor unit ASF-18AI
Models Outdoor unit ASGE-18AI
kW 5.0
Cooling Btu/h 1700
kW 5.8
Nominal
Capacity Heating Btu/h 19800
Cooling kW 1.81Power
Input Heating kW1.94
EER/COP W/W 2.76/2.99
Indoor Unit ASF-18AI
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.04
Fan
Air Flow m3/h 700
Sound Pressure Level(H/M/L) dB(A) 54/50/46
Air Filter Standard washable synthetic
Drain Piping mm φ28×1.5
Dimensions (W×H×D)
(Outline/Package) mm
836×238×695
/935×295×805
Weight(Net/Gross) kg 26/33
Outdoor Unit ASGE-18AI
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.03
Fan
Fan Motor Speed rpm 850
Type ROTARY
Compressor Power Input W 1630
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 1.50
Dimensions (W×H×D)
(Outline/Package) mm
820×540×320
/870×360×590
Weight(Net/Gross) kg 36/40
Liquid mm 6.35
Gas mm 12.70
Max. Length m 20
Piping
Connections
Max. Height Difference m 15

Continued: 1
Indoor unit ASF-24AI ASF-36AI
Models Outdoor unit ASGE-24AI ASGEASGE-36AI
kW 7.0 10.0
Cooling Btu/h 24000 34100
kW 8.0 12.0
Nominal
Capacity Heating Btu/h 27300 40900
Cooling kW 2.43 3.35Power
Input Heating kW 2.2 3.95
EER/COP W/W 2.88/3.64 2.98/3.04
Indoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.1 0.085
Fan
Air Flow m3/h 1170 1800
Sound Pressure Level(H/M/L) dB(A) 50/48/46 54/51/48
Air Filter Standard washable synthetic
Drain Piping mm φ28×1.5 φ28×1.5
Dimensions (H×W×D)
(Outline/Package) mm 1300×188×600
/1414×248×724
1590×238×695/
1714×330×830
Weight(Net/Gross) kg 33/40 48/58
Outdoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.068 0.092×2
Fan
Fan Motor Speed (H/M/L) rpm 840/620/400 940/-/700
Type ROTARY SCROLL
Compressor Power Input W 1630 3240
Type R410A
Control Electronic expansion valve
Refrigerant
Charge kg 1.8 4.0
Dimensions (W×H×D)
(Outline/Package) mm 913×680×378
/994×750×428
1032×1250×412
/1110×1385×450
Weight(Net/Gross) kg 51/55 128/139
Liquid mm 9.52 12.7
Gas mm 15.8 19.05
Max. Length m 30 50
Piping
Connections
Max. Height Difference m 15 30
ASF-24AI
ASF-36AI
ASGE-24AI ASGE-36AI

Continued: 2
Indoor unit ASF-36AI ASF-42AI
Models Outdoor unit ASGE-36AI-3 ASGE-42AI-3
kW 10.0 12.0
Cooling Btu/h 34100 41000
kW 12.0 14.0
Nominal
Capacity Heating Btu/h 40900 48000
Cooling kW 3.4 4.3
Power
Input Heating kW 4.0 4.8
EER/COP W/W 2.94/3.00 2.79/2.92
Indoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.085
Fan
Air Flow m3/h 1800
Sound Pressure Level(H/M/L) dB(A) 54/51/48
Air Filter Standard washable synthetic
Drain Piping mm φ28×1.5
Dimensions (W×H×D)
(Outline/Package) mm 1590×238×695 /1714×330×830
Weight(Net/Gross) kg 48/58
Outdoor Unit
Power Supply 380-415V~/3 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.092×2
Fan
Fan Motor Speed (H/M/L) rpm 940/-/700
Type SCROLL
Compressor Power Input W 4160
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 4.0
Dimensions (W×H×D)
(Outline/Package) mm 1032×1250×412 /1110×1380×450
Weight(Net/Gross) kg 128/139
Liquid mm 12.7
Gas mm 19.05
Max. Length m 50
Piping
Connections
Max. Height Difference m 30
ASF-36AI ASF-42AI
ASGE-36AI-3 ASGE-42AI-3

Continued: 4
Indoor unit ASF-24AI ASF-36AI S
Models Outdoor unit ASGE-24AI S ASGE-36AI S
kW 7.0 10.0
Cooling Btu/h 24000 34100
kW 8.0 10.8
Nominal
Capacity Heating Btu/h 27300 36800
Cooling kW 2.43 3.4Power
Input Heating kW 2.20 2.90
EER/COP W/W 2.88/3.64 2.94/3.72
Indoor Unit
Power Supply 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive direct
Motor Output kW 0.05×1 0.085×1
Fan
Air Flow m3/h 1170 1800
Sound Pressure Level(H/M/L) dB(A) 50/48/46 54/51/48
Air Filter Standard washable synthetic
Drain Piping mm 17×2.5
Dimensions (H×W×D)
(Outline/Package) mm 1300×188×600/14
14×248×724
1590×238×695/
1 714×330×830
Weight(Net/Gross) kg 33/40 48/58
Outdoor Unit
Power Supply 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.068×1 0.093×1
Fan
Fan Motor Speed (H/M/L) rpm 840/620/400 780/-/500
Type ROTARY
Compressor Power Input W 1630 3010±7.5%
Type R410A
Control Electronic expansion valve
Refrigerant
Charge kg 1.8 2.6
Dimensions (W×H×D)
(Outline/Package) mm 913×680×378/
994×750×428
980×790×427/
1080×840×485
Weight(Net/Gross) kg 51/55 70/78
Liquid mm 9.52 9.52
Gas mm 15.88 15.88
Max. Length m 30
Piping
Connections
Max. Height Difference m 15
ASF-24AI
ASGE-24AI S
ASF-36AI S
ASGE-36AI S

Continued: 5
Indoor unit ASF-36AI S ASF-42AI S
Models Outdoor unit ASGE-36AI-3 S ASGE-42AI-3 S
kW 10 12
Cooling Btu/h 34100 40940
kW 10.8 13.0
Nominal
Capacity Heating Btu/h 36800 44350
Cooling kW 3.40 4.14
Power
Input Heating kW 2.90 3.94
EER/COP W/W 2.94/3.72 2.90/3.30
Indoor Unit
Power Supply 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.085×1
Fan
Air Flow m3/h 1800
Sound Pressure Level(H/M/L) dB(A) 54/51/48
Air Filter Standard washable synthetic
Drain Piping mm 17×2.5
Dimensions (W×H×D)
(Outline/Package) mm 1590×238×695/ 1714×330×830
Weight(Net/Gross) kg 48/58
Outdoor Unit
Power Supply 380~415V-50Hz-3
Ph 220~240V-50Hz-1Ph
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.093×1
Fan
Fan Motor Speed (H/M/L) rpm 780/-/500 820±20
Type ROTARY
Compressor Power Input W 3010±7.5%
Type R410A
Control Electronic expansion valve
Refrigerant
Charge kg 2.6 3.5
Dimensions (W×H×D)
(Outline/Package) mm 980×790×427 /1080×840×485
1107×1100×440
/1155×1220×490
Weight(Net/Gross) kg 70/78 88/98
Liquid mm 9.52
Gas mm 15.88
Max. Length m 50
Piping
Connections
Max. Height Difference m 30
ASF-36AI S
ASGE-36AI-3 S
ASF-42AI S
ASGE-42AI-3 S

Note
Nominal capacities are based on the follow conditions.
Indoor Outdoor
Cooling DB27 (80.6 )℃℉
WB19 (66.2 )℃℉
DB35 (95 )℃℉
WB24 (75.2 )℃℉
Heating DB20 (68 )℃℉
WB-- (℃-- )℉
DB7(44.6)℃℉
WB6(42.8)℃℉
Piping Length 5m
The air volume is measured at the relevant standard external static pressure.
Noise is tested in the Semianechoic Room, so it should be slightly higher in the actual
operation due to environmental change.

4.1.3 Cassette Type
Indoor unit ASC-18AI ASC-24AI ASC-36AI
Models Outdoor unit ASGE-18AI ASGE-36AI
kW 5.0 7.0 10.0
Cooling Btu/h 17000 24000 341
kW 5.8 8.0 12.0
Nominal
Capacity Heating Btu/h 19800 27300 40900
Cooling kW 1.71 2.49 3.4
Power
Input Heating kW 1.93 2.11 4.0
EER/COP W/W 2.92/3.00 2.81/3.79 2.98/3.00
Indoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.011 0.035 0.06
Fan
Air Flow m3/h 680 1180 1660
Sound Pressure Level(H/M/L) dB(A) 47/45/42 47/45/42 53/51/48
Air Filter Standard washable synthetic
Drain Piping mm φ31×3 φ32×3 φ32×3
Indoor Unit Dimensions
(Outline/Package) (W×H×D) mm 600×230×600
/848×310×678
840×240×840
/960×310×960
840×320×840
/960×394×960
Weight(Net/Gross) kg 20/27 30/38 32/43
Panel Dimensions
(Outline/Package) (W×H×D) mm 650×50×650
/670×102×730
950×60×950
/1025×115×1040
950×60×950
/1025×115×1040
Panel Weight(Net/Gross) kg 2.5/3.5 6.5/10 6.5/10
Outdoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.03 0.068 0.093×2
Fan
Fan Motor Speed (H/M/L) rpm 850 840/620/400 940/-/700
Type ROTARY SCROLL
Compressor Power Input W 1630 3240
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg 1.5 1.8 4.0
Dimensions (W×H×D)
(Outline/Package) mm 820×540×320/
878×590×360
913×680×378
994×750×428
1032×1250×412/
1110×1385×450
Weight(Net/Gross) kg 36/40 51/55 128/139
Liquid mm 6.35 9.52 12.7
Gas mm 12.7 15.8 19.05
Max. Length m 20 30 50
Piping
Connections
Max. Height Difference m 15 15 30
ASC-18AI
ASGE-18AI
ASC-24AI
ASGE-24AI
ASC-36AI
ASGE-36AI
ASGE-24AI

Continued: 1
Indoor unit ASC-36AI
Models Outdoor unit ASGE-36AI-3
kW 10
Cooling Btu/h 34100
kW 12
Nominal
Capacity Heating Btu/h 40900
Cooling kW 3.4
Power
Input Heating kW 4.0
EER/COP W/W 2.94/3.00
Indoor Unit
Power Supply 220-240V~/1 Ph/50HZ
Heat Exchange Cross Fin Coil
Type Centrifugal fan
Drive Direct Driver
Motor Output kW 0.06
Fan
Air Flow m3/h 1660
Sound Pressure Level(H/M/L) dB(A) 53/51/48
Air Filter Standard washable synthetic
Drain Piping mm φ32×3
Indoor Unit Dimensions
(Outline/Package) (W×H×D) mm 840×320×840/ 960×394×960
Weight(Net/Gross) kg 32/43
Panel Dimensions
(Outline/Package) (W×H×D) mm 950×60×950/
1025×115×1040
Panel Weight(Net/Gross) kg
6.5/10
Outdoor Unit
Power Supply 380-415V~/3
Ph/50HZ
Heat Exchange Cross Fin Coil
Type ―Axial fan
Motor Output kW 0.092×2
Fan
Fan Motor Speed (H/M/L) rpm 940/-/700
Type SCROLL
Type R410A
Control Electronic Expansion Valve
Refrigerant
Charge kg
4.0
Dimensions (W×H×D)
(Outline/Package) mm 1032×1250×412/ 1110×1385×450
Weight(Net/Gross) kg 128/139
Liquid mm 12.7
Gas mm 19.05
Max. Length m 50
Piping
Connections
Max. Height Difference m 30
ASC-36AI
ASGE-36AI-3
