Sinclair ASH-09CS User manual

AIR CONDITIONER
Internet: http://www.sinclair-eu.com
E-mail: [e-mail]
SPLIT AIR CONDITIONER WALL MOUNTED MODEL SINCLAIR
OWNER‘S MANUAL
ASH-09CS
ASH-12CS
SLIM SERIE
Before operating the unit please
carefully read this manual.

1
The instructions before use
Never splice the power cord or
use an extended cord.
It can cause overheating or fire.
Don’t pull out the power plug
during operation.
It can cause an electric shock or
fire.
The power plug must be in-
serted tightly.
Otherwise, it can cause an elec-
tric shock, overheating or fire.
for the security of the air
conditioner,it should be safely
connected to earth .
The line that be connected to the
earth of the outdoor unit should
be connected correctly and
tightly.
WARNING
THE INSTRUCTIONS BEFORE USE
Don’t apply the cold wind to
the body for a longtime. It
cause the physical condition
deterioration and health
problems.
When having a burning smell
or smoke, please turn off the
power supply and contact with
the service center.
Don’t attempt to repair the air
conditioner by yourself.
You may cause further malfunc-
tions
Don’t operate the Air condi-
tioner with wet hands.
It can cause an electric shock .
Don’t use longer power lines
and don’t share a same socket
with other electric appliances.
It can cause an electric shock or
fire.
Don’t insert your hands or stick
into the air intake or outlet
vents.
It can cause danger.
６６１２２４５２．ｐ６５ 03-7-15, 17:251

2
THE INSTRUCTIONS BEFORE USE
Please note whether the in-
stalled stand is firm enough or
not.
It leads to the falling of the unit
which causes the injury etc.
occasionally.
Don’t step on the top of the out-
door unit. As falling off the out-
door unit can be dangerous.
Don’t block the air intake or
outlet vents of both the outdoor
and indoor units. It can decrease
the air conditioning capacity or
cause a malfunction.
Don’t pull the power cord to
pull out the power plug.
It can cause fire.
Don’t place a space heater near
the air conditioner. Air flow
from the air conditioner can cause
incomplete combustion to the
space heater.
Keep combustible spray away
from the units.
It is likely to ignite and explode.
Don’t use any other fuse ex-
cluding the fuse of correct
capacity.
Improper wire could cause the
breaking down or fire.
Be sure to pull out the power
plug as the Air Conditioner will
not be used for a longtime.
When cleaning, it is necessary
to stop driving and turn off the
power suply.
It occasionally cause the electric
shock.
６６１２２４５２．ｐ６５ 03-7-15, 17:262

3

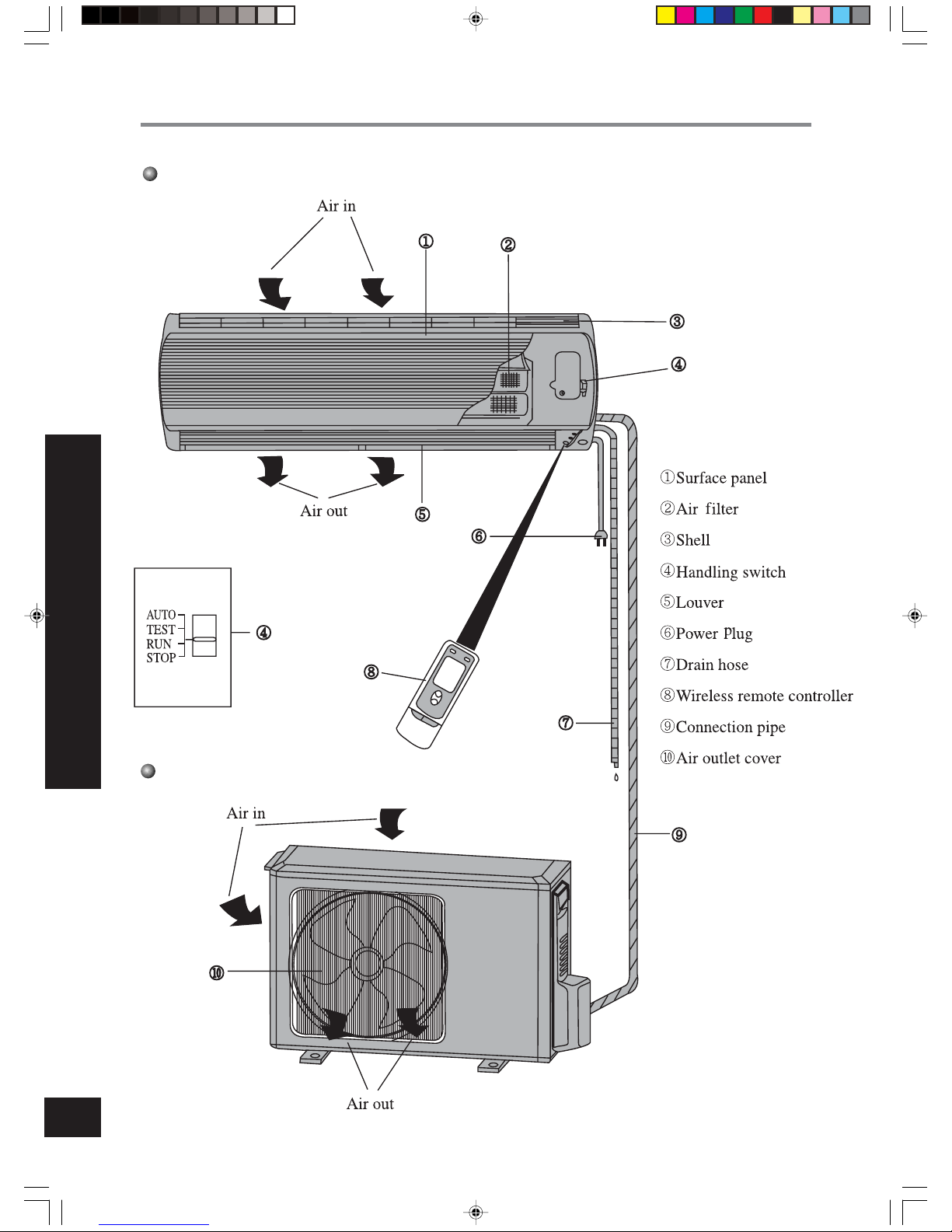

Name and function of each part
Indoor unit
NAME AND FUNCTION OF EACH PART
Outdoor unit
６６１２２４５２．ｐ６５ 03-7-15, 17:263

4

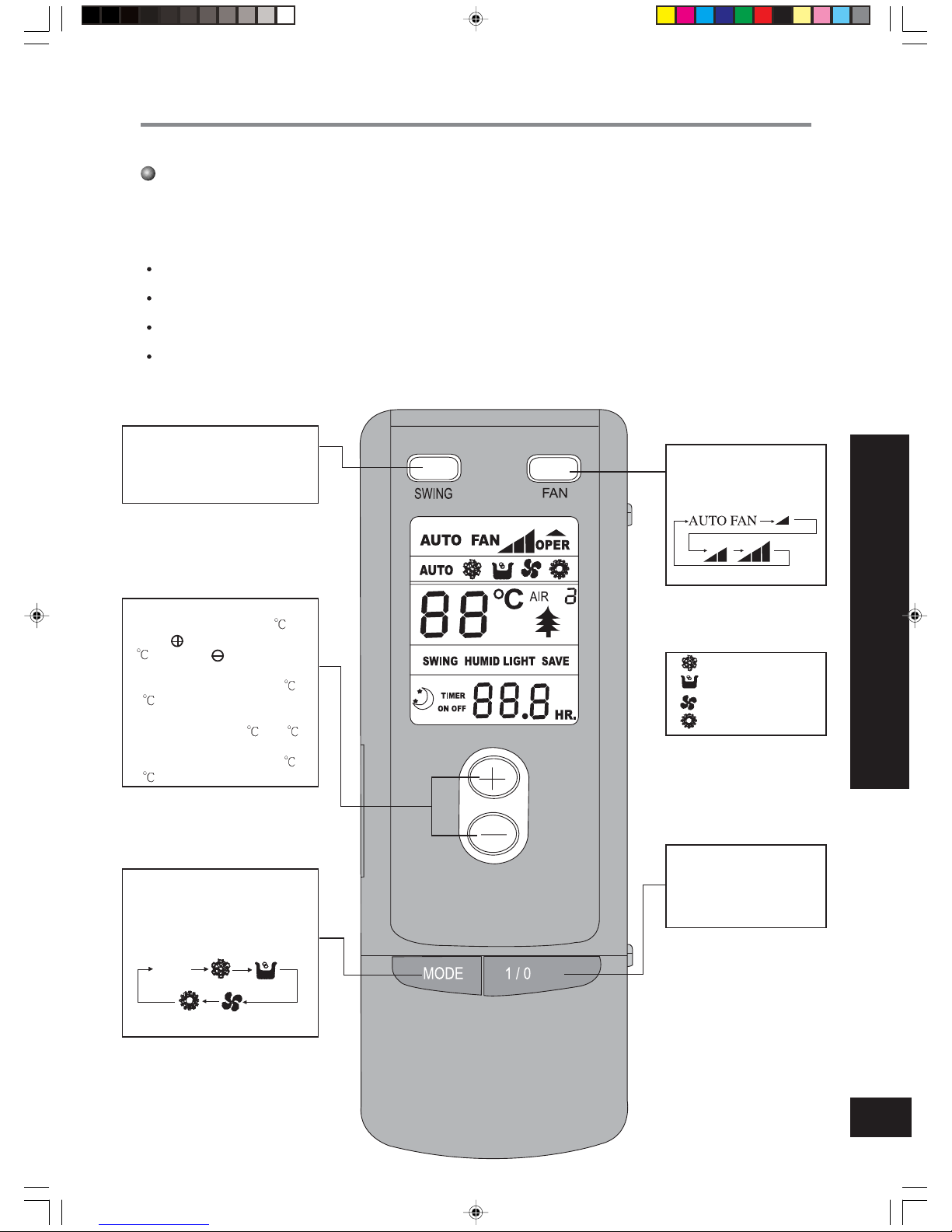

Remote control operation procedure
Name and Function-Remote control
Note:
Be sure that there are no obstructions between receiver and remote controller.
The remote control signal can be received at the distance of up to about 10m.
Don’t drop or throw the remote control.
Don’t let any liquid in the remote controller and put the remote controller di-
rectly under the sunlight or any place where is very hot.
SWINGbutton
When it is pressed, the louvers
start to rotate automatically and
stop when repressed.
TEMP.button
SET TEMP. increases 1 by
pressing button once,and decreases
1by pressing button once.
At COOL mode operation, SET
TEMP. can be selected from 16 to
30 .
At DRY mode operation, SET TEMP.
can be selected from 16 to 30 .
At HEAT mode operation, SET
TEMP. can be selected from 16 to
30 .
MODE button
press this button to change the
operation mode in order of:
FAN button
Press this button to change
the fan speed of:
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
1/0 button
Press this button to turn on
or turn off the unit.
REMOTE CONTROL OPERATION PROCEDURE
AUTO
６６１２２４５２．ｐ６５ 03-7-15, 17:264

5
REMOTE CONTROL OPERATION PROCEDURE

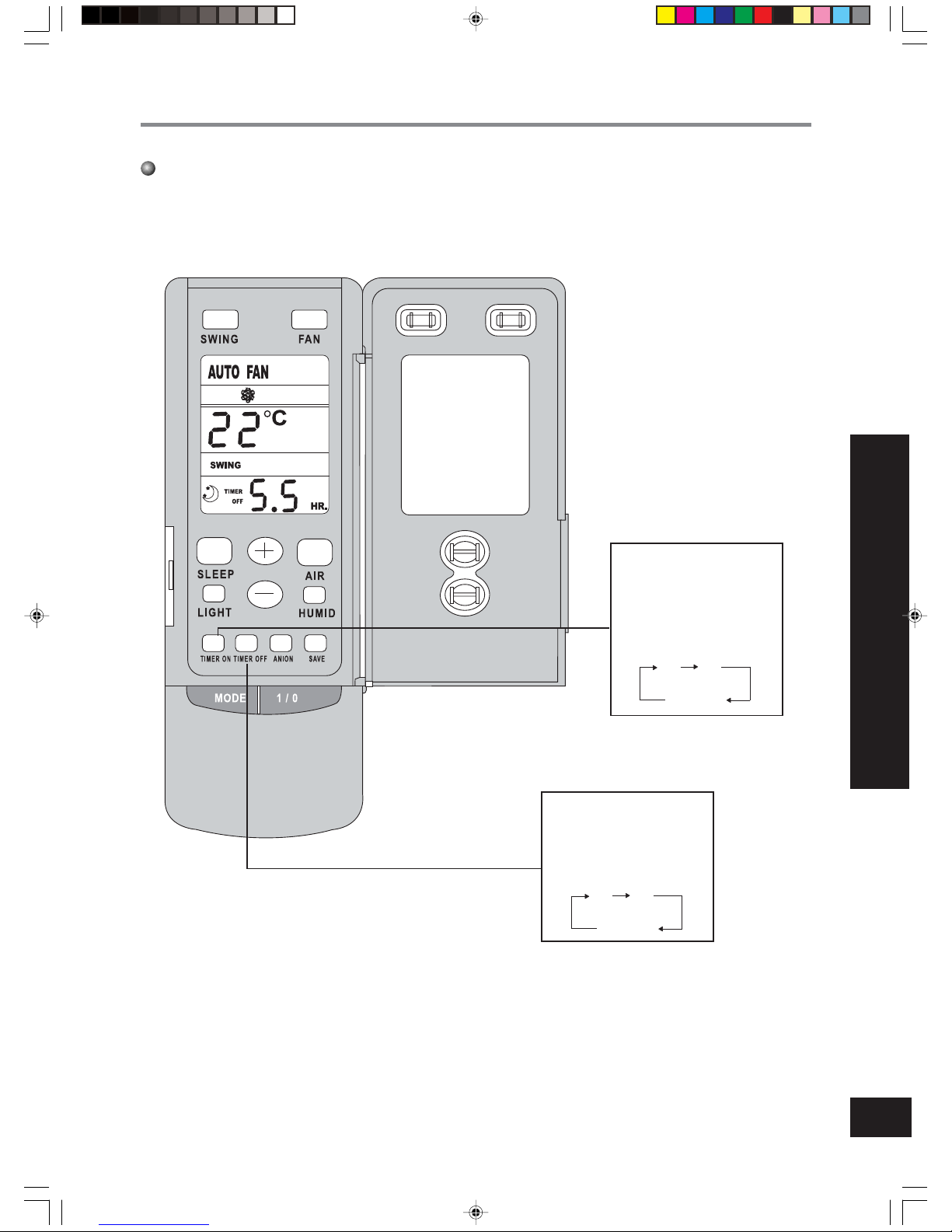

Name and Function-Remote control. (Remove the cover)
Note: This type of remote controller is a kind of new current controller.
some buttons of the controller which are not available to this Air condi-
tioner will not be described below.
Operate on unmentioned buttons would not impact on the normal use.
SLEEP button
Press this button to set
SLEEP operation. and stop
when repressed.
TIMER OFF button
At operating, press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.
TIMER ON button
At stopping, press TIMER
ON button, set ON TIME in
range of 0 to 24 hour at the
interral of 0.5h to start the
unit automatically.
0 24h
Timer
cancellation
0 24h
Timer
cancellation
Liquid crystal displayer. It
shows all set contents.
６６１２２４５２．ｐ６５ 03-7-15, 17:265

6
REMOTE CONTROL OPERATION PROCEDURE

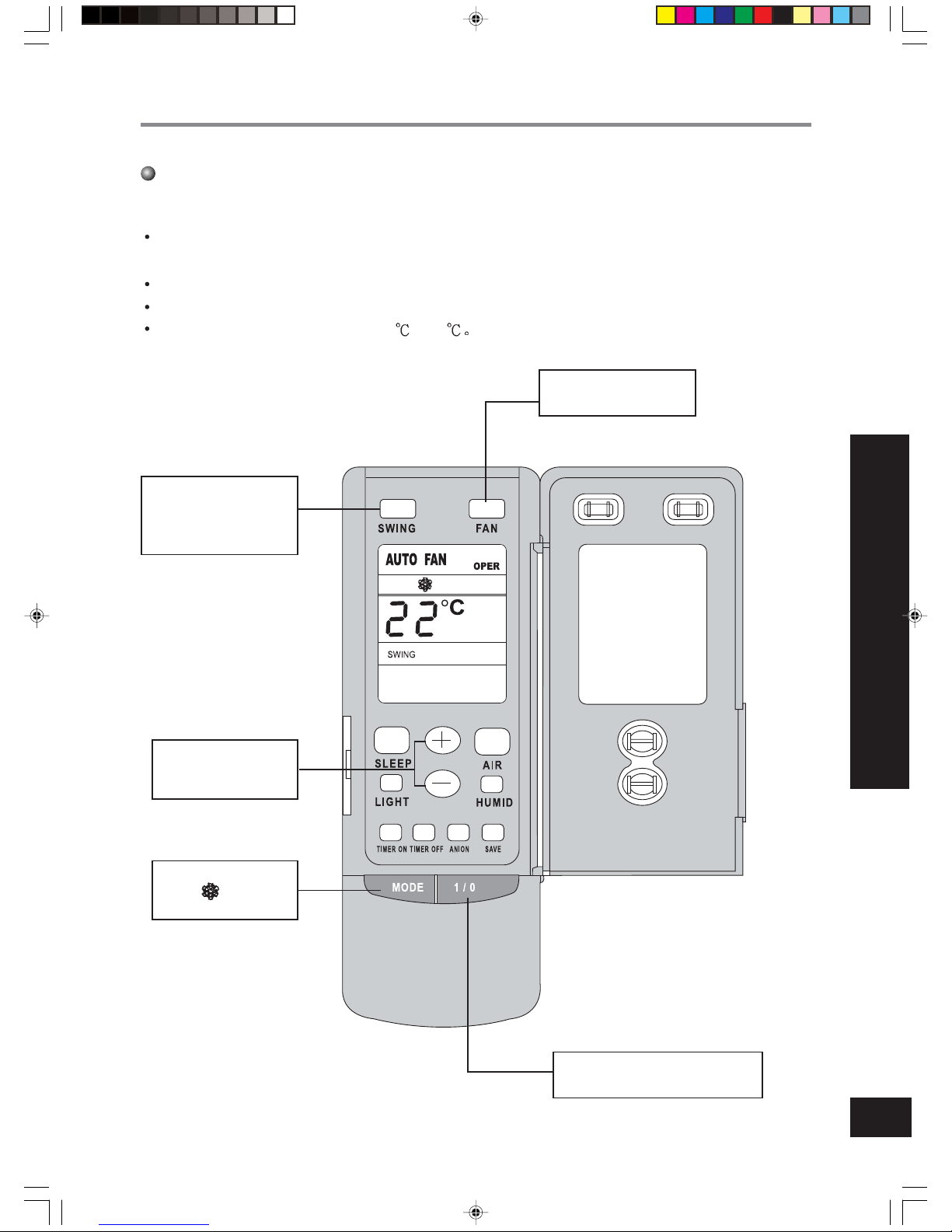

COOL mode operation procedure
According to difference between room temp. and set temp., microcomputer can control cooling on or
not.
If room temp. is higher than set temp., compressor runs at COOL mode.
If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.
SET TEMP. should be in range of 16 to 30
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable SET
TEMP.
2.Press MODE button,
set operation
mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
６６１２２４５２．ｐ６５ 03-7-15, 17:266

7

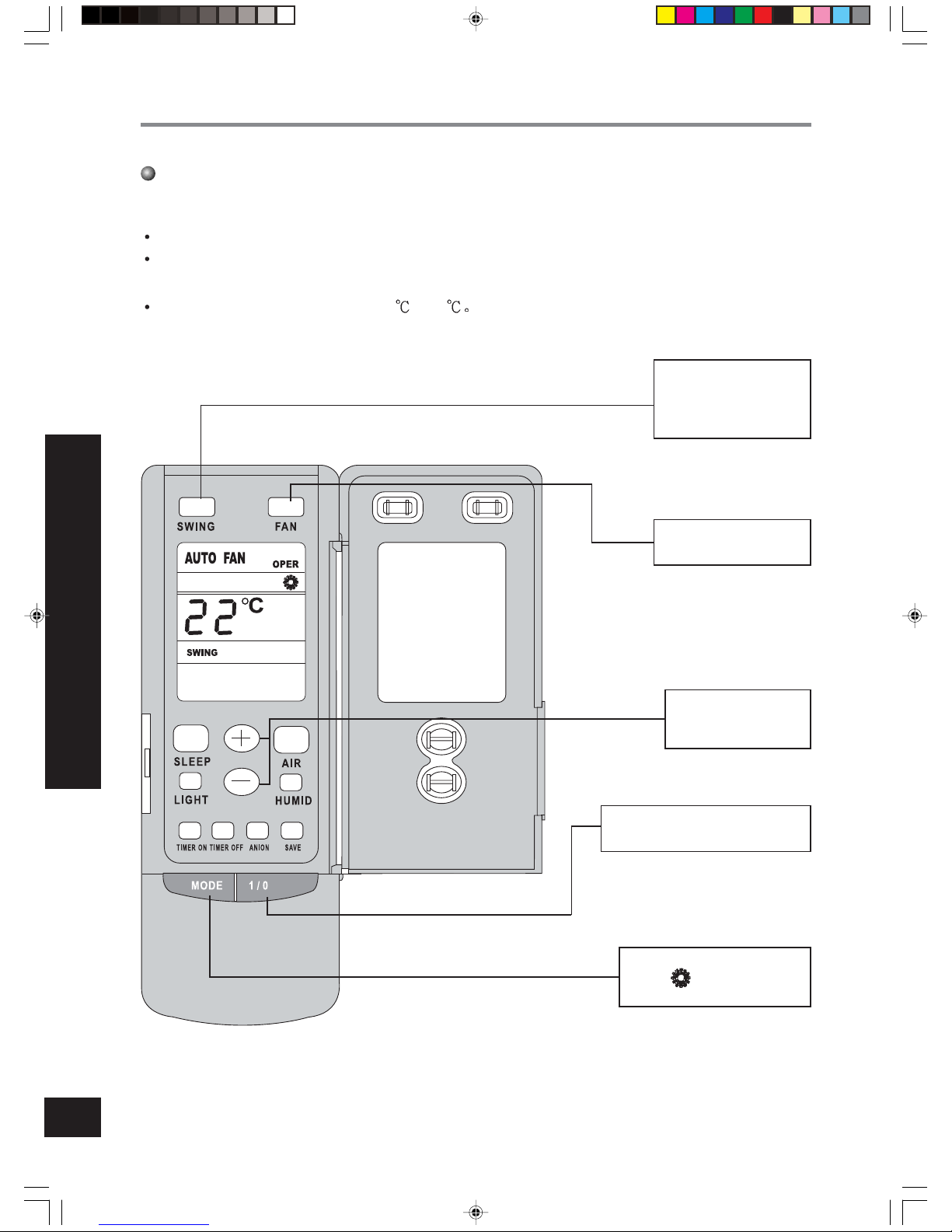

HEAT mode operation procedure
If room temp. is lower than set temp., compressor runs at HEAT mode;
If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan motor
runs, louver motor makes the louvers horizontal.
SET TEMP. should be in range of 16 to 30
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
2.Press MODE button,
set operation
mode.
3.Press SWINGbutton, the
louvers start to rotate
automatically, and stop
when repress it.
REMOTE CONTROL OPERATION PROCEDURE
６６１２２４５２．ｐ６５ 03-7-15, 17:267

8

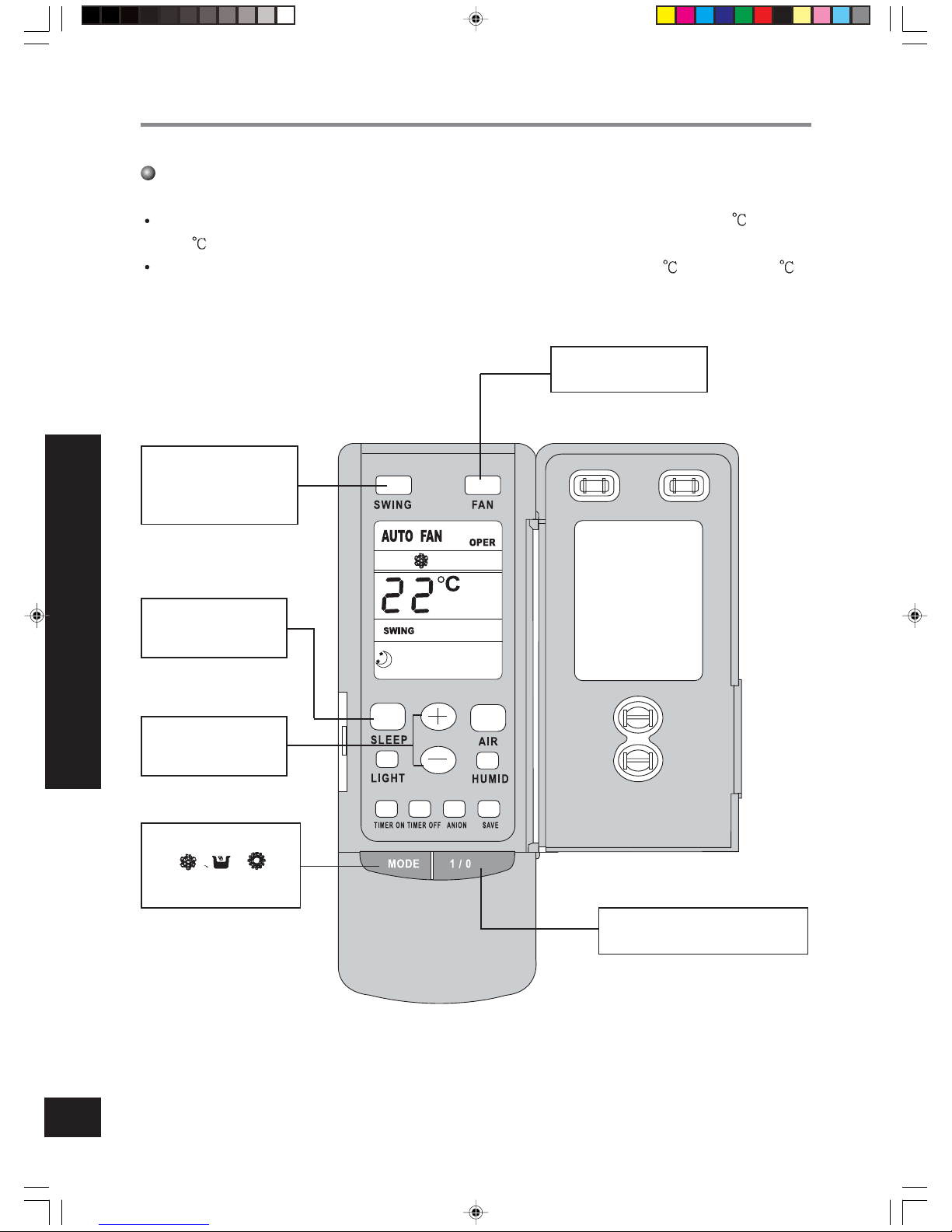

DRY mode operation procedure
If room temp. is lower than set temp., compressor ,outdoor and indoor fan motor stop. If room temp. is
between 2of set temp., Air conditioner is drying.If room temp. is higher than set temp., it’s at
COOL mode.
SET TEMP. should be in range of 16 to 30
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP.button,set
suitable SET TEMP.
2.Press MODE button,set
operation mode.
Air speed couldn’t be
changed after the “ ”
being set. 1.Plug in,press 1/0 button,then air
conditioner is turned on.
REMOTE CONTROL OPERATION PROCEDURE
６６１２２４５２．ｐ６５ 03-7-15, 17:268

9

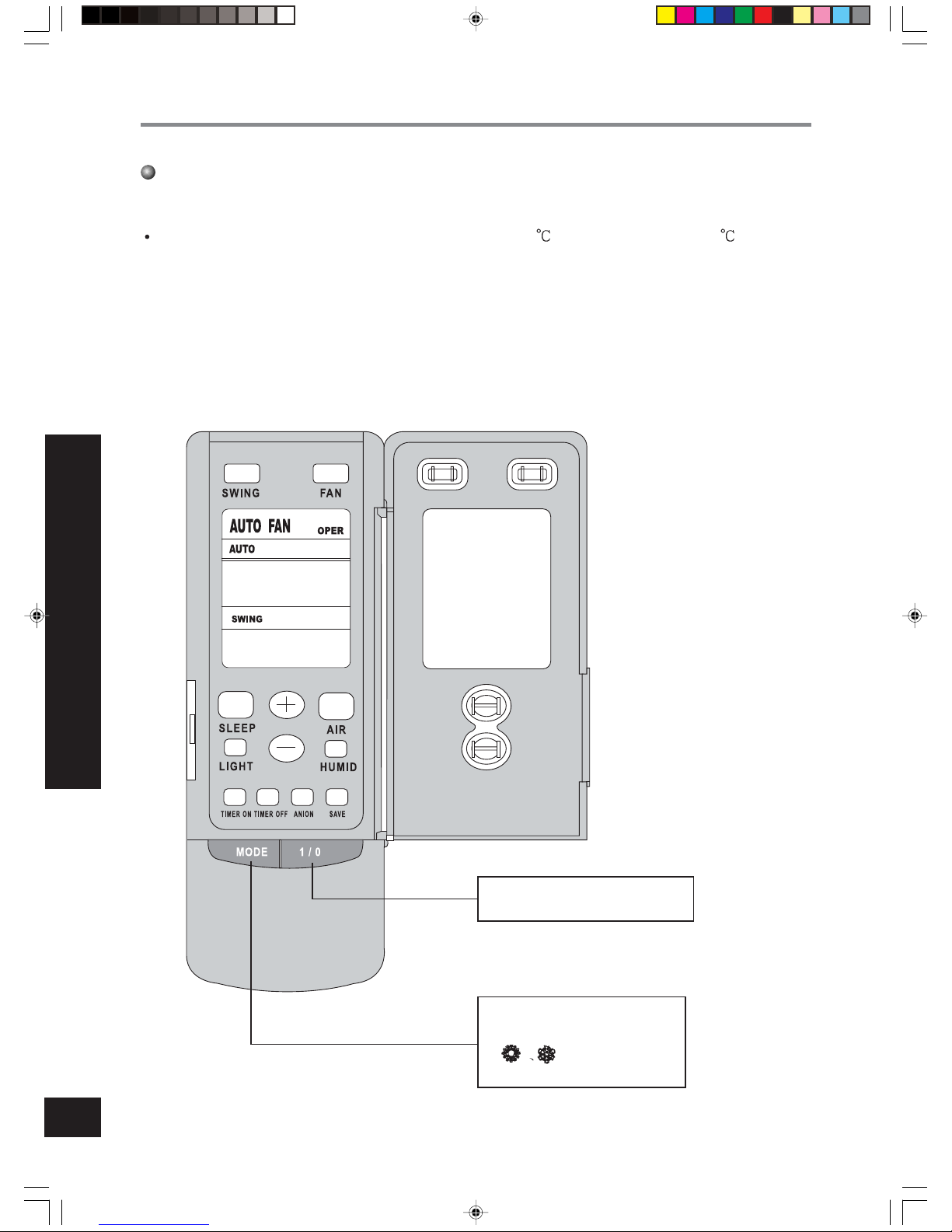

AUTO mode operation procedure
Under Auto mode operation, standard SET TEMP. is 25 for COOL mode and 20 for HEAT
mode.
2.According to room temp.,micro-
computer can automatically set
operation mode,so as
for best effect.
1.Plug in,Press 1/0 button, then
air conditioner is turned on.
REMOTE CONTROL OPERATION PROCEDURE
６６１２２４５２．ｐ６５ 03-7-15, 17:269

10
TIMER mode operation procedure
REMOTE CONTROL OPERATION PROCEDURE
TIMER OFF button
At operating, press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.
0 24h
Timer
cancellation
TIMER ON button
At stopping, press TIMER
ON button, set ON TIME in
range of 0 to 24 hour to start
the unit automatically.
0 24h
Timer
cancellation
６６１２２４５２．ｐ６５ 03-7-15, 17:2610

11
SLEEP mode operation procedure
REMOTE CONTROL OPERATION PROCEDURE
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
2.Press MODE button,
set or op-
eration mode.
3.Press SWINGbutton, the
louvers start to rotate
automatically, and stop
when repress.
6.SLEEP button
Press it to set SLEEP
operation.
As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1 in 1 hour
and 2 in 2 hours.
As the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1 in 1 hour and 2 in
2 hours.
６６１２２４５２．ｐ６５ 03-7-15, 17:2611

12

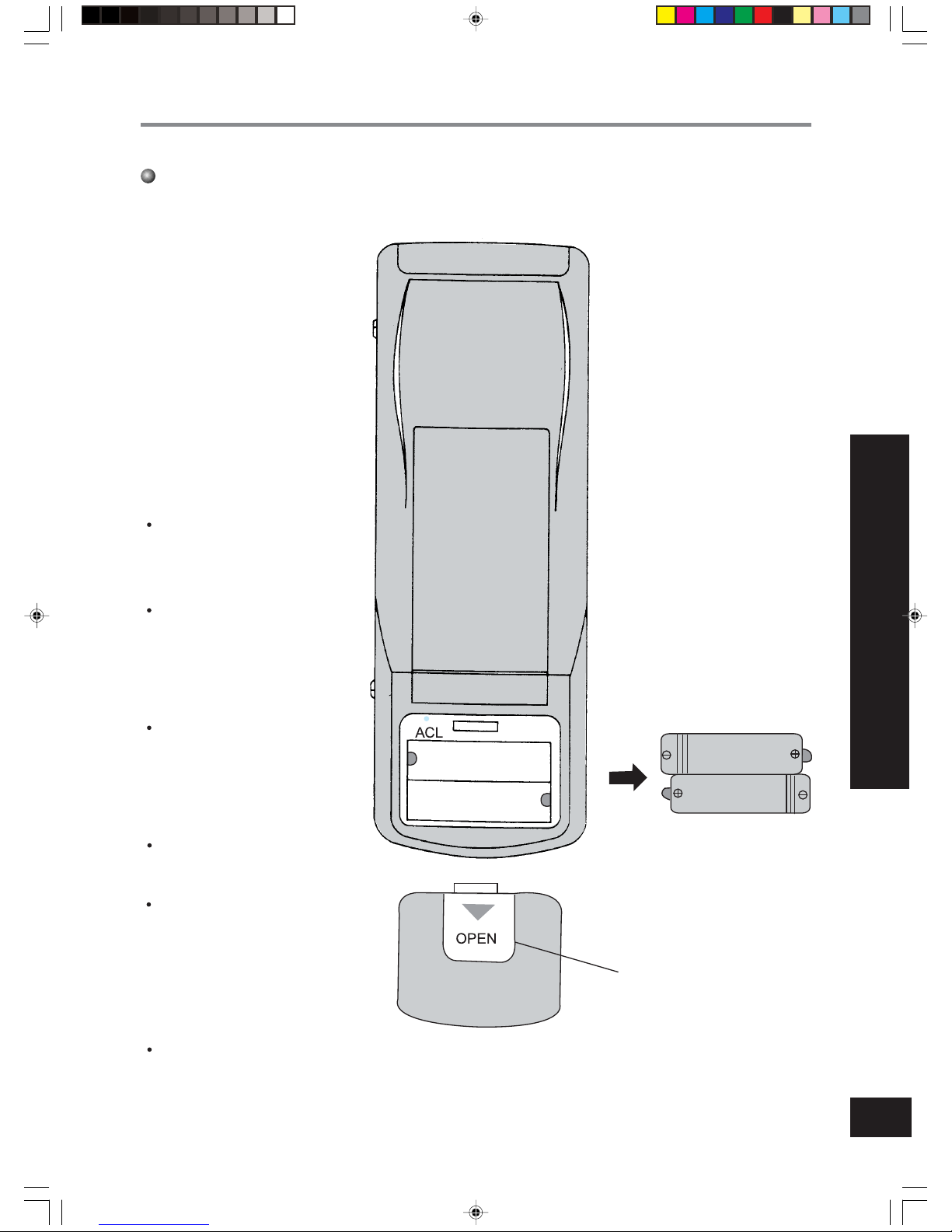

How to insert batteries
1.Remove the cover from the back
of the remote control.
2.Insert the two batteries ( Two 7#
dry - cell batteries ) and press but-
ton “ACL”.
3.Re - attach the cover.
NOTE:
Don’t confuse the new
and worn or different
types of batteries.
Remove batteries when
the remote controller is
not in use for a
longtime.
The remote control sig-
nal can be received at
the distance of up to
about 10m.
The lifetime of the bat-
teries is about one year.
The remote controller
should be placed about
1m or more away from
the TV. or any other
electric appliances.
Bad batteries are for-
bidden.
1.Remove the cover
3.Re - attach the cover.
2. Insert the 7#batteries
REMOTE CONTROL OPERATION PROCEDURE
６６１２２４５２．ｐ６５ 03-7-15, 17:2612

13

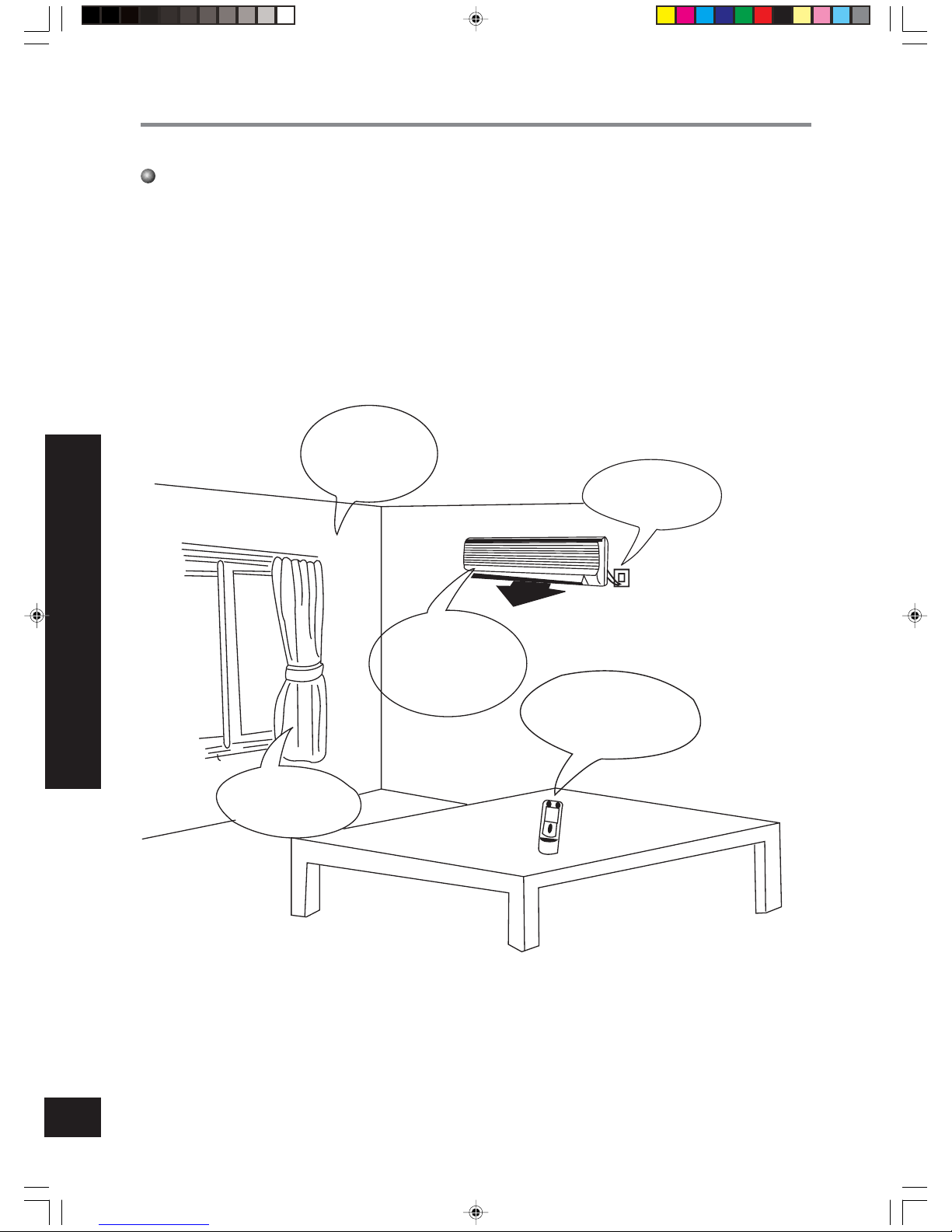

The best operating methods
adjust to the suit-
able temp. too
cool will do harm
to the health. pull off the plug
if the unit will be
free in a long
time.
take out the batteries if
the remote controller
will be free within a long
period.
cleaning the air filter se-
riously and maintaining
the air cleaner carefully.
avoiding directly
lighting and cool
air leaking.
THE BEST OPERATING METHODS
６６１２２４５２．ｐ６５ 03-7-15, 17:2613

14
USER NOTICES
Select the most appropriate temperature. It can
avoid the electricity wasting.
Don’t leave windows and doors open while the air
conditioner is on for a longtime. It can decrease the
air conditioning capacity.
Splashing water on the air conditioner can cause
an electric shock and malfunction.
Air conditioner should be operated with stable
voltage in range of 195-253V 1ph. otherwise, com-
pressor would vibrate terribly to damage refrig-
eration
system.
The airflow direction can be adjusted appropria-
tely. The louvers can be adjusted downward at heat-
ing operation, and upward at cooling operation.
Don’t blow the wind to animals and plants directly.
It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas or water pipes.
lighting rods or telephone earth lines.
Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
USER NOTICES
６６１２２４５２．ｐ６５ 03-7-15, 17:2614

15
CAUTION
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or
cleaner.
(CARE AND MAINTENANCE) CEDURE
Care and Maintenance
Take down surface panel and washing
1. Pull along the direction of arrows to take down surface
panel.
2. Washing
Wipe with a cloth slightly moistened with water or
cleanser, and then dry it in the shade.
NOTE:Never use water above 45 to wash the panel, or
it could cause deformation or discoloration.
3. Install surface panel
Cover the surface panel and clasp it.
Cleaning the Air Filters (Recommended once every three months)
1. Open the surface panel, hold the tab of Air Filter and
raise it slightly, and then take it out.
2. Cleaning
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with water and
dry it in the shade.
NOTE:
Never use water above 45 to wash
the filters, or it could cause deforma-
tion or discoloration.
６６１２２４５２．ｐ６５ 03-7-15, 17:2615

16
3.Reinsert the filters
Reinsert the filters with side marked FRONT
facing forward.
Replacement of Air cleaner
Recommended once every three years, and the alternate filters can be found in the service center.
1.Remove the Air Filters
2.Replace the Air cleaner
Take off the packed bag of Air purifying Filters, and
then put new Filters into the Filter frame.
3.Re-insert the filters
(Refer to the first step of “cleaning the Air Filters”)
Air cleaner
NOTE:Be careful not to injure yourself on the fins
(Refer to the third step of “cleaning the Air Filters”)
Preparation before use
1.Be sure that nothing obstructs the air outlet and intake
vents.
2.Check that whether ground wire is properly connected
or not.
3.Replace filters if necessary.
4. Replace the batteries if necessary.
Maintain after use
1.Clean filters and other parts.
2.Turn main power off.
3.Clear dust from the outdoor unit.
4.If there is any rust in the outdoor unit, this should be
painted over to prevent it from spreading.
(CARE AND MAINTENANCE) CEDURE
６６１２２４５２．ｐ６５ 03-7-15, 17:2616

17
Trouble shooting
Check the following points before requesting on service center if the malfunction persist, it saves
your time and money.
TROUBLE SHOOTING
Phenomenon
Indoor unit does not
operate immediately
when the air condi-
tioner is restarted.
There’s unusual
smell blowing from
the outlet after opera-
tion is started.
Sound of water flow
can be heard during
operation.
Mist is emitted dur-
ing cooling opera-
tion.
Creaking noise can
be heard when start
or stop the unit.
Air conditioner does
not operate at all.
Cooling(Heating)ef-
ficiency is not good.
Wireless remote con-
troller is not avail-
able.
Trouble Shooting
Once the air conditioner is stopped, it will not operate in
approximately 3 minutes to protect itself.
This is caused by the odors in the room which have been
breathed into the air conditioner.
This is caused by the refrigerant flowing inside the unit.
Because the air of the room is cooled down rapidly by the
cold wind and it looks like the fog.
This is caused by the deformation of plastic due to the
change of temperature.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 253V or lower than 195V?
Is TIMER ON in operation?
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat sourse in your room?
Is the remote control unit out of effective distance to the
indoor unit?
Replace the worn batteries of wireless remote controller.
Are there any obstructions between the wireless remote
controller and the signal receptor?
６６１２２４５２．ｐ６５ 03-7-15, 17:2617

18
Immediately stop all operations and plug out, contact with service center in
following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.
TROUBLE SHOOTING
Trouble shooting
NOTE:
Equipment subject to notification to or consent by the supply authority before
connection to the system (consent by the supply authority may be requested for high -
power appliances which are intended to be used only in systems having impedances
considerably lower than the reference impedance. General consent may declared for use
of a type of appliance in a defined part of the supply system):
1. Equipment intended exclusively for professional purposes;
2. Appliances and equipment without automatic control means;
3. Appliances producing less than one voltage change per hour;
4. Appliances producing more than 1800 voltage changes per minute;
5. Disturbances caused by manual switching.
６６１２２４５２．ｐ６５ 03-7-15, 17:2618

19
TECHNICAL SPECIFICATIONS
Technical specifications
All above should be changed without notice, there are latest and accurate specifications on the nameplate of your air conditioner.
When the unit is restarted after it was stopped, it can automatically resume in its most latest running mode, and the outdoor unit starts a little bit later.
Model
Functions
Accessory
Cooling capacity (W)
Heating capacity (W)
Power supply
Frequence
Cooling/Heating rated current
Maximum input current
Cooling/Heating rated power
Recyling air volume
Refrigerant
Waterproof level
Noise(Indoor/outdoor)dB(A)
Climate type
Anti-electric shock protection
Weight(kg)
Indoor unit/
outdoor unit
Dimension(cm)
(Width height depth)
Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor side DB/WB( )
32/23
21/15
27/-
20/-
Outdoor side DB/WB( )
43/26(T1)
21/-
24/18
-5/-6
I
50Hz
Indoor 25.0 77.0 18.0
Outdoor 84.8 54.0 32.0
40/56 dB(A)
480m3/h
IP 4
230V~
400m3/h 450m3/h
32/51 dB(A) 36/52 dB(A)
Cool
2000W
3.26/-A
4.1A
750/-W

Cool Heat
2000W
2400W
3.26/3.43A
4.1A
750/790W

Cool
2500W
4.35/-A
4.8A
1000/-W

Cool Heat
2500W
3100W
4.35/4.57A
5.8A
1000/1050W
Cool
3200W
5.57/-A
6.4A
1280/-W

T1
8.5/40 kg
8.5/32 kg
Cool Heat
3200W
3800W
5.87/6.52A
8.5A
1350/1500W

R22
Memory function (show in )
６６１２２４５２．ｐ６５ 03-7-15, 17:2619
