Mitsubishi Electric SRK71ZK-S User manual

AIR-CONDITIONING & REFRIGERATION SYSTEMS HEADQUARTERS
3-1, Asahi, Nishibiwajima-cho, Kiyosu, Aichi, 452-8561, Japan
http://www.mhi.co.jp
MITSUBISHI HEAVY INDUSTRIES EUROPE, LTD.
AIR-CONDITIONER DIVISION
3rd Floor Thavies Inn House 3-4 Holborn Circus London EC1N 2HA, ENGLAND
Tel:[phone]
Fax:[phone]
http://www.mhie.com
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONERS AUSTRALIA, PTY. LTD.
9C Commercial Road Kingsgrove NSW 2208 PO BOX 318 Kingsgrove NSW 1480
Tel:[phone]
Fax:[phone]
http://www.mhiaa.com.au
USER’S MANUAL
AIR-CONDITIONER
RKW012A401B
SRK63ZK-S
SRK71ZK-S
SRK80ZK-S
MANUEL DE L’UTILISATEUR
CLIMATISEUR
ANWENDERHANDBUCH
KLIMAGERA
¨T
ISTRUZIONI PER L’USO
CONDIZIONATORE D’ARIA
MANUAL DEL PROPIETARIO
ACONDICIONADOR DE AIRE
GEBRUIKERSHANDLEIDING
AIRCONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
КОНДИЦИОНЕР ВОЗДУХА
KULLANIM KILAVUZU
ENGLISH
DEUTSCH
ITALIANO
ESPAN
˜OL
NEDERLANDS
PORTUGUÊS
РУССКИЙ
TÜRKÇE
FRANÇAIS
ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ
ΚΛΙΜΑΤΙΣΤΙΚΟ
ΕΛΛΗΝΙΚΑ
This air conditioner complies with EMC Directive 2004/108/EC,
LV Directive 2006/95/EC.
Ce climatiseur est conforme à la Directive EMC: 2004/108/EC, LV
Directive 2006/95/EC.
Dieses Kimagerät erfüllt die EMC Direktiven 2004/108/EC, LV
Direktiven 2006/95/EC.
Questo condizionatore d’aria è conforme alla Direttiva EMC: 2004/
108/EC, LV Direttiva 2006/95/EC.
Deze airconditioner voldoet aan EMC Directive 2004/108/EC, LV
Directive 2006/95/EC.
Este acondicionador de aire cumple con la directiva EMC: 2004/
108/EC, LV Directiva 2006/95/EC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 2004/108/EC e a Directiva LV 2006/95/EC.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 2004/108/EK Î·È Ù˘ √‰ËÁ›·˜ LV 2006/95/EK.
RKW012A401B_Cover 12/08/2010, 13:561

EC DECLARATION OF CONFORMITY
We MITSUBISHI HEAVY INDUSTRIES, LTD.
AIR-CONDITIONING & REFRIGERATION SYSTEMS HEADQUARTERS
3-1, Asahi, Nishibiwajima-cho, Kiyosu,
Aichi, 452-8561, JAPAN
declare under our sole responsibility that the apparatus
Description of apparatus : Air Conditioner
Model name:
referred to in this declaration conforms with the following directives.
Relevant EC Directives : Machinery Directive 2006/42/EC
Notes: also satisfied directives Low Voltage Directive 2006/95/EC
Applied Standards : EN378-2:2008 (partly completed)
Notes: also satisfied standards EN60335-2-40:2003+A11:2004+A12:2005+A1:2006
Importer/Distributor in EU :
MITSUBISHI HEAVY INDUSTRIES EUROPE,LTD
3rd Floor,Thavies Inn House,3-4 Holborn Circus,London EC1N 2HA,United Kingdom
Conformity model list
[Indoor Unit]
Category Model
SRK Series SRK63ZK-S
SRK71ZK-S
SRK80ZK-S
[Outdoor Unit]
Category Model
SRC Series SRC63ZK-S
SRC71ZK-S
SRC80ZK-S
RKW012A401B_1202 12/08/2010, 13:551

–1–
Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To
get the best long-lasting performance, please read and follow this User’s Manual carefully
before using your air-conditioner. After reading, please store the Manual in a safe place
and refer to it for operational questions or in the event of any irregularities.
This air-conditioner is intended for domestic use.
Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas,
covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1975.
contents
ENGLISH
Your Air Conditioning product may be marked with this symbol. It means
that waste electrical and electronic equipment (WEEE as in directive 2002/
96/EC) should not be mixed with general household waste. Air conditioners
should be treated at an authorized treatment facility for re-use, recycling
and recovery and not be disposed of in the municipal waste stream. Please
contact the installer or local authority for more information.
This symbol printed in the batteries attached to your Air Conditioning
product is information for end-users according to the EU directive 2006/66/
EC article 20 annex II.
Batteries, at their end-of-life, should be disposed of separately from general
household waste. If a chemical symbol is printed beneath the symbol
shown above, this chemical symbol means that the batteries contain a
heavy metal at a certain concentration. This will be indicated as follows:
Hg:mercury(0.0005%) , Cd:cadmium(0.002%) , Pb:lead(0.004%)
Please, dispose of batteries correctly at your local community waste
collection or the recycling center.
Safety precautions ........................................ 2

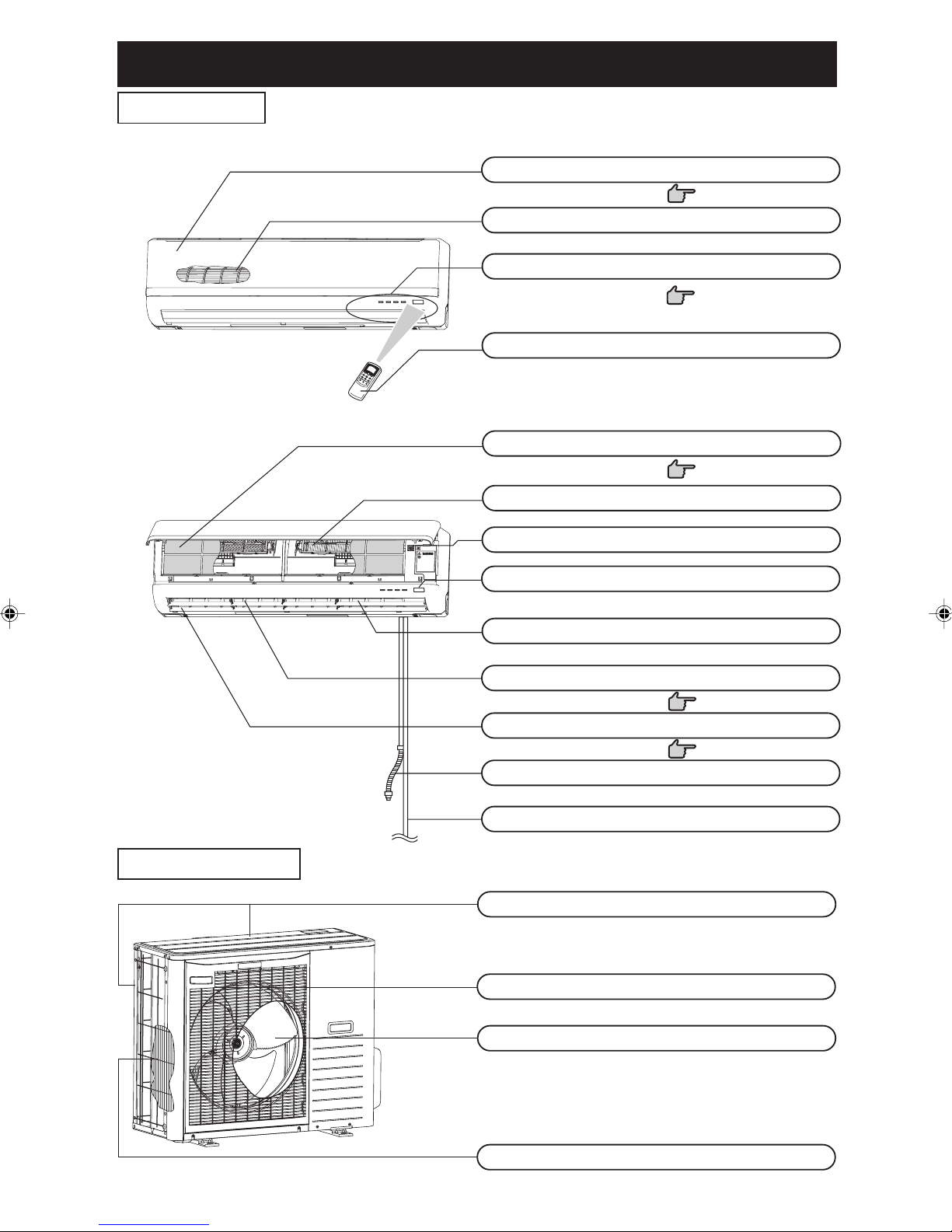

Name of each part and its function ............... 4
Remote control handling ............................... 6
Operation failure with the remote control ...... 6
Temporary run operation .............................. 6

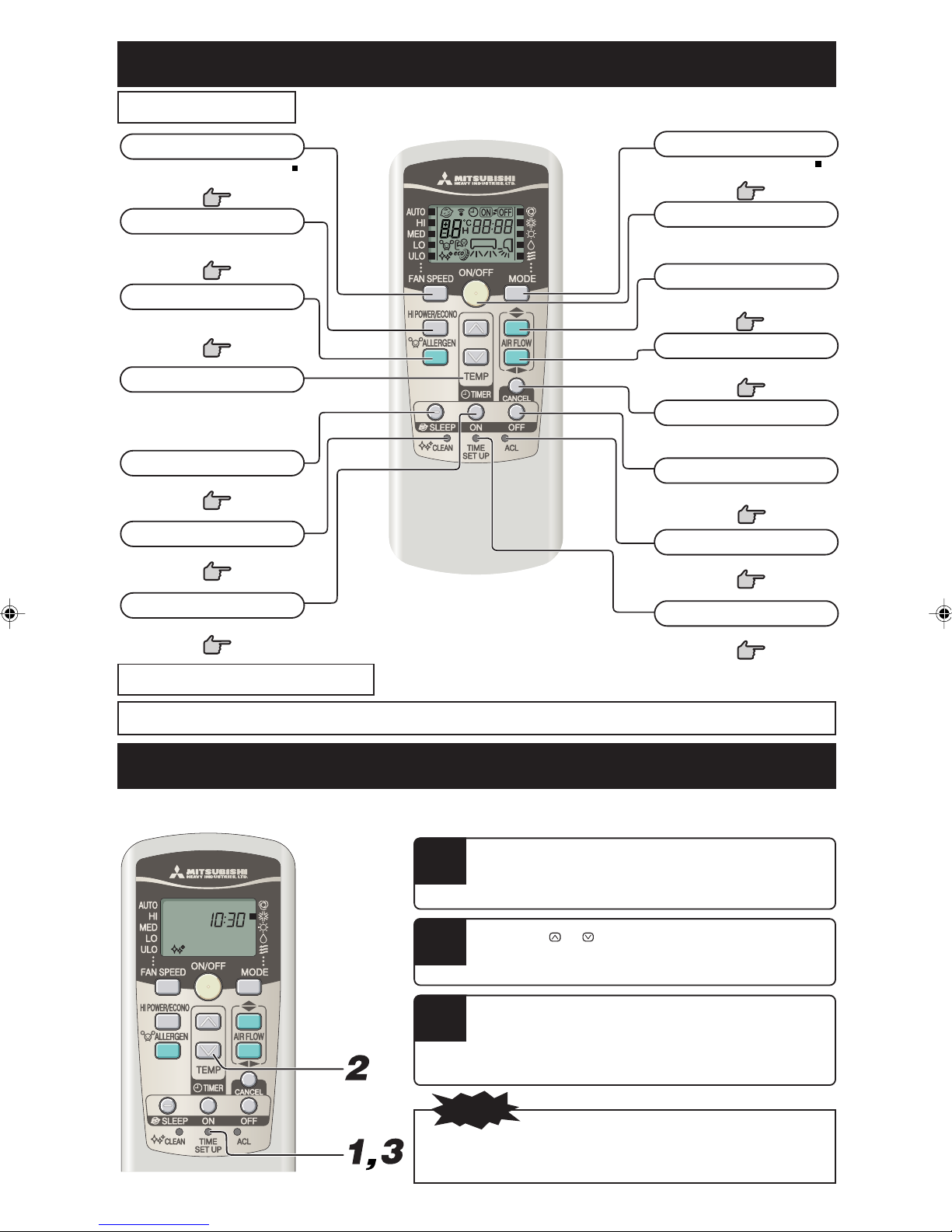

Operation and display section for
remote control ............................................... 7
Current time setting....................................... 7
AUTO mode operation .................................. 8
Temperature adjustment during AUTO......... 8
FAN SPEED.................................................. 8

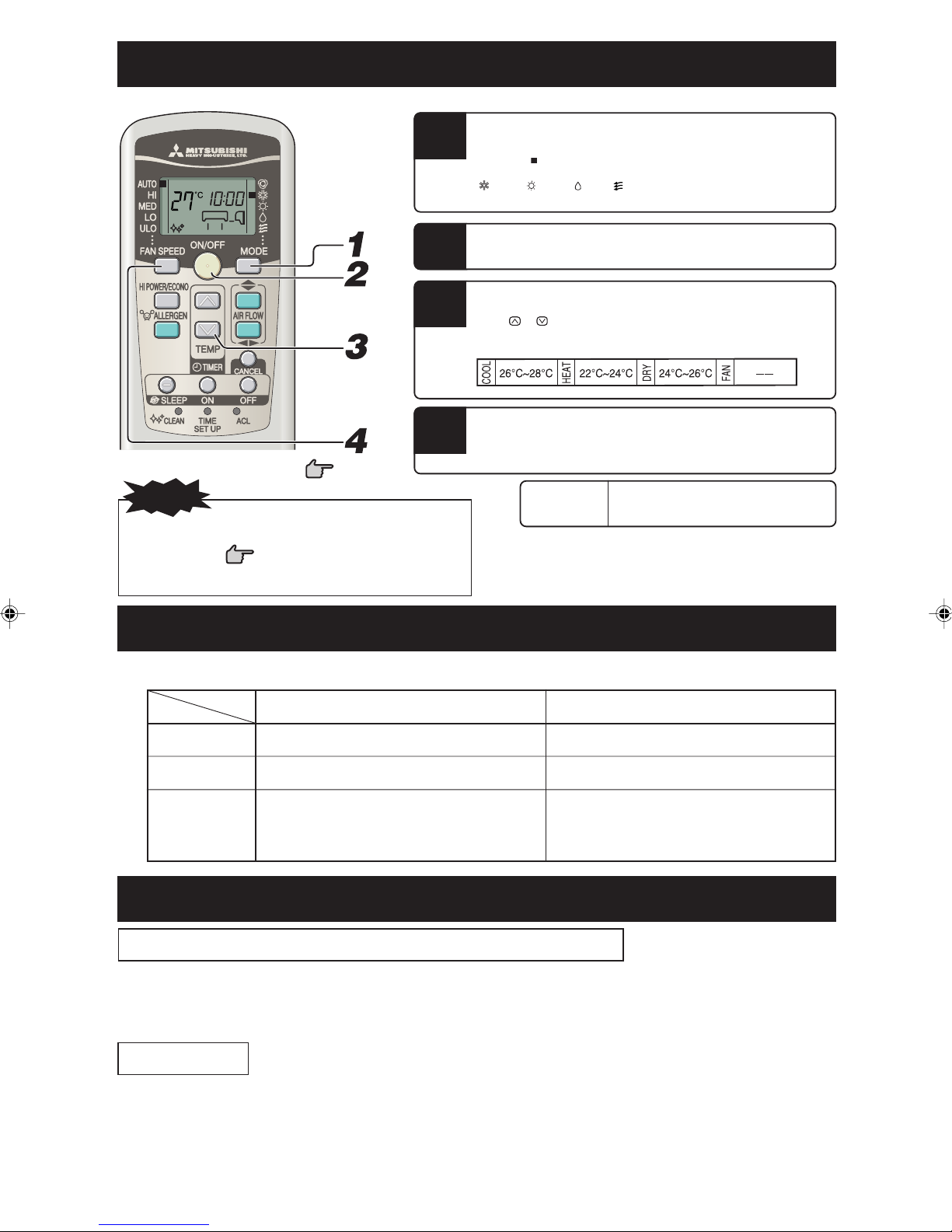

COOL/HEAT/DRY/FAN mode operation ...... 9
Air-conditioner operable
temperature setting ....................................... 9
Characteristics of HEAT mode operation ..... 9
Airflow direction adjustment ........................ 10
SLEEP TIMER operation ............................ 11
OFF-TIMER operation ................................ 11
ON-TIMER operation .................................. 12
SLEEP TIMER + ON-TIMER operation ...... 12
PROGRAM TIMER operation ..................... 13
ALLERGEN CLEAR operation .................... 13

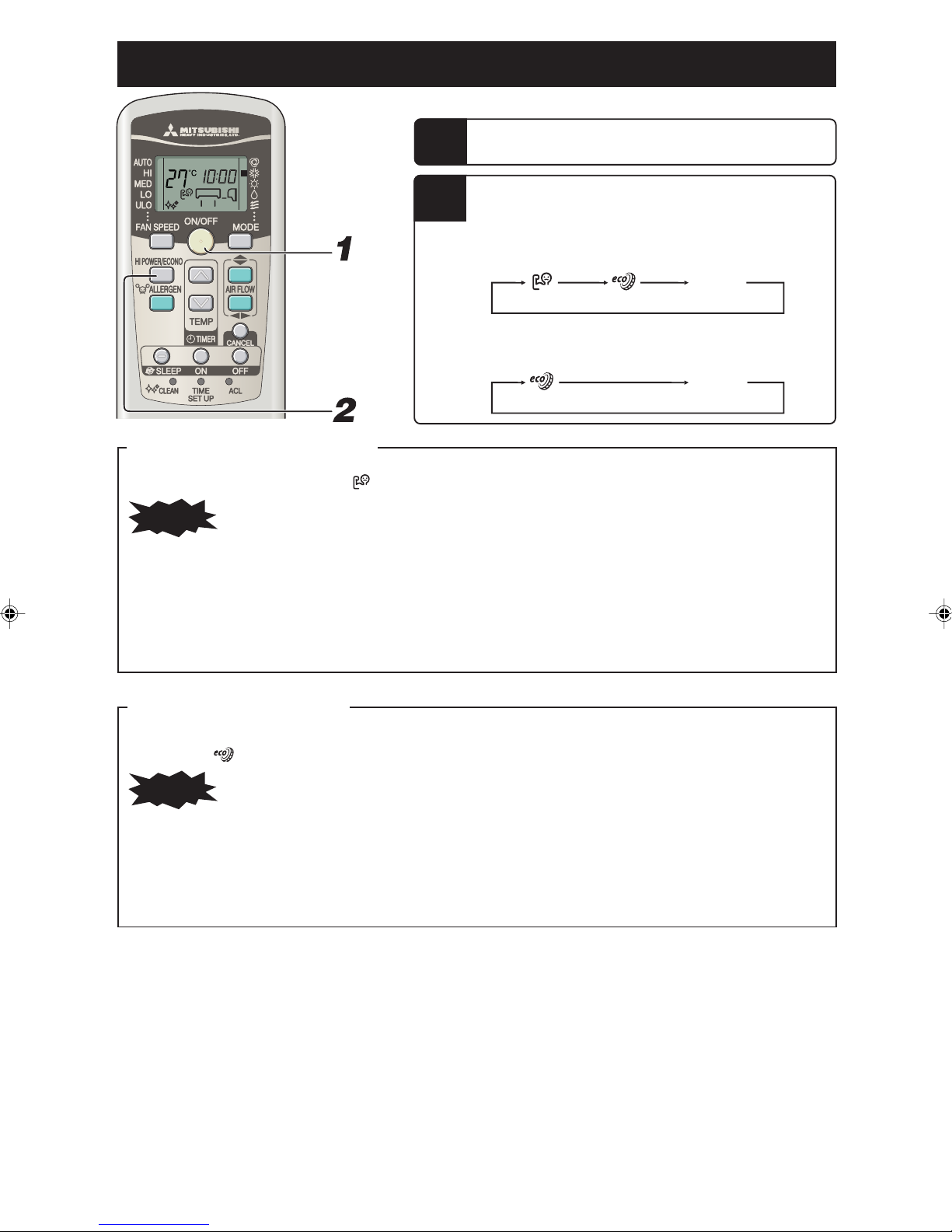

HIGH POWER/ECONOMY operation......... 14
SELF CLEAN operation .............................. 15
Auto restart function .................................... 15
Tips for effective operation ......................... 15

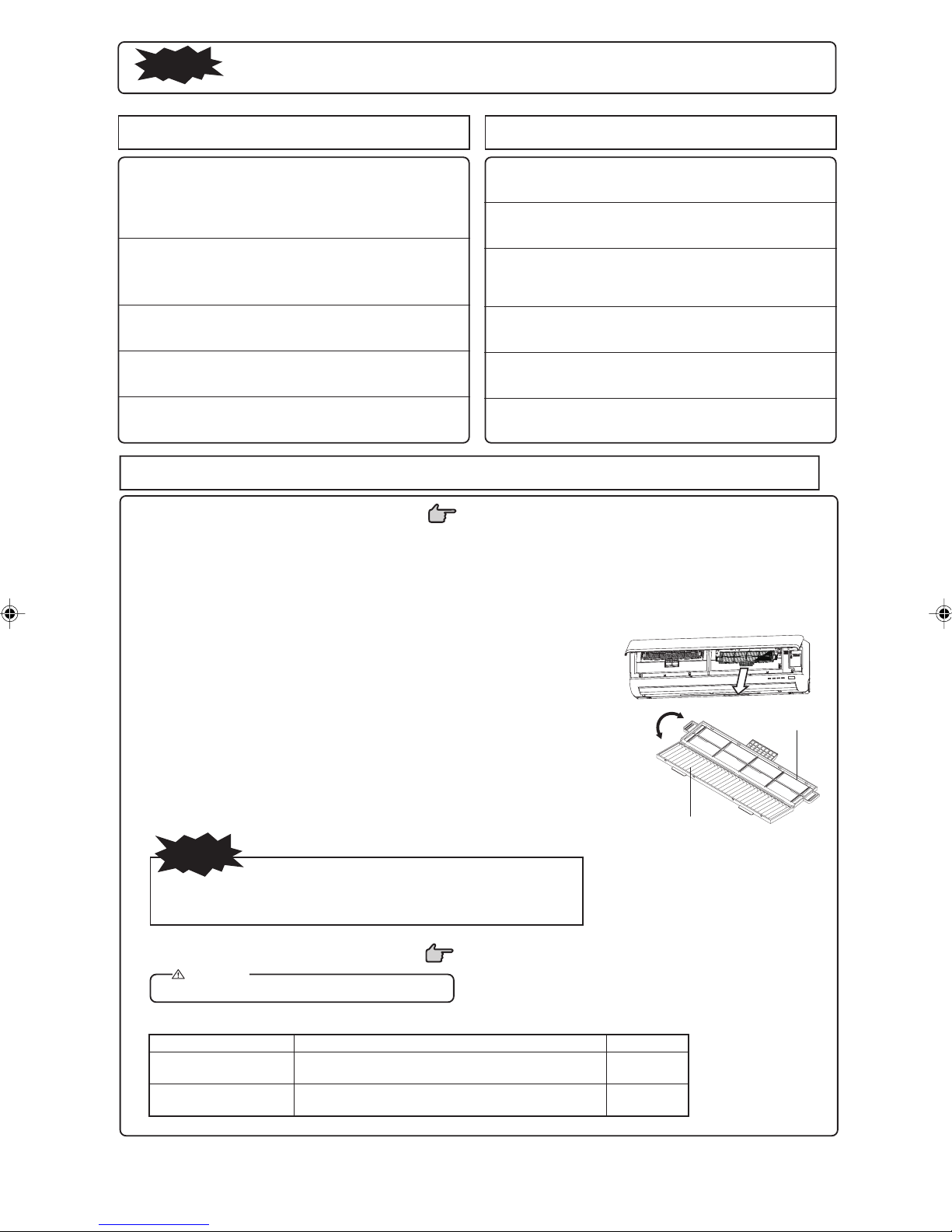

Maintenance ............................................... 16
Proper installation ....................................... 18

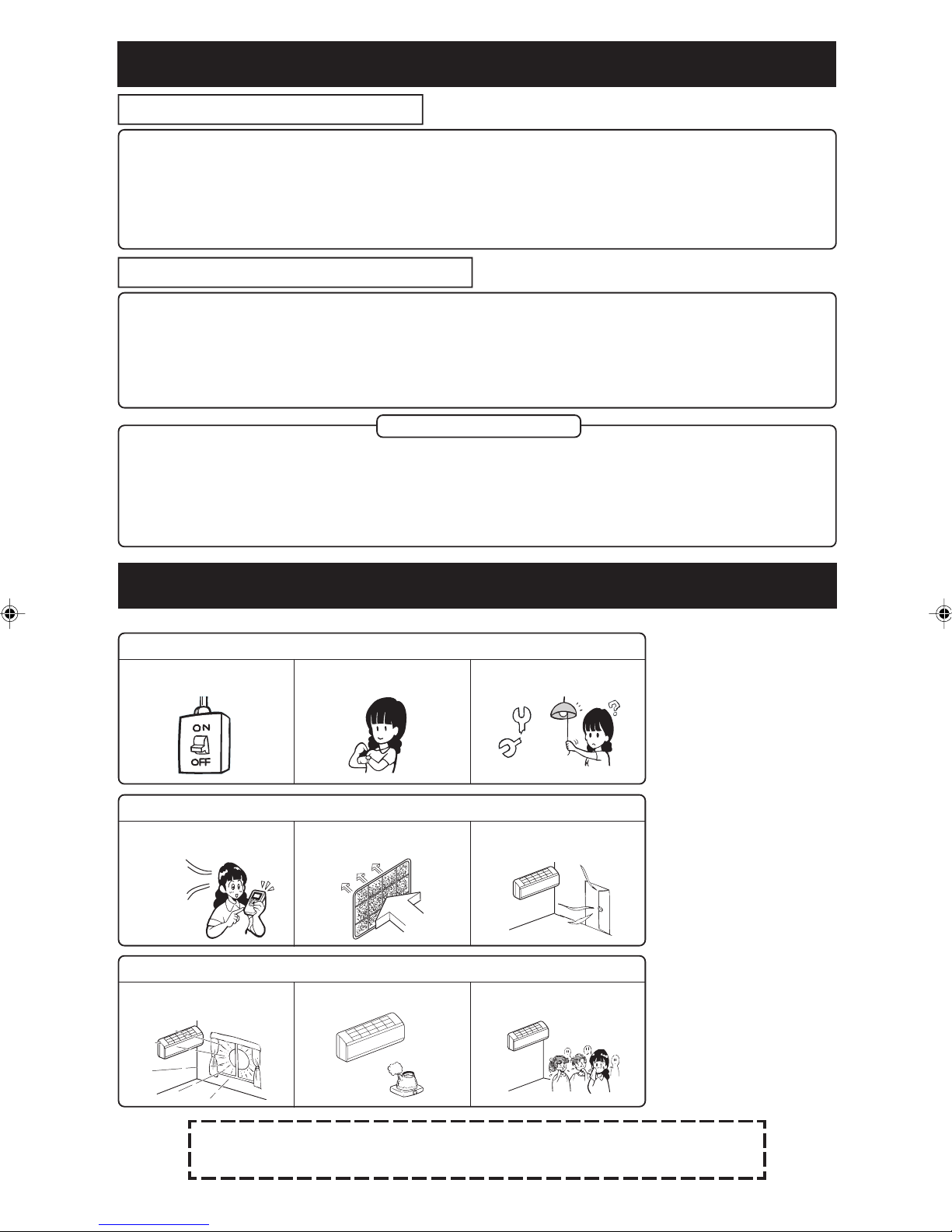

Troubleshooting .......................................... 18
Notice .......................................................... 19
Contact your dealer..................................... 20
About the Multiple Air-conditioner ............... 20
Self diagnosis function ................................ 21
The emission sound pressure level from each Indoor and Outdoor unit is under 70 dB(A).
RKW012A401B_EN_001-022 12/08/2010, 13:561

–2–
Safety precautions
•Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the
system.
•When you have read this instruction manual, please keep it without missing. If someone else takes over as operator,
make certain that the manual is also passed on to the new operator.
❚INSTALLATION PRECAUTIONS
❚OPERATION PRECAUTIONS
DANGER
•The system is for domestic, residential etc. use.
If used in severer environments, such as an engineering workplace, the equipment may function poorly.
CAUTION
DANGER
Please observe these precautions with great care, since they are essential to your safety.
•Symbols which appear frequently in the text have the following meaning:
DANGER
CAUTION
Improper handling could lead to drastic result like death, serious injury, etc.
Might pose a serious problem, depending on the circumstances.
Strictly prohibited Provide proper earthing
Observe instructions with
great care
•The system must be installed by your dealer or a qualified professional.
It is not advisable to install the system by yourself, as faulty handling may cause leakage of water, electric
shock or fire.
•Do not install it where flammable gas may leak.
Gas leaks may cause fire.
•Depending on the place of installation, an
earth leakage breaker may be necessary.
If you do not install an earth leakage breaker,
you may get an electric shock.
•Make sure to install the drain hose properly
so that all the water is drained out.
Improper installation may lead to water drop in
the room resulting in wet furniture.
•Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, water pipe, lightning conductor or telephone earth
cable. Incorrect installation of the earth cable may produce an electric shock.
•Do not expose yourself to the cooling air for a
long period.
This could affect your physical condition and
cause health problems.
•Do not insert anything into the air inlet.
This may cause injury, as the internal fan rotates
at high speed.
•Store the remote control out of reach of infants.
Failure to observe this may result in the batteries being swallowed or other accidents.
•Only use approved fuses.
Use of steel or copper wire instead of an approved
fuse is strictly prohibited, as it may cause a break-
down or fire.
•Do not handle the switches with wet hands.
This may cause an electric shock.
•Do not swing from the indoor unit.
If the indoor unit falls down,you may get injured.
•Do not place a flammable insecticide or paint
spray near the blower, nor spray it directly on
the system.
This may result in a fire.
•You should not expose any combustion
appliance directly to the air stream of the air-
conditioner.
The appliance may then work inadequately.
CAUTION
RKW012A401B_EN_001-022 12/08/2010, 13:562

–3–
❚Safety precautions
❚PRECAUTIONS FOR RELOCATION OR REPAIRS
DANGER
CAUTION
•Do not wash the air-conditioner with water.
This could cause an electric shock.
•The system should only be used for its original
purpose and not for anything else like, for in-
stance, preservation of food, plants or animals,
precision devices or works of art.
The system is only intended for use in ordinary
domestic rooms. Any other use of the system
may damage the quality of food, etc.
•Do not place anything containing water, like
vases, on top of the unit.
Water entering the unit could damage the
insulation and therefore cause an electric shock.
•Do not install the system where the airflow di-
rection is aimed directly at plants or animals.
This will damage their health.
•Do not sit on the outdoor unit nor put anything
on it.
If the unit falls down or things drop off it, people
could get hurt.
•After a long period of use, check the unit's
support structure from time to time.
If you do not repair any damage right away, the
unit may fall down and cause personal injury.
•Do not touch the aluminum fins on the air heat
exchanger.
It may result in injury.
•Do not place household electrical appliances
or household items under neath the indoor or
outdoor units.
Condensation falling from the unit may stain
objects and cause accidents or electrical shock.
•Do not operate the system without the air
filter.
It can cause malfunction of the system due to
clogging of the heat exchanger.
•Do not shut off the power supply immediately
after stopping the operation.
Wait at least 5 minutes, otherwise there is a risk of
water leakage or breakdown.
•Do not control the system with main power
switch.
It can cause fire or water leakage. In addition,
the fan can start unexpectedly, which can cause
personal injury.
•If you operate the system together with a
combustion appliance, you must regularly
ventilate the indoor air.
Insufficient ventilation may cause accidents due
to oxygen deficiency.
•Stand firmly on a stepladder or other stable
object when removing the inlet panel and
filters.
Failure to observe this may result in injury
through insecure objects toppling over.
•When you clean the system, stop the unit
and turn off the power supply.
Never open the panel while the internal fan is
rotating.
•Do not place objects near the outdoor unit or
allow leaves to gather around the unit.
If there are objects or leaves around the outdoor
unit, small animals may enter unit and contact
electrical parts and may cause a break-down,
smoke or fire.
•Contact your dealer to clean inside the
indoor unit, do not attempt to do by yourself.
The use of a non-approved detergent or im-
proper washing method may damage the unit’s
plastic components and cause leaks. Damage,
smoke, or fire may also happen if the detergent
comes in contact with electrical parts or the
unit’s motor.
•Stop the unit and turn off the power if you
hear thunder or there is a danger of lightning.
It may damage the unit.
•Do not perform any repairs or modifications by yourself. Consult the dealer if the unit requires
repair.
If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
•Consult your dealer for repairs.
Wrong repairs could cause an electric shock,
fire, etc.
•In case the air-conditioner is relocated
elsewhere, contact your dealer or a profes-
sional fitter.
Faulty installation may cause water leakage,
electric shock, fire, etc.
•
If you notice anything abnormal (smell of
burning, etc.), stop the system, turn off the
power supply and consult your dealer.
Continued use of the system in abnormal
circumstances may result in malfunctioning,
electric shock, fire, etc.
•If the air-conditioner fails to cool or warm the
room, it may have a refrigerant leakage.
Contact your dealer.
If refrigerant needs to be added, check with
your dealer for proper instructions.
If the refrigerant comes in contact with the bare
skin, it may cause cold injury.
If the refrigerant gas is inhaled excessively, it may
cause deterioration of nerve function like dizzi-
ness and headache, or deterioration of heart func-
tion like irregular heartbeat and heart palpitation
temporarily. If refrigerant unexpectedly leaks
from the unit onto a fan heater, stove, hotplate or
other heat source, harmful gases could be gener-
ated.
RKW012A401B_EN_001-022 12/08/2010, 13:573

–4–
Name of each part and its function
INDOOR UNIT
OUTDOOR UNIT
Air outlet
Air inlet
(On side & rear surface)
Outdoor unit fan
Heat exchanger
SRK63ZK-S
SRK71ZK-S
SRK80ZK-S
Air inlet panel
Draws in the indoor air. Page 16
Indoor unit fan
Air filter
Removes dust or dirt from the inlet air. Page 16
Wireless remote control
Drain hose
Drains water from the indoor unit.
Left/right air flow direction adjustment louver
Page 10
Up/down air flow direction adjustment flap
Page 10
Air outlet
Air blows out of here.
Unit operation switch
Room temperature sensor
Air-cleaning filter
Refrigerant piping connection and electric wire
Unit display section
Page 5
RKW012A401B_EN_001-022 12/08/2010, 13:574

–5–
RUN TIMER ECONO
ON
/ OFF
HI
POWER
Allergen clear filter
(Light orange)
Photocatalytic washable
deodorizing filter (Orange)
Accessories
Wireless remote control Wood screw (Quantity:2)
(for remote control holder mounting)
Wireless remote
control holder
Battery
(R03 (AAA, Micro) ×2)
Unit display section
ECONO light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
TIMER light (yellow)
Illuminates during TIMER operation.
This button can be used for turning on/off the unit when
remote control is not available.
Page 6
Remote control signal receiver
Unit ON/OFF button
Name of each part and its function
RUN (HOT KEEP) light (green)
•Illuminates during operation.
•
Blinks when airflow stops due to the ‘HOT
KEEP’
and ‘ CLEAN operation ’.
Page 15
•Buzzer sound for remote control
When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced.
When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced.
This function is useful for operating the air conditioner in the darkness.
NOTE
Preset temperature
Air flow setting
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
3 sec.
1 sec.
ON
OFF
CLEAN operation
RKW012A401B_EN_001-022 12/08/2010, 13:575

–6–
Remote control handling
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Display fades away.
NOTE
•Do not use old and new batteries together.
•Remove the batteries when the remote control is not used for a long
period.
•The recommended effective period of a battery conforming to JIS or IEC
should be 6 to 12 months with normal use. If used longer, or when an
unspecified battery is used, liquid may leak from the battery, causing the
remote control to malfunction.
•The recommendable effective period is printed on the battery. This may be
shorter due to manufacturering time to the unit. However, the battery may
still be in working order after expiry of its nominal life.
Pull out the cover and take
out old batteries.
Insert new batteries. R03
(AAA, Micro) x2
Close the cover.
■When the display shows any abnormal condition, Press the ACL switch with
the tip of a ballpoint pen.
1
2
3
Pay attention to
the ªand ·
marks
Press the ACL switch with
the tip of a ballpoint pen.
4
Using the remote control holder
The remote control can be attached to a wall or pillar
by using a remote control holder. Before installing the
remote control, check that the air-conditioner receives
the signals properly.
For installing or removing the remote control, move it
up or down in the holder.
•Are the batteries running down?
“Replacing the batteries” above.
Replace the batteries with new ones and retry
the operation.
Warning note for remote control handling
Operation failure with the remote control
•If the operation fails, operate the unit
with temporary operation function.
Contact your dealer to have the remote con-
trol checked.
Below
Strictly prohibited
•Do not drop the remote control.
Handle with care.
•Do not go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
•Do not put any obstructing obsta-
cles between the remote control
and the unit.
•Do not spill any liquid on the
remote control.
•Do not leave the remote control ex-
posed to direct sunlight or other
strong lighting.
Temporary run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press
the button again.
•Do not hold the Unit ON/OFF button down for more than 5 seconds.
(Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)
NOTE
Unit ON/OFF button
RKW012A401B_EN_001-022 12/08/2010, 13:576

–7–
Transmission procedure
When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
NOTE
2
Current time setting
■When inserting the batteries, the current time is automatically set to time setting mode.
13:00 is displayed as the current time. Set the clock to the right time.
Example: Set to 10:30.
Press the TIME SET UP switch.
Press with the tip of a ballpoint pen, etc.
The time display blinks and can be set to the current time.
Press the “ or ” button.
(Set to 10:30)
Press the TIME SET UP switch.
The display changes from blinking to steady lighting and the setting is
complete.
Make sure to press the button within 60 seconds from the last operation in
step 2, otherwise the time is not set.
•The timer operation works based on the time clock, so please set it
correctly.
•The remote control data is reset when the present time is set.
1
3
FAN SPEED button
Each time the button is pressed, the
display is switched over in turn.
Page 8
•The above illustration shows all controls, but in
practice only the relevant parts are shown.
OPERATION MODE select button
Each time the button pressed, the
display is switched over in turn.
ALLERGEN CLEAR button
This button selects ALLERGEN CLEAR
operation.
Page 13
ON/OFF (luminous) button
Press to start operation, press again to
stop.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 14 AIR FLOW (UP/DOWN) button
This button changes the air flow (up/
down) direction.
TIME SET UP switch
This switch is for setting the time.
Page 7
SLEEP button
This button selects SLEEP operation.
Page 11
CLEAN switch
This switch selects the CLEAN mode.
Page 15
ON TIMER button
This button selects ON TIMER operation.
Page 12
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/
right) direction.
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
ACL switch
Switch for resetting microcomputer.
Page 6
OFF TIMER button
This button selects OFF TIMER
operation.
TEMPERATURE button
These button set the room temperature.
(These buttons are used for setting the
current time and timer function as
well.)
Operation and display section for remote control
Operation section
Page 8,9
Page 10
Page 10
Page 11
RKW012A401B_EN_001-022 12/08/2010, 13:577

–8–
AUTO HI MED LO ULO
•When changing FAN SPEED from HI to LO, the sound
of refrigerant flowing may be heard.
NOTE
Temperature adjustment during AUTO
■Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or
the button.During automatic operation, 24°C is preset both for heating and cooling.
AUTO mode operation
■ Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.
1When a change in temperature is required.
Press the or button.
•If you do not want the AUTO mode program, change
to COOL, HEAT, DRY or FAN instead of AUTO.
Page 9
•Airflow direction adjustment procedure.
Page 10
AUTO mode can be
operated by simply
pressing the ON/
OFF button.
To stop: Press the ON/OFF button.
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not
change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Point the remote control toward the air-conditioner, and
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
FAN SPEED
Press the FAN SPEED button.
Move the [ mark] to the preferred fan speed position.
■You can choose the capacity of your air-conditioner
when heating mode, cooling mode or fan mode.
NOTE
Display in OFF status
•The current time and preset
OPERATION MODE are displayed
while the air conditioner is turned
off.
Remote Control display
-6 -5 -4 -3 -2 -1 +0+1 +2+3 +4+5+6
18 19 20 21 22 23 24 25 26 27 28 29 30
Setting
temp.(°
C )
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
Silent operation ULO
•In case air is not blowing out
during the operation.
Page 19
•When the included clean filter is
installed the air conditioner will
clean the air during automatic
operation.
RKW012A401B_EN_001-022 12/08/2010, 13:578

–9–
COOL/HEAT/DRY/FAN mode operation
Airflow direction adjustment procedure. Page 10
Point the remote control toward the air-conditioner, and
Press the MODE select button.
Move the [ mark] to the required operation position.
(Cool), (Heat), (Dry), (Fan)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the preferred temperature.
Standard
4
3
To stop: Press the ON/OFF button.
•In case air is not blown out, when starting the heating op-
eration.
Page19
•The operation program can also be set or changed when
the air-conditioner is not in operation.
NOTE
2
1
Air-conditioner operable temperature setting
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated,
preventing the unit from working.
Cooling operation Heating operation
Outside temperature Approximately -15 to 46 °C Approximately -15 to 21 °C
Inside temperature Approximately 18 to 32 °C Approximately 15 to 30 °C
Below approximately 80%
The long-term use of the unit with a humidity level
Inside humidity
exceeding 80% may result in condensation forming
on the surface of the indoor unit, leading to
water drips.
Characteristics of HEAT mode operation
Mechanism and capacity of HEAT mode operation
■Mechanism
•The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the
heating capacity reduces when the outside air temperature gets colder.
•It may take some time to supply hot air after turning on the air-conditioner.
•If the outside temperature becomes extremely low, it would be better to use an additional source of heating.
Defrosting
If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents
efficient heating.
If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes
during defrosting.
•Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.
•The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.
•The HEAT operation resumes as soon as defrosting has been completed.
Press the FAN SPEED button
Set the fan speed as preferred.
RKW012A401B_EN_001-022 12/08/2010, 13:579

–10–
Airflow direction adjustment
Adjusting airflow direction
■Up/down direction can be adjusted with the AIRFLOW (UP/DOWN) button on the remote control. Every time you press this
button the mode changes as follows:
Change on AIRFLOW (UP/DOWN) mode.
■Left/right direction can be adjusted with the AIRFLOW (LEFT/RIGHT) button on the remote control. Every time you press this
button the mode changes as follows:
Change on AIRFLOW (LEFT/RIGHT) mode.
MEMORY FLAP (FLAP OR LOUVER STOPPED)
When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or
louver is operating, it stops swinging at the position. Since this angle is memorized in the
microcomputer, the flap or louver will automatically be set at this angle when the next opera-
tion is started.
DANGER
•Do not expose directory to airflow from the air-conditioner for a long time.
CAUTION
•When in COOL or DRY operation, do not operate for a long period with the
airflow blowing straight down. Otherwise, condensation may appear on
the outlet grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not be closed completely.
HEAT
(Horizontal
blowing)
(Slant forward
blowing)
COOL, DRY
•Recommended angle of the flap when
stopping
•When operation starts, the flap and louver direction is fixed at the horizontal / center position in order to avoid cold draft, and return
to the set the position that was set after the warm air supply is starting.
•The flap and louver direction will be controlled to the horizontal/center position when the room temperature reaches the set tem-
perature and compressor stops or when defrosting is in operation.
•The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is
supplied and the flap/louver goes to the set position.
(Swing)
(Flap stopped)
(Louver stopped)
(Swing)
NOTE FOR HEATING OPERATION
Multi-directional Air Flow (up/down air scroll and left/right air scroll)
■Activating both up/down air swing and left/right air swing at the same time results in a multi-directional air flow.
Up/down air scroll Left/right air scroll
Thick line : moves quickly
Thin line : moves slowly
Stops at this position
for 5 seconds.
In COOL, DRY and FAN operation In HEAT operation In COOL, DRY and FAN operation In HEAT operation
Left louver Right louver
Stops at this position
for 5 seconds.
•The actual position of the flap and louver may differ from the display shown.
NOTE
RKW012A401B_EN_001-022 12/08/2010, 13:5710

–11–
1
■If it is pressed while the unit is off
SLEEP TIMER operation starts with the previous operation settings, and the air
conditioning is turned off after the set time elapses.
■If it is pressed while the unit is running
The air conditioner is turned off after the set time elapses.
Every time the button is pressed, the display changes as follows:
Example: You prefer it to stop after 7 hours.
Set to
The timer light (yellow) is on.
h
•The unit stops after the set time lapses.
SLEEP TIMER operation
■The unit stops automatically after the set time lapses.
The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating. Page 13
Press the SLEEP button.
1
How to cancel
Press the CANCEL button to turn off the SLEEP
indicator.
Changing of set time
Set a new time by pressing SLEEP button.
•
SLEEP operation will not function during ALLERGEN CLEAR operation.
• Cannot be set at the same time with OFF-TIMER.
NOTE
OFF-TIMER operation
■The unit stops automatically when the set time comes.
With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2.
Example: You prefer it to stop 22:30.
Press the ON/OFF button.
Press the OFF-TIMER button.
OFF TIMER display is blinking.
Press the “ or ” button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
1
4Press the OFF-TIMER button.
The display changes from blinking to steady lighting and the setting is
complete.
The timer light (yellow) is on.
2
How to cancel
Press the CANCEL button to turn off the timer
display.
•
The unit stops at the end of the set period of time.
• Make sure to press the button within 60 seconds from the last operation in step
3, otherwise the setting is not completed.
• The current time is not displayed during OFF-TIMER operation.
• OFF-TIMER operation will not function during ALLERGEN CLEAR operation.
• Different from SLEEP TIMER operation, automatic set temperature adjustment
is not done during OFF-TIMER operation.
Changing of set time
Set a new time by using the OFF-TIMER button.
NOTE
No indication
(
cancelled
)
... (Units of one hour)
RKW012A401B_EN_001-022 12/08/2010, 13:5811

–12–
1
2
How to cancel
Press the CANCEL button to turn off the timer
indicator.
Example: In the case the preferred room temperature is required at 8:00.
Press the ON-TIMER button.
ON-TIMER display is blinking.
3
■ Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. Page 13
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP TIMER + ON-TIMER operation
■Combined timer operation of SLEEP TIMER and ON-TIMER. Example: When it is required to stop after 3 hours and then start operation at
8:00, near the set temperature.
■SLEEP TIMER setting
Set by the procedures on page 11.
Set to
■ON TIMER operation setting
Set by the above procedure mentioned in ON-TIMER.
Set to
The setting of the lighting of the timer light (yellow) of this unit is com-
plete.
h
•After the SLEEP TIMER set time has elapsed, the operation stops, and
it starts from 5 to 60 minutes before the ON-TIMER’s set time.
•The timer light is turned off when ON-TIMER set time comes.
Changing of set time
Set a new time by using the SLEEP or ON-TIMER
button.
How to cancel
Press the CANCEL button to turn off the timer display.
Press the “ or ” button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ON-TIMER button.
The display changes from blinking to steady lighting and the setting is
complete.
The timer light (yellow) is on.
The operation stops if it is set during operation.
Changing of set time
Set a new time by using the ON-TIMER button.
ON-TIMER operation
•Operation starts 5 to 60 minutes before the set time.
•The timer light (yellow) goes out at the set time.
•Make sure to press the button within 60 seconds from the last opera-
tion in step 2, otherwise the setting is not completed.
•The current time is not displayed during ON-TIMER operation.
•ON-TIMER operation will not function during ALLERGEN CLEAR
operation.
NOTE
RKW012A401B_EN_001-022 12/08/2010, 13:5812

–13–
ALLERGEN CLEAR operation
Aim the remote control at the air-conditioner.
Press the ALLERGEN CLEAR button.
1
■The power of enzymes is used to eliminate allergy-causing allergens that accu-
mulate on the allergen clear filter.
To stop: Press the ON/OFF or
ALLERGEN CLEAR button.
•Since the room temperature may change quite a bit, it is recommended
that this be used when no one is in the room. (It completes automati-
cally in approximately 90 min.)
•During ALLERGEN CLEAR operation temperature, fan speed, airflow
direction and timer operations settings cannot be made.
NOTE
PROGRAM TIMER operation
■The timer operations of the combination of ON and OFF TIMER. Once this has been set the timer operations will be repeated at the
same time every day unless the ON/OFF button is pressed.
Example: When it is prefered to stop at 22:30, and then start operation at 8:00,
near the set temperature.
■OFF-TIMER operation setting
Set by the procedures on page 11. Set to
■ON-TIMER operation setting
Set by the procedures on page 12. Set to
Timer light (yellow) on the unit will light when the setting is completed.
The set time will be displayed on the remote control unit. The display will
change depending on the operational status.
How to cancel
Press the CANCEL button to turn off the timer display.
Changing of set time
Set a new time by using the OFF-TIMER or ON-TIMER button.
Comfort Start-up
In ON-TIMER operation, the unit starts the operation a little earlier, so
that the room can approach optimum temperature at ON time. This is
so called “Comfort start-up”.
•Mechanism
The room temperature is
checked 60 minutes before
the ON time. Depending on
the temperature at that time,
the operation starts 5 to 60
minutes before the timer is at
ON.
•The function is available for
both COOL and HEAT opera-
tion mode (including AUTO).
It does not work for DRY
mode.
SLEEP TIMER
In COOL operation
(Stop) Operation starts
▼
Check the room
temp. 60 mins.
before.
Set time
▼
When SLEEP TIMER is selected, the set temperature is automatically
adjusted after a while, ensuring that the room is not too cold during
cooling or too warm during heating.
•During cooling : the preset temperature is lowered by 1°C at the start
of SLEEP operation (when the timer is set). After that, the tempera-
ture goes up by 1°C every an hour to become 1°C higher than the
present temperature.
•During heating: Preset temperature is lowered by 1°C at the start of
SLEEP operation (when the timer is set). After that the temperature
to becomes 3°C lower in an hour and 6°C lower in two hours than the
present temperature.
(Operation)
Set temperature
With ON-TIMER, the air conditioner starts running.
Then, with OFF-TIMER, the air conditioner stops run-
ning.
With OFF-TIMER, the air conditioner stops running.
Then, with ON-TIMER, the air conditioner starts run-
ning.
RKW012A401B_EN_001-022 12/08/2010, 13:5813

–14–
HIGH POWER/ECONOMY operation
2
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode is AUTO, COOL or HEAT
Every time the HI POWER/ECONO button is pressed, the display is
switched in the order of:
No display
•When the operating mode is DRY or PROGRAM TIMER
Every time the HI POWER/ECONO button is pressed, the display is
switched in the order of:
No display
1
( HIGH POWER )( ECONOMY )(Normal operation)
(
ECONOMY )(Normal operation)
Concerning HIGH POWER operation
Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling or heating operation for 15
minutes continuously. The remote control displays and the FAN SPEED display disappears.
•During the HIGH POWER operation, the room temperature
is not controlled. When it causes an excessive cooling or
heating,press the HI POWER/ECONO button again to
cancel the HIGH POWER operation.
•HIGH POWER operation is not available during the DRY
and the program timer operations.
•When HIGH POWER operation is set after ON TIMER
operation, HIGH POWER operation will start from the set
time.
•When the following operations are set, HIGH POWER
operation will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER
operation has started.
•Not operable while the air conditioner is OFF.
•After HI POWER operation, the sound of refrigerant flowing
may be heard.
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or
heating. The unit operates 1.5°C higher than the setting temperature during cooling or 2.5°C lower than that during heating. The
remote control displays and the FAN SPEED display disappears.
NOTE
•It will go into ECONOMY operation at the next time the air-
conditioner runs in the following case.
1
When the air-conditioner is stopped by ON/OFF button
during ECONOMY operation.
2 When the air-conditioner is stopped in SLEEP or OFF
TIMER operation during ECONOMY operation.
3When the operation is retrieved from CLEAN or AL-
LERGEN CLEAR operation.
•When the following operations are set, ECONOMY operation
will be canceled.
1When the HI POWER/ECONO button is pressed
again.
2When the operation mode is changed DRY to FAN.
•Not operable while the air conditioner is OFF.
NOTE
If the air-conditioner is not operating, point the remote control toward the air conditioner, and
RKW012A401B_EN_001-022 12/08/2010, 13:5814

–15–

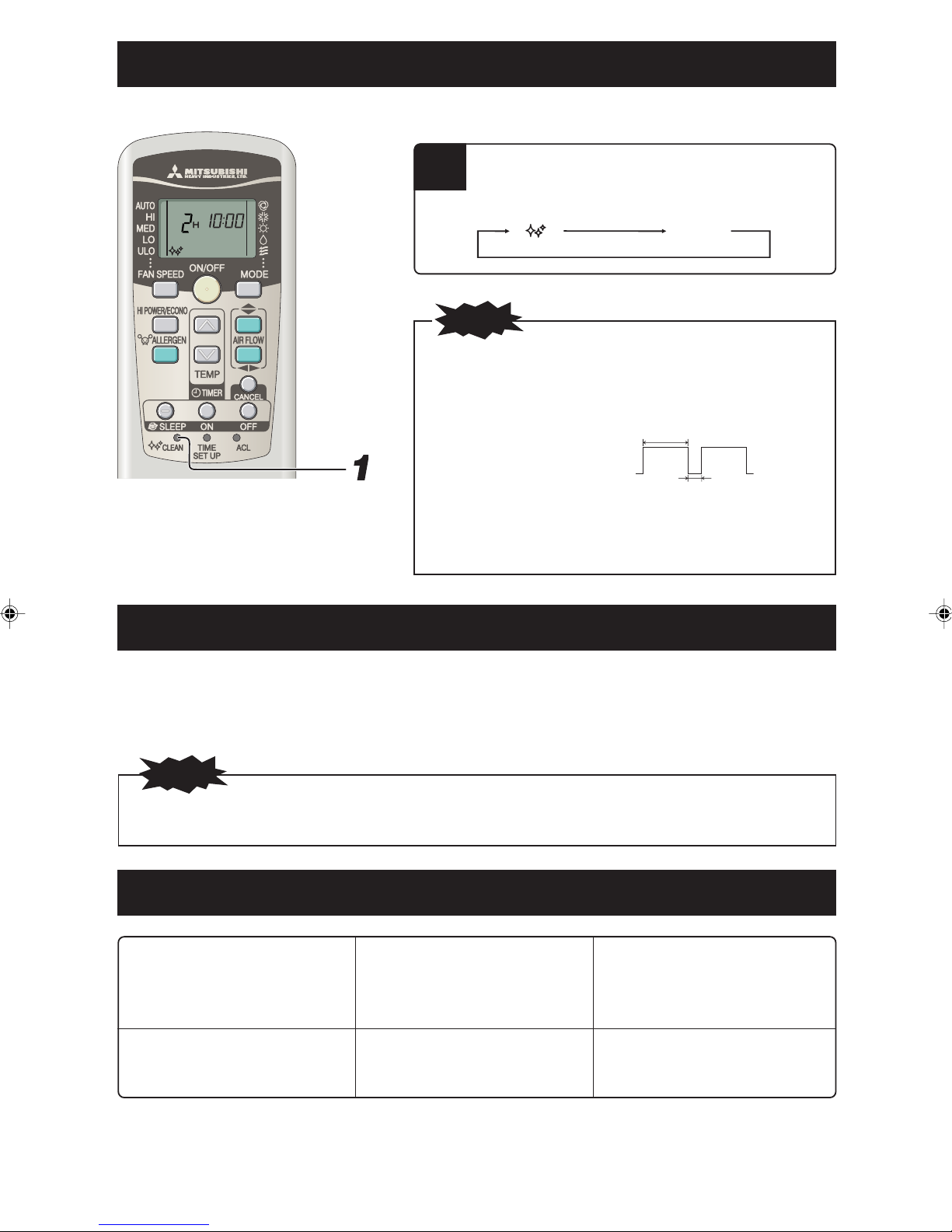

SELF CLEAN operation
1In order to active CLEAN operation, press the CLEAN
switch with the tip of a ballpoint pen.
Every time the CLEAN switch is pressed, the display is
switched in the order of:
No display
■CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control
the growth of mold and bacteria.
(CLEAN on) (CLEAN off)
NOTE
•Two hours later, the air conditioner stops running automatically. To stop
the air conditioner immediately, press the ON/OFF button.
•CLEAN operation is not operated after HEAT and FAN, OFF-TIMER,
SLEEP and ALLERGEN CLEAR operations have finished.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light illuminates during CLEAN operation.
•Pressing the SLEEP button or ALLERGEN CLEAR button during
CLEAN operation cancels the CLEAN operation and then the unit is set
to SLEEP or ALLERGEN CLEAR operation.
•This is not a function for removing mold, germs or grime that have
already adhered to the unit.
Auto restart function
■What is auto restart function?
•Auto restart function records the operational status of the air-conditioner immediately prior to be switched off by a power cut, and then
automatically resumes operations after the power has been restored.
•The following settings will be cancelled:
1Timer settings
2HIGH POWER operations
•Auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this function needs
to be switched off.
•When power failure occurs, the timer setting is cancelled. Once power is resumed, set the timer again.
NOTE
Tips for effective operation
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively high or low temperatures
are not good for your health and waste of
electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the
curtains or blinds when cooling. Keep
windows and doors shut, except when
ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
Clean the filters frequently.
Clogged filters may block the airflow and
cause less efficient operation.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow
to ensure a steady room temperature.
Keep heat source away when cooling.
Keep heat sources out of the room as
much as possible.
3 sec.
1 sec.
ON
OFF
RKW012A401B_EN_001-022 12/08/2010, 13:5815

–16–
Turn off the power supply.
Remove the air filter
Maintenance
Cleaning the air filter
Do not use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
•Petrol, paint thinner, benzine or cleanser, etc.
They may deform or scratch the unit.
•Do not spill any liquid.
•Do not touch the aluminum fins on
the heat exchanger.
•Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filter.
Cleaning
CAUTION
•Do not clean the filters with boiling water.
•Do not dry them over an open flame.
•Pull them out gently.
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
1
2
3
Before maintenance
Reinstall the air filter
•Hold firmly the filter at both sides as shown at
right and insert securely.
•Operating without putting back the air filters will
make the unit dusty, and may cause damage.
Cleaning the air inlet panel
•Removal, installation of air inlet panel.
•The panel can be washed with water. After
washing with water, wipe any moisture off the
panel and dry out of direct sunlight.
Wipe the unit with a
soft, dry cloth.
During the operational season
•Pull up the air inlet panel forward.
•
Lightly hold the knobs both sides and lift
a little to remove the panel forward.
If the filter is very dirty, clean it with warm water
(approx. 30°C), and dry it thoroughly.
There's a dan-
ger of electric
shock.
Standard interval is once
every two week
Open
Place fingers at the recesses on both sides of the panel and pull
up the panel forward so that it will be open by about 60 degrees.
How to open, close the air inlet panel
Close
Push both ends evenly and press further lightly at the center.
Removal
When removing the air inlet panel for internal cleaning or others,
open the panel by 80 degrees and then pull it forward.
Removal, installation of air inlet panel
Installation
Secure the upper edge of the air inlet panel by lightly pushing it
in, and then close the panel.
RKW012A401B_EN_001-022 12/08/2010, 13:5816

–17–
Stop the unit and turn off the power supply.
The unit consumes approx. 4W even when the unit is not operat-
ing.
Turning off the power supply will help saving energy consumption
and cost.
At the beginning of the season
Ensure that the earth wiring is not snapped
nor disconnected.
Make sure that there are no obstacles block-
ing the airflow around the air intake and outlet
openings of the indoor and outdoor units.
NOTE Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It
may also use extra electricity. Please clean the air filter at appropriate intervals.
1
2
Remove batteries from the remote control.
Clean both the indoor and outdoor units.
Clean and reinstall the air filters.
Perform the fan operation for 2 to 3 hours.
Dry the inside of the unit.
3
4
5
Check if there is no corrosion or rust on the
base frame of the outdoor unit.
Insert batteries in the remote control.
Turn on the power supply.
Ensure that the air filters are clean.
3
2
1
4
5
6
Installing, inspecting, and replacing the air-cleaning filter
1. Open the air inlet panel and remove the air filters. Page 16
2. Remove the filter holders, with the air-cleaning filter installed in the folders, from the
air-conditioner.
3. Remove the allergen clear filter (Light orange) from filter holder and inspect the
filter. Use a vacuum cleaner to remove any dust or dirt from the allergen clear filter.
Replace the allergen clear filter if it cannot be cleaned or if it has been for about 1
year.
(The allergen clear filter should be replaced after about 1 year of use. However, the
actual replacement period may vary depending on the conditions in which the filter
is used.)
Remove the photocatalytic washable deodorizing filter (orange) from the filter
holder and inspect the filter. Periodically, remove any dust or dirt from the photo-
catalytic washable deodorizing filter. If the photocatalytic washable deodorizing fil-
ter is particularly dirt, it may be washed with water. However, the filter is fragile so
be sure to wash it installed in the filter holder to avoid damaging it. After washing
the filter, place it in sunlight to dry. Placing the filter in sunlight revitalizes the deo-
dorizing effect.
(Do not dispose of the filter holders. They are reusable. )
4. Install the air-cleaning filter in the filter holders, and then install the filter
holders in the air-conditioner.
5. Install the air filters and closed the air inlet panel. Page 16
NOTE
•The allergen clear filter and the photocatalytic washable deodorizing filter
may be installed on either the right or left side of the air-conditioner.
•Install the allergen clear filter with the light orange side front.
At the end of the season
CAUTION
•The heat exchanger may injure your fingers.
Item Feature Color
For replacement the air-cleaning filter, contact your dealer.
The power of enzyme is used to eliminate allergy-caus-
ing allergens that accumulate on the filter.
Sources of odors on the filter are broken up, resulting in
a deodorizing effect.
Photocatalytic washable
deodorizing filter Orange
Allergen clear filter Light orange
Filter
Filter holder
RKW012A401B_EN_001-022 12/08/2010, 13:5817

–18–
Proper installation
Pay attention to operating noises!
•When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the
operating noise or vibration. If vibration is transmitted through the house, fix the unit with the aid of vibration-proof pads between
the unit and the fittings.
•Select a place where cold or hot air, operation noises from the indoor and outdoor units do not cause any inconvenience to your
neighbours.
•Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating
noise.
•If you hear an irregular noise during operation, contact your dealer.
Inspection and maintenance
Depending on operating environment, the inside of the air-conditioner may become dirty after a few year operations. This will reduce
performance. In addition to normal cleaning, we would recommend inspection and maintenance. (This may lead the air-conditioner to
having a longer life without any trouble.)
•Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).
•We would recommend inspection and maintenance to be carried out during the off-season.
•If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because
special purpose tools are required.
Suitable installation position
•Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning.
•Do not install the unit in any of the following places:
•Where there is a danger of leaking flammable gases.
•Where there is substantial splashing of oil.
•Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort
exposed to sea breezes. Contact your dealer.
•The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.
•Drain the dehumidified liquid from the indoor unit into a spot that drains well.
The air-conditioner does not work at all.
Has the timer been set in the
“ON” position?
Has the power switch been
turned off? Is there a power failure or a blown fuse?
Troubleshooting
Please carry out the following checks before making a service call.
Poor cooling
Poor cooling or heating
Did you leave any doors or
windows open?
Have you set the thermostat
at a suitable temperature?
Is there a heat source in the
room? Are there too many people in the room?
Is the air filter clean? (Not
clogged?)
suitable
tempera-
ture
Is there any direct sunlight
entering the room?
If the air-conditioner does not op-
erate properly after you have
checked the left points, or if any
doubt still exists after you have
consulted page 19, or if things
happen as shown on page 20,
switch off the power and contact
your dealer.
An alternative refrigerant (R410A) is used in this air-conditioner. When asking your
dealer for service or inspection and maintenance, explain the dealer about it.
RKW012A401B_EN_001-022 12/08/2010, 13:5818
