Sinclair SMH-100IRA? SMH-140IRA User manual

AIR TO WATER HEAT PUMPS
SMH-100IRA
SMH-140IRA
MONOBLOCK INVERTER


“Originalinstructions”

To Users
Thank you for selecting Sinclair’s product. Please read this instruction manual carefully before installing and
using the product, so as to master and correctly use the product. In order to guide you to correctly install and
use our product and achieve expected operating effect, we hereby instruct as below:
(1) This instruction manual is a universal manual, some functions are only applicable to particular product. All
the illustrations and information in the instruction manual are only for reference.
(2) In order to make the product better, we will continuously conduct improvement and innovation. We have the
right to make necessary revision to the product from time to time due to the reason of sales or production,
and reserve the right to revise the contents without further notice.
(3) For personal injury or property loss and damage caused by improper operation such as improper
installation and debugging, unnecessary maintenance, violation of related national laws and rules and
industrial standard, and violation of this instruction manual, etc., we will bear no liability.
(4) The nal right to interpret for this instruction manual belongs to Sinclair

Contents
1. External View .............................................................................................................1
1.1 Keys & Indicating LEDs ....................................................................................................1
1.2 Standby Page and Homepage..........................................................................................2
2. Operation Instructions..............................................................................................3
2.1 On/Off ...............................................................................................................................3
2.2 Function Setting ................................................................................................................4
2.3 Parameter Setting (Parameter Set) ................................................................................20
2.4 View ................................................................................................................................23
2.5 General Setting ...............................................................................................................28
2.6 Key Lock .........................................................................................................................30

1
1. External View
1 2
3
10
1112
13
14
15 9
4
5
6
7
8
(This effect drawing is just for reference)
1.1 Keys & Indicating LEDs
No. Symbol Name Functional Description
1Running indicating LED
(green) It will light on/off when the unit is turned on/off.
2Power indicating LED
(yellow) It will light on/off when the unit is powered on/off.
3Error indicating LED (red) It will light on when some fault occurs.
4Left key It is intended to move the cursor left.
5Up key It is intended to modify the setting state or value of the selected
parameter.
6Menu key It is intended to call out the main menu or back to the
homepage.
7Right key It is intended to move the cursor right.
8Down key It is intended to modify the setting state or value of the selected
parameter.
9ON/OFF key It is intended to turn on or off the unit.
10 Cancel/Return key It is intended to go to the higher level menu.
11 OK key It is intended to save the setting or go to the submenu.

2
12 Function key no. 4
It is intended to perform different functions at difference pages.
13 Function key no. 3
14 Function key no. 2
15 Function key no. 1
1.2 Standby Page and Homepage
Standby Page
Home Page
No. Item Functional Description
1 Mode It is intended to access to the actual running mode.
2 Auxiliary Func. It indicates the auxiliary function.Note 1
3Error state It indicates if there is any error.
4 T-water out It indicates the actual leaving water temperature.
5 T-outdoor It indicates the actual outdoor environment temperature.
6 Key lock It indicates if the key lock is activated or deactivated.
7 FUNC. It is intended to access to the function setting page.
8 PARA. It is intended to access to the parameter setting page.
9VIEW It is intended to access to the view page.
10 GEN. It is intended to access to the general setting page.
Note
it includes the “Floor debug”, “Floor Debug err”, “Emergency mode”, “Weather-dependent mode”, “Quiet mode”
, “Forced cooling” , “Forced heating”, and “Holiday mode”.

3
2. Operation Instructions
2.1 On/Off
It is intended to turn on/off the unit.
[Operation Instructions]
(1) At the homepage, by pressing the ON/OFF key , the unit will be turned on/off.
(2) When the unit is ON, the green indicating LED located at the upper right of the control will light on.
When the unit is OFF, the green indicating LED will light off.
[Notes]
(a) The unit is defaulted to be OFF when it is energized for the rst time.
(b) The ON/OFF key operation works only at the home page and the standby page.
(c) When the “Holiday mode”, “Emergen.mode” or "Thermostat" is activated, the ON/OFF key
operation will become ineffective.
(d) When the “Forced Heating” or “Forced Cooling” is activated, it will be deactivated by pressing the “ON/
OFF” key , and then press the ON/OFF key again to start the unit.
(e) ON/OFF operation will be memorized by setting “Memory” to be “On” at the “GEN.” setting page. That is, in
case of power failure the unit will resume running upon power recovery. Once “On/off Memory” is set to be “Off”,
in case of power failure the unit will keep “Off” upon power recovery.
(f) At the standby page, the Menu key is used to back to the homepage, the ON/OFF key is used
to turn on/off the unit if applicable, and all other key operations are ineffective.
(g) At the home page, the ON/OFF key is intended to turn on/off the unit if applicable. The Function keys
no.1 to no.4 are corresponding to “FUNC.”, “PAPA”, “VIEW” and “GEN.” setting pages respectively.
(h) The control will return automatically to the homepage where there is no any key operation in 10 consecutive
minutes.

4
2.2 Function Setting
It enables the user to set each function.
[Operation Instructions]
(1) At the homepage, by pressing the Function key no. 1 , the control will access to the FUNCTION page 1,
as shown in the gure below.
Normal temp.
FUNCTION page 1
(2) At the FUNCTION page, by the Right/Left key , the desired function option can be selected, and
by the Up/Down key , the setting of the current function option can be modied. The function key
no. 3 or no. 4 can be used for switch pages. After the setting is nished, by pressing the Menu
key , the control will back to the homepage, or by pressing the Return key the control will back
to the higher level menu.
[Notes]
(a) Move the cursor to the desired option and “Enter” will be displayed at the lower left side of the LCD,
reminding you that you are allowed to access to the submenu by pressing the OK key .
(b) At the FUNCTION page, when the setting of some function option is changed and needs to be memorized,
then in case of power failure it will be saved automatically and resume upon power recovery.

5
Function Settings
No. Full Name Displayed Name Range Default Remarks
1Running mode
setting Mode
Cool
Heat
Hot water
Cool+Hot water
Heat+Hot water
Heat
1. When the water tank is
unavailable, then only “Cool”
and “Heat” are included in the
range.
2. For the heating only unit, only
"Heating" mode is available.
2 Control state Ctrl. state T-water out /
T-room
T-water
out
“T-Room” is available only
when “Remote Sensor” is set to
“With”.
3 Fast hot water Fast hot water On/Off Off
When the water tank is
unavailable, this function will
be reserved, and the LCD will
display ‘Reserved’.
4
Water out
temperature
control
T-water ctrl. High temp.
/Normal temp.
Normal
temp.
This setting depends on the
"Floor cong".
When the "Floor cong" is set to
"With", the setting is defaulted
to be "Normal temp." and can
not be changed by the user.
When the "Floor cong" is set
to "Without", this setting can be
changed freely.
5 Cool+hot water Cool+hot water Cool/Hot water Cool
When the water tank is
unavailable, this function will
be reserved, and the LCD will
display ‘Reserved’.
6 Heat+hot water Heat+hot water Heat/Hot water Heat
When the water tank is
unavailable, this function will
be reserved, and the LCD will
display ‘Reserved’.
7Quiet mode Quiet mode On/Off Off /

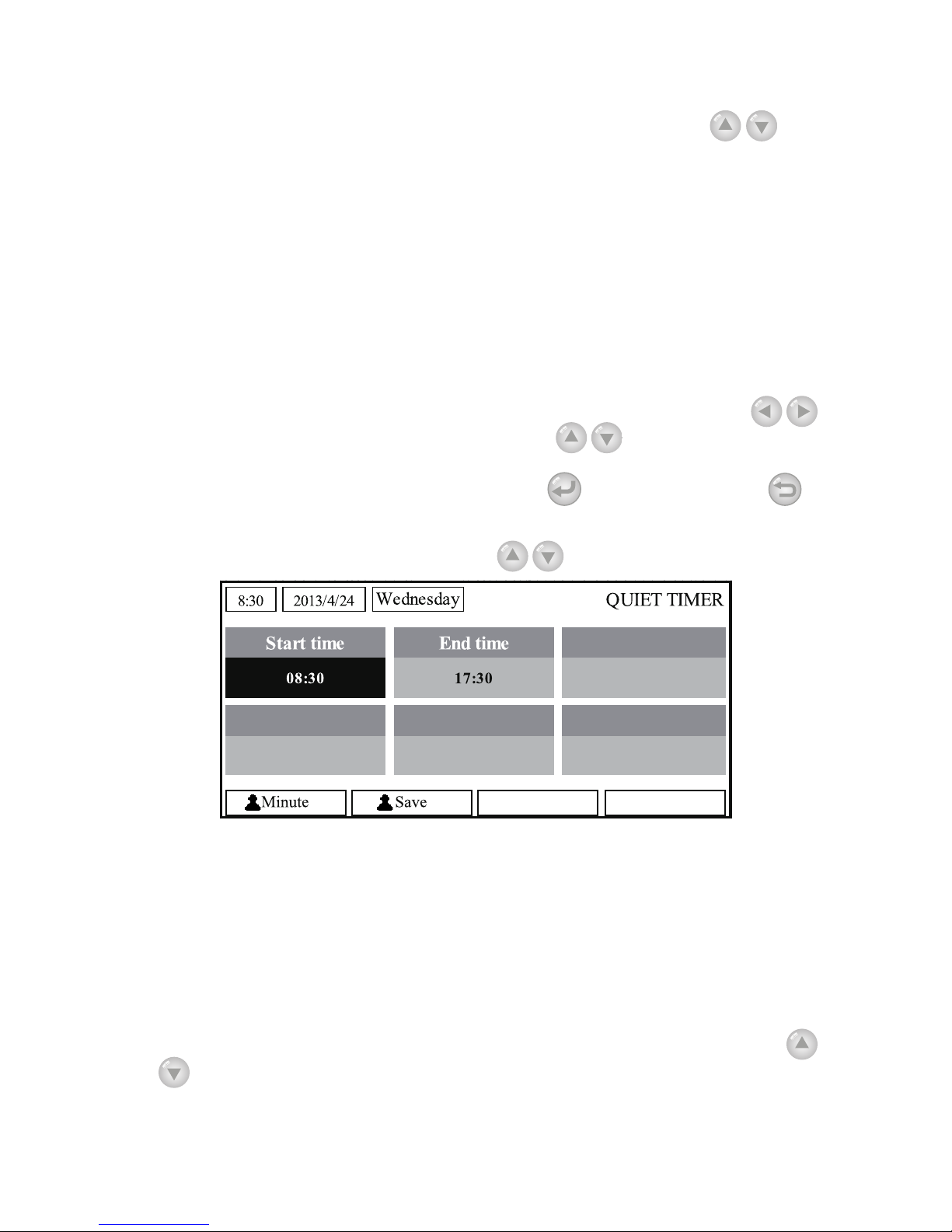

8Quiet timer Quiet timer On/Off Off /
9Weather-
dependent mode Weatherdepend On/Off Off /
10 Holiday release Holiday release On/Off Off /

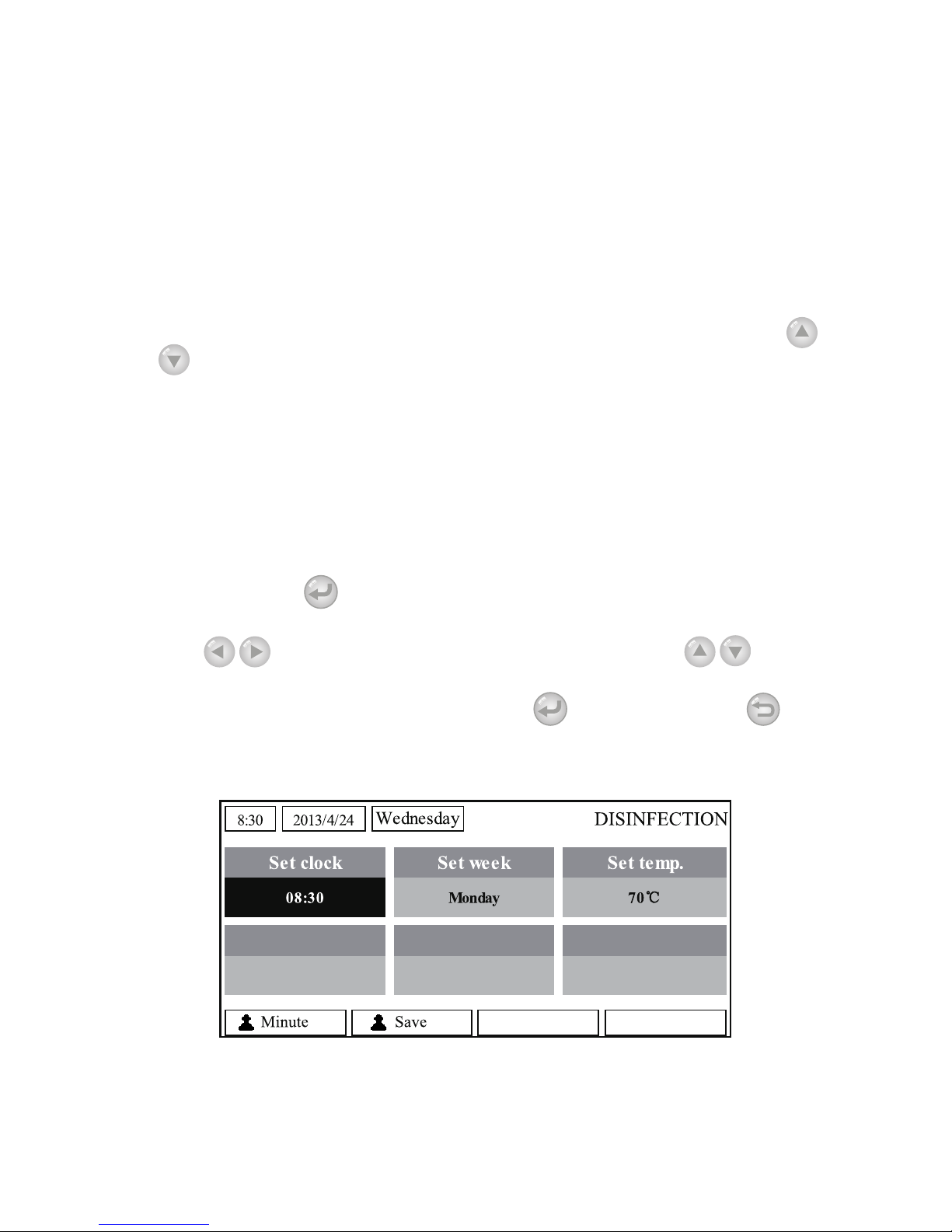

11 Disinfection Disinfection On/Off Off
When the water tank is
unavailable, this function will
be reserved, and the LCD will
display ‘Reserved’.
1. The disinfection date ranges
from Mondry to Sunday.
Saturday is defaulted.
2. The disinfection time ranges
from 00:00~23:00. 23:00 is
defaulted.
12 Weekly timer Weekly timer On/Off Off /
13 Clock timer Clock timer On/Off Off /
14 Temperature
timer Temp. timer On/Off Off /

6
15 Solar kit Solar kit On/Off/Timer Off
When the water tank is
unavailable, this setting will be
reserved. If it is set to “On”, the
solar kit will function no matter if
the timer is activated or not; if it
is set to “Off”, the solar heating
function is unavailable; if it is
set to “Timer”, the solar kit can
function when the timer has
been activated.
16 Floor debug Floor debug On/Off Off /
17 Emergency
mode Emergen. mode On/Off Off /
18 Holiday mode Holiday mode On/Off Off /
19 Thermostat Thermostat Air/Without/
Air+hot water Without
This setting cannot be changed
from “Air” to “Air+hot water”
directly but via “Without” this
option and the unit will go to
OFF status. Meanwhile, the
control will send out “OFF”
command for consecutive
40 seconds (it is longer than
the communication error,
and the “ON” command can
be performed only when 40
seconds have been expired.
When it is set to “Air+hot water”,
“hot water” can be performed
even though the thermostat is
off.
20 Assistant heater Assis. Heater 1/2/Off Off /
21 Other heater Other heater With/Without Without /
22 Chassis heater Chassis heater On/Off On /
23 Tank heater
running Tank heater With/Without/ Reserved Reserved
When the water tank is
available, this setting can be
changed; when unavailalbe,
this setting will be "Reserved".
When the water tank heater
is stopped, if the solar
heater is available, water
tank temperature setting is
unrestricted; if the solar heater
is unavailable, the upper limit
will be 50℃.
24
Plate heat
exchanger
heater
Plate heater On/Off On /
25 Solar kit-
antifreeze Solar antifre On/Off Off /
26 Water tank Water tank With/Without Without /
27 Tank sensor Tank sensor 1/2 2
When the water tank is
unavailable, this function will
be reserved. and the LCD will
display ‘Reserved’.

7
28 Solar heater Solar heater With/Without Without
When it is set to "With", this
function can be activated/timed/
deactivated. When it is set to
"Without", this function will be
deactivated.
29 Floor cong Floor cong With/Without With
If it is set to “With”, "Water
out temperature control" is
defaulted to be “Normal temp”.
For “Without”, it is “High temp”
and can be set freely . This
setting is unavailable when the
unit is OFF.
30 Remote sensor Remote sensor With/Without Without
When it is set to “Without”,
the “Control state” will be
automatically changed to
“T-water out”.
31 Air removal Air removal On/Off Off /
32 Address Address [1~125]
[127~253] 1 /
33 Gate-Controller Gate-Ctrl. On/Off Off /
2.2.1 Mode
It enables the user to select the run mode of the unit. When the water tank is not prepared, then only Cool and
Heat modes are available. When the water tank has been prepared and Water Tank is set to “With” through the
wired controller (see Section 2.2.26 for more details), then Cool, Heat, Hot water, Heat + hot water, and Cool
+hot water modes are available. In this case, Heat + hot water or Cool + hot water can be given priority. (see
Section 2.2.5 and 2.2.6 for more details), which is the default setting before delivery.
[Operation Instructions]
At the equipment OFF state, access to the FUNCTION page and then move through the Left/Right key
the cursor to the “Mode” whose characters will be reversed, then press the Up/Down key to
modify its setting.
[Notes]
(a) The “Heat” mode is defaulted when the unit is energized for the rst time.
(b) The running mode is allowed to be changed only when the unit is not in operation. If it is done with the unit
being on, a window will pop up, warning “Please turn off the system rst”.
(c) When the water tank is disabled, only the ‘Heat” or the “Cool” mode is allowed.
(d) When the water tank is enabled, “Cool”, “Heat”, “Hot water”, “Cool+hot water”, “Heat+hot water” is
allowed.
(e) For the heat pump, the “Cool” mode is allowed; for the heating only unit, “Cool+ Hot water” and “Cool” are
unallowable.
(f) This setting can be memorized upon power failure.
2.2.2 Control State (Ctrl. state)
It enables the user to congure the control state to leaving water temperature or room temperature.
[Operation Instructions]
Go to the FUNCTION page and locate Ctrl. state, then, congure it through the Up/Down key .
[Notes]
(a) If “Remote sensor” is set to “With”, “T-out water” and “T-room” are available. While if “Remote Sensor” is
set to “Without”, only “T-out water” is selectable.
(b) This setting will be memorized upon power failure.
2.2.3 Fast Hot Water
When hot water is needed urgently, this function can be congured to be “On”, In this case, the heat pump and

8
the water tank heater will work together to generate sanitary hot water in a quickest way.
[Operation Instructions]
Go to the FUNCTION page and locate “Fast hot water”, then, congure it through the Up/Down key
, “On” or “Off”.
[Notes]
(a) It works only when “Water tank” is set to “With”.
(b) This setting will be memorized upon power failure.
2.2.4 T-water Ctrl (Water Temperature Control for Heating)
This setting depends on “Floor cong”. When “Floor cong” is set to “With”, this setting is defaulted to be “Normal
temp.” and can not be changed by the user. When it is set to “Withtout”, this setting is defaulted to be “High temp.”
and can be changed freely by the user.
[Operation Instructions]
Go to the FUNCTION page and locate “T-water ctrl.”, then, congure it through the Up/Down key , “High
temp.” or “Low temp.”.
[Notes]
(a) When this setting is changed, the following parameters will return to the default values.
Full Name Displayed Name Default
Water out temperature for heating WOT-Heat 45°C/113°F[High]
35°C/95°F[Normal]
Upper limit water-out temperature at the weather-dependent
mode for heating Upper WT-Heat 55°C/131°F[High] 35°C/95°F[Normal]
Lower limit water-out temperature at the weather-dependent
mode for heating Lower WT-Heat 40°C/104°F[High] 25°C/77°F[Normal]
(b) This setting will be memorized upon power failure.
2.2.5 Cool + Hot water
This compound mode enables the user to give priority to the “Cool” or “Hot water” mode depending on the
actual demand.
[Operation Instructions]
Go to the FUNCTION page and locate “Cool+hot water”, then, congure it through the Up/Down key
, “Cool” or “Hot water”.
[Notes]
(a) “Hot water” will take precedence only when “Water tank” is available, otherwise it will tell “Reserved”.
(b) This setting will be memorized upon power failure.
2.2.6 Heat + Hot water
This compound mode enables the user to give priority to the “Heat” or “Hot water” mode depending on the
actual demand.
[Operation Instructions]
Go to the FUNCTION page and locate Heat+hot water, then, congure it through the Up/Down key
, “Heat” or “Hot water”.
[Notes]
(a) “Hot water” will take precedence only when “Water tank” is available, other it will tell “Reserved”.
(b) This setting will be memorized upon power failure.
2.2.7 Quiet
This function can be activated when the running noise is too high.
when this function is activated, frequency of both the compressor and the fan will go down and also the capacity
of the unit will correspondingly decrease.

9
[Operation Instructions]
Go to the FUNCTION page and locate “Quiet”, then, congure it through the Up/Down key , “On”
or “Off”.
[Notes]
(a) It can be set to “On” or “Off” no matter if the unit is in operation or not, but this function works only when
the unit is turned on.
(b) Once it is activated, it should be deactivated manually or by Quiet Timer.
(c) This setting will be memorized upon power failure.
(d) It will be deactivated when the unit is turned off.
2.2.8 Quiet Timer
When running noise is too high at some specic timer period, this function enables the unit run quietly at this
time period.
[Operation Instructions]
(1) Go to the FUNCTION page and locate Quiet timer, then, access to the QUIET TIMER setting page.
(2) At the QUIET TIMER setting page, select “Start time” or “End time” through the Left/Right keys
and then congure the desired time through the Up/Down keys .
(3) When the mode setting is nished, then by pressing “Save”, a pop-up window will pop up to remind if you
are determined to save this setting. If so, press the “OK” key . If not, press the “Cancel” key to
not save this setting.
(4) When the setting is saved, the control then will back to the FUNCTION page and the cursor will be where
the “Quiet timer” option is, then by the Up/Down key , it can be set to be “On” or “Off”.
[Notes]
(a) Once it is activated, it should be deactivated manually.
(b) This setting will be memorized upon power failure.
(c) The saved “Start time” and “End time” will be memorized upon power failure.
(d) It is congurable no matter if the unit is in operation or not.
2.2.9 Weather-dependent Mode
For areas with large change of diurnal temperature, in order to avoid the user to set the leaving water
temperature or room temperature too often, this function will adjust automatically depending on the environmental
temperature.
[Operation Instructions]
Go to the FUNCTION page and locate Weatherdepend, then, configure it through the Up/Down key
, “On” or “Off”.
[Notes]
(a) Once it is activated, it should be deactivated manually.
(b) This setting will be memorized upon power failure.

10
(c) At the “Parameter View” page, it is able to check the set point at the Weather-dependent Mode.
(d) When it is activated, it is allowed to set the room temperature but the set point does not take effective.
However, when it is deactivated, the unit will run according to this set point.
(e) It can be set to “On” or “Off” no matter if the unit is in operation or not, but be activated only when the unit is
in operation.
(f) This mode works only for the air conditioning function.
2.2.10 Holiday Release
In summer or high-temperature season, this function will make the unit pause to run in some specic periods
when the user is out.
[Operation Instructions]
Go to the FUNCTION page and locate “Holiday release”, then, congure it through the Up/Down key
, “On” or “Off”.
[Notes]
(a) When it is activated, at the WEEKLY TIMER page, it is able to set some week day to “Holiday release”. In
this case, the “Weekly timer” in this day is ineffective unless it is set to “Effective” manually.
(b) This setting will be memorized upon power failure.
2.2.11 Disinfection
This function is intended to sanitize the water tank by raising the water temperature to 70°C under which the
legionella will die immediately. When this function is activated, the sanitation data and start time is congurable.
[Operation Instructions]
(1) At the FUNCTION page, locate “Disinfection”, and then access to the DISINFECTION setting page by
pressing the OK key .
(2) At the DISINFECTION setting page, select “Set clock”, “Set week” or “Set temp” through the Left/Right
key and then modify the corresponding setting through the Up/Down key .
(3) When the mode setting is nished, then by pressing “Save”, a pop-up window will pop up to remind if you
are determined to save this setting. If so, press the OK key . If not, press the Cancel key to not
save this setting.
(4) When the setting is saved, the control then will back to the FUNCTION page and the cursor will be where
the “Disinfection” is, which indicates this setitng for timed disinfection successes.
[Notes]
(a) It can be activated only when the “Water tank” is set to “With”.
(b) It can be set to “On” or “Off” no matter if the unit is in operation or not
(c) When "Disinfection" has been activated, the unit will perform disinfection at the set time once each week.
(d) When “Disinfection” is set to “On”, if you intend to set the “Emergen. mode”, “Holiday mode”, “Floor Debug”,

11
then a window will pop up, warning “Please disable the Disinfection Mode!”.
(e) It can be set to “On” or “Off” no matter if the unit is in operation or not, and “Hot water” mode always takes
precedence.
(f) When "Sanitize" is activated, “Disinfection” will show on the home page of the control until this operation is
nished. If this operation fails, “Disinfect fail” will show. In this case, by pressing any key, “Disinfect fail” will be
cleared or it will be always there.
(g) When "Sanitize" is activated, it will quit upon “Communication error with the indoor unit” or “Water tank
heater error”.
2.2.12 Weekly Timer
This function will make the unit run with certain modes in certain periods within a week based on the user’s
actual demand.
[Operation Instructions]
(1) At the homepage, by pressing the Function key access to the FUNCTION page, and then locate
where “Weekly timer” is by switching pages, after that, press OK key to go to the WEEKLY TIMER
setting page.
(2) At the WEEKLY TIMER setting page, by the Right/Left key it is able to select the desired week
day and then by the Up/Down key to set this day, “√”, “×” or “Holiday”, as shown in the gure
below. When this setting is nished, press OK key to go to this day’s setting page.
(3) At the week day’s setting page, it is allowed to set the running mode (Mode), temperature set point (WT-
HEAT), and water tank temperature (T-Water Tank). The running mode includes “Heat”, “Cool”, “Hot
water”, “Heat+ hot water”, “Cool+ hot water” (the last three ones are available only when “Water tank” is
set to “With”. There are totally ve periods for each day, and each period can be set to “√”or “×”. Besides, it
is able to set the “Start time” and “End time” for each period, as shown in the gure below.

12
(4) When above settings are nished, pressing the Return key and then pressing “Save”, a pop-up window will
pop up to remind if you are determined to save these settings. If so, press the OK key . If not, press
the Return key to not save these settings.
(5) In this case, nally by pressing the Up key , “Weekly timer” will be activated.
[Notes]
(a) Totally ve periods are allowed to be set for each time. For each period, “Start time” must be earlier than
“End time”. Similarly, the preceding period must be earlier than its following period.
(b) When “Weekly timer” has been set successfully, by changing “Water tank”, “Ctrl state”, or “T-water ctrl”,
then the temperature set point for “Weekly timer” will be automatically changed to the corresponding default.
For instance, if “Heat” is set for Monday of “Weekly timer”, “Ctrl state” is set to "High temp" and “T-water
out” is set to 59℃ , then by resetting “Ctrl state” to “Normal temp”, then “T-water out” will be the default value
(35 ).
(c) When “Weekly timer” has been set successfully, water heating, solar heater or water tank heater is
available and water temperature set point is higher than 50 ，at this time if stopping the solar heater or water
tank heater (including the solar timer is timed to be off), then water tank tempeature will be always kept at 50 .
(d) At the “WEEKLY TIMER” setting page there are totally three setting types for each day
• “√”: it indicates once the Week Timer is activated, the timer on this day is effective and will not be
affected by the “Holiday” mode.
• “×”: it indicates even if the Week Timer is activated, the timer on this day is ineffective.
• “Holiday”: it indicates when the Week Timer is activated but “Holiday” is not activated, then the timer on
this day is effective; when “Holiday” is also activated, the timer on this day is ineffective.
(e) When “Weekly timer” has already been set and the concerned modes include “Hot water”, if resetting
“Water tank” from “With” to “Without”, then “Hot water” mode will be automatically changed to “Heat”,
“Cool+hot water”/ “Heat+hot water” changed to “Cool”/ “Heat”.

13
(f) Temperature Setpoint
• The control is able to decide the temperature type and temperature range based on the current “Clock
Timer”, "Floor cong", “T-water Ctrl.”, and “Ctrl. state” settings. See the followings for more details.
• If the set mode is “Hot water”, the temperature set point shows nothing, indicating there is no need to
set “T-water out” and “T-room” but only “T- tank”. If the set mode “Cool” or “Heat”, then water tank
temperature box will show nothing, indicating there is no need to set “T-tank”.
Ctrl.
state
Set
Mode Object Range Default Accuracy
T-water
out
Cool
Water out
temperature for
cooling(WT-cool)
7-25°C
(Without
underoor coil)
18-25°C
(With underoor
coil)
7°C
(Without underoor coil)
18°C
(With underoor coil)
1°C
Heat
Water out
temperature for
heating(WT-heat)
High temp. 25-60°C 45°C 1°C
Normal temp. 25-45°C 35°C 1°C
T-room
Cool Room temperature
for cooling(RT-cool) 18-30°C 24°C 1°C
Heat
Room temperature
for heating(RT-
heat)
18-30°C 20°C 1°C
2.2.13 Clock Timer
This function will make the unit run with certain modes in certain periods within a day based on the user’s actual
demand.
[Operation Instructions]
(1) At the homepage, by pressing the Function key access to the FUNCTION page, and then locate
where “Clock timer” is, after that, press OK key to go to the COLCK TIMER setting page.
(2) At the CLOCK TIMER setting page, by the Left/Right key select the desired parameter and then
by the Up/Down key congure it.
(3) When this setting is concerned about time value, by pressing the Function key no. 1 alternately
set the hour or minute values, and by pressing the Up/Down key increase or decrease the
corresponding value which will be continuously changed by pressing and holding the key. (Unless otherwise
specied, all timer settings follow the similar way.)
(4) When the setting is nished, save it by pressing the Function key no. 2 , or this setting without being
saved is ineffective.
(5) When the setting has been saved, activate the “Clock Timer” at the FUNCTION page.

14
[Notes]
(a) When “Clock timer” has already been set and the concerned modes include “Hot water”, if resetting “Water
tank” from “With” to “Without”, then “Hot water” mode will be automatically changed to “Heat”, “Cool+hot
water”/ “Heat+hot water” changed to “Cool”/ “Heat”.
(b) When “Weekly timer” and “Clock timer” settings are performed at the same time, the latter takes
precedence.
(c) When the water tank is available, the allowed running modes include “Heat”, “Cool”, “Heat+ hot water”,
“Cool+hot water”, and “Hot water”. When the water tank is unavailable, the allowed running modes only
include “Heat” and “Cool”.
(d) This setting is the same as that of note (b) in "Weekly timer".
(e) Instructions for "Hot water" under "Clock timer" is the same as that of note (c) in "Weekly timer".
2.2.14 Temp. Timer
This function will make the unit run with certain temperature in a certain period within a day based on the user’s
actual demand.
[Operation Instructions]
(1) At the homepage, by pressing the Function key access to the FUNCTION page, and then locate
where “Temp timer” is, after that, press OK key to go to the TEMP TIMER setting page.
(2) At the TEMP TIMER setting page, by the Left/Right key select the desired parameter and then
by the Up/Down key congure it. The congurable parameters include “Mode”, “Period 1”, “WT-
HEAT 1”, “Period 2” and “WT-HEAT 2”.
(3) When the setting is nished, save it by pressing the Function key no. 2 , or this setting without being
saved is ineffective.
(4) When the setting has been saved, activate the “Temp. timer” at the FUNCTION page.
[Notes]
(a) When “Weekly timer”, “Clock timer”, and “Temp. timer” settings are performed at the same time, the last
one takes precedence.
(b) This function works only when the unit is in operation.
(c) The allowed running modes include “Heat” and “Cool”
(d) When the start time of “Period 2” is equal to that of “Period 1”, then the set point of “Period 2” takes
precedence.
(e) TEMP. TIMER is judged by the timer value.
(f) During the setting, the temperature set point which is set manually always takes precedence.

15
2.2.15 Solar Kit
When the solar system is prepared, this function will decide which period to let the solar system to run. However,
if the solar system will run virtually depends on the temperature difference between the solar panel and the water
tank.
[Operation Instructions]
(1) Go to the FUNCTION page and locate “timer”, then press OK key to go to the page as shown below.
No. Full Name Displayed Name Range Default
1 Solar kit start time Start time 0:00~23:59 8:00
2 Solar kit stop time Stop time 0:00~23:59 18:00
(2) At the “Solar Timer” page, locate “Start time” or “End time” through the up and down keys and
then adjust the start or stop time also through the up and down keys .
(3) After conguration, press “Save” and then a dialog box will pop up. In the dialog box, press “OK” to
conrm the conguration, or press “Cancel” to cancel this conguration.
(4) After saving the configuration, this page will automatically back to the FUNCTION page with the cursor
stayed at “Solar timer”, and then through the up and down keys to set it to be “ON” to activate
“Solar timer”.
[Notes]
(a) Once “Solar timer” is activated,it cannot be deactivated through ON/OFF operation but be done manually.
(b) “Start time” and “End time” will be memorized upon power failure
(c) It can be set under both ON and OFF states.
(d) When "Solar kit" is set to "Without", this function will be forced to be deactivated and congurable.
2.2.16 Floor Debug
This function will make the unit to perform periodic preheating to the oor for the initial run once oor coils have
been installed.
[Operation Instructions]
(1) At the homepage, by pressing the Function key access to the FUNCTION page, and then locate
where “Floor debug” is, after that, press OK key to go to the FLOOR DEBUG setting page.

16
(2) At the FLOOR DEBUG setting page, by the Left/Right key select the desired parameter and
then by the Up/Down key congure it. The congurable parameters include “Segments”, “Period
1temp”, “ΔT of segment”, and “Segment time”, as listed in the following table.
No. Full Name Displayed Name Range Default Accuracy
1Segments for oor debug Segments 1~10 1 1
2First temperature for oor debug Period 1 temp 25~35°C/77~95°F 25°C/77°F 1°C
3Segment temperature difference for
oor debug ΔT of segment 0~72H 0 12H
4Segments duration for oor debug Segment time 2~10°C/36~50°F 5°C/41°F 1°C
(3) After the above setting is finished, by pressing the function key no.2 activate this function and a
dialog box will pop up, reminding “Start the Floor Debug Mode now?”. If so, press the “OK” key .
Once “Floor debug” has been activated, by pressing the function key no.2 , a dialog box also will
pop up, reminding “Stop the Floor Debug Mode now?” If so, press the OK key ; if not, press “Cancel”
to go on.
[Notes]
(a) This function can be activated only when the unit is OFF. When it is intended to activate this function with
the unit being ON, a dialog box will pop up, warning “Please turn off the system rst!”.
(b) When this function has been activated, it is unable to turn on or off the unit. In this case, when pressing the
ON/OFF key , a dialog will pop up, warning “Please disable the Floor Debug Mode!”.
(c) When this function has been set successfully, “Timer week”, “Clock timer” and “Temp timer” will be
deactivated.
(d) ”When “Floor debug” mode has been activated, “Emergen.mode”, “Sanitize”, “Holiday mode” is not
allowed to be activated, or a dialog box will pop up, warning “Please disable the Floor Debug Mode!”.
(e) Upon power failure, this function will be OFF and runtime will be cleared.
(f) At the FlOOR DEBUG setting page, the control will remain at this page and never back to the homepage
unless pressing the Return key or Menu key .
(g) When this function is activated, it is allowed to check the target temperature and runtime of “Floor Debug”
at the Parameter View page.
(h) Before activating “Floor debug”, please make sure each period for “Floor debug” is not zero, or a dialog
box will pop up, warning “Wrong Floor Debug time!”. It will resume only by pressing “OK” and then correcting
the time.
