Sinclair ASH-24CN User manual

AIR CONDITIONER
Internet: http://www.sinclair-eu.com
E-mail: [e-mail]
SPLIT AIR CONDITIONER WALL MOUNTED MODEL SINCLAIR
OWNER‘S MANUAL
ASH-24CN
NATURE SERIE
Before operating the unit please
carefully read this manual.

-- 1 --
1
WARNING
The power plug must be in-
serted tightly.
Otherwise, it can cause an electric
shock, overheating or fire.The
ground must be connected.
for the security of the air condi-
tioner, it should be safely connected
to earth.
The line that be connected to the
earth of the outdoor unit should be
connected correctedly and tightly.
Theinstructionsbeforeuse
Don’t pull out the power plug
during operation.
It can cause an electric shock
or fire.
Never splice the power cord or
use an extended cord.
It can cause overheating or fire.
Don’t use longer power lines
and don’t share a same socket
with other electric appliances.
It can cause an electric shock or
fife.
Don’t operate the Air condi-
tioner with wet hands.
It can cause an electric shock .
Don’t insert your hands or
stick into the air intake or
outlet vents.
It can cause danger.
danger
Don’t apply the cold wind to
the body for a longtime.
It cause the physical condition
deferioration and health prob-
lems.
When having a burning smell
or smoke, please turn off the
power supply and contact with
the Service center.
Don’t attempt to repair the
air conditioner by yourself.
You may cause further malfunc-
tions.
cut off the
power
Don’t connect
to gas or
Lighting
telephone
lines.
the earth wire
water pipes.
rods or
earth
66162002 6 02 11 30 10 241

2
Don’t use any other fuse ex-
cluding the fuse of correct
capacity.
Improper wire could cause the
breaking down or fire.
Be sure to pull out the power
plug as the Air Conditioner
will not be used for a longtime.
When cleaning, it is neces-
sary to stop driving and turn
off the power suply.
It occasionally cause the elec-
tric shock.
Don’t pull the power cord to
pull out the power plug.
It can cause fire.
Don’t place a space heater
near the air conditioner.
Air flow from the air conditioner
can cause incomplete combus-
tion to the space heater.
Keep combustible spray away
from the units.
It is likely to ignite and explore.
Please note whether the in-
stalled stand is firm enough
or not.
It leads to the falling of the unit
which causes the injury etc. oc-
casionally.
Don’t step on the top of the
outdoor unit. As falling off the
outdoor unit can be dangerous.
Don’t block the air intake or
outlet vents of both the out-
door and indoor units.
It can decrease the air condition-
ing capacity or cause a mal-func-
tion.
wire
66162002 6 02 11 30 10 242

-- 3 --
3
Name and function of each part
Indoorunit
Outdoor unit
Airin
Air out
Air in
Air out
Surface panel
Air cleaner
Air Filter A
Air Filter B
Wiring cover
Handling switch
Power line
Drain hose
Air outlet grille
Louver
Wireless remote
controller
Operation
Timer
Operation indicator (red) lights up when the unit is on, and flashes
when the unit is defrosting.
11
66162002 6 02 11 30 10 243

4
Name and Function-Remote control
COOL mode
DRY mode
FAN mode
HEAT mode
AUTO
Remote control operation procedure
Note:
Be sure that there are no obstructions between reciever and remote controller.
The remote control signal can be received at the distance of up to about 10m.
Don’t drop or throw the remote control.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
SWING button
When it is pressed, the
louvers start to rotate
automatically and stop
when repressed.
TEMP.button
SET TEMP.increases 1oC
by pressing button once,
and decreases 1oC by press-
ing button once.
At COOL mode operation,
SET TEMP. can be selected
from16oCto 30oC.
At DRY mode operation,
SET TEMP. can be selected
from16oCto30oC
At HEAT mode operation,
SET TEMP. can be selected
from16oCto 30oC.
MODE button
Press this button to
change the operation
mode in order of
FAN button
Presse this button to
change the fan speed of:
AUTO FAN
1/0 button
Press this button to turn
on or turn off the unit.
1/0
66162002 6 02 11 30 10 244

-- 5 --
5
Liquid crystal displayer
It shows all set contents.
SLEEPbutton
Press this button to set
SLEEP operation. and
stop when repressed
TIMER OFF button
At operating, press TIMER
OFF button, set OFF
TIME in range of 0 to 24
hour to stop the unit auto-
matically.
Name and Function-Remote control .(Remove the cover)
This type of remote controller is a kind of new current controller. some
buttons of the controller which are not available to this Air conditioner
will not be described below.
Operate on unmentioned buttons would not impact on the normal use.
1/0
Note:
0- 24h
Timer
cancellation
TIMER ON button
At stopping, press TIME ON but-
ton, set ON TIME in range of 0 to
24 hour at the interral of 0.5h to
start the unit automatically.
0- 24h
Timer
cancellation
66162002 6 02 11 30 10 245

6
4. Press FAN button, set fan
speed.
3. PressSWING button, the
louvers start to rotate au-
tomatically,and stopwhen
repressed.
5. Press TEMP. button, set
suitable SET TEMP.
2. Press MODE button, set
operation mode.
1. Plug in, press 1/0 button, then
air conditioner is turned on.
COOL mode operation procedure
1/0
Accordingtodifferencebetweenroomtemp.andsettemp.,microcomputercancontrolcool-
ing on or not.
If room temp. is higher than set temp. , compressor runs at COOL mode.
If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.
SET TEMP. should be in range of 16oC to 30oC.
66162002 6 02 11 30 10 246

-- 7 --
7
HEAT mode operation procedure
3.Press SWING button, the
louvers start to rotate auto-
matically, and stop when re-
press it.
4.Press FAN button, set fan
speed.
5.Press TEMP. button, set
suitable SET TEMP.
1.Plug in, press 1/0 button,
then air conditioner is turned
on.
2.Press MODE button, set
operation mode.
1/0
If room temp. is lower than set temp. , compressor runs at HEAT mode;
If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor
fan motor runs, louver motor makes the louvers horizontal, after about one minute, indoor
fan motor will stop .
SET TEMP. should be in range of 16oC to 30oC.
When the unit (cool only) recieved the con-
trol signal which is used under the heat mode,
it will operate according to the FAN mode.
66162002 6 02 11 30 10 247

8
DRY mode operation procedure
Ifroomtemp.is lower thansettemp. ,compressor,outdoorand indoorfanmotor stop. If
room temp. is between 2oC of set temp., Air conditioner is drying. If room temp. is
higher than set temp., it’s at COOL mode.
SET TEMP. should be in range of 16oC to 30oC.
3. PressSWING button, the
louvers start to rotate au-
tomatically, and stop
when repress it.
4. Press TEMP. button, set
suitable SETTEMP.
2. Press MODE button, set
operation mode.
Air speed couldn’t be
changed after the “ ”
being set.
1. Plug in, press 1/0 button,
then air conditioner is
turned on.
1/0
66162002 6 02 11 30 10 248

-- 9 --
9
AUTO mode operation procedure
UnderAutomode operation,standardSETTEMP.is25oCforCOOLmodeand20oCfor
HEAT mode .
1. Plug in, Press 1/0 button, then
air conditioner is turned on.
2. According to room temp., mi-
crocomputer can automatically set
operation mode, so
as for best effect.
1/0
66162002 6 02 11 30 10 249

10
TIMER mode operation procedure
TIMERON button
At stopping, press TIME
ON button, set ON TIME
in range of 0 to 24 hour to
start the unit automatially.
TIMER OFF button
At operating, press TIMER OFF
button, set OFF TIME in range
of 0 to 24 hour to stop the unit
automatically.
1/0
0- 24h
Timer
cancellation
0- 24h
Timer
cancellation
66162002 6 02 11 30 10 2410

-- 11 --
11
SLEEP mode operation procedure
As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would
increase 1oC in 1 hour and 2oC in 2 hours.
As the unit is heating, if SLEEP operation is set, SET TEMP. would decrease
1oC in 1 hour and 2oC in 2 hours.
4. PressFAN button, set fan
speed.
3. Press SWING button,
the louvers start to rotate
automatically, and stop
when repress.
6. SLEEP button
Press it to set SLEEP op-
eration.
5. Press TEMP. button, set
suitable SET TEMP.
2. Press MODE button, set
or operation
mode.
1. Plug in, Press 1/0 button,
then air conditioner is turned
on.
1/0
66162002 6 02 11 30 10 2411

12
1. Remove the cover from the
back of the remote control.
2. Insert the two batteries (Two
AAA dry - cell batteries)
and press button “ACL”.
3. Re - attach the cover.
NOTE:
Don’t confuse the new
and worn or different
types of batteries.
Remove batteries when
the remote controller
will be not in use for a
longtime.
Theremotecontrol sig-
nal can be received at
the distance of up to
about 10m.
The lifetime of the bat-
teries is about one year.
The remote controller
should be placed about
1m or more away from
the TV. or any other
electric appliances.
Bad batteries are for-
bidden
2. Insert the 7# batteries
1. Remove the cover
3. Re - attach the cover.
How to insert batteries
66162002 6 02 11 30 10 2412

-- 13 --
13

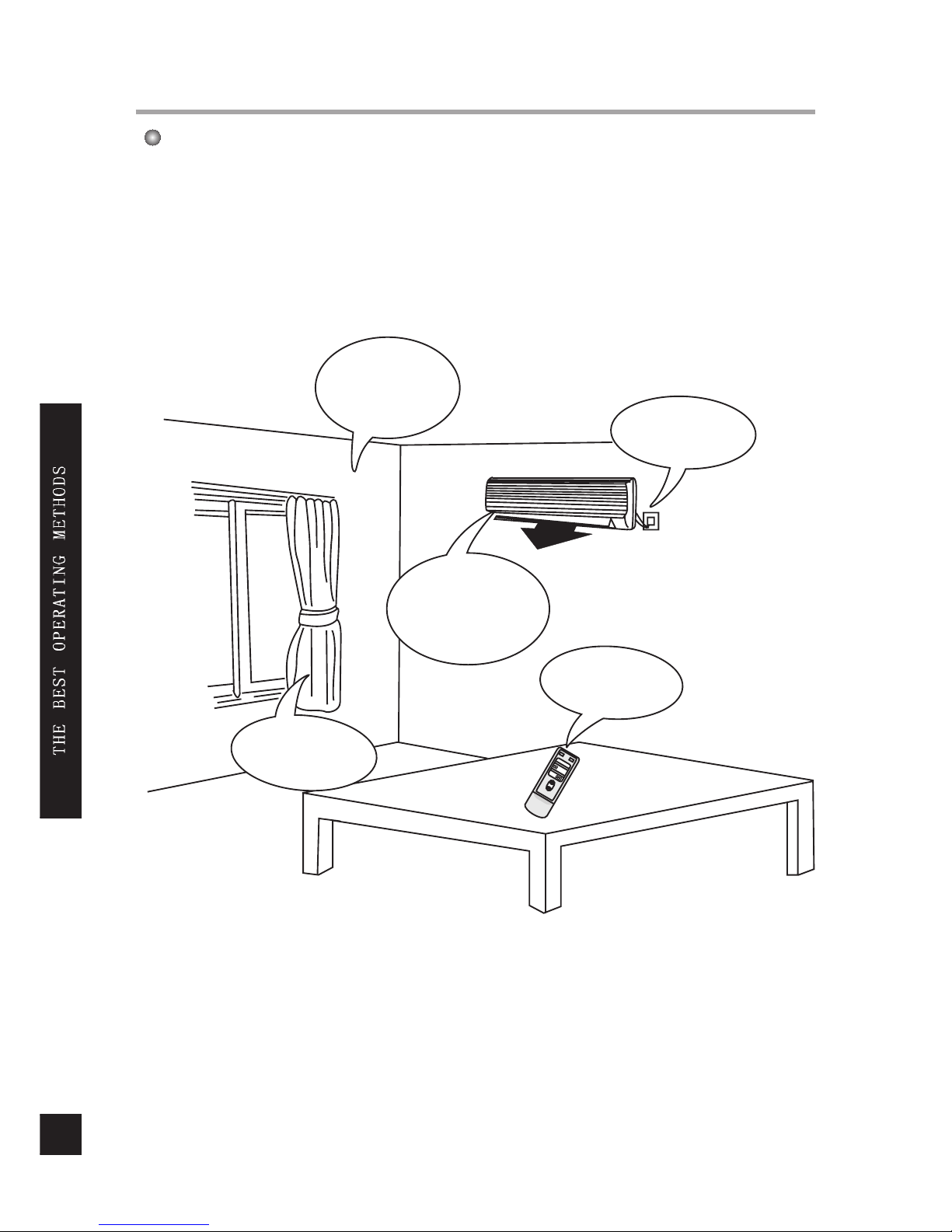

The best operating methods
adjust to the switable
temp. too cool will do
harm to the helth. pull off the plug if
the unit will be free
in a long time.
advoiding directly
lighting and cool
air leaking.
cleaning the air filter
seriously and maitaining
the air cleaner carefully
take out the batter-
ies if the remote control-
ler will be free within a
long period.
66162002 6 02 11 30 10 2413

14
Select the most appropriate temperature. It
can avoid the electricity westing. The airflow direction can be adjusted appro-
priately. The louvers can be adjusted downward
at heating operation, and upward at cooling op-
eration.
Don’t leave windows and doors open while the
air conditioner is on for a longtime. It can
decrease the air conditioning capacity.
Splashing water on the air conditioner can
cause an electric shock and mal - function.
Air conditioner should be operated with stable
voltage in range of 198 -- 244V 1ph. other-
wise, compressor would vibrate terribly to
damage refrigeration system.
Don’t blow the wind to animals and plants
directly. It can cause a bad influence to them.
The appliance is not intended for use by the
young children and the infirm persons with-
out supervision.
Young children should be supervised to en-
sure that they don’t play with the appliance.
Don’t use the air conditioner for other pur-
poses, such as drying clothes, preserving
foods, etc.
USERNOTICES
66162002 6 02 11 30 10 2414

-- 15 --
15
Take down surface panel and washing
Pull along the direction of arrows to take down
surface panel.
Washing
Wipe with a cloth slightly moistened with water
or cleaner, and then dry it in the shade.
NOTE: Never use water above 45oC to wash the
panel, or it could cause deformation or
discolouration.
Install surface panel
Cover the surface panel and clasp it.
Cleaning the Air Filters (Recommended once every three months)
Open the surface panel, hold the tab of Air Filter
and raise it slightly, and then take it out.
Cleaning
To clean the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with wa-
ter and dry it in the shade.
NOTE:
Never use water above 45oC to wash the filters,
or it could cause deformation or discoloration.
Care and Maintenance
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or
cleaner.
CAUTION
AirFilter
Slot
66162002 6 02 11 30 10 2415

16
Maintain after use
Clean filters and other parts.
Turn main power off.
Clear dust from the outdoor unit
If there is any rust in the outdoor unit, this should
be painted over to prevent it from spreading.
Preparation before use
Be sure that nothing obstructs the air outlet and
intake vents.
Check that whether ground wire is properly con-
nected or not.
Replace filters if necessary.
4. Replace the batteries if necessary.
Remove the Air Filters (Refer to the first step of “cleaning the Air Filters”)
Replace the Air cleaner
Take off the packed bag of Air purifying Filters,
and then put new Filters into the Filter frame.
Re-insert the filters (Refer to the third step of “cleaning the Air Filters”)
Replacement of Air cleaner
Reinsert the filters
Reinsert the filters with side marked “FRONT”
facing forward.
NOTE:Be careful not to injure yourself on the
fins
Air cleaner
Recommended once every three years, and the alternate filters can be found in the Service center.
Put in
Put in
66162002 6 02 11 30 10 2416

-- 17 --
17
Check the following points before requesting on Service center if the malfunction
persist, it saves your time and money.
Phenomenon Trouble Shooting
Indoor unit does not
operateimmediately
when the air condi-
tioner is restarted.
Once the air conditioner is stopped, it will not oper-
ate in approximately 3 minutes to protect itself.
There’s unusual
smell blowing from
the outlet after op-
eration is started.
This is caused by the odors in the room which have
been breathed into the air conditioner.
Sound of water
flow can be heard
during operation.
This is caused by the refrigerant flowing inside the
unit.
Mist is emitted dur-
ingcoolingoperation. Because the air of the room is cooled down rapidly
by the cold wind and it looks like the fog.
Creaking noise can
be heard when start
or stop the unit.
This is caused by the deformation of plastic due to
the change of temperature.
Air condi-
tioner does
not operate
at all.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 244V or lower than 198V?
Is TIMER ON in operation?
Cooling (Heating)
efficiency is not
good.
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat sourse in your room?
Wireless remote
controller is not
available.
Is the remote control unit out of effective distance
to the indoor unit?
Replace the worn batteries of wireless remote con-
troller.
Are there any obstructions between the wireless
remote controller and the signal receptor?
Troubleshooting
Please
waitting
OFF
66162002 6 02 11 30 10 2517

18
Immediately stop all operations and plug out, contact with service center in following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.
NOTE:
Equipment subject to notification to or consent by the supply authority before connection to the system
(consent by the supply authority may be requested for high-power appliances which are intended to be used
only in systems having impedances considerably lower than the reference impedance. General consent may
declared for use of a type of appliance in a defined part of the supply system):
1.Equipment intended exclusively for professional purposes;
2.Appliances and equipment without automatic control means;
3.Appliances producing less than one voltage change per hour;
4.Appliances producing more than 1800 voltage changes per minute;
5.Disturbances caused by manual switching.
Troubleshooting
66162002 6 02 11 30 10 2518

-- 19 --
19
Technical specifications
Functions
Accessory
Cooling capacity (W)
Heating capacity (W)
Power supply
Cool
4500W
----
Cooling/Heating rated power
1950/-W
Recyling air volume
Waterproof level
Noise (Indoor/outdoor) dB (A)
Climate type
Anti-electricshockprotection
Weight(kg)
Dimension(cm)
(Width height depth)
Indoor unit/
outdoor unit
620m3/h
43/56 dB(A)
Indoor : 90.7 29.0 19.5
Outdoor :95.0 70.0 41.0
Frequence
Cooling/Heatingrated current
Maximum input current 8.9A
7.83/-A
Refrigerant and weightt
Model
Cool Heat
4500W
5200W
1950/2055W
8.9A
7.83/7.83A
Cool
5000W
----
2400/-W
12A
9.0/-A
Cool Heat
5000W
6200W
2400/2650W
12A
9.0/10A
Cool
5000W
----
2400/-W
12A
9.01-A
Cool Heat
5000W
6200W
2400/2650W
12A
9.0/10A
R407C 1.80Kg
700m3/h
R407C 2.0Kg
46/58 dB(A)
700m3/h
R22 1.9kg R22 1.95kg
46/58 dB(A)
220V-240V~
50Hz
IP24
T1
I
12/59kg
Cool
6000W
----
2600/-W
14.5A
11.3/-A
Cool Heat
6000W
7000W
2600/2680W
14.5A
11.7/12A
Cool
6000W
----
2600/-W
14.5A
11.3/-A
ASH - 24CN
Cool Heat
7000W
7600W
2500/2500W
14.5A
11.3/11,9A
720m3/h
R22 1.6kg R22 2.0kg R407C 2.0kg R407C 2.2kg
48/59 dB(A)
Air cleaner
66162002 6 02 11 30 10 2519
