Sinclair ASH-09AIM2 PT User manual

USER'S MANUAL
ASH-09AIM2 PT, ASH-13AIM2 PT
ASH-18AIM2 PT, ASH-24AIM2 PT
MATRIX 2 SERIES
outdoor unit

WARNING
● This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory ormental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children
without supervision.
● Do not connect air conditioner to multi-purpose socket. Other-
wise, it may cause fire hazard.
● Do disconnect power supply when cleaning air conditioner.
Otherwise, it may cause electric shock.
● Do not spray water on indoor unit. It may cause electric shock
or malfunction.
● Do not spill water on the remote controller, otherwise the rem-
ote controller may be broken.
● Do not repair air conditioner by yourself. It may cause electric
shock or damage. Please contact dealer when you need to re-
pair air conditioner.
● Do not block air outlet or air inlet. It may cause malfunction.
● If you need to relocate the air conditioner to another place, only
the qualified person can perform the work. Otherwise, it may
cause personal injury or damage.
● Do not step on top panel of outdoor unit, or put heavy objects.
It may cause damage or personal injury.
● Do not extend fingers or objects into air inlet or air outlet. It may
cause personal injury or damage.
● Air Conditioner should be properly grounded. Incorrect ground-
ing may cause electric shock.
● Do install the circuit break. If not, it may cause malfunction.
● Installation and maintenance must be performed by qualified pr-
ofessionals. Otherwise, it may cause personal injury or damage.
Precautions
11

Precautions
Parts Name
Actual product may be different from above graphics, please refer to actual
products.

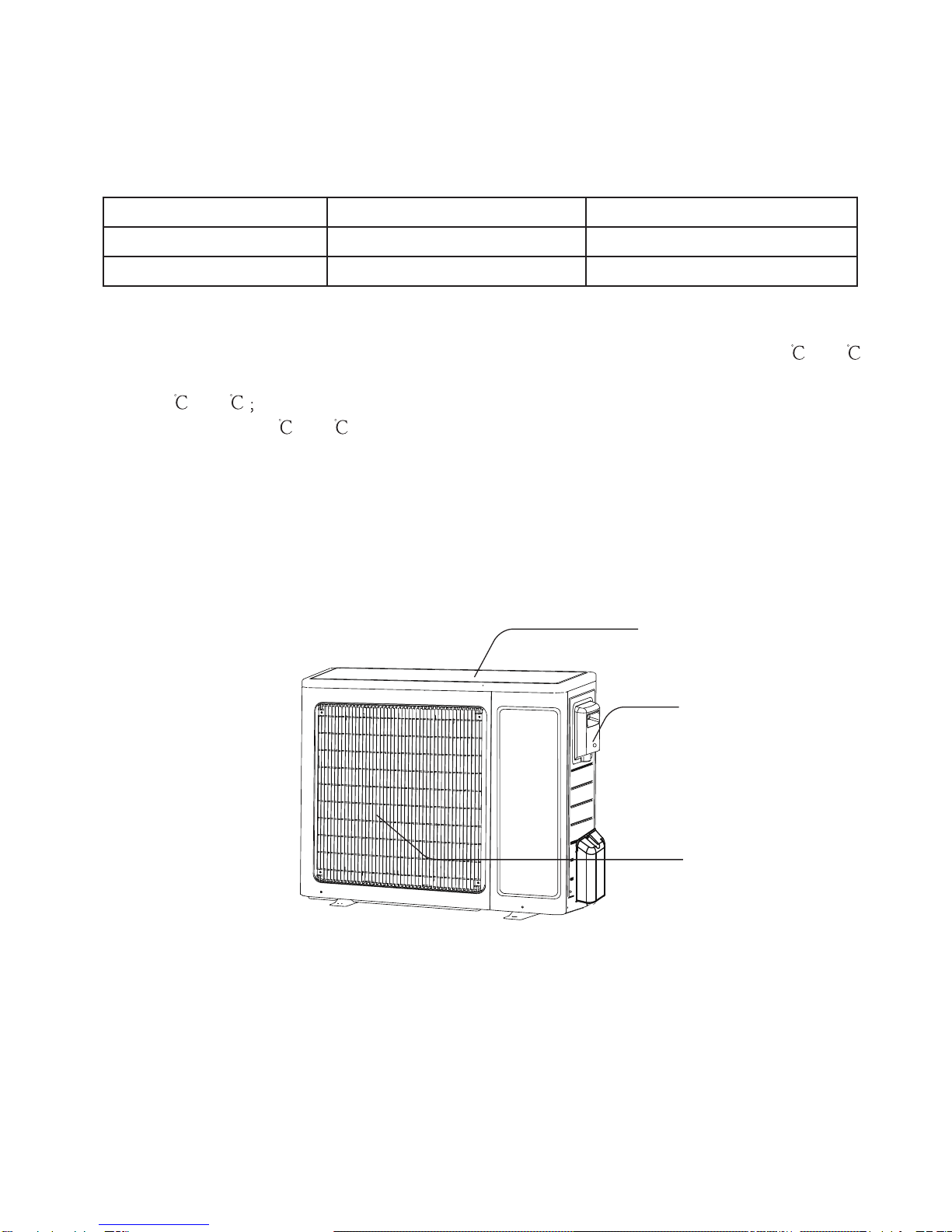

Outdoor Unit
2
Working temperature range
air inlet
handle
air outlet
Indoor side DB/WB(°C) Outdoor side DB/WB(°C)
Maximum cooling 32/23 48/26
Maximum heating 27/- 24/18
●
The operating temperature range (outdoor temperature) for cooling is -15 ~48;
The operating temperature range (outdoor temperature) for heating is-20°C~24°C
is -15 ~24 Heating temperature range for the model with electric heating belt
for chassis is -20 ~24 .
NOTICE:
NOTICE:

3
Installation dimension diagram
At least 50cm
At least 50cm
At least
30cm
At least 200cm
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the obstruction
At least 30cm
Space to the wall

4
Selection of installation location
Basic requirement
Outdoor unit
Installing the unit in the following places maycause malfunction. If it is un-
avoidable, please consult the localdealer:
1.The place with strong heat sources, vapors, flammableor explosive gas, or
volatile objects spread in the air.
2.The place with high-frequency devices (such as welding machine, medical
equipment).
3. The place near coast area.
4.
The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. The appliance shall not be installed in the laundry.
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit
Tools for installation
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Note: ● Please contact the local agent for installation.
won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation
dimension diagram.
5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.

5
Requirements for electric connection
Safety precaution
Grounding requirement
1. Must follow the electric safety regulations when installing the unit.
air switch.
3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to
electricity and safety.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its
8. The temperature of refrigerant circuit will be high, please keep the interconnec-
tion cable away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in
all poles should be connected in fixed wiring.
6. Including an circuit break with suitable capacity, please note the following table.
Air switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)
Air-conditioner Circuit break capacity
10A09、13K
18、24K 16A

6

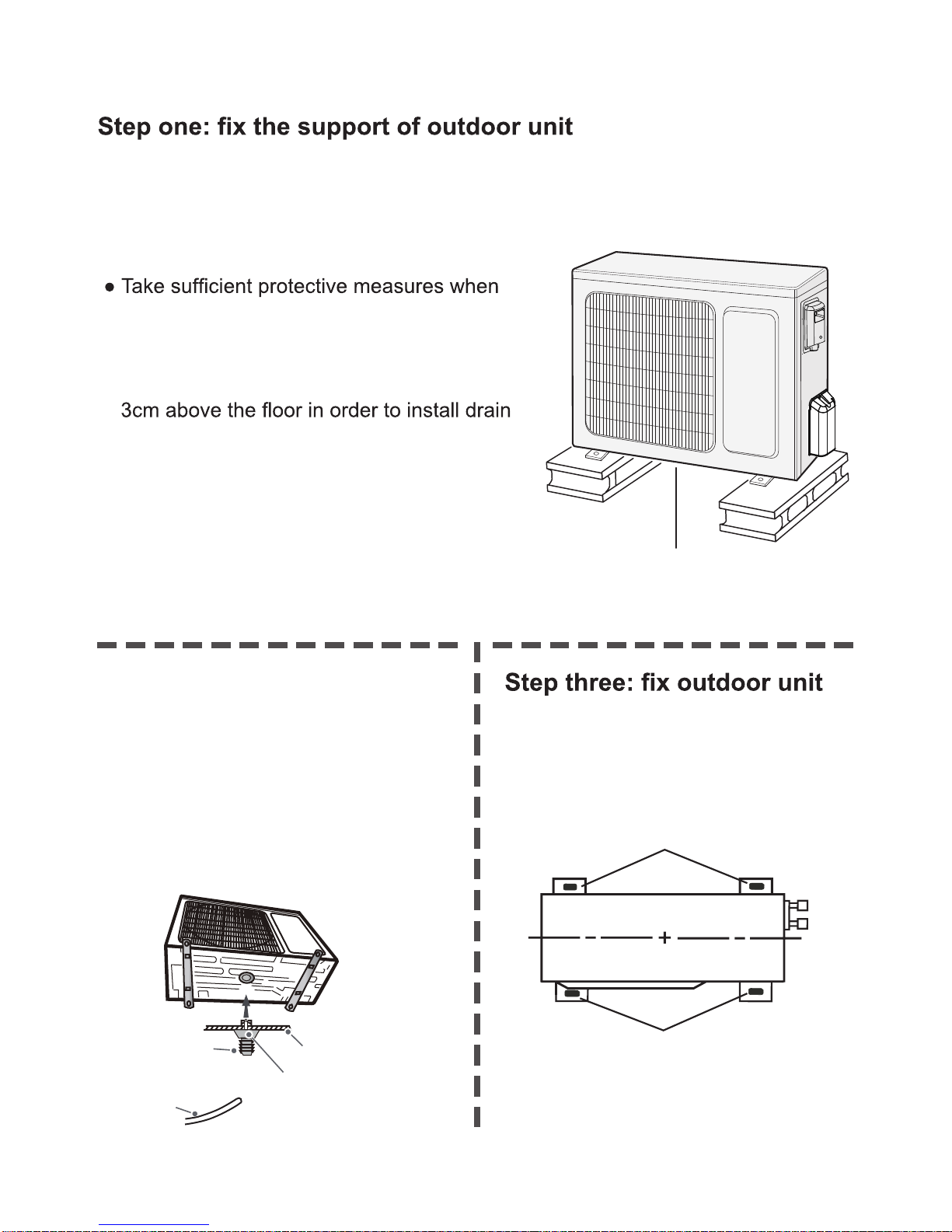

Installation of outdoor unit
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
at least 3cm above the floor
Note:
installing the outdoor unit.
● Make sure the support can withstand at least
four times of the unit weight.
●The outdoor unit should be installed at least
joint.
● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W
~16000W, 10 expansion screws are needed.
Step two: install drain joint gnitaehdnagniloocrofylnO(
unit)
1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
2. Connect the drain hose into the drain
vent.
chassis
outdoor drain joint
Drain hose
drain vent
1. Place the outdoor unit on the
support.
2. Fix the foot holes of outdoor unit
with bolts.
foot holes
foot holes

7
yellow-
green
Installation of outdoor unit

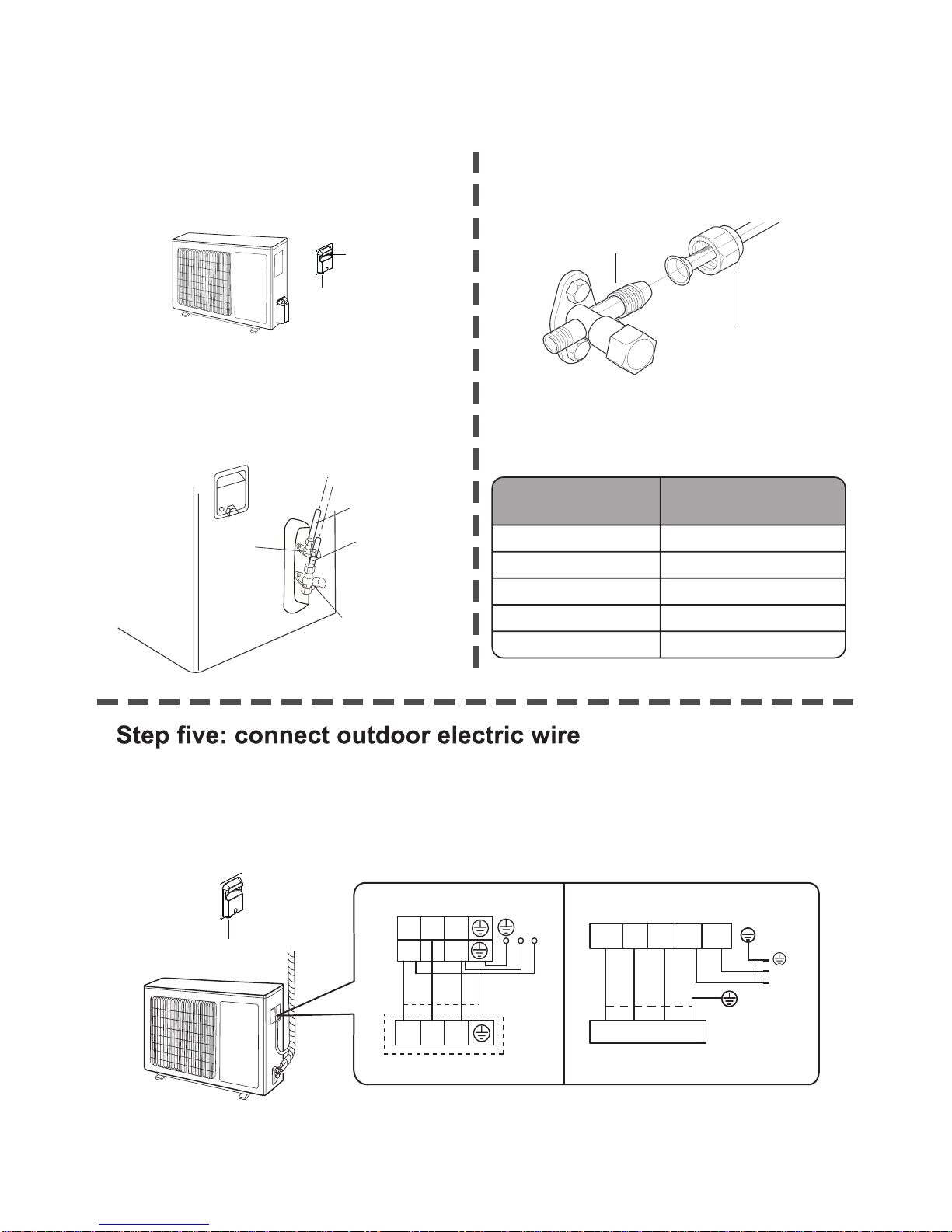

Step four: connect indoor and outdoor pipes
1. Remove the screw on the right han-
dle of outdoor unit and then remove
the handle.
2. Remove the screw cap of valve and
aim the pipe joint at the bellmouth of
pipe.
3. Pretightening the union nut with
hand.
4. Tighten the union nut with torque
wrench by referring to the sheet
below.
gas pipe
liquid pipe
liquid
valve
gas valve
union nut
pipe joint
Hex nut diameter Tightening torque
(N.m)
Φ 6
Φ 9.52
Φ 12
Φ 16
Φ 19
30~40
45~55
60~65
70~75
15~20
handle
screw
handle
1. Remove the wire clip; connect the power connection wire and signal control
wire (only for cooling and heating unit) to the wiring terminal according to the
color; fix them with screws.
Indoor unit connection
09 、13 K:
Indoor unit connection
18 、24 K:
2 3 L
L
N
NN(1)
POWER
blue blue
black brown brown
yellow-
green
yellow-
green
L N
L
2 3
2 3
N(1)
N
N(1)
blue black brown yellow-
green

8
Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).
Note:
● Never cut the power connection wire to prolong or shorten the distance.
Step six: neaten the pipes
1. The pipes should be placed along the wall,
bent reasonably and hidden possibly. Min.
semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall
hole, you must set a U-shaped curve in the
pipe before pipe goes into the room, in
order to prevent rain from getting into the
room.
U-shaped curve
wall
drain hose
Outdoor Condensate Drainage
During heating operation, the condensate and defrosting
water should be drained out reliably through the drain hose.
Install the outdoor drain connector in a Φ25 hole on
the base plate and attach the drain hose to the connector
so that the waste water formed in the outdoor unit can be
drained out. The hole diameter 25 must be plugged.
(The figures in this manual may be different with the material
objects, please refer to the material objects for reference)
The 18K MC、24K MD UNIT drainage hole consists of two Φ25 and
two kidney holes (see the fig.1). The drain plug consists of one Φ25
and two kidney plugs.
Whether to plug other holes will be determined by the dealers
to actual conditions.
Didney holes
Didney holes
Didney holes
18K MC UNIT:
24K MD UNIT:
Didney holes Drain - water hole
Bottom frame
Didney holes Drain - water hole
Bottom frame
Drain plug
Hose (available commercially,
inner dia. 16mm)
Drain connecter
Fig.1

9

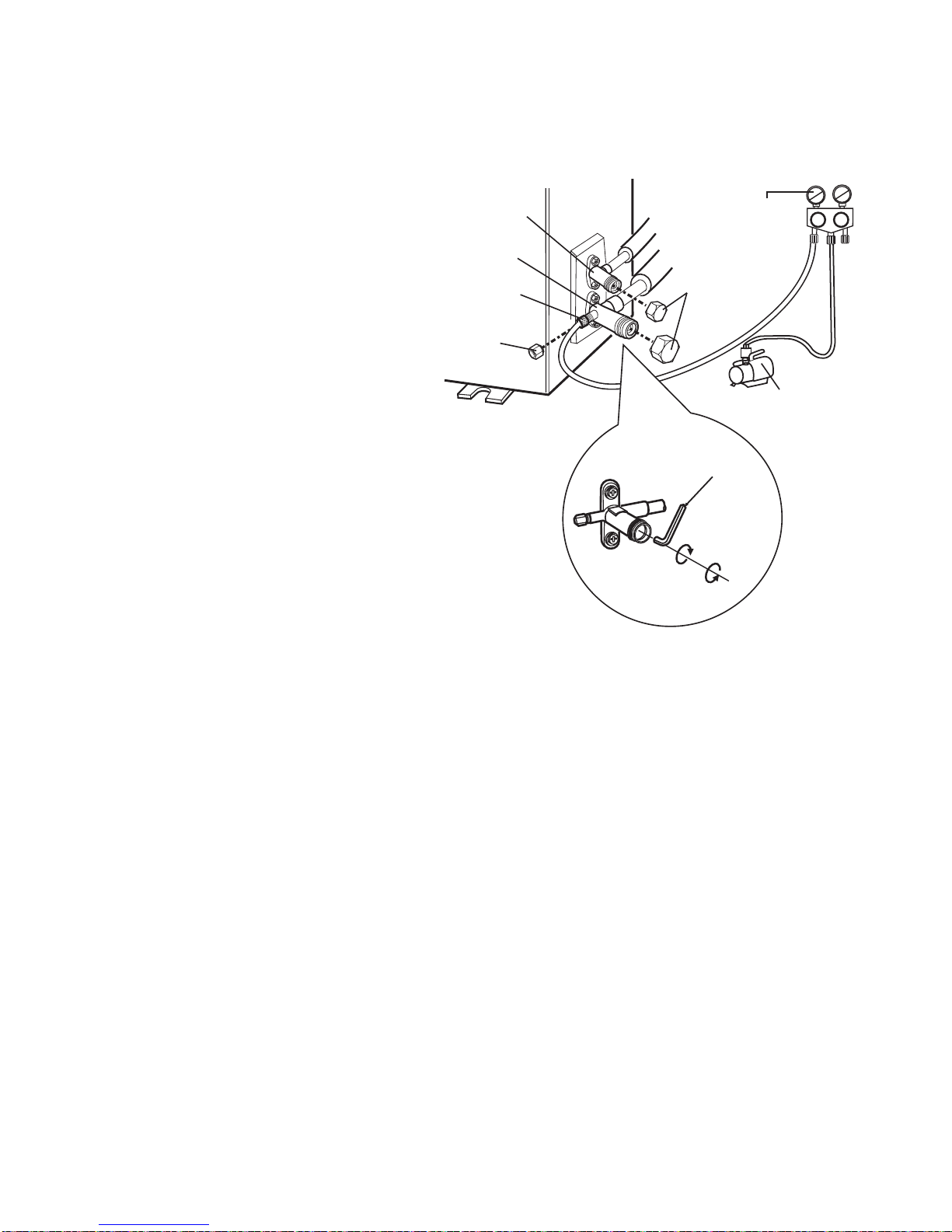

Vacuum pumping
Leakage detection
1. Remove the valve caps on
the liquid valve and gas
valve and the nut of refri-
gerant charging vent.
2. Connect the charging hose
of piezometer to the refri-
gerant charging vent of gas
valve and then connect the
other charging hose to the
vacuum pump.
3. Open the piezometer com-
pletely and operate for
10-15min to check if the
pressure of piezometer re-
mains in -0.1MPa.
4. Close the vacuum pump
and maintain this status for
1-2min to check if the pres-
sure of piezometer remains
in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve
completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
7. Reinstall the handle.
Use vacuum pump
liquid valve
gas valve
refrigerant charging
vent
nut of refrigerant
charging vent
vacuum pump
piezometer
valve cap
Lo Hi
inner hexagon
spanner
open
close
1. With leakage detector:
Check if there is leakage with leakage detector.
2. With soap water:
If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.

10
Check after installation
Test operation
● Check according to the following requirement after nishing installation.
Items to be checked Possible malfunction
Has the unit been installed rmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage
test? It may cause insufcient cooling
(heating) capacity.
Is heat insulation of pipeline sufcient? It may cause condensation and water
dripping.
Is water drained well? It may cause condensation and water
dripping.
Is the voltage of power supply accord-
ing to the voltage marked on the
nameplate?
It may cause malfunction or damaging
the parts.
Is electric wiring and pipeline installed
correctly? It may cause malfunction or damaging
the parts.
Is the unit grounded securely? It may cause electric leakage.
Does the power cord follow the speci-
cation?
It may cause malfunction or damaging
the parts.
Is there any obstruction in the air inlet
and outlet? It may cause insufcient cooling (heating) capacity.
The dust and sundries caused during
installation are removed? It may cause malfunction or damaging the parts.
The gas valve and liquid valve of
connection pipe are open completely? It may cause insufcient cooling
(heating) capacity.
1. Preparation of test operation
● The client approves the air conditioner.
● Specify the important notes for air conditioner to the client.
2. Method of test operation
● Put through the power, press ON/OFF button on the remote controller to start
operation.
● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check
whether the operation is normal or not.
● If the ambient temperature is lower than 16℃（ ） , the air conditioner can’t
start cooling.
61℉

11
1. Standard length of connection pipe
● 5m, 7.5m, 8m.
4. The additional refrigerant oil and refrigerant charging required after prolonging
connection pipe
● After the length of connection pipe is prolonged for 10m at the basis of
standard length, you should add 5ml of refrigerant oil for each additional 5m
of connection pipe.
●The calculation method of additional refrigerant charging amount (on the basis
of liquid pipe):
● Basing on the length of standard pipe, add refrigerant according to the
requirement as shown in the table. The additional refrigerant charging amount
per meter is different according to the diameter of liquid pipe. See the
following sheet.
Additional refrigerant charging amount =prolonged length of liquid pipe ×
additional refrigerant charging amount per meter
Cooling
capacity
Cooling
capacity
5000Btu/h
(1465W)
24000Btu/h
(7032W)
7000Btu/h
(2051W)
28000Btu/h
(8204W)
9000Btu/h
(2637W)
36000Btu/h
(10548W)
12000Btu/h
(3516W)
42000Btu/h
(12306W)
18000Btu/h
(5274W)
48000Btu/h
(14064W)
Max height
difference Max height difference
Max length
of connec-
tion pipe
Max length
of connec-
tion pipe
15 255 10
15 305 10
15 305 20
20 3010 20
25 3010 20
2.Min. length of connection pipe is 3m.
3.Max. length of connection pipe and max. high difference.
Configuration of connection pipe

12
Additional refrigerant charging amount for R410A and R134a
Diameter of connection pipe
Liquid pipe(mm) Gas pipe(mm)
Φ6
Φ6 or Φ9.52
Φ9.52 or Φ12
Φ12
Φ16
Φ19
Φ22.2
Φ16 or Φ19
Φ19 or Φ22.2
Φ25.4 or Φ31.8
_
_
Cooling only(g/m) Cooling and heating(g/m)
15
15
30
60
250 250
350
350
120
120
50
20
Outdoor unit throttle
Conguration of connection pipe

13
Pipe expanding method
Note:
Improper pipe expanding is the main cause of refrigerant leakage. Please expand
the pipe according to the following steps:
A: Cut the pipe
● Conrm the pipe length according to
the distance of indoor unit and
outdoor unit.
● Cut the required pipe with pipe cutter.
pipe
pipe cutter
leaning uneven burr
B: Remove the burrs
● Remove the burrs with shaper and
prevent the burrs from getting into
the pipe.
downwards
pipe
shaper
C: Put on suitable insulating pipe
D: Put on the union nut
● Remove the union nut on the indoor
connection pipe and outdoor valve;
install the union nut on the pipe.
union pipe
pipe
E: Expand the port
● Expand the port with expander.
Note:
● "A" is different according to the
diameter, please refer to the sheet
below:
expander
hard
mold
pipe
F: Inspection
● Check the quality of expanding port.
If there is any blemish, expand the
port again according to the steps
above.
the length is equal
improper expanding
leaning damaged
surface crack uneven thickness
smooth surface
Outer diameter
(mm)
A(mm)
Max Min
Φ6 - 6.35(1/4")
Φ9.52(3/8")
Φ12-12.7(1/2")
Φ15.8-16(5/8")
1.3 0.7
1.6 1.0
1.8 1.0
2.4 2.2

14
ELECTRIC SCHEMATIC DIAGRAM
ASH-09AIM2 PT outdoor / ASH-13AIM2 PT outdoor
ASH-18AIM2 PT outdoor / ASH-24AIM2 PT outdoor

15
RATING LABEL

16
ENERGY LABEL

17
NOTE CONCERNING PROTECTION OF ENVIRONMENT
This product must not be disposed of via normal household waste after its
service life, but must be taken to a collection station for the recycling of
electrical and electronic devices. The symbol on the product, the
operating instructions or the packaging indicate such disposal procedures.
The materials are recyclable in accordance with their respective symbols. By means
of re-use, material recycling or any other form of recycling old appliances you are
making an important contribution to the protection of our environment. Please ask
your local council where your nearest disposal station is located.
INFORMATION CONCERNING USED REFRIGERANT
MEDIUM
This unit is containing fluorinated gases included in the Kyoto protocol. The
maintanance and the liquidation must be carried out by qualified personel.
Type of refrigerant: R410A
The composition of the cooling medium R410A: (50% HFC-32, 50% HFC-125)
The quantity of the refrigerant: please see the unit label.
The value GWP: 2088
GWP = Global Warming Potential
In case of quality problem or other please contact your local supplier or authorized
service center.
Emergency number: 112
PRODUCER
Producer: SINCLAIR CORPORATION Ltd., 1-4 Argyll St., London W1F 7LD, UK,
www.sinclair-eu.com
This product was manufactured in China (Made in China).
REPRESENTATIVE, TECHNICAL SUPPORT
NEPA spol. s r.o.
Purkyňova 45
612 00 Brno
Czech Republic
Tel.: [phone]
Fax: [phone]
www.nepa.cz
[email protected]
