Sinclair SDV5 Series User manual

INDOOR CASSETTE UNITS SDV5-22-45CA
COMMERCIAL AIR CONDITIONERS SDV5

Original instructions
IMPORTANT NOTE:
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.

3
1Specifications ........................................................................................ 4
2Dimensions............................................................................................ 5
3Unit Placement...................................................................................... 6
4Piping Diagram ...................................................................................... 8
5Wiring Diagram...................................................................................... 9
6Capacity Tables .................................................................................... 11
7Electrical Characteristics ...................................................................... 15
8Sound Levels........................................................................................ 16

4
1Specifications
Table 1.1: SDV5-22-28-36-45CA
specifications
Model
SDV5-22CA
Power supply
1-phase, 220-240V, 50Hz
Cooling1
Capacity
kW
2.2
2.8
3.6
4.5
kBtu/h
7.5
9.6
12.3
15.4
Power input
W
35
35
40
50
Heating2
Capacity
kW
2.4
3.2
4.0
5.0
kBtu/h
8.2
10.9
13.6
17.1
Power input
W
35
35
40
50
Fan motor
Model
WZDK37-38G
Type
DC
Brand
NIDEC/Welling/Match-Well
Speed3
r/min 700/680/660/640/600/560/520 760/730/700/660/620/570/500
Indoor coil
Number of rows
1 2
Tube pitch × row pitch
mm 21×13.37 21×13.37
Fin spacing
mm 1.3 1.3
Fin type
Hydrophilic aluminum
Tube OD and type
mm Ф7 Inner-groove
Dimensions (L×H×W)
mm
1310×210×13.37
1310×210×26.74
Number of circuits
2
4
Air flow rate3
m3/h
576/552/524/503/462/441/405
604/573/541/516/478/434/400
Sound pressure level4
dB(A)
35/34/33/29/26/23/22
41/38/35/32/30/29/28
Sound power level
dB(A)
51/50/49/45/42/39/38
56/53/50/47/45/44/43
Main body
Net dimensions5(W×H×D)
mm
630×260×570
Packed dimensions
(W×H×D)
mm
700×345×660
Net/Gross weight
kg
18/23.5
19.2/24.7
Panel
Net dimensions (W×H×D)
mm
647×50×647
Packed dimensions
(W×H×D)
mm
715×123×715
Net/Gross weight
kg
2.5/4.5
Refrigerant type
R410A
Throttle
Type
Electronic expansion valve
Model
D20MISZ-1R(L)
Design pressure (H/L)
MPa
4.4/2.6
Pipe connections
Liquid/Gas pipe
mm
Ф6.35/Ф12.7
Drain pipe
mm
OD Ф32
Notes:
1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.
4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured 1.4m below the unit in a
semi-anechoic chamber.
5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.
SDV5-45CA
SDV5-36CA
SDV5-28CA

5
2Dimensions
2.1 Unit Dimensions

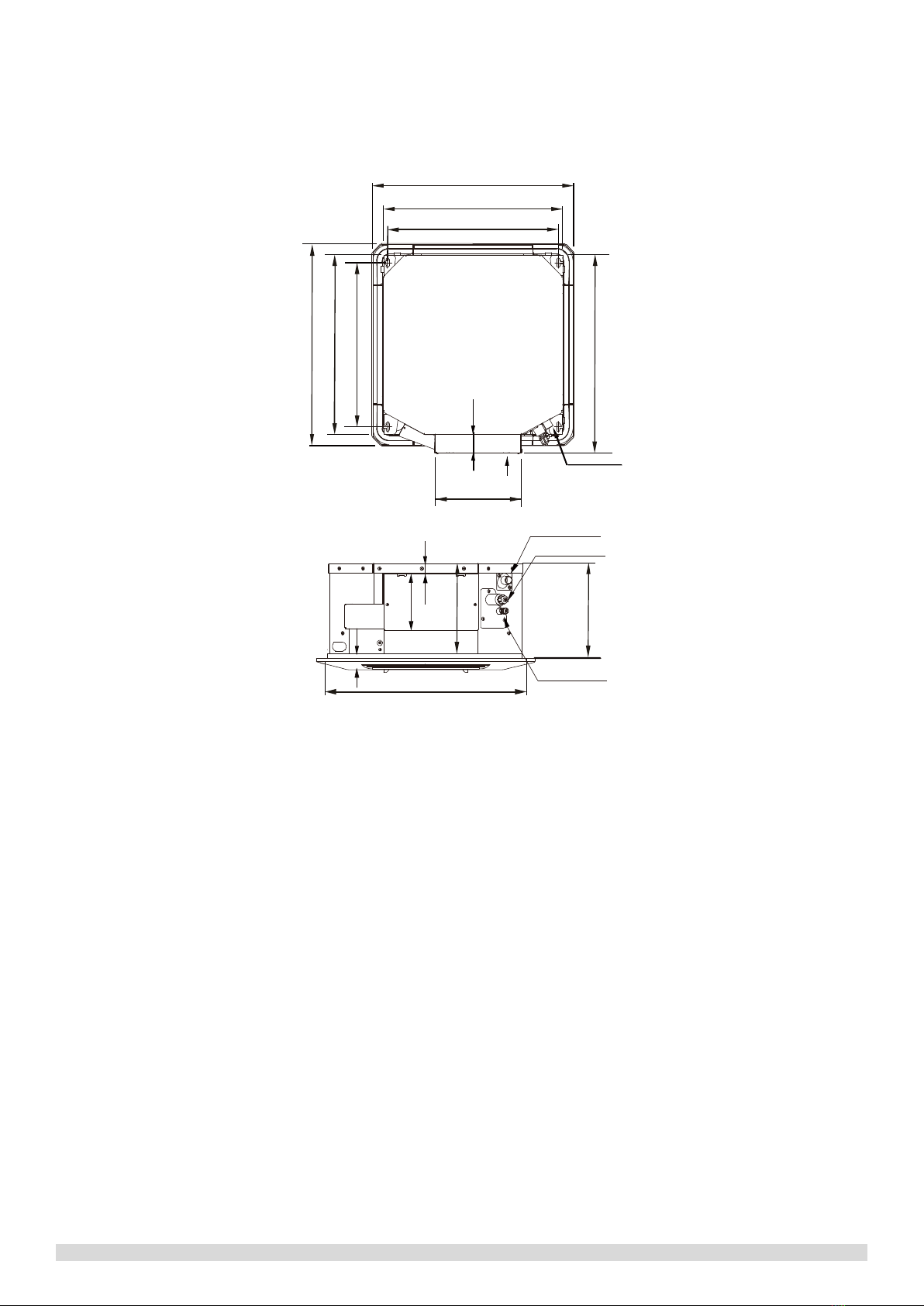

Figure 2.1: Compact Four-way Cassette dimensions (unit: mm)
523(Hook-location)
570(Body)
647(Panel)
Drainage side
545(Hook-location)
570(Body)
A
60
647(Panel)
280
630(Body,include Electrical Box)
600
270
50
260
Liquid Pipe
Φ6.35(OD)
Gas Pipe
Φ12.7(OD)
Drainage Pipe
Φ25(OD)
30
167

6
3Unit Placement
3.1 Placement Considerations
Unit placement should take account of the following considerations:
Units should not be installed in the following locations:
Where exposure to direct radiation from a high-temperature heat source or to interference from a source of
electromagnetic radiation may occur.
Where dust or dirt may affect heat exchangers.
Where exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.
Where exposure to salinity may occur, such as seaside locations.
Where highly flammable materials are present.
Where exposure to oily air may occur, such as a kitchen.
Where exposure to very high humidity may occur, such as a laundry.
Units should be installed in positions where:
The ceiling is horizontal and is able to bear the unit’s weight.
There are no obstructions that could impede the airflow into and out of the unit.
The airflow out of the unit can reach throughout the room.
There is sufficient space for access during installation, servicing and maintenance.
The refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping
systems.
Short-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.
3.2 Space Requirements

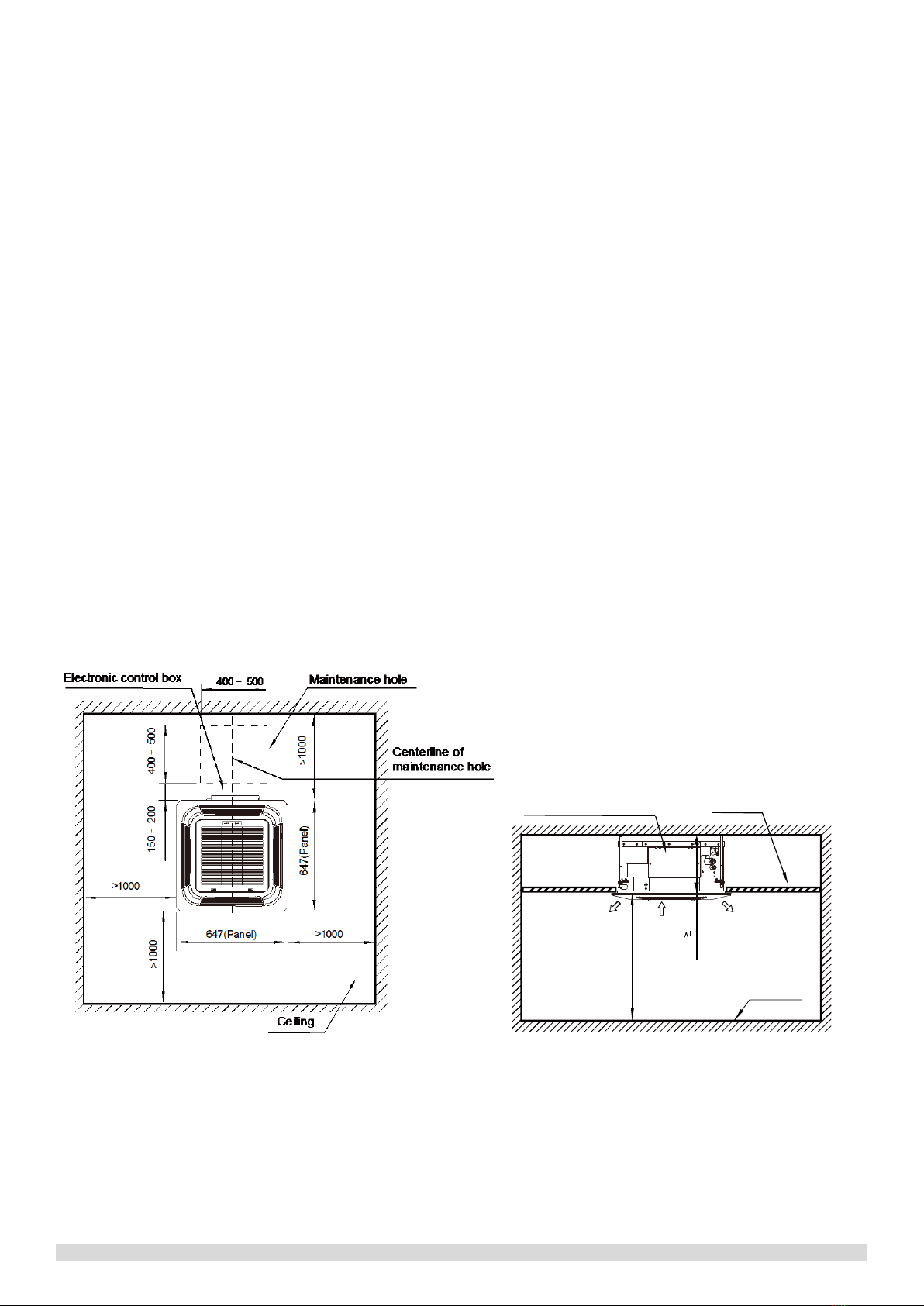

Figure 3.1: Compact Four-way Cassette space requirements (unit: mm)
A
Ground
OutletOutlet Inlet
ceiling
Electronic control box
2300
280

7
Notes:
1. The centerline of the maintenance hole should be in the same position as the centerline of the indoor unit.

8
4Piping Diagram
Figure 4.1: Compact Four-way Cassette piping diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
Legend
T1 Indoor ambient temperature sensor
T2 Indoor heat exchanger mid-point temperature sensor
T2B Indoor heat exchanger outlet temperature sensor

5
W
Figu
r

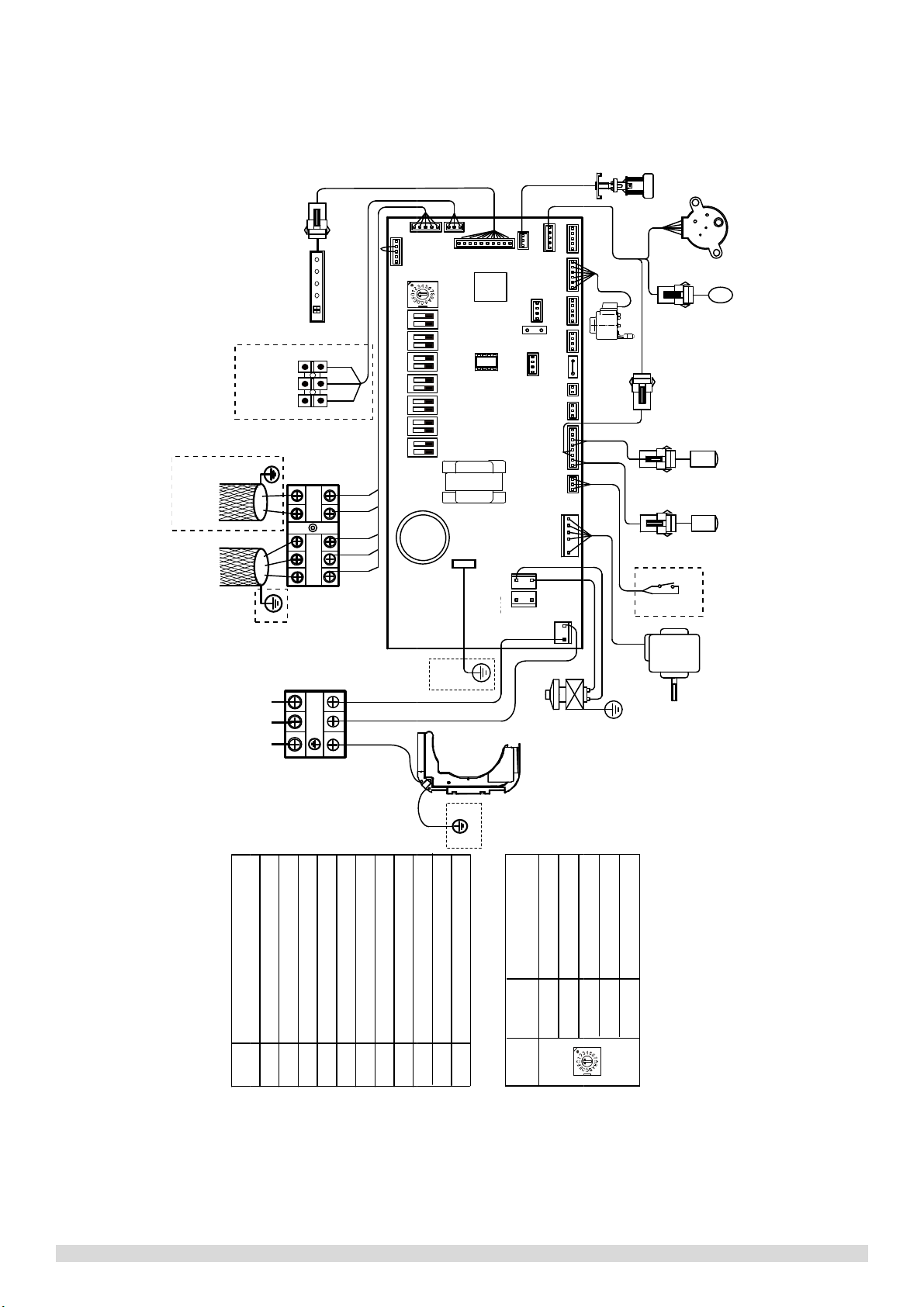

W
iring Dia
r
e5.1:Compac
t

gram
t
Fou
r
‐wayCas
s
To outdoor/intdoor unit communication
Towired
controller
bomm.bus
POWER INPU
T
Centralized
Name
Code
s
ettepipingdi
a
XP4 XS4
POWER
INPU
T
PQE X1X2
Display Board
Centralized
controller
E D2 D1
LN
Code
FMFanmotor
EEVElectronicexpansionvalve
GM
DM
Swingingmotor
Waterdrainagepump
a
gramwiringd
i
Red
Blue
Yellow
Grey
White
Blue
Black
Display
Board
ONON POWER_S CN20
C
ONONONONON
T1
T2
Indoortemp.sensor
Mid-pipetemp.sensorofevaporator
T2BOutlettemp.sensorofevaporator
XT1 XT2
Y/G
CSWaterlevelsensor
i
agram
ENC1
SW1SW7SW2SW3SW4SW5
SW6
C
N17 CN9
CN1
5
CN13
CN3
CN31
XP1-5
XS1-5
Connectors
XT1-2Connectors
Connectors
Y/G
Y/G
Main box
Main box
CN2
5
CN21
CN14
CN8CN7
CN16
J2
CN5
CN25
J1
CN30
CN11CN6
CN4
CN55
CN24
CN13
CN3
main control panel
2200W
0
ENC1
Toggle Switch
Code
Set horsepower
Capacity
DM
FM
EEV
XP1
X
XP
3
4500W 2800W 3600W
1 2 3
Y/G
CS
Red
White
Black
XP4 XS4
T2B T2 T1
FM
XS1
P5 XS5
3
XS3
ON/OFF
CS
GM
XP4
XS4

9

10
Caution
All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified
and accredited professionals and in accordance with all applicable legislation.
Units should be grounded in accordance with all applicable legislation. Metal and other conductive components
should be insulated in accordance with all applicable legislation.
Power supply wiring should be securely fastened at the power supply terminals –loose power supply wiring
would represent a fire risk.
After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the
electric control box cover risks fire or electric shock.
Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The
only circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB.
When replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with
the unit capacity given on the unit’s nameplate.
Notes for installers and service engineers


11
6Capacity Tables
6.1 Cooling Capacity Table
Table 6.1: Four-way Cassette cooling capacity
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
2.2
10.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.9
1.5
12.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
14.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
16.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.5
18.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.8
1.4
20.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.7 1.4
21.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.6
1.6
2.7 1.4
23.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.7 1.4
25.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.6 1.4
27.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.5
1.5
2.6 1.4
29.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.5 1.4
31.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.5 1.4
33.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.4
1.4
2.4 1.4
35.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.3
1.3
2.4 1.4
37.0
1.5 1.3 1.8 1.4
2.1
1.5
2.2
1.5
2.3
1.6
2.3
1.3
2.3 1.4
39.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
42.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
44.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
46.0
1.5
1.3
1.8
1.4
2.1
1.5
2.2
1.5
2.2
1.5
2.3
1.3
2.3
1.4
2.8
10.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.7
2.0
12.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
14.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
16.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
18.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
20.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
21.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
23.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
25.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3
1.9
27.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3
1.9
29.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2
1.8
31.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2
1.7
33.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.1
1.7
35.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.1
1.7
37.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.0
1.7
39.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
42.0
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
44.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0 1.7
46.0
1.9 1.6 2.3 1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0 1.7
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

12
Table 6.1: Four-way Cassette cooling capacity (continued)
Capacity
(kW)
Outdoor air
temperature
(°C DB)
Indoor air temperature (°C WB/DB)
14/20
16/23
18/26
19/27
20/28
22/30
24/32
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
3.6
10.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
12.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
14.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.6
2.4
16.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
18.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
20.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
21.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
23.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.3
2.2
25.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.2 2.2
27.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.2 2.2
29.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.1 2.2
31.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
4.1 2.2
33.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9 2.1
35.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9 2.1
37.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.9 2.1
39.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
42.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
44.0
2.5 1.9 2.9 2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8 2.1
46.0
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
4.5
10.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
12.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
14.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.8
3.0
16.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
2.9
18.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
20.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
21.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
3.0
23.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.5
3.0
25.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.2
3.0
5.4
2.9
27.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
3.0
5.2
2.8
29.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
2.9
5.2
2.8
31.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.0
2.9
5.1
2.7
33.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.9
2.8
5.1
2.7
35.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.8
5.0
2.7
37.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.9
4.9
2.6
39.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
42.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
44.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
46.0
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
3.1
4.8
2.6
Abbreviations:
TC: Total capacity
SC: Sensible capacity
Notes:
1. Shaded cells indicate rating condition.

13
6.2 Heating Capacity Table
Table 6.2: Four-way Cassette heating capacity
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
2.2
-20
-19.8
1.34
1.34
1.34
1.34
1.34
1.34
-19
-18.8
1.44
1.44
1.44
1.44
1.44
1.44
-17
-16.7
1.51
1.51
1.51
1.51
1.51
1.51
-15
-14.7
1.56
1.56
1.56
1.56
1.56
1.56
-13.00
-12.60
1.66
1.66
1.66
1.66
1.66
1.66
-11.00
-10.50
1.68
1.70
1.70
1.70
1.70
1.70
-10.00
-9.50
1.75
1.75
1.75
1.75
1.75
1.75
-9.10
-8.50
1.80 1.80
1.80
1.80
1.80
1.80
-7.60
-7.00
1.82 1.82
1.82
1.82
1.82
1.82
-5.60
-5.00
1.90 1.90
1.90
1.90
1.90
1.90
-3.70
-3.00
1.99 1.99
1.99
1.99
1.99
1.99
-0.70
0.00
2.14 2.14
2.14
2.14
2.14
2.02
2.20
3.00
2.26 2.26
2.26
2.26
2.21
2.02
4.10
5.00
2.33 2.33
2.33
2.33
2.21
2.02
6.00
7.00
2.40 2.40
2.40
2.33
2.21
2.02
7.90
9.00
2.47 2.47
2.40
2.33
2.21
2.02
9.80
11.00
2.54 2.54
2.40
2.33
2.21
2.02
11.80
13.00
2.64
2.59
2.40
2.33
2.21
2.02
13.70
15.00
2.71
2.59
2.40
2.33
2.21
2.02
2.8
-20
-19.8
1.79
1.79
1.79
1.79
1.79
1.79
-19
-18.8
1.92
1.92
1.92
1.92
1.92
1.92
-17
-16.7
2.02
2.02
2.02
2.02
2.02
2.02
-15
-14.7
2.02
2.02
2.02
2.02
2.02
2.02
-13.00
-12.60
2.14
2.14
2.14
2.14
2.14
2.14
-11.00
-10.50
2.24
2.24
2.24
2.24
2.24
2.24
-10.00
-9.50
2.34
2.34
2.34
2.34
2.34
2.34
-9.10
-8.50
2.40
2.40
2.40
2.40
2.40
2.40
-7.60
-7.00
2.43
2.43
2.43
2.43
2.43
2.43
-5.60
-5.00
2.53
2.53
2.53
2.53
2.53
2.53
-3.70
-3.00
2.66
2.66
2.66
2.66
2.66
2.66
-0.70
0.00
2.85
2.85
2.85
2.85
2.85
2.69
2.20
3.00
3.01
3.01
3.01
3.01
2.94
2.69
4.10
5.00
3.10
3.10
3.10
3.10
2.94
2.69
6.00
7.00
3.20
3.20
3.20
3.10
2.94
2.69
7.90
9.00
3.30
3.30
3.20
3.10
2.94
2.69
9.80
11.00
3.39
3.39
3.20
3.10
2.94
2.69
11.80
13.00
3.52
3.46
3.20
3.10
2.94
2.69
13.70
15.00
3.62
3.46
3.20
3.10
2.94
2.69
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.
Table continued on next page …

14
Table 6.2: Four-way Cassette heating capacity (continued)
Capacity
(kW)
Outdoor air
temperature (°C )
Indoor air temperature (°C DB)
16
18
20
21
22
24
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
3.6
-20
-19.8
2.24
2.24
2.24
2.24
2.24
2.24
-19
-18.8
2.40
2.40
2.40
2.40
2.40
2.40
-17
-16.7
2.52
2.52
2.52
2.52
2.52
2.52
-15
-14.7
2.60
2.60
2.60
2.60
2.60
2.60
-13.00
-12.60
2.68
2.68
2.68
2.68
2.68
2.68
-11.00
-10.50
2.80
2.80
2.80
2.80
2.80
2.80
-10.00
-9.50
2.92
2.92
2.92
2.92
2.92
2.92
-9.10
-8.50
3.00
3.00
3.00
3.00
3.00
3.00
-7.60
-7.00
3.04 3.04
3.04
3.04
3.04
3.04
-5.60
-5.00
3.16 3.16
3.16
3.16
3.16
3.16
-3.70
-3.00
3.32 3.32
3.32
3.32
3.32
3.32
-0.70
0.00
3.56 3.56
3.56
3.56
3.56
3.36
2.20
3.00
3.76 3.76
3.76
3.76
3.68
3.36
4.10
5.00
3.88 3.88
3.88
3.88
3.68
3.36
6.00
7.00
4.00 4.00
4.00
3.88
3.68
3.36
7.90
9.00
4.12 4.12
4.00
3.88
3.68
3.36
9.80
11.00
4.24 4.24
4.00
3.88
3.68
3.36
11.80
13.00
4.40 4.32
4.00
3.88
3.68
3.36
13.70
15.00
4.52
4.32
4.00
3.88
3.68
3.36
4.5
-20
-19.8
2.80
2.80
2.80
2.80
2.80
2.80
-19
-18.8
3.00
3.00
3.00
3.00
3.00
3.00
-17
-16.7
3.15
3.15
3.15
3.15
3.15
3.15
-15
-14.7
3.25
3.25
3.25
3.25
3.25
3.25
-13.00
-12.60
3.35
3.35
3.35
3.35
3.35
3.35
-11.00
-10.50
3.50
3.50
3.50
3.50
3.50
3.50
-10.00
-9.50
3.65
3.65
3.65
3.65
3.65
3.65
-9.10
-8.50
3.75
3.75
3.75
3.75
3.75
3.75
-7.60
-7.00
3.80
3.80
3.80
3.80
3.80
3.80
-5.60
-5.00
3.95
3.95
3.95
3.95
3.95
3.95
-3.70
-3.00
4.15
4.15
4.15
4.15
4.15
4.15
-0.70
0.00
4.45
4.45
4.45
4.45
4.45
4.20
2.20
3.00
4.70
4.70
4.70
4.70
4.60
4.20
4.10
5.00
4.85
4.85
4.85
4.85
4.60
4.20
6.00
7.00
5.00
5.00
5.00
4.85
4.60
4.20
7.90
9.00
5.15
5.15
5.00
4.85
4.60
4.20
9.80
11.00
5.30
5.30
5.00
4.85
4.60
4.20
11.80
13.00
5.50
5.40
5.00
4.85
4.60
4.20
13.70
15.00
5.65
5.40
5.00
4.85
4.60
4.20
Abbreviations:
TC: Total capacity
Notes:
1. Shaded cells indicate rating condition.

7E
Ta
b
Ab
b
MC
A
MF
A
FLA

lectrical
C
b
le7.1:Compa
c
Model name
SDV5-45CA
SDV5-36CA
SDV5-28CA
SDV5-22CA
b
reviations:
A
:MinimumCirc
u
A
:MaximumFus
e
:
FullLoadAmps

C
haracter
i
c
tFour‐wayCa
s
Hz
50
50
50
50
u
itAmps
e
Amps
i
stics
s
setteelectrica
l
Volts
220‐24
0
220‐24
0
220‐24
0
220‐24
0
l
characteristic
s
Po
w
Min. vo
l
0
198
0
198
0
198
0
198
s

w
er supply
l
ts Max. vol
264
264
264
264
ts MCA
0.43
0.43
0.48
0.48
MFA
15
15
15
15
Indoor
Rated motor
output (kW)
0.037
0.037
0.037
0.037
fan motors
FLA
0.344
0.344
0.344
0.384

15

16
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
8Sound Levels
8.1 Overall
Table 8.1: Compact Four-way Cassette sound pressure levels1

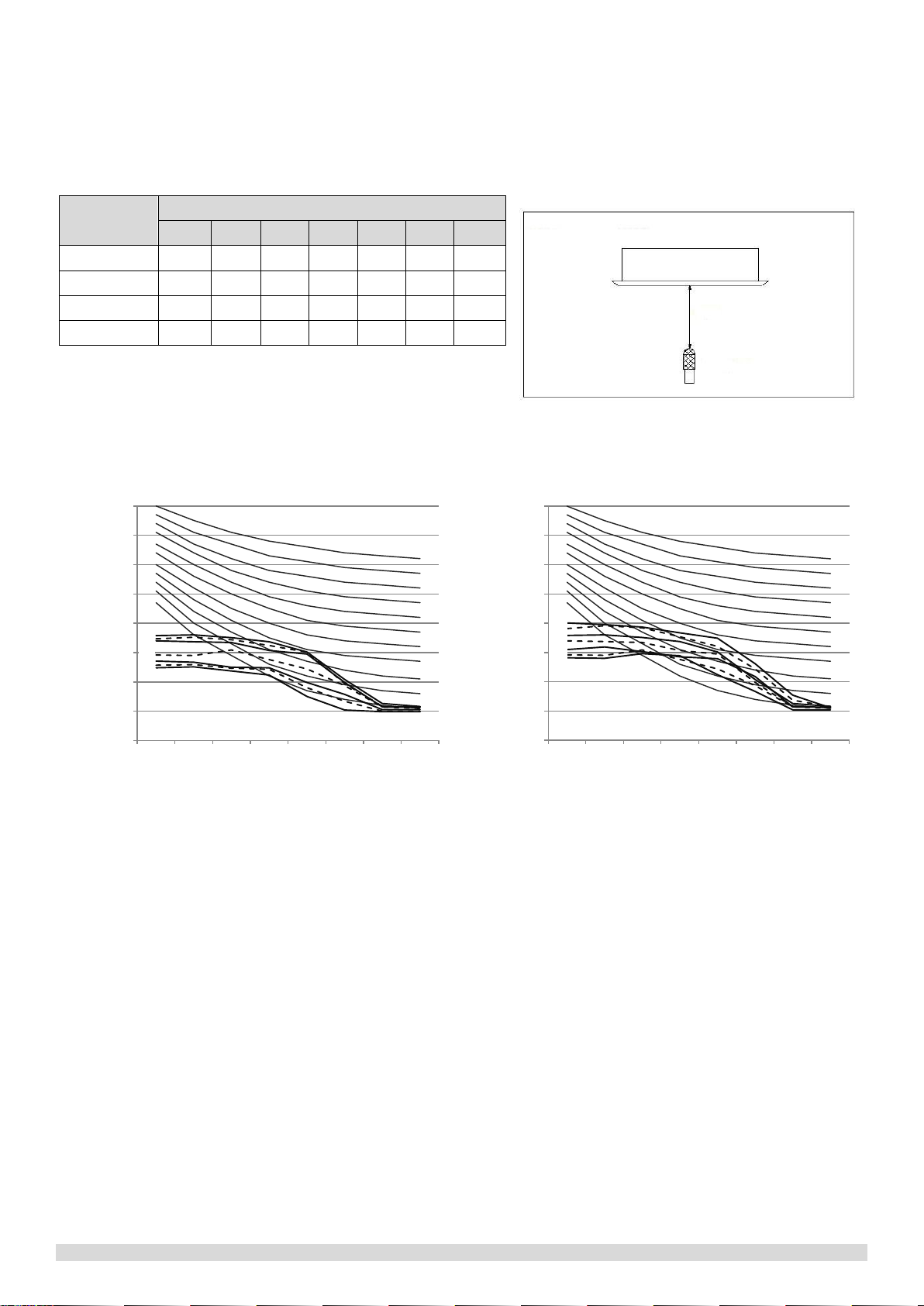

Figure 8.1: Compact Four-way Cassette sound pressure level
measurement
Model name
Sound pressure levels dB(A)
SSH
SH
H
M
L
SL
SSL
SDV5-45CA
SDV5-36CA
SDV5-28CA
SDV5-22CA
35
34
33
29
26
23
22
35
34
33
29
26
23
22
41
38
35
32
30
29
28
41
38
35
32
30
29
28
Notes:
1. Sound pressure levels are measured 1.4m below the unit in a semi-anechoic
chamber. During in-situ operation, sound pressure levels may be higher as a
result of ambient noise.
8.2 Octave Band Levels
Figure 8.2: SDV5-22-28CA
octave band level
s
Figure 8.3: SDV5-36-45CA
octave band level
s
Octave band sound pressure level dB(A)
Octave band sound pressure level dB(A)
Octave band center frequency (Hz)
Octave band center frequency (Hz)
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
1.4m
NC65
NC60
NC55
NC50
NC45
NC40
NC35
NC30
NC25
NC20
NC15
NC65
NC60
NC55
NC50
NC45
NC40
NC35
NC30
NC25
NC20
NC15
SSH
SH
H
M
L
SL
SSL
SSH
SH
H
M
L
SL
SSL

SDV5-22-28CA

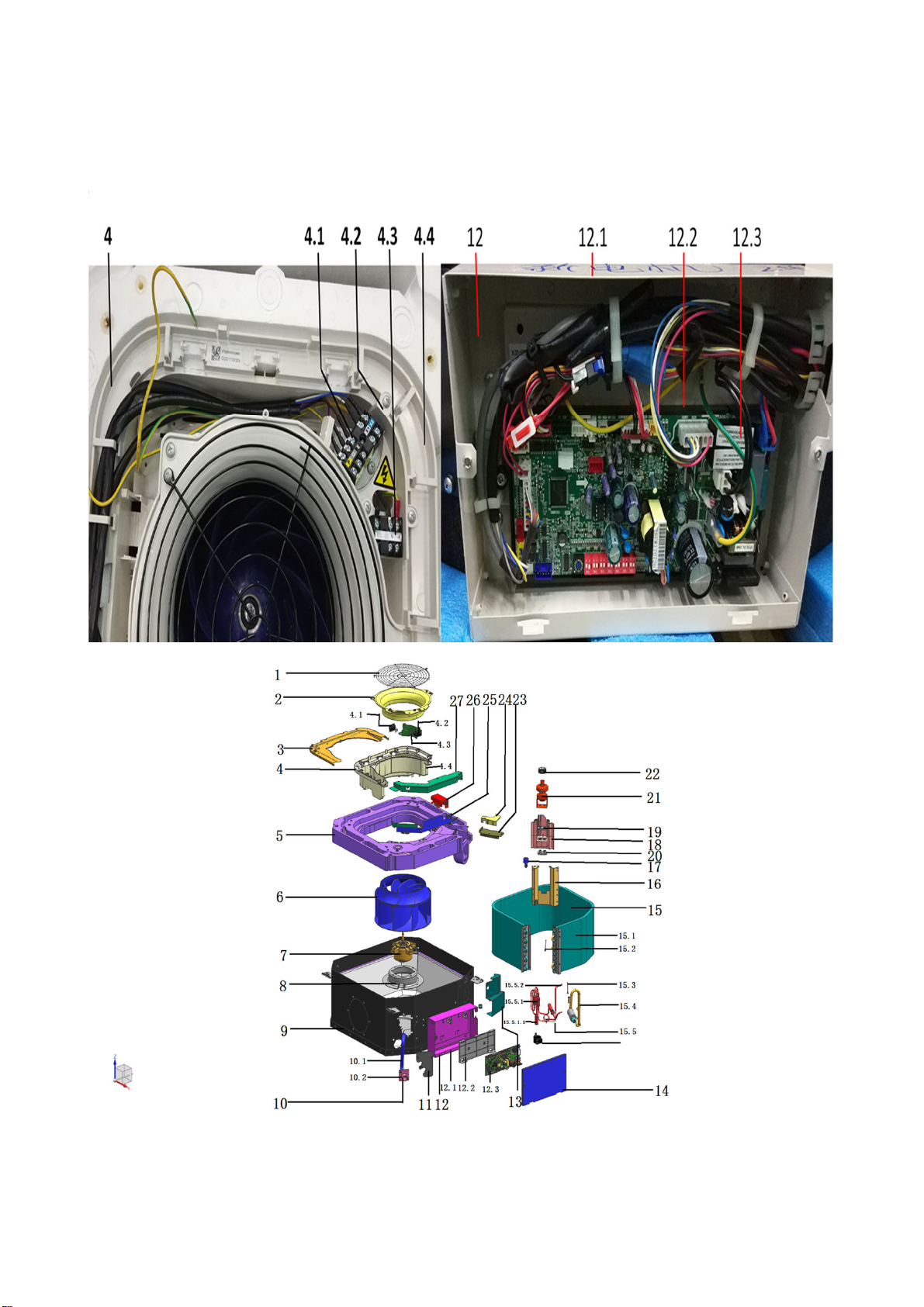

Exploded View

SDV5-36-45CA
Exploded View

FOUR-WAY CASSETTE UNITS SDV5-22-45CA
COMMERCIAL AIR CONDITIONERS SDV5

SDV5-22CA
