FULL DC INVERTER SYSTEMS
COMMERCIAL AIR CONDITIONERS SDV4
TECHNICAL SERVICE MANUAL
SDV4 - SMALL OUTDOOR UNITS
SDV4-200EA, SDV4-224EA, SDV4-260EA

Original instructions

Contents
Contents
Part 1 General Information........................................1
Part 2 Outdoor Units .................................................9
Part 3 Installation ....................................................42
Part 4 Troubleshooting…………………………………61
Manufacture reserves the right to discontinue, or change at any time, specifications or designs without
notices and without incurring obligations.

General Information
1
Part 1 General Information
1. Product Lineup ..................................................................2
2. Nomenclature.....................................................................3
3. Features..............................................................................4

Product Lineup
2

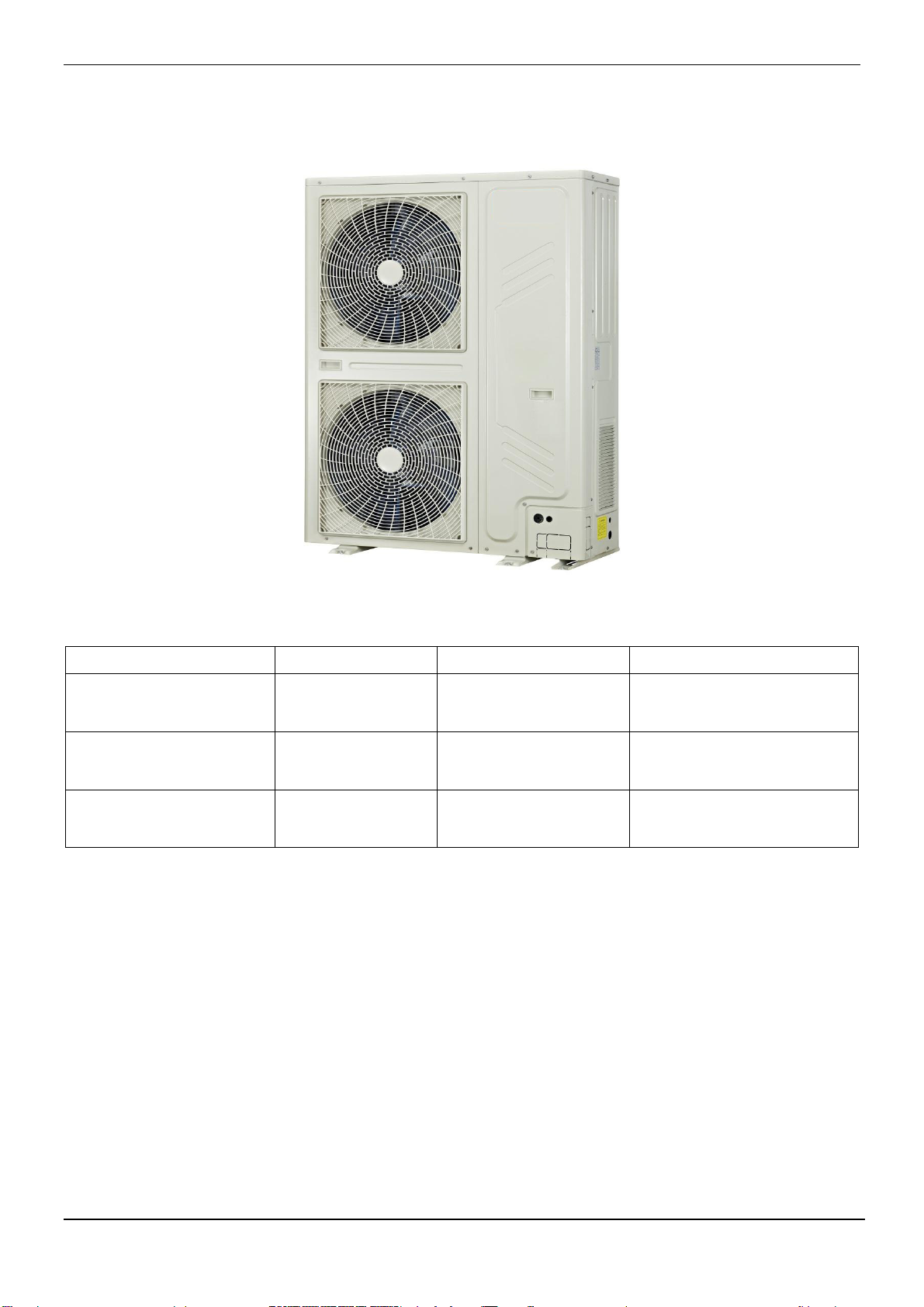

1. Product Lineup
Model name
Dimension body (mm)
Net/Gross weight (kg)
Power supply
SDV4-200EA
Width: 1120
Height: 1558
Depth:400
137/153
380-415V / 3ph~ / 50Hz
SDV4-224EA
Width: 1120
Height: 1558
Depth:400
146.5/162.5
380-415V / 3ph~ / 50Hz
SDV4-260EA
Width: 1120
Height: 1558
Depth:400
147/163
380-415V / 3ph~ / 50Hz

2.Nomenclature
SDV4 –260E A
Refrigerant type R410A
External / Outdoor Unit
Cooling Capacity (x100W)
Sinclair - DC Inverter - Variable
Nomenclature
3

Features
4
3. Features
3.1 Wide application

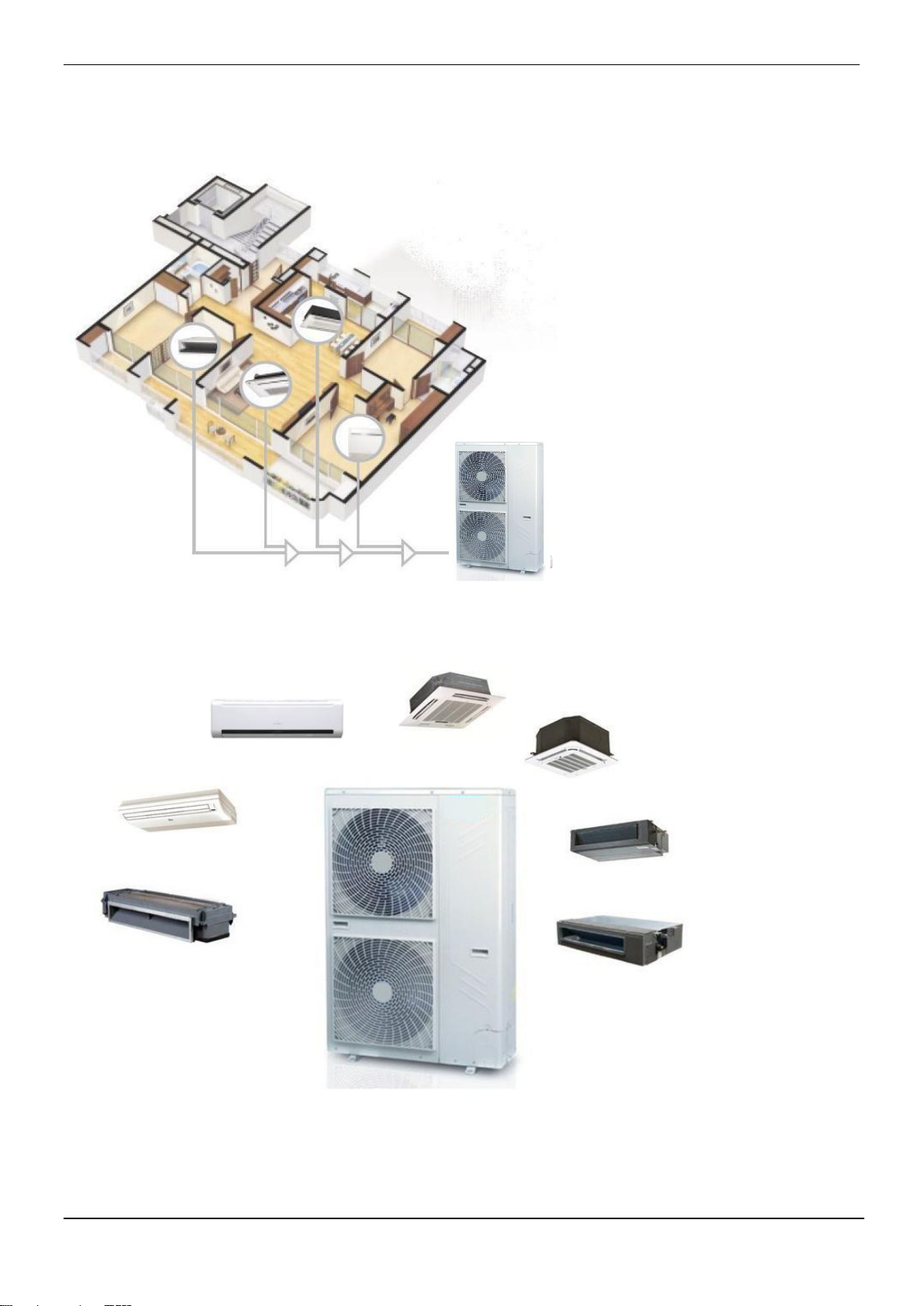

The Full DC Inverter individual VRF system is a highly efficient solution for small commercial buildings
requiring heating and cooling of up to 12 zones with one outdoor unit. Such as villa, restaurant, school etc.
Sinclair offers a variety of indoor unit, more than 40 models of 7 types. Capacity ranges are from 1.5kW to
16kW. It is full compliance with residential and light commercial place. Our systems can operate up to 130% of
capacity which allows any system to be designed to the customers’ and applications’ needs.

Features
5
Compressor
(Twin Rotary) structure
3.2 High efficient DC inverter compressor
.Full DC inverter Individual VRF adopts highly intelligent inverter-driven compressor. This advanced technology enables the
output of the outdoor unit to be modulated by the real heat load demands.
This advanced system ensures precise temperature regulation and highly efficient energy usage, making a significant
contribution to the limiting the impact on the environment.
3.3 High performance heat exchanger
The new designed window fins enlarge the heat-exchanging area ,
which decrease the air resistance, save more power and enhance heat
exchange performance.
Hydrophilic film fins and inner-threaded copper pipes optimize heat
exchange efficiency.
3.4 Low-operating sound design
Optimally design fan shape and new designed discharge air grille and air deflector, making higher air volume and lower operation
sound.
3.5 Quick warm-up & cool-down design and less temperature fluctuation
Utilizing the inverter compressor benefits,
the system can reach full load quickly and
shorten warm-up or cool-down time for an
immediate comfortable air solution.
Less temperature fluctuation will create a
better living environment.
Highly Efficient DC Motor:
- Creative motor core design
- High density neodymium magnet
- Concentrated type stator
-Wider operating frequency range
Better balance and Extremely Low Vibration:
- Twin eccentric cams
- 2 balance weights
Highly Stable Moving Parts:
- Optimal material matching rollers and vanes
-Optimize compressor drive technology
- Highly robust bearings
-Compact structure
Fluctuation of room temperature
Cooling operation
2
1
Temp.
Time
Notn-inverter
Inverter
New design Original design
High efficiency inner-thread pipe,
enhance heat transfer.
New fan
Air deflector
New grille

Features
6
3.6 Wide operation temperature range
No matter in extremely cold winter when outdoor
temperature gets as low as -15°C or in hot summer
when temperature is up to 48°C, the individual VRF
system will keep stable performance.
3.7 Flexible piping design
3.8 Flexible indoor unit’s connection
Individual VRF with intelligent control gives you independent zoning control with maximum flexibility.
A single outdoor unit supports up to 12 indoor units, freeing up considerable space outside. Use your backyard more wisely with
much more space available created by less number of outdoor units.
Max. 10 indoor units for a 20kW outdoor unit installation
Max. 11 indoor units for a 22.4kW outdoor unit installation
Max. 12 indoor units for a 26kW outdoor unit installation
3.9 Simple signal line connection
Installation is much easier as the communication wiring between indoor & outdoor units can be shared.
It’s easy for the user to retrofit the existing system with a centralized control by simply connecting to
outdoor unit.
3.10 Auto address setting function
The addresses of indoor units can be set automatically by outdoor unit.
Wired controller and wireless controller can enquire and modify the address of each indoor unit.
Longest
piping length
Level
difference
between
IDU~ODU
The IDU to the
nearest branch
pipe
The first branch
joint to the farthest
indoor unit
Level differece
between IDU~IDU
PQE & XYE, just only one group of communication wire of PQE,
achieved both of communication for indoor & outdoor unit and
network.
Reversible communication, central controller can be connected
from indoor side or outdoor side as you wish.
P Q E
P Q E P Q E P Q E P Q E
XY E X Y E
Piping Length
Permitted Value
Total piping length (Actual)
120m
Longest piping
length
Actual
60m
Equivalent
70m
The first branch joint to the
farthest IDU
20m
The IDU to the nearest branch pipe
15m
Level difference
between ODU~IDU
ODU up
30m
ODU down
20m
Level difference between IDU~IDU
8m
010 20 30 40 50-10-20
COOLING MODE
HEATING MODE
Outdoor temp. °C(D.B.)
48°C
27°C
-15°C
-15°C
24 °C

Features 7
3.11 Easy installation

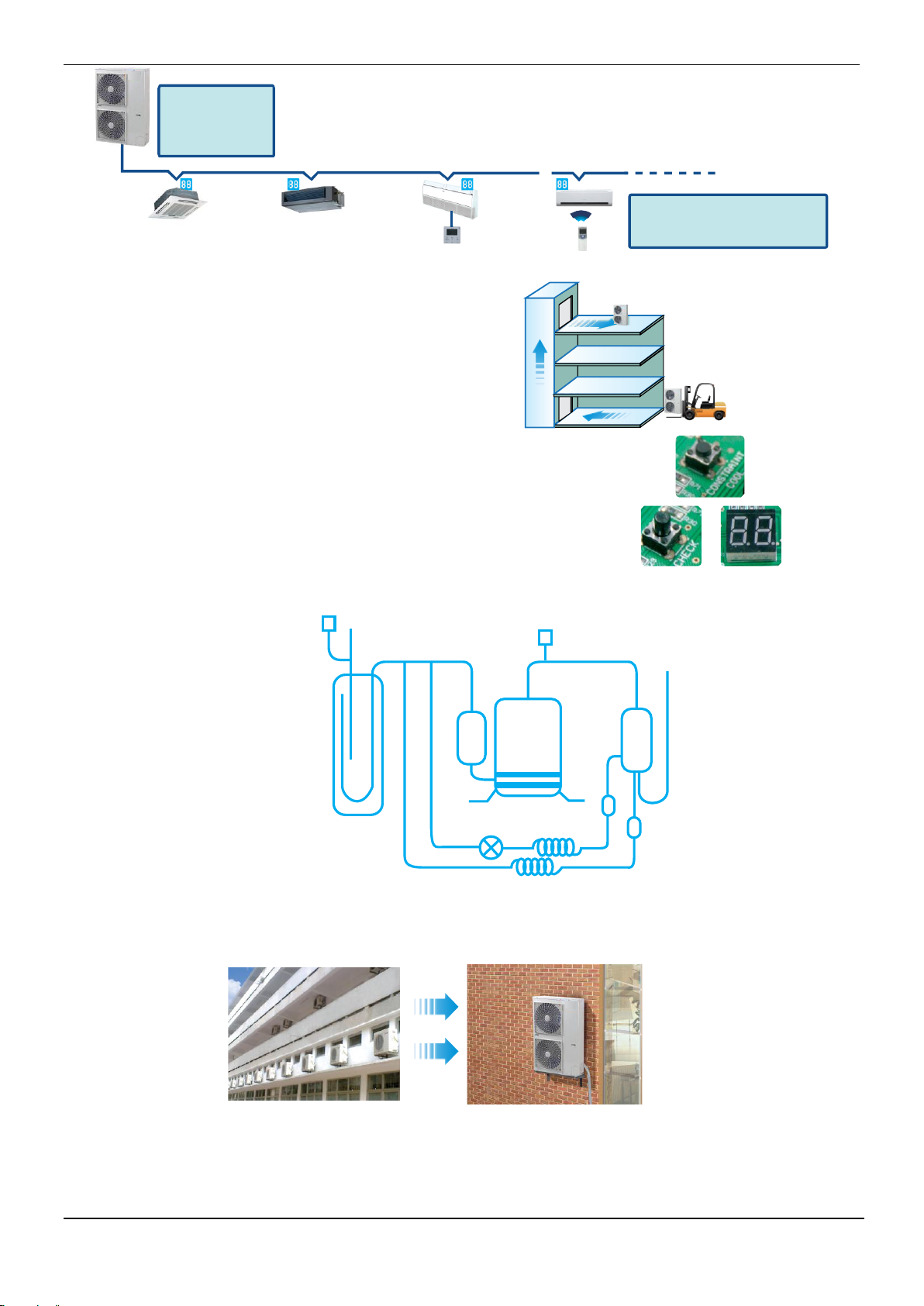

The individual VRF can be transported by elevator which makes
installation dramatically easy, and effectively reduces time
and labor thanks to the small size.
3.12 Easy maintenance
Forced cooling button makes outdoor unit run in cooling mode at
any condition, so it is very easy for you to charge refrigerant to the
system when it needs to be done. The self-diagnosis function
detects malfunctions in major locations in the system and displays
the type of malfunction and location. This allows service and maintenance
to be performed more efficiently.
3.13 High efficiency oil return technology
Auto oil return program by monitoring the running time and state of system ensures reliable oil return.
3.14 Space saving
The individual VRF units are more compact, resulting in significant savings in installation space. It is particularly suitable for small
offices, villas, shops, etc.
Outdoor unit can
distribute address
for indoor unit
automatically Shield signal wire
Wired and wireless controller
can enquire and modify address
of each IDU.
High-pressure Switch
Twin Rotary
Compressor
Oil Separator
Electric Heater
Fast Oil Return
Capillary
Oil Return Capillary
Solenoid Valve
Easy to transport

Features
8

Outdoor Units 9
Part 2 Outdoor Units
1. Specifications ....................................................................................... 10
2. Dimensions ........................................................................................... 12
3. Service Space ....................................................................................... 13
4. Piping Diagrams ................................................................................... 14
5. Wiring Diagrams................................................................................... 15
6. Field Wiring ........................................................................................... 16
7. Capacity Tables .................................................................................... 17
8. Electric Characteristics ....................................................................... 38
9. Sound Levels ........................................................................................ 40
10. Operation Limits................................................................................... 41

10 Specifications
1. Specifications
Sale Model
SDV4-200EA SDV4-224EA
Code
220095103380
220095103370
Power supply
V-Ph-Hz
380-415V-3N~50Hz
380-415V-3N~50Hz
Cooling
Capacity
kW
20.0
22.4
Input
kW
6.1
6.8
EER
kW/ kW
3.28
3.29
Heating
Capacity
kW
22.0
24.5
Input
kW
6.1
5.9
COP
kW/ kW
3.61
4.15
Max. input consumption
W
9400
10013
Max. current
A
14.5
17.2
Compressor
Model
LNB42FSAMC
LNB53FCAMC
Type
Rotary
Rotary
Brand
MITSUBISHI
MITSUBISHI
Capacity
W
13980
16860
Input
W
4270
5200
Rated current(RLA)
A
12
15.4
Crankcase heater
W
25
25
Refrigerant oil
ml
FV50S 1400+1300ml
FV50S 1700+1500ml
Outdoor fan
motor
Model
WZDK170-38G-1
WZDK170-38G-1
Type
DC motor
DC motor
Brand
Panasonic
Panasonic
Insulation class
E
E
Safe class
IPX4
IPX4
Input
W
260(up)/200(down)
250(up)/185(down)
Output
W
210(up)/160(down)
200(up)/150(down)
Rated current
A
2.1(up)/1.7(down)
1.7(up)/1.4(down)
Capacitor
uF
/
/
Speed
r/min
860(up)/840(down)
860(up)/840(down)
Outdoor fan
Material
ASG20
ASG20
Type
Axial fan
Axial fan
Diameter
mm
560
560
Height
mm
170
170
Outdoor coil
Number of rows
1.6
2
Tube pitch(a)x row
pitch(b)
mm
21 x 19.4
21 x 19.4
Fin spacing
mm
1.5
1.5
Tube outside dia.and type
mm
Ф7
Ф7
Inner groove tube
Inner groove tube
Coil length x height
mm
1090 x 756
1080 x 756
Number of circuits
12
18
Outdoor air flow
m3/h
10999
10494
Outdoor sound level(sound pressure level )
dB(A)
59
59

Specifications 11
Sale Model
SDV4-200EA SDV4-224EA
Code
220095103380
220095103370
Outdoor Unit
Dimension(W x H x D)
mm
1120×1558×400
1120×1558×400
Packing (W x H x D)
mm
1270×1575×480
1270×1575×480
Net/Gross weight
kg
137/153
146.5/162.5
Refrigerant
Type
R410A
R410A
Charged volume
g
4800
6200
Throttle type
Electronic expansion valve
Design pressure
MPa
4.4/2.6
Refrigerant
piping
Liquid side/ Gas side
mm
Ф9.52/Ф19.1
Ф9.52/Ф19.1
Max. refrigerant pipe length
m
120
120
Max. difference in level
m
30
30
Connection
wiring
Power wiring
mm2
5 core x6.0
5 core x6.0
Signal wiring
mm2
3 core shielded wire x
0.75
3 core shielded wire x
0.75
Ambient temp
℃
Cooling -15～48
Heating -15～27
Cooling -15～48
Heating -15～27
Sale Model
SDV4-260EA
Code
220095103390
Power supply
V-Ph-Hz
380-415V-3N~50Hz
Cooling
Capacity
kW
26.0
Input
kW
7.6
EER
kW/ kW
3.42
Heating
Capacity
kW
28.5
Input
kW
6.8
COP
kW/ kW
4.19
Max. input consumption
W
10736
Max. current
A
18.7
Compressor
Model
LNB53FCAMC
Type
Rotary
Brand
MITSUBISHI
Capacity
W
16860
Input
W
5200
Rated
current(RLA)
A
15.4
Crankcase heater
W
25
Refrigerant oil
ml
FV50S 1700+1500ml
Outdoor fan
motor
Model
WZDK170-38G-1
Type
DC motor
Brand
Panasonic
Insulation class
E
Safe class
IPX4
Input
W
250(up)/185(down)
Output
W
200(up)/150(down)
Rated current
A
1.7(up)/1.4(down)
Capacitor
uF
/
Speed
r/min
860(up)/840(down)

12 Specifications
Notes:
1. The cooling conditions: indoor temp.: 27℃DB (80.6℉), 19℃WB (60℉) outdoor temp.: 35℃DB (95℉) equivalent pipe length:
5m drop length: 0m.
2. The heating conditions: indoor temp.: 20℃DB (68℉), 15℃WB (44.6℉) outdoor temp.: 7℃DB (42.8℉) equivalent pipe length:
5m drop length: 0m.
3. Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit at a height of *m(1.3m for
200~260model). During actual operation, these values are normally somewhat higher as a result of ambient conditions.
4. The aboved datas may be changed without notice for future improvement on quality and performance.
Sale Model
SDV4-260EA
Code
220095103390
Outdoor fan
Material
ASG20
Outdoor fan
Type
Axial fan
Diameter
mm
560
Height
mm
170
Outdoor coil
Number of rows
2
Tube pitch(a)x
row pitch(b)
mm
21 x 19.4
Fin spacing
mm
1.5
Tube outside
dia.and type
mm
Ф7
Inner groove tube
Coil length x
height
mm
1080 x 756
Number of
circuits
18
Outdoor air flow
m3/h
10494
Outndoor sound level(sound
pressure level )
dB(A)
60
Outdoor unit
Dimension
(W x H x D)
mm
1120×1558×400
Packing
(W x H x D)
mm
1270×1575×480
Net/Gross weight
kg
147/163
Refrigerant
Type
R410A
Charged volume
g
6200
Throttle type
Electronic expansion valve
Design pressure
MPa
4.4/2.6
Refrigerant
piping
Liquid side/ Gas
side
mm
Ф9.52/Ф22.2
Max. refrigerant
pipe length
m
120
Max. difference in
level
m
30
Connection
wiring
Power wiring
mm2
5 core x6.0
Signal wiring
mm2
3 core shielded wire x 0.75
Ambient temp
℃
Cooling -15～48
Heating -15～27

Dimensions 13
2. Dimensions
1558
1120
668 202.7
414
400
528 494

14 Service Sapce
3. Service Space
>300
>600
>300
>
3000
(Wall or obstacle)
Maintain the electric
wire and pipeline
Air outlet
Air inlet
Air inlet
Single unit installation
>600
>3000
>300
Parallel connect the two units or above
>3000 >1000 >6000 >4000 >300
Parallel connect the front with rear sides

Piping Diagram 15

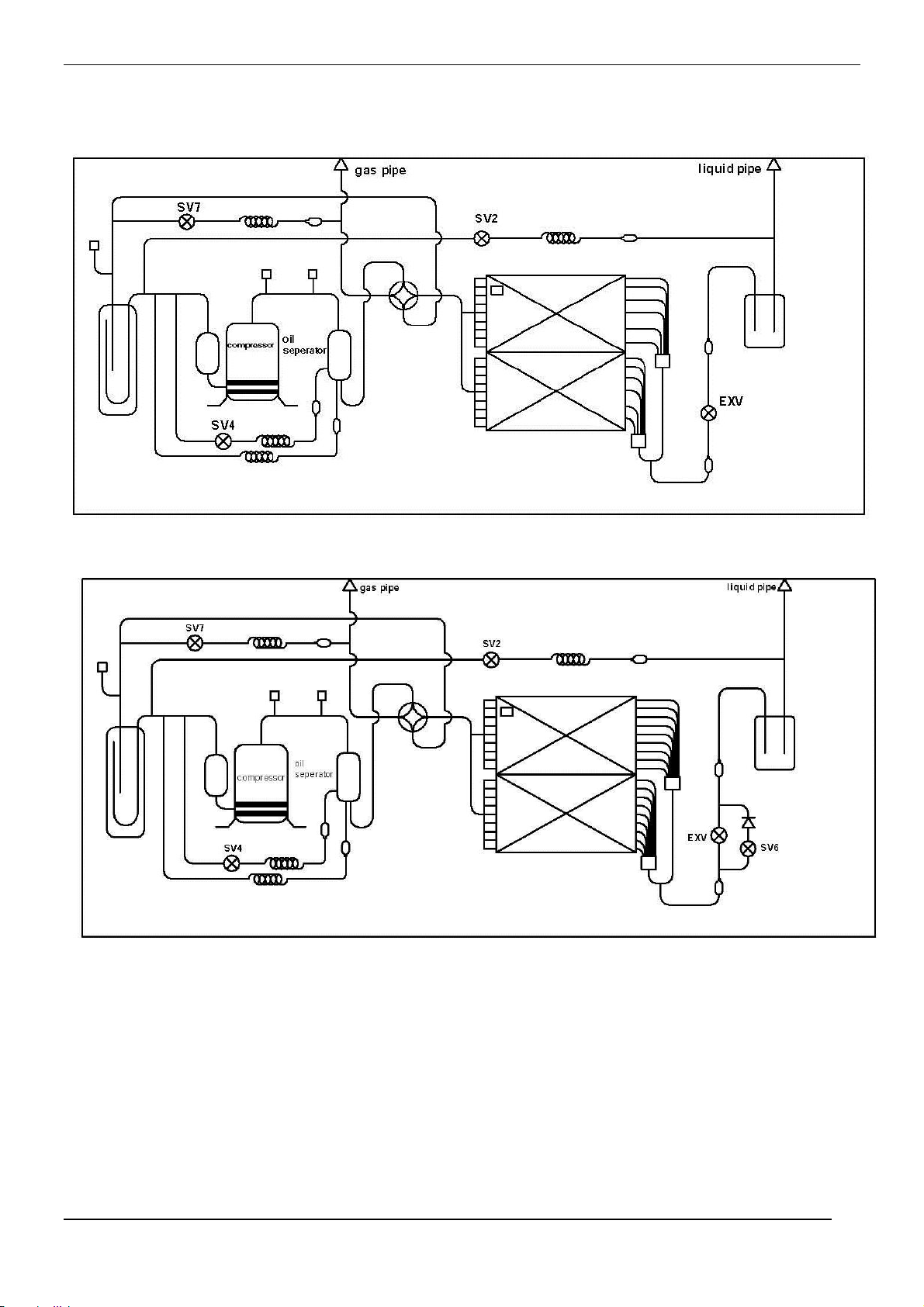

4. Piping Diagrams
20kW
22.4/26kW

16 Wiring diagram

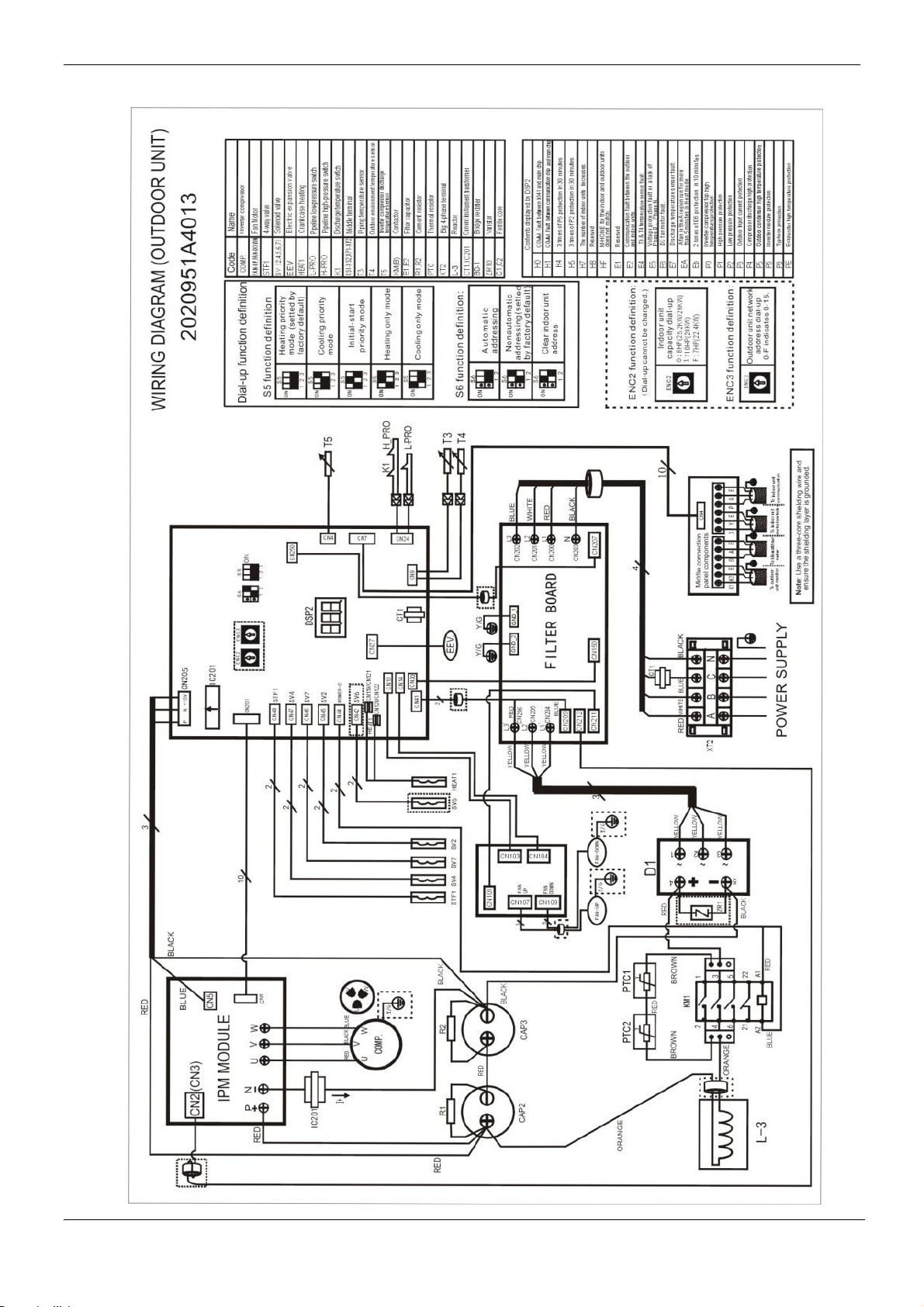

5. Wiring Diagram
