OWNER’S MANUAL PREFACE
03
 Firstofall,wewouldliketocongratulatewithyouforyourchoiceofourSinfoniTempoamplifier.
Ifyouarereadingthisshortintroductioninsteadofmadlyflickacrossthepagesofthishandbooklooking
forfeaturesliketheweightednoiseortheT.I.M.,thenmaybewehavehitthetargettounveilalittlebitof
thephilosophyofourlaboratories.Infact,youwillnotfindthesefiguresamongthecharacteristicsofour
productsmainlybecauseitisourfirmconvictionthatitisimpossibletovaluesuchaproductonlyonthe
basisofplainnumbers.Itwouldbelikeguessingthetasteofadishreadingjustthelistofitsingredients.
 Onlyafterasuitable“tasting”youwillrealizethestrikingsoundpropertiesofourproducts,and
youwillappreciatetheirtransparency,theirmusicality,theirdepthandallotheraspectsthatprobably,asa
Sinfonipurchaser,youalreadyknow.Trytodescribeitwithcoldtechnicalparameters,ifyoucan!
 Inordertogettheutmostfromourproducts,werecommendyoutouseonlyhigh-qualitycom-
ponentsandcables:withafewadjustmenteverySinfoniamplifierwillgiveyouunexpectedemotionsand
sensations.Wekindlyaskyoutofollowtheindicationsmentionedinthishandbook,andwewishyouto
enjoyMusicatbest.

PREFACE
Tempo
04

PREFACE HIGH CURRENT
05
 Thisamplifierhasbeendevelopedfollowingtherulesofthehighcurrentamplifiers.Thesetypes
ofamplifiersareprojectedtoworkonreducedandmultiple-loadimpedances.Theywouldseemtohave
ahighercostifcomparedwithtraditional(HighVoltage)amplifiers,butit’simportanttonotbemisledbythe
performanceasdeclaredat4Ω.Theseamplifierscaneasilydoubletheoutputpower,both,instereoand
inbridgedmode,byhalvingtheimpedanceload(lookatpicture1foravisualillustration).Ohm’sLaw,the
mostknownandprobablythemostimportantelectricalformulasaysthatthecurrentisininverserelation
totheresistanceload,soit’seasytoimaginehowmuchcurrentmustgothroughtheamplifyingstageof
theunit.

PREFACE MIDBASS AND SUB
05
06
 ThisamplifierfollowsthephilosophyoftheSinfonisound.Tobeahighcurrentamplifiermeans
tohavealotofenergyresourcestodriveverydifficultloadsandeveryoneknowsthatthemostenergy-
consumingsystemsarethatonesthatmakeanintenseuseofmidbassandsubfrequencies.Therefore
wecansaythatthisamplifiercanbeveryusefulwhenworkingwithsuchsystems.Thisdoesn’tmeanthat
itonlycanbeusedforsubwoofers,asshownonthepagesofthishandbook,infactthisamplifiercan
beusedtodriveanykindofsystem.Tofacilitateitsusewithsubwoofersthisamplifierhasamongother
functionalitiesphase-shifterforthesubfrequency.

FEATURES SUBSONIC + PHASE SHIFTING
07
 It’simpossibleforthehumaneartobeawareoffrequenciesbelow20Hz,butdespiteofthisfact
amplifiersusuallyreproducetheseverylowfrequencies,consumingsoamountsofpreciousenergy.By
simplyactivatingthesubsonicfilterfeature,theamplifierwillexcludeallfrequenciesbelow25Hz.Forthat
purposeahighpass,18dB/octaveat25Hz,filterisused.Thisfeatureisalsohelpfulwhenusingsmaller
woofersthatarenotabletoreproducelowerfrequencies.
 VeryoftentheplacementofaSubwooferinsideacarcompartmentcanbeaverycomplicated
issue.ThePhaseShiftingfeatureoffersarapidandsimplesolutiontothisannoyingproblem.Switchingon
thePhasefunctionallowstoshiftcontinuouslyfrom0to180°thephaseofthesubwoofer.Thismeansthat
youcanmovethewavefromthereartothefrontofthecarbysimplyusingtheproperpotentiometeron
thefrontpanel.

FEATURES SUBSONIC + PHASE SHIFTING

09

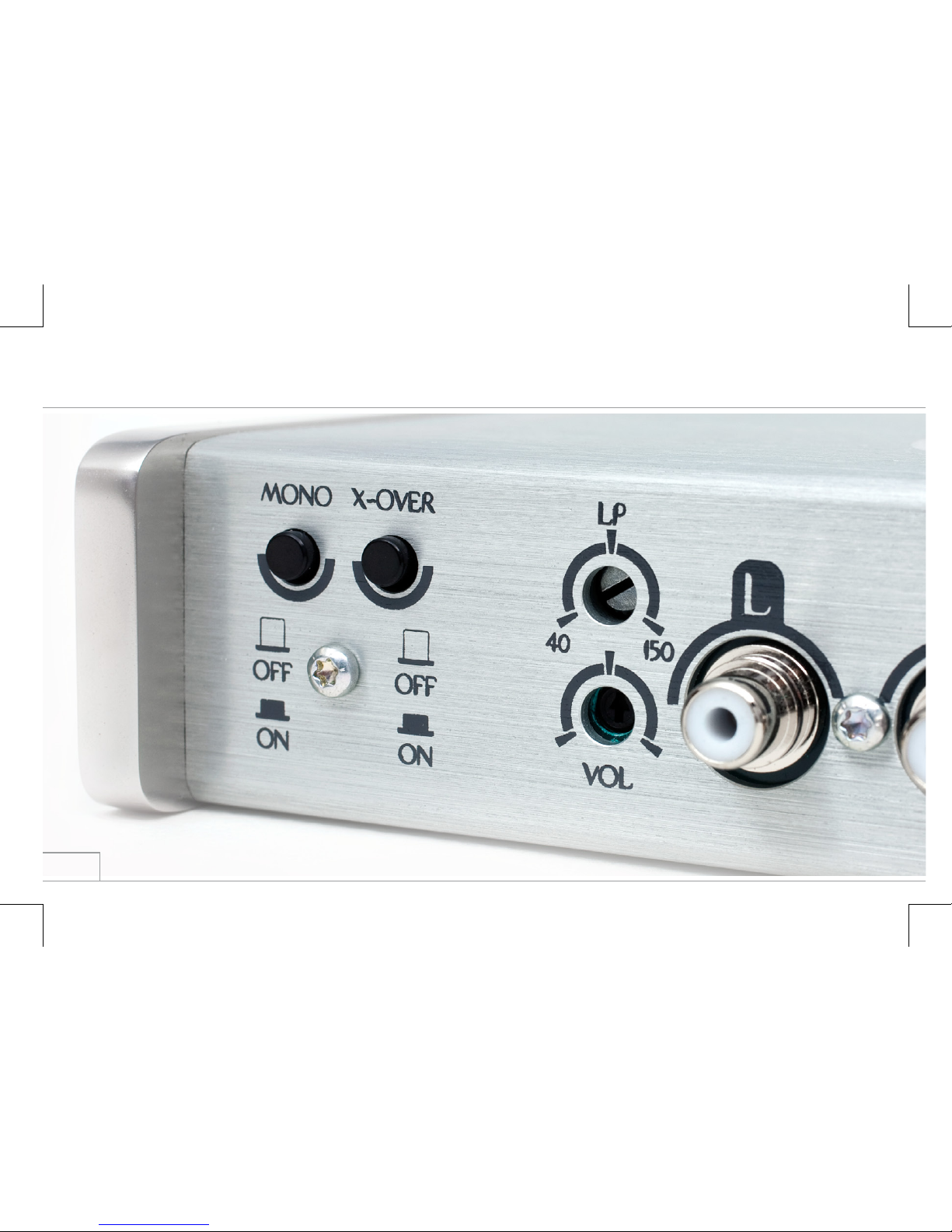

 Thisamplifierisequippedwithabuilt-inLowPassCross-Over,veryeasytoswitchonandoff
bypushingthebuttononthefrontpanel.Oncethecross-overisactivated,thecut-offfrequencycanbe
regulated,from40to150Hz,throughtheproperpotentiometer.Mutli-amplifiedsysteminstallationsare
nowsomucheasiertoimplement.
FEATURES BUILT IN CROSSOVER

10
FEATURES BUILT IN CROSSOVER

11
 InordertoallowasimultaneousStereo-Monoconnection,themostcaramplifiersmakeuseof
theTrimodecapability,whichoffersthepossibilitytoconnectaSubwoofer,inbridgedmode,toastereo
system.Inordertoaccomplishthis,theRightinputchannelisinversedby180°.ByswitchingOffthe
Trimodemodus,therotationoftheRightinputdoesnothappen,thereforetheleftandrightchannelsare
nowinphasewitheachother,ratherthanbeing180°outofphasewitheachother.
 OfcoursewheninTrimodeOffthepolarityoftheRightoutputconnectorisinverted.Herefollows
agraphicalillustrationofthedifferencebetweenthetwodifferentTrimodestatuses.Pleasenoticealsohow
thepolarityofthespeakerconnectorchangeswhenTrimodeisOff.
FEATURES TRIMODE

12
SPEAKER OUTPUT POLARITY IN TRIMODE ON MODUS
INPUT SIGNAL WAVE
SPEAKER OUTPUT POLARITY IN TRIMODE OFF MODUS
FEATURES TRIMODE
LEFTCHANNELWAVE LEFTCHANNELWAVERIGHTCHANNELWAVEROTATEBY180° RIGHTCHANNELWAVENOTROTATE

13
 Themostcommonreasontouseamonophonicinputistousetheamplifierinabridgedcon-
figuration,butasyouwilldiscoveronthishandbook,nottheonlyone.Thankstothisfeature,insteadof
usingaYcable,youcanconnectonlytheLinputtoyoursource.Thiswillallowyoutheadvantageto
haveasingleinputforbothchannels,sincewhenusingaYcableit’snoteasytotrimeachinputlevelto
thesamepoint.Amonoinputcanalsobeveryusefulwhenworkingwithbi-wiring,asexampleforpassive
multi-amplificationconfigurations.
FEATURES MONO

14
FEATURES MONO
LOW PASS

OWNER’S MANUAL INSTALLATION
15
 TheSinfonicaramplifiersaredesignedtoworkwitha12VDCpowersupply,howeverthe
voltagecanrangefrombetween11Vand14.5V.PowerSupplycablesmustbeofasuitablegauge,
keepinginmindthatthenegativeonemustbeconnectedtothegroundinthenearestpointofthecar
chassis,whilethepositiveonemustcomedirectlyfromthebattery.Ifthedistancefromthebatterytothe
apparatusisquitelong,thenitwillbenecessarytousethickercables,inordertoavoidanyperformance
loss:wesuggestyourinstallertouseatleastgoodqualityAWG8OxygenFreeCoppercables.TheREM
input(remote)mustbeconnectedtotheremoteoutputofthesource,whichmustprovideatleasta60mA
current,foreveryinstalledSinfoniunit.

INSTALLATION POWER SUPPLY
16
GROUND - CAR CHASSIS
SOURCE REMOTE
BATTERY POSITIVE

INSTALLATION ADVICE
17

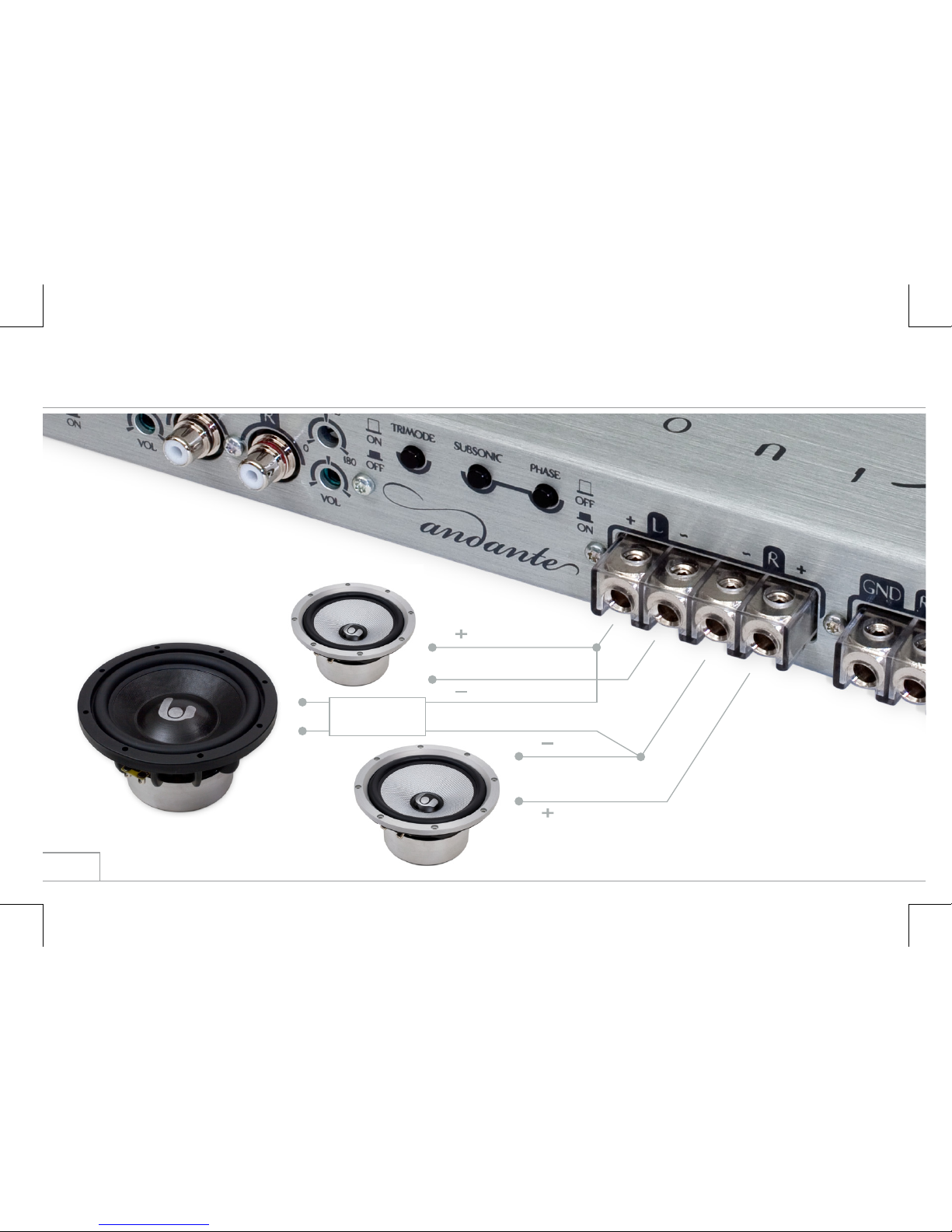

 Inthefollowingpagesyoucanfindseveralconfigurationexamplestoshowpossibleinstallations
usingthisamplifier.Theseareonlyafewcombinationstoexplainthefeaturesofthisamplifierandtobetter
illustratetheuseoffunctionslikeTRIMODEandMONO.Pleasenoticethewiringofthespeakersinthe
differentTRIMODEstatuses,itisveryimportanttounderstandthetechnicaldifferencesbetweenTRIMODE
ONandTRIMODEOFF,sinceawrongwiringcanaffectthequalityoftheinstallation.Onlythecreativity
andtheabilityoftheinstallercantellwhatsystemisthebestsolutionforyourneeds,alotdependsonthe
musicalresultyouwanttoachieve,andontheacousticcharacteristicsofyourspecificvehicle.Therefore
wesuggesttoalwayscooperatewithprofessionalandtrustedinstallers.Somefeaturescanworkincon-
junctionwithothersandsomefeaturesexcludeothers;pleasehavealookatthediagrambelow,taking
asstartingpointthex-overstatusyoucanseefeaturesthatareavailableandthepossiblecombinations
ofTRIMODEandMONO.
