Singer HD0405S User manual

HD0405S
(2 . 3 . 4 THREAD HEAVY DUTY OVERLOCK MACHINE)
Instruction Manual

HD0405S
IMPORTANT SAFETY INSTRUCTIONS
PREFACE
Thank you for your puchase of this overlock machine. This machine intended for household use, will provide you
with excellent performance in sewing from light to heavy fabric (lawn to denim). Please refer to this booklet
for proper use and optimum service. To get the most out of your overlock machine, read the entire operator’s
guide before attempting to operate the machine. Then familiarize yourself with the machine by following the
operator’s guide page by page.
To ensure that you are always provided with the most modern overlock capabilities, the manufacturer reserves
the right to change the appearance, design or accessories of this overlock machine when considered necessary
without notification or obligation.
For European Territories:
This SINGER Overlock Machine was tested according to European norms and meets the requirements
regarding electrical safety radio interference and electromagnetic immunity.
The conformity is documented with the mark.
* If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
* Switch off or unplug the machine when leaving it unattended.
* Before servicing the appliance , unplug the machine.
* If the light is damaged, it must be replace by authorized dealer.
® SINGER is a exclusive trademark of The SINGER Company Limited S.à r.l. or its Affiliates.
©2020 The SINGER Company Limited S.à r.l. or its Affiliates. All rights reserved
1

IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic safety precautions should always be followed including the following.
Read all instructions before using the machine.
- To reduce the risk of electric shock:
DANGER
WARNING
- To reduce the risk of burns, fire, electric shock or injury to
persons:
· The machine should never be left unattended when plugged in. Always unplug
the machine from the electric outlet immediately after using and before
cleaning.
· Be sure that the electrical voltage of the electric outlet (wall receptacle) is the
same as the rated voltage of the motor.
· Use this machine only for its intended use as described in this Instruction
Manual. Use only attachments recommended by the manufacturer as contained
in the Instruction Manual.
· To disconnect, turn all controls to the off (”0”) position, then remove plug from
outlet.
·
Disconnect the power line plug from the socket outlet or switch the machine off
when making any adjustments
in the needle area, such as threading needle
and loopers, changing needle, changing throat plate or changing presser foot, etc.
· Always unplug the machine from the electrical outlet when removing covers,
lubricating, or when making any other user servicing adjustments mentioned
in the Instruction Manual.
· Do not attempt to adjust the motor belt. Contact your nearest Service Center
should any adjustment be required.
· Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
· Handle the foot controller with care and avoid dropping it on the floor. Be sure
not to place anything on top of it.
· Always use the proper throat plate. The wrong plate can cause the needle to
break.
· Do not use bent needles.
· When sewing, keep fingers away from all moving parts. Special care is required
around the sewing machine needle.
· Do not pull or push fabric while stitching. It may deflect the needle causing it to
break.
· Use only the handle to lift and move the machine.
· Never operate the machine if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into the water. Return
the machine to the nearest authorized dealer or Service Center for examination,
repair, electrical, or mechanical adjustment.
· Never operate the machine with any air openings blocked. Keep ventilation
openings of the machine and foot controller free from the accumulation of lint,
dust and loose cloth.
· Never drop or insert any object into any opening.
2

FOR EUROPEAN AND SIMILAR TERRITORIES:
Machines for Great Britain and some other countries having similar wiring standards are shipped from the
factory without a plug for connection to the mains. The wires in this mains lead are colored in accordance with
the following code.
Blue: neutral (N) Brown: live (L)
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows:
The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored
black. The wire which is colored brown must be connected to the terminal which is marked with letter L or
colored red. If a 13 Amp. (BS 1363) plug is used, a 3 Amp. fuse must be fitted, or if any other type of plug is
used, a 5 Amp. fuse must be fitted either in the plug or adaptor or at the distribution board.
Neither cord is to be connected to the earth terminal of a three-pin plug.
Servicing should be performed by an authorized service representative.
SAVE THESE INSTRUCTIONS
This product is not intended for industrial use.
· Do not use outdoors.
· Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
· Do not allow to be used as a toy. Close attention is necessary when the
machine is used by or near children.
· Do not expose the machine or machine plastic case to sunlight directly. Also,
do not keep it in a very warm or damp place.
· Do not touch the machine, foot controller and power line cord with wet hand,
wet cloth or with anything wet.
· Do not connect power line cord to one of the many cords connected to one
power outlet with adapters.
· Use machine on flat and stable table.
· Be sure to close the cylinder cover and looper cover before operating the machine.
· Keep presser foot and needles away from children’s reach.
· Do not dismantle or modify the machine yourself.
· Be sure to turn off the power switch and disconnect the power line plug before
caring for your machine as instructed in the operator’s guide.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
The machine must only be used with foot control of type GTC/HKT
72C (for 220-240V), GTE/HKT 7 (for 100-120V)manufactured by
DANYANG GUOTI MOTOR & APPLIANCE CO., LTD/ZHEJIANG
HUAXING ELECTRIC MOTOR CO.,LTD.
3

CONTENTS
1. Selection of Stitches…………………………………
2. Handy Reference Chart ……………………………
3. Accessories …………………………………………
4. Needle Information …………………………………
5. Principal Parts ………………………………………
6. How to Open Looper Cover ………………………
7. Principal Parts Behind Looper Cover ……………
8. Preparation Prior to Sewing ………………………
9. Preparation for Threading……………………………
Setting up the thread guide holder ………………
10. How to Remove and Insert Needles ………………
To remove needle(s) ………………………………
To insert needle(s) …………………………………
11. Threading the Machine………………………………
Threading diagram …………………………………
Understanding the color code ……………………
To thread the machine correctly……………………
1) Threading the upper looper (Orange) ………
2) Threading the lower looper (Yellow) …………
3) Threading the right needle (Green) …………
4) Threading the left needle (Blue)………………
Important threading information……………………
12. How to Change Threads / Tie on Method…………
13. How to Adjust the Stitch Length……………………
14. How to Adjust the Seam Width ……………………
Width adjustment by changing needle position …
Width adjustment with adjustment knob …………
15. How to Adjust the Presser Foot Pressure…………
16. Differential Feed ……………………………………
Gathered overedge…………………………………
Stretch overedge……………………………………
17. How to Disengage Movable Upper Knife …………
18. Converting the upper looper into spreader ………
19. Free Arm Sewing (Tubular Work) …………………
20. Standard Overedge and Rolled Hem Stitching …
To sew standard overedge ………………………
To sew rolled hem …………………………………
21. Chaining Off and Test Sewing ……………………
23. Suggested Tension Setting…………………………
1) 2-thread wrapped edge overlock ……………
2) 2-thread standard rolled hem stitching ………
3) 3-Thread Overlock………………………………
4) 3-Thread Flatlock ………………………………
5) 3-Thread Wrapped Edge Overlock……………
6) 4-Thread Ultra Stretch Mock Safety Stitch …
24. How to Sew a Rolled Hem …………………………
1) a.2-thread wrapped edge overlock …....……
b.2-thread standard rolled hem stitching ...…..
2) a.3-thread standard rolled hem stitching ……
b.3-thread upper looper thread wrapped
rolled hem stitching ……………………………
25. Stitch Variations and Sewing Techniques ………
How to sew a flatlock decorative seam …………
How to sew an overlock blind hem ………………
How to sew pin tucks ………………………………
Turning square corners ……………………………
Pin placement ………………………………………
Securing the thread chain …………………………
How to reinforce a seam …………………………
Braiding by chaining off ……………………………
26. Machine Maintenance………………………………
Cleaning the machine………………………………
Oiling the machine …………………………………
How to replace the stationary knife ………………
27. Troubleshooting Chart………………………………
28. Relationship between Cloth,Thread and Needle…
29. Specification …………………………………………
5
6
7
7
8
9
9
9
10
10
11
11
11
12
12
12
12
12
14
16
18
19
20
21
21
21
21
22
23
23
24
25
26
27
28
28
28
29
31
31
32
33
34
35
36
37
38
38
39
39
41
41
43
43
44
45
45
46
46
47
47
47
48
49
50
51
Page Page
22. Starting and Ending Seams ………………………
To Srart a Seam ……..................…………………
To End a Seam ……………………….....…………
30
30
30
4

1. SELECTION OF STITCHES
This machine is capable of producing various types of stitches according to the combination of needle positions,
threading methods, tension adjustment.
1. Two-thread
wrapped edge
overlock
1-needle 2-thread stitch is used for
light weight or knits fabrics. Also,a
3.5mm and 5.7mm wrapped overlock
seam width can be obtained by
changing the needle position. *
1-needle 3-thread stitch is used for butted
or lapped seams and ornamental stitching
with decorative thread. Also, a 3.5mm and
5.7mm flatlock width can be obtained by
changing the needle position.*
2-needle 4-thread stitch which is ideal for
medium to heavy weight stretchy fabrics
such as double knits and swim wear.
overlock seam width can be obtained by
changing the needle position.*
narrow rolled hems or ornamental edges.
1-needle 3-thread stitch is used for sewing
Also, a 3.5mm and 5.7mm wrapped
rolled hem seam width can be obtained
by changing the needle position.*
1-needle 2-thread stitch is used for
hemming on edge finishing operations.
Also,a 3.5mm and 5.7mm standard
overlock seam width can be obtained by
changing the needle position.*
1-needle 3-thread stitch is used for
overedging and seaming on common
fabrics. Also, a 3.5mm and 5.7mm
overedge seaming,blindstich
2. Two-thread
standard rolled
hem stitching
3. Three-thread
Overlock
4. Three-thread
Flatlock
5. Three-thread
Wrapped Edge
Overlock
6. Four-thread
Stretch Mock
Safety Stitch
(502)
(503)
(505)
(514)
31
32
33
34
35
36
Stitch Type Reference
Pages
(504)
* Depending on the needle positions used, this machine can sew 3-thread standard width 3.5mm overedge and
a 5.7mm wide overedge seams.
5

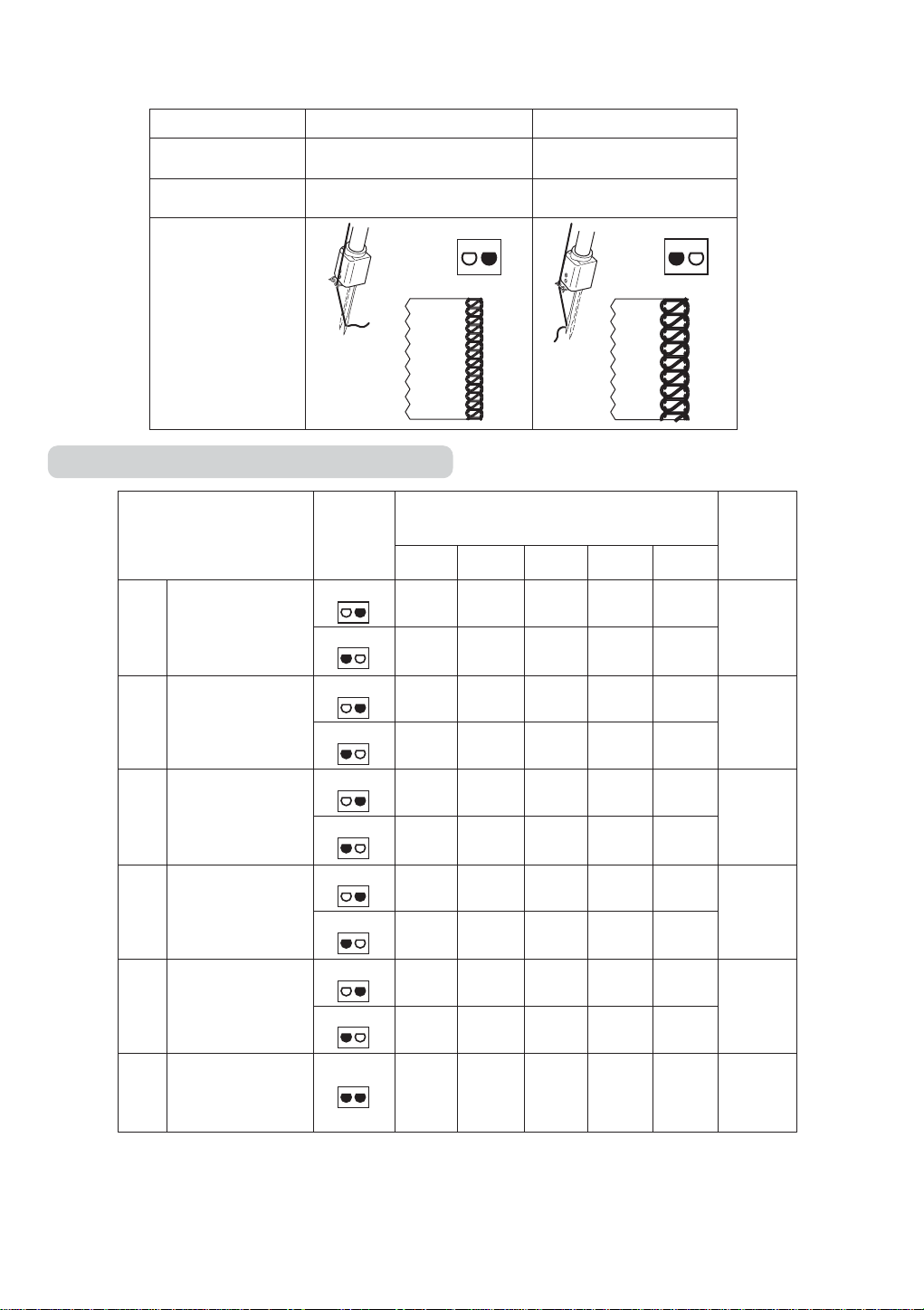

Overedge width
Needle used
Needle thread
tension dial
3.5mm
Overedge right needle
Green
5.7mm
Overedge left needle
Blue
2. HANDY REFERENCE CHART
Stitch Type
The thread tension becomes tighter as the dials are turned to higher numbers. The tension settings shown on
this page as well as throughout the instruction manual are suggested guides. Adjust thread tensions to suit the
fabric and size of thread used. For best results make tension adjustments in small increments of no greater
than half a number at a time.
Two-Thread
Wrapped Edge
Overlock
Page
Needle
Positions
Tension Dial: Numbers shown are average
settings on medium weight fabric with
standard #80 polyester spun thread
1
2
3
4
5
6
3.5mm
(502)
Two-Thread
Standard Rolled
Hem Stitching
(503)
Three-Thread
Overlock
(504)
Three-Thread
Flatlock
(505)
(514)
Three-Thread
Wrapped Edge
Overlock
Four-Thread Ultra-
Stretch Mock
Safety Stitch
3.5mm
3.5mm
3.5mm
3.5mm
5.7mm
5.7mm
5.7mm
5.7mm
5.7mm
Blue Green Orange Yellow
Spreader
Spreader
Spreader
Spreader
Upper
looper
Upper
looper
Upper
looper
Upper
looper
Upper
looper
Upper
looper
Upper
looper
Upper
looper or
spreader
4.0 2.0 31
32
33
34
35
36
1.0
6.0
5.0
3.03.03.0
3.03.03.0
7.0
7.05.0
5.0
0.5
0.5
3.5
0.5
0.5
7.01.0
8.55.0 0
3.03.03.0
3.0
3.0
Also, for overedging heavyweight fabrics, the seam width can be increased still more by turning the overedge
seam width adjustment knob. (See page 21)
6

3. ACCESSORIES
4. NEEDLE INFORMATION
Accessories are contained in the carton on Styrofoam．
You can store these accessories in the accessory tray
in the cloth plate after you open the carton．
SINGER needles #2022 size 100/16 (mounted on
the machne) and size 90/14 (in the accessory case)
are furnished with the machine.
In an emergency, standard Singer needle #2020
may be used.
However, unless the suggested tension setting is
readjusted, skipping of the stitches may occur.
Sizes
available
Singer needle #2022
80/11
90/14
100/16
1 Needle set
2 Screw driver (small size)
3 Tweezers
4 Spreader
HD0405S
1
1
1
1
5 Lint brush with hole for
mounting needle
6 spare lower knife
7 Scrap bag(in the carton)
1
1
1
SINGER needles #2022 size 100/16 are intended
to be used with heavy weight fabrics. It is recommended
to change the needles size to work on lighter weight
fabrics. Please go on page 50 to find more information
on the relationship between cloth, thread and needle.
5
6
7
store accessories
accessories

5. PRINCIPAL PARTS
1 Thread guides and holder
2 Handle
3 Left needle thread tension dial (blue)
4 Right needle thread tension dial (green)
5 Upper looper thread tension dial (orange)
6 Lower looper thread tension dial (yellow)
7 Throat plate
8 Cloth plate
9 Looper cover
10 Power & light switch
11 Stitch length dial
12 Hand wheel
13 Spool stand
14 Spool holder
15 Spool pin
16 Presser bar lifter
17 Differential feed adjusting lever knob
18 Seam width finger support plate
8

1 Upper looper
2 movable upper knife
3 Presser foot
4 Stationary lower knife
5 Lower looper
6 Seam width finger knob
7 Seam width adjustment knob
Connect the controller / electric plug 1 to the
machine receptacle 2.
Plug power line 3 into electric outlet 4.
Power Switch: Push “-” mark side to turn “ON”.
Push “O” mark side to turn “OFF”.
To run the machine and control the speed, press
the controller.
The harder you press, the faster the machine will
sew. WARNING:
Use only foot controller provided with this
machine.(YC-482 for U.S.A. & CANADA only)
Be sure to make reference to “Warning” on
following page.
6. HOW TO OPEN LOOPER COVER
8. PREPARATION PRIOR TO SEWING
7. PRINCIPAL PARTS BEHIND
LOOPER COVER
Caution:
Be sure to turn off power switch.
Caution:
Be sure looper cover is closed when sewing.
Push the cover to the right as far as it will go 1 .
Pull cover down toward you 2 .
To stop the machine from sewing, remove your foot
from the controller.
9

Setting Up the Thread Guide Holder
POLARIZED PLUG INFORMATION (FOR U.S.A. & CANADA ONLY)
This appliance has a polarized plug (one blade wider than the other). To reduce the risk of
electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not modify the plug in any way.
Warning:
* Be sure that the electrical voltage of the electric outlet (wall receptacle) is the same as the rated
voltage of the motor.
* Handle the foot controller with care and avoid dropping it on the floor. Be sure not to place
anything on top of it when not in use.
* Disconnect the power line plug from the electric outlet when changing needles, presser feet or
throat plates, or when leaving the machine unattended. This eliminates the possibility of starting
the machine by accidentally pressing the controller.
This machine is shipped with the thread guide holder
in the lowered position.
Fully extend the thread guide holder.
The two joints on the telescope will click into place
when they are correctly positioned.
Center the thread guides above the spool pins.
Place thread over the cone adapters on the spool
pins.
Note: If the machine is threaded, straighten the
threads to prevent tangling.
9. PREPARATION FOR THREADING
10

Flat surface to the rear
10. HOW TO REMOVE AND INSERT
NEEDLES
To Remove Needle(S)
To Insert Needle(s)
Caution:
Be sure to disconnect the machine from the
electric outlet before removing needle(s).
Caution:
Be sure to disconnect the machine from the
electric outlet before replacing needle(s).
Hold the needle with the flat surface to the back.
Insert the needle into the needle clamp as far as it
will go with help of lint brush.
Securely tighten the needle set screw.
Turn the hand wheel toward you until the needle is
at its highest position.
Loosen, but do not remove the needle set screw
with the small screwdriver.
1 Left needle set screw
2 Right needle set screw
3 Left needle
4 Right needle
Remove the needle(s).
Note: * This machine uses #2022 needles. Refer
to page 7 for additional needle information.
* Remove the cloth plate if you find it difficult
to remove and replace the needle.
lint brush
11

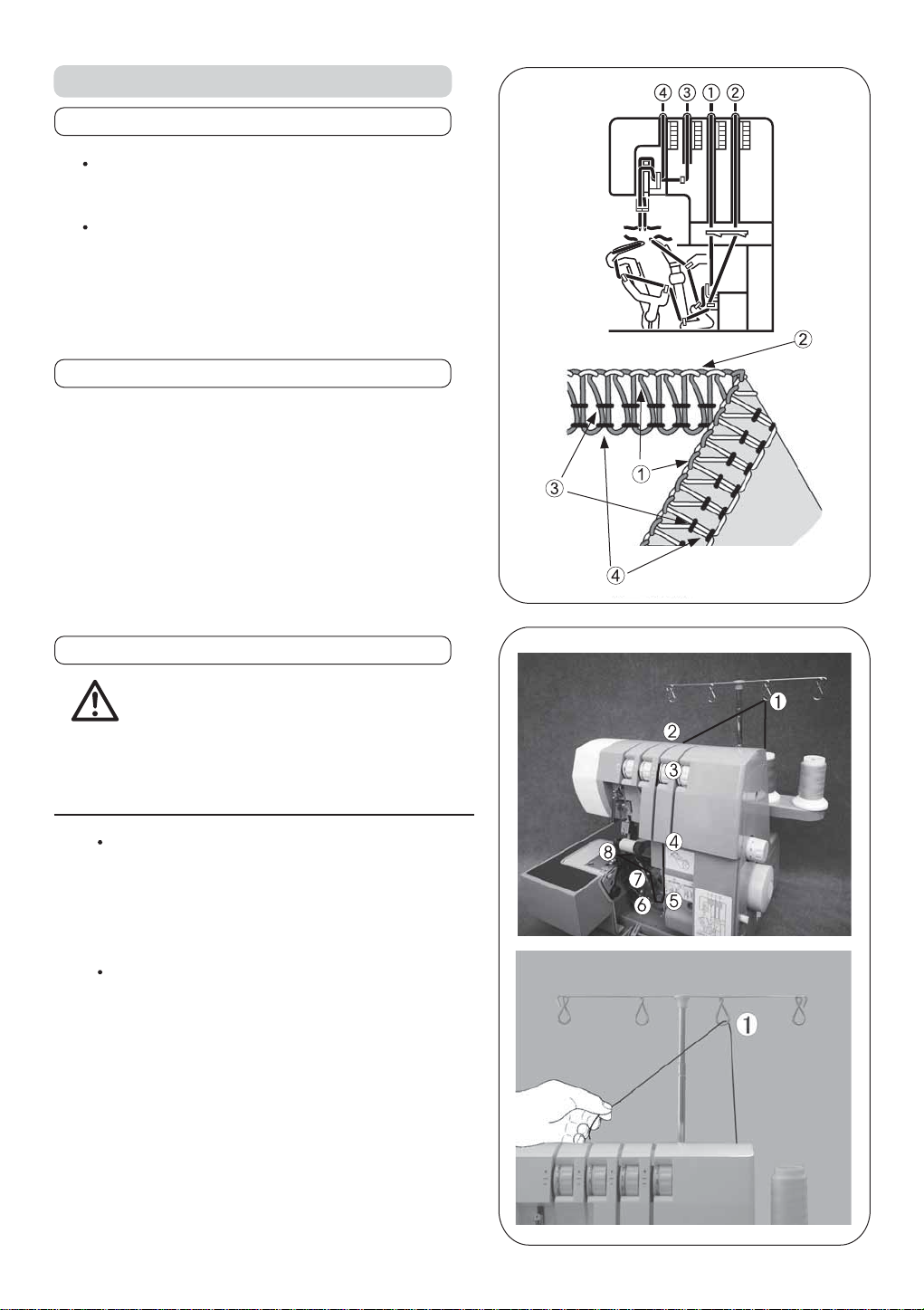

A color coded threading diagram is located inside
the looper cover for quick reference.
Thread the machine in the order 1 to 4 as shown.
1. Upper looper thread……… Orange
2. Lower looper thread……… Yellow
3. Right needle thread............ Green
4. Left needle thread...........… Blue
Caution:
Be sure to turn off power switch.
Thread the upper looper as indicated 1 ~ 8.
Pass thread from back to the front through the
thread guide 1 .
1) Threading the Upper Looper (Orange)
11. THREADING THE MACHINE
Threading Diagram
Understanding the Color Code
To Thread the Machine Correctly
12
Presser Foot needs to be up before theading.
You MUST rethread all 4 threads, if one breaks.

Thread the top cover thread
guide by pulling the thread
under thread guide 2 .
While holding thread with finger, pass it between
the tension discs and pull thread down to make
cartain it is properly located in between the
tension discs 3 .
downward until it slips
Thread the looper area of the machine following the
orange color coded thread guides ( 4 ~ 7 ).
Thread the hole in the upper looper from front to
back 8 .
Note: Use of tweezers provided in the accessory
set to aid in threading the looper.
Pull about 10cm (4 inches) of thread through the
looper and place to the back of the throat plate.
13

2) Threading the Lower Looper (Yellow)
Thread the lower looper as indicated 1 ~ 9 .
Pass thread from back to the front through the
thread guide 1.
Thread the top cover thread
guide by pulling the thread
thread guide 2.
downward until it slips under
While holding thread with finger, pass it between
the tension discs and pull thread down to make
certain it is properly located in between the
tension discs 3 .
14

Turn the hand wheel toward you until the lower
looper is at the far right.
Thread the looper area of the machine following
the yellow color coded thread guides 4 ~ 7 .
Note: Use the tweezers provided in the accessory
set to aid in threading the looper.
Grasp the thread with the tweezers 4 cm (1-1/2
inches) from thread guide 7.
Place the thread with the point of the tweezers
slightly under and to the left of threading guide 8.
Pull the thread up and into thread guide 8.
Pass the thread behind and over the top end of
left looper 9-A.
Then pull it downward gently so that it will slip
into the slot in the looper 9-B.
Pick up the thread and pass it through the hole in
the end of the looper 10 .
Note :
accessory set to aid in threading the
looper.
The thread should be positioned in the groove of
the lower looper.
Pull about 10cm (4 inches) of thread through the
looper and place it over the top of the upper
looper and to the back of the throat plate.
Use the tweezers provided in the
15

3) Threading the Right Needle (Green)
Thread the right needle as indicated 1 ~ 8.
Pass thread from back to the front through the
thread guide 1 .
While holding thread with finger, pass it between
the tension discs and pull thread down to make
tension discs 3 .
thread downward until it
slips under thread guide
2.
thread guide by pulling the
Thread the top cover
certain it is properly located in between the
16

Continue to thread points 4 ~ 7 .
Note: Be sure to pass the thread through upper
thread path of the thread guide 6 .
Thread the eye of the right needle 8 .
Note: Use of tweezers in the accessory set will
make needle eye threading easy.
Draw about 10cm (4 inches) of thread through
needle eye to hang free.
Place the thread to the back, under the presser
foot.
17

4) Threading the Left Needle (Blue)
Thread the left needle as indicated 1 ~ 7.
Pass thread from back to the front through the
thread guide 1 .
Thread the top cover thread
guide by pulling the thread
under thread guide 2 .
While holding thread with finger, pass it between
the tension discs and pull thread down to make
tension discs 3.
downward until it slips
certain it is properly located in between the
18
