Sioux Tools DAAY POWER SWEEP User manual

MANUAL NO. 689865 12/1/2017
OWNERS MANUAL
DAAY POWER
SWEEP

CONTENTS PAGE
Introduction...................................................................................................................0-4
SECTION 1 - SAFETY INFORMATION
Safety Alert Symbol......................................................................................................1-1
Safety Information .......................................................................................................1-2
Safety & Logo Decals...................................................................................................1-3
SECTION 2 - SPECIFICATIONS
Features.........................................................................................................................2-1
Overall Dimensions and Weights ............................................................................2-1 to 2-2
Layout Dimensions.......................................................................................................2-3
SECTION 3 - INSTALLATION
Installation Notes ..........................................................................................................3-1
Drive End Assembly................................................................................................3-2 to 3-3
Pivot End Assembly.................................................................................................3-4 to 3-5
Daay Power Sweep Assembly......................................................................................3-6
Paddle Chain Installation.........................................................................................3-7 to 3-8
Pivot Kit Assembly.................................................................................................3-9 to 3-10
Paddle Chain Tightening..............................................................................................3-11
Bearing Slide Plate Orientation ...................................................................................3-12
Eccentric Locking Collar Installation..........................................................................3-13
Track Pathway Installation ..................................................................................3-14 thru 3-15
SECTION 4 - OPERATION
Operation.......................................................................................................................4-1
Burial.............................................................................................................................4-1
Startup...........................................................................................................................4-1
SECTION 5 - SERVICE
General Maintenance Information................................................................................5-1
Hourly Service Schedule...............................................................................................5-1
SECTION 6 - DIAGRAM & PARTS LIST
7’ Daay Power Sweep Layout Diagram for a 15’ dia. Bin..........................................6-1
7’ Daay Power Sweep Parts List for a 15’ dia. Bin .....................................................6-2
8’ 6” Daay Power Sweep Layout Diagram for a 18’ dia. Bin .....................................6-3
8’ 6” Daay Power Sweep Parts List for a 18’ dia. Bin ................................................6-4
CONTENTS
0-1

CONTENTS PAGE
SECTION 6 - DIAGRAM & PARTS LIST
10’ Daay Power Sweep Layout Diagram for a 21’ dia. Bin.........................................6-5
10’ Daay Power Sweep Parts List for a 21’ dia. Bin ....................................................6-6
11’ 6” Daay Power Sweep Layout Diagram for a 24’ dia. Bin ....................................6-7
11’ 6” Daay Power Sweep Parts List for a 24’ dia. Bin ...............................................6-8
13’ Daay Power Sweep Layout Diagram for a 27’ dia. Bin.........................................6-9
13’ Daay Power Sweep Parts List for a 27’ dia. Bin ...................................................6-10
14’ 6” Daay Power Sweep Layout Diagram for a 30’ dia. Bin ...................................6-11
14’ 6” Daay Power Sweep Parts List for a 30’ dia. Bin ..............................................6-12
16’ Daay Power Sweep Layout Diagram for a 33’ dia. Bin........................................6-13
16’ Daay Power Sweep Parts List for a 33’ dia. Bin ...................................................6-14
17’ 6” Daay Power Sweep Layout Diagram for a 36’ dia. Bin ...................................6-15
17’ 6” Daay Power Sweep Parts List for a 36’ dia. Bin ..............................................6-16
20’ 6” Daay Power Sweep Layout Diagram for a 42’ dia. Bin ...................................6-17
20’ 6” Daay Power Sweep Parts List for a 42’ dia. Bin ..............................................6-18
23’ 6” Daay Power Sweep Layout Diagram for a 48’ dia. Bin ...................................6-19
23’ 6” Daay Power Sweep Parts List for a 48’ dia. Bin ..............................................6-20
26’ 6” Daay Power Sweep Layout Diagram for a 54’ dia. Bin ...................................6-21
26’ 6” Daay Power Sweep Parts List for a 54’ dia. Bin ..............................................6-22
29’ 6” Daay Power Sweep Layout Diagram for a 60’ dia. Bin ...................................6-23
29’ 6” Daay Power Sweep Parts List for a 60’ dia. Bin ..............................................6-24
32’ 6” Daay Power Sweep Layout Diagram for a 66’ dia. Bin ...................................6-25
32’ 6” Daay Power Sweep Parts List for a 66’ dia. Bin ..............................................6-26
Pivot End Assembly Diagram......................................................................................6-27
Pivot End Assembly Parts List ....................................................................................6-28
Drive End Assembly Diagram.....................................................................................6-29
Drive End Assembly Parts List....................................................................................6-30
Section Joint With Jacks Assembly Parts List & Diagram..........................................6-31
Section Joint Without Jacks Assembly Parts List & Diagram.....................................6-32
Daay Power Sweep Decal Parts List & Diagram.........................................................6-33
(688429) Bolt Bag Parts List .......................................................................................6-34
(688430 Bolt Bag Parts List.........................................................................................6-35
(688937) Bolt Bag Parts List .......................................................................................6-36
(688972) Bolt Bag Parts List .......................................................................................6-37
(689809) Bolt Bag Parts List .......................................................................................6-38
(689822) Bolt Bag Parts List .......................................................................................6-39
(689825) Bolt Bag Parts List .......................................................................................6-40
(689826) Bolt Bag Parts List .......................................................................................6-41
Paddle Chain Diagram.................................................................................................6-42
(686162) Paddle Chain Parts List ................................................................................6-43
(686220) Paddle Chain Parts List ................................................................................6-43
(687931) Paddle Chain Parts List ................................................................................6-43
CONTENTS
0-2

CONTENTS PAGE
SECTION 6 - PARTS DIAGRAM AND DESCRIPTION
(687933) Paddle Chain Parts List ................................................................................6-43
(688581) Paddle Chain Parts List ................................................................................6-44
(688583) Paddle Chain Parts List ................................................................................6-44
(688584) Paddle Chain Parts List ................................................................................6-44
(688585) Paddle Chain Parts List ................................................................................6-45
(688587) Paddle Chain Parts List ................................................................................6-45
(688589) Paddle Chain Parts List ................................................................................6-45
(689868) Paddle Chain Parts List ................................................................................6-46
(689859) Paddle Chain Parts List ................................................................................6-46
(689870) Paddle Chain Parts List ................................................................................6-46
(704800) Pivot End Sub Assembly Diagram...............................................................6-47
(704800) Pivot End Sub Assembly Parts List..............................................................6-48
(704803) 4’6” Section Parts List & Diagram ..............................................................6-49
(704801) 1’6” Section Parts List & Diagram ..............................................................6-50
(704804) Drive End Sub Assembly Diagram..............................................................6-51
(704804) Drive End Sub Assembly Parts List.............................................................6-52
(688823) Front Caster Wheel Assembly Parts List & Diagram ..................................6-53
(688824) Rear Caster Wheel Assembly Parts List & Diagram ...................................6-54
Pivot Kit Diagram........................................................................................................6-55
Pivot Kit Parts List.................................................................................................6-56 to 6-57
Pivot Joint Diagram .....................................................................................................6-59
Pivot Joint Parts List....................................................................................................6-70
SECTION 7 - LIMITED WARRANTY INFORMATION
Limited Warranty..........................................................................................................7-1
CONTENTS
0-3

INTRODUCTION
0-4
The purpose of this manual is to explain the operation and maintenance of the Daay Power
Sweep. It also contains a parts list for reference, if replacement parts are needed.
It is recommended that you read this manual in its entirety for the information available in order
to provide the proper care and maintenance of the Daay Power Sweep. The equipment is built to
provide many years of dependable service when used properly. Reading this manual will also provide
information on how to use the equipment correctly to prevent any accidents while using the system.
If you have any further questions, comments, improvements or suggestions regarding the
contents of any of the manuals provided, please contact Sioux Steel Company.
196 1/2 East 6th Street
Sioux Falls, SD 57101-1265
Phone [phone]
ALL safety decals are no charge from the factory. Please replace all safety decals if damaged or
missing. Your safety is important to us.

The symbol shown below is used to call your attention to instructions concerning your personal
safety. Watch for this symbol it points out important safety precautions. It means ATTENTION!
Become Alert! Your Personal Safety Is Involved!
Read the message that follows and be alert to the possibility of personal injury or death.
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. The color associated with Danger is RED.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury. The color associated with Warning is ORANGE.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. The color associated with Caution is YELLOW.
WARNING! Anyone who will be operating or working around the
equipment should first read this manual to familiarize
themselves with the machinery.
SECTION 1 - SAFETY INFORMATION
1-1
SAFETYALERT SYMBOLS
DANGER
CAUTION
WARNING

SECTION 1 - SAFETY INFORMATION
A careful operator is the best operator. Most accidents can be avoided by observing certain
precautions. To help prevent accidents, read the following precautions before operating this
equipment. Equipment should be operated only by those who are responsible and instructed to do so.
Carefully review the procedures given in this manual with all operators. It is important that all
operators be familiar with and follow safety precautions. Improper use of the equipment can cause
serious injury or death.
1-2
1. Read the operator’s manual before operat-
ing equipment..
2. Only allow properly trained persons to op-
erate the equipment.
3. Keep hands and feet away from all pinch
points.
4. Keep bystanders away during operation.
5. DO NOT clean, lubricate or adjust the
equipment while it is running. Disengage
the machine.
REMEMBER:
Sioux Steel Company includes or provides
all reasonable means for accident preven-
tion except a safe and careful operator.
SAFETY

SECTION 1 - SAFETY INFORMATION
SAFETY & LOGO DECALS
P/N 689873
P/N 666941
P/N 686033
P/N 689874-##
P/N 689871
P/N 689872
1-3

SECTION 1 - SAFETY INFORMATION
1-4
This Page Left Blank

SECTION 2 - SPECIFICATIONS
2-1
• Capacity: 5000 bu/hr @ 350 rpm tightner shaft speed
• Chain speed: 390 feet per minute
• Drive tire size: 5” x 8” -15” height segmented wheel
• Drive wheel powered by a 40:1 gearbox off the paddle chain.
• Ability to perform single-pass or double pass operation
• Designed to be fully submersed in grain
• Housing is made out of 12 ga. Material
• Moves grain gently and evenly to sump
• Adjustable chain mount
• Flexible pivot joint allows sweep to move independently from gearbox to allow for variations in
the bin floor.
• Adjustable stabilizer arms to accommodate variations in bin size and out of roundness.
• Rubber drag to help clean the floor for less sweeping.
Specifications are subject to change without notice and without liability.
FEATURES
OVERALL DIMENSIONS AND WEIGHTS

2-2
SECTION 2 - SPECIFICATIONS
DIMENSIONS AND WEIGHTS (Continued)
Bin Size 15' 18' 21' 24' 27'
Sweep Size 7' 8' 6" 10' 11' 6" 13'
Length (Dim A) 95.25" 113.25" 131.25" 149.25" 167.25"
Height-Sweep (Dim B) 17.50" 17.50" 17.50" 17.50" 17.50"
Height-Pivot (Dim C) 27.13" 27.13" 27.13" 27.13" 27.13"
Width (Dim D) 34.56" 34.56" 34.56" 34.56" 34.56"
Unit Weight 764 lbs 803 lbs 838 lbs 873 lbs 906 lbs
Bin Size 30 33' 36' 42' 48'
Sweep Size 14' 6" 16' 17' 6" 20' 6" 23' 6"
Length (Dim A) 185.25 203.25" 221.25" 257.25" 293.25"
Height-Sweep (Dim B) 17.50" 17.50" 17.50" 17.50" 17.50"
Height-Pivot (Dim C) 27.13" 27.13" 27.13" 27.13" 27.13"
Width (Dim D) 34.56" 34.56" 34.56" 34.56" 34.56"
Unit Weight 941 lbs 975 lbs 1037 lbs 1107 lbs 1176 lbs
Bin Size 54' 60' 66'
Sweep Size 26' 6" 29' 6" 32' 6"
Length (Dim A) 329.25" 365.25" 401.25"
Height-Sweep (Dim B) 17.50" 17.50" 17.50"
Height-Pivot (Dim C) 27.13" 27.13" 27.13"
Width (Dim D) 34.56" 34.56" 34.56"
Unit Weight 1272 lbs 1342 lbs 1411 lbs

SECTION 2 - SPECIFICATIONS
2-3
Nominal Bin
Dia. Sweep Length from Pivot Caster Wheel Path Drive Wheel Path
Min Max Min Max Min Max
15' 6' 4" 7' 10" 5' 4"  4' 9" 
18' 7' 10" 9' 4" 5' 4"  6' 3" 
21' 9' 4" 10' 10" 5' 4"  7' 9" 
24' 10' 10" 12' 4" 5' 4"  9' 3" 
27' 12' 4" 13' 10" 5' 4"  10' 9" 
30' 13' 10" 15' 4" 5' 4"  12' 3" 
33'   5' 4"   
36'   5' 4"   
42'   5' 4"   
48'   5' 4"   
54'   5' 4"   
60'   5' 4"   
66' 31' 10" 33' 4" 5' 4"   
LAYOUT DIMENSIONS

SECTION 2 - SPECIFICATIONS
2-4
This Page Left Blank

SECTION 3 - INSTALLATION
3-1
PRIOR TO INSTALLATION:
For ease and safety of installation it is
recommended that the bin be empty. If bin is
equipped with aeration or perforated steel floor,
ensure that no obtrusions or potential obstructions
are present that would hinder or damage the
paddle chain or drive wheels. Any depression in
the floor will need to be brought back to
reasonably level, especially any depression that is
in the path of the drive wheels. These
depressions will cause the sweep to hang-up.
Also review the center gearbox in the bin and
determine if the pivot kit ordered is applicable.
WARNING!
• Since the installation of this
sweep can takes place in a
hazardous environment,
Confined Space awareness
should be followed.
• Since the power for the Daay Power Sweep is
thru the gearbox, lock out tag out awareness
should be followed.
TOOLS NEEDED FOR
INSTALLATION:
• Cordless Driver
• Ratchet
• 1/2” & 9/16” shallow & deep socket
• (1) 3/4” wrench
• (1) 15/16” wrench
• (2)Alignment punch
• (1) Center Punch
• Battery powered/Explosion proof light
• Pliers/Needle Nose
• 3’ to 5’ of wire (for pulling paddle chain thru)
• Standard Allen wrench set
• Gloves
• Hammer
• Loctite (blue)
INSTALLATION NOTES:
• All parts are made to fit thru a 24” diameter
access hole or larger. Certain sub-assemblies
may have to be assembled in the bin since
they will not pass thru smaller man holes or
access doors fully assembled.
• It is recommended after components are
assembled and inserted into the bin, to layout
these components on the bin floor in a loose
pattern that resembles the assembled product.
Please see the layout section of manual for
specific sweep length configuration.
• All setscrews should have Loctite (blue) put
on them prior to tightening. This will help
prevent them from loosening during operation.
SPECIAL NOTE:
We recommend steel plating (1/8”) installed in
specific areas to support the grain sweep on top of
the aeration floor during burial. The specific
locations we recommend steel support plating are
underneath jacks support stands when in the
parked location and around the center support
caster wheels.
The center support caster wheels are referred to be
the caster wheels located on the front and rear of
the sweep head section in which they are closet to
the center sump of the grain bin.
INSTALLATION NOTES

SECTION 3 - INSTALLATION
3-2
DRIVE END ASSEMBLY
Drive End Assembly:
Reference the following parts of this
manual. See Table of Contents for specific page
numbers.
• Drive End Assembly Diagram for a
overall detailed view.
• Drive End Assembly Parts List for the
proper fasteners.
1. Locate the appropriate bolts to assemble the
Drive End Section from the bolt bag that
came with the sweep.
2. Assemble the Sprocket (688933) and 3/16”
key (included with the gearbox) to the
Gearbox (689837).
· Do not tighten the setscrew yet. The
sprocket may have to be adjusted in or
out to align with the drive section
shaft sprocket.
3. Secure the gearbox in the Drive Gearbox
Bracket Wldt (688924) using the appropriate
fasteners.
4. Attach the Drive Gearbox Bracket Wldt to the
Drive Section making sure the bolts and nuts
are orientated properly (the bottom nuts are on
the outside and the upper nuts are on the in-
side)
· Tighten the nuts only hand tight. The
bracket will need to slide back and
fourth to ensure the drive chain is at
the proper tensions.
5. Install the sprocket (688929) and 1/4” key
(686358) onto the drive section shaft.
6. Align the gearbox sprocket and drive section
shaft sprocket with each other.

SECTION 3 - INSTALLATION
3-3

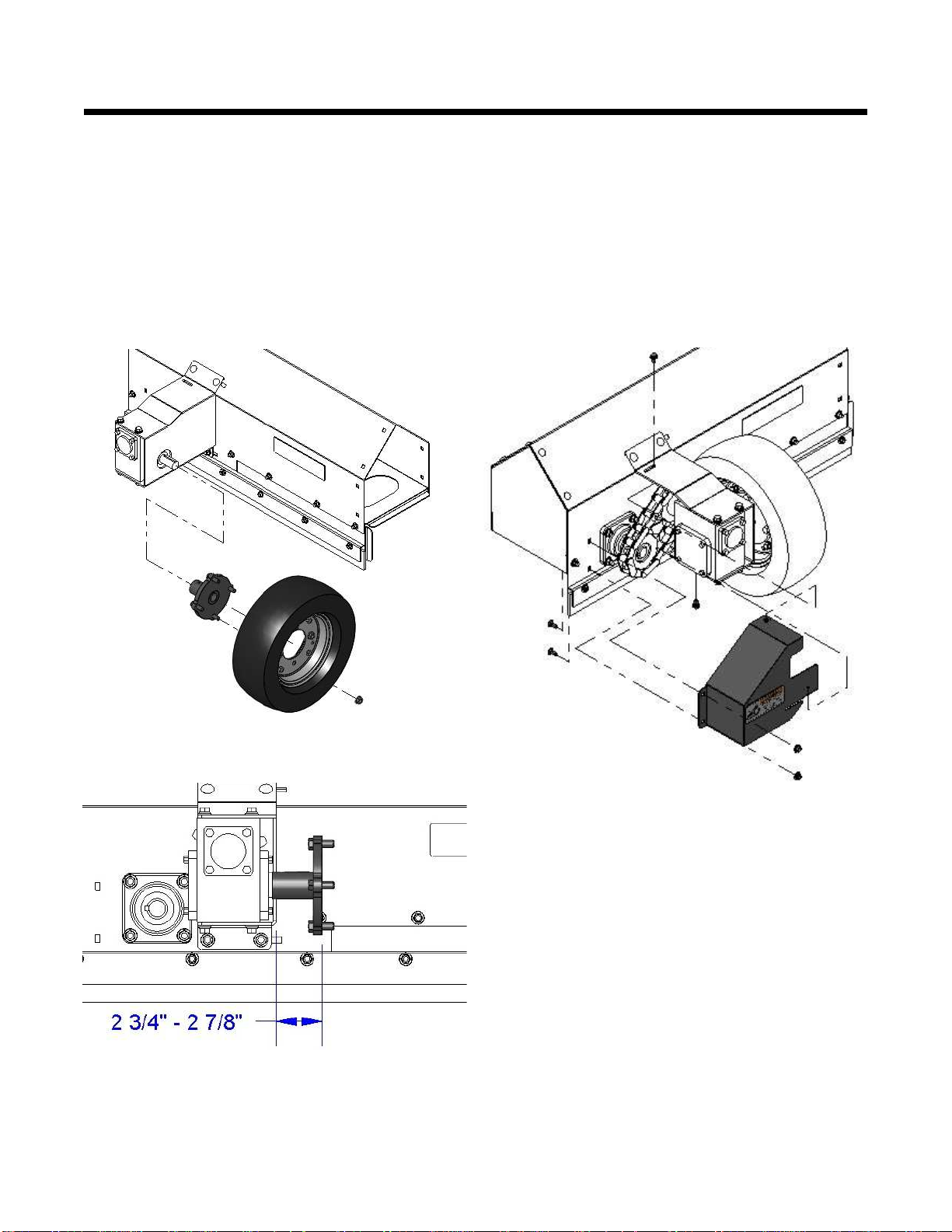

DRIVE END ASSEMBLY (Continued)
7. Install the 15 link chain (688422) onto the
sprockets.
8. Slide the Drive Gearbox Bracket Wldt for-
ward to tighten the chain.
9. Once the chain is adjusted to the correct ten-
sion, tighten the Drive Gearbox Bracket Wldt
in place to the Drive Section.
10. Install the Wheel Hub Wldt (689804) onto the
gearbox.
· Set the distance between the outside of
the Wheel Hub Wldt plate and the
Drive Gearbox Bracket Wldt between
2.75” and 2.875”.
11. Install the wheel (689095) onto the Wheel
Hub Wldt.
12. Make sure the chain and sprockets are aligned
& all bolts and setscrews are properly tight-
ened.
13. Install the Drive Chain Guard Wldt (688930).
14. Remove the Allen wrench screw from the up-
per/outer most port of the gearbox and install
the vent plug in its place.
• The vent hole must be pointed up-
ward.
• Failure to properly install the vent
plug can lead to pressurization of the
gearbox housing as operating tempera-
ture rises, resulting in leakage at the
shaft seals.

SECTION 3 - INSTALLATION
3-4
PIVOT END ASSEMBLY
Pivot End Assembly:
Reference the following parts of this
manual. See Table of Contents for specific page
numbers.
• Pivot End Assembly Diagram for a
overall detailed view.
• Pivot End Assembly Parts List for the
proper fasteners.
1. Locate the appropriate bolts to assemble the
Pivot end from the bolt bag the came with the
sweep.
2. Install the Pivot Stabilizer Bushing (688936)
and the Stabilizer Lock Arm (688914) on both
sides of the Pivot End Assembly (704800).
Tighten the nuts.
· Make sure the lock arms rotate with
minimal resistance. If the arms are dif-
ficult to rotate, disassemble the arm
and clean out the hole with a file or
piece of emery cloth. Reassemble and
recheck the resistance. Repeat the pro-
cess if necessary.
3. Install the Pivot Front Caster Wheel Assem-
bly (704838) and Pivot Rear Caster Wheel
Assembly (689824) to the Pivot End Assy.
· Make sure the fasteners are orientated
correctly.
4. Install the Pivot End Rubber (689838) and
Pivot End Rubber Plate (704838).
· Make sure the fasteners are oriented
correctly. The back bolts have the
head on the outside. The side bolts
have the head on the inside.

SECTION 3 - INSTALLATION
3-5
PIVOT END ASSEMBLY (Continued)
5. Install the Stabilizer Wldt (688970) to the Sta-
bilizer Lock Arms.
· The proper holes to use is not im-
portant at this time. The length will be
adjusted when the Daay Power Sweep
is connected to the gear box.
· Hand tighten nuts only.
6. Ensure all fasteners are tightened properly and
parts that need to move freely, can.

SECTION 3 - INSTALLATION
3-6
DAAY POWER SWEEPASSEMBLY
Sweep Assembly:
Reference the following parts of this
manual. See Table of Contents for specific page
numbers.
• Daay Power Sweep Setup Layout Di-
agram for the length of sweep that is
being assembled.
• Daay Power Sweep Parts List for the
length of sweep that is being assem-
bled.
• Section Joint with Jacks Assembly
parts list and diagram.
• Section Joint without Jacks Assembly
parts list and diagram.
NOTES:
• Assemble the Daay Power Sweep starting
with the Drive End and finishing with the Piv-
ot End.
• Position the Drive end along the outside of the
bin and work towards the center of the bin.

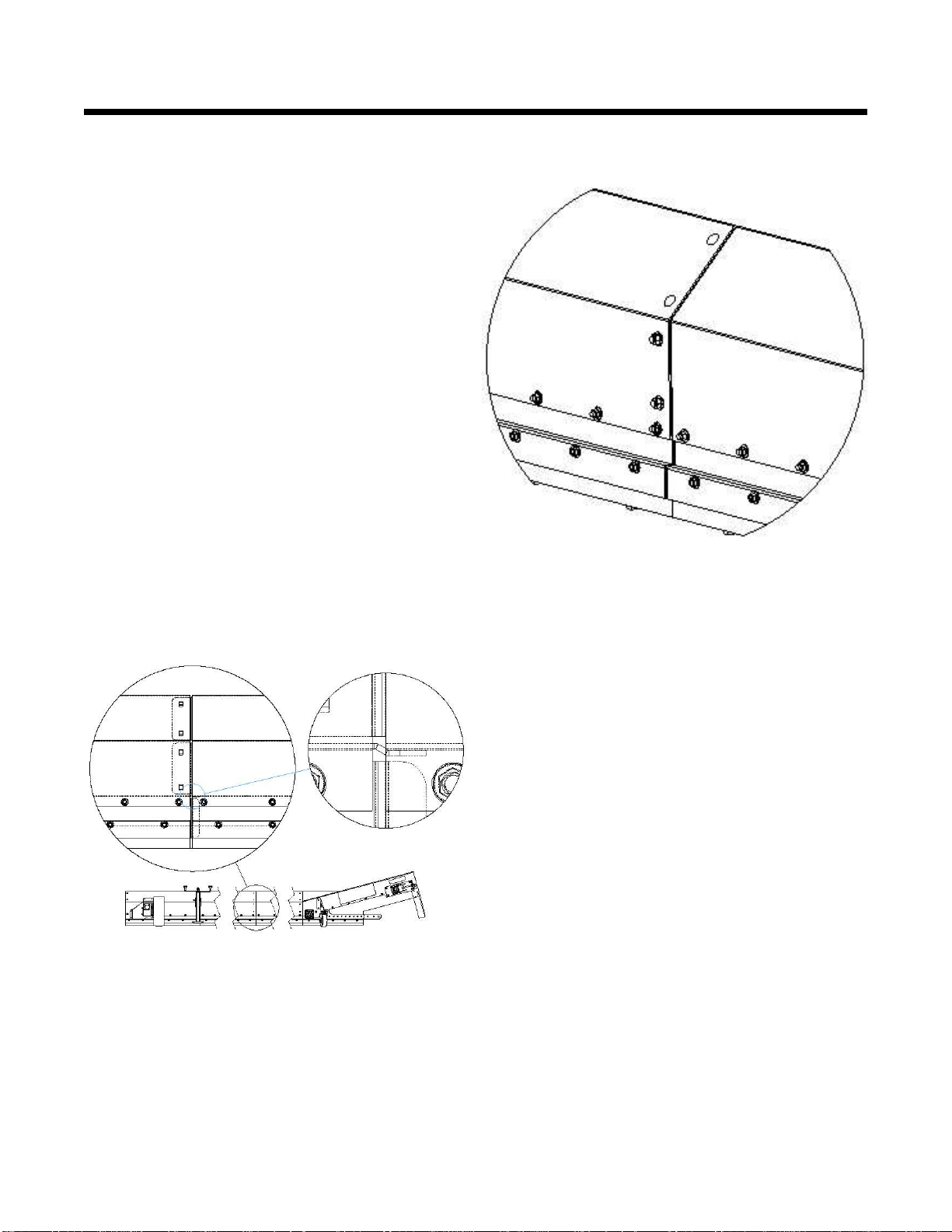

• When connecting the sections make sure the
tabs on the sections interlock with each other.
See the drawing above for correct orientation.
• When installing the fasteners, make sure they
are also in the correct orientation.
• The bolts on the vertical sides have the
bolt heads on the inside.
• The bolts on the top have the bolt head
on the outside.
• When tightening the section bolts, start with
the upper most bolts first and work down-
ward.
1. Connect the Drive End with the next section
according to the size layout. Install the Jack
Mount Wldt (688940) in the appropriate loca-
tion according to the layout diagram.
2. Continue assembling the sweep sections to the
Power Sweep.
3. Connect the Pivot Section to the Daay Power
Sweep.
4. Position the Power Sweep in position so the
Pivot End Section is over the center gearbox
and the Drive section is far enough away from
the wall to clear any obstructions it may en-
counter as it travels around the bin.
• Door frames and ladders should be the
narrowest points.

SECTION 3 - INSTALLATION
3-7
PADDLE CHAIN INSTALLATION
Paddle Chain Installation:
Reference the following parts of this
manual. See Table of Contents for specific page
numbers.
• Daay Power Sweep Setup Layout dia-
gram for the length of sweep that is
being assembled.
• Daay Power Sweep Parts List for the
length of sweep that is being assem-
bled.
WARNING!
• NEVER use mechanical
means to install the chain.
• Use Caution when advancing
the chain. There are many
pinch points created while in-
serting the chain.
NOTES:
• When installing, be aware to not get any
twists or kinks in the paddle chain assembly.
This will cause assembly problems later while
trying to pull the chain thru the sweep hous-
ing.
• If installing the Daay Power Sweep in a bin
that is not been completely cleaned out yet,
minimize the amount of grain under the
sweep. This will make it easier to pull the
chain into place.
• The paddle chain is installed with the lower
paddles facing the center sump. The bolt
plate will be on the front side and the chain
attachment will be on the back side.
• The paddle chain can be installed a number of
different ways. The following two ways are
only suggestions and may not apply to every
situation or condition.
• Use the wire and the holes in the Section Di-
viders to advance the chain as needed.
• Slow and steady is better and safer than jerk-
ing motions.
Ι. New bins or ones that have been cleaned out
so there is only minimal amounts of grain on
the floor.
1. Start by removing the Pivot End Rub-
ber (689838) and Pivot End Rubber
Plate (704838).
• Reference the Pivot End As-
sembly diagram and parts list
pages.
2. Remove the Pivot End Cap (704837).
• Reference the Pivot End Sub
Assembly diagram and parts
list pages.
