Sirkom SRK-1080P-B User manual

SIRKOM - SRK-1080P-B Player
User Manual
Feb 09, 09
FCC Notices
It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is
subject to the following two conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential
installation. This equipment generated uses and can radiate radio frequency energy and if not
installed and used in accordance with the instruction manual may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio of television
reception, which can be determined by turning the equipment off or on, the user is encouraged to
try to correct the interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio TV technician for help.
CE Declaration
This device complies with CE class B.
EN55022 IEC 61000-4-4
EN61000-3-2 IEC 61000-4-5
EN61000-3-3 IEC 61000-4-6
EN55024 IEC 61000-4-8
IEC 61000-4-2 IEC 61000-4-11
IEC 61000-4-3
Printed in Spain
All contents are subject to change without notice.
All trademarks are the property of their respective owner.

1. Package Contents………………………………………….. 1
2. Introduction………………………………………………... 1
3. Features…………………………………………………… 2
4. Hardware Overview………………………………………... 3
5. Remote Control…………………………………………….. 4
5.1 Entering Text or IP Address………..…………………… 4
6. Start the SRK-1080P-B Player…………………………. 5
7. Setting Up………………………………………………….. 6
7.1 Network Setup…………………………………………. 6
7.2 FTP Setup……………………………………………… 8
7.3 Video Setup…………………………………………….. 10
7.4 Other Setup…………………………………………….. 11
8. Using the SRK-1080P-B Player…………………..……... 13
8.1 Play Media Files on the CF Card………………………. 13
8.2 Download Function……………………………………. 16
8.3 Play the Media Files on the PC………………………… 19
8.4 Download/ Upload Media Files………………………… 22
8.5 RS-232 Function……………………………………….. 25
9. Http Command Function………….……………………….. 26
9.1 Player Control………………….……………………….. 27
9.2 Network Setup………………………………………….. 28
9.3 Timer Setup…………………………………………….. 29
10. Schedule Function…………..…..……..……………….. 30
10.1 Install the Schedule Software…….……..…………….. 30
10.2 Set Up the Schedule Software…..………..………….. 30
10.3 Apply the Schedule on the SRK-1080P-B Player….. 35
11. Optional Auxiliary Equipment……..……..……………….. 36
11.1 Play-Button Box……………….………..…………….. 36
11.2 IR Cable……………………………..…..…………….. 36
11.3 PIR Sensor………………………..……..…………….. 37
11.4 Touch-Sensor Buttons…..………………….………….. 37
12. Troubleshooting……………………………………………. 39
CONTENTS
1

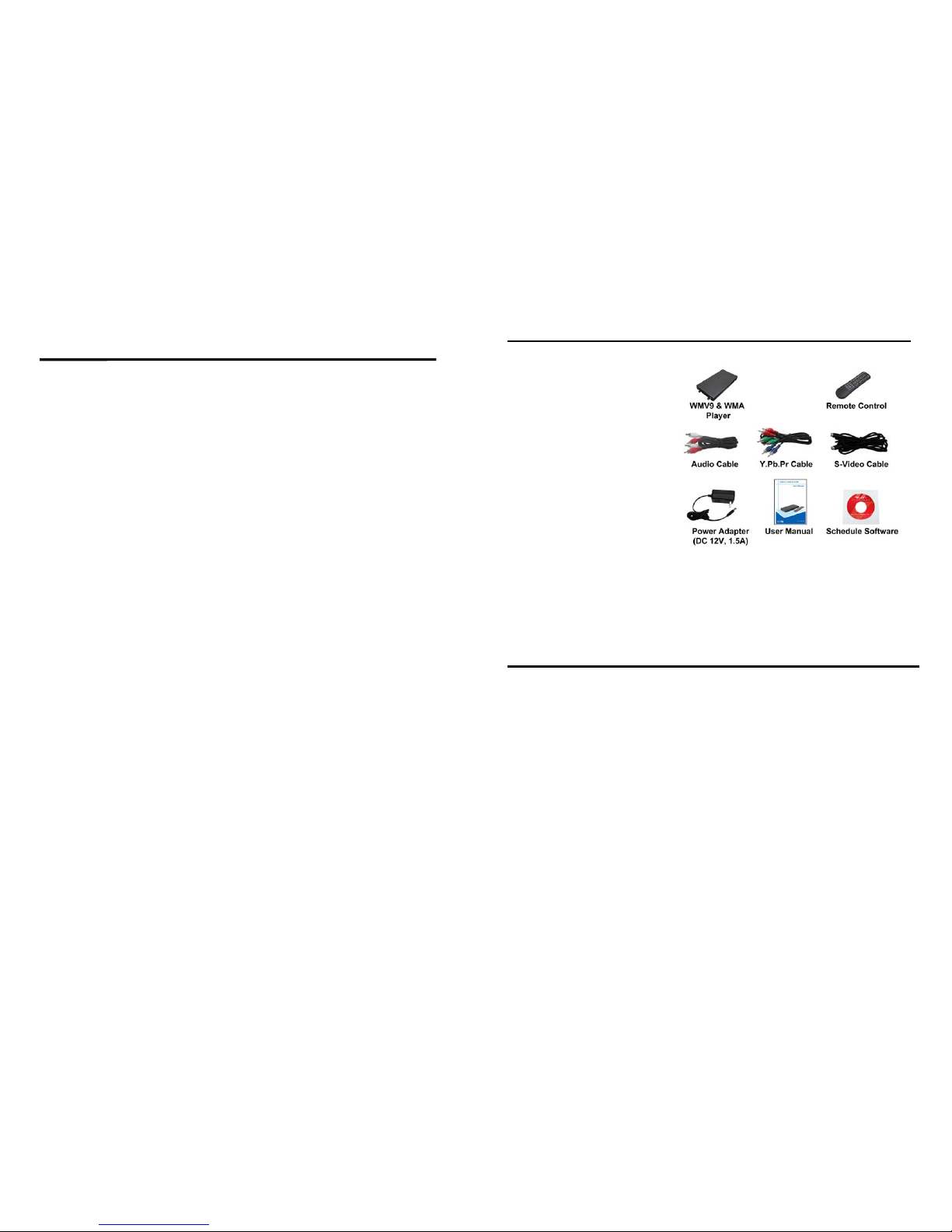

1. PACKAGE CONTENTS
1. SRK-1080P-B Player
2. Remote Control
3. Audio Cable
4. Y. P b . P r C a b l e
5. S-Video Cable
6. Power Adapter
7. User Manual
8. Schedule Software
2.INTRODUCTION
The SRK-1080P-B Player is a digital media player that plays HD WMV9 and WMA from CF
memory card without a computer.
The SRK-1080P-B Player supports High Definition movie hardware decode acceleration,
presents for you the smoother and clearer picture, it supports high resolution video output such
as 1080P / 1080i / 720P for movie theater quality video on a big screen. By connecting to Video,
S-Video, Y.Pb.Pr, VGA (resolution up to 1360 x 768), HDMI (1920 x 1080P) and Audio, you
can play picture, movie and music on any display device.
The SRK-1080P-B Player can connect to a wired network at speed up to 100Mbps. This
function provides you with maximum throughput for sharing and transferring digital media.

2
3.FEATURES
Supports multiple file formats: HD WMV9 and WMA.
Supports Video, S-Video, Y.Pb.Pr, HDMI, VGA and Audio output.
HD Y.Pb.Pr output supports resolution: NTSC Mode(60Hz): 480P/ 720P/ 1080i.
PAL Mode(50Hz): 576P/ 720P/ 1080i.
HDMI Output: 480P/ 720P/ 1080i/ 1080P.
VGA output supports resolution: 640x480/ 800x600/ 1024x768/ 1280x1024/ 1360x768.
Supports RS-232 port for computer control with ASCII command (play, stop, pause…etc).
Touch-Sensor Buttons Function (optional)
-Press one of the touch-sensor buttons, the SRK-1080P-B Player will play the
corresponding file automatically.
-The number of touch-sensor buttons can be customized to 12, 24 or 36 for OEM
project.
-Used with various operating environment (glass, plastics and acrylic material, except
metal material), the thickness supports 3mm -5mm, and it can be customized to 5cm
for OEM project.
PIR Sensor Function (optional)
-After sensing approaching subjects, the SRK-1080P-B Player will play the files
automatically.
-Sensing distance is up to 3 meters with an angle of 45º.
Schedule Function: The SRK-1080P-B Player will auto play the designated files at the
designated date.
Connect using an Ethernet network cable at up to 100Mbps.
The source of HD WMV9 MP@HL (Main Profile / High Level) supports resolution up to
1920x1080 (1080P) and the maximum bit rate is 12Mbps.
Supports CF memory cards. (Suggest using the high speed (150X) CF card)
Supports HTTP command function.
Supports Auto Key Lock function.
Exports the Configuration Value: You can export the configuration value to the CF card.
The configuration can be modified on your PC, and can be applied to the SRK-1080P-B
Player or others.
Compatible with Windows Media Player 11: Play media files stored in a network
computer.
Supports FTPAuto Download Function: Connect to Remote FTP server and download
data to the CF card automatically.
Supports Download Pause / Resume Function: Continue unfinished downloads upon
next session.
Embedded FTP Server.
Supports NTP Network (G..M.T) Timer.
Supports Universal Plug and Play (UPnP) and DHCP.
Supports SLIDE SHOW Function (interval time with 10/ 15/ 30/ 60 seconds).
3
4.HARDWAREOVERVIEW
Power Switch: Toggle between main power on & off.
DC Input: For the power adapter. (DC 12V / 1.5A)
VGA Connector: Connects to devices that support VGA input. (LCD、projector)
Y.Pb.Pr Connector: Connects to devices that support Y.Pb.Pr input. (HDTV、projector)
HDMI Connector: Connects to devices that support HDMI input.
RS-232 Connector: Used for computer control with ASCII command.
RJ-45 Ethernet Connector: Connects to router or PC by RJ-45 Cable.
Audio Connector: Connects to sound input. (HDTV with amplified speaker)
S-Video Connector: Connects to devices that support S-Video input. (HDTV、projector)
IR IN: Connects to PIR Sensor (optional) or IR Cable (optional).
Video Connector: Connects to device that support Video input. (HDTV、projector)
“CF READY” LED: Steady green confirms that the CF card is inserted correctly.
CF Card Socket: For CF memory card.
“RESET” Button: To restart the SRK-1080P-B Player.

4
5. REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Power on/ off
Select the output mode
Numeric Key
Delete last entry
Select a function or to play the selected file
Open the setup menu Mute sound
OSD display function on/ off
Auto-play function on/ off
Mute sound
Volume up/ down
Move the cursor
Confirm the selection/ entry
Go back one layer
Select the TV type (NTSC/ PAL)
Shuffle on & off
Play the file selected
View the previous/ next file
Play the previous/ next file if in playback
Select the repeat mode
Rewind/ forward movie or music files
Stop playback
Show the information of the file selected
Search video (movie) timeframe
Zoom in/ out on the movie or picture
Pause the playback or play frame by frame
5.1 ENTERING TEXT OR IP ADDRESS
Keys need to be pressed multiple times to enter the letter corresponding to that key.
For Example: To enter the letter “a”, you would press the “2” button twice.
Enter The IP Address
For Example: To enter the IP address”192.168.100.100”.
Step 1: Press “1” once, then “1” is displayed, and the color of “1” is orange.
Step 2: When the color of “1”turns white, press “9” once, then “9” is displayed.
Step 3: Repeat steps 1 and 2 to enter and complete the IP address.
5
6. START THE SRK-1080P-B PLAYER
Power On
zInsert the CF memory card that has WMV9 or WMA files.
zPress the “POWER” button to power on the SRK-1080P-B PLAYER, then press the “TV
MODE” button to select the output mode.
Status After Power On
zStatus 1: If the “AUTOPLAY (Movie, Picture or All Files)” function is enabled and there
are media files on the CF card, the SRK-1080P-B Player will auto play the files on the CF
card after power on.
zStatus 2：If the “AUTOPLAY” function is disabled, after power on the main menu will
appear as shown in the following figure. There are two groups in the main menu
(“/mnt/CF” and “SETUP”).
NOTE：The pop-up window that shows the IP address will appear later, if DHCP mode is selected
when the SRK-1080P-B Player is turned on.
Power Off：Press the “POWER” button again to power off.

6
7.SETTINGUP
In the main menu, please using the “▼” button on remote control to select the “SETUP”
item, then press the “ENTER” button. You will be presented with the SRK-1080P-B Player
settings screen.
You can also press the “SETUP” button on remote control to directly open the settings
screen. (If there is file that is being play, please stop first.)

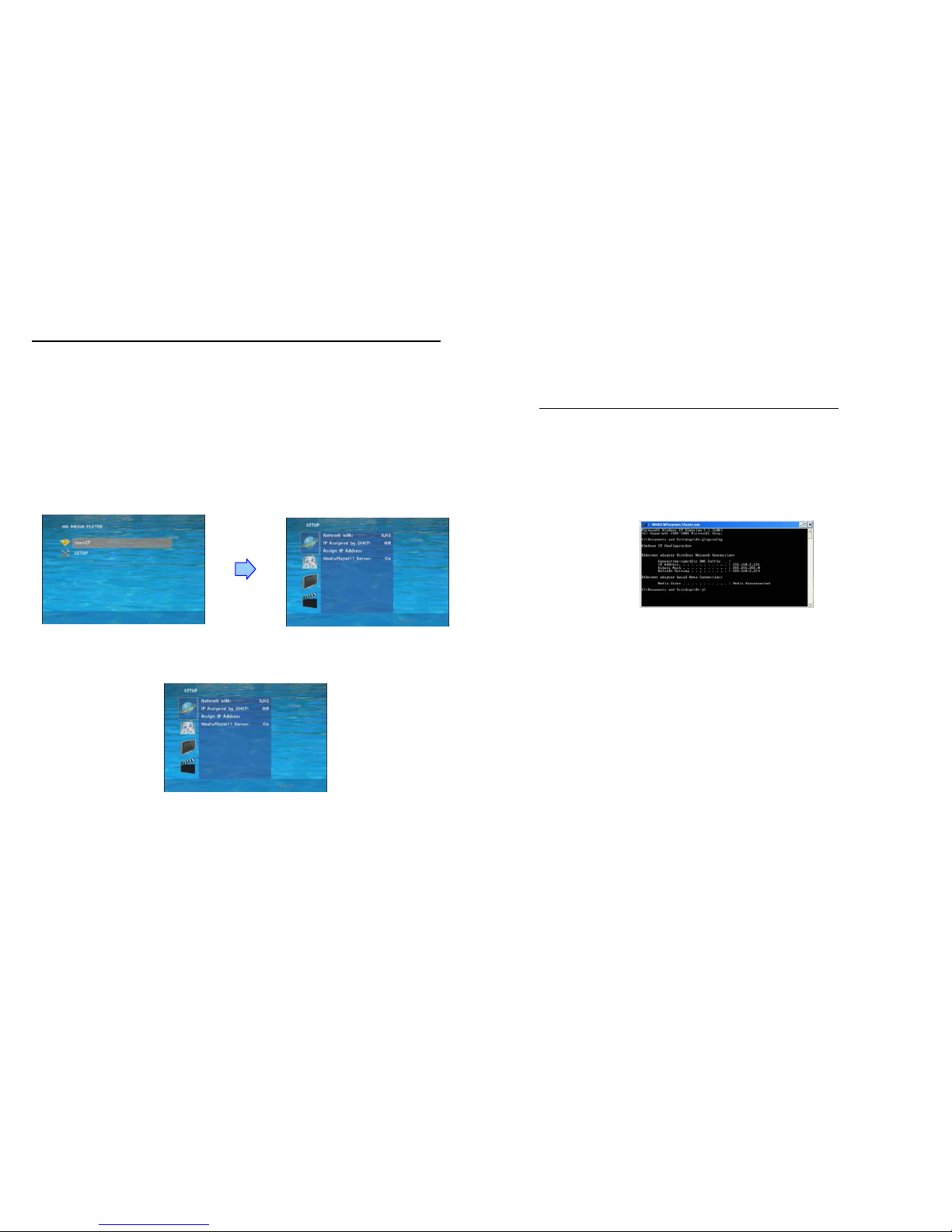

There are four groups of sub-menu in the main menu (“Network Setup”, “FTP Setup”,
“Video Setup” and “Other Setup”).
In the settings screen, you can use the “▲、▼、
▲
、
▼
” buttons to select an item, and press
the “ENTER” button to confirm the selection.
Press the “SETUP” button on remote control to save and quit the settings screen.
7.1 NETWORK SETUP
Network with: Select your network connection Disable/ RJ45.
IPAssigned by DHCP: If you have a DHCP-enabled router, please select “On”, then the
router will automatically assigns an IP address to the SRK-1080P-B Player. If you don’t have
a DHCP –enabled router, select “Off” and type the network information in “Assign IP
Address”.
7
7.1 NETWORK SETUP (continued)
Assign IPAddress: If the SRK-1080P-B Player is connected to a network without a DHCP
server or you want to use Local FTP Server function, enter the fixed IP address, Mask,
Gateway and DNS for the SRK-1080P-B Player.
PS. Refer to 5.1 for how to enter IP address by remote control.
NOTE: Before setting the IP address, Mask, Gateway and DNS, check the network information
of your PC. Please follow the steps below to get the network information of your PC.
Step 1: Click on “Start” →“Run” and type in “command”, then press “ENTER”.
The MS-DOS window will appear, type in “ipconfig” and then press “ENTER”
to get the network information.
Step 2: Assign IP Address, Mask (Subnet Mask) and Gateway (Default Gateway)
for the SRK-1080P-B Player.
Enter the same values of the Subnet Mask and Gateway, and be careful not to enter
the values of IP address that are already used by other devices on the network.
Media Player 11 Server: Enable/ disable the Media Player 11 server.

8
7.2 FTP SETUP
Local FTP Server: Turn on/ off the SRK-1080P-B Player server.
(If you use the SRK-1080P-B Player server, please disable the DHCP function and input a
fixed IP address, Mask, Gateway and DNS of the SRK-1080P-B Player)
Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the SRK-1080P-B
Player. (The Default Port: 21, User ID: root, Password: admin)
FTPAuto Download: Enable/ Disable the FTP auto download function.
Remote FTPDownload Setup
- Server IP: Enter the domain name or IP address of the FTP as was given to you by
your Web hosting provider.
- Port: The default port for FTP is 21. In most cases you should not change this number.
If the FTP site uses a port other than 21, you should enter the correct port.
- User ID: Enter the user name of the Remote FTP server.
- Password: Enter the Password of the Remote FTP server.
- FTP Path: Enter the folder path that you want to share.
NTP Server: Enable/ Disable the NTP server function. (if the SRK-1080P-B Player isn’t
connect to internet, please disable the NTP Server function)

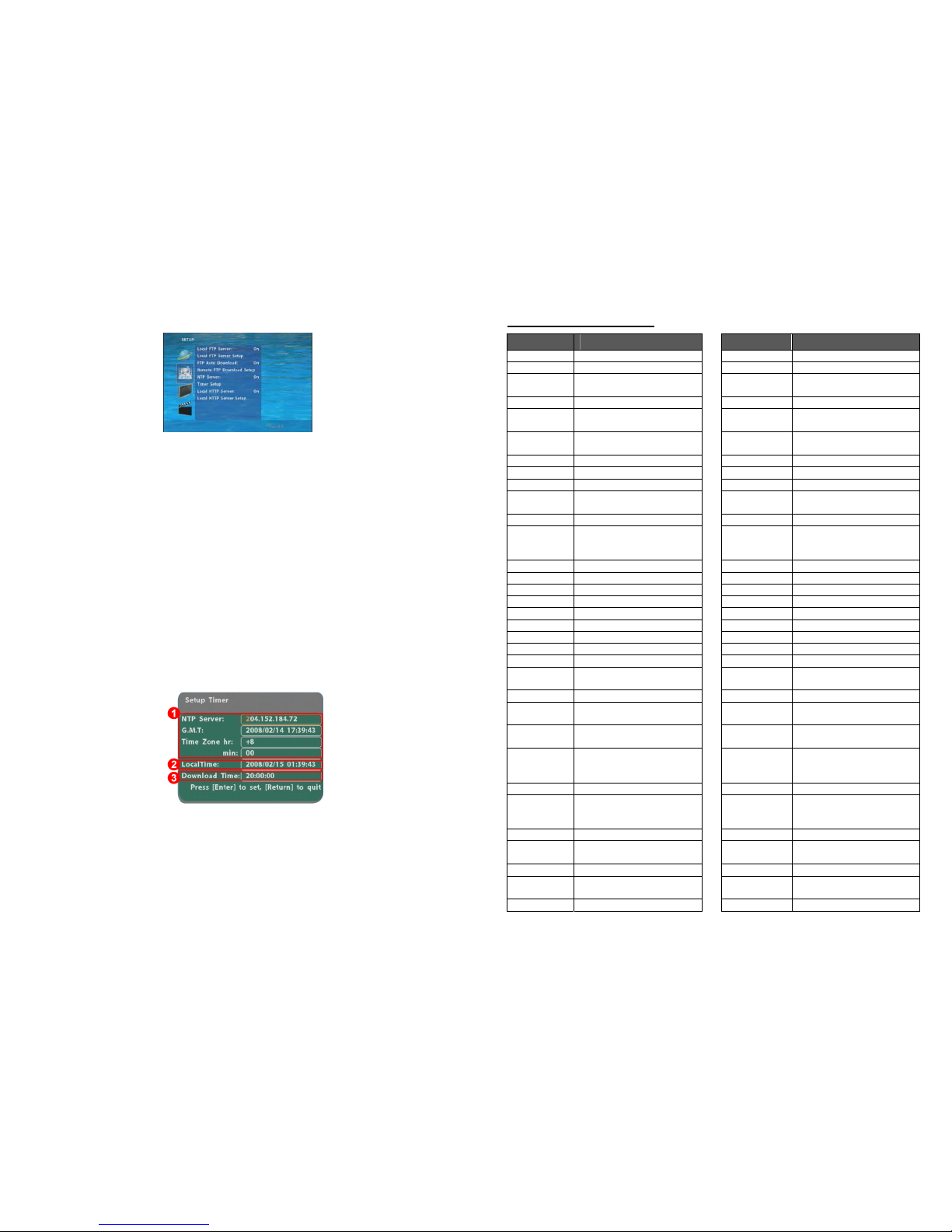

Time Setup: Set the NTP Server, Local Time and Auto Download Time here.
① NTP Server (the SRK-1080P-B Player must be already connected to the network)
-NTP Server: Enter the NTP server IP address like: 204.152.184.72.
-G.M.T: After the unit get the time from NTP server, it will update the G.M.T field.
-Time Zone: Use the Volume +, -and Numeric Key to set the time zone of your
location. (time zone must be set properly for the Auto-Download and
Schedule functions)
9
NOTE: GMT and applied regions
Time Zone Region Time Zone Region
(GMT-12:00) Eniwetok, Quazalen (GMT+02:00) Helsinki, Riga, Tallinn
(GMT-11:00) Midway, Ireland, Samoa (GMT+03:00) Nairobi
(GMT-10:00) Hawaii (GMT+03:00) Moscow, Saint Petersburg,
Volgograd
(GMT-09:00) Alaska (GMT+03:00) Baghdad
(GMT-08:00) Pacific GMT (U.S. & Canada);
Tijuana
(GMT+03:00) Kuwait, Raid
(GMT-07:00) Continental GMT (U.S. &
Canada)
(GMT+03:30) Tehran
(GMT-07:00) Arizona (GMT+04:00) Baku, Tbilisi, Ere van
(GMT-06:00) Mexico city (GMT+04:00) Abu Dhabi, Muscat
(GMT-06:00) Saskatchewan (GMT+04:30) Kabul
(GMT-06:00) Eastern Coast GMT (U.S. &
Canada)
(GMT+05:00) Yekaterinburg
(GMT-06:00) Indiana (Eastern Coast) (GMT+05:00) Islamabad, Karachi, Tashkent
(GMT-04:00) Atlantic GMT (Canada) (GMT+05:30)
Calcutta, Chennai, Mumbai,
New
Delhi
(GMT-04:00) Santiago (GMT+05:45) Katmandu
(GMT-04:00) Caracas, La Paz (GMT+06:00) Sri Jayewardenepura Kotte
(GMT-04:00) Newfoundland (GMT+06:00) Astana, Dakar
(GMT-03:00) Greenland (GMT+08:00) Irkutsk, Ulan Bator
(GMT-03:00) Buenos Aires, Georgetown (GMT+08:00) Kuala Lumpur, Singapore
(GMT-03:00) Brasilia (GMT+08:00) Taipei
(GMT-02:00) Mid-Atlantic (GMT+08:00) Perth
(GMT-01:00) Capo Verde Is. (GMT+09:00) Seoul
(GMT-01:00) Azores (GMT+09:00) Yakutsk
(GMT-00:00) Greenwich GMT; Dublin,
Edinburgh, Lisbon, London
(GMT+09:00) Osaka, Sapporo, Tokyo
(GMT-00:00) Casablanca, Monrovia (GMT+09:30) Darwin
(GMT+01:00) Beograd, Bratislava, Budapest,
Ljubljana, Prague
(GMT+09:30) Adelaide
(GMT+01:00) Brussels, Copenhagen,
Madrid, Paris
(GMT+10:00) Guam, Port Moresby
(GMT+01:00)
Sarajevo, Skopje, Sofia,
Vilnius,
Warsaw, Zagreb
(GMT+10:00) Brisbane
(GMT+01:00) Midwest Africa (GMT+10:00) Vladivostok
(GMT+01:00)
Amsterdam, Berlin, Bern,
Rome,
Stockholm, Vienna
(GMT+10:00) Canberra, Melbourne, Sydney
(GMT+02:00) Bucharest (GMT+10:00) Hobart
(GMT+02:00) Athens, Istanbul, Minsk (GMT+11:00) Magadan, Solomon Is., New
Caledonia
(GMT+02:00) Jerusalem (GMT+12:00) Auckland, Wellington
(GMT+02:00) Cairo (GMT+12:00) Fiji, Kamchatka Pen.,
Marshall Is.
(GMT+02:00) Harare, Pretoria (GMT+13:00) Nuku'alofa

10
② Local Time: Set the system time manually.
NOTE: If the NTP Server and Local Time have been set, the NTP Server will be the first
priority (the SRK-1080P-B Player is already connected to the network).
③ Download Time: Set the FTP auto-download time.
Local HTTP Server: Enable/ Disable the HTTP command function.
Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the
SRK-1080P-B Player. (The Default Port: 80, User ID: root, Password: admin)
NOTE: Press the “SETUP” button on the remote control to save the settings, and it
will auto exit the settings screen, then restart the SRK-1080P-B Player.
7.3 VIDEO SETUP
TV Standard: Select the output TV video format (NTSC / PAL).
NTSC Active Output: Select the output mode. (HDMI/ SD Video/ VGA/ HD Y.Pb.Pr)
You can also press directly the “TV MODE” button on the remote
control to select output mode.
Aspecl-ratio: Select TV mode 4:3, 16:9 or 16:10.
HDMI: Select the HDMI output resolution among 480i / 480p/ 720p / 1080i/ 1080p.
Select the “Auto EDID”, the SRK-1080P-B Player will scan the display device
connected and set the correct resolution automatically.
SD Video: Select the SD output mode. (“Video/ S-Video” or “Y.Cb.Cr”)
VGA 60Hz: Select the VGA output resolution.
(640*480 / 800*600/ 1024*768/ 1280*1024/ 1360*768)
HD Y.Pb.Pr 60Hz: Select the Y.Pb.Pr output resolution among 480p / 720p / 1080i.
11
7.4 OTHER SETUP
Play OSD Display: Enable or disable the OSD display.
Auto Play
-Movies: Auto play movie files on the CF card after power on.
- Pictures: Auto play picture files on the CF card after power on. (slideshow function)
- All Files: Auto play all the media files on the CF card after power on.
- Off: Turn off the Auto Play function.
SlideShow Interval: Set the time each photo is shown to 10, 15, 30 or 60 seconds.
Lock Remote Controller: Enable/ disable the auto key lock function. (The SRK-1080P-B
Player will auto lock when there is no further input for 1 minute.)
Lock Password Setup: Press the “Enter” button to open the “Set Password” window. Enter
the password with numeric buttons and press the “Enter” button to save the new password
(The default password: 123).

12
7.4 OTHER SETUP (continued)
Export Setting File: Press the “Enter” button to export the configuration value to the CF
card.
zCopy the file “HDPlayerSetting.txt” on CF card to your PC. Use the “Wordpad” to open
the file, and you can see all the configuration value of SRK-1080P-B Player.
zYou can modify directly the configuration value on your PC.
Example.
[AutoPlay] Off Options: Movies, Pictures, Off
The “Auto Play” function is turned off, you can change directly the mode to Movies or
Pictures.
zCopy the completed file “HDPlayerSetting.txt” from PC to CF card. Insert the CF card to
the SRK-1080P-B Player, the SRK-1080P-B Player will apply the new settings
automatically.
Play Button: Only for used with play buttons. The SRK-1080P-B Player supports two
options (Repeat Default / Repeat All) when the demo file finishes playing.
13
8. USING THE SRK-1080P-B Player
8.1 PLAY MEDIA FILES ON THE CF CARD
Step 1: Insert the CF card with media files, then turn on the SRK-1080P-B Player and
press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to
take you into the CF card.
Step 2: Select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play, and then press
the “ENTER” button on remote control to take you into the “VIDEO LIBRARY”,
“AUDIO LIBRARY” or “PICTURE LIBRARY”. You can also select the ALL FILES
item, and it will list all the media files on the CF card.
PS. If the symbol (return) appears on the screen, you can use “RETURN” button of
the remote control to go back one layer.
Step 3: Select the file you want to play, and press “ENTER” or “PLAY” button on the remote
control to play the file.
VIDEO LIBRARY AUDIO LIBRARY PICTURE LIBRARY
RETURN

14

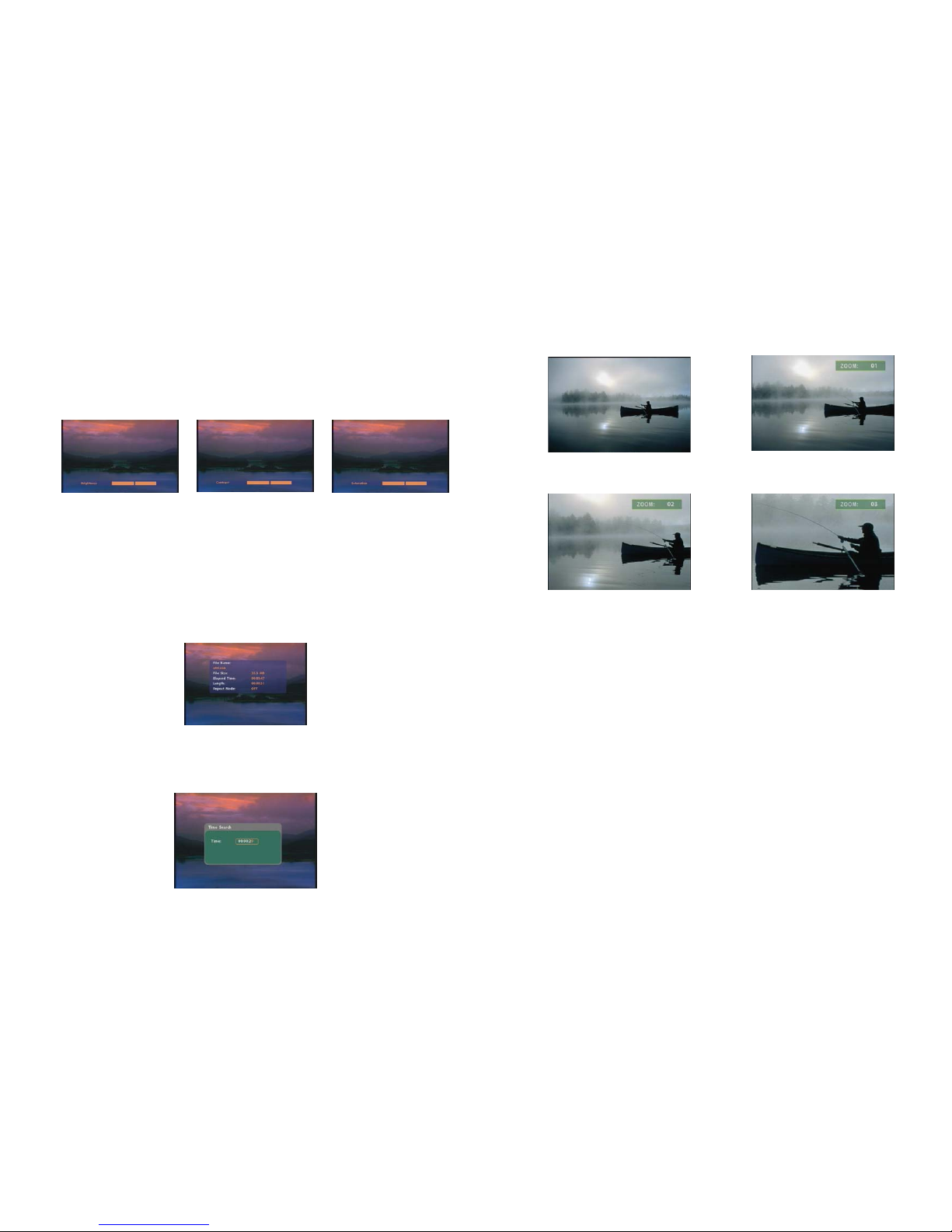

8.1.1 Using the Remote Control When Media File Is Playing
SETUP: Press the button to adjust the brightness, contrast or saturation while the movie or
picture is playing. With the “+ VOLUME –” button.
- First Press: Adjust the brightness.
- Second Press: Adjust the contrast.
- Third Press: Adjust the saturation.
Brightness Contrast Saturation
MUTE: Mute the sound while the movie or music is playing.
+ VOLUME -: Increase/ decrease the volume while the movie or music is playing.
SHUFFLE: Turn on/ off the shuffle function.
PREV / NEXT: Play the previous/ next file.
REPEAT: Select the repeat mode.
REV / FWD: Rewind/ forward movie or music file.
STOP: Stop playing, and go back one layer.
INFO: Display the file information.
File Information
SEARCH: Search video (movie) timeframe
Press the “SEARCH” button, and enter the initial time that you want to start at, then press the
“ENTER” button to play.
15
PAUSE/STEP: Pause the playback or play frame by frame.
ZOOM: Zoom in/ out on the movie or picture.
OriginalSize FirstPress：ZOOM 01
Second Press：ZOOM02 ThirdPress：ZOOM 03

16
8.2 DOWNLOAD FUNCTION
Before it downloading files from the FTP server, the SRK-1080P-B Player will delete all contents on
CF card except the file on the CF card and the FTP server are the same.
8.2.1 Manual Download Function
Please confirm that the SRK-1080P-B Player is already connected to the network. (Refer to 7.1
Network Setup)
Please use the“▼”button to select the “DOWNLOAD” item, and press “ENTER” button. The
SRK-1080P-B Player will connect to the FTP server and download files automatically.
Before download files, the SRK-1080P-B Player will delete all contents on CF card first.
The pop-up window that shows the status of download and the screen saver will appear while
the SRK-1080P-B Player is downloading files. After finishing downloading files, the
SRK-1080P-B Player will display the files automatically.
ScreenSaver
8.2.2 Auto Download Function
If there is more than one SRK-1080P-B Player, you can use ftp tools to divide them into
different regional group.
17
For example.
-Use the ftp tool “Serv-U” to divide into three groups, and setup the “User name”, “Password”
and “FTP port number” of three groups for login ftp server.
Group 1: User name: ipmedia/ Password: 0000/ FTP port number: 21
Group 2: User name: ipmedia2/ Password: 1111/ FTP port number: 21
Group 3: User name: ipmedia3/ Password: 2222/ FTP port number: 21
FTP tool：Serv-U Setup “User name”, “Password” and “FTP port number”
-Enter the “Remote FTP Download Setup” window of SRK-1080P-B Player, and then type the
same “User name (User ID)”, “Password” and “Port”. The SRK-1080P-B Player in group 1,
please type the “User ID: ipmedia”, “Password: 0000” and “Port: 21”.
-Please enter the “Network Timer NTP” window of SRK-1080P-B Player, and set up the
“Download Time”, then the SRK-1080P-B Player will download all the files from the FTP
server at the designated time.
NOTE: The filename of the media files in FTP server cannot have any spaces.

18
8.2.3 Download Pause / Resume
The SRK-1080P-B Player supports download pause/resume. You can press the “STOP” button to
pause downloading media files. The SRK-1080P-B Player can continue unfinished downloads upon
next session.
NOTE: If the network connection is unstable or broken, a pop-up window will appear as shown
below. The SRK-1080P-B Player will attempt to resume downloading in 2 minutes. The user can
terminate the download by pressing the “RETURN” button.
19
8.3 PLAY THE MEDIA FILES ON THE PC
Using Windows Media Player Version 11 ( Windows XP/ Vista only )
Step 1: Please download and install Windows Media Player Version 11 on your PC first.
Step 2: Launch the Windows Media Player Version 11 and the window below will appear.
Step 3: Click the “Library” tab, and then click “Add to Library”.
Step 4: Click “Add” and select the folder containing the media files you want to share, then click
“OK”.

20
Step 5: Click the “Library” tab, and then click “Media Sharing”.
Step 6: Select the “Share my media”, and click “OK”.
Step 7: In the Media Sharing dialog box, select the “Share my media” check box.
21
Step 8: Confirm that the SRK-1080P-B Player is connected to the network.
In the list of devices below the “Share my media to” check box, select the device
(SRK-1080P-B Player), and click “Allow” to share the media files.
Step 9: The shared folder will appear on the screen of the SRK-1080P-B Player.
Select the folder and click the “ENTER” button on remote control to go into
the folder.
Step 10: Please select the type of data (VIDEO/ AUDIO/ PICTURES) you want to play, and then
press the “ENTER” button on remote control.

22
Step 11: Select the file you want to play, and press “ENTER” or “PLAY” button on the remote
control to play the file.
NOTE: If the media files shared from PC are not listed on screen, restart your PC.
8.4 DOWNLOAD / UPLOAD MEDIA FILES
Method 1: Connect by IE Browser
Step 1: Confirm the “IP Assigned by DHCP” has been disabled, then enter the “Network Setup”
item, and type IP Address (example. 192.168.1.100), Mask and Gateway for the SRK-1080P-B
Player (refer to 7.1).
Step 2: Confirm the “Local FTP Server” function has been enabled (refer to 7.1).
23
Step 3: Please setup your router or firewall, and open a port 21 for the SRK-1080P-B Player.
The following figure is an example, please refer to your user’s manual of router for opening
ports.
Step 4：Start IE on PC and type the FTP site or IP：
InthelocalPC,pleasetype“ftp://192.168.1.100”.
IntheremotePC,pleasetype“ftp://61.30.13.40:21”.
Step 5：Then type the “User Name” and “Password” and click “Log On” to login to the
SRK-1080P-B Player Server. (Default User Name：root Default Password：admin)
Step 6：After login, all the media files on the CF card on the SRK-1080P-B Player will be
listed. You can download and upload the media files between CF card and your PC.
NOTE：After file being download/ upload will stop playing. After downloading files, the
SRK-1080P-B Player will display the movie files automatically.

24
Method 2：Connect by FTP Tools
For example.
- If there are multiple SRK-1080P-B Player, you can use the “CuteFTP” tool to connect and manage
files easily.
CuteFTP
- You can create all the SRK-1080P-B Player, and only select the SRK-1080P-B Player that you
want to connect in the list.
- Select the files you want upload to the SRK-1080P-B Player, or download the files to your PC.
NOTE：After file being download/ upload will stop playing. After downloading files, the
SRK-1080P-B Player will display the movie files automatically.
25
8.5 RS-232 FUNCTION (RS-232 cable is optional)
Use the tool “Tera Term” or other tools to control the SRK-1080P-B Player with ASCII command.
NOTE. 1.Baud Rates:
- Firmware Updating: Set up the baud rate as “115200”.
- ASCII Command: The available baud rates is 38400.
2. The reaction time of SRK-1080P-B Player is around three seconds.
Keyboard Layout
q：POWER -：VOL - w：SLOW
R：RETURN *：MUTE >：NEXT
!：REPEAT S：SELECT <：PREW
~：SETUP A：Auto Download u：UP
#：TV MODE p：PLAY d：DOWN
%：AutoPlay P：PAUSE/STEP l：LEFT
i：INFO x：STOP r：RIGHT
m：NTSC/PAL f：FFW s：ENTER
$：SEARCH b：REW C：CLEAR
+：VOL + (XXXXX.XXX)：Play The File (xxxxx.xxx is the file name)
NOTE：Must include the round brackets.
[number]: Play the file by index. (numbers < upper case letters < lowercase letter)
Pin Assignment
D Sub 9Pin Female D Sub 9Pin Female
Pin 1 Pin 4
Pin 2 Pin 3
Pin 3 Pin 2
Pin 4 Pin 1
Pin 5 Pin 5
Pin 6 Pin 6
Pin 7 Pin 8
Pin 8 Pin 7
Pin 9 Pin 9

26
9. HTTP COMMAND FUNCTION
Confirm that the SRK-1080P-B Player is already connected to the network. (Refer to 7.1)
Confirm the “Local HTTP Server” function has been enabled, and the “Local HTTP Server
Setup” set has been completed (refer to 7.2).
Set your router or firewall, and open a port 80 for the SRK-1080P-B Player. The following
figure is an example, please refer to your user’s manual of router for opening ports.
Start IE on PC and type the HTTP site or IP：
In the local PC, please type “http://192.168.1.100”.
In the remote PC, please type “http://61.30.13.40:80”.
Type the “User Name”, “Password” and click “OK” to log on. (Default User Name: root
Default Password: admin)
There are three items: “Player Control”, “Network Setup” and “Timer Setup” in the window.
27
9.1 PLAYER CONTROL
Power State: Turn on/ off the SRK-1080P-B Player.
Check State: Check the current state of SRK-1080P-B Player.
Playback Control: Control the SRK-1080P-B Player to play file/ stop playback/ pause the
playback/ play the previous file/ play the next file/ rewind movie/ forward movie.
Play File: Enter the file name that you want play, and click “Send” to play the file immediately.
Repeat File: Select the repeat mode.
Auto Download: Click “Send” to execute the auto download function immediately.
Note: The “FTP Auto Download” function must be turned on and completed set.
Stop Auto Download: Click “Send” to stop the auto download function immediately.
Connect FTP Server: Click the FTP server address to connect to the SRK-1080P-B Player,
and enter the user name and password (Default User Name: root, Default Password: admin)
to login. After login, all the media files on the CF card on the SRK-1080P-B Player will be
listed. You can download and upload the media files between CF card and your PC.
Volume Control: Enter the value for volume (0-30).
Auto Play: Select the auto play mode (movies/ pictures/ All Files/ off).
Format CF Memory Card: Directly format the CF card.
Reboot System: Click “Send” to reboot the SRK-1080P-B Player immediately.

28
9.2 NETWORK SETUP
Network Interface: Select your network connection Disable/ RJ45.
DHCP: Enable/ Disable the DHCP function.
IP Address: Enter the fixed IP address, Mask, Gateway and DNS for the SRK-1080P-B Player.
FTP Server: Enable/ Disable the FTP Server function. You can also change the User ID,
Password and port of the FTP Server.
HTTP Server: Enable/ Disable the HTTP Server function. You can also change the User ID,
Password and port of the HTTP Server.
Media Player 11: Enable/ disable the Media Player 11 server.
The “WiFi Encryption Mode” and “WiFi SSID” items are no function.
Reboot System: After setting, click “Send” to reboot the SRK-1080P-B Player.
29
9.3 TIMER SETUP
NTP Server: Set the NTP Server.
Auto Download: Set the auto download time.
Remote FTP: Set the Remote FTP Server.
Reboot System: After setting, click “Send” to reboot the SRK-1080P-B Player.

30
10.SCHEDULEFUNCTION
NOTE: The “NTP Server” or “Local Time” must be set before using the
Schedule Function. (refer to 7.2)
10.1 INSTALL THE SCHEDULE SOFTWARE
Execute “setup.exe” to install the Schedule software in the CD driver, and finish the installation
procedure in accordance with the illustration below.
10.2 SET UP THE SCHEDULE SOFTWARE
Execute the program “Schedule Generator” to open the schedule window on your PC.
<Start> → <Programs> → <Schedule Generator> → <Schedule Generator>
There are two parts: “Basic Schedule” and “Advance Schedule” in the window.
31
10.2.1 Basic Schedule
In the “Basic Schedule” mode, you can select files that you want to play and the set up the play
times of each file.
Add：Click this button to add a file. The following diagram appears：
zClick the “Browser” button to search for files that you want to add. You can also set up the
“Play Times” of the file in the window. Click the “OK” button to complete the setup.
zClick the “Add” button again to add other file.
zCOPY Function：Click the “Copy to…” button to copy directly the added file to the memory
card.
Modify：Click this button to modify the file in the list.
zSelect the file that you want to modify in the list, and press the “Modify” button.

32

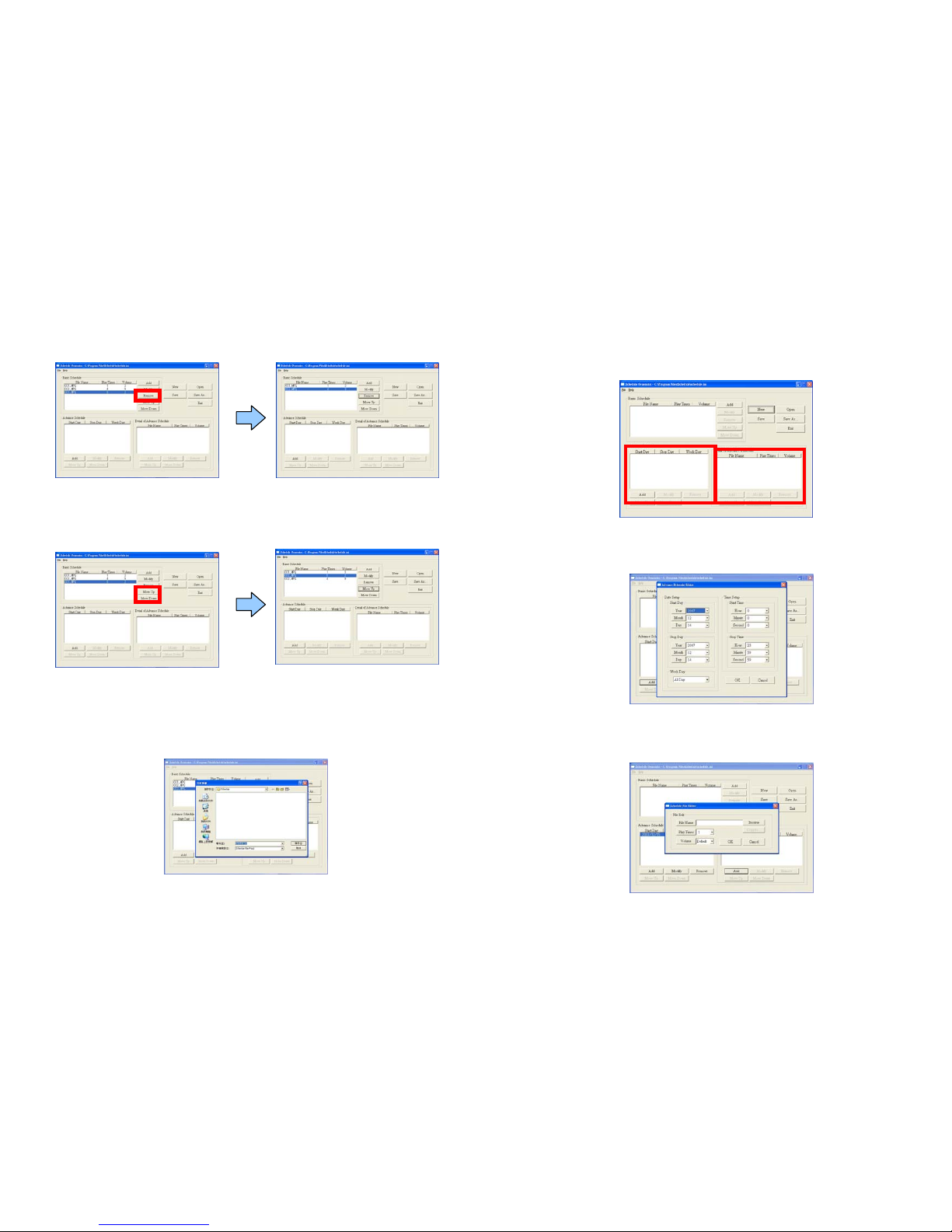

Remove：Click this button to remove the file from the list.
zSelect the file that you want to remove from the list, and press the “Remove” button to
delete.
Move Up / Move Down：Click these buttons to change the order that the files are played.
After the setup, press the “SAVE” button, and a pop-up window will appear. Select the path,
then click the “SAVE” button to save your setup.
NOTE：Do not rename the file (schedule.ini), otherwise the SRK-1080P-B Player will not be able to
read the file.
33
10.2.2 Advance Schedule
In the “Advance Schedule” mode, you can select files that you want to play, and can also set up the
play times, and the initial and end time of each file. There are “Time Setup” and “File Setup” in the
“Advance Schedule”.
Step 1：Click the “Add” button in the “Time Setup” section to open the “Advance Schedule Editor”
window. Set up the Start and Stop Date, Start and Stop Time and the Week Day, then click “OK” to
quit the window.
Step 2：Click the “Add” button in the “File Setup” section to open the “Schedule File Editor”
window. Click the “Browser” button to select a file that you want to play. You can also set up the
“Play Times” of the file in the window. Click the “OK” button to complete the setup.

34
Step 3：Repeat the steps 1〜2 to add other files.
Step 4：After finishing all setup, press the “SAVE” button, and a pop-up window will appear. Select
the path, then click the “SAVE” button to save.
NOTE：Do not rename the file (schedule.ini), otherwise the SRK-1080P-B Player will not be able to
read the file.
10.2.3 Explanation of the Warning Message
No any schedule！Can’t Save！
There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please add
and edit a new schedule file first.
35
Date Setup Error！
There are some errors in the “Advance Schedule”. Check the date/ time of the schedule for conflict
or error.
No any schedule file in advance schedule！Can’t Save！
There is no schedule file in the advance schedule. Please add files that you want to play in the
advance schedule.
10.3 APPLY THE SCHEDULE ON THE SRK-1080P-B
Player
Put the “schedule.ini” file and the associated media files on the memory card, and insert the memory
card to the SRK-1080P-B Player. The SRK-1080P-B Player will auto play the files at the designated
time.

36
11. OPTIONAL AUXILIARY EQUIPMENT
11.1 PLAY-BUTTON BOX
The Play Button Box supports up to 12 play-button inputs.
Press one of the play buttons to play the corresponding file.
Hardware Connection
Play the Media File By the Play-Button
ex. 5 Play-Buttons (supports up to 12 play buttons)
Step 1：Put 6 demo files on CF card. (1 default file and 5 demo files)
NOTE：The files are sorted by filename in ascending order alphanumerically (numbers < upper case
letters < lowercase letter). Each button is mapped to a file by this order.
For Example：
There are 6 demo files on the CF card. The file names are a01.xxx, 33.xxx, b55.xxx, 1abc.xxx,
07.xxx and A01.xxx. (xxx is extension of the file)
Default File：07.xxx Demo File 1：1abc.xxx Demo File 2：33.xxx
Demo File 3：A01.xxx Demo File 4：a01.xxx Demo File 5：b55.xxx
Step 2：Insert the CF card to the SRK-1080P-B Player, and the SRK-1080P-B Player will play the
default file automatically while powered on.
Step 3：Press one of the buttons 1-5 to play the corresponding demo file.
Step 4：The SRK-1080P-B Player supports two options (Repeat Default / Repeat All) when the
demo file finishes playing. The functions can be set in the setup menu. (Other Setup →Play Button)
- Repeat Default：The SRK-1080P-B Player will automatically play the default file when
the demo file finishes playing.
- Repeat All：The SRK-1080P-B Player will automatically play all the demo files when
the demo file finishes playing.
11.2 IR Cable
The IR cable is an external remote control receiver. Connect the IR Cable to the IR connector.
37
11.3 PIR SENSOR
Application 1: The PIR Sensor is an external remote control receiver.
Application 2: The PIR Sensor is a motion detector.
11.3.1 Using the PIR Sensor
Step 1：Insert the CF card to the SRK-1080P-B Player, and the SRK-1080P-B Player will play the
default file automatically while powered on.
Step 2：After sensing approaching subjects, the SRK-1080P-B Player will play the first demo file.
Step 3：The SRK-1080P-B Player supports two options (Repeat Default / Repeat All) when the
demo file finishes playing. The functions can be set in the setup menu. (Other Setup →Play Button)
- Repeat Default：The SRK-1080P-B Player will automatically play the default file when
the demo file finishes playing.
- Repeat All：The SRK-1080P-B Player will automatically play all the demo files when
the demo file finishes playing.
11.4 TOUCH-SENSOR BUTTONS
11.4.1 Features of the Touch-Sensor Buttons
The number of touch-sensor buttons can be customized to 12, 24 or 36 for OEM project.
Used with various operating environment (glass, plastics and acrylic material, except metal
material), the thickness supports 3mm -5mm, and it can be customized to 5cm for OEM project.
