Introduction
SIRKOM SRK-005 Media Player series are a low cost, ig stability and
ig definition, stand-alone, digital signage media players. SRK-005
Media Player series includes t e standard VGA model, t e HDMI model
and t e pus buttons/contact closures activation model. SIRKOM
SRK-005 series is ideal for use in museums, interpretation centers,
professional A/V installations, restaurants for menu boards, corporate
offices and sc ools for way-finding directions and product s owcase
signage for trades ows and events, Real-estate locations as a property
s owcase, office locations for employee communications etc. SRK-005
series signage system can be used to display and distribute media
communication, videos and images over large screen LCDs and Plasma
displays connected. It supports a wide variety of digital media files
(JPEG, MP3, MPEG-1/2/4) w ic can be stored into a local USB Stick,
CF or SD card. Wit an inbuilt timer, t e signage player is capable of
turning-ON and turning-OFF at a preset sc edule. T e player can be
configured for AUTO-PLAY and AUTO-LOOP functions.

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-5-
Specifications
Feature Specifications
Dimensions (L*W*H) SRK-
005: 126 x 91 x 22 mm
Power External AC Adapter (Included) 12V, 1.0 Amp
Composite Output Resolution 720 x 576
VGA Output Resolution 640 x 480p / 1280 x 720p
Component (Y Pb Pr) Output 640 x 480p / 1280 x 720p
Audio Output STEREO
P oto Format Support
JPEG , BMP
Video Format Support MPEG 1, MPEG 2, MPEG 4, AVI
Audio Format Support MP3, WMA, AC3, AAC, OGG
USB Specs Hig Speed USB 2.0 Holes
Memory Card Support SD / CF/MMC Card & Size: 32MB to 32GB
Mounting Specifications VESA Standard
75 * 75 mm (4 Holes)
100 * 100 mm (4 Holes)
Power Source Compatibility Worldwide (110v to 240v input)

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-6-
Features
Feature Specifications
Media Format Compatibility: JPEG, BMP, MP3, WMA, AC3, AAC, OGG,
MPEG-1, MPEG-2, MPEG-4
Media Storage & Playback Source:
Hig -Speed Compact Flas (CF) Card
Hig -Speed SD
USB2.0 Drive (T umb Drive/Flas Drive)
Configurations:
CE, FCC, ROHS
Playback Modes: Auto Power On, Auto Play, Auto Loop
Auto Playback: Video Music or Picture (wit
Background Music)
Auto Loop: Single File Play in Loop, Full
Folder Play in Loop, Play All in Loop
On-Screen Display Languages Englis ,Japanese, C inese, Frenc , German,
Danis , Spanis
Image Slides ow Playback Picture Rotation: Vertical-Portrait vs
Landscape-Horizontal
Slides ow Transitions: 16-different Transition
Effects, Slide Intervals: 1 to 60 seconds
In-
built Sc eduler
Set Power-up and Power-down Time

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-7-
Dimensions

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-8-
Signage Player Setup
Stereo Audio
L-R
Composite Video
(RCA) to TV VGA Video
RGB to Monitor or
Projector
Component Video
YPbPr to HDTV
Power Input
External
AC Adapter
USB Drive
(Flas / T umb Drive)
Media Transfer, Storage
& Playback
Hig Speed SD Card
Media Transfer, Storage
& Playback
Hig Speed
Compact Flas (CF) Card
Media Transfer, Storage &
Playback

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-9-
Remote control
.

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-10-
Features SRK-005-K --- with 12 external button board
(RCA inputs)
A: 12 external pus buttons, 13 folders. Main menu "00" folder plays w en power on.
Loop play t is folder w en no button is pressed. Folder “01”-“12” – button folders will be
played w en a corresponding button is pressed. W en t e play back finis es, it goes
back to play main menu “00”. W en a button is pressed in t e middle of a play back, it
s ould go play t e folder t e button is pressed.
B: 12 external pus buttons, 12 folders. No main menu folder, black screen w en
power on. T ese folders play w en button is pressed. Folder “01”-“12” – button folders
will be played w en a corresponding button is pressed. W en t e play back finis es, it
goes back to black screen. W en a button is pressed in t e middle of a play back, it
s ould go play t e folder t e button is pressed.
C: 12 external pus buttons, 13 folders. Main menu "00" folder plays w en power on.
Loop play t is folder w en no button is pressed. Folder “01”-“12” – button folders, will
be loop played w en a corresponding button is pressed.
Note:
All the files should be included in these folders.
he folders should be as follows:

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-11-
Features SRK-005-H Player Setup wit HDMI
ype: Hig Definition
Connectors: HDMI
Resolution: 1280x720p
Output:YPbPr / VGA: 480i, 480p, 720p
1. OTG-USB port as a DEVICE can copy t e contents from t e PC side, but also from
t e SD cards, USB device for reading documents
2. HDMI: automatically switc to HDMI w en it is connected to monitor, and t e VGA is
off at t e same time
HDMI Video Out
HDMI to LCD TV

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-12-
GENERAL SETUP MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-13
-
PICTURE SETUP MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-14-

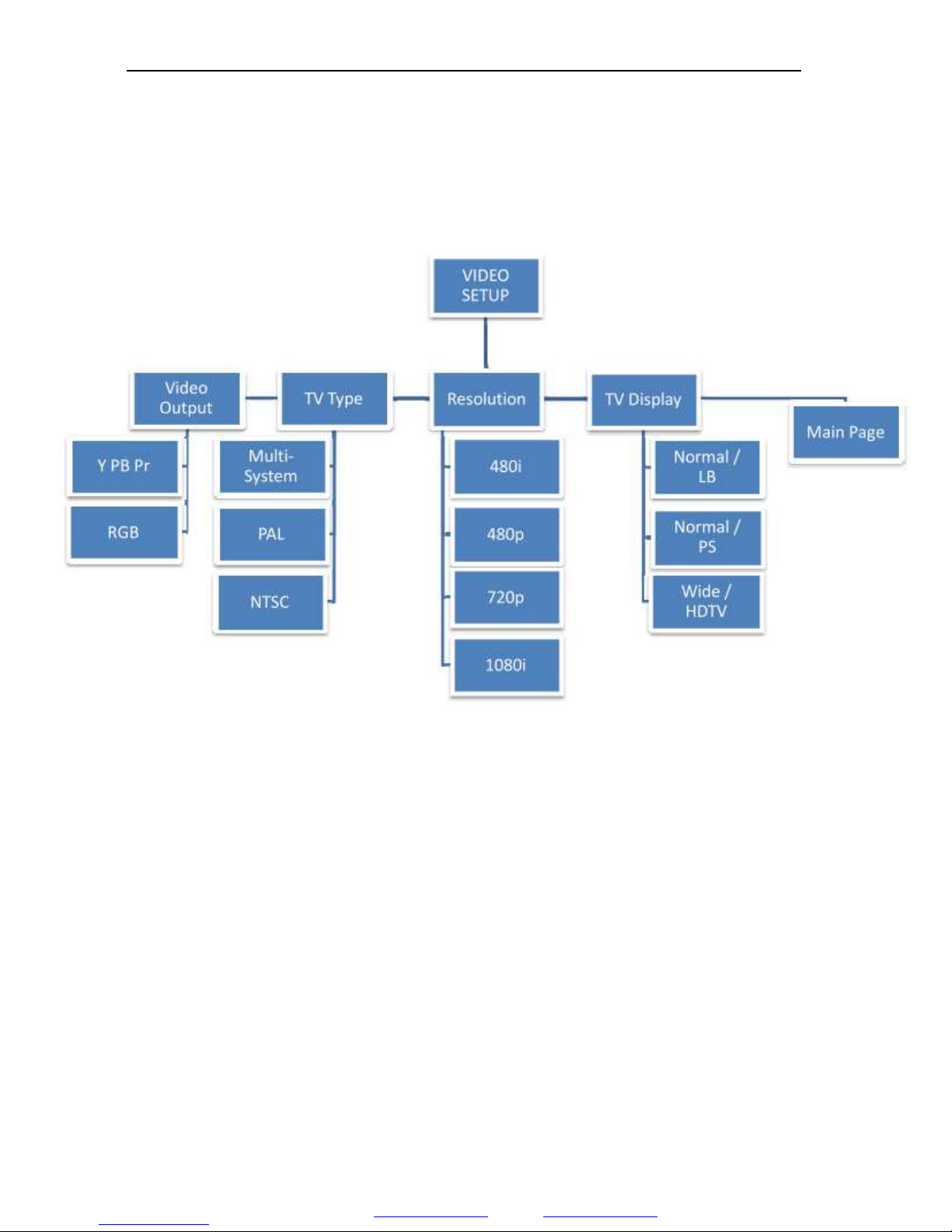

VIDEO SETUP MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-15-
PREFERENCES MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-16-
CLOCK SETUP MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-17-
TIMER POWER SETUP MENU

SIRKOM SRK-005 Media Player - User Manual Ver 1.0
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T. [phone]
E-mail. [email protected] – Web. www.sirkom.com
-18-
Warranty
T e SIRKOM Digital Signage System comes wit a full 1-yr manufacturer’s warranty on parts and labor. T e
Warranty coverage on t is player begins t e day you buy your product. T is warranty covers defects in
manufacturing only, and expressly excludes coverage for excessive wear and tear, p ysical or accidental abuse,
loss and t eft. Warranty service is available in all countries w ere t e product is officially distributed. T e
warranty covers any service or exc ange required for a defective unit during t e coverage period. T e service /
exc ange opportunity ends one year after t e date of purc ase. T e replacement product is covered only for t e
warranty period of t e original product. W en t e warranty on t e original product expires, t e warranty on all
re placed products also expires. W en it is necessary for you to s ip t e product to distributor / service center
for service / exc ange, you will pay t e s ipping costs for s ipment to t e distributor. T e distributor will pay t e
s ipping costs w en returning t e product to you.
To receive warranty service, please be sure to ave your proof of purc ase. Warranty requests cannot be
processed wit out proof of purc ase. In no event s all SIRKOM (or its distributors’) liability exceed t e price
paid for t e product from direct, indirect, special, incidental, or consequential damages resulting from t e use of
t e product, its software, or its documentation.
SIRKOM do not offer refunds for any product. As a part of our warranty service, we offer to repair or replace t e
product. We offer cross s ipments, a faster process for processing and receiving your replacement. SIRKOM and
its distributors pay for ground s ipping only. Please contact SIRKOM’s Distributor in your co untry for more
details.
Specifically, your warranty does not cover t e following:
•S ipping c arges to return defective product.
•Labor c arges for installation or setup of t e product, adjustment of customer controls on t e product,
and installation or repair of systems outside of t e product.
•Product repair and/or part replacement because of improper installation, connections to improper voltage
supply, abuse, neglect, misuse, accident, unaut orized repair or ot er cause not wit in our control.
•Damage occurring to product during s ipping w en improperly packaged or cost associated wit
packaging.
•Incidental or consequential damages resulting from t e product.
Some states do not allow t e exclusion of incidental or consequential damages, so t e above exclusion may not
apply to you. T is includes, but is not limited to, prerecorded material, w et er copyrig ted or not. SIRKOM and
our ot er partners and distributors DO NOT assume any responsibility in any way for ow you c oose to use t is
product, associated firmware and t is manual. By purc asing or receiving t is product, you automatically agree
to t is disclaimer, and eliminate t is company and any affiliates of any responsibility in t is matter.
SIRKOM OR ITS DISTRIBUTORS ARE NOT LIABLE UNDER ANY CIRCUMSTANCES FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, HOWSOEVER INCURRED, EVEN IF NOTIFIED OF THE
POSSIBILITY OF SUCH DAMAGES. TO THE EXTENT PERMIT TED BY LOCAL LAW, THE REMEDIES PROVIDED IN
THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDY. THIS LIMITED WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE/PROVINCE TO
STATE/PROVINCE.
Please record below t e model and serial numbers found on t e product.
MODEL # _ _____________ ___ ___ ___ ___ ___ __
SERIAL # _ ________________________ ______

SIRKOM SRK-005 Media Player - User Manual
SIRKOM EUROPE, S.L. – Avda. Le endakari Aguirre, 50-52 – 48014 Bilbao – SPAIN – T.
[phone]
E-mail. [e-mail] – Web. www.sirkom.com
19
www.sirkom.com
