SIROCO TENERE PERFORMA Series User manual

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
Page 1 sur 8

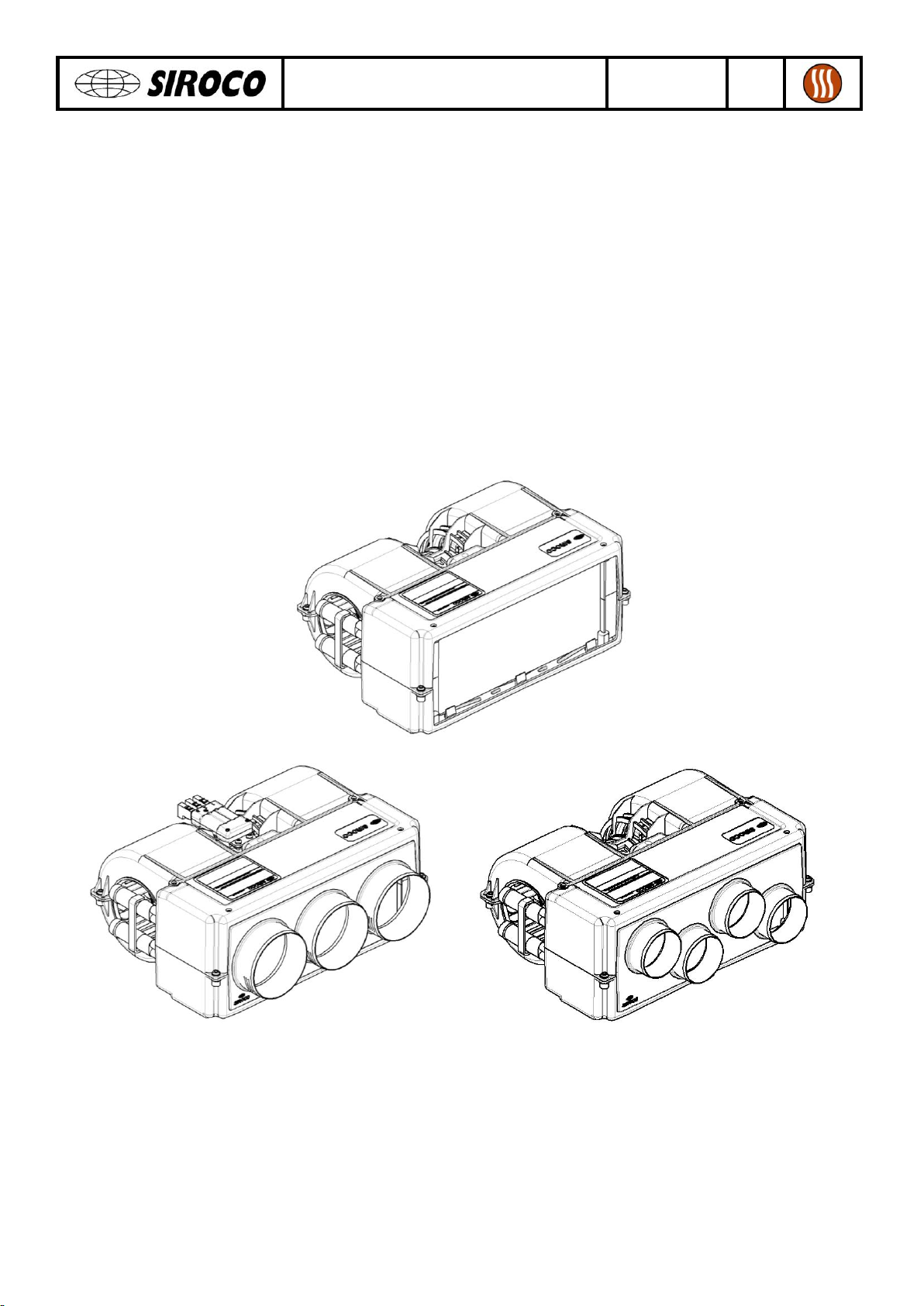

TENERE PERFORMA B-3D-4D-F-G-S
1 - Product description
2 - Operating principle
3 –Mounting recommendations
4 - Troubleshooting
5 - Safety instructions
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 2 sur 8
1 - Product description
The TENERE PERFORMA is a heater unit integrating into the same case a centrifugal ventilator
(motor + wheels) and a heat exchanger. Its plastic parts are made from Polypropylene. The
ventilator wheels are driven by an electric DC and permanent magnet motor.
It can operate in 2 or 3 speeds depending on the chosen version: so 3 or 4 electrical wires have to
be connected. There is a water input and output, as well as an air inlet on each lateral side and one
air outlet on the front. The front panel can receive various accessories depending on the version.
Six fronts with different air outlets: B –3D - 4D - F - G –S …
Various versions are available: 2 or 3 speeds ; rated voltage 12V or 24V.
- Connecting copper pipe diameter: Ø12 ; Ø14 or Ø16 mm.
Blower
Air outlet
Heat exchanger
Upper plastic
Electric wires
Parts delivered
in plastic housing:
4 screws 5,5x14 mm
for plastic material
Lower plastic
Water output
Water input
Resistor
(Version: 3 speeds)
Fuse
(Version : 2 speeds)

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 3 sur 8
Part numbers, 2 speed version:
Front panel versions
Voltage
Ø pipes
(mm)
B
4D30
4D40
4D45
4D50
F
G
S
Reference
Reference
Reference
Reference
Reference
Reference
Reference
Reference
12 V
Ø 14
0160 6000
0160 6430
0160 6440
0160 6446
0160 6450
0160 6704
0160 6604
0160 6200
Ø 16
0160 6002
0160 6432
0160 6442
0160 6444
0160 6452
0160 6706
0160 6606
0160 6202
24 V
Ø 14
0160 6001
0160 6431
0160 6441
0160 6447
0160 6451
0160 6705
0160 6605
0160 6201
Ø 16
0160 6003
0160 6433
0160 6443
0160 6445
0160 6453
0160 6707
0160 6607
0160 6203
Front panel versions
Voltage
Ø pipes (mm)
3D40
3D45
3D50
3D55
3D60
3D65
3D70
Reference
Reference
Reference
Reference
Reference
Reference
Reference
12 V
Ø 14
0160 6340
0160 6346
0160 6350
0160 6356
0160 6360
0160 6366
0160 6370
Ø 16
0160 6342
0160 6344
0160 6352
0160 6354
0160 6362
0160 6364
0160 6372
24 V
Ø 14
0160 6341
0160 6347
0160 6351
0160 6357
0160 6361
0160 6367
0160 6371
Ø 16
0160 6343
0160 6345
0160 6353
0160 6355
0160 6363
0160 6365
0160 6373
Part numbers, 3 speed version:
Front panel versions
Voltage
Ø pipes
(mm)
B
4D30
4D40
4D45
4D50
F
G
S
Reference
Reference
Reference
Reference
Reference
Reference
Reference
Reference
12 V
Ø 14
0160 7000
0160 7430
0160 7440
0160 7446
0160 7450
0160 7704
0160 7604
0160 7200
Ø 16
0160 7002
0160 7432
0160 7442
0160 7444
0160 7452
0160 7706
0160 7606
0160 7202
24 V
Ø 14
0160 7001
0160 7431
0160 7441
0160 7447
0160 7451
0160 7705
0160 7605
0160 7201
Ø 16
0160 7003
0160 7433
0160 7443
0160 7445
0160 7453
0160 7707
0160 7607
0160 7203
Front panel versions
Voltage
Ø pipes (mm)
3D40
3D45
3D50
3D55
3D60
3D65
3D70
Reference
Reference
Reference
Reference
Reference
Reference
Reference
12 V
Ø 14
0160 7340
0160 7346
0160 7350
0160 7356
0160 7360
0160 7366
0160 7370
Ø 16
0160 7342
0160 7344
0160 7352
0160 7354
0160 7362
0160 7364
0160 7372
24 V
Ø 14
0160 7341
0160 7347
0160 7351
0160 7357
0160 7361
0160 7367
0160 7371
Ø 16
0160 7343
0160 7345
0160 7353
0160 7355
0160 7363
0160 7365
0160 7373
Note : Ø12 and other diameter references on request
2 - Operating principle
The fan blows fresh air through the heat exchanger. Air is warmed up through contact with the heat
exchanger.
The outlet front panel evacuates the warm air.
Operating conditions:
The heater has to be in a place presenting a fresh air inlet.
Operating temperature has to be included between -25°C and +80°C.
Cooling fluid has to be antifreeze and anticorrosive for copper and aluminum. Also it has to be
officially recognized by vehicle manufacturers.
Technical data:
The values are given for information purposes.
Voltage
Electrical power
Heating capacity
12/24 V
≈ 83,2 W
≈ 6,65 kW
Optimum heating capacity is reached with air inlet temperature of 0°C, nominal air flow of 0,5 m3/h, free ethylene glycol
water and water inlet temperature of 100°C.
Front panel versions
TENERE PERFORMA
B
3D70
4D50
F
G
S
Weight (2 speeds)
1,9 kg
1,9 kg
1,9 kg
2 kg
2 kg
1,9 kg
Nominal air flow
330 m³/h
313 m³/h
297 m³/h
277 m³/h
220 m³/h
330 m³/h

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 4 sur 8

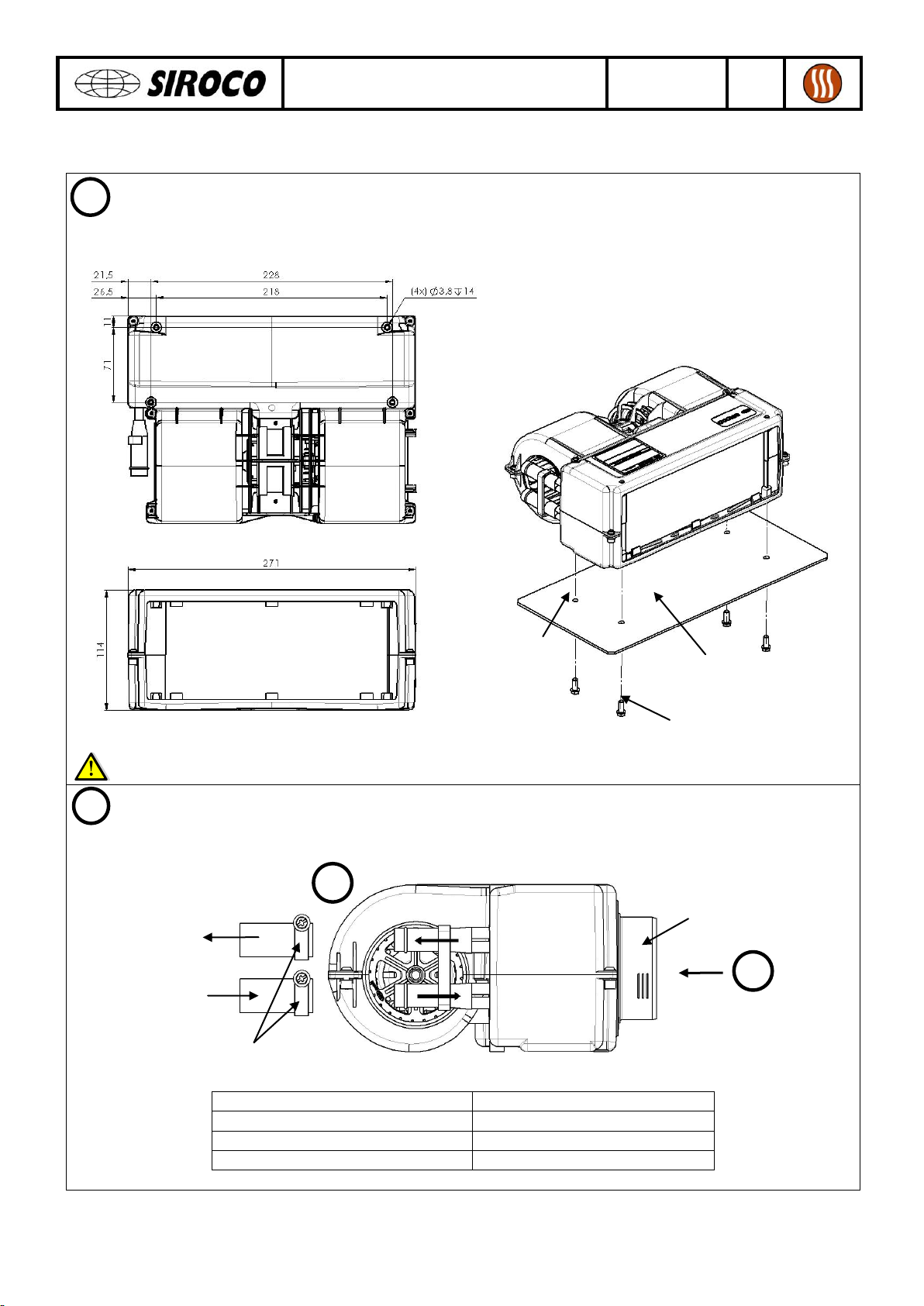

3 –Mounting recommendations
Fix the heater to the bracket by top or by bottom using 4 supplied screws (for plastic
material 5,5x14 mm). The recommended tightening torque is 3Nm. Thickness of the
mounting bracket: 3mm Max.
Don’t drill the heater carcass in order not to damage the internal components!
Connect water input and output using cooling hoses with corresponding diameter
(cf. product part number §1). Use suitable clamps. Respect the preferential direction of
circulation of water.
It’s recommended to use water hose adapted to the application, see Siroco references :
Ø internal, of the water hose
Part number
Ø 12
0410 0212
Ø 14
0410 0214
Ø 16
0410 0215
Test the waterproofness of the circuit to prevent water leaks.
Mounting bracket
(bottom)
4 supplied screws
4 x Ø6 mm
1
Clamps
Sleeve
2
2
3
Water input
hose
Water output
hose

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 5 sur 8
About 3D, 4D versions put the air hose on the sleeves. Make sure to use the suitable clamps
to insure the airproofness of the system.
Test the airproofness of the circuit to prevent air leaks.
Option :
Possibility to connect a Ø70mm air sleeve on one air inlet : air recycling or fresh air.
Make sure to use the suitable clamps to insure the airproofness of the system.
Test the airproofness of the circuit to prevent air leaks.
Option :
Possibility to connect an air inlet grid for better protection: class of protection IP20
3
Sleeve
3b
3a

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 6 sur 8

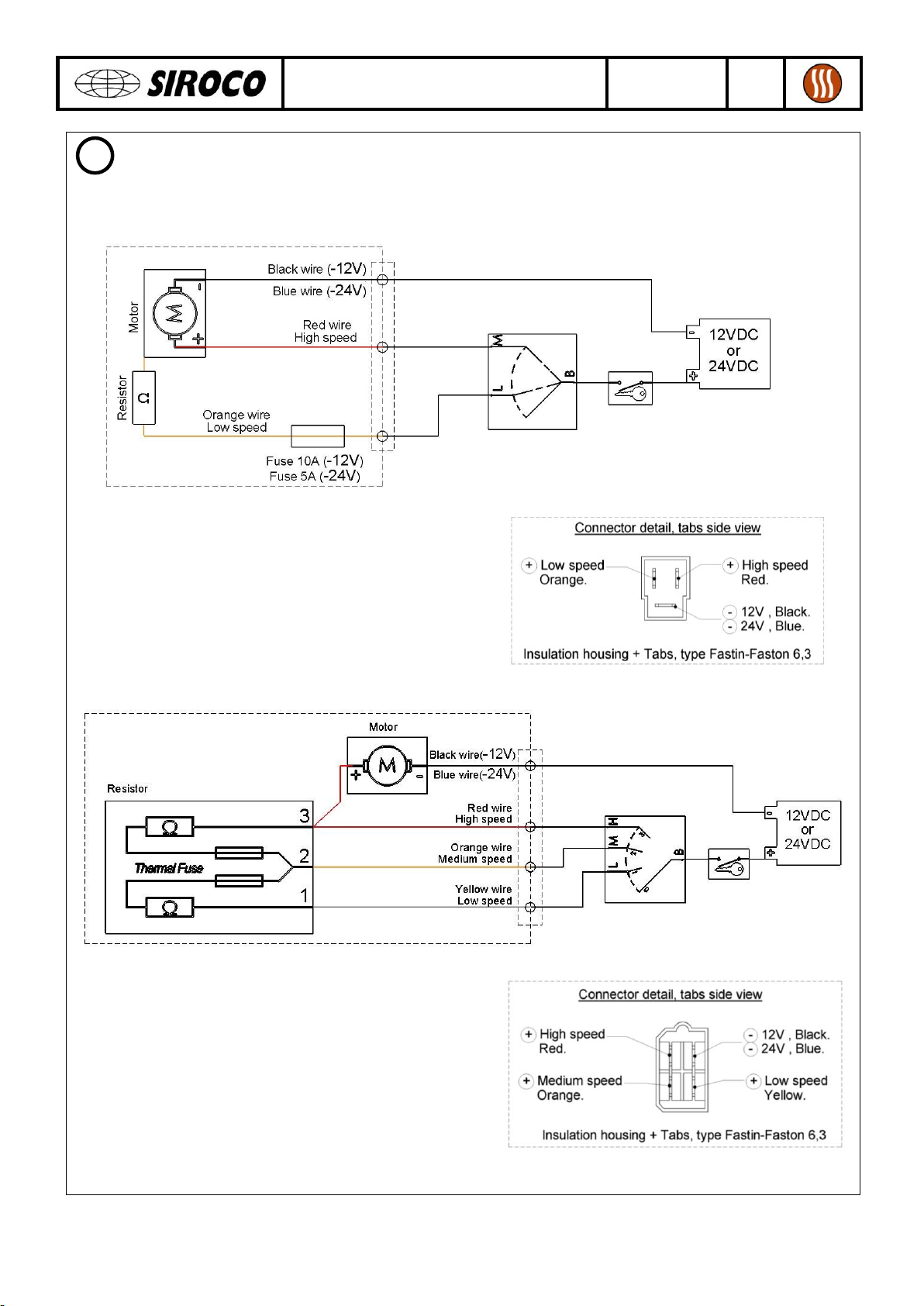

Plug the connector respecting the circuit diagram. Use electric wires with at least 1,5 mm²
cross-section.
2 speeds :
3 speeds :
4

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 7 sur 8
4 - Troubleshooting
Defect
Possible cause
Action
The blower does not
work.
Defective fuse.
Ensure that the fuse is correctly installed and has
the correct rating.
Replace it if necessary.
Always identify the cause before replacing the
defective fuse.
No power.
Switch On and/or connect the device to the battery.
Make sure that electrical connections between the
battery and the device are continuous.
Read the vehicle operating instructions for more
information.
Electric cables are
damaged or torn.
Contact your distributor.
Blower is blocked.
Rectify cause of blockage, for example, remove an
object immobilized in wheels.
Otherwise contact your distributor.
The blower motor is
defective.
Contact your distributor.
Ventilation’s low and
middle speeds don’t
work.
The resistance group is
defective.
Contact your distributor.
The device can’t be
stopped.
Internal short circuit in the
device.
Unplug the device (first of all switch off battery
power supply) and contact your distributor.
The heater works only at
reduced power.
The voltage isn’t suitable.
The voltage of the device and of the vehicle must
be the same.
Order a device adapted to the on-board voltage of
the vehicle.
The air outlet is closed or
plugged.
Open the air vents or clear air outlet.
The radiator is severely
soiled
Contact your distributor.
Air is not warmed
Cooling water still cold
Wait until the engine reaches operating
temperature
Water hoses are twisted or
crushed
Replace the water hoses if they are twisted or
crushed.
Heating power is
insufficient.
The blown airflow is too
low.
Refer to the blower's defects.
Air in heat exchanger
Bleed the circuit.
The heater is under sized.
Replace the device by a more powerful one.
Contact your distributor.
The warranty doesn’t cover the products which have been disassembled!

Installation guide
FM 0160 E 3
08/01/14
Ind.
A
SIROCO S.A.S.
10 rue Jean Rostand - Z.I.
BP 315
69745 GENAS Cedex
Tel: [phone]
Fax: [phone]
www.siroco.fr
Page 8 sur 8
5 - Safety instructions
Please comply with the following instructions for your own safety:
The product must be installed by a professional.
The product must operate in a well-ventilated place.
The product must operate in an environment protected against liquid splashes (water…).
The product must be used only for the purposes for which it has been designed. Product
mustn’t be used in improper environment. Please, refer to general sale conditions.
Before using the product, please make sure that laws and regulations are strictly respected
according to the country of use.
For safety reasons (fire hazard), the power supply of the product has to be protected by a
specifically dedicated fuse.
The fuse characteristic is given only as an indication, please verify the specific fuse required
for each application.
Switch off electric power supply before working on the product.
Be careful, while servicing the device or its connections, the radiator and the coolant can be
hot and under pressure.
Before any intervention, wait for the complete cooling of the device and its connections.
Make sure that it is no longer under pressure. Use suitable I.P.E. (Individual protection equipments)
such as gloves.
Do not touch the heat exchanger and its connections when hot water flows through the heat
exchanger.
Do not introduce any object into the blower and the heater carcass.
Do not place any object that may obstruct air inlets or air outlets.
