SIRUI BALLPOD BP360-01 User manual

BALLPOD
BP360-01
INSTRUCTIONS
Professional Photographic Equipment
SIRUIWebsite
Address: The Third Industrial District, Wuguishan Town, Zhongshan City, Guangdong, China
Tel: [phone] Fax: [phone] Service Hotline: [phone]
E-mail: [email protected] http://www.sirui.com P.C: 528458
Guangdong SIRUI Optical Co.,Ltd.

360°
Specifications 87x87x65mm/3.4x3.4x2.6 inches
Loading 260g/0.6lb
Net Weight of Ballpod Body 225g/0.5lb
Net Weight of Remote Control 37g/0.08lb
Panning Range
Tilting Range ±15°
Operation/Storage Temperature 0℃-50℃
Bluetooth Version 4.0
Bluetooth Distance Approx. 10m (32.8 ft)
Optical Flow Sensor Tracking Range 90°
Optical Flow Sensor Tracking
Distance Approx. 3m (9.85ft)
Battery of Ballpod 450mAh * 2 Polymer Lithium-ion Battery
Battery of Remote Control 450mAh Polymer Lithium-ion Battery
Charging 5V/1A, 2 hours
Charging Port micro USB
Applicable Thickness of Mobile Phone 6.5mm-9.0mm
UI Language Simple Chinese, English
System Request Android 4.0 or above / IOS9.0 or above
BP360-01 Data Chart
1. 360° VR Image
2. Automatic Face Following
3. Feature Following
4. Auto Light Fill
5. Manual Light Fill
6. Manual Control
(Notes: Some functions above should be controlled via SIRUI App.)
Main Functions:
-2-
7. Beauty Function
8. Optical Follow
9. Time Lapse Shooting
10. Photo/Video Share
11. Wireless Remote Control

Know the BP360-01 Ballpod
Optical Flow Sensor
Chasing Area
Fill Light Area
Soft Rubber Clamp
180° Panoramic
Shooting Button
360° Panoramic
Shooting Button
Connection Indicator Light
Auto Light Sensor
Power Indicator Light
Charging Port
Power ON/OFF
Reset Button
1/4" Screw Hole
Face Following Button
Infrared Signal Light
Optical Flow Mode Button
Optical Flow Indicator Light
Face Following Mode
Indicator Light
Power ON/OFF Button
Automatic Fill Light Button
Power Indicator Light
Charging Indicator Light
Brightness Decrease-
Brightness Increase+
Manual Mode Button
Photo/Video Button
Manual Fill Light Button
Charging Port
BP360-01 Ballpod is the perfect Mobile Phone accessory. The Ballpod and
Mobile Camera can be controlled via the SIRUI SMART App on your Mobile
Phone or the supplied Remote Control. The Ballpod can help you create
professional quality images with its various functions: Auto Face Following,
Optical Flow, Feature Following, 360° VR Image, Photo and Video Share, etc.
Mobile Phone not included.
-3-

Download and Install the SIRUI SMART APP
SIRUISMARTApp
Scan the QR Code below,
or click into the websitehttps://device.sirui.com/app/download.html
to download the SIRUI SMART APP.
System required for the SIRUI SMART APP:
IOS 9.0 or above / Android 4.4 or above.
-4-

Charging Instructions
1. Charging the BP360-01 Intelligent Ballpod
Prior to using the product for the first time, please charged the products battery 100%.
2. Charging for Remote Control
-5-
Power Indicator Lights
Charging Port
- Please use the included SIRUI standard charging cable to connect the USB
port for charging for the Ballpod.
- Power Indicator Lights Status:
a. Power Insufficient: the red and yellow lights will flash. Please charge the battery.
b. Charging: the indicator lights will flash.
c. Fully Charged: the 4 lights will be on and stop flashing.
- Fully Charging Time: approx. 2 hours. (Charging Current: approx.1A)
- Max Charging Current allowed: 1A.
Power Indicator Light
Charging Port
Charging Indicator Light
- Please use the included SIRUI standard charging cable to connect to the USB
port to charge for the Remote Control.
- Power Indicator Light Status:
a. Power Insufficient: the power indicator light will flash when the power is
insufficient (less than 25%), please charge the remote.
b. Charging: the indicator light will be brightly lit.
c. Fully Charged: the indicator light will turn off.
- Fully Charging Time: approx. 1 hour. (Charging Current: approx. 1A)
- Max Charging Current allowed: 1A.

Install the Mobile Phone
-6-
Install the Mobile Phone onto the Soft Rubber Clamp on top
of the Ballpod BP360-01 when the Ballpod power is off.
Compatible Thickness of Mobile Phone: 6.5~9mm.
For best results attach the phone without a protective case.

Connecting the SIRUI SMART APP
① Turn on the Bluetooth of the Mobile Phone
SIRUISMART
-7-
Power Indicator Lights
Power ON/OFF
Button
Press and hold the Power Button
② Push the Power
ON/OFF Button
Power ON: Push up the Power Button to turn on the Remote Control
Power OFF: Push down the Power Button to turn off the Remote Control
③ Operate the SRIUI SMART APP and connect the SIRUI Ballpod as instructed
Notes: When the devices are connected successfully, the APP will switch to the
shooting interface automatically. If the devices can not be connected in a long time,
please reset the devices and connect again.

Operation of Remote Control
-8-
Face Following
Mode Indicator Light
Face Following
Button
Optical Flow
Mode Button
Optical Flow
Following
Indicator Light
Remote control the system to turn
on or off the Face Following Mode
Remote Control the system to turn on
or off the Optical Flow Following Mode
Manual Mode Button
Photo/Video Button
Remote control the system to adjust the
panning or tilting angle of the Mobile Phone.
1. Press the button for Photo shooting.
2. Press and hold the button for Video
shooting.
3. Press the button twice for time-lapse
shooting.
Automatic Fill
Light Button
Manual Fill Light
Button
Remote control the system to turn
on/off or switch the Fill Light Mode
Increase or decrease the brightness of
the Fill Light with Manual Fill Light Mode
Brightness
Decrease -
Brightness
Increase+

-9-
Operation of Ballpod
1. Download the SIRUI App.
2. Install the mobile phone onto the ballpod with the ballpod power
turned off. (Please refer to page 6 for details.)
3. Operation: Turn on your mobile phone and open the SIRUI App
to connect the ballpod via bluetooth. (Please refer to page 7 for
details.)
4. Operation of the Remote Control: Use the Remote Control to
operate the Ballpod as detailed on page 8.
5. Recharging: Please use only the included SIRUI standard cable
to recharge the ballpod BP360-01 and its Remote Control as
details on page 5.
6. Operation of Tripod: Two adjustable angles for your convenience.
(please refer to details on page 10.)
SIRUI SMART Advanced Shooting Functions:
Panaramic Shooting: Click the icon in the APP to control
the Ballpod and Mobile Camera to shoot images from
different angles and combine them to create a 180 degree
or 360 degree VR Panaramic images.
Feature Following Shooting: Select a desired shooting
area via the SIRUI App on your mobile phone. The ballpod
will follow the moving object on the mobile screen area.
Face Following Shooting: Click the icon in the APP to control
the Ballpod and Mobile Camera to follow the human face for
shooting.

Operation of Tripod
-10-
1/4 Screw
Mounting Platform
Leg Lock Platform
Tripod Leg
Know the Tripod Open the tripod
legs as shown
Angle 1 of 2 for the tripod legs
Close the legs by folding
down as shown.
As shown above, turn the Leg Locking
Platform clockwise to open the legs to
the second low angle position. Once the
legs are in the desired position turn
counter clockwise to lock them in place.
The Table-top Tripod can be
connected with camera, mobile
phone holder, or ball head with
a 1/4 screw. The tightness of the
legs can be adjusted with the
included allen key.
3mm Allen Key

DISCLAIMER AND WARNING
-11-
Thank you for buying SIRUI BP360-01 . The contents of this instruction
manual covers your security, legal rights and responsibilities with regard
to this product. Before using this product, please read the entire instruction
manual and all warnings carefully to ensure that the product is properly set
up according to the specific instructions. Not following the instructions and
warnings in this instruction manual may cause injury to you or the people/
objects around you, or damage the BP360-01. This instruction manual and
warning statement or any relevant documents of the BP360-01 are issued by
Guangdong SIRUI Optical Co., Ltd. The details may be changed without
notice. Please click into the SIRUI official website www.sirui.com for the
up-to-date product information.
Upon using this product, it is understood and required that you have carefully
read the instructions,disclaimer and warning, and understand and accepted
all of the terms and contents of this statement. You are committed to taking full
responsibility for the use of this product and the possible consequences. You
will use this product only for legitimate purposes, and agree to the terms in this
statement and the relevant regulations, policies and guidelines formulated by
SIRUI.
SIRUI is not responsible for the loss, damage or any legal liability of direct or
indirect use of the product. Users should follow all the safety instructions and
guidelines including but not limited to this manual.
GLOSSARY
WARNING: Failure to properly follow the procedures may result in property
damage, accident orserious injury.
CAUTION: Failure to properly follow the procedures may result in property
damage or serious injury.
ATTENTION: Failure to properly follow procedures may result in property
damage or injury.
The SIRUI BP360-01is a complex product, users should
have basic practical ability and safety knowledge, and use
it carefully. Please read the user manual of SIRUI BP360-01
first, and then use it only after you are familiar with the
functions of the product. Incorrect operation will lead to
product damage, property damage, or personal injury.
This product is not recommended for use by children.
WARNING

-12-
SAFETY OPERATION GUIDELINES:
1.The SIRUI BP360-01 is a high technology precision device, dropping or
being struck by an external force may cause damage to the product.
2.When the power of the BP360-01 is on, make sure the clamp is not blocked
by any external force.
3.Do not allow the SIRUI BP360-01 to contact liquid or use any liquid cleaning
products on this unit. For best results use only a soft and dry cloth to
clean the BP360-01.
4.Prevent dust or sand getting into the product during use of the BP360-01.

BATTERY SAFETY GUIDELINES
-13-
The battery included with this product should be protected. The user should have
basic practical ability and safety knowledge, and use it carefully. Please read the
user manual prior to using the product for the first time. Incorrect use will lead to
battery damage, property damage, or even personal injury.
Do not allow children to touch the battery. Do not use the battery in any other
product other than noted by SIRUI.
This instruction manual contains safety guidelines, proper operation, and maintenance
details. In order to ensure that you can safely use the battery and device, read the
user manual completely and all instructions and warnings in the battery safety
guidelines prior to using of the product.
In order to avoid fire, property loss or personal injury, follow the Safety Guidelines
below to use, charge and store the battery.
Battery Use
1.Keep the battery dry at all times. Never submerge the battery in water or other
liquids. Do not leave the battery out in the rain or near a source of moisture. If
water gets in the battery, chemical decomposition may occur, and potentially
resulting in the battery catching fire, or even explosion.
2.If the battery falls into water, place it in a safe and open area immediately. Keep a
safe distance from the battery until it is completely dry. DO NOT use the battery again,
and dispose the battery properly as recommended by local laws and regulations.
3.If the battery catches fire, use water, water spray, sand, fire blanket, dry powder,
carbon dioxide fire extinguisher to extinguish the fire. Explosion may occur.NEVER
dispose of the battery in fire.
4.Use only the SIRUI supplied battery. Using a battery not specified by SIRUI voids
any warranty on the product and may cause damage to the unit or personal injury and
property damage. If a replacement battery is needed, please purchase from a SIRUI
official website or authorized dealer. SIRUI will not be responsible for any battery
accident or damage to the device caused by using non SIRUI battery.
5.Never use or charge swollen, leaky or damaged battery. If the battery has an
abnormal smell, is heated at or above (71℃/159.8℉), is distorted in shape, discolored
or shows any other abnormality, discontinue use immediately. If your battery is
exhibiting any abnormal characteristics, please connect SIRUI or a SIRUI authorized
dealer for further assistance.
6.The battery should be used in temperature between -10°C/14℉ and 45°C/113℉.
Use the battery in an environment above 45°C/113℉ may lead to a fire or explosion.
Use the battery below -10°C/14℉ may lead to seriously damage the battery.
7.Do not use the battery in strong electrostatic or electromagnetic environments.
Otherwise, the battery protection board may malfunction.
8.Never disassemble or pierce the battery in any way, the battery may leak, catch fire
or explode.
WARNING

-14-
9.Do not strike, crush or drop battery. Do not place heavy object on the battery or
charger.
10.Electrolytes in the battery are highly corrosive. If this comes in contact with your
skin or eyes, seek a doctor and treatment immediately.
11.Do not use the battery if it is damaged from a fall or other accidents.
12.Do not heat the battery. Do not put the battery in a microwave oven or in a
pressurized container.
13.Do not place the battery cell on any conductive surface.
14.Do not manually short-circuit the battery.
15.Clean the battery terminal with a clean and dry cloth. Never use any type of liquid
to clean.
Battery Charging
1.Always use the included SIRUI standard cable and charger for charging. SIRUI
will not be responsible for any damage caused by charging with non SIRUI officially
supplied cable or charger.
2.Do not charge the battery near flammable materials or on flammable surfaces such
as carpet or wood. Do not leave the battery unattended during charging.
3.Do not charge the battery immediately after use, as the battery temperature may be
too high. It is highly recommended to allow the battery to cool down to room temperature
prior to recharging. Charging the battery in a temperature higher than 45℃/113℉ or
lower than 0℃/32℉may lead to leakage, overheating, or battery damage.
4.Examine the charger regularly for damage to the shell, cord, plug or other parts
before charging. Do not clean the charger with any liquids and especially not alcohol
or other flammable solvents. Disconnect the charger when not in use.
Battery Storage
1.Keep the battery out of the reach of children and pets.
2.Do not leave the battery near heat sources. Do not leave the battery inside of a
vehicle on hot days. The ideal storage temperature is 22℃-28℃ / 71.6℉- 82.4℉.
3.Always keep the battery in a dry place.
4.Do not store the battery fully discharged for long period, this may lead to permanent
damage.
Battery Maintenance
1.Never use the battery when the temperature is too high or too low.
(-10°C/14℉ and 45°C/113℉.)
2.Never store the battery in an environment with temperature higher than 60℃.
Transportation
1.Before carrying the battery onto the airplane, it must be discharged lower than 5%.
Store the battery in a ventilated and dry location. Please check your airline for specific
rules regarding batteries and transportation.
2.Do not store or transport the battery with any metal objects such as glasses, watch,
jewelry. The batteries contact points should always be covered or stored in a separate
bag when being transported to avoid contact with other metal.

-15-
3.Do not transport a broken battery. Discharge the battery to be with power lower than
50% for transportation.
Battery Disposal
Please follow local laws and regulations for the battery recycle and disposal in
local to dispose the battery. Batteries should never be disposed with normal trash
or incinerated for any reason.
ATTENTION
Battery Use
Make sure the battery is fully charged before every use.
Battery Charging
The battery is designed to stop charging automatically when it is full. Please
disconnect the battery and charger when it is fully charged.
Battery Storage
1.Discharge the battery to 40%-65% if it will not be used for 10 days or more. This can
help to extend the battery life.
2.The battery will go into low power consumption mode when its voltage is too low.
Recharge the battery to bring it out of the low power consumption mode.
3.Battery should be removed from the product for storage in the dedicated battery case.
Battery Maintenance
1.Never over charge or over discharge the battery, otherwise it may cause damage to
the battery cell.
2.Battery life may be reduced if not used for a long time.
3.Charge and discharge the battery completely once every three months to keep it in
good condition.
Battery Disposal
Please follow all local laws and regulations when disposing of batteries. Please
be sure to completely discharge the battery before disposal. Please contact local
authorities or a recycling center for more details.

-16-

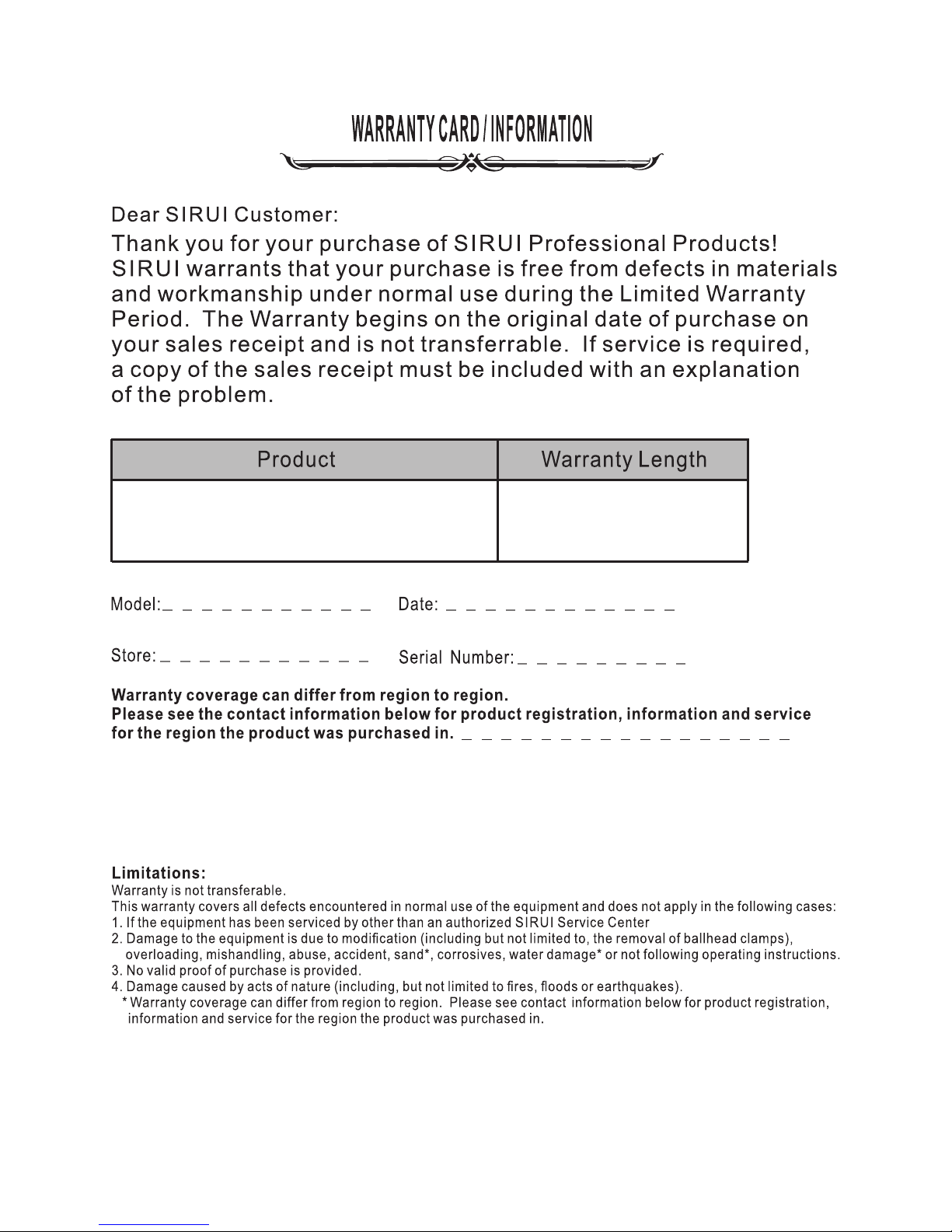

1 year
Ballpod
SIRUI 1 Year Limited Warranty of the product.This warranty shall be limited to repair, adjustment and/or replacement at
SIRUI or its authorized distributors option,of defective parts,free of charge(except the cost of transportation to the
distributor/service center). Responsibility is limited to the actual cost of the item.Call or Email with questions and
service before sending any product to the center in your region.Below is a listing of contact information for Product
Registration,Service Inquiries and Questions.SIRUI will not be responsible for expenses or inconveniences, or
consequential damages to equipment, or by breach of any expressed or implied warranties.

-17-
