Sirus Drop 4 User manual

Drop 4, drop 6, drop 8
Passive Speaker
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
09.10.2023, ID: 562012, 562013, 562014, 562015, ...

Table of contents
1 General information................................................................................................................................. 4
1.1 Symbols and signal words............................................................................................................... 4
2 Safety instructions..................................................................................................................................... 6
3 Features.......................................................................................................................................................... 8
4 Installation.................................................................................................................................................. 10
4.1 Mounting............................................................................................................................................ 11
4.2 Power tap............................................................................................................................................ 14
4.3 Tips on handling speakers............................................................................................................ 15
5 Technical specications....................................................................................................................... 16
5.1 Drop 4 (item no. 562012, 562013).............................................................................................. 16
5.2 Drop 6 (item no. 562014, 562015).............................................................................................. 19
5.3 Drop 8 (item no. 562016, 562017).............................................................................................. 22
6 Protecting the environment.............................................................................................................. 26
Table of contents
Drop 4, drop 6, drop 8 3
Passive Speaker

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
4Drop 4, drop 6, drop 8
Passive Speaker

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
Drop 4, drop 6, drop 8 5
Passive Speaker

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
WARNING!
Possible hearing damage due to operating the device at a high volume!
The device can produce volume levels that, when operated at a high volume, may cause temporary or permanent hearing impair‐
ment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Avoid operating the device
at excessively high volumes over an extended period of time. Decrease the volume level immediately if you experience ringing in
your ears or hearing impairment. If this is not possible, keep a greater distance or use adequate ear-mus.
Intended use
Safety instructions
6Drop 4, drop 6, drop 8
Passive Speaker

WARNING!
Risk of injury from falling speakers that were inadequately secured!
If speakers are not properly secured when mounted, they can cause severe injury and considerable damage by falling. Always secure
portable sound systems (speakers) with two independent safety devices, such as safety cables.
Safety instructions
Drop 4, drop 6, drop 8 7
Passive Speaker

3 Features
nSpeakers: 1 × 0.75-inch tweeter, 1 × 4-inch woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (2.5 W/5 W/10 W/20 W)
nPluggable screw terminal connections
nWall bracket, pendulum holder and ground spike included in the delivery
nWeatherproof thanks to International Protection Rating IP66
nHousing colour: black (item no. 562012), white (item no. 562013)
nSpeakers: 1 × 1-inch tweeter, 1 × 6.5-inch woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (5 W/10 W/20 W/40 W)
nPluggable screw terminal connections
nWall bracket, pendulum holder and ground spike included in the delivery
nWeatherproof thanks to International Protection Rating IP66
nHousing colour: black (item no. 562014), white (item no. 562015)
Drop 4
(item no. 562012, 562013)
Drop 6
(item no. 562014, 562015)
Features
8Drop 4, drop 6, drop 8
Passive Speaker

nSpeakers: 1 × 1.1-inch tweeter, 1 × 8-inch woofer
nOBE technology (Optimal Bass Enhancement Radiator)
nTransformer for 100 V/70 V (6.25 W/12.5 W/25 W/50 W)
nPluggable screw terminal connections
nPendulum holder included in the scope of delivery
nWeatherproof thanks to International Protection Rating IP66
nHousing colour: black (item no. 562016), white (item no. 562017)
Drop 8
(item no. 562016, 562017)
Features
Drop 4, drop 6, drop 8 9
Passive Speaker

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage to adjacent devices due to magnetic elds.
Speakers generate a static magnetic eld. This magnetic eld can aect other
neighbouring units and in unfavourable cases damage them.
Ensure that speakers are always a sucient distance away from sensitive equip‐
ment that may be aected by an external magnetic eld.
Installation
10 Drop 4, drop 6, drop 8
Passive Speaker

4.1 Mounting
1. Connect the cables of the amplier to the screw terminals of the speaker.
2. Screw the cover of the screw terminals to the speaker.
3. Thread the cable through the device cover.
4. Attach the device cover to the speaker.
1. Check the condition of the surface and screw the bracket to the wall with the supplied
screws.
2. Screw the speaker to the stud of the bracket.
Preparations
ö
#
$
%
Wall mounting
ö
#
Installation
Drop 4, drop 6, drop 8 11
Passive Speaker

WARNING!
Risk of injury from falling speakers that were inadequately secured!
If speakers are not properly secured when mounted, they can cause severe injury
and considerable damage by falling.
Always secure portable sound systems (speakers) with two independent safety
devices, such as safety cables.
1. Screw the ring eye into the top of the speaker.
2. Thread the wire rope through the ring eye and the ceiling suspension.
3. Lock the wire rope with two snap hooks.
4. Attach the cables of the speaker to the wire rope with suitable cable ties.
Ceiling installation
ö
#
$
#
Installation
12 Drop 4, drop 6, drop 8
Passive Speaker

18.5 cm
ö
# #
$
%
&

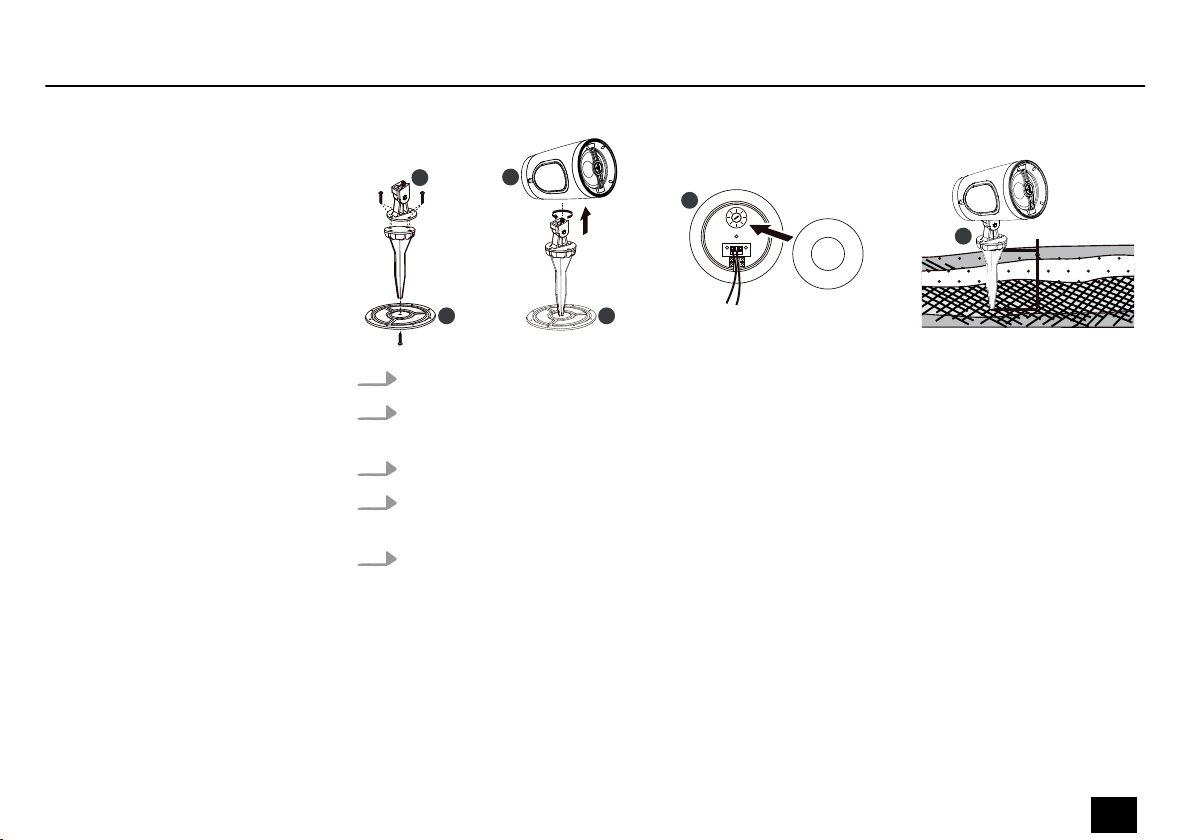

1. Screw the bracket to the ground spike with the supplied screws.
2. If required, screw the base plate to the ground spike. Then screw the base plate to suit‐
able oor material (e.g. wood).
3. Screw the speaker to the stud of the bracket.
4. Route the cable of the amplier through the device cover and attach the device cover to
the speaker.
5. Insert the ground spike completely in the ground.
Earth mounting
Installation
Drop 4, drop 6, drop 8 13
Passive Speaker

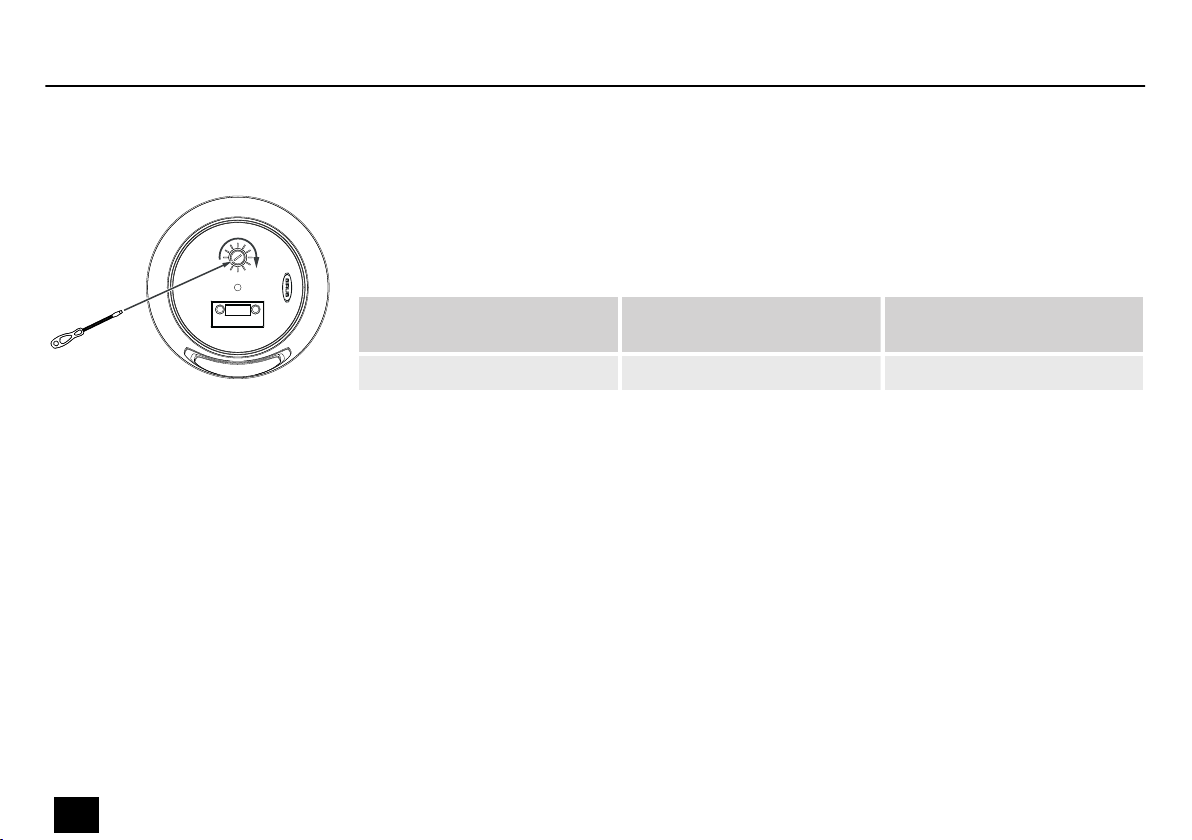

4.2 Power tap
Use the selector switch on the rear of the device to select the setting for the power tap.
The following table shows the possible settings.
Drop 4
(item no. 562012, 562013)
Drop 6
(item no. 562014, 562015)
Drop 8
(item no. 562016, 562017)
2.5 W / 5 W / 10 W / 20 W 5 W / 10 W / 20 W / 40 W 6.25 W / 12.5 W / 25 W / 50 W
Installation
14 Drop 4, drop 6, drop 8
Passive Speaker

4.3 Tips on handling speakers
We recommend you to set up the speakers in a way, that their sound signals can reach the
audience unobstructedly.
Always use high grade cables to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of all equipment
involved!
The overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume as soon as you notice
distortion.
Installation
Drop 4, drop 6, drop 8 15
Passive Speaker

5 Technical specications
5.1 Drop 4 (item no. 562012, 562013)
Conguration 1 × 0.75-inch tweeter
1 × 4-inch woofer
Input connections Screw terminals
Frequency response
(+/-3 dB)
80 Hz…20 kHz
Load capacity 20 W (RMS)
40 W (peak)
Sensitivity (1 W/1 m) 83 dB
Rated impedance 8 Ω
Sound pressure level 92 dB
Beam angle (H × V) 100° × 95°
International Protection
Rating
IP66
Dimensions (Ø × H) 148 mm × 230 mm
148 mm
230 mm
Technical specications
16 Drop 4, drop 6, drop 8
Passive Speaker

Weight 2.1 kg
Colour black (item no. 562012), white (item no. 562013)
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20%…80% (non-condensing)
20 50 100 200 500 1K 2K 5 K 10K 20K
-20
-10
0
10
20
30
40
50
60
70
80
90
100 dB
- 2 0
- 1 0
0
10
20
30
40
50
60
70
80
90
100
Hz

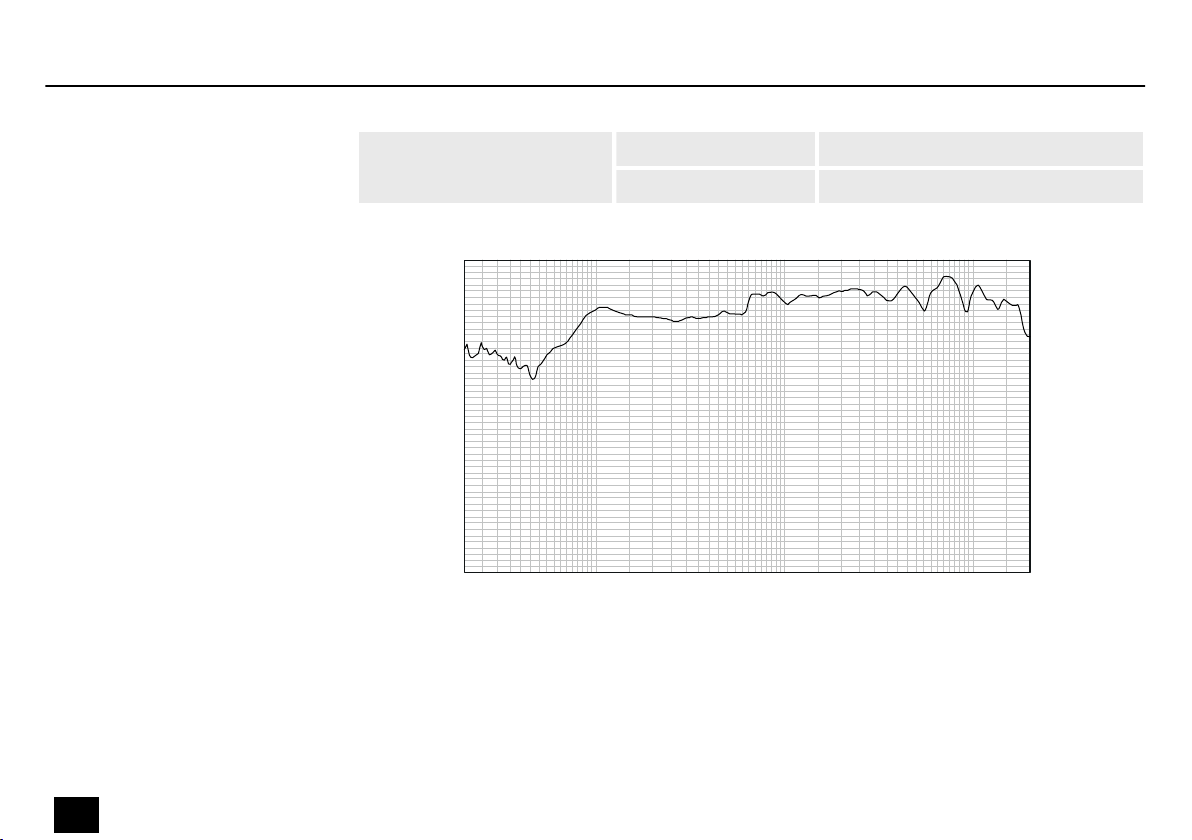

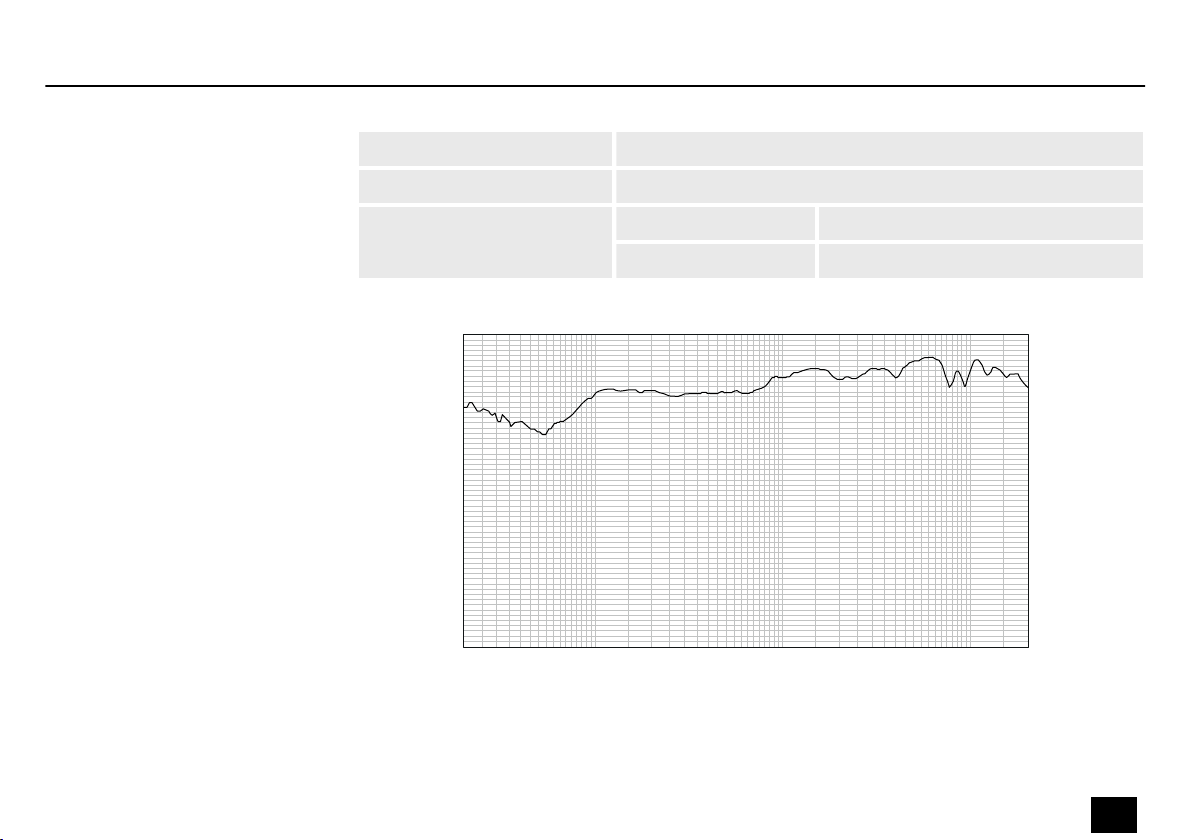

Frequency response
Technical specications
Drop 4, drop 6, drop 8 17
Passive Speaker

(1) vertical, (2) horizontal
ö #
63Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
30º
60º
90º
120º
150º
180º
210º
240º
270º
300º
330º
0º
30º
60º
90º
120º
150º
180º
210º
240º
270º
300º
330º
-24
-18
-12
-6
0
6
12
30º
60º
90º
120º
150º
180º
210º
240º
270º
300º
330º
0º
30º
60º
90º
120º
150º
180º
210º
240º
270º
300º
330º
-24
-18
-12
-6
0
6
12
Polar pattern
Technical specications
18 Drop 4, drop 6, drop 8
Passive Speaker

5.2 Drop 6 (item no. 562014, 562015)
Conguration 1 × 1-inch tweeter
1 × 6.5-inch woofer
Input connections Screw terminals
Frequency response
(+/-3 dB)
47 Hz…20 kHz
Load capacity 40 W (RMS)
60 W (peak)
Sensitivity (1 W/1 m) 85 dB
Rated impedance 8 Ω
Sound pressure level 94.5 dB
Beam angle (H × V) 55° × 55°
International Protection
Rating
IP66

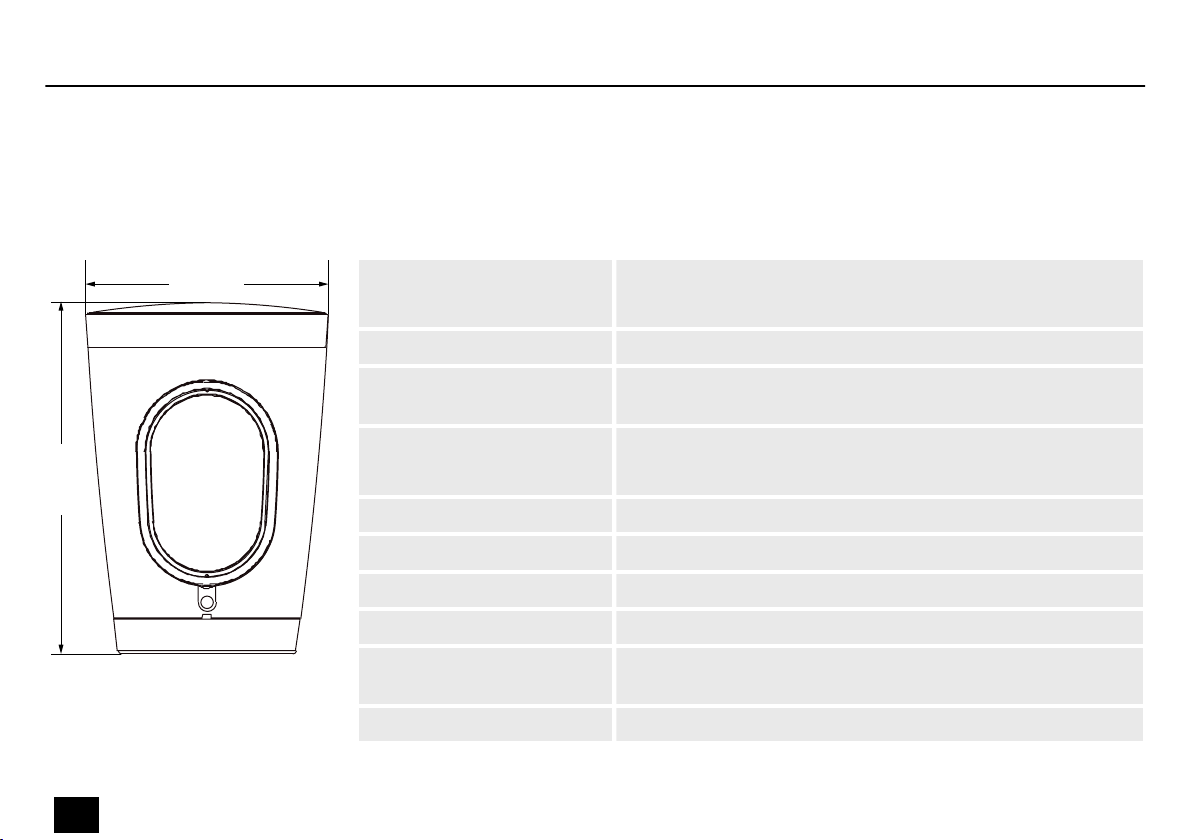

Dimensions (Ø × H) 215 mm × 282 mm
Weight 3.5 kg
Colour black (item no. 562014), white (item no. 562015)
215 mm
282 mm
Technical specications
Drop 4, drop 6, drop 8 19
Passive Speaker

Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20%…80% (non-condensing)
20 50 100 200 500 1K 2K 5 K 10K 20K
0
10
20
30
40
50
60
70
80
90
100 dB
Hz
0
10
20
30
40
50
60
70
80
90
100
Frequency response
Technical specications
20 Drop 4, drop 6, drop 8
Passive Speaker
