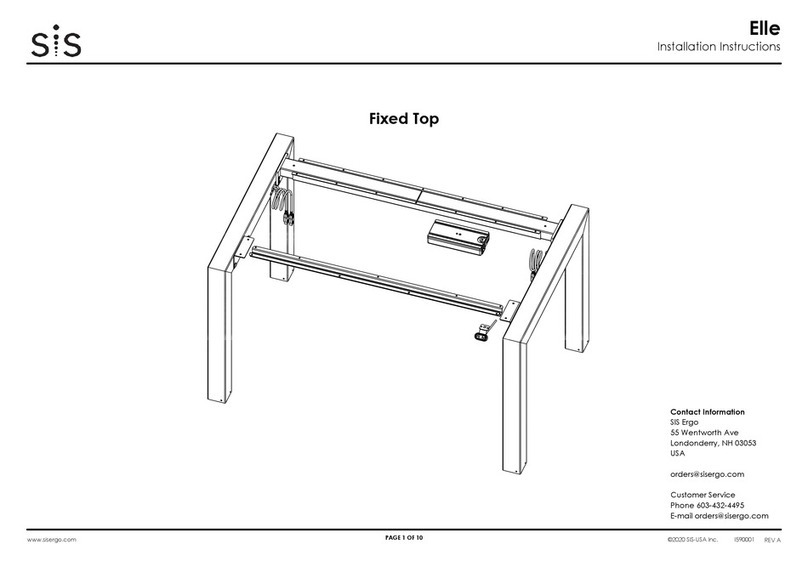

SIS Ergo Elle Series User manual

4xB A
A
1
1
2
3
3
*** For technical support please call 1.800.374.7438 #2007, [email protected] ***
Page: 1 of 5
Elle Series
4-Leg Electric
Components Required:
1. Leg upright x2
2. Adjustable Crossbar x1 (3 Pieces)
3. L Brackets x2
4. Control box x1
5. Control switch x1
6. 120v Power Cord x1
7. Network Cable x4
8. Cable tray x1 (Optional)
9. Hardware Bag x1
10. Battery Pack x1 (Optional)
11. DC Cable with 2-pole minift plug x1 (Optional)
12. Hook & Loop (150mm) x2
13. Hook & Loop (350mm) x1
Assembly Steps:
1. Attach leg uprights(1) to ends of adjustable
crossbar (2) and L-brackets(3) with four M8x20mm
machine screws (B) per component.
2. Attach adjustable crossbar center(2) to
adjustable crossbar ends with two M8x12mm
machine screws(A).Set the spacing for the
adjustable crossbar(2) so that the overall width of
the frame corresponds with the overall width of the
table top to be mounted
NOTE: Depending on frame model, table may not
include optional cable managemet tray (8). If not,
skip to step 6 on page 3.
Tools required: Drill driver, PHILLIPS bit PH2. Hex key 4mm and 5mm.
A x 2 (m8x12)
R011065
B X 16 (m8X20)
R011009
5mm HEX WRENCH
R011905
4mm HEX WRENCH
R011921
C x 4
RM-175
4xB
4xB
4xB
C
C
C
C

1
8
1
*** For technical support please call 1.800.374.7438 #2007, [email protected] ***
Page: 2 of 5
Elle Series
4-Leg Electric
Optional Cable Tray Assembly:
3. Mounting Cable Tray: The cable tray (8) can be
locked into the inside frame rail of the leg uprights (1).
Extend out the machine screw locks on either end of
the cable tray (8) to insert into leg uprights (1) and
rotate to tighten and lock into place. See (FIG.1)
4. Rotate cable tray (8) so that the base of the tray is
flush with underside of leg upright (1). Utilizing threaded
knobs on either end of the tray extend locks into leg
uprights and rotate to lock cable tray (8) in place.
NOTE: To access cable tray (8) after installation, utilize
threaded knobs to unlock and open tray.
Rotate knobs counter-clockwise and side knobs inward
to unlock and drop tray
Tools required: Hex key 4mm
FIGURE 1

14xD
3xD
3xD
5
2xE
*** For technical support please call 1.800.374.7438 #2007, [email protected] ***
Page: 3 of 5
Elle Series
4-Leg Electric
5. Attach adjustable crossbar ends(2) to
worksurface using two M5x50mm wood screws(F),
and adjustable crossbar center(2) to the
worksurface using fourteen M5x25mm wood
screws(D).
6. Attach L-Brackets to worksurface using six
M5x25mm wood screws(D)
7. Attach control switch to worksurface using two
M4x16mm panhead wood screws(E).
NOTE: For frame models that do not utilize a cable
tray, mount control box(4) to underside of
worksurface using two 4x50mm screws(G).
8. Flip the table upright, and lower the cable
tray(8) by loosening the machine screw locks, and
sliding them towards the center of the tray.
Tools required: Drill driver, PHILLIPS bit PH2.
F
F
F x 2 (5x50mm)
R011029
E x 2 (4x16mm)
R011500
D x 20 (5x25mm)
R011528
G x 2 (4x50mm)
R011501

77
6
4
*** For technical support please call 1.800.374.7438 #2007, [email protected] ***
Page: 4 of 5
Elle Series
4-Leg Electric
9. Place control box (4) in cable tray.
10. Connect a network cable (7) to the control box
(4) and then to each network cable port exiting
the leg uprights (1).
11. Connect control switch cable(5) and power
cable (6) to the control box(4), and then power
cord (6) to 120v power outlet.
12. Perform initial reset by pushing the down-button
until the table stops. Push the down-button again
and "hold it" until the legs stop moving.
13. Troubleshooting: Make sure that all cables are
correctly connected to the control box, legs.
control switch, and power source. Perform a new
reset and make sure the procedure has
completely finished before normal operation.
Tools required: Drill driver, PHILLIPS bit PH2. Hex key 4mm.
5

10 11 4
CBD6S Control Box(4)
*** For technical support please call 1.800.374.7438 #2007, [email protected] ***
Page: 5 of 5
Elle Series
4-Leg Electric
Optional Battery Pack Installation
14. Place battery pack (10) in cable tray.
NOTE: For frame models that do not utilize a cable tray
mount battery pack (10) to underside of worksurface using
two 10mm screws.
15. Connect a DC cable (11) to the battery pack (10) and
the opposite end to the port in the control box(4) labeled
"DC".
16. Charging: To charge the battery pack(10), connect the
control box(4) to the 120v power cord (6) and the other
end to a 120V outlet and wait until all LED light bars have
turned off, indicating that the pack is fully charged
(Approximately 5 hours).
17. Troubleshooting: If the battery pack (10) stops working,
disconnect the DC cable(11). Then press the button on the
pack for a minimum of 10 seconds. After doing this, charge
the battery pack(10) using step 17, and reconnect.
Tools required: Drill driver, PHILLIPS bit PH2. Hex key 4mm.
BA001 Battery Box(10)
DC Cable
with 2-Pole
Minift Plug(11)
Appropriate Mains Cable
