Sistemalux S6300 User manual

INSTRUCTIONS SHEET PAGE: 1 of 4
INS-626
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
DM - R9Last update: December 10, 2020
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.

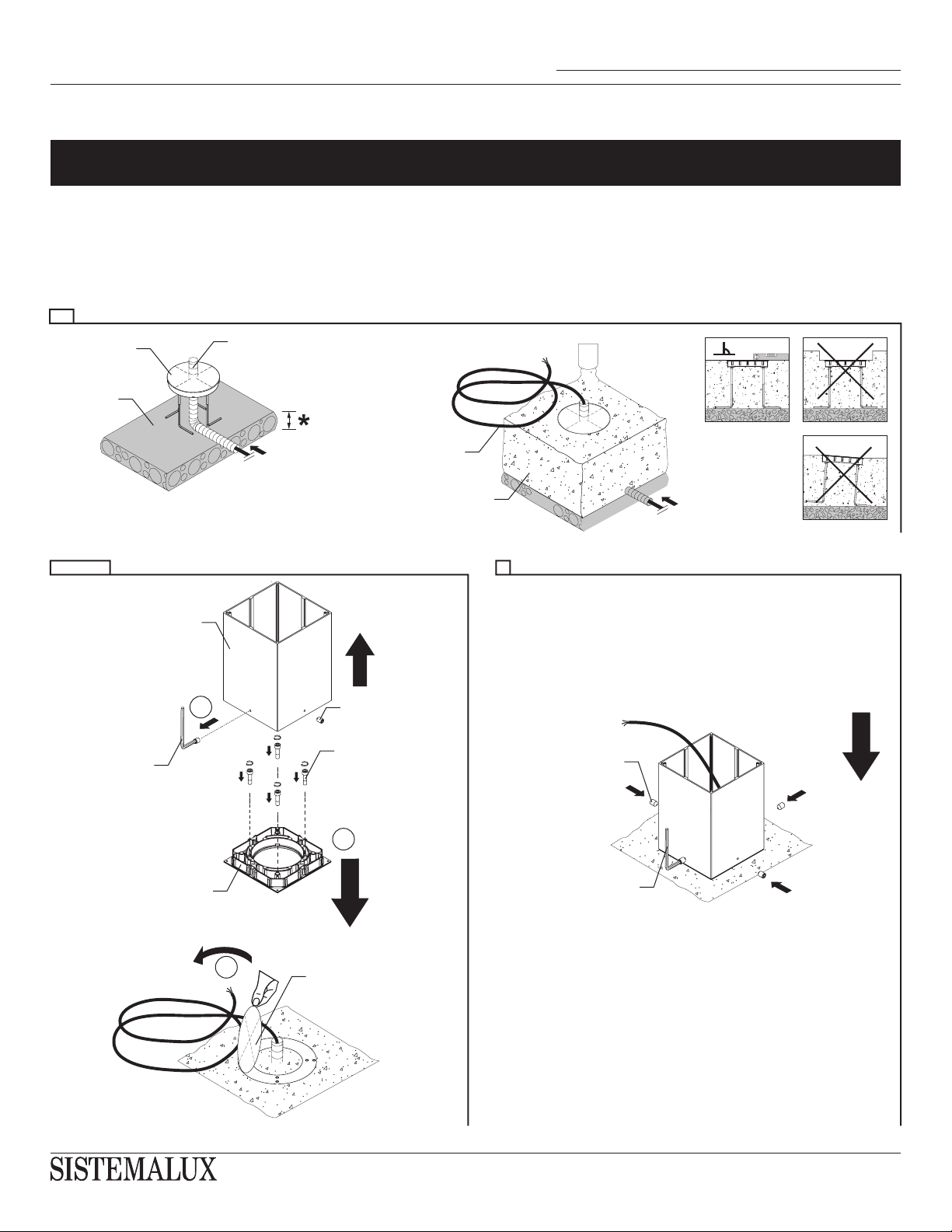

GROUND INSTALLATION IN CONCRETE WITH FLANGE (S5350, S6309).
INTEGRAL DRIVER 120V(120) OR 120-277V (UNV), DIMMING 0-10V (D10)
A
F
A- INSTALL FLANGE ACCESSORY (TO BE ORDERED SEPERATELY) IN CONCRETE, FLUSH WITH MOUNTING SURFACE
B- REMOVE STICKER FROM THE FLANGE.
C- USING THE ALLEN KEY (INCLUDED), UNSCREW THE BOLLARD’S SET SCREWS AND REMOVE THE BOLLARD BODY.
D- FIX THE BOLLARD BASE TO THE FLANGE USING THE (4) SCREWS (INCLUDED).
E- LOWER THE BOLLARD BODY ON IT’S BASE AND SCREW IT BACK WITH THE (4) SET SCREWS USING THE ALLEN KEY.
FLANGE
GRAVEL
BOLLARD BODY
BOLLARD BASE
ELECTRICAL CONDUIT
CONCRETE
POWER
CABLE
90° OK NO!
NO!
B
C
D
STICKER
SCREWS
(INCLUDED)
SET SCREWS
ALLEN KEY
(INCLUDED)
B + C + D
SET SCREWS
ALLEN KEY
KUBE FAMILY
MODELS: S6300, S6306, S6307, S6340, S6346, S6347

F- UNSCREW THE FIXTURE HEAD (4) SET SCREWS WITH THE ALLEN KEY (INCLUDED) AND REMOVE IT.
G- MAKE WIRE CONNECTIONS (FOLLOWING POLARITY MARKING) USING WATERTIGHT CONNECTORS (NOT INCLUDED).
H- FASTEN THE FIXTURE BASE TO THE BOLLARD BODY USING THE (4) SCREWS (INCLUDED).
I - SCREW THE FIXTURE HEAD (4) SET SCREWS TO THE BOLLARD BODY USING AN ALLEN KEY (INCLUDED).
INSTRUCTIONS SHEET PAGE: 2 of 4
INS-626
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
DM - R9Last update: December 10, 2020
SCREWS
(INCLUDED)
F G
I
ALLEN KEY
(INCLUDED)
FIXTURE HEAD
SET SCREWS
POWER CABLE
ALLEN KEY
SET SCREWS
FIXTURE HEAD
BOLLARD BODY
FIXTURE BASE
WATERTIGHT
TWIST CONNECTORS
(NOT INCLUDED)
LIVE / DIM + BLACK
NEUTRAL / DIM - WHITE
GREEN
H
FIXTURE BASE
BOLLARD BODY
KUBE FAMILY
MODELS: S6300, S6306, S6307, S6340, S6346, S6347
WIRING DIAGRAM
DIMMING
0-10V (D10)
120-277V
FIXTURE CABLES
LIVE
(black)
NEUTRAL
(white)
DIM +
(purple)
DIM -
(gray or pink)
GROUND
(green)

INSTRUCTIONS SHEET PAGE: 3 of 4
INS-626
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
DM - R9Last update: December 10, 2020
GROUND INSTALLATION ON ALTERNATIVE SURFACE WITHOUT FLANGE
INTEGRAL DRIVER 120V (120) OR 120-277V (UNV), DIMMING 0-10V (D10)
A- UNSCREW THE FIXTURE HEAD (4) SET SCREWS WITH AN ALLEN KEY (INCLUDED) AND REMOVE IT.
B- DRILL (4) HOLES INTO THE SURFACE (SEE DIMENSIONS BELOW) AND INSTALL APPROPRIATE ANCHORS (NOT INCLUDED).
C- MAKE WIRE CONNECTIONS (FOLLOWING POLARITY MARKING) USING WARTERTIGHT CONNECTORS (NOT INCLUDED)
D- SCREW THE FIXTURE BASE TO THE SURFACE USING (4) #8 SCREWS (INCLUDED).
E- SCREW THE FIXTURE HEAD (4) SET SCREWS TO THE FIXTURE BASE USING THE ALLEN KEY.
A B
ALLEN KEY
(INCLUDED)
FIXTURE HEAD
SET SCREWS
D
C
E
ANCHORS
(NOT INCLUDED)
SURFACE
ALLEN KEY
FIXTURE HEAD
SET SCREWS
#8 SCREWS
WITH WASHERS
(NOT INCLUDED)
FIXTURE BASE
FEEDER CABLE
FIXTURE BASE
ELECTRICAL
CONDUIT
C + D
LIVE / DIM + BLACK
NEUTRAL / DIM - WHITE
GREEN
KUBE FAMILY
MODELS: S6300, S6306, S6307, S6340, S6346, S6347
50,5 mm
27 mm
0
50,5 mm
50,5 mm
34,5 mm
113,5 mm
113,2 mm
50,5 mm
R 50mm
CABLE ENTRY
158 mm
39 mm
232 mm
R 112 mm
59 mm
73 mm
Cable entry
MICRO KUBE KUBE
WIRING DIAGRAM
DIMMING
0-10V (D10)
120-277V
FIXTURE CABLES
LIVE
(black)
NEUTRAL
(white)
DIM +
(purple)
DIM -
(gray or pink)
GROUND
(green)

GROUND INSTALLATION WITH STAKE (S1014, S3554)
INTEGRAL DRIVER 120V
A- SCREW THE STAKE TO THE FIXTURE BASE USING THE (4) PHILLIPS SCREWS (INCLUDED)
B- 1- USE A RUBBER MALLET TO INSERT STAKE INTO THE GROUND.
2- INSERT STAKE TO THE FIRST DISC TO INSURE A LEVELED POSITION WITH THE GROUND.
C- BRING THE FEEDER CABLE TO A JUNCTION BOX (SUPPPLIED BY CONTRACTOR) AND MAKE WIRE CONNECTIONS (FOLLOWING POLARITY
MARKING) USING WATERTIGHT CONNECTORS (NOT INCLUDED).
INSTRUCTIONS SHEET PAGE: 4 of 4
INS-626
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
DM - R9Last update: December 10, 2020
PHILLIPS SCREW
(INCLUDED)
STAKE
FIXTURE BASE
SET SCREWS
ALLEN KEY
FIXTURE HEAD
A B
FEEDER CABLE
STAKE
GROUND
C
C
LIVE / DIM + BLACK
NEUTRAL / DIM - WHITE
GREEN
1
RUBBER
MALLET
2
KUBE FAMILY
MODELS: S6300, S6306, S6307, S6340, S6346, S6347
WIRING DIAGRAM
DIMMING
0-10V (D10)
120-277V
FIXTURE CABLES
LIVE
(black)
NEUTRAL
(white)
DIM +
(purple)
DIM -
(gray or pink)
GROUND
(green)
