GLP impression X4 Bar 20 User manual

from software version: v0.26
Instruction Manual
X4 Bar 20

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 2
Contents
1 Description of Device ..................................................................................................... 3
1.1 Safety Instructions................................................................................................... 4
2 Preparation and Installation............................................................................................ 5
2.1 Safety Information................................................................................................... 5
2.2 Mounting................................................................................................................. 6
2.2.1 Operating on the Floor (Upright)....................................................................... 7
2.2.2 Mounting in hanging or sideways position........................................................ 7
2.3 Securing the Fixture................................................................................................ 7
2.4 Connections............................................................................................................ 7
2.4.1 Power Supply................................................................................................... 7
2.4.2 DMX................................................................................................................. 8
3 The Menu Field .............................................................................................................. 8
4 DMX Chanel Selection (DMX Protocol).......................................................................... 9
4.1 Normal Mode (norm) 34 DMX channels: ................................................................. 9
4.2 Compressed Mode (comp) 20 DMX Channels: ......................................................11
4.3 Single Pixel Mode (spix) 88 DMX Channels:..........................................................13
5 Maintaining and Cleaning..............................................................................................16
5.1 Safety regulations ..................................................................................................16
5.2 Maintenance and Interval (rule-of-thumb)...............................................................16
6 Technical Specifications:...............................................................................................17
7 Dimensions ...................................................................................................................18

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 3

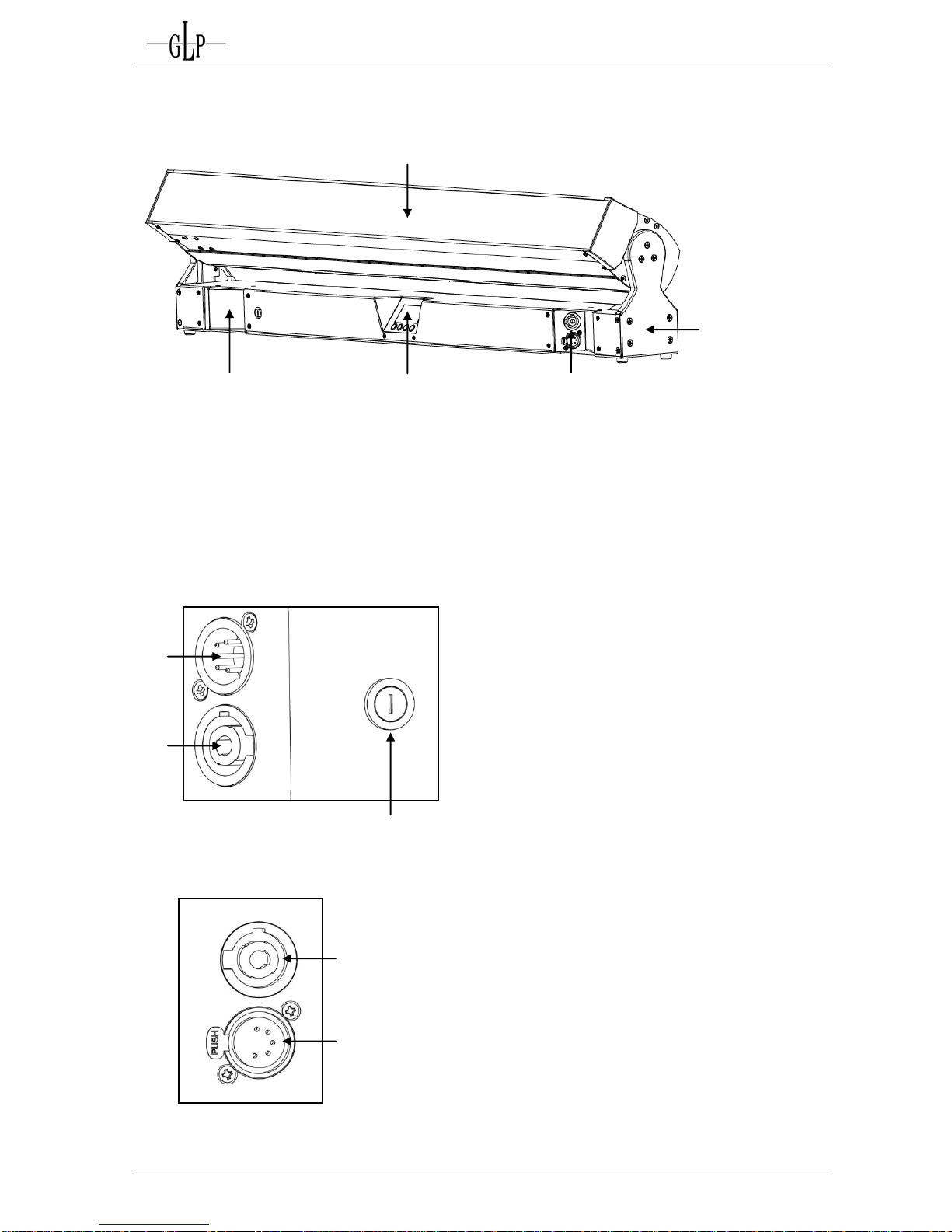

1 Description of Device
1. Moving Bar (actively and passively cooled)
2. LCD-Display / Menu (data entry)
3. Base with rubber feet and Camlock mounting system
A) Base side left
B) Base side right
4. DMX Input (5 pin)
5. Mains Input (blue powerCON)
6. Micro-fuse 5x20mm, T5A
7. Mains Output (white powerCON)
8. DMX Output (5 pin)
1
2
3
4
5
6
7
8
A
B

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 4
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0 is a High-Tech Product. To guarantee
a smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility for
damages through any disregard of the information provided in this
manual. Warranty claims also will be voided in the case that the
fixture housing is opened.
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. Ensure that the fixture head can rotate unhindered throughout its complete
range of pan and tilt movement. A safety distance of at least 0.5 m must be
maintained between the fixture and any easily inflammable material (e.g.
decoration material).
3. Attention! Don’t touch the fixture during the operation. This can cause
injuries and/or damages.
4. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
5. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture.. Pay attention to possible hot parts of the
fixture. -- Danger of BURNING --
6. Never look directly into the beam of light or into one of the LEDs.
Never use optical apertures to observe the beam of light. LED Class 2M.
You'll risk serious injury of your eyes and in particular of your retina.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!
7. To ensure safe operation, follow also the Installation guide described in the
chapter below. Operating the I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0 without suitable
safety aids like Safety cables or clamps/hooks can increase the risk of an
accident and must be avoided.
8. Repair, maintenance, and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicitly mentioned in this manual.
9. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
10. Please keep this instruction manual for future reference.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 5
2 Preparation and Installation
2.1 Safety Information
The I
IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0fixture from GLP is fitted with a number of plano-
convex lenses in a highly efficient collimator cluster. This type of lens can act as
a strong magnifying glass.
If the rays from a strong light source (such as the sun or another lighting fixture)
are directed towards the front of any of these fixtures, then internal damage
may occur. In a worst case scenario with a high power light source this can
happen very quickly, damaging the fixture internally, potentially melting
components or causing an internal fire within seconds.
In order to avoid these possible problems please adhere to the following
requirements:
Do not expose the front of a fixture to direct sunlight or any other strong
light sources.
For outdoor applications during daylight make sure that the front face of
any fixture is either shielded or points away from the sun, even when
fixtures are not in use.
Do not modify the front glass or lenses of any fixture.
These requirements have to be followed regardless of whether a fixture is
powered on or off as the magnifying effect is an optical effect and therefore
independent from the (electrical) state of the fixture.
Especially when working with high powered b be ea am m- -l li ig gh ht ts s; extreme caution and
observance of these safety instructions is mandatory.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 6
Should you have any questions about the operation of your fixture then please
contact your local GLP office, or their authorized distributor, a list of which can
be found at http://www.glp.de.

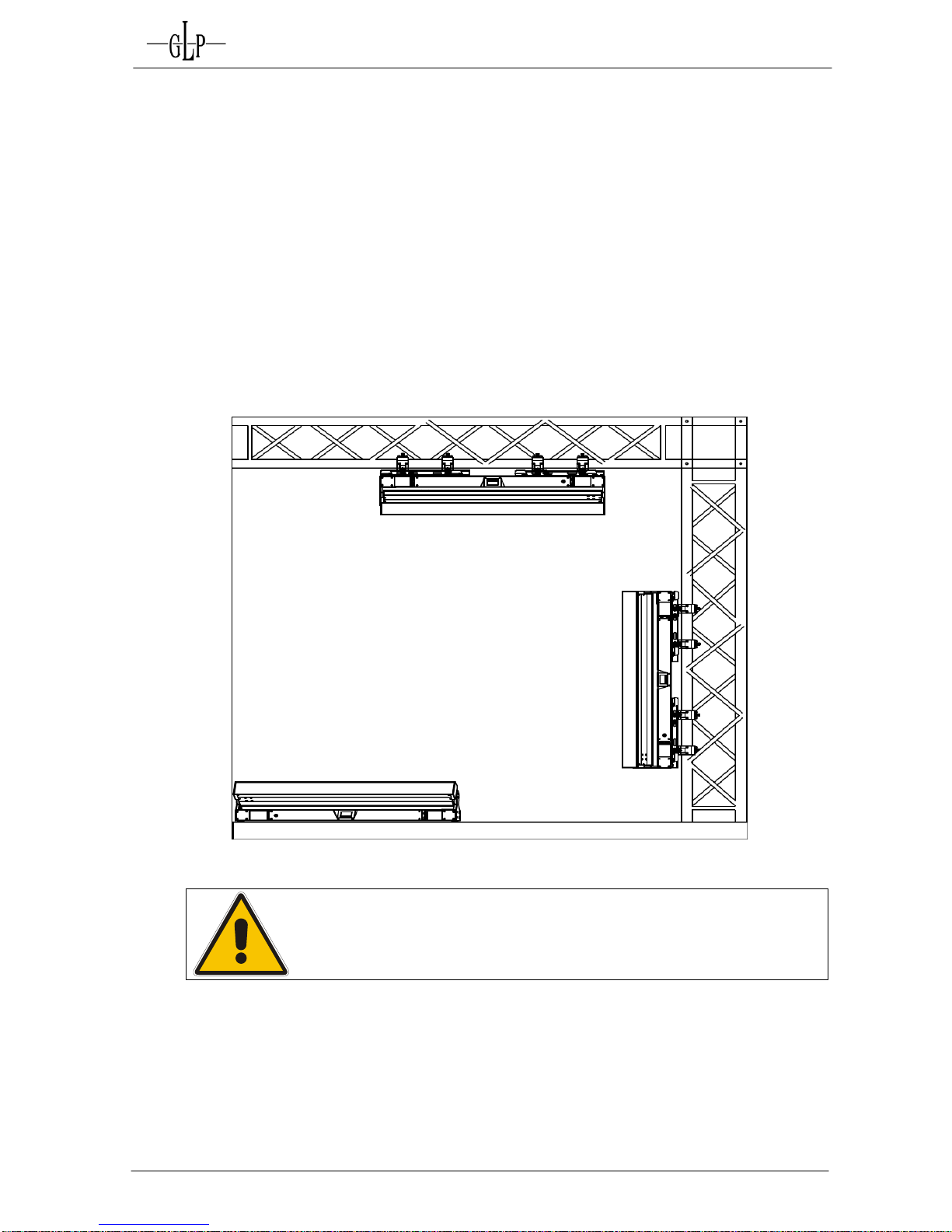

2.2 Mounting
The I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0 is fully operational whether it hangs or is mounted
to the wall. It can also be operated while standing on the floor. Keep a safety
distance of min. 0.5 m towards any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the I
IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0(standing on
the floor, sideways or hanging) different accessories kits are available. Through
this a safe and firm installation is assured. You'll find dedicated connectors on
the bottom side of the fixture which should be used.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 7
2.2.1 Operating on the Floor (Upright)
The I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0is fitted with 4x solid rubber feet which allows a
stable standing of the fixture. An additional securing is usually not required.
Please pay attention to an even and gripping surface.
2.2.2 Mounting in hanging or sideways position
To operate the I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0in a hanging position please use the two
(2) dedicated brackets supplied with your fixture. They are fixed to the base of the
fixture with fasteners called Camlock quick-release connectors. Insert the four
fasteners of each and turn each 90° to lock them. Do the opposite to release them
again.
2.3 Securing the Fixture
Regardless of the mounting method of the I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0you'll have to
use a stipulated safety wire. Attach the safety wire through the bracket on the
base of the fixture and connect it to the primary support structure. Pay attention to
a safe and proper fastening. The safety cable must comply with BGI 810-3 (EN
60598-2-17 Section 17.6.6) and be capable of bearing a static suspended load
that is ten times the weight of the fixture and all installed accessories.
2.4 Connections
2.4.1 Power Supply
~100-240 Volt AC, 50-60 Hz, powerCON AC connector
Connected load 450 VA (W) <=> T5A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
4 x Camlock for bracket #1
4 x Camlock for bracket #2

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 8
NEUTRIK® powerCON
The I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0is fitted with NEUTRIK® powerCON locking 3
conductor AC connectors. Up to max. 10 fixtures can be linked via the power
outlets staying within the power limits of the 20A of the connectors.
Note: Regional regulations
and limits might be lower
and differ from that.
2.4.2 DMX
USITT DMX-512 Standard input/output in 5-pin connectors.
Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4&5 N.C.
The DMX- Addressing starts at the DMX- Address [001].
3 The Menu Field
To lock or unlock the keys of the menu field press Mode + Enter + Up simultaneously.
You’ll find the control board on the side part of the arm. It allows you
to make all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r.
With the Mode-key you get into the main menu. Afterwards you can
Navigate through the menu with the Up/Down-keys. Push the Enter-
key to get in the next menu level or to confirm your settings. Make
them and set functions ON/OFF with the Up/Down-keys. Confirm
and save it with the Enter-key (the display shows OK). Push the
Mode-key to cancel the entry and go back to the main menu.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 9
4 DMX Chanel Selection (DMX Protocol)
4.1 Normal Mode (norm) 34 DMX channels:
Channel
Function
Time and Value
DMX
1
Tilt - High
Tilt coarse
0° - 210°
0..255
2
Tilt - Low
Tilt fine
0..255
3
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255
4
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
8..255
for ALL colors
5
Set 1 Color
(fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White - CTO
3200K
104..111
White
5600K
112..119
White - CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Set 1 Red
Color mixing system - Red
0 - 100%
0..255
7
Set 1 Green
Color mixing system - Green
0 - 100%
0..255
8
Set 1 Blue
Color mixing system - Blue
0 - 100%
0..255
9
Set 1 White
Color mixing system - White
0 - 100%
0..255
10
Set 1 Intensity
Intensity
0 - 100%
0..255
11
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 10
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
12
Intensity
Intensity
0 - 100%
0..255
13
Special
RESET
> 1 sec
250..255
14
Set 2 Color 4)
Values see Channel 5
-
-
15
Set 2 Red 4)
Color mixing system - Red
0 - 100%
0..255
16
Set 2 Green 4)
Color mixing system - Green
0 - 100%
0..255
17
Set 2 Blue 4)
Color mixing system - Blue
0 - 100%
0..255
18
Set 2 White 4)
Color mixing system - White
0 - 100%
0..255
19
Set 2 Intensity 4)
Intensity
0 - 100%
0..255
20
Set 3 Color 4)
Values see Channel 5
-
-
21
Set 3 Red 4)
Color mixing system - Red
0 - 100%
0..255
22
Set 3 Green 4)
Color mixing system - Green
0 - 100%
0..255
23
Set 3 Blue 4)
Color mixing system - Blue
0 - 100%
0..255
24
Set 3 White 4)
Color mixing system - White
0 - 100%
0..255
25
Set 3 Intensity 4)
Intensity
0 - 100%
0..255
26
Crossfade
0..2 seconds transistion time
0..255
27
Star Effect
0..255
28
Set 1 Pattern
0..255
Select
29
Set 1 Pattern
0..255
Movement
30
Set 2 Pattern
0..255
Select
31
Set 2 Pattern
0..255
Movement
32
Pixel Select
0..255
1 - 8
33
Pixel Select
0..255
9 - 16
34
Pixel Select
0..255
17 - 20

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 11
4.2 Compressed Mode (comp) 20 DMX Channels:
Channel
Function
Time and Value
DMX
1
None
reserved
-
2
None
reserved
-
3
Tilt - High
Tilt coarse
0° - 210°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Set 1 Color
(fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White - CTO
3200K
104..111
White
5600K
112..119
White - CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Set 1 Red
Color mixing system - Red
0 - 100%
0..255
7
Set 1 Green
Color mixing system - Green
0 - 100%
0..255
8
Set 1 Blue
Color mixing system - Blue
0 - 100%
0..255
9
Set 1 White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
11
Intensity
Intensity
0 - 100%
0..255

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 12
12
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
8..255
for ALL colors
13
Special
RESET
> 1 sec
250..255
14
Crossfade
0..2 seconds transistion time
0..255
15
Set 1 Pattern
0..255
Movement
16
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255
17
Set 1 Pattern
0..255
Select
18
Pixel Select
0..255
1 - 8
19
Pixel Select
0..255
9 - 16
20
Pixel Select
0..255
17 - 20

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 13
4.3 Single Pixel Mode (spix) 88 DMX Channels:
Channel
Function
Time and Value
DMX
1
Tilt - High
Tilt coarse
0° - 210°
0..255
2
Tilt - Low
Tilt fine
0..255
3
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
4
Intensity
Intensity
0 - 100%
0..255
5
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
for ALL colors
8..255
6
Special
RESET
> 1 sec
250..255
7
Crossfade
0..2 seconds transistion time
0..255
8
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255
9
Set 1 Red
Color mixing system - Red
0 - 100%
0..255
10
Set 1 Green
Color mixing system - Green
0 - 100%
0..255
11
Set 1 Blue
Color mixing system - Blue
0 - 100%
0..255
12
Set 1 White
Color mixing system - White
0 - 100%
0..255
13
Set 2 Red
Color mixing system - Red
0 - 100%
0..255
14
Set 2 Green
Color mixing system - Green
0 - 100%
0..255
15
Set 2 Blue
Color mixing system - Blue
0 - 100%
0..255
16
Set 2 White
Color mixing system - White
0 - 100%
0..255
17
Set 3 Red
Color mixing system - Red
0 - 100%
0..255
18
Set 3 Green
Color mixing system - Green
0 - 100%
0..255
19
Set 3 Blue
Color mixing system - Blue
0 - 100%
0..255
20
Set 3 White
Color mixing system - White
0 - 100%
0..255
21
Set 4 Red
Color mixing system - Red
0 - 100%
0..255
22
Set 4 Green
Color mixing system - Green
0 - 100%
0..255
23
Set 4 Blue
Color mixing system - Blue
0 - 100%
0..255
24
Set 4 White
Color mixing system - White
0 - 100%
0..255
25
Set 5 Red
Color mixing system - Red
0 - 100%
0..255
26
Set 5 Green
Color mixing system - Green
0 - 100%
0..255
27
Set 5 Blue
Color mixing system - Blue
0 - 100%
0..255

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 14
28
Set 5 White
Color mixing system - White
0 - 100%
0..255
29
Set 6 Red
Color mixing system - Red
0 - 100%
0..255
30
Set 6 Green
Color mixing system - Green
0 - 100%
0..255
31
Set 6 Blue
Color mixing system - Blue
0 - 100%
0..255
32
Set 6 White
Color mixing system - White
0 - 100%
0..255
33
Set 7 Red
Color mixing system - Red
0 - 100%
0..255
34
Set 7 Green
Color mixing system - Green
0 - 100%
0..255
35
Set 7 Blue
Color mixing system - Blue
0 - 100%
0..255
36
Set 7 White
Color mixing system - White
0 - 100%
0..255
37
Set 8 Red
Color mixing system - Red
0 - 100%
0..255
38
Set 8 Green
Color mixing system - Green
0 - 100%
0..255
39
Set 8 Blue
Color mixing system - Blue
0 - 100%
0..255
40
Set 8 White
Color mixing system - White
0 - 100%
0..255
41
Set 9 Red
Color mixing system - Red
0 - 100%
0..255
42
Set 9 Green
Color mixing system - Green
0 - 100%
0..255
43
Set 9 Blue
Color mixing system - Blue
0 - 100%
0..255
44
Set 9 White
Color mixing system - White
0 - 100%
0..255
45
Set 10 Red
Color mixing system - Red
0 - 100%
0..255
46
Set 10 Green
Color mixing system - Green
0 - 100%
0..255
47
Set 10 Blue
Color mixing system - Blue
0 - 100%
0..255
48
Set 10 White
Color mixing system - White
0 - 100%
0..255
49
Set 11 Red
Color mixing system - Red
0 - 100%
0..255
50
Set 11 Green
Color mixing system - Green
0 - 100%
0..255
51
Set 11 Blue
Color mixing system - Blue
0 - 100%
0..255
52
Set 11 White
Color mixing system - White
0 - 100%
0..255
53
Set 12 Red
Color mixing system - Red
0 - 100%
0..255
54
Set 12 Green
Color mixing system - Green
0 - 100%
0..255
55
Set 12 Blue
Color mixing system - Blue
0 - 100%
0..255
56
Set 12 White
Color mixing system - White
0 - 100%
0..255
57
Set 13 Red
Color mixing system - Red
0 - 100%
0..255
58
Set 13 Green
Color mixing system - Green
0 - 100%
0..255
59
Set 13 Blue
Color mixing system - Blue
0 - 100%
0..255
60
Set 13 White
Color mixing system - White
0 - 100%
0..255
61
Set 14 Red
Color mixing system - Red
0 - 100%
0..255
62
Set 14 Green
Color mixing system - Green
0 - 100%
0..255
63
Set 14 Blue
Color mixing system - Blue
0 - 100%
0..255
64
Set 14 White
Color mixing system - White
0 - 100%
0..255
65
Set 15 Red
Color mixing system - Red
0 - 100%
0..255

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 15
66
Set 15 Green
Color mixing system - Green
0 - 100%
0..255
67
Set 15 Blue
Color mixing system - Blue
0 - 100%
0..255
68
Set 15 White
Color mixing system - White
0 - 100%
0..255
69
Set 16 Red
Color mixing system - Red
0 - 100%
0..255
70
Set 16 Green
Color mixing system - Green
0 - 100%
0..255
71
Set 16 Blue
Color mixing system - Blue
0 - 100%
0..255
72
Set 16 White
Color mixing system - White
0 - 100%
0..255
73
Set 17 Red
Color mixing system - Red
0 - 100%
0..255
74
Set 17 Green
Color mixing system - Green
0 - 100%
0..255
75
Set 17 Blue
Color mixing system - Blue
0 - 100%
0..255
76
Set 17 White
Color mixing system - White
0 - 100%
0..255
77
Set 18 Red
Color mixing system - Red
0 - 100%
0..255
78
Set 18 Green
Color mixing system - Green
0 - 100%
0..255
79
Set 18 Blue
Color mixing system - Blue
0 - 100%
0..255
80
Set 18 White
Color mixing system - White
0 - 100%
0..255
81
Set 19 Red
Color mixing system - Red
0 - 100%
0..255
82
Set 19 Green
Color mixing system - Green
0 - 100%
0..255
83
Set 19 Blue
Color mixing system - Blue
0 - 100%
0..255
84
Set 19 White
Color mixing system - White
0 - 100%
0..255
85
Set 20 Red
Color mixing system - Red
0 - 100%
0..255
86
Set 20 Green
Color mixing system - Green
0 - 100%
0..255
87
Set 20 Blue
Color mixing system - Blue
0 - 100%
0..255
88
Set 20 White
Color mixing system - White
0 - 100%
0..255
The Pixel are numbered left to right 1 –20 as shown below.
Tilt DMX Value = 0 / “Display” to the front / “Power & DMX In” to the left.
1) The predefined colors can be used as start-colors for the Rainbow effect. Please select first a
desired start-color before you activate the rainbow effect. All I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0will then
start from that color and will execute the rainbow effect synchronously. Different I IM MP PR RE ES SS SI IO ON N
X
X4 4 B Ba ar r 2 20 0can have different start-colors but will still execute the rainbow effect synchronously.
If you choose a color different from the ones marked with 1) in the tables above the rainbow start-
color will be red.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 16
2) Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued
from the current color.
3) The Rainbow-effect will run synchronously only if started from one of the predefined colors (see
also 1) before).
5 Maintaining and Cleaning
The I IM MP PR RE ES SS SI IO ON N X X4 4 B Ba ar r 2 20 0is a fixture of very low maintenance. It is only
necessary to clean the air inlets and outlets as well as the optical LED lenses from
time to time. For safe operation it is absolutely essential that the fixture is kept clean
and that dust, dirt and smoke-fluid residues must not build up on, or within the fixture.
Otherwise the fixture's light-output will be significantly reduced or damages can
occur. Regular cleaning will not only ensure the maximum light-output, but will also
allow the fixture to operate reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended, under no circumstances should alcohol or solvents be used!
5.1 Safety regulations
Pull out the mains power plug!
Wait min. 15 minutes after disconnecting power to allow the fixture to cool
down.
5.2 Maintenance and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence no
general guidelines can be given. The intervals given below are only suggestions
from our experience.
Position
Interval
In this way
LED reflector and optical system
weekly
soft brush /lint-free cloth
Fan and air channel
monthly
vacuum cleaner, airbrush, etc.
Attention:
Never let optical parts come into contact with oil or fat.
Before running the fixture wait until all parts are dry.
Never tough lenses with bare fingers.

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 17
6 Technical Specifications:
Power supply
Power consumption
450 VA (Watt)
Power Input
Auto sensing 100-240 V AC, 50-60 Hz
Fuse protection
Micro-fuse 5x20 mm, T5A
Operational Parameters
Max. Ambient
Temperature
5° - 45°C (integrated overheating switch)
40°-113°F
Mounting Position
Any (see relevant chapter in the manual)
Lighting System - Additive Color mixing
LED Type
20 x Osram Ostar RGBW multi-chip
Lifetime
50,000 h
Wavelength optimized for maximum presentable color space
Optical System
Full RGBW / High efficient Collimator cluster
Shutter / Dimmer (8/16 Bit)
Strobe- Effect with variable speed between 1-10 flashes per second, Random- & Pulse-Effects
Continuous Dimmer 0 - 100%
Zoom
7 to 50 degree continuous zoom
Optical Patterns
Several pre-defined beam patterns with direct access and manipulation
DMX Control
Standard USITT DMX-512, 5 pin XLR: [+]=Pin 3 / [-]=Pin 2 / [Ground]=Pin 1 / Pin 4&5 N.C.
The DMX- Addressing starts at the DMX channel [001].
Tilt (8/16 Bit)
Tilt- movement
210° in min. 1.5 seconds (Position Feedback)
Weights and Measures
Length
1000 mm / 39.4´´
Width
100 mm / 3.9´´
Height
240 mm / 9.4´´
Weight (net)
14.5 kg / 32 lbs
Weight with 2 brackets
16 kg / 35 lbs

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 18
7 Dimensions

GLP German Light Products GmbH
Impression X4 Bar 20 from software version: v0.26 19
