Sitro Group Gasmate STELLAR BLACK AH2066 Guide

5241 07/20
IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE USE
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open ame.
3. If odour continues, immediately call your gas supplier.
Do not store or use gasoline or other ammable vapour
and liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Read the instructions thoroughly before installing or
servicing this equipment.
FOR OUTDOOR USE ONLY
ULPG/LPG
Model No. AH2066
The ideal solution for extending the season of
outdoor entertaining
Creates a stylish and attractive ambience
Rotary ignition
Includes a safety ‘tip-over’ switch that halts supply of
gas to the unit should it be accidentally knocked over
Stainless steel burner for extra long-term reliability
Complete with hose and regulator
Efcient and powerful 40MJ/h output
Adjustable heat output
Operates for approximately 9 hours on a properly
lled 9Kg cylinder
For outdoor use only
Gas certied to New Zealand standards
STELLAR BLACK
DELUXE AREA HEATER

2
Installation, Operation and Maintenance Instructions
INSTALLATION
3. Proper clearance from combustible materials must be
maintained at all times. The minimum clearances are
as follows:
Minimum Clearance from Combustibles:
Side 500 mm Rear 500 mm
Ceiling 1000 mm
Combustible materials are considered to be wood,
compressed paper, plant bres, plastic, plexiglas or other
materials capable of being ignited and burned.
Such materials shall be considered combustible even
though ame proofed, re-retardant treated or plastered.
Additional clearance may be required for glass, painted
surfaces and other materials which may be damaged by
radiant or convection heat.
4. Heaters must be placed on a level and adequate
footing and be readily accessible.
5. The gas manifold supply pressure must be regulated at
2.75 kPa utilising an approved regulator (supplied with
heater).
6. The appliance must be inspected before each use, and
at least annually by a qualied service person.
a. The appliance area must be kept clear and free of
combustible materials, gasoline and other ammable
vapours and liquids.
b. Gas orices and burner must be kept clear of dirt
and cobwebs. Flow of combustion and ventilation air
through the perforated portions of the heater must not
be obstructed. Cleaning with a soft brush before use
and at least every six months is recommended.
c. All gas connections should be checked for
leaks utilising a soap solution. Never use a ame for
this purpose.
d. The ame pattern should be visually checked
whenever heater is operated. If ames extend beyond
surface of the guard the appliance should be turned
off and should not be operated again until the unit is
serviced and or repaired.
e. Any cleaning agent used on the heater should be of a
non-combustible and non-corrosive nature.
f. The stainless steel emitter normally does not require
cleaning and should NEVER be painted.
Important Safety Rules
This appliance must only be used in a well ventilated
area.
1. This appliance shall not be installed or used
indoors, in buildings, garages or any other
enclosed area.
2. DO NOT place articles on or against this
appliance.
3. DO NOT use or store ammable materials near
this appliance.
4. Children and adults should be alerted to the
hazards of high surface temperatures, burns and
clothing ignition.
5. Children should be carefully supervised when
they are in the area of the appliance.
6. NEVER hang anything including clothes or other
ammable items on the appliance.
7. DO NOT operate this appliance unless it is fully
assembled with burner guard in place.
8. DO NOT SPRAY AEROSOLS IN THE VICINITY
OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
9. Installation and repair should be done by a
qualied service person. The appliance must be
inspected before use and at least annually by
a qualied service person. It is imperative that
control compartment, burners and circulating air
passages of the heater be kept clean.
Prior to assembling your appliance, the following must
be reviewed. Compliance with the following should result
in satisfactory heater operation. This instruction manual
should be retained for future reference. The installation
must conform with local codes or authority having
jurisdiction.
1. The patio heater is intended for heating residential and
non-residential outdoor spaces. The installation must
conform with New Zealand and Australian Standard
AS/NZS 5601. (Gas installation)
2. Adequate clearance around air openings into the
combustion chamber, clearances from combustible
materials, provisions for accessibility and for
combustion and ventilating air supply must be
maintained at all times when the appliance is
operating.

3
7. The hose must be protected from contact with hot or
sharp surfaces both during use and while in storage.
The hose assembly should be visually inspected prior
to each use of the heater. If excessive abrasion or
wear is evident, or the hose is cut, it must be replaced
prior to operating the heater. The replacement hose
assembly may be obtained from the manufacturer.
8. DO NOT use any pressure regulator or hose assembly
other than those supplied with the appliance.
Replacement pressure regulator and hose assembly
must be those specied. Replacement parts maybe
obtained from the manufacturer or your local sales
representative.
9. Installation and use of this heater must conform with
local codes and AS/NZS 5601.
10. This heater is designed to operate with a standard 9Kg
propane cylinder with Approved Cylinder Connection.
11. The valve outlet must be maintained in good condition.
When the cylinder is not in use, be sure to cover it
with a dust cap. A leak test should be performed with
soapy water whenever connecting a new cylinder.
NEVER use a match to test for leaks.
12. The propane cylinder must be turned off whenever the
heater is not in use. When the heater is to be stored
indoors, the propane cylinder and the heater must be
disconnected and the cylinder stored in accordance
with the Standard for Storage and Handling of
Liqueed Gases.
13. The appliance has been designed with several safety
features which include a tip over switch.
IMPORTANT
Storage of an appliance indoors with the cylinder
attached is only permitted if the size of the cylinder
complies with AS/NZS 1596; otherwise cylinders must
be stored outdoors in a well ventilated area.
The guards are tted to this appliance to reduce the risk
of re or injury from burns and no part of it should be
removed.
This appliance must be protected from exposure to rain.
Any modication to the heater not described in the
installation instructions may compromise the safety of this
appliance. Special concern is as follows:
(1) DO NOT bypass thermocouple safety burner;
(2) DO NOT operate heater without the guard;
Clothing or other ammable materials should not be hung
from the heater, or placed on or near the heater. The area
above the burner may be extremely hot. Direct contact with
these metal surfaces should be avoided in order to prevent
burns or clothing ignition.
Heater specications can be found on the data label.
Screw the coupling nut of regulator into the cylinder valve
outlet.

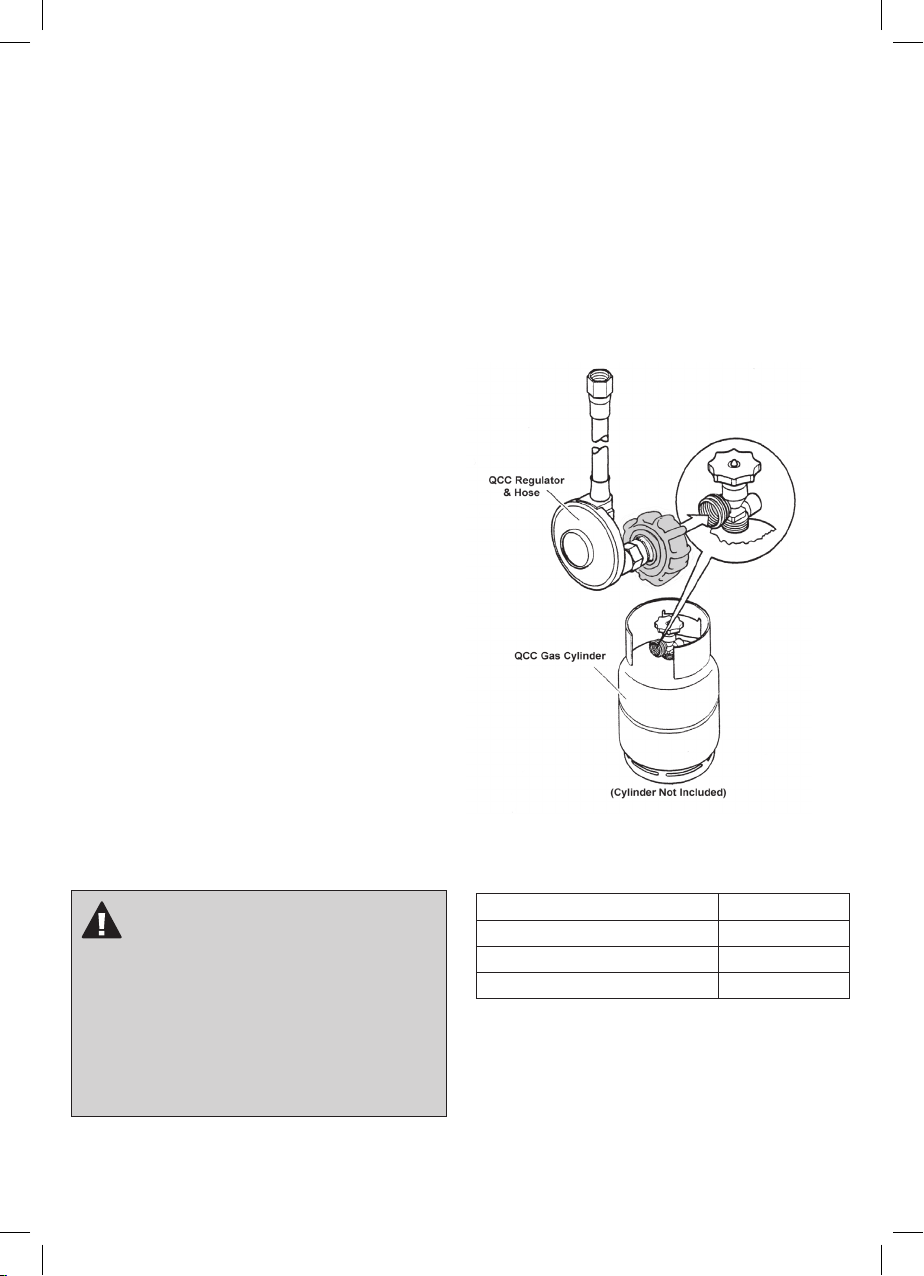

QCC CYLINDER CONNECTION DEVICE
Screw the coupling nut of regulator into the cylinder valve outlet.
Q.C.C. CYLINDER CONNECTION DEVICE
Type of Gas ULPG/LPG
Consumption 40 MJ/h
Operating Pressure 2.75 kPa
Injector Size 1.85 mm

4
Tools Required
Phillips head screwdriver
2 Adjustable spanners
Note: Remove any transit protection
material
STEP 1
Secure the base to the cylinder house
body with ve M8 x 12mm long bolts.
STEP 2
Secure the burner head to the inside of
the cylinder house body with ve M5 x
8mm long screws, washers and nuts.
STEP 3
Securely attach the hose to the burner
head and the regulator to a gas cylinder,
check the connections for leaks using a
soapy water solution.
STEP 4
Attach the door hinges to the body and
the door with 8 M5 screws and nuts.

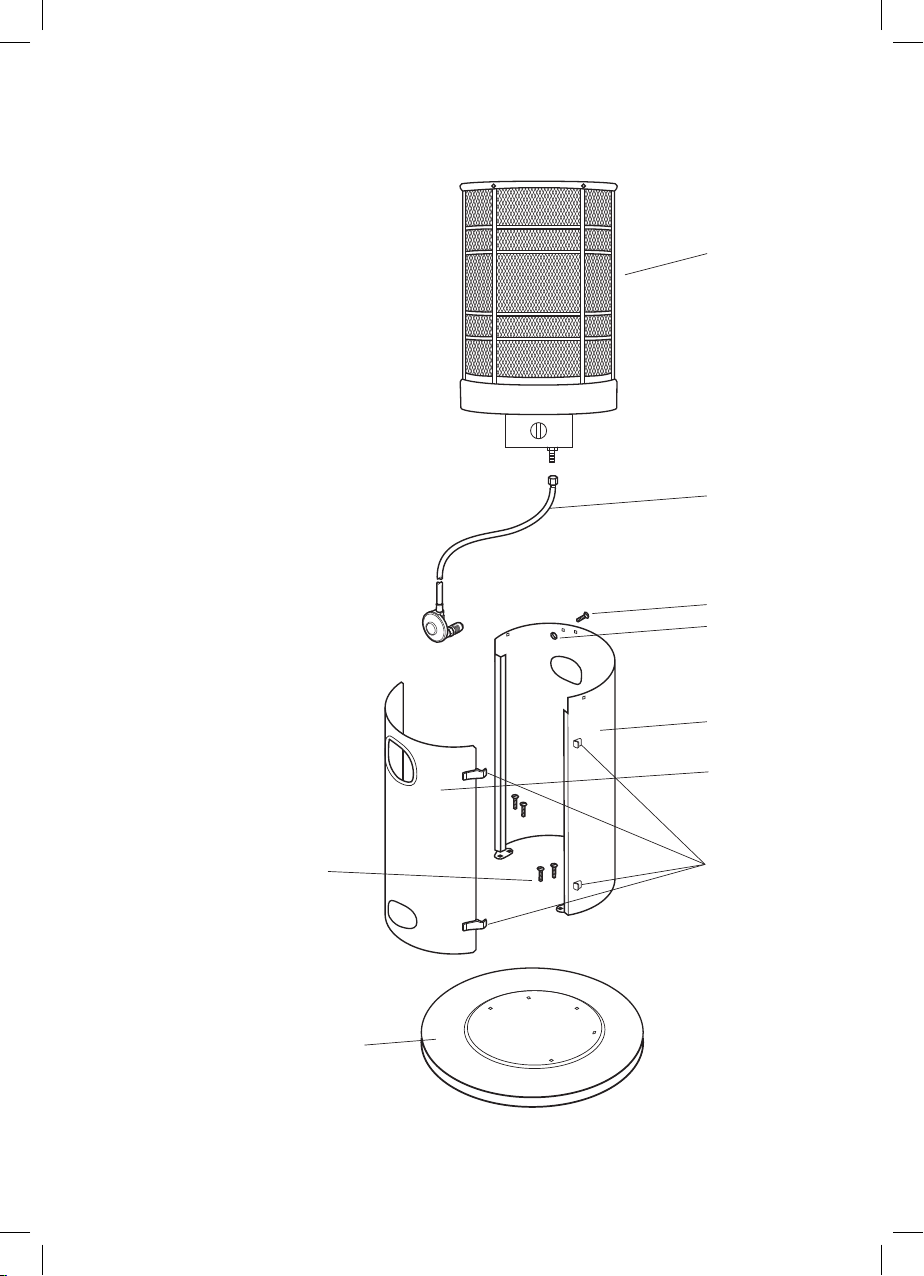

AREA HEATER ASSEMBLY
Burner head
assembly
Flexible hose
assembly
M5 screw 8mm long
M5 nuts
Cylinder
house body
Cylinder
house door
Locks
Base
M8 bolt 12mm long

5
AREA HEATER - For Outdoor Use Only

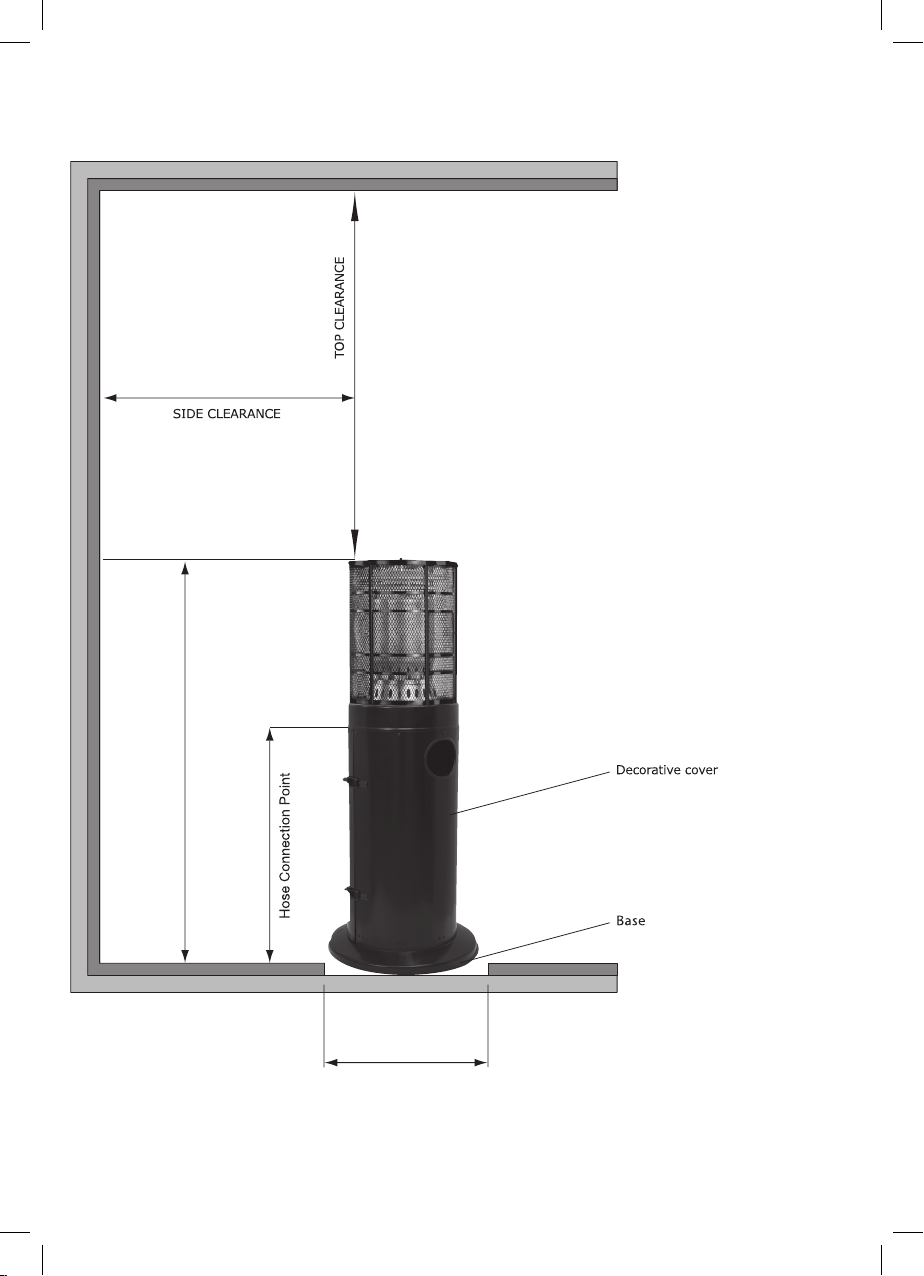

Minimum Clearance from Combustible Surfaces*:
*Combustible materials are considered to be wood, compressed paper, plant bres,
plastic or other materials that are capable of being ignited and burned.
500mm
1330mm
630mm
540mm
1000mm

6
TEST FIRING HEATER
Test re heater, following the lighting instructions. Leak test all gas connections with soapy water. Soap bubbles indicate
gas leakage. DO NOT use a match to test for gas leaks.
WARNING: White smoke may appear around the radiant head during the rst minute of the initial ring.
TROUBLE SHOOTING
Problem Possible Causes Solution
Main burner
won’t light
No gas Replace cylinder
Low gas pressure Replace cylinder
Blockage in orice Remove blockage
Manual valve not in ‘LOW’ or ‘HIGH’ position Position to ‘HIGH’
Exposure to rain Remove emitter and clean burner ports
NOTE: If the appliance cannot be adjusted to perform correctly it should not be used until serviced or repaired.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Any modications or adjustments made to product without prior authority from the manufacturer will void
any warranty claims. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.

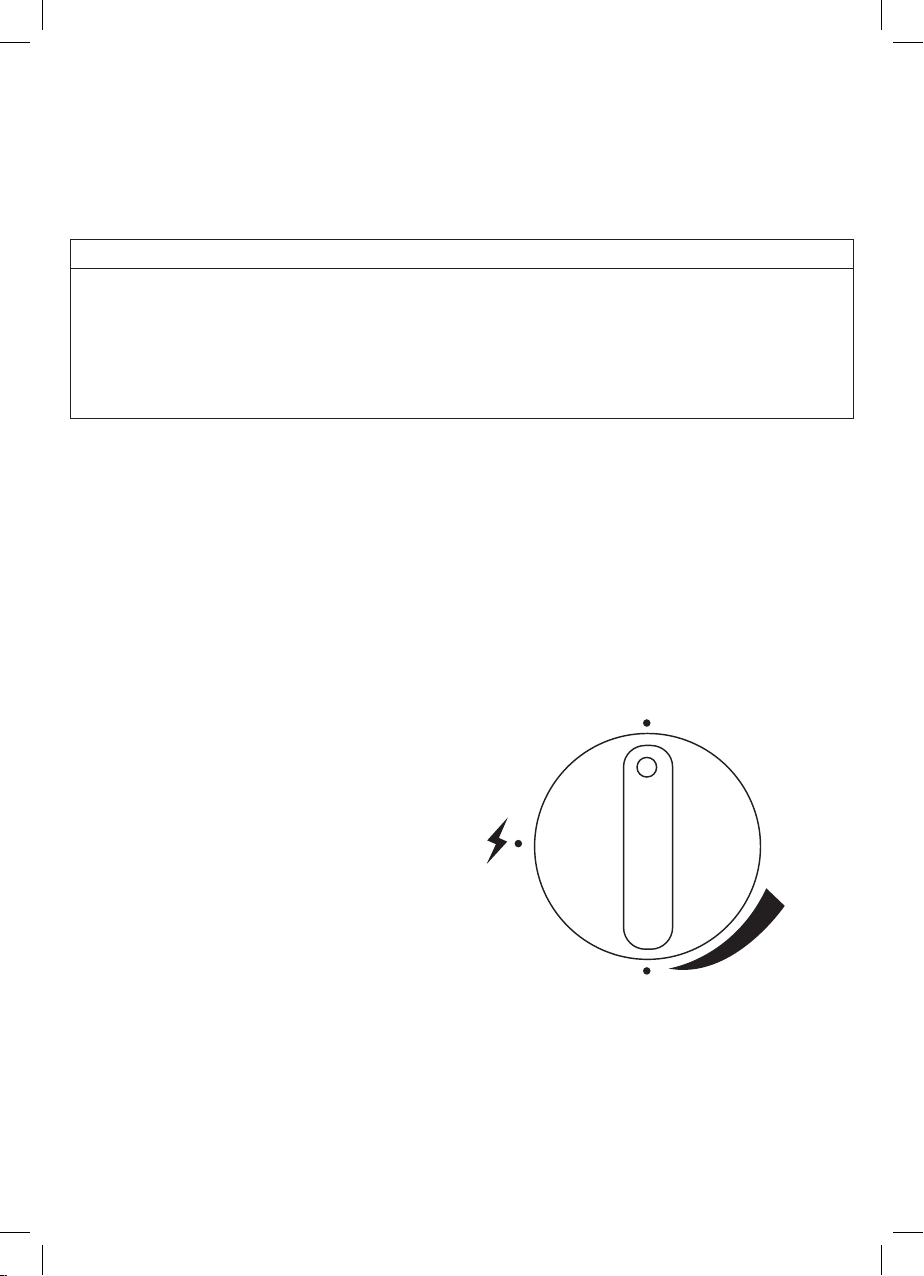

LIGHTING INSTRUCTIONS
WARNING: White smoke may appear around the radiant
head during the rst minutes of the initial ring.
1. Ensure that the control knob is off. Slowly open the
gas cylinder valve.
2. Push in control knob and turn anti-clockwise to
‘PILOT’. The rotary piezo will make a clicking sound.
3. Check for ame at the pilot. If pilot does not light
immediately turn control knob to ‘OFF’ position and
try again from the start. Allow 30 seconds between
ignition attempts for gas to dissipate. Several attempts
may be necessary.
Failure to follow this lighting procedure may result
in ame roll out beyond the emitter grid.
4. With the pilot alight keep control knob depressed for
10 seconds.
5. For minimum heat turn the control knob to ‘LOW’.
6. For maximum heat turn the control knob to ‘HIGH’.
7. To turn heater off, turn the control knob to ‘OFF’.
OFF
LOW
PILOT
HIGH

7
Problem Possible Causes Solution
Main burner
won’t light
No gas Replace cylinder
Low gas pressure Replace cylinder
Blockage in orice Remove blockage
Manual valve not in ‘LOW’ or ‘HIGH’ position Position to ‘HIGH’
Exposure to rain Remove emitter and clean burner ports
The following gures are diagrammatic representations of outdoor areas. Rectangular areas have been used in these gures – the same principles apply to any other
shaped area.

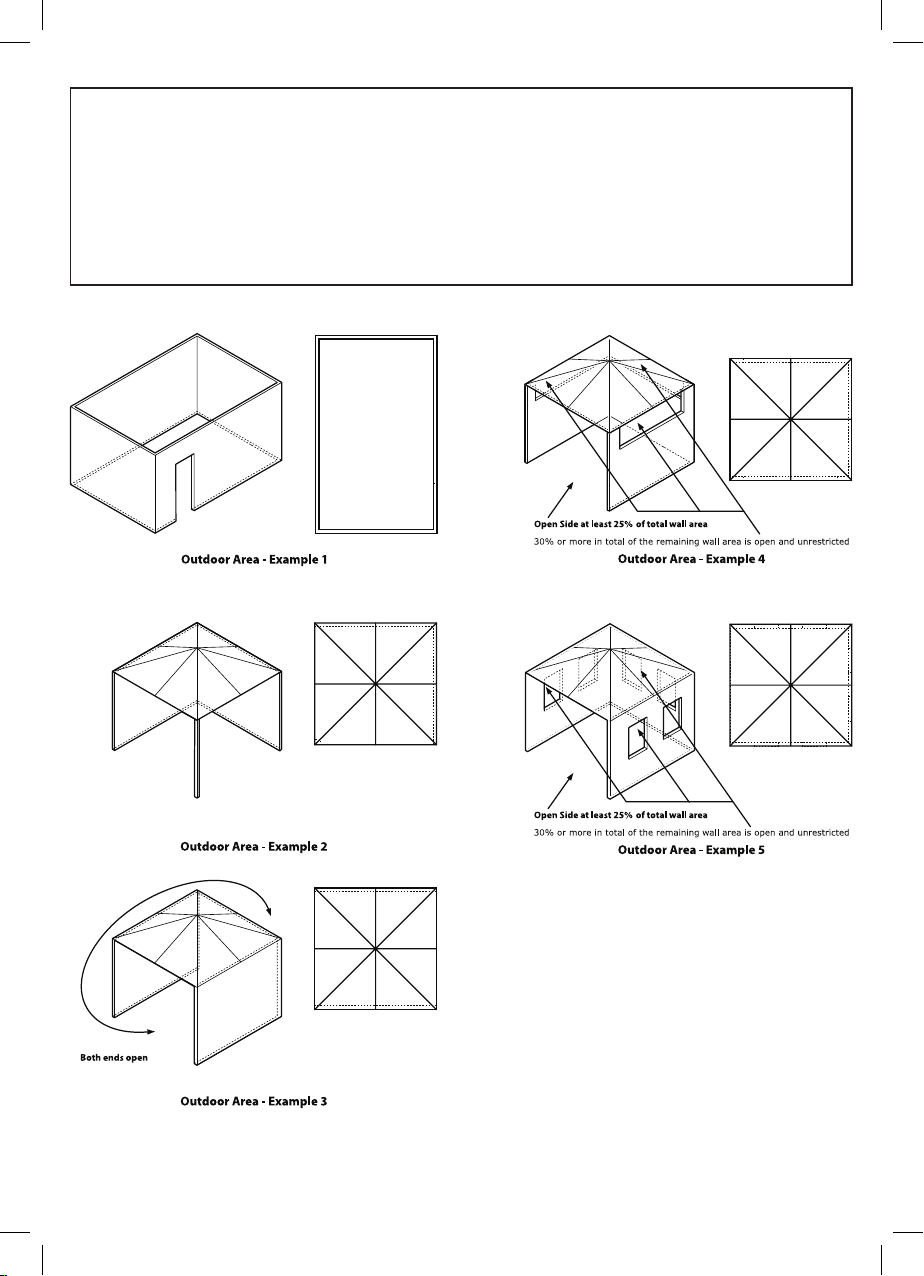

SAFE APPLIANCE LOCATIONS
This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind and natural convection.
Any enclosure in which the appliance is used shall comply with the following:
An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover (see Example 1).
Within a partial enclosure that includes an overhead cover and no more than two walls (see Example 2 & 3).
Within a partial enclosure that includes an overhead cover and more than two walls, the following will apply:
At least 25% of the total wall area is completely open, and
at least 30% of the remaining wall area is open and unrestricted.
In the case of balconies, at least 20% of the total wall area shall be and remain open and unrestricted (see Example 4 & 5).

Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 12
months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental
purposes.
Warranty and purchase receipt of this product are to be retained as proof of purchase and must be presented if making
a claim under the terms of the Aber Living Warranty. Repairs under warranty are free of charge, provided the product is
delivered to our Service Department or Authorised Service Agent and freight charges both ways are paid by the owner.
No liability will be accepted for any loss of damage in transit.
Aber Living reserves the rights to replace or repair the product within the warranty period. Warranty does not apply to
any defect, deterioration (including corrosion if located within 1km of the sea), loss, injury or damage occasioned by or
as a result of the misuse or abuse, negligent handling or if the product has not been installed and used in accordance
with the instructions. The warranty is void if there is evidence of the product being tampered with by unauthorised
persons.
If the product includes one or a number of accessories, only the defective accessory or part will be replaced.
In the event of Aber Living choosing to replace the product, the warranty will expire at the original date, i.e. 12 months
from the original purchase date.
Where this product contains information from an overseas country, nothing in that information is intended to limit any
condition, guarantee, right or remedy which may be available under the Consumer Guarantees Act 1993, except to the
extent permitted by that Act.
Approved for Outdoor Use Only.
For service, spare parts or product information in New Zealand, please call Aber Living on the Customer Service Line -
0800 161 161. www.aberliving.co.nz
YOUR PURCHASE RECORD (please complete)
Date of Purchase________________________________________________________________________
Model Number__________________________________________________________________________
Serial Number (if applicable)_______________________________________________________________
Purchased from_________________________________________________________________________
1 YEAR
LIMITED WARRANTY
Table of contents
Popular Patio Heater manuals by other brands

CRX
CRX CRX8014 instruction manual

Kirkland Signature
Kirkland Signature PTH106A-SS Installation, operation and maintenance instructions

Outdoor Order
Outdoor Order HALO MTC-HALO-GM-LP user manual

Blue Sky Outdoor Living
Blue Sky Outdoor Living PFP3318 owner's manual

Endless Summer
Endless Summer 153100 owner's manual

Paramount Fitness
Paramount Fitness PH-S-112-GY manual
