Berner BPL-HAB20 Owner's manual

DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odour continues, immediately call your
gas supplier.
“A PATIO HEATER LIKENO OTHER”
Manual for Installation, Operation & Maintenance
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
FOR YOUR SAFETY
Do notstore or use gasoline or other flammable
vapours and liquids in the vicinity of this or any
other appliance. An LPcylinder not connected
for use shall notbe stored in the vicinity of this or
any other appliance.
IMPORTANT
OWNER: Please retain these instructions for future reference.
INSTALLER:The installer or seller must leave these instructionswith the owner. Only those who are
certified to do so should perform service on these heaters.
*For Use Indoor/Outdoor Commercial and Outdoor Residential Use Only
* The LUMINOUS heater has been approved for indoor use in non-residential applications for Natural
Gas units ONLY
LUMINOUS
111 Progress Ave.
New Castle, PA 16101
www.berner.com
BPL-HAB20 BPL-HAB40
BPL-HAB50
March, 2013

March, 2013
BERNER PATIO+ Luminous

3egaP
Table Of Contents
CAUTION AND GENERAL SAFETY ...................................................................................................................................4
-SAFETY REQUIREMENTS ..................................................................................................................................................4
CODE REQUIREMENTS...................................................................................................................................................5
-INSTALLATION CODES .....................................................................................................................................................5
-GAS CODES ..................................................................................................................................................................5
Gas Supply Lines.......................................................................................................................... .......................................... 5
-ELECTRICAL CODES.........................................................................................................................................................5
SPECIFICATIONS ............................................................................................................................... .............................6
-DIMENSIONAL DETAILS: ..................................................................................................................................................6
-GAS AND ELECTRICAL CONNECTIONS: ................................................................................................................................6
-POWER &GAS SPECIFICATIONS........................................................................................................................................7
Gas Supply (Natural Gas ONLY)............................................................................................................................... .............. 7
Electrical Supply ............................................................................................................................... ..................................... 7
EQUIPMENT ..................................................................................................................................................................8
-STANDARD EQUIPMENT INCLUDED: ...................................................................................................................................8
-OPTIONAL EQUIPMENT: ..................................................................................................................................................9
INSTALLATION INSTRUCTIONS............................................................................................................................... ......11
-CLEARANCE TO COMBUSTIBLES .......................................................................................................................................11
-INSTALLATION SEQUENCE: .............................................................................................................................................13
-CEILING /WALL INSTALLATION .......................................................................................................................................14
Using Oponal Standard Ceiling / Wall Mounng Kits........................................................................................................ 14
Using Oponal Low Clearance Ceiling Mounng Kit HAB-M20 Only .................................................................................. 15
Using Oponal Low Clearance Ceiling Mounng Kit HAB-M40 and M50 Only ................................................................... 16
Using Oponal Low Clearance NON COMBUSTIBLE Ceiling Mounng Kits (all models). .................................................... 17
Installing Heater on a NON COMBUSTIBLE WALL (all models)............................................................................................ 17
-ANGLE MOUNTING CONFIGURATIONS: ............................................................................................................................ 18
-HAB-M20 INSTALLATION:............................................................................................................................................19
-HAB-M40 AND M50 INSTALLATION: ............................................................................................................................. 21
-GAS CONNECTION /CODE REQUIREMENTS ....................................................................................................................... 23
-ELECTRICAL CONNECTION /CODE REQUIREMENTS ............................................................................................................. 24
Internal wiring diagram................................................................................................................................ ....................... 24
External wiring Opons. (Manual line switch with Hi-Lo or Two Stage Switch).................................................................. 25
-VENTING....................................................................................................................................................................26
LIGHTING & SHUTDOWN INSTRUCTIONS..................................................................................................................... 27
-LIGHTING ...................................................................................................................................................................27
-SHUT DOWN...............................................................................................................................................................27
MAINTENANCE & TROUBLE SHOOTING ....................................................................................................................... 28
-MAINTENANCE............................................................................................................................................................28
-TROUBLE SHOOTING.....................................................................................................................................................28
PARTS LIST ..................................................................................................................................................................29
-REPLACEMENT PARTS ...................................................................................................................................................29
WARRANTY ............................................................................................................................... ..................................30
March, 2013
BERNER PATIO+ Luminous

4egaP
Caution and General Safety
•At all times maintain clearance to combustible materials as further specified in this
manual. Failure to do so can result in serious fire hazard.
•Never operate heaters in atmosphere containing flammable vapours or combustible
dusts.
•This heater is equipped with an electronic and automatic ignition device. Do not attempt
to light the burner by hand. Failure to comply can result in a serious fire and personal
injury hazard.
•Certain materials, when stored under this heater are subjected to radiant heat can
soften, distort or otherwise be damaged, special care should be taken of plastic
materials
•Appliance surfaces, other than the obvious flame and emitter surfaces, attain elevated
temperatures during operation. Do not touch the heater head during operation.
Everyone should be alerted to this hazard to avoid burning.
•Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
•Young children should be strictly supervised when in the area of this heating appliance.
Playing or running around the structure should be strictly forbidden.
•Clothing or other flammable materials should not be hung on or near this heater.
•Any guard or other protective device removed for servicing the heater must be replaced
prior to operating the heater.
•Installation and repair should be done by a qualified service person. The heater should
be inspected before use and at least annually by a qualified service person.
-Safety Requirements
1. Never locate the heater directly below electrical lines, gas lines or sprinkler systems.
NOTE: Sprinkler head heat fuse link performance may alter with age.
2. Do not locate heater too close to vinyl or plastic wall coverings. These materials may
discolour or soften well before they reach combustible limits.
3. The heater requires a minimum clearance from combustible materials. See the Clearance
to Combustible Materials section for specific requirements.
4. Always allow room for maintenance purposes.
5. The heater aspirates air for combustion. Do not locate heater where there are severe draft
conditions or airflow restrictions to the burner.
CAUTION: FIRE OR BURN INJURY HAZARD
March, 2013
BERNER PATIO+ Luminous

5egaP
Code Requirements
-Installation Codes
Installations must comply with local building codes, or in their absence, the latest edition of the
national regulations and procedures as listed below.
-Gas Codes
Heaters must be installed only for use with the type of gas appearing on the rating plate. The
installation must conform with local codes or, in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 in the US, Natural Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling Code B149.2 in Canada.
This heater maybe approved for either indoor or outdoor installation. Not for use in residential
dwellings, refer to Rating plate.
Gas Supply Lines
Gas supply pipe sizing must be in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA
54 in the US and CAN/CGA B149.1 and B149.2 Installation Codes in Canada.
-Electrical Codes
All heaters must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the National Electric Code, ANSI/NFPA 70, or the Canadian Electric Code, CSA C22.1.
WARNING!
This heater is NOT approved for any indoor Residential
application. If in doubt of your application consult with your
local fire marshal or gas authority having jurisdiction. Indoor
spaces include but are not limited to attached garages,
solariums, living quarters etc.
March, 2013
BERNER PATIO+ Luminous

6egaP
Specifications
-Dimensional Details:
Note: All dimensions are in inches.
-Gas and Electrical Connections:
47.45
11.41
10.64
12.34
11.25
32.91
11.41
10.64
12.34
11.25
Model:
Model:
32.52
47.06
Gas
Connection
High and Low
Operation Lights
Optional
Electrical
Connection
Note:
Connections shown
for allModels
5.41"
Electrical
Connection
Gas
Connection
March, 2013
BERNER PATIO+ Luminous
BPL-HAB20
BPL-HAB40
BPL-HAB50
6.56” BPL-HAB20
6.09” BPL-HAB40 & BPL-HAB50

7egaP
Specifications
Important
Installation or repair should only be done by a qualified service person. The heater should be
inspected before use and at least annually by a qualified service person.
The appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of ½ psig (3.5
kPa)
The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psig (3.5 kPa)
-Power & Gas Specifications
Gas Supply (Natural Gas ONLY)
HAB-M20 HAB-M40 HAB-M50
Rated Input
High Fire Rate 20,000 40,000 50,000
Low Fire Rate 15,000 32,000 42,000
Inlet Pressure
Maximum 14.0” W.C. 14.0” W.C. 14.0” W.C.
Minimum 7.0” W.C 7.0” W.C 7.0” W.C
Manifold Pressure
Maximum 6.2” W.C. 6.3” W.C. 6.3” W.C.
Minimum 3.0” W.C. 4.5” W.C. 4.5” W.C.
Inlet Connection ½” Male NPT
Electrical Supply
Alternating current AC, voltage; 24 V, 60 Hz with L, N and Ground (GND).
Note: 24V transformer not supplied.
March, 2013
BERNER PATIO+ Luminous

8egaP

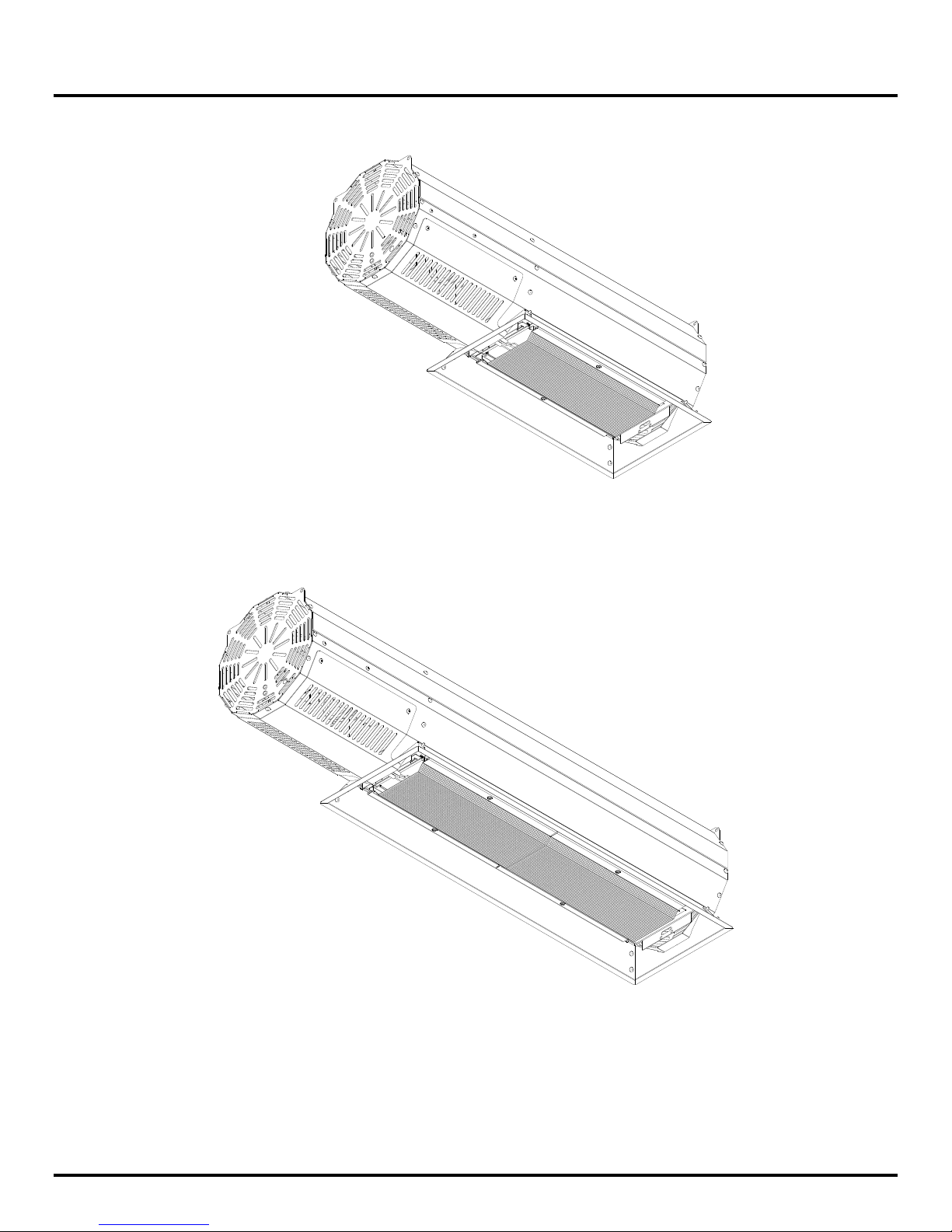

Equipment
-Standard Equipment Included:
March, 2013
BERNER PATIO+ Luminous
BPL-HAB20
BPL-HAB40
BPL-HAB50

9egaP
Equipment
-Optional Equipment:
The following bolts are approved for installing this heater with the hanging brackets.
- 3/8” X 3” long Lag Bolts (minimum 4 per heater) with minimum 16.0” mounting spacing on centres.
- 3/8” X 3” Anchor Bolts (minimum 4 per heater) with minimum 16.0” mounting spacing on centres.

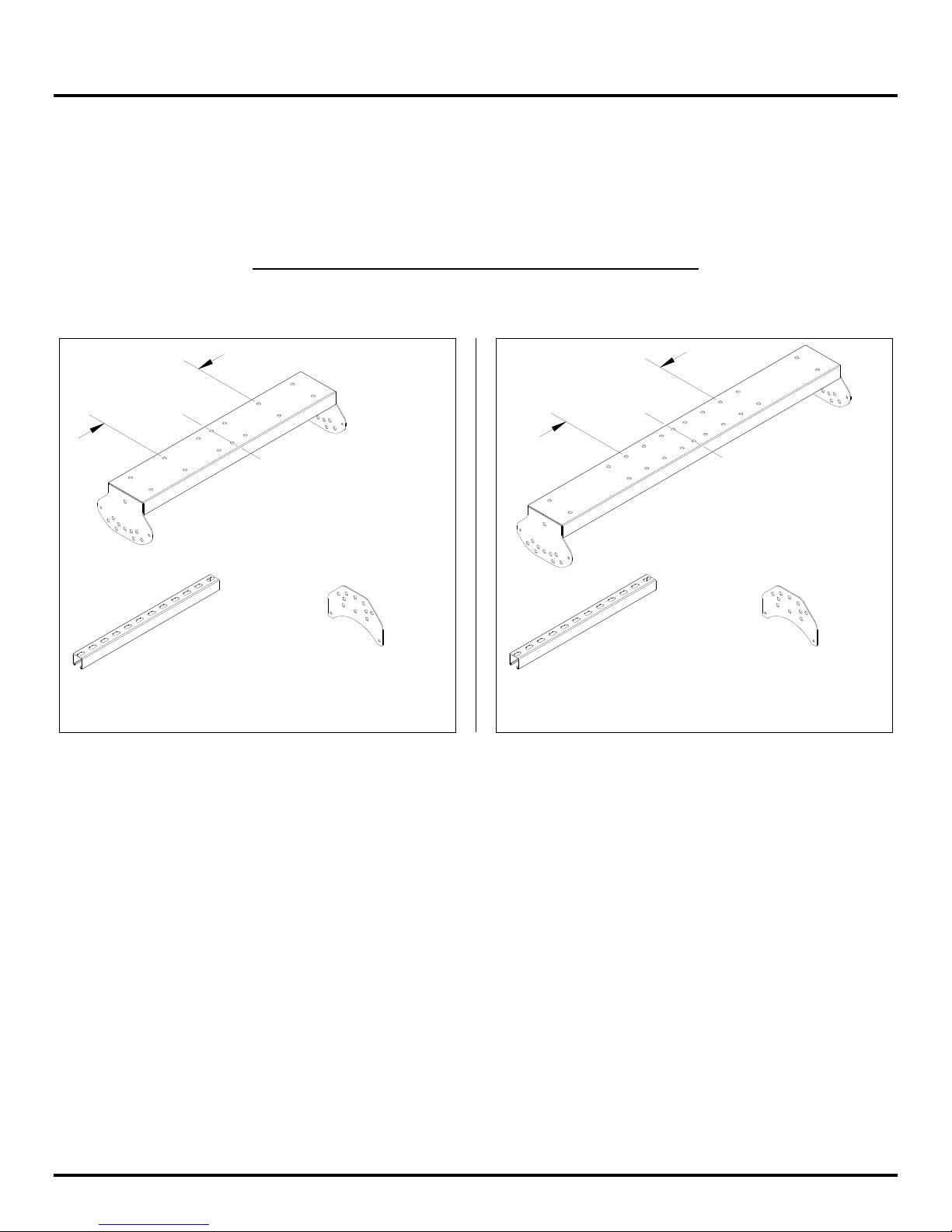

Optional Standard Ceiling / Wall Mounting Kits
Hanging Bracket
Assembly
(QTY: 1)
Unistrut
18.0" Long
(QTY: 2)
Extension Arm
Hanging Bracket
(QTY: 2)
Unistrut
18.0" Long
(QTY: 2)
Extension Arm
Hanging Bracket
(QTY: 2)
Hanging Bracket
Assembly
(QTY: 1)
16.0 Min.
16.0 Min.
March, 2013
BERNER PATIO+ Luminous
BPL-HAB20 BPL-HAB40
BPL-HAB50

01egaP

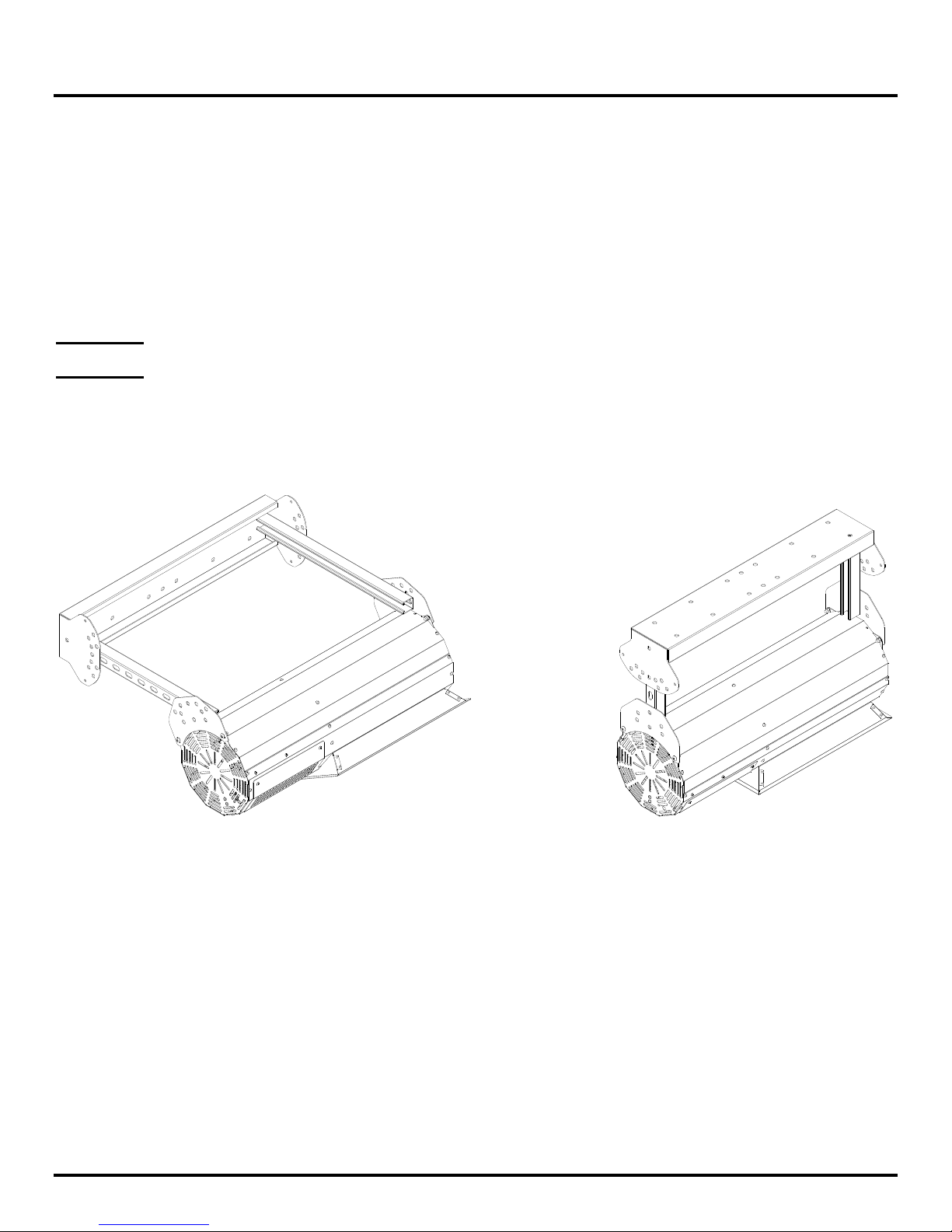

Equipment
Optional Equipment continued:

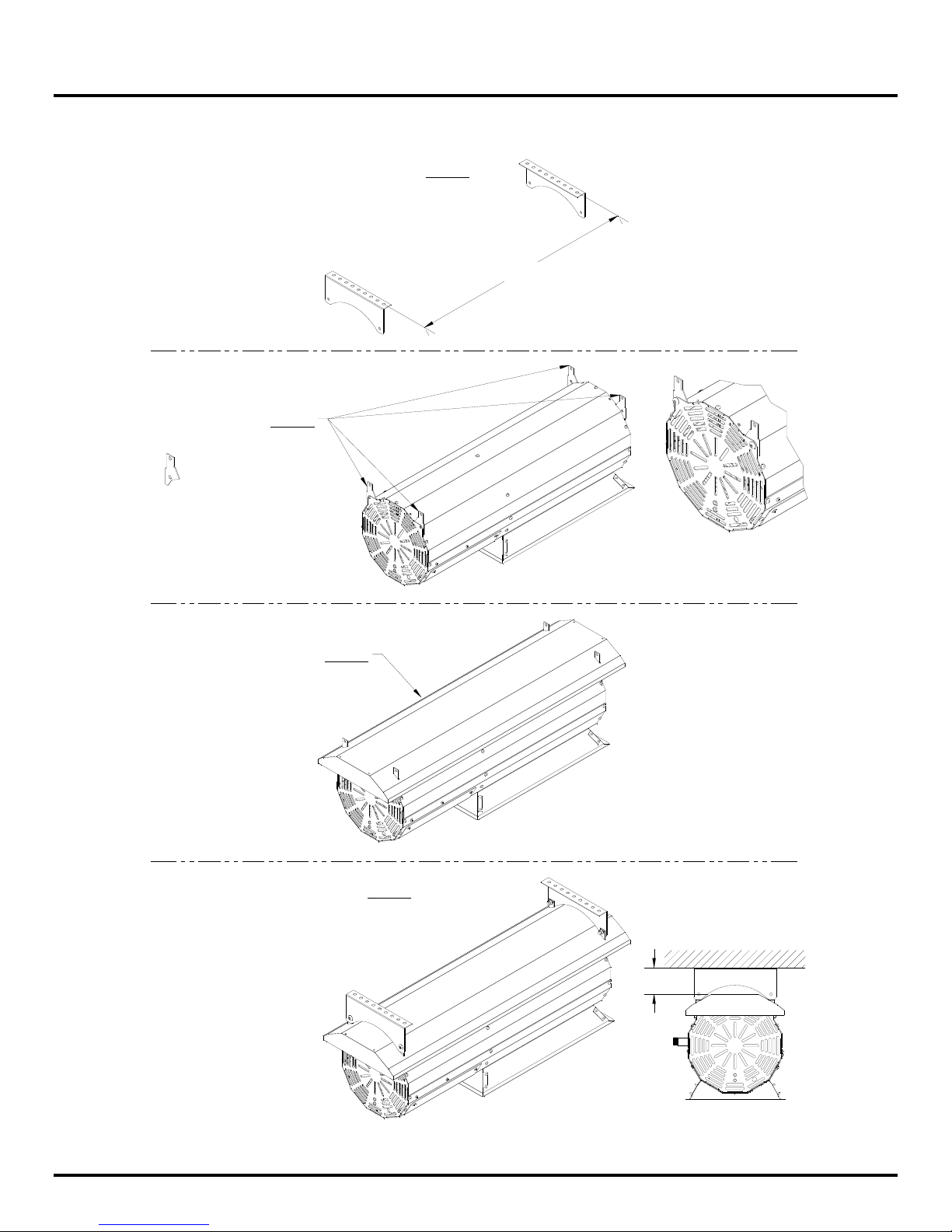

Optional Low Clearance Ceiling Mounting Kits
Optional Low Clearance NON COMBUSTIBLE Ceiling Mounting Kits
Heat Shield
(QTY: 1)
Heat Shield
Mounting Bracket
(QTY: 4)
Heat Shield
(QTY: 1)
Heat Shield
Mounting Bracket
(QTY: 4)
Extension Arm
Hanging Bracket
(QTY: 2)
Hanging Bracket
Assembly
(QTY: 1)
Low Clearance
Mounting Bracket
(QTY: 2)
Hanging Bracket
Assembly
(QTY: 1)
Hanging Bracket
Assembly
(QTY: 1)
March, 2013
BERNER PATIO+ Luminous
BPL-HAB20 BPL-HAB40
BPL-HAB50
BPL-HAB20
BPL-HAB40
BPL-HAB50

11egaP
Installation Instructions
-Clearance to Combustibles
A general clearance of 18” (0.5 m) in every direction is recommended for servicing only around
each Burner, also to ensure adequate air flow in and around the Heating System.
The stated clearance to combustibles represents a surface temperature of 90°F (50°C) above room
temperature. Building materials with low heat tolerance (such as plastics, vinyl siding, canvas, tri-
ply, etc…) maybe subject to degradation at lower temperatures. It is the installer’s responsibility
to assure that adjacent materials are protected from degradation.
In addition to this it is very important to observe the minimum clearance to combustibles at all
times to avoid any possibility of property damage or personal injury.
Table below lists the minimum clearance to combustible materials for various installation
configurations. Additional clearance may be required for glass, painted surfaces and other materials
which maybe damaged by radiant or convective heat.
Combustible materials are considered to be wood, compressed paper, plant fibres, plastics, Plexiglas
or other materials capable of being ignited and burned. Such materials shall be considered
combustible even though flame-proofed, fire-retardant treated or plastered.
Note with an ambient temperature of 70°F the surface temperatures at the clearance distances
listed below could reach 160°F, Care should be taken with placement of plastic or vinyl in the
proximity of the heater as they tend to distort and soften at these temperatures.
Adequate clearance to sprinkler heads must be maintained.
NOTE: Sprinkler head heat fuse link performance may alter with age.
NOTE: Some materials deteriorate or soften at sustained temperatures below 160°F.
Consult material manufacturer for recommendations
March, 2013
BERNER PATIO+ Luminous

21egaP
Installation Instructions
Clearance to Combustibles Table
D
C
A
BG
E
F
H
Dimensions in inches
Optional Shield
30°
Model # Dim A Dim B Dim C Dim D Dim E Dim F Dim G Dim H
13 75 34 48 10 16 66 9
13 75 34 48 10 16 66 9
947 17 29 8.5 9 38 3
D
B
C
F
Less than 30° mounting angle
Less than 30°
March, 2013
BERNER PATIO+ Luminous
BPL-HAB20
BPL-HAB40
BPL-HAB50
31.0” BPL-HAB40 & BPL-HAB50
18.0” BPL-HAB20
21.0” BPL-HAB40 & BPL-HAB50
8.0” BPL-HAB20

31egaP
Installation Instructions
-Installation Sequence:
The Habanero can be mounted either horizontally or at an incline of up to 30° as shown in the
clearance to combustibles table (previous section). A review of the job site will usually indicate a
logical installation location and order. However, time and expense can be saved if installation is
begun at the most critical dimension, watching for interference from overhead beams etc. Figure
below provides a general overview of the components utilized in the installation, as well as their
general relationship.
Caution: In areas where seismic forces are present extra / additional bracing may be required.
Caution: The heater must have a minimum clearance of 8 feet below, but less than 8 feet hanging
application can be considered as long as it meets local codes and minimum clearance to
combustibles.
Wall or Wood Post
Hanging Option Ceiling Hanging
Option
March, 2013
BERNER PATIO+ Luminous

41egaP
Installation Instructions

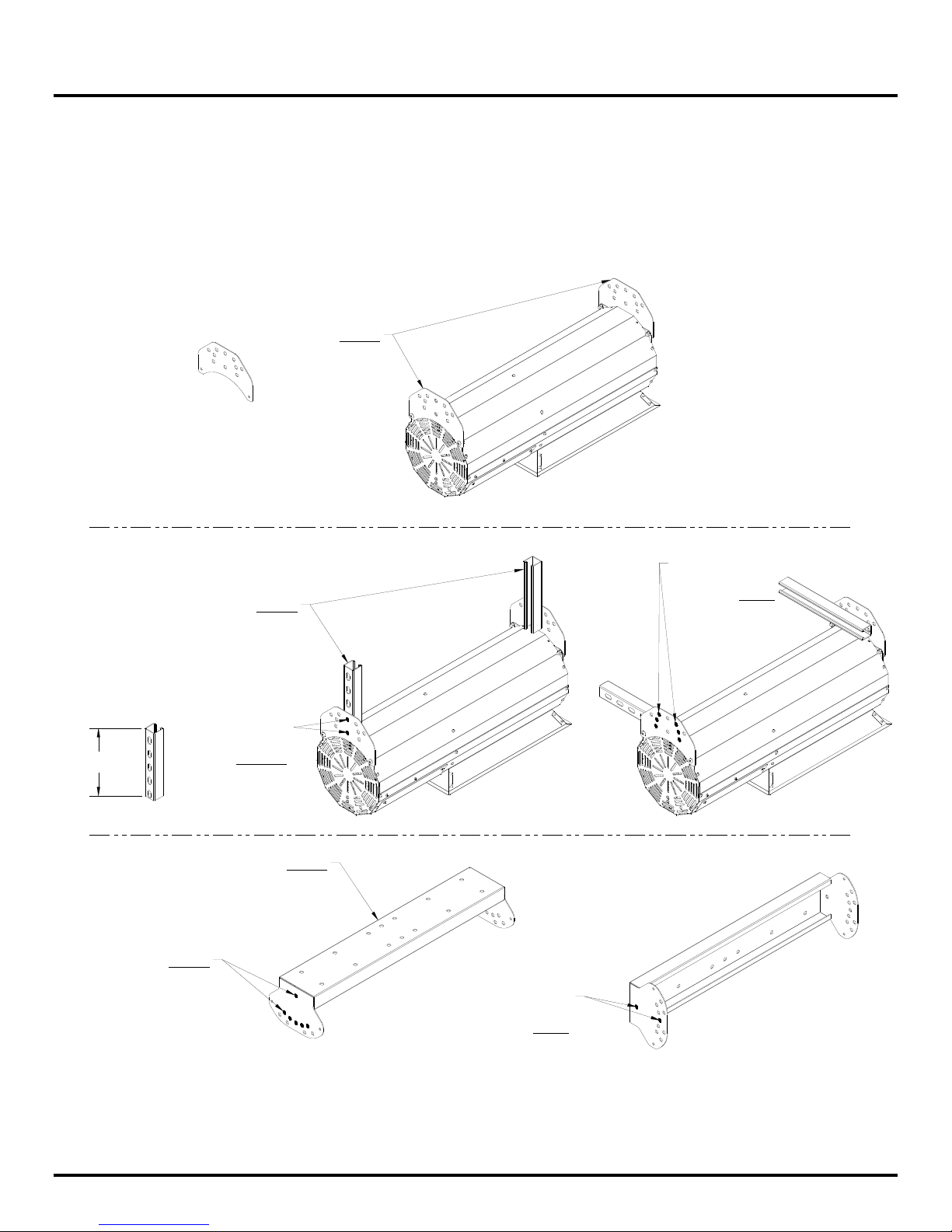

-Ceiling / Wall Installation
Using Optional Standard Ceiling / Wall Mounting Kits
The mounting kits have provision for 0°, 15° and 30° mounting angles using the optional mounting
brackets. Figure below shows the possible angle configurations to install at desired angle.
Ceiling Installation for BPL-HAB20, BPL-HAB40 and BPL-HAB50.
Step 1.
Install Extension
Arm brackets
(as shown)
using 5/16" X 3/4"
Hex Socket (Qty 4)
hardware supplied.
Note:
Minimum clearances to combustibles must be maintained
as per clearance to combustibles table when cutting
Unistrut.
Step 2.
Cut Unistrut to desired length,
and attach them to extension
brackets (as shown) using 1/2" X 1"
Hex Bolts (Qty 8)
hardware supplied.
Cut to length
Use these bolt
holes for hanging
heater from CEILING.
Step 3.
Secure Hanging Bracket Assembly
to ceiling / wall using 3/8" X 3" long
"Lag Bolt" or "Anchor Bolts"
(Qty 4) not included.
Step 4.
Attach heater to hanging
bracket assembly using
these bolt holes.**
Refer to the following
pages to mount heater
at 0°, 15° or 30° angle
Use these bolt
holes for hanging
heater from WALL.
Refer to the following
pages to mount heater
at 0°, 15° or 30° angle.
**Use these bolt
holes for hanging
heater from WALL.
March, 2013
BERNER PATIO+ Luminous

51egaP
Installation Instructions
Using Optional Low Clearance Ceiling Mounting Kit BPL-HAB20 Only
Step 2.
Install heat shield
mounting brackets
(as shown)
using 5/16" X 3/4"
Hex Socket (Qty 4)
hardware supplied.
Step 1.
Mount Low Clearance
Brackets to ceiling
using 3/8" X 3" long
"Lag Bolt" or "Anchor Bolt"
(Qty 4) not supplied.
31.0"
Step 3.
Slide Heat Shield
over brackets
(as shown)
Step 4.
Attach heater to Brackets
as shown using 5/16" X 3/4" long
Hex Socket (Qty 4)
hardware supplied.
3.00
March, 2013
BERNER PATIO+ Luminous

61egaP
Installation Instructions
Using Optional Low Clearance Ceiling Mounting Kit BPL-HAB40 & BPL-HAB50 Only
Step 2.
Install heat shield
mounting brackets
(as shown)
using 5/16" X 3/4"
Hex Socket (Qty 4)
hardware supplied.
Step 1.
Mount Hanging Bracket
Assembly to ceiling
using 3/8" X 3" long
"Lag Bolt" or "Anchor Bolt"
(Qty 4) not supplied.
Step 3.
Slide Heat Shield
over brackets
(as shown)
9.00
Use these
two bolt holes
to attach bracket
to extension arm
refer to step 4.
Step 4.
Install Extension
Arm brackets
(as shown)
using 5/16" X 3/4"
Hex Socket (Qty 4)
hardware supplied.
Use these
two bolt holes
to attach heater
to Hanging bracket
assembly
in step 1.
Step 5.
Attach heater to
Brackets as shown
using 1/2" X 1" long
Hex Bolts (Qty 4)
hardware supplied.
March, 2013
BERNER PATIO+ Luminous

71egaP
Installation Instructions

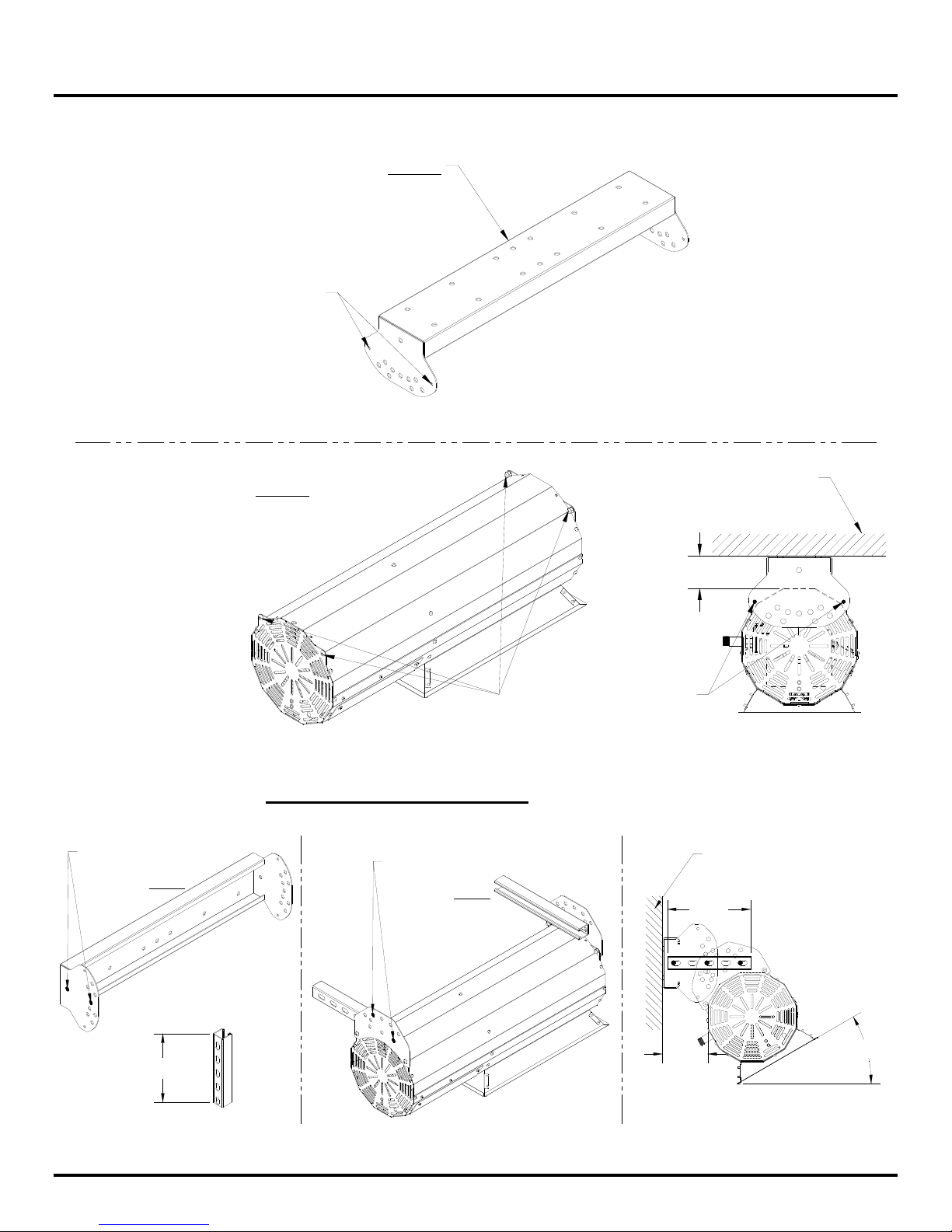

Using Optional Low Clearance NON COMBUSTIBLE Ceiling Mounting Kits (all models).
Installing Heater on a NON COMBUSTIBLE WALL (all models).
Step 1.
Secure Hanging Bracket Assembly
to ceiling /wall using 3/8" X 3" long
"Lag Bolt" or "Anchor Bolts"
(Qty 4) not supplied.
Attach heater to hanging
bracket assembly using
these bolt holes.
Step 2.
Attach heater to Brackets
as shown using5/16" X 3/4" long
Hex Socket (Qty 4)
hardware supplied. 3.00
Attach heater to hanging
bracket assembly using
these bolt holes.
Non Combustible
Ceiling
5.41
10.00
Non Combustible
Wall
**Use these bolt
holes for hanging
heater from WALL.
Use these bolt
holes for hanging
heater from WALL.
Refer to the following
pages to mount heater
at 0°, 15° or 30° angle.
30°
Cut to 10.0" long
Attach heater to
Brackets as shown
using 1/2" X 1" long
Hex Bolts (Qty 6)
hardware supplied.
March, 2013
BERNER PATIO+ Luminous

81egaP
Installation Instructions
-Angle Mounting Configurations:
The mounting kits have provision for 0°, 15° and 30° mounting angles using the optional mounting
brackets. Figure below shows the possible angle configurations to install at desired angle.
Note:
Other clearances must be maintained as per clearance to combustibles table.
Ceiling Mount / Hanging Configuration
Use these bolt
holes when
mounting heater
from ceiling
at any angle
0°
15°
30°
15°
30°
Right side
of bracket
Left side
of bracket
Use these bolt
holes when
mounting from wall
at any angle.
0°
15°
30° Right side
of heater
Left side
of heater
0°
15°
30°
Wall Mount / Hanging Configuration
Unistrut is fixed
to heaterusing
12" X 1" Bolts (Qty 8)
(supplied with heater)
Unistrut is fixed
to wall bracketusing
12" X 1" Bolts (Qty 8)
(supplied with heater)
Note:
Other clearances must be maintained as per clearance to combustibles table.
March, 2013
BERNER PATIO+ Luminous

91egaP
Installation Instructions

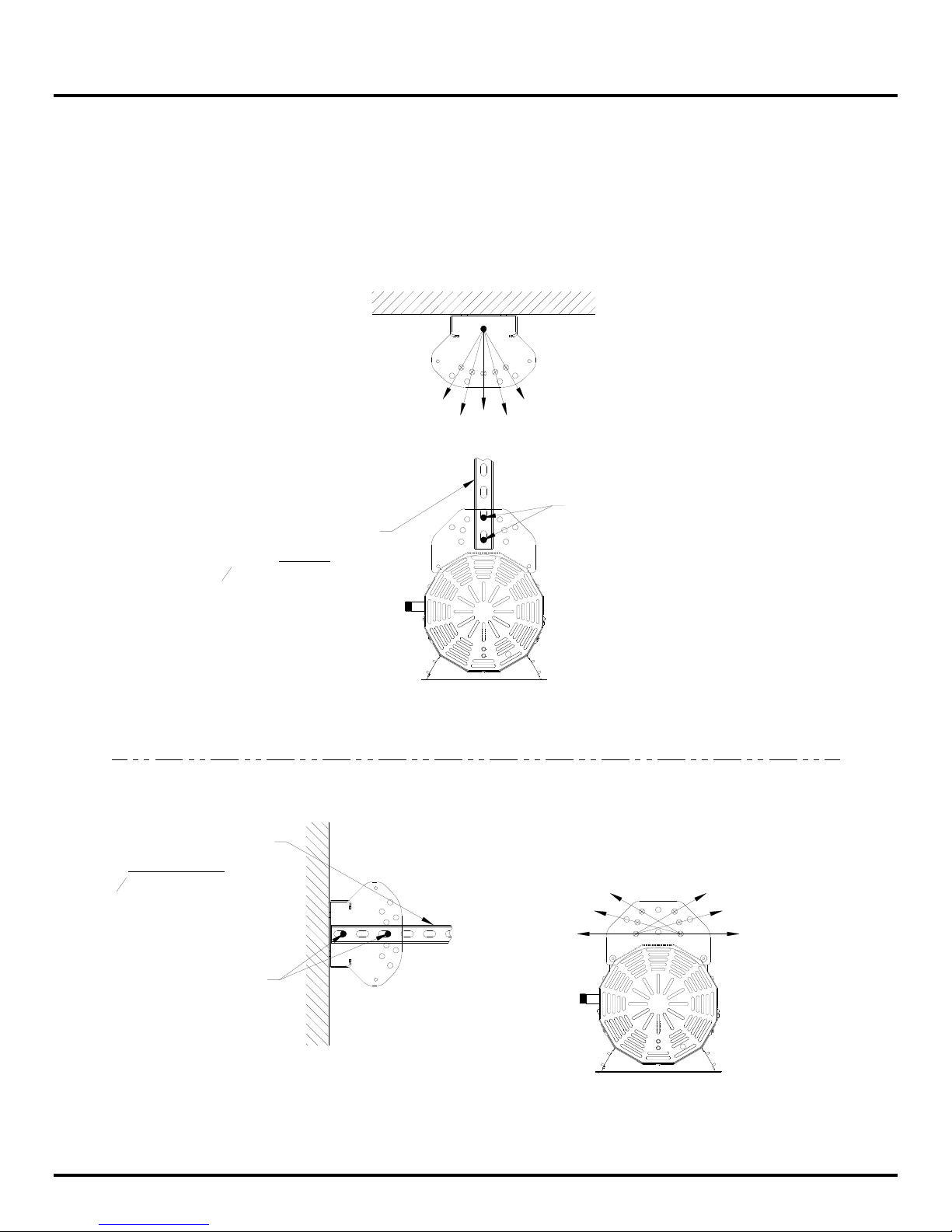

-BPL-HAB20 Installation:
Mounting heater at 0° from horizon.
The figure below shows the minimum mounting distances to achieve the clearance to combustibles.
9.00
Minimum Ceiling Mount Distance
Minimum Ceiling Mount Distance
using Optional Shield
Use these bolt
holes for positioning
at this angle.
3.00
Note:
Other clearances must be maintained
as per clearance to combustibles table.
Note:
Other clearances must be maintained
as per clearance to combustibles table.
March, 2013
BERNER PATIO+ Luminous

02egaP
Installation Instructions
BPL-HAB20 Installation continued:
Mounting heater at 30° from horizon.
The figure below shows the minimum mounting distances to achieve the clearance to combustibles.
Note: When assembling hanging brackets the maximum angle the heater can be
at is 30° from horizon.
8.85
10.00
9.00
13.75
30°
30°
Minimum Ceiling Mount Distance
Minimum Wall Mount Distance
LEFT side view
Cut unistrust to 13.75"
to achieve the minimum
clearances to combustibles
for this model
Use these bolt
holes for positioning
at this angle.
Use these bolt
holes for positioning
at this angle.
Cut unistrust to 10.00"
to achieve the minimum
clearances to combustibles
for this model
Use these bolt
holes for positioning
at this angle.
15°
30°
15°
30°
15°
30°
RIGHT side view
LEFT side view
Note:
Other clearances must be maintained
as per clearance to combustibles table.
LEFT side view
Note:
Other clearances must be maintained
as per clearance to combustibles table.
LEFT side view
15°
30°
RIGHT side view
March, 2013
BERNER PATIO+ Luminous
