Sixnet MIL312-1 User manual

MIL312 Hardware Manual_Rev_02-14-13.docx Page 1 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
USER MANUAL
12-Port
Gigabit
IP67
Layer 3
Ethernet
Switch
Installation and Wiring Manual
Contents at a Glance:
Section 1 General Information Page 3
Section 2 Mechanical and Installation Page 7
Section 3 Power and Communication Wiring Page 9
Section 4 LEDs Page 14
Section 5 Pressure Vent Page 15
Section 6 Service and Contact Information Page 16
This manual applies to the following products:
•MIL312-1 IP67 managed Layer 3 Ethernet switch with 12 Gigabit ports

MIL312 Hardware Manual_Rev_02-14-13.docx Page 2 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Sixnet Protected Technology Policy - Sixnet protects your investment in Sixnet systems with long-
term planned technology and our unique Protected Technology Policy. We will continue to support the
specified capabilities of standard Sixnet products for at least five years (twenty years for Industrial Managed
Switches). We plan each product improvement and new feature to be upward compatible with existing
designs and installations. Our goals are to make each new software release bring new power to your Sixnet
systems and have every existing feature, applications program and data file continue to work. We protect
your investment even further with a liberal five-year trade-in policy. Exchange standard products for
upgraded versions of the same product to take advantage of new features and improvements at any time
for five years. A prorated trade-in allowance will be given for your existing unit. Sixnet protects your long-
term productivity with state-of-the-art planned technology and continued support.
Sixnet Statement of Limited Warranty - Sixnet, manufacturer of Sixnet products, warrants to Buyer
that products, except software, manufactured by Sixnet will be free from defects in material and
workmanship. Sixnet's obligation under this warranty will be limited to repairing or replacing, at Sixnet's
option, the defective parts within one year of the date of installation, or within 60 months of the date of
shipment from the point of manufacture, whichever is sooner. Products may be returned by Buyer only after
permission has been obtained from Sixnet. Buyer will prepay all freight charges to return any products to
the repair facility designated by Sixnet. This limited warranty does not cover losses or damages which occur
in shipment to or from Buyer or due to improper installation, maintenance, misuse, neglect or any cause
other than ordinary commercial or industrial applications. In particular, Sixnet makes no warranties
whatsoever with respect to implied warranties of merchantability or fitness for any particular purpose. All
such warranties are hereby expressly disclaimed. No oral or written information or advice given by Sixnet or
Sixnet’s representative shall create a warranty or in any way increase the scope of this warranty. This
limited warranty is in lieu of all other warranties whether oral or written, expressed or implied. Sixnet's
liability shall not exceed the price of the individual units, which are the basis of the claim. In no event shall
Sixnet be liable for any loss of profits, loss of use of facilities or equipment, or other indirect, incidental or
consequential damages.
INSTALLATION WARNINGS - These products should not be used to replace proper safety
interlocking. No software-based device (or any other solid-state device) should ever be designed to
be responsible for the maintenance of consequential equipment or personnel safety. In particular,
Sixnet disclaims any responsibility for damages, either direct or consequential, that result from the
use of this equipment in any application. All power, input and output (I/O) wiring must be in
accordance with Class I, Division 2 wiring methods and in accordance with the authority having
jurisdiction. Refer to section 1 for other important installation warnings.
FCC Statement - This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna; Increase the separation between the equipment and receiver; Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an
experienced radio/TV technician for help.
Copyright & Trademarks - Copyright 2013 Sixnet, LLC. All Rights Reserved.
Note: All information in this document is subject to change without notice.

MIL312 Hardware Manual_Rev_02-14-13.docx Page 3 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 1 General Specifications
Overview
The Sixnet MIL312-1 is a 12 port industrial Ethernet managed switch designed to meet the
extreme requirements found in the toughest applications. It combines the high performance
and security of an enterprise-class switch with rugged packaging and protected circuitry to
meet the needs of the most demanding applications.
This manual will help you install and maintain these industrial Ethernet switches.
Installation of these switches is very easy and they will begin to operate as soon as they
are powered up. Though these are fully managed switches, they will act as unmanaged
until they are configured otherwise. Refer to the separate software manual or management
guide for configuration of the advanced networking functionality and security.
Note: This manual only covers the installation and wiring of these switches. Refer
to the separate Software User Manual for details on configuring and using any of
the management functions such as SNMP, RSTP, IGMP, port mirroring, etc.
Basic
Operation
Unlike an Ethernet hub that broadcasts all messages out all ports, these industrial Ethernet
switches will intelligently route Ethernet messages only out the appropriate port. The major
benefits of this are increased bandwidth and speed, reduction or elimination of message
collisions, and deterministic performance when tied with real-time systems.
These switches support 10BaseT (10 Mbps), 100BaseT (100 Mbps) and 1000BaseT (1000
Mbps) on 12 ports. Each of these ports independently and automatically senses the speed
and duplex for best performance. They also offer auto-crossover and auto-polarity to
assure a proper link with either straight or crossed wired cables or even when the cable is
incorrectly wired.
Performance
Specs
The switch has the following performance specifications. Note: All specifications are
subject to change. Consult factory for latest information.
ETHERNET PERFORMANCE
12 10/100/1000 Ethernet ports
Auto-negotiation (speed/duplex) and auto-crossover
Non-blocking, store and forward, wire-speed
Switching capacity and forwarding rate: 12.8 Gbps / 9.5 Mpps
MAC address table size: 16K
Jumbo frame: 9K
Ethernet isolation: 1500 Vrms 1 minute
Connector: MIL-STD-38999 series III receptacle
ETHERNET COMPLIANCE
IEEE 802.3 (Original Ethernet 10Mbps)
IEEE 802.3u (Fast Ethernet 100Mbps)
IEEE 802.3z (Gigabit Ethernet 1000Mbps)
IEEE 802.3x (Full-Duplex with Flow Control)
Refer to product data sheet for complete list

MIL312 Hardware Manual_Rev_02-14-13.docx Page 4 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
POWER INPUT
Connector: MIL-STD-38999 Series III receptacle with shell size A, style 98, 3 pin
contacts and A keying
Input voltage range: 18-36 VDC (continuos), 28 VDC Nominal
Input power: 35 W (typical under full load)
Reverse polarity protection
Meets MIL-STD-704 and MIL-STD-1275 for power protection
Surge protection: 100 volts for 1 second
Transient protection: 15,000 watts peak
Spike protection: 5,000 watts (10x for 10 uS)
or 250 volts (50x for 100 uS)
ENVIRONMENTAL
Operating temperature: -40 to +75°C (cold startup at -40°C)
Storage temperature: -40 to +85 °C
Humidity (non-condensing) 5 to 95% RH
Vibration, shock and free fall per MIL-STD-810F and IEC68-2-6, -27 and -32
Vent plug for high altitude operation
PHYSICAL
Dimensions (L x W x H) 13 x 6 x 3.75” (330 x 152 x 95 mm)
Weight (including caps) 9.8 lbs (4.45 Kg)
IP67 dust, oil and water-tight package protection
STANDARDS COMPLIANCE
FCC part 15 / ICES-003; EN55022; IEC61326-1
MIL-STD-461F for EMC performance
MIL-STD-810F and MIL-STD-202F/G for environmental performance
MIL-STD-704A/E/F and MIL-STD-1275A/B/D for power protection
SWITCHING FEATURES
Flow control: IEEE 802.3x (Full Duplex) & Back-Pressure (Half Duplex)
Spanning Tree Protocol (STP per IEEE 802.1D) plus
oIEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
oIEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
oBPDU forwarding and filtering
Virtual Local Area Networks (VLANs)
o802.1Q tag-based with 256 VLANs and 4K VLAN ID
o802.1v protocol and port-based VLAN
oVoice and Private VLAN
oQVRP and Q-in-Q (double tagging)
Link Aggregation Control Protcol (LACP per IEEE 802.3ad)
oStatic trunk (8 trunks and up to 8 ports per trunk)
oTraffic load balancing
Internet Group Management Protocol (IGMP)
oIGMP v1, v2 and v3 with up to 255 multicast groups
oIGMP snooping and querying
oImmediate leave and leave proxy
oThrottling and filtering
Multicast VLAN Registration (MVR)
IEEE 802.1ab Link layer Discovery Protocol (LLDP)
Quality of Service (QoS) with 4 priority queues
oScheduling schemes: WRR and Strict priority
oCoS per IEEE 802.1p and IP DSCP-based
oDiffServ (DS): ingress, egress and remarking
Rate limiting (ingress and egress)
o64Kbps to 100/1000Mbps
oPer port CoS

MIL312 Hardware Manual_Rev_02-14-13.docx Page 5 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
SECURITY
Enable / disable ports
Port security (MAC-based): static and dynamic
DHCP Snooping and Option 82
IP Source Guard
IEEE 802.1x Network Access Control
oPort-based with single or multiple host mode
oAuthentication: EAP-MD5, PEAP, TLS, TTLS
oMAC and web authentication
oGuest VLAN and Auto VLAN assignment
RADIUS and TACACS AAA
oAuthentication, Accounting and Authorization
o5 servers for RADIUS, 1 server for TACACS
oEncryption: MD5, TLS, TTLS, TACACS AAA/3.0
Access Control List (ACL)
oIP and MAC-based
oVLAN and TCP/UDP port
Storm Control for broadcast and multicast messages
HTTPS/SSL for secure Web access
SSH v1.5/2.0 for secure Telnet access
SNMPv3 authentication and encryption
Username and password authentication
Management access filtering
MANAGEMENT AND MONITORING
RS232 console port via MIL-STD-38999 series III connector w/ shell size A, style 35,
6 contacts & A keying
IP Address assignment: Static, DHCP and BOOTP
CLI (Command Line Interface) via console or Telnet
Web interface (HTTP/HTTPS/SSL)
SNMP v1, v2, v3 (Simple Network Management Protocol)
SNMP Traps for event notification
RMON (Remote Monitoring): Groups 1, 2, 3 and 9
sFlow network-wide traffic monitoring
Dual firmware update system
Configuration download and upload
Software upgrade via TFTP
Port mirroring
Event / Error / System log
oLocal flash
oRemote server via system log (Syslog RFC 3164)
oSMTP (RFC 821) email alarming
Network Time Protocol for time synchronization
oSNTP (RFC 2030) and NTP (RFC 1305)
DNS (Domain Name Server) client
Universal Plug and Play (UPnP)
IEEE 802.3ah OAM (Operational Administration Maintenance)
oBanner commands

MIL312 Hardware Manual_Rev_02-14-13.docx Page 6 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
ROUTING FEATURES
Host table: 8K
Route table: 8K
Static route table: 512
Multicast table: 1L
Unicast routing
Static unicast routes
RIP v1/v2
OSPF
BGP
Multicast routing
PIM-DM
PIM-SM
IGMP v1/v2/v3
IGMP v3 proxy
IP Redundancy
Proxy ARP
UDP Helper
WARRANTY
5 years on design and manufacturing defects
Safety
Warnings
Strictly abiding by these warnings will help ensure the safe installation, startup and
operation of the switch.
INSTALL THE SWITCH IN ACCORDANCE WITH ALL LOCAL AND NATIONAL
ELECTRICAL CODES.
LIGHTNING DANGER: DO NOT WORK ON EQUIPMENT DURING PERIODS OF
LIGHTNING ACTIVITY.
WARNING
(EXPLOSION
HAZARD)
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS 1,
DIVISION 2 (ZONE 2).
WARNING
(EXPLOSION
HAZARD)
WHEN IN HAZARDOUS LOCATIONS, DISCONNECT POWER BEFORE REPLACING
OR WIRING UNITS.
WARNING
(EXPLOSION
HAZARD)
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR THE AREA IS KNOWN TO BE NONHAZARDOUS.

MIL312 Hardware Manual_Rev_02-14-13.docx Page 7 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 2 Mechanical Dimensions and Installation
Overview
The switch is designed to be mounted to any flat surface. It is recommended to use thermal
grease or a gap pad between the MIL312 unit and the surface it is mounted on. The MIL312
case is designed to act as a heat sink and this will ensure cooler operation of the unit.
0.375" [9.52mm]
0.275" [6.98mm] 0.375" [9.52mm] 0.575" [14.61mm]
0.212" [5.40mm]
0.250" [6.35mm]
0.250" [6.35mm] 0.250" [6.35mm]
Console
Power
Vent
Gig Ports
1
2
3
4
5
6
7
8
9
10
11 12
5.980" [151.89mm]
4.687" [119.06mm]
2.116" [53.75mm]
1.187" [30.16mm]

MIL312 Hardware Manual_Rev_02-14-13.docx Page 8 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
12.980" [329.69mm]
3.754" [95.35mm]
3.254" [82.65mm]
2.744" [69.70mm]
2.004" [50.90mm]
0.350" [8.89mm]
3.600" [91.44mm]

MIL312 Hardware Manual_Rev_02-14-13.docx Page 9 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 3 Power and Communication Connections
Overview
The switch features 38999 Series III style connectors which meet or exceed the MIL-STD-
38999 standard. All these connectors have EMI shielding, ESD protection, plus moisture
and corrosion resistance. All mating connectors will self-lock with one 360 degree turn of
the coupling nut.
Typical
MIL-STD-38999
Connectors
(shown with
tethered plugs)
Typical
MIL-STD-38999
Plug
(not typically
supplied with
switch)
Grounding
Use the provided 8-32 ground stud to connect the switch to a suitable safety, chassis or
earth ground. Use of heavy gauge (at least 16 AWG) grounding wire is recommended.
Make sure to follow your local or national codes for the proper ground connection.
Chassis
Ground
Connection
Point

MIL312 Hardware Manual_Rev_02-14-13.docx Page 10 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Power
Receptacle
The switch requires a nominal voltage of
28
VDC
(18-36 VDC Range). Make the power
connections as shown in the diagram below.
Power
Receptacle
Power
Receptacle
Pinout
Recommended
Plug
Model # D38999/26WA98SA
(w/ socket contacts and A keying)
--
DC Supply
++
CB
A
No Connection
Receptacle:
Shell=A, nsert=98, Contacts=P, Keying=A

MIL312 Hardware Manual_Rev_02-14-13.docx Page 11 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Console
Receptacle

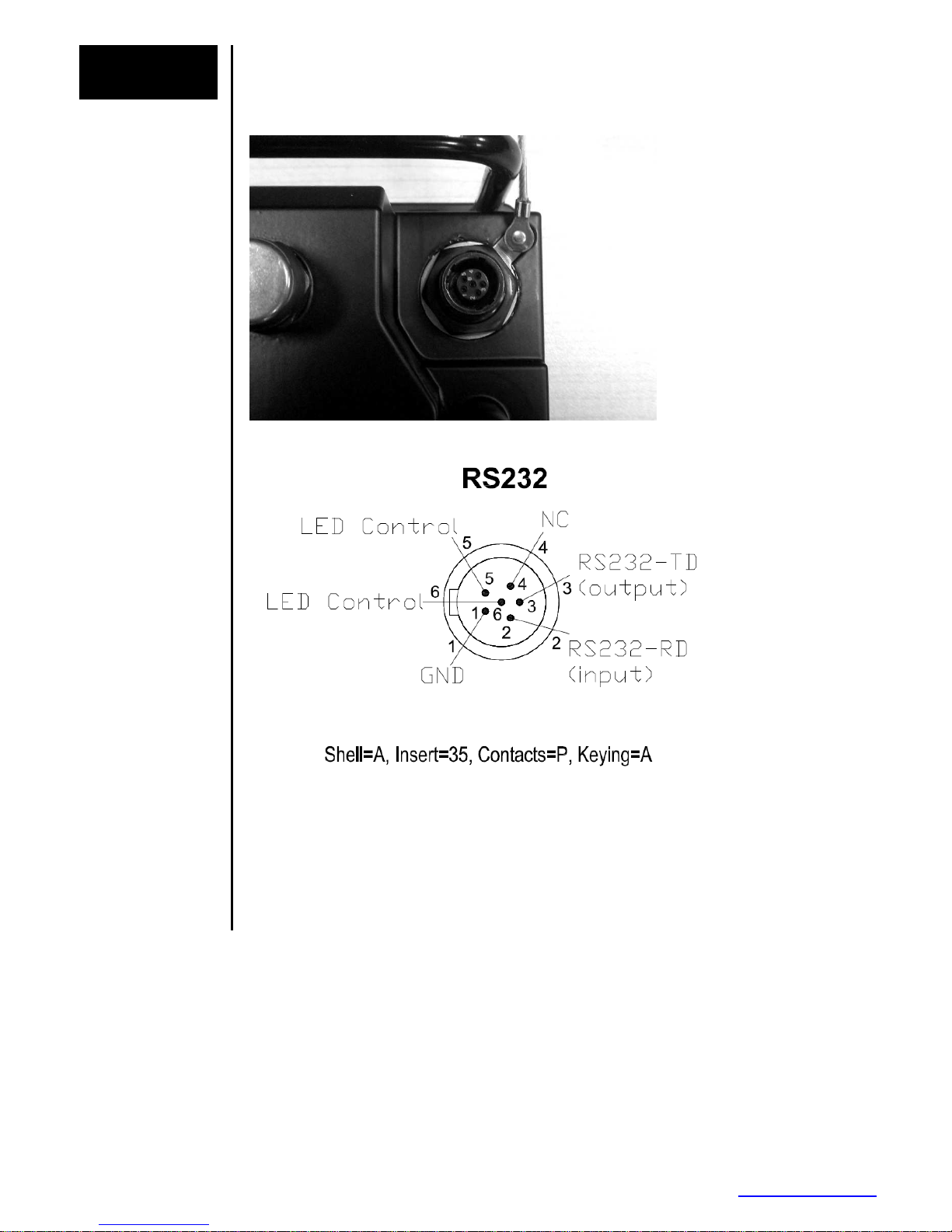

The switch offers a RS232 serial port for accessing the local management interface. Once
you have made a physical connection refer to the software user manual on how to access
the switch via this console port.
Console
Receptacle
Console
Receptacle
Pinout
LED Control
Shorting out pins 5 and 6 on the RS232 connector will turn off all LEDs while
continuing regular switch operation. Leave pins 5 and 6 open for normal LED
function.
Recommended
Plug
Model # D38999/26WA35PA
(w/ pin contacts and A keying)

MIL312 Hardware Manual_Rev_02-14-13.docx Page 12 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Ethernet
Receptacle
The switch has 12 10/100/1000 Ethernet ports. These ports will auto-detect the speed and
duplex of the connection. The ports can be disabled or configured for fixed settings via one
of the management interfaces. See the software user manual for details.
Ethernet
Receptacle
Ethernet
Receptacle
Pinout
Typical Pinout Connections
Pin-1 - - - TX + (For 10/100)
Pin-2 - - - TX – (For 10/100)
Pin-3 - - - RX + (For 10/100)
Pin-4 - - - TX + (For Gig)
Pin-5 - - - TX – (For Gig)
Pin-6 - - - RX – (For 10/100)
Pin-7 - - - RX + (For Gig)
Pin-8 - - - RX – (For Gig)
Recommended
Plug AERO AE90-365-BN9-9PN

MIL312 Hardware Manual_Rev_02-14-13.docx Page 13 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Wiring
Standards
Table
See chart below
Pin EIA / TIA
568A
EIA / TIA
568B or
AT&T 258A
10Base-T
10 Mbps
Cat3
100Base-TX
100 Mbps
Cat5
100Base-T4
100 Mbps
Cat3
100Base-T2
100 Mbps
Cat3
1000Base-T
1 Gbps
Cat5+
1
white / white / TX+ TX+ TX D1+ BI DA+ BI DA+
green orange
2
green / orange / TX- TX- TX D1- BI DA- BI DA-
white (green) white (orange)
3
white / white / RX+ RX+ RX D2+ BI DB+ BI DB+
orange green
4
blue / blue / N/A N/A BI D3+ N/A BI DC+
white (blue) white (blue)
5
white / white / N/A N/A BI D3- N/A BI DC-
blue blue
6
orange / green / RX- RX- RX D2- BI DB- BI DB-
white (orange) white (green)
7
white / white / N/A N/A BI D4+ N/A BI DD+
brown brown
8
brown / brown / N/A N/A BI D4- N/A BI DD -
white (brown) white (brown)
BI=BI directional data RX=Receive Data TX=Transmit Data
(Pair Colors may be solid and striped/color, or color with white stripe and white with color stripe)

MIL312 Hardware Manual_Rev_02-14-13.docx Page 14 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 4 LEDs
LED Location
The switch has a set of LEDs to indicate the status of various operating conditions as
defined below.

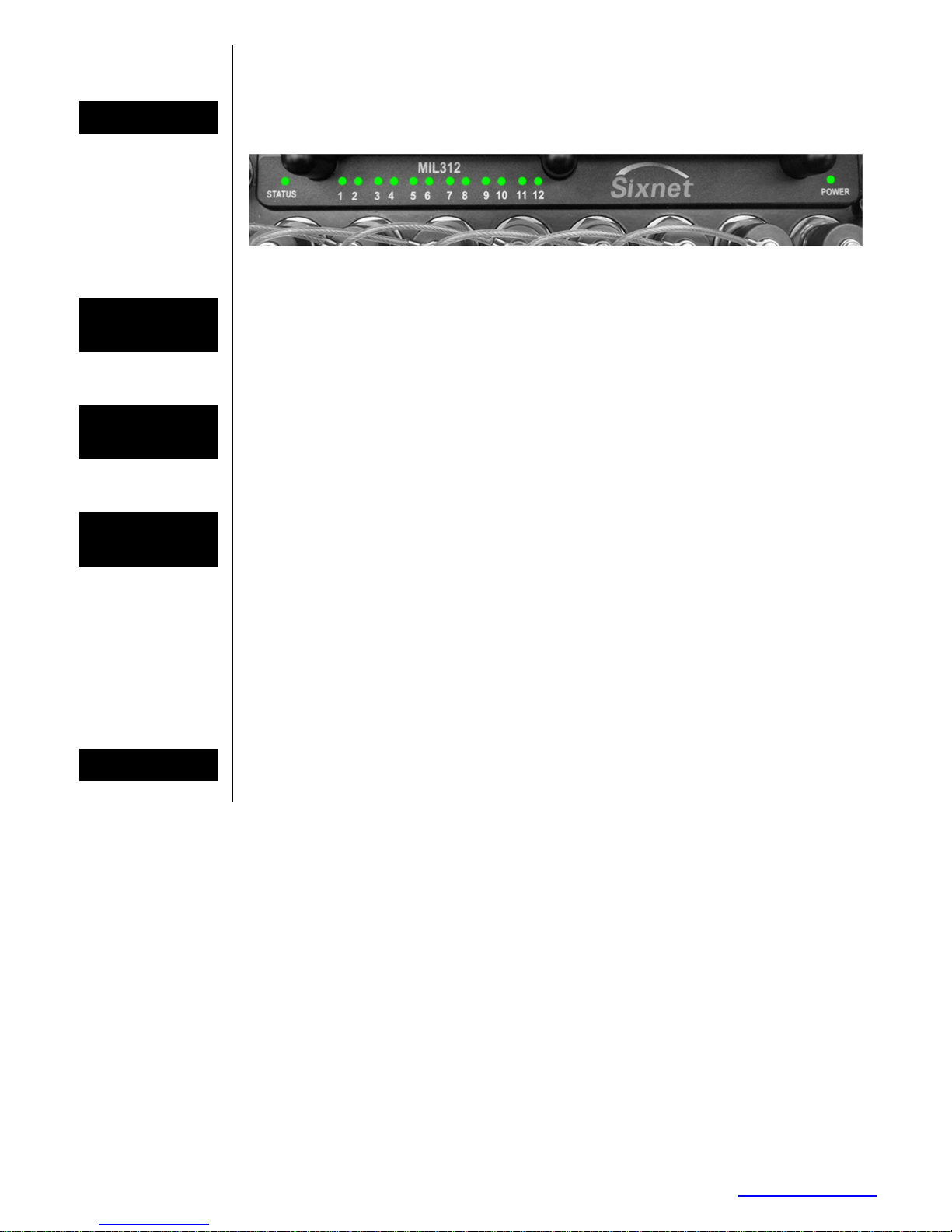

Typical LED Location
Status LED
The Status LED indicates the overall health of the switch. It is normally ON solid green
indicating that no internal CPU or software problems are detected. It will flash green when
loading firmware and briefly on power up or reset. Otherwise, if it is OFF or amber for an
extended period of time then a problem is detected. In this case, please contact technical
support.
Power LEDs
The Power LED will be on solid green when power is applied to the switch. In the event of a
power fault, the LED will turn to solid amber. The LED will also be solid amber during a
portion of the boot up sequence.
Ethernet
LEDs
The switch has a set of LEDs to indicate the status of the Ethernet ports. Each LED is
labeled with the number of the port it represents. They function as follows:
Solid Green = 1000 Mbps linked detected but no Ethernet activity.
Flashing Green = 1000 Mbps linked detected with Ethernet activity.
Solid Orange = 10/100 Mbps linked but no Ethernet activity.
Flashing Orange = 10/100 Mbps linked detected with Ethernet activity.
OFF = No link detected.
LED Blackout
The switch is equipped with the capability to toggle the LEDs from an active state to an
inactive state. See Console Receptacle Pinout above or refer to data sheet for more
information.

MIL312 Hardware Manual_Rev_02-14-13.docx Page 15 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 5 Pressure Vent
Pressure
Vent
Without a pressure ventilation system the pressure differential that can occur due to
temperature or altitude changes can result in condensation. To prevent this, the switch
incorporates a pressure vent that adjusts the internal air pressure to match the
surrounding (external) pressure. At the same time the vent is IP67 rated and will not let
moisture into the switch. Assembled
Pressure Vent
Characteristics
Air flow rate: 0,4 l/min at 0, bar ∆P to 5,0 l/min at 1 bar ∆P
Point of water entry: >1,5 bar
Temperature resistance: -40°C to +120°C (in assembled state)
Pressure Vent

MIL312 Hardware Manual_Rev_02-14-13.docx Page 16 of 16 Last Revised: 14-Feb-13
Sixnet Technology Park •
••
•331 Ushers Road •
••
•Ballston Lake, NY 12019 •
••
•USA •
••
•[phone] •
••
•[email protected]
Section 6 Service Information
Service
Information
We sincerely hope that you never experience a problem with any
Sixnet
product. If you do
need service, call Sixnet at [phone] and ask for Technical Support. A trained
specialist will help you to quickly determine the source of the problem. Many problems are
easily resolved with a single phone call. If it is necessary to return a unit to us, an RMA
(Return Material Authorization) number will be given to you.
Sixnet tracks the flow of returned material with our RMA system to ensure speedy service.
You must include this RMA number on the outside of the box so that your return can be
processed immediately.
The applications engineer you are speaking with will fill out an RMA request for you. If the
unit has a serial number, we will not need detailed financial information. Otherwise, be sure
to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not
covered under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RMA form and supplied to the repair department before your
unit arrives. This helps us to provide you with the best service, in the fastest manner.
Normally, repairs are completed in two days. Sometimes difficult problems take a little
longer to solve.
If you need a quicker turnaround, ship the unit to us by air freight. We give priority service to
equipment that arrives by overnight delivery. Many repairs received by mid-morning (typical
overnight delivery) can be finished the same day and returned immediately.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Sixnet system for future
reference:
Serial #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
Product
Support To obtain support for Sixnet products:
Latest product info: http://www.sixnet.com
Phone: [phone]
Fax: [phone]
E-mail: mailto: [email protected]
Mailing address: Sixnet Technology Park, 331 Ushers Road, Ballston Lake, NY 12019
