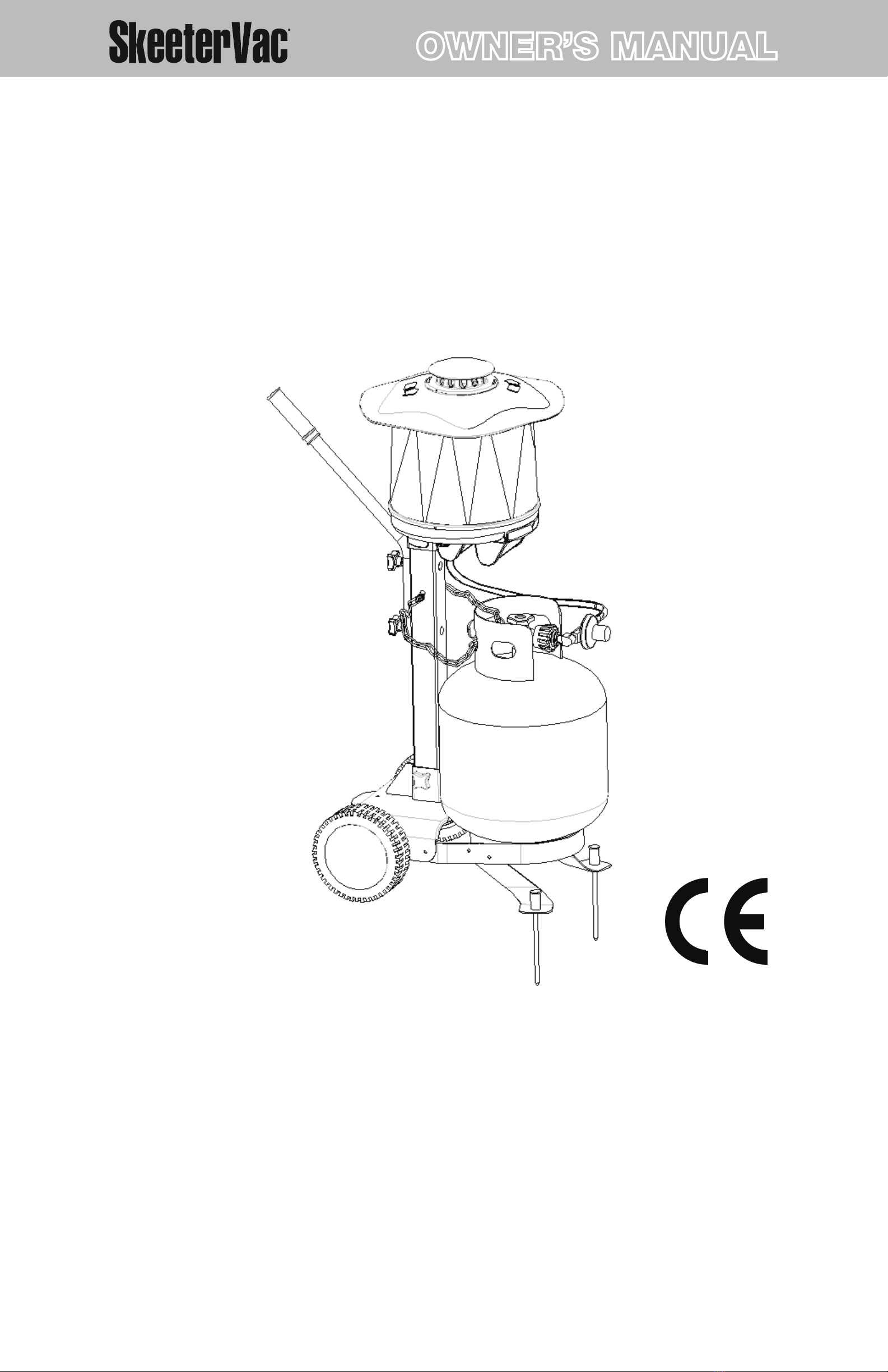

SkeeterVac SV-35 User manual

SV-35/CPSV003503
SV-35B
SV-35C
OWNER’S MANUAL
Mosquito Trap
User Manual
Read the Instructions before use
Congratulations on your new Mosquito Trap – the latest in effective mosquito-
extermination-systems, incorporating decades of research and development.
This mosquito trap is probably the very powerful trap in the market today. It has been developed and mimics a perspiring person with 6 cues to
attract female mosquitoes in large areas, and will make sure mosquito colonies in your vicinity will deteriorate and in many cases be extinguished
altogether. Our goal was to create a dynamic multi-platform that can attract the majority of mosquitoes species. The mosquito trap is to attract
the fast and low flying Aedes (Asian Tiger Mosquito), Culex (most common mosquitoes). and is perfect altitude for most Midges and Gnats.
Visit www.amplecta.com for instructional videos and support!
2531
20

2 SV-35,CPSV003503/35B/35C
W1. This mosquito trap unit is for outdoor use only, and shall not be used
in a building, garage, or any other enclosed area.
W2. Do NOT operate, light or use this appliance within 3 meters/8 feet of
walls, structures, buildings or combustible materials.
W3. It is a violation of Federal law to use this product in a manner
inconsistent with its labeling.
W4. This mosquito trap unit is NOT for commercial use.
W5. This This mosquito trap unit is for use with gas only. The conversion
to or attempted use of natural gas in this This mosquito trap unit is
dangerous and will void your warranty.
W6. Gas Characteristics:
Wa.Gas is flammable and hazardous if handled improperly. Become aware
of the characteristics before using any gas product.
Wb.Gas is explosive under pressure, heavier than air, and settles and
pools in low areas.
Wc.Gas in its natural state has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
Wd.Contact with gas can cause freeze burns to skin.
W7.Gas tank needed to operate. Only tanks marked LPG, Butane and
Propane gas are suitable for this unit.
Wa.The gas supply tank must be constructed and marked in accordance
with the Specifications for gas Cylinders in your country.
Wb.Gas tank must be arranged for vapor withdrawal.
Wc.The gas tank must have a listed overfilling prevention device (OPD).
Wd.Only use cylinders equipped with a cylinder connection device
compatible with the connection for outdoor cooking appliances.
We.The gas tank must have a tank collar to protect the tank valve.
Wf.Never use an gas tank with a damaged body, valve, collar, or footing.
Wg.Dented or rusted gas tanks may be hazardous and should be checked
by your gas supplier prior to use.
Wh.The gas tank should not be dropped or handled roughly.
Wi.Tanks must be stored outdoors out of the reach of children and
must not be stored in a building, garage, or any other enclosed area.
Your tank must never be stored where temperatures can reach over
60°C/125°F.
Wj.Never keep a filled gas tank in a hot car or car trunk. Heat will cause
the gas pressure to increase, which may open the relief valve and allow
gas to escape.
Wk.Place dust cap on cylinder valve outlet whenever the cylinder is not in
use. Only install the type of dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of caps or plugs may result
in leakage of propane.
W
Wl .Do not store a spare gas tank under or near this appliance.Never fill
the tank beyond 80 percent full.LP
Wm.A fire causing, serious injury or damage to property may occur if the
above is not followed exactly.
Wn.Always transport your tank in a secure, well-ventilated location in
your vehicle. gas tank should be upright with valve turned off. Gas tank
should be taken directly to and from place of use.
W8. Shut off the valve at the gas cylinder or the regulator before moving
the appliance.
W9. Do not obstruct the ventilation holes of the cylinder housing.
W10. Never attempt to attach this This mosquito trap unit to the self-
contained gas system of a camper trailer, motor home, or house.
W11. The use of alcohol, or prescription or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely operate the
appliance.
W12. Your This mosquito trap unit has been checked at all factory
connections for leaks. Recheck all connections, as movement in
shipping can loosen connections.
W13. Check for leaks even if your unit was assembled for you by someone
else.
W14. Do not operate if gas leak is present. Gas leaks may cause a fire
or explosion. 15. You must follow all leak-checking procedures before
operating. To prevent fire or explosion hazard when testing for a leak:
Wa). Always perform leak test before lighting the This mosquito trap unit
and each time the tank is connected for use.
Wb). No smoking. Do not use or permit sources of ignition in the area
while conducting a leak test.
Wc). Conduct the leak test outdoors in a well-ventilated area.
Wd). Do not use matches, lighters, or a flame to check for leaks.
We). Do not use This mosquito trap unit until any and all leaks are corrected.
W15. If you are unable to stop a leak, disconnect the gas supply. Call a gas
appliance serviceman or your local gas supplier.
W16. Do not store or use gasoline or other flammable liquids or vapors
within 8 meters/25 feet of this appliance.
W17. Do not use in an explosive atmosphere. Keep This mosquito trap
unit area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
W18. Minimum clearance from sides and back of unit to combustible
construction, 50 centimeters/21 inches from side and 50 centimeters/21
inches from back. Do not use this appliance under overhead
combustible surfaces.
W19. It is essential to keep the Mosquito trap’s valve compartment,
burners, and circulating air passages clean. Inspect Mosquito trap
before each use.
WWARNINGS:
Important Safeguards
WWARNINGS:
WFOR YOUR SAFETY:
WFor Outdoor Use Only (outside any enclosure)
WWARNINGS:
WFOR YOUR SAFETY:
WKeep out of reach of Children
WWARNINGS:
WFOR YOUR SAFETY:
WRead the labels and these instructions before using.
WWARNINGS:
WFOR YOUR SAFETY:
WImproper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
WRead the installation, operation, and maintenance instructions
thoroughly before installing or servicing this equipment.
WFailure to follow these instructions could result in fire or
explosion, which could cause property damage, personal
injury, or death.
WDANGER:
WFor use outdoors or in amply ventilated areas.
If you smell gas:
1.Shut off gas to appliance.
2.Extinguish any open flame.
3.If odor continues, keep away from the appliance immediately and
1 call your gas supplier or your fire department.
WWARNINGS:
WFOR YOUR SAFETY:
WDo not store or use gasoline or other flammable liquids or vapors in
the vicinity of this or any other appliance.
WA gas cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WDANGER:
Failure to follow the dangers, warning and cautions in this manual
may result in serious bodily injury or death, or in a fire or an
explosion causing damage to property.
2

W20. Do not alter this mosquito trap unit in any manner.
W21. Do not use the this mosquito trap unit unless it is COMPLETELY
assembled and all parts are securely fastened and tightened.
W22. This this mosquito trap unit should be thoroughly cleaned and
inspected on a regular basis. Clean and inspect the hose before each
use of the appliance. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to the appliance being put into
operation.
W23. Use only the regulator and hose assembly provided. The
replacement regulator and hose assembly shall be that specified by the
manufacturer.
W24. Use only this mosquito trap unit with factory authorized parts. The
use of any part that is not factory authorized can be dangerous. This
will also void your warranty.
W25. Keep the instructions for future reference.
W26. Do not use this appliance without reading “Operating Instructions”
in this manual.
W27. Do not install or use in or on boats or recreational vehicles.
W28. Product performance can vary due to weather, wind and other
environmental conditions.
W29. In case of violent wind precautions must be take against tilting of
the appliance.
W30. Never lean over the this mosquito trap unit when lighting.
W31. Do not move the appliance when in operation.
W32. Do not attempt to move this mosquito trap unit when in use. Allow
the this mosquito trap unit to cool before moving or storing.
W33. Storage of unit indoors is permissible only if the tank is
disconnected, removed from the this mosquito trap unit and properly
stored outdoors.
W34. Do not attempt to disconnect the gas regulator from the tank or any
gas fitting while the this mosquito trap unit is in use.
W35. Do not use this mosquito trap unit for indoor cooking or heating.
TOXIC fumes can accumulate and cause asphyxiation.
W36. After a period of storage and/or nonuse, check for leaks, burner
obstructions and inspect for any abrasion, wear, cuts to the hose.
W37. If this mosquito trap unit is not in use, the gas must be turned off at
the supply tank.
W38. Keep air intake areas clear of dust, dirt and debris
W39. Do not allow children to operate or play near a this mosquito trap
unit device when it is in use.
W40. The tubing or the flexible hose must be changed within the
prescribed intervals.
W41. Inspect for damage and wear during each maintenance cycle at
least once per month and each time the cylinder changed.
W42. Use only the type of gas and the type of cylinder specified in these
insturctions.
W43. It is recommended to use mosquito attractant in your mosquito trap
unit. The use of other attractants has not been tested with your product,
and void your warranty.
W44. Maximum inlet gas supply pressure: See Fuel and Gas pressure
specification for your country on page 11.
W45. Deaths, serious injury or damage to property may occur if the above
is not followed exactly.
Please retain user’s manual for future reference.
If you are assembling this unit for someone else, give this manual to him or her to read and
save for future reference.
Important Information
Your mosquito trap device operates 24 hours a day to help reduce the nuisance of mosquitoes.
It attracts female mosquitoes that are seeking a blood meal to nourish their eggs. By removing
these females you also remove their eggs.
This Product will provide the following results when used as
directed:
• Attract, trap and kill mosquitoes
This Product is not capable of:
• Completely eliminating mosquito populations
• Eliminating the possibility of disease from mosquitoes
• For best results, keep your mosquito trap running continuously, and replace the propane
cylinder as soon as it is empty.
• Begin operating your mosquito trap device once low temperatures remain above 10ºC
(50ºF).
• To reduce and maintain mosquito populations it is important for your mosquito trap device to
operate continuously. Do not turn off the gas tank valve until your mosquito trap turns off, then
immediately replace the empty tank with a full tank of propane.
• Always contact our experts before returning product to place of purchase.
Important Information about the attractant
Your mosquito trap device includes an attractant that contains octenol
(1-octen-3-ol). This non toxic pesticide is an effective attractant supplement for some mosquito
species.
KEEP OUT OF REACH OF CHILDREN
CAUTION: Harmful if swallowed, absorbed through the skin or inhaled. Avoid contact with skin,
eyes and mouth. Wash hands thoroughly with soap and water after handling.
Important Information about ultraviolet light
This device radiates intense ultraviolet (UV) light when operated.
CAUTION: Do not look directly at the device during operation. Exposure to UV light, even for a
brief period, can damage your eyes.
Table of content
Precautions. 2–3
How it works. 3
Part List. 4
Assembly instructions . 5–8
Trap placement guide . 9
Operation instructions . 10-11
Warranty . 11
Fuel and Gas specification . 12
Troubleshooting . 13
End Page . 14
How it works
Precautions.
The mosquito trap mimics a perspiring person, with 6 cues to attract female mosquitoes:
• Breath (CO2: moist and heat)
• Heat (Engine housing-Body skin temperature)
• Sweat (Lure Attractant)
• Movement (Blinking LED light)
• Water moisture (Combustion exhaust moisture)
• Light (attracts 360 degrees using UV-LED lights)
It catches the mosquitoes in two ways:
• Strong vacuum fan that sucks the insects in and dehydrates them to die
• Rapid Action Sticky Paper: Powerful glue Trap with contrast pattern
Not all mosquitoes are attracted to basic Octenol. We have therefore added an extra large
multi-attractant chamber under the hat. Here you can fit all Rapid Action attractants as well as
those of our competitors’ or your own, whichever you prefer. The mosquito trap will concentrate
attracting scent of the attractant close the strong vacuum inlet where the mosquitoes are
sucked in.
Important Safeguards
3
SV-35,CPSV003503/35B/35C

4
Parts List
1Rain Cover 57-04-556
2FineTune®Ring 57-04-194
3Attractant Lure 57-04-195
4Engine Cowl* 57-04-209
5TacTrap (Sticky Trap) 57-04-210
6Engine Assembly* 57-04-035
Wave Drawer 57-04-558
8Regulator/Hose
Assembly* 57-04-036
9Battery Cap* 57-04-555
10 Post with tank chain 57-04-573
11 Cart Assembly 57-04-302
12 Handle 57-04-580
Tank Chain 57-04-267
Middle Bolt (1)
Long Bolt (2)
Win Net (3)
Stake (2)
Gas Tank Cover 57-04-557
Tank (Non Included)
* Pre-assembled
W**CAUTION: Use only the factory-
authorized parts. The use of any
part that is not factory-authorized
can be dangerous and will void
your warranty.
Expanded View
Hardware
ABolt M8 x 63 mm, Nickel Plated 1 pcs
BBolt M8 x 83 mm, Nickel Plated 2 pc
CWing Nut M8 mm 3 pcs
DWasher M8 mm, Nickel Plated 3 pcs
EAA Battery 1 pcs
FStake ø8 x 180 mm Nickel Plated 2 pcs
SV-35,CPSV003503/35B/35C
13
1
2
3
5
6
8
9
10
14
11
4
7
7
13
A
B
12
F
B
15
C
F
14
A
15
C
A
B
C
D
F
E

2
Secure Base
Properly choice and positioning this device is important to maximizing performance.
Fx 1
1
DO NOT RETURN TO PLACE OF PURCHASE.
For assistance, contect www.amplecta.com. Please have
your Owner’s Manual and model number available for
reference.
Note: The model number is printed on a label which can be found on
the side of the engine.
For Easiest Assembly:
• Select an area where you will assemble this product. To
protect components, choose a smooth surface that’s free of
cracks or openings.
• Spread out all parts.
• Tighten all hardware connections by hand first. Then, before
completing each step, go back and fully tighten all hardware.
Be careful not to over-tighten. That could damage surfaces or
strip threads.
• For best results, complete each step in the order presented.
To complete assembly you will need:
• (1) Leak detection solution (instructions on how to make the
solution are included in the “Operating Instructions” section of
this manual).
• (1) Precision-filled LP gas grill tank with Acme Type 1 external
threaded valve connection (standard grill size – 9 kg (20 lbs)).
Typical assembly is approximately ten (10) minutes.
Assembly Instructions
3
Insert Post into Cart
Ax 1
Dx 1
C x 1
5
SV-35,CPSV003503/35B/35C
A
C
D
4
Install Handle
Bx 2
Dx 2
C x 2
B
C
CD

6
6
Secure Gas Tank with chain
5
Insert Gas Tank
SV-35,CPSV003503/35B/35C
7
Attach Engine Assembly
8
Insert Engine Assembly onto Post
Assembly Instructions

Assembly Instructions
12
Install Battery
Bx 1
10
Insert Wave Drawer®and Attach Rain Cover
9
Insert StickyTrap and Attache FineTune®Lure
11
Attach Engine Assembly
7
SV-35,CPSV003503/35B/35C

Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643 8
Installing LP Gas Tank
To operate, you will need one precision-filled standard grill LP gas tank with external
valve threads.
WCAUTION: LP gas tank must be properly disconnected and
removed prior to moving this product.
WLP gas cylinders must be stored outdoors out of the reach of
children and must not be stored in a building, garage or any
other enclosed area. Your cylinder must never be stored where
temperatures can reach over 52°C (125°F). Always transport
your cylinder in a secure, well-ventilated location in your vehicle.
Cylinder should be upright with valve turned off. Cylinder should
be taken directly to and from place of use.
WDented or rusted LP gas cylinders may be hazardous and should
be checked by your LP gas supplier prior to use.
Place LP Gas Tank Cover
Place the protective cap cover onto the LP tank and store the tank outdoors in a well
ventilated area out of direct sunlight and away from children.
Connecting LP Gas Tank
1. Before connecting, be sure there is no debris caught in the head of the LP gas tank or the
head of the regulator valve.
2. Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
WThe LP gas cylinder must have a listed overfilling prevention device
(OPD). Never fill the cylinder beyond 80 percent full.
WDented or rusted LP gas cylinders may be hazardous and should be
checked by your LP gas supplier prior to use.
WUse only the regulator and hose (70~100cm, No longer than 1.2m)
assembly MKL factory-authorized provided. Use only the replacement
regulator and hose assembly specified by MKL factory or Distributor.
WUse only MKL factory-authorized parts. The use of any part that is not
factory-authorized can be dangerous and will void your warranty.
WThe regulator type and rating pressure shall be suited /matched with
destination country’s gas category as following：I3B/P(30) gas for
(28~30)mbar of the outlet pressure of the regulator, I3+(28~30/37)
gas for (28~30)mbar Butane/37mbar Propane of the outlet pressure
of the regulator, I3B/P(50) gas for 50mbar of the outlet pressure of
the regulator.
Disconnecting LP Gas Tank
1. Before disconnecting, make sure the LP gas tank valve is “CLOSED.”
2. Disconnect regulator/hose assembly from LP gas tank by turning knob counterclockwise
until it is loose.
WCAUTION: LP gas tank must be properly disconnected and removed
prior to moving this product.
WIf the product is not in use, the gas must be turned off at the supply
cylinder and disconnected.
WDo NOT attempt to disconnect the gas regulator from the cylinder or
any gas fitting while the product is in use.
Getting More LP Gas
Need a new tank of LP gas? One option is to try LP gas exchange. It’s easy, fast, safe, and
available at located retail, which are typically open nights and weekends. You can purchase a
fresh, precision-filled tank or exchange your empty for a fresh, precision-filled tank. Another
option is to have your tank refilled at a refill station. Be sure to check the hours of operation
for the refill station.
WWARNING:
WDo not connect the gas cylinder directly to the appliance without
regulator.
WThe tubing or the flexible hose must be changed within the prescribed
intervals.
WDo NOT OBSTURCT THE VENTILATION HOLES OF THE CYLINDER HOUSING.
WDo not move the appliance when in operation.
WShut off the valve at the gas cylinder or the regulator before moving the
appliance.
WIn case of violent wind precautions must be taken against tilting of the
appliance.
WThis appliance must be used, and the gas cylinder stored, in accordance
with the regulations in force.

9 SV-35,CPSV003503/35B/35C
Important Mosquito Information
Important Information
Your device operates 24 hours a day to trap and kill mosquitoes. It attracts female mosquitoes
that are seeking a blood meal to nourish their eggs. By removing these females, you also
remove their eggs. This product will provide the following results when used as directed:
• Attract, trap and kill mosquitoes.
• This product is not capable of:
• Completely eliminating mosquito populations.
• Eliminating the possibility of disease from mosquitoes.
• Begin operating the device once low temperatures remain above 10°C (50°F).
• To reduce and maintain mosquito populations, it is important for this product to operate
continuously. Do NOT turn off the LP gas tank valve until the product turns off, then
immediately replace the empty tank with a full tank of propane.
• Always contact our Customer Care Centre at 1.888.398.8643 before returning product to
place of purchase.
Important Information about Octenol
See Insert for First Aid and Precautionary Statements.
This device includes a lure that contains octenol (1-octen-3-ol). This lure is an effective
attractant supplement for some mosquito species.
KEEP OUT OF REACH OF CHILDREN.
WCAUTION: Harmful if swallowed, absorbed through the skin or inhaled.
Avoid contact with skin, eyes and mouth. Wash hands thoroughly with
soap and water after handling.
Mosquito Facts
• About 3,000 species of mosquitoes have been identified on a worldwide basis.
Approximately 150 are known to exist in North America.
• There are approximately 25 known “human nuisance species” of mosquitoes.
• Most adult mosquitoes only have a life span of 2-4 weeks.
• Only female mosquitoes bite.
Controlling Mosquitoes
In addition to properly installing and using this device, you can reduce mosquito breeding
around your home significantly by reducing the amount of water that is stagnating on your
property. Be aware that mosquitoes can and will develop in any puddle or pool of water that
lasts more than 4 days.
• Dispose of cans, plastic containers, pots, or similar water-holding containers that have
accumulated on your property.
• Drill holes in the bottom of containers that you must leave out of doors – trash cans,
recycling bins, etc.
• Clean clogged roof gutters on an annual basis.
• Turn over plastic wading pools when not in use.
• Turn over wheelbarrows, empty planters, or children’s toys when not in use.
• Don’t allow water to stagnate in birdbaths.
• Aerate ornamental pools or stock them with fish.
• Clean and chlorinate swimming pools that are not being used. Don’t forget that
mosquitoes breed in the water that collects on swimming pool covers.
• Use landscaping features or drainage tools to eliminate standing water that collects in low
spots on your property.
Placement
Placement
Trap Placement
Properly positioning this device is important to maximizing performance. Since this device
attracts mosquitoes it should be placed at least 3 m (10 feet) from your living areas.
Mosquitoes typically live in areas that are shady, wet and/or moist. Determine the primary
mosquito habitat and place this device as close as possible to it.
If you live in an area with consistent wind, place the device upwind from the primary mosquito
habitat.
Maximum performance may require relocating the device from time to time. To move, turn
cylinder valve off and disconnect gas line. Then remove the stakes, place your foot on the
cart base and tilt backward by holding the handle. Pull to the new location. Re-install stakes.
TIPPING DANGER: ensure stakes are secure.
The location of your trap is a critical variable in maximizing capture rates. Most mosquito
species avoid direct sunlight and wind so we recommend shaded, sheltered areas, preferably
amongst bushes or shrubs and near any wetland area. Keep the trap away from areas
frequented by humans and animals. Experiment with different locations to determine the most
successful placement for your trap.
Find the sweet spot!
For the best performance from your Mosquito Trap, first determine the source of the mosquito
nuisance (Mosquitoes breed in wet areas like streams, marshland, wooded areas and
gardens). Then use these rules to site the Trap:
Rule 1: Place the Trap between the mosquito source and areas of human activity. Rule 2:
Place the Trap as far away from people ( > 10 meters) and as close to the
mosquito source as possible.
Rule 3: Place the Trap upwind of the mosquito source but only if you can comply with Rule 1.
(Mosquitoes smell pray upwinds)
Rule 4: Always place the Trap in a calm and shaded area. (Mosquitoes avoid heat and wind).
WProduct performance can vary due to weather, wind and other
environmental conditions.
WUnit will operate at reduced efficiency below 10°C (50°F).
Patience
Patience and experimentation are the keys to getting the best out of your Mosquito Trap. It
may take as much as 2–4 weeks of use to reduce local populations to the point that breeding
cycles are interrupted. You should not expect to completely get rid of mosquitoes. Plan ahead
and operate the trap for several weeks in advance of outdoor social occasions. Read the
manual and use common sence when placing the trap. Also try to reduce unnecessary still
standing water in your area. Water puddles uncleaned gutters, old buckets etc are perfect
breeding ground for mosquitoes. If you do this right the result will come.
DIY mosquito control made easy!
–Eliminate standing water in low spots, ditches, gutters and similar areas
– Empty receptacles that collect water (eg bird baths and pot plant saucers) –Reduce breeding
sites by keeping grass mown
–Mosquito netting/screens can be used to provide mosquito-free areas
–Light coloured clothing is less attractive to some mosquito species and if tightly woven, can
give some protection against biting
–Always carry personal mosquito protection in infested areas. We recommend Thermacell
by Amplecta which is a highly effective, mobile and non toxic repellent system that instantly
protects against mosquitoes.

10
SV-35,CPSV003503/35B/35C
Operating Instructions
Checking for Leaks
Tank/Gas Line Connection
1. Make 125 mL (4 oz.) of leak detection solution by
mixing one part liquid dishwashing soap with three
parts water.
2. Connect LP gas tank per “Installing LP Gas Tank”
section.
3. Turn LP gas tank valve to “OPEN.”
4. Spoon several drops of solution, or use a squirt
bottle, at all “X” locations (Figures 1 and 2).
a. If any bubbles appear, turn LP gas tank valve to
“CLOSED,” reconnect and re-test.
b. If you continue to see bubbles after several
attempts, turn LP gas tank valve to “CLOSED”
and disconnect LP gas tank, per “Disconnecting
LP Gas Tank” section. Contact 1.888.398.8643
for assistance.
c. If no bubbles appear after one minute, turn LP
gas tank valve to “CLOSED,” wipe away solution
and proceed.
WDo NOT operate if a gas leak is present.
Gas leaks may cause a fire or explosion.
FineTune: Customizing the Lure
Output
See Insert for First Aid and
Precautionary Statements.
The amount of octenol this device dispenses is
important to maximizing performance. Some mosquito
species are highly attracted to octenol while others are
less attracted.
This product contains an easy-to-use feature that
allows you to customize the amount of octenol released
to match the species in your environment.
Note: Lure lasts at least 60 days.
1. Remove rain cover.
2. Remove foil seal from the FineTune Lure.
3. Place FineTune lure back into holder with holes
orienting upwards.
4. From the illustrations provided, select the
environment that best matches the area you are
protecting
5. Position the ring so it points to your environment.
(Figures 3a, 3b and 3c).
6. Replace rain cover.
Lighting
WCAUTION: Keep this area clear and free
from combustible materials, gasoline
and other flammable vapors and
liquids.
WCAUTION: Do NOT obstruct the flow of
combustion and ventilation air.
WCAUTION: Do NOT operate with
WaveDrawer cover in place.
1. Read instructions before lighting.
2. Check for obstructions of airflow.
3. Connect LP gas tank per “Installing LP Gas Tank”
section.
4. Remove rain cover from top of SkeeterVac.
5. Turn LP gas tank valve slowly to “OPEN.’’
6. Press and hold control valve button (Figure 4).
7. IMMEDIATELY press and hold igniter button down
until you hear a “POP” sound indicating ignition.
Normally occurs within 20 seconds (Figure 5).
8. Continue to hold control valve button for 30
seconds.
9. You know ignition is complete when the needle on
the engine gauge begin to move into the “Green”
Figure 1
Figure 2
X
XX
XX
Figure 3a
Lure Output: Fully Open
Figure 3b
Lure Output: Half Open
Figure 3c
Lure Output: Closed
Figure 4
Control
Valve
zone.
10. Replace rain cover.
WCAUTION: If engine fails to light, shut
LP gas off at tank and wait 5 minutes
before attempting to restart the engine
by following the lighting instructions.
Turning Off
1. Turn LP gas tank valve to “CLOSED.”
Note: A “poof” sound is normal as the last of the LP
gas is burned.
2. Disconnect LP gas tank per “Disconnecting LP Gas
Tank” instructions.
WCAUTION: The gas supply must be turned off at the LP-gas tank when
this outdoor gas appliance is not in use.
Cleaning and Care
See Insert for First Aid and Precautionary Statements.
WCAUTION: All cleaning and maintenance should be done when the
product is cool and with the fuel supply disconnected.
WCAUTION: Do NOT clean any part in a self-cleaning oven.
WCAUTION: This product should be thoroughly cleaned and inspected on
a regular basis.
Notices
1. Abrasive cleaners will damage this product.
2. Never use oven cleaner to clean any part of this product.
Before Each Use:
1. Keep the area clean and free from any combustible materials, gasoline, and other
flammable vapors and liquids.
2. Do NOT obstruct the flow of the combustion of LP and the ventilation air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. See “Cleaning Instructions” for proper cleaning instructions.
Cleaning Instructions / Routine Service
To ensure maximum performance and to lengthen the life of this device, perform these steps
each time your tank is empty. This model will consume a standard LP gas grill tank every
15-20 days.
Note: While unit is in use, check the following every 2-3 days:
• Check air passages for blockage.
1. Turn LP gas tank valve to “CLOSED.”
2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” instructions.
3. Remove rain cover from top of SkeeterVac.
4. Remove used TacTrap and dispose of properly.
5. Remove used FineTune lure (if necessary) and properly dispose.
Note: FineTune Lure lasts at least 60 days.
6. Lift engine and post off empty LP gas tank, and place on ground.
7. Remove empty LP gas tank.
8. Connect full LP gas tank per “Installing LP Gas Tank” instructions.
9. Slide fresh TacTrap in place and remove protective paper.
10. Remove fresh FineTune lure from package. Dispose of packaging properly.
11. Place FineTune lure back into holder with holes on orienting upwards.
12. From the illustrations provided, select the environment that best matches the area you are
protecting
13. Position the ring so it points to your environment. (Figures 3a, 3b and 3c).
14. Check engine and gas lines for any sign of damage or missing parts. Repair any problems
before attempting to start.
15. Connect LP gas tank per “Connecting LP Gas Tank” instructions.
16. Perform leak check per “Checking for Leaks” instructions.
17. Light per “Lighting” instructions.
18. Wash hands with soap and water.
Replacing Igniter Battery
If you do not hear a clicking sound when the igniter button is depressed, the battery may have
lost its charge. Replace battery as follows:
1. Turn LP gas tank valve to “CLOSED.”
2. Open battery compartment by turning cap on bottom of engine counterclockwise.
3. Remove used battery and properly dispose.
Operating Instructions (continued)
Figure 5
Igniter
Button

4. Place fresh AA battery into compartment –
negative (–) end goes in first (Figure 6).
5. Secure cap by turning clockwise until it stops.
6. Light per “Lighting” instructions.
End of Season Storage
To lengthen the life of this device, perform these
simple steps at the end of the mosquito season.
1. Turn LP gas tank valve to “CLOSED.”
2. Disconnect LP gas tank per “Disconnecting LP
Gas Tank” instructions.
3. Remove tank cover.
4. Remove LP gas tank.
5. Place the protective cap cover on the LP tank and store the tank outdoors in a well
ventilated area out of direct sunlight and away from children.
6. Remove and properly dispose of the TacTrap and FineTune lures.
7. Cover the device to protect it from dust.
8. Store it in a cool dry place.
WCAUTION: Storage of an outdoor gas appliance indoors is only
permissible if the tank is disconnected and removed from the outdoor
gas appliance.
Figure 6
Cleaning and Care (continued)
11
SV-35,CPSV003503/35B/35C
Limited Warranty
MKL (“Vendor”) warrants to the original retail purchaser of this product, and to no other person, that
if this product is assembled and operated in accordance with the printed instructions accompanying
it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free
from defects in material and workmanship.
Vendor may require reasonable proof of your date of purchase. Therefore, you should retain your
sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement of parts,
which prove defective under normal use and service and which Vendor shall determine in its
reasonable discretion upon examination
to be defective. Before returning any parts, you should contact Vendor’s Customer Service
Department using the contact information listed below. If Vendor confirms, after examination, a
defect covered by this Limited Warranty in any returned part, and if Vendor approves the claim,
Vendor will replace such defective part without charge. If you return defective parts, transportation
charges must be prepaid by you. Vendor will return replacement parts to the original retail purchaser,
freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse,
misuse, alteration, misapplication, improper installation or improper maintenance or service by you
or any third party, or failure to perform normal and routine maintenance on the product as set out in
this owner’s manual. In addition, the Limited Warranty does not cover damage to the finish, such as
scratches, dents, discoloration, rust or other weather damage, after purchase.
This Limited Warranty is in lieu of all other express warranties. Vendor disclaims
all warranties for products that are purchased from sellers other than authorized retailers or
distributors, including the warranty of merchantability or the warranty of fitness for a particular
purpose.
VENDOR ALSO DISCLAIMS AND ANY ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
VENDOR SHALL NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT,
PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Vendor further disclaims any implied or
express warranty of, and assumes no responsibility for, defects in workmanship caused by third
parties.
This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights
depending upon where he or she lives. Some jurisdictions do not allow the exclusion or limitation
of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the
above exclusion and limitations may not apply to everyone.
Vendor does not authorize any person or company to assume for it any other obligation orliability in
connection with the sale, installation, use, removal, return, or replacement of its equipment, and no
such representations are binding on Vendor.
If problems can not be correct by using these methods, please visit www.predatormosquitotraps.
com or contact your local provider.
The use and installation of this product must conform to local codes.
IMPORTER AND DISTRIBUTOR：
AMPLECTA
AMPLECTA AB, AHLA 208,312 93 LAHOLM, SWEDEN
HTTP://WWW.AMPLECTA.COM
MANUFACTURED IN CHINA FOR:
MKL ENTERPRISES LTD.
UNIT 1-3, 15/F TRENDY CENTRE, 682-684 CASTLE PEAK ROAD,
CHEUNG SHA WAN, KOWLOON, HONG KONG
MADE IN P.R.C

12 SV-35,CPSV003503/35B/35C
Gas category, pressure and Countries destination
Product Pin Code: 2531DL -0028 .
Use only the type of gas and the type of cylinder specified in these instructions.
Read the instructions before using this appliance. Read the instructions before installation.
Keep the instructions for future reference.
The appliance must be installed in accordance with instructions and local regulations.
WARNING:
The use of this appliance in enclosed areas is DANGEROUS and is PROHIBITED.
1) For use outdoors or in amply ventilated areas;
2) This appliance is for outdoor use only! (outside any enclosure)
12

Troubleshooting
Problem Possible Cause Solution
Product does not start
LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank per “Installing LP Gas Tank,” then turn
LP gas tank valve to “OPEN.”
LP gas tank is low or empty Exchange, refill or replace LP gas tank.
LP gas leak
1. Turn LP gas tank valve to “CLOSED.”
2. Wait 5 minutes for gas to clear.
3. Follow “Checking for Leaks” section.
Igniter does not work
1. Turn off LP gas tank per “Turning Off” section.
2. Press the igniter button (see figure 4).
a. If you hear a clicking sound, igniter is working.
b. Replace the “AA” battery (follow assembly step for inserting battery).
Too much air in hose line
1. Connect LP gas tank per “Connecting LP Gas Tank” instructions.
WCaution: Keep this appliance area clear and free from combustible
materials, gasoline, other flammable vapors and liquids and open flames.
2. Turn LP gas tank valve slowly to “OPEN.”
3. Press and hold control valve button for up to 3 minutes.
4. Try and light product per “Lighting” instructions every 30 seconds until you hear a “POP”
sound indicating ignition.
5. If still not working refer to “Regulator needs to be reset.”
Filter blocked
1. Turn off LP gas tank per “Turning Off” instructions.
2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” instructions.
3. Remove Regulator/Hose Assembly at product engine.
4. Remove filter. Replace old filter with new filter.
5. Reconnect Regulator/Hose Assembly at product engine.
6. Perform leak check per “Checking for Leaks” instructions.
7. Light product per “Lighting” instructions.
Regulator needs to be reset
1. Turn off LP gas tank per “Turning Off” instructions.
2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
3. After 30 seconds, reconnect LP gas tank per “Connecting LP Gas Tank” instructions.
4. Slowly turn the LP gas tank valve 3 full rotations to “OPEN.”
5. Perform leak check per “Checking for Leaks” instructions.
6. Light SkeeterVac per “Lighting” instructions.
Too damp or wet
1. Connect LP gas tank per “Connecting LP Gas Tank” instructions.
WCaution: Keep this appliance area clear and free from combustible
materials, gasoline, other flammable vapors and liquids and open flames.
2. Turn LP gas tank valve slowly to “OPEN.”
3. Press and hold control valve button (Figure 4).
4. IMMEDIATELY press and hold igniter button down until you hear a “POP” sound indicating
ignition. Normally occurs within 20 seconds.
5. Continue to hold control valve button for 30 seconds.
6. You know ignition is complete when:
a. the needle on the engine gauge begin to move into the “Green” zone.
b. the LED lights flicker.
c. the vacuum fan will be running with air flowing out of the botom of the engine.
Engine not functioning properly
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas leak Follow “Checking for Leaks” instructions.
Ventilation blocked
1. Turn off LP gas tank per “Turning Off” instructions.
2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” instructions.
3. Check ventilation openings and air-inlet to make sure clear of debris.
4. Clean SkeeterVac per “Cleaning and Care” instructions.
Fan not working
1. Verify the mosquito exterminator has been running for at least 10 minutes.
2. Use a pencil and slowly turn fan blades.
a. If fan blades continue to turn on their own, allow SkeeterVac to continue to run.
b. If fan blades stop, turn off LP gas tank per “Turning Off” instructions and clean mosquito
exterminator. Clean mosquito exterminator per “Cleaning and Care” instructions.
Product turns off suddenly
Out of gas Exchange, refill or replace LP gas tank
Overheat protection switch (heat sensor)
turned ON
1. Turn off LP gas tank per “Turning Off” instructions.
2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” instructions.
3. Let engine cool for 30-45 minutes.
4. Connect LP gas tank per “Connecting LP Gas Tank” instructions.
5. Light product per “Lighting” instructions.
6. After 5 minutes of operation, verify LED lights and fan are working properly.
For more assistance, please visit Mr. Bar-B-Q Products or call 1.888.398.8643.
SV-35,CPSV003503/35B/35C 13

OWNER’S MANUAL
U.S. Patent Number: D,533,621
©Mr. Bar-B-Q Products LLC. All Rights Reserved.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
• Keep out of reach of children.
• Read the label and these instructions before using.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately
call your gas supplier or your fire department.
IMPORTER AND DISTRIBUTOR：
AMPLECTA
AMPLECTA AB, AHLA 208,312 93 LAHOLM, SWEDEN
HTTP://WWW.AMPLECTA.COM
MADE IN P.R.C
SV35/35B/35C-OM-F101
2531
20
