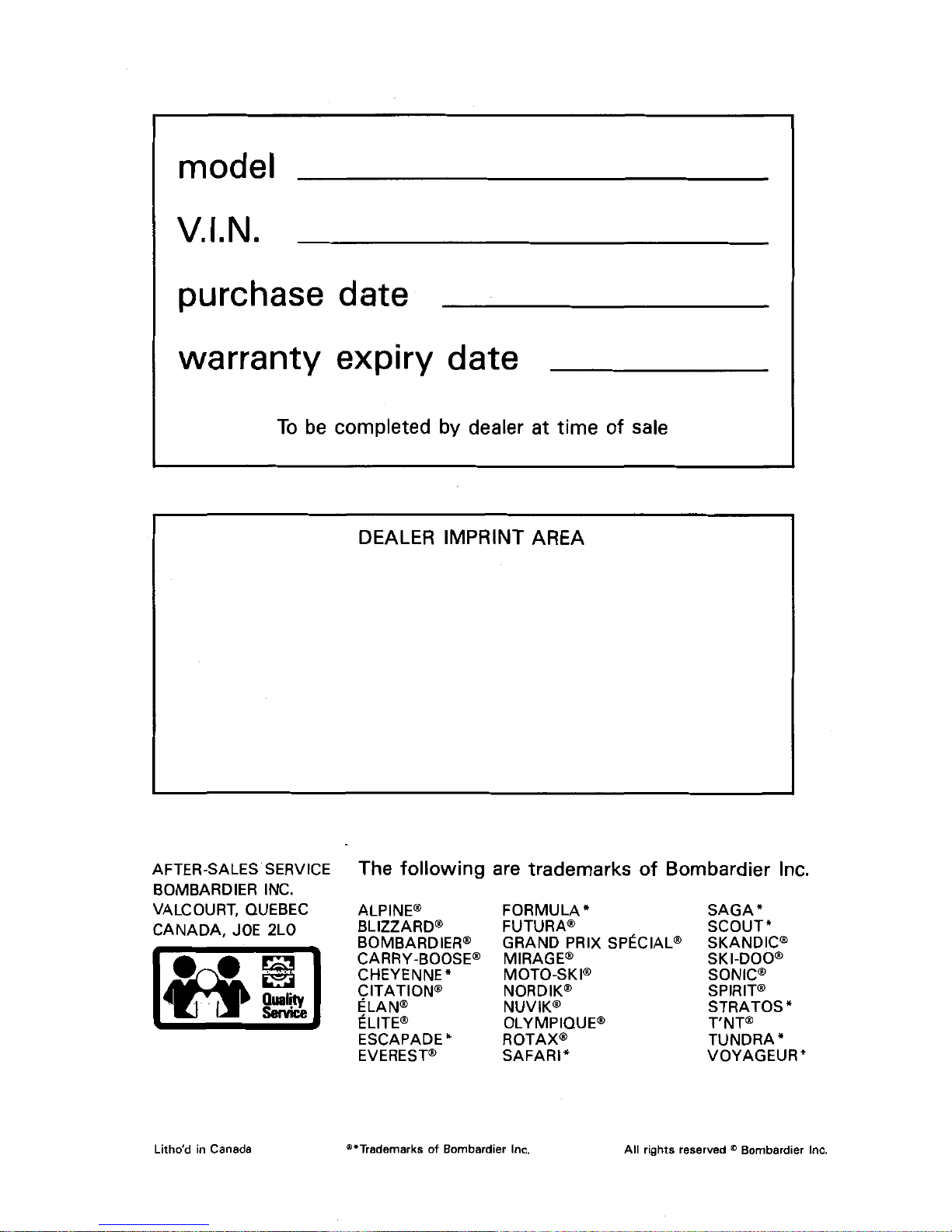

Ski-Doo 1989 Alpine II User manual

model
V.I.N.
purchase date
warranty expiry date
To be completed by dealer at time of sale
DEALER IMPRINT AREA
AFTER-SALES SERVICE
BOMBARDIER INC.
VALCOURT, QUEBEC
CANADA, JOE 2LO
The following are trademarks of Bombardier Inc.
Litho'd in Canada
ALPINE®
BLIZZARD®
BOMBARDIER®
CARRY-BOOSE®
CHEYENNE*
CITATION®
ELAN®
ELITE®
ESCAPADE•
EVEREST®
FORMULA*
FUTURA®
GRAND PRIX SPECIAL®
MIRAGE®
MOTO-SKI®
NORDIK®
NUVIK®
OLYMPIOUE®
ROT
AX®
SAFARI*
SAGA*
SCOUT*
SKANDIC®
SKI-DOO®
SONIC®
SPIRIT®
STRATOS*
T'NT®
TUNDRA*
VOYAGEUR*
®*Trademarks of Bombardier Inc.
All rights reserved " Bombardier Inc.

FOREWORD __________________ _
The operator manual and the Snowmobile
Safety Handbook have been prepared to
acquaint the owner/operator or passenger
of a new snowmobile with the various
vehicle controls, maintenance and safe
operating instructions.
Each is indispens-
able
for the proper use of the product,
and should
be kept with the vehicle at
all times.
Should you
have any questions pertaining
to the warranty and its application,
please
consult the II Often Asked Question'' sec-
tion
of this manual, or your authorized
dealer.
This manual uses the following symbols.
A WARNING: Identifies an instruc-
T tion which, if not followed, could
cause serious personal injuries including
possibility of death.
.,., CAUTION: Denotes an instruction
T which, if not followed, could se-
verely damage vehicle components.
0
NOTE: Indicates supplementary in-
formation needed to fully complete
an instruction.
Although the mere reading
of such infor-
mation does
not eliminate the hazard,
your understanding
of the information
will promote its correct
use.
A WARNING: The engines and the
T corresponding components iden-
tified
in this manual should not be uti-
lized
on product(s) other than those
mentioned
on the cover page of this
manual.
A WARNING: Maintenance proce-
T dures and tightening torques must
be strictly adhered to, never
attempt
repairs unless the appropriate tools are
available. ·
The information and components/system
descriptions contained
in this manual are
correct at time of publication. Bombardier
Inc. however, maintains a policy
of con-
tinuous improvement of its products with-
out imposing upon itself any obligation
to install them on products previously
manufactured.
Bombardier
Inc. reserves the right at any
time to discontinue or change specifica-
tions{ designs, features, models or equip-
ment
without incurring obligation.
The illustrations
show the typical con-
struction of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape
of the parts shown,
however, they represent parts which
have
the same or a similar function.
Most specifications
are given in both met-
ric and customary units. Where precise
accuracy
is not required, some conver-
sions are rounded to even numbers
for
easier use.
A shop manual can be obtained for com-
plete service, maintenance and repair in-
formation.
.,., CAUTION: Most components of
T this vehicle are built with parts
dimensioned
in the metric system.
Most fasteners are metric and must
not
be replaced by customary fasten-
ers or vice versa. Mismatched or in-
correct fasteners could cause damage
to the vehicle
or possible personal in-
jury.

SAFETY
MEASURES ________________________ __
Observe the following
precautions:
• Throttle mechanism shou~d be check-
ed for free movement before starting
engine.
•
Do not operate vehicle near snow mak-
ing equipment.
• Engine should
be running only when
belt guard and/or pulley guard
is se-
cured
in place.
•
Never run the engine without drive belt
installed. Running
an unloaded engine
can prove to
be dangerous.
• Never run the engine when the track
is raised off the ground.
• It
can be dangerous to run engine with
the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always ma-
nipulate
in a well ventilated area. Do
not smoke or allow open flames or
sparks
in the vicinity. If gasoline fumes
are noticed while driving, the cause
should be determined and corrected
without delay.
• Maintain your vehicle in top mechan-
ical condition at all times.
• Your snowmobile
is not designed to
be driven or operated on black top,
bare earth, or other abrasive surfaces.
On such surfaces abnormal and ex-
cessive wear
of critical parts is inevi-
table.
• Your snowmobile
is not designed to
be operated on public streets, road
or highways.
In most States and
Provinces, it
is considered an illegal
operation.
• Installation of other than standard
equipment including ski-spreaders/
bumpers, pack racks, etc., could se-
verely affect the stability and safety
of your vehicle. Avoid adding on ac-
cessories that alter the basic vehicle
configuration.
• The snowmobile engine can
be stop-
ped
by activating the emergency cut-
out switch, tether switch or
by turning
off the key.
• Whenever the vehicle is parked out-
doors, overnight or for a long period,
it
is suggested to protect it against
the inclemency
of the weather with a
snowmobile cover.
• Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as detailed in
this manual. Unless otherwise speci-
fied, engine should
be turned OFF for
all lubrication and maintenance pro-
cedures.
•
Clean and check operation of the head-
light, taillight and brake light.
• These vehicles are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal of a locking device
be required when undergoing repairs/
disassembly, always replace
by new
ones. Tighten fasteners
as specified
in the applicable Shop Manual.
PLEASE READ AND UNDERSTAND ALL
WARNINGS AND CAUTIONS
IN THIS
MANUAL AND
ON THE VEHICLE
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE
AT THE TIME OF RESALE
2

INDEX ______________________ _
THE 1989 ,.LIMITED WARRANTY" ..
OFTEN ASKED QUESTIONS .
LISTING OF AREA DISTRIBUTORS ...
HOW TO IDENTIFY YOUR SNOWMOBILE
CONTROLS/INSTRUMENTS
Throttle lever, brake lever, ignition switch, headlamp dimmer switch, emergency cutout
switch, rewind starter handle, primer, adjustable steering handle, gear shift lever,
speedometer, trip meter reset button, high beam pilot lamp, hood opening, console,
4
6
8
9
fuel gauge/tank cap, seat compartment, fuse holder, hitch, accessories . 10
BREAK-IN PERIOD
and belt break-in, 10 hour-inspection, break-in fuel/oil mixing charts, inspection
list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
FUEL & OIL
Recommended gasoline, recommended oil, fuel mixture ratio, fuel mixing procedure,
fuel/oil mixing charts . . . . . . . . . . . . . . . . . . . .
19
PRE-START CHECK
Check points ...................... .
22
STARTING PROCEDURE
Manual starting, electric starting, before riding, emergency starting ....
22
LUBRICATION
Frequency, steering mechanism, drive axles, driven pulley, slide suspension, hitch
sliding action, gearbox, oil level . . . . . . . . . . . . . . . . . . .
24
MAINTENANCE
Chart, belt guard removal, drive belt removal and installation, drive belt condition,
new drive belt, brake condition, brake adjustment, spark plugs, battery, suspension
condition, stopper strap condition, suspension adjustment, track condition, track
tension and alignment, drive pulley, steering mechanism, steering adjustment, muf-
fler attachment, engine head nuts, engine mount nuts, carburetor adjustment, high
altitude kit, fan belt, drive chain tension, headlamp beam aiming, bulb replacement,
general inspection . . . . . . . . . . . . . . . . . . . . . . . .
29
STORAGE
Tracks, suspension, ski, controls, gearbox, drive pulley, lubrication, fuel tank
and carburetor, battery, chassis, general inspection, suspension stopper strap
42
PRE-SEASON PREPARATION
Pre-season preparation chart .......... .
TROUBLE SHOOTING . . ............ .
TOOLS
.......................... .
SPECIFICATIONS ...... .
Sl METRIC INFORMATION GUIDE
46
47
49
50
52
3

THE 1989 SNOWMOBILE
LIMITED WARRANTY _________ _
1 -PERIOD
BOMBARDIER INC. as manufacturer, warrants FROM THE DATE OF DELIVERY TO THE
FIRST CONSUMER, every
1989 BOMBARDIER® snowmobile, sold as NEW AND UNUSED,
and predelivered by an authorized BOMBARDIER® dealer
for a period of:
• 12
consecutive months.
2- WHAT BOMBARDIER INC. WILL DO
BOMBARDIER INC. will repair and/or replace, at its option, components defective in
material and/or workmanship {under normal use and service), with a genuine
BOMBARDIER® component without charge for parts or labour, at any authorized
BOMBARDIER® dealer during said
warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER® Warranty Registration
card
or proof of purchase received by the customer from the selling dealer at time of
delivery.
4 - WARRANTY TRANSFER
This warranty is transferable to subsequent owner(s) for remainder of warranty period
from original date of delivery.
5 - EXCLUSIONS -ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
-drive belts -bulbs
slider shoes
spark plugs runners on skis
• Replacement
parts and/or accessories which are not genuine BOMBARDIER® parts
and/or accessories.
• Damage resulting
from installation of parts other than genuine BOMBARDIER® parts.
• Damage caused by failure
to provide proper maintenance as detailed in the Operator's
Manual. The labour, parts and
lubricants costs of all maintenance services, including
tune-ups and
adjustments will be charged to the owner.
• Vehicles designed and/or used
for racing purposes.
• All optional accessories installed on
the vehicle. (The normal warranty policy for parts
and accessories,
if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse or neglect.
• Damage resulting
from operation of the snowmobile on surfaces other than snow.
• Damage resulting
from modification to the snowmobile not approved in writing by
BOMBARDIER INC.
• Losses incurred by
the snowmobile owner other than parts and labour, such as/ but
not limited to, transportation, towing, telephone calls, taxis, or any other incidental
or consequential damage.
4

6 .. BATTERY WARRANTY:
• 12 consecutive months. {Pro-rated)
100% warranty coverage will start on the date the snowmobile was delivered and
run
to the following April 30th. The remainder of the 12 month-period will be pro-rated
as
follows:
50% from April 30th to December 1st.
40% from December 1st to December 31st.
30% from January 1st to end of warranty.
7 .. EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights and you may also have other legal rights
which may vary from state to state, or province to province. Where applicable
this warranty is expressly in lieu of all other expressed or implied warranties of
BOMBARDIER INC., its distributors and the selling dealer, including any war-
ranty of merchantability or fitness for any particular purpose; otherwise the im-
plied warranty is limited to the duration of this warranty. However, some states
or provinces do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been autho-
rized to make any affirmation, representation or warranty other than those con-
tained in this warranty, and if made, such affirmation, representation or warranty
shall not be enforceable against BOMBARDIER INC. or any other person.
Some states or provinces do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply.
'BOMBARDIER INC. reserves the right to modify its warranty policy at any time,
being understood that such modification will not alter the warranty conditions
applicable to vehicles sold while the above warranty is in effect.
8 .. CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2.
If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us:
Bombardier Inc.
Service Department
Snowmobile Division
Valcourt (Quebec), Canada JOE 2LO
September 1987
Bombardier Inc.
Valcourt IOuebec), Canada JOE 2LO
®*Trademarks of Bombardier Inc.
5

OFTEN ASKED
QUESTIONS __________________________ _
0: Why must my snowmobile be at the factory? After all I do have my
original invoice
as proof of when I purchased my snowmobile.
A:
Your warranty is valid at anyauthorizeddealer of the product. Your registration
is the key element in providing the servicing dealer with the necessary data to
complete warranty claim forms. This information
is also used to notify owners
in the event
of a safety recall.
0: Who should send the registration card to Bombardier Inc.?
A: The dealer. However, it is important that the customer make sure that it
has been sent. The company might contact you should your vehicle be recalled
or in case of a particular warranty campaign.
0: I bought my snowmobile in O'King County but I snowmobile in Washington
County.
Can the dealer in Washington County to perform warranty work
on my snowmobile?
A: any authorizeddealer in North America can perform warranty repairs,
providing the customer warranty registration card is presented.
0: Where can I find information on the lubrication and maintenance of my snow-
mobile?
A: In this Operator Manual provided with the vehicle at the time of de/iverv
0: Will the entire warranty be void or cancelled, if I do not operate or maintain
my new snowmobile exactly
as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be "Voided" or "Cancelled'~
However, if a particular failure is caused by operation or maintenance otherthan
is shown in the Operator Manual, THAT failure may not be covered under war-
rantv This includes service work
performed by the customer, especially the
criticaladjustments to ignition, timing, carburation
and 011 injection/or oilmixture.
0: Would you some examples
of abnormal use or strain, neglect or abuse?
6
A: These terms are general and overlap each other in areas. Some specific ex-
amples may include: running the machine
out of oil, chain failure caused by a
lack
of lubrication, operating the machine with a broken or damaged part which
causes another
part to fail, and so on. If you have any specific questions on
operation
or maintenance, please contact your dealer for advice.

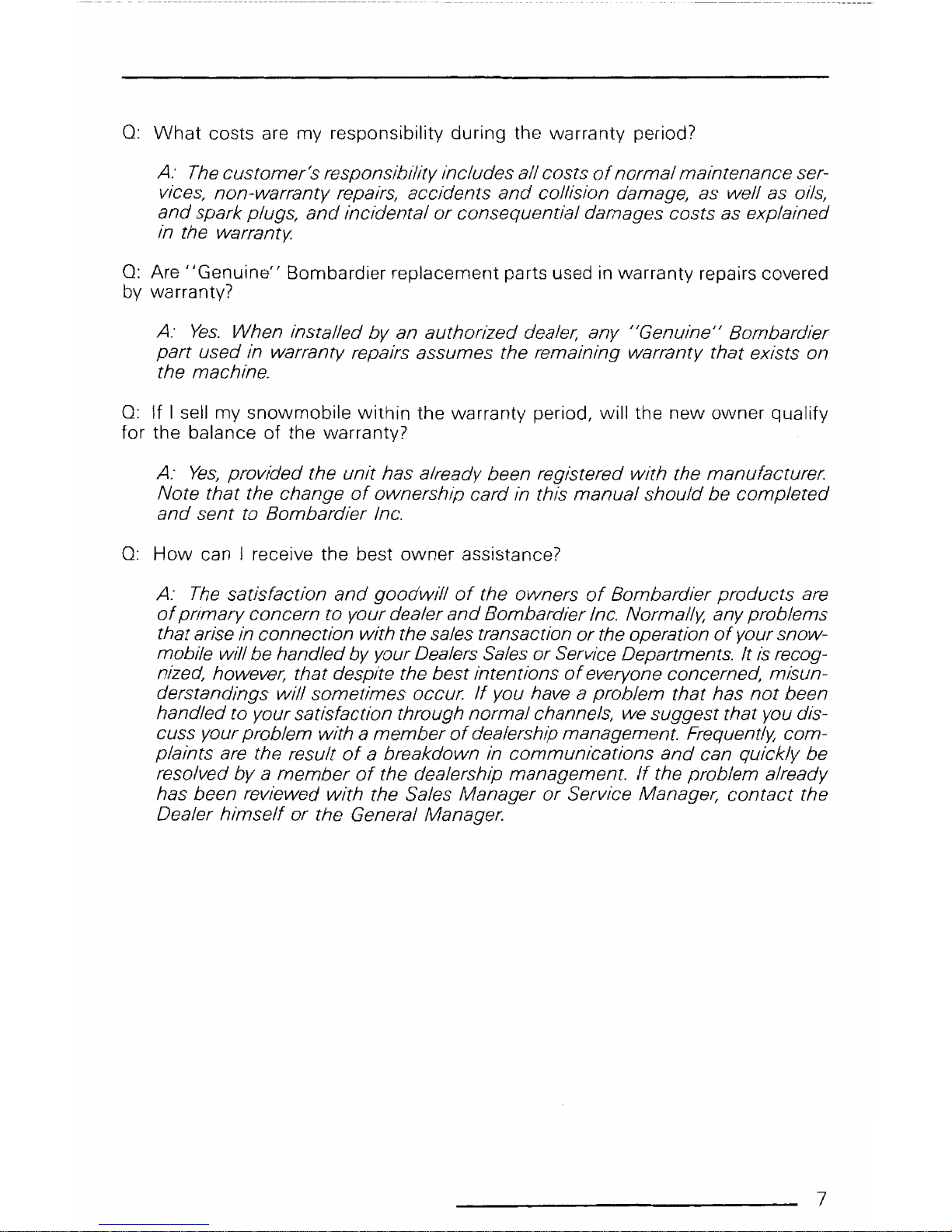

0: What costs are my responsibility during the warranty period?
A: The customer's responsibtlity includes all costs of normal maintenance ser-
vices, non-warranty repairs, accidents
and collision damage, as well as oils,
and spark plugs, and incidental or consequential damages costs as explained
in the warranty
0: Are "Genuine/' Bombardier
by warranty? parts used in warranty repairs covered
A: Yes. When installed by an authorized dealer, any "Genuine" Bombardier
part used in warranty repairs assumes the remaining warranty that exists on
the machine.
0: If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance of the warranty?
A: Yes, provided the unit has already been registered with the manufacturer.
Note that the change
of ownership card in this manual should be completed
and sent to Bombardier Inc.
0: How can I receive the best owner assistance?
A: The satisfaction and goodwtll of the owners of Bombardier products are
of primary concern to yourdealer and Bombardier Inc. Normally, anyproblems
thatarise in connection with the sales transaction
or the operation of yoursnow-
mobile wlf/ be handledby your Dealers Sales
or Service Departments. It is recog-
nized however, that despite the bestintentions
of everyone concerned misun-
derstandings will sometimes occur.
If you have a problem that has not been
handledto yoursatisfaction through
normal channels, we suggest that you dis-
cuss yourproblem with a
member of dealership management. Frequently, com-
plaints are the result
of a breakdown in communications and can quickly be
resolved
by a member of the dealership management. If the problem already
has been reviewed
with the Sales Manager or Service Manager, contact the
Dealer
himself or the General Manager.
7

LISTING OF AREA
DISTRIBUTORS ________________________ _
CANADIAN DISTRIBUTORS
PROVINCE OF QUEBEC
SERVICE OFFICE
BOMBARDIER INC.
1 de
Ia Montagne
Valcourt (Quebec) JOE 2LO
[phone]
SALES OFFICE
BOMBARDIER INC.
1350 Nobel Street
Boucherville (Quebec}
J4B 1A1
(514} 655-6121
PROVINCE OF ONTARIO
SERVICE AND SALES OFFICE
BOMBARDIER INC.
230 Bayview Drive
Barrie !Ontario) L4N 5E9
[phone]
ALTLANTIQUE REGION
SERVICE OFFICE
BOMBARDIER INC.
P.O. Box 7060
Riverview (New Brunswick) E1B 1VO
[phone]
SALES OFFICE
BOMBARDIER INC.
1350 Nobel Street
Boucherville {Quebec)
J4B 1A1
[phone]
ALBERTA, BRITISH COLUMBIA, MANITOBA,
SASKATCHEWAN,
YUKON
SERVICE AND SALES OFFICE
BROOKS EQUIPMENT LIMITED
1616 Edward Street
P.O. Box
Winnipeg (Manitoba) R3C 2V8
[phone]
NEWFOUNLAND, LABRADOR
SERVICE AND SALES OFFICE
CHARLES R. BELL LIMITED
Riverside Drive
P.O. Box 1050
Corner Brook (Newfoundland) A2H 6J7
[phone]
8
NORTH-WEST TERRITORIES,
FRANKLIN DISTRICT & KEEWATIN
SERVICE AND SALES OFFICE
HUDSON'S BAY CO. LIMITED
165
Hymus Blvd
Pointe-Claire (Quebec) H9R
1G2
[phone]
AMERICAN DISTRIBUTORS
EAST-CENTRAL, CENTRAL,
WESTERN REGION
SALES OFFICE
BOMBARDIER CORPORATION
75 75 Packer Drive
Wausau,
Wisconsin 54401
U.S.A.
(715)
842-8886
EAST-CENTRAL, CENTRALE REGION
SERVICE OFFICE
BOMBARDIER CORPORATION
4505 West Superior Street
PO. Box 16106
Duluth, Minnesota
55816-0106
[phone]
WESTERN REG ION
SERVICE OFFICE
BOMBARDIER CORPORATION
PO. Box 1569
Idaho Falls, Idaho 83403
[phone]
EASTERN REGION
SERVICE AND SALES OFFICE
BOMBARDIER CORPORATION
East Main Street Road
Malone,
New York 12953
[phone]
ALASKA
SERVICE AND SALES OFFICE
THE BRYANT CORPORATION
NE. 190th & Woodinville
Snohomish Road
P.O. Box 389
Woodinville, Wa 98072
U.S.A.
[phone]

HOW TO IDENTIFY
YOUR SNOWMOBILE _________ _
The main components of your snowmobile (engine, track and frame) are identified
by different serial numbers. It may sometimes become necessary to locate these
numbers for warranty purposes or to trace your snowmobile
in the event of theft.
Engine serial
number
A017 005 012
Vehicle serial number meaning:
0000 00000
-r-
Model no Vehicle no
AOOO 000 013
A009 005 002
Track
serial number
1989 Alpine has 3348 as model number.
0
NOTE: We strongly recommend that you take note of all the serial numbers
on your vehicle and supply them to your insurance company. It will surely help
in the event your snowmobile is stolen.
9

CONTROLS/INSTRUMENTS ___ _
M
A0l7 007 016
A ) Throttle lever
B J Brake lever
C J Ignition switch
D
D J Head/amp dimmer switch
E) Emergency cut-out switch
F J Tether cut-out switch
G) Rewind starter handle
H J Primer
A) Throttle Lever
Located on the right side of handlebar.
When compressed, it controls the en-
gine speed and the engagement
of the
transmission. When engine
speed returns automatically
to idle.
L E A
H
J
c
~~~---N
~;;;........_,_...;;;,;;..;.;;..;...o.... __ G
I J Adjustable steering handle
J J Gear shift lever
K ) Speedometer
L J
Trip meter reset button
M) High beam pHot lamp
N J
Hood opening
0) Console
8) Brake Lever
Located on the left side of handlebar.
When compressed, the brake
is applied.
When released, it automatically returns
to its original position. Braking effect is
proportionate to the pressure applied on
the lever and
to the type of terrain and
its
snow coverage.
10 ________________________ __

C) Ignition switch
OFF
J
A002 007 002
Key operated, 3 position switch. To start
engine, turn
key to START position and
hold. Return
key to ON position immedi-
ately when engine has started.
To stop
engine, turn
key to OFF position. If en-
gine does not start on first try,
key must
be turned fully back
to OFF each time.
,.,- CAUTION: Holding key in START
T position when engine has started
could damage starter mechanism.
The lights are automatically ON whenever
the engine
is running.
D) Headlamp dimmer switch
The dimmer switch, located on left side
of handlebar, allows correct selection of
head/amp beam.
To obtain high or low
beam simply flick switch.
A008 006 003
E) Emergency cut-Qut switch
A push pull type switch located on the
right side of the handlebar.
To stop the
engine in
an emergency, push the but-
ton
to the lower off position and simul-
taneously apply the brakes.
To start en-
gine, button must be at the upper on po-
sition.
Upper position
before starting
A017 006 004
+OFF
Lower position
to stop engine
+WARNING:
For safety reasons,
the emergency cut-out switch
is
easily accessible; be careful not to oper-
ate it inadvertently.
The driver of this vehicle should famil-
iarize himself
with the function of this
device by using it several times on first
outing. Thereby being mentally prepared
for emergency situations requiring
its use.
+
WARNING: If the switch has been
used
in an emergency situation
the source of malfunction should
be
determined and corrected before re-
starting engine.
F) Tether cut-out Switch
A pull switch located below the handlebar.
Attach tether cord to wrist or other con-
venient location then shap tether cut-out
cap over receptacle before starting en-
gine.
If emergency engine
11
Shut off" is re-
quired, completely pull cap from safety
switch and engine power will automat-
ically shut off.
11

0 NOTE: The cap must
be installed
on the safety switch at
all times in
order to operate the vehicle.
+WARNING: If
the switch is used
in an emergency situation the
source
of malfunction should be deter-
mined and corrected before restarting
engine.
G) Rewind Starter Handle
Auto rewind type located on right hand
side of vehicle. To engage mechanism,
pull handle.
H) Primer
A push-pull button. Pull and push but-
ton (2-3 times) to activate primer. The
primer should always
be used for cold
engine starts. After engine
is warm how-
ever, it is not necessary to use primer
when starting.
I) Adjustable Steering Handle
Remove steering pad.
-Loosen the four (4) retaining screws.
Adjust the handle to the desired posi-
tion.
-Lock the steering handle in place
by
tightening the four (4) retaining screws
to 26
N•m {19 lbf•ft}.
-Reinstall steering pad.
J) Gear shift lever
The gear shift lever is located right side
of the dashboard. It is a 3-position lever:
2 forward and 1 reverse.
12 __________________________ _
Gear shift
+WARNING: This snowmobile
is
capable of a fast reverse. On first
outing, operator
should become familiar
with this operation
by practicing on level
ground. Always apply the brake before
shifting and come
to a complete stop
then, while holding brake on, change
gear. This is particularly important while
on a slope. Ensure
the path behing is
clear of obstacles or bystanders. Fast
reverse, while turning, could result
in
loss of stability.
K) Speedometer
The speedometer is linked to the gear-
box. Direct-reading dial indicates the
speed
of the vehicle in kilometers per
hour. Odometer records the total num-
ber
of kilometers travelled. A trip meter
is also combined with speedometer.
L) Trip meter reset button
The trip meter button is located in dash-
board right to speedometer.
To reset, turn
black knob clockwise until all numbers
read
zero.

Odometer
A017 007 018
M) High beam pilot lamp
Lights up when headlamp is on high
beam.
N) Hood opening
Pull down the latches to unlock the hood
from
the anchors.
0 NOTE: Always lift hood gently up
until stopped by restraining device.
..A.WARNING: It is dangerous to run
T an engine with the hood opened,
unfastened or removed.
0) Console
To gain access to the engine, carbu-
retor, fuel
pump and spark plugs, pull
down the latch and tip seat over from
right, raise rear part
of console then pull
rearward.
Tip seat
over
A017 007 020
Latch
Raise and pull
rearward
A017 007 019
When installing console to vehicle, en-
sure to insert console tabs into dash-
board slots.
Slots
Fuel gauge/tank cap
Open hood to access fuel gauge/tank
cap. The fuel tank cap features a built-
in needle fuel level gauge which indi-
cates the
amount of fuel remaining in
tank.
-------------------------- 13

.A. WARNING: Remove fuel tank
T cap slowly. Fuel may be under
pressure and spray may cause fire and
injuries.
Seat compartment
Pull down the latch and tip seat over
from right
side. Ideal location for spare
spark plugs/ belt/ rope etc.
Latch
A017 007 020
0
NOTE: Emergency materials should
be wrapped in foam or similar ma-
terial. This will prevent possible damage
to breakable items when travailling over
rough or bumpy terrain.
0
NOTE: The battery is located in
the seat compartment.
Fuse holder
Starting system is protected vvith 30
amperes rated fuse. Fuse holder is lo-
cated near starter and gearbox. If starter
does not operate/ check fuse condition
and replace
by the same rate if nec-
essary.
A017 004 004
Fuse holder
Hitch
A hook-type hitch is provided to pull
most equipments.
The hitch may be used
fixed or floating depending the type of
equipment towed. This allows smooth
operation when towing a load.
While towing a trailer with a fixed draw
bar, keep the hitch locked. With a float-
ing draw
bar, allow the hitch to move up
and down
by removing its locking pin.
A017 007 022
Remove for
floating use
14 --------------

hitch
A017 007 052
The locking pin can be installed into hair
pin when the hitch
is used floating.
Locking pin ring
closed over hair pin
0
NOTE: To maintain the hitch locked,
install the locking pin into hitch post
and place its flat side against the hitch
plate.
A hair pin
is provided to lock the hook
of the hitch.
A017 007 022
Hair pin
+WARNING: When towing any
sled
or trailer, always ensure to lock
the hook type attachment with the hair
pin.
Trailers or sleds towed behing a snow-
mobile should always
be loaded with the
lowest possible center
of gravity. Use a
sled
with a rigid draw bar. When pulling
passengers
in a tower vehicle, drive at
moderate speed and avoid rough terrain
for their safety. Besides,
have all passen-
gers get
out of the towed vehicle and
walk across all roads.
Accessories
Some optional accessories might be add-
ed to your vehicle such as speedometer,
tachometer, hitch, electric starter, etc, if
not standard on your vehicle. Ask your
authorized dealer for more information.
---------------------------15

BREAK-IN PERIOD ______ _
Engine
With Bombardier-Rotax snowmobile en-
gines, a break-in period
is required be-
fore running the vehicle at full throttle.
manufacturer recommendation
is to 15 operating hours. During this
period, a richer mixture
is needed (i.e.
40 parts of gas for 1 part of BLIZZARD
oil). Maximum throttle should not exceed
3/4, however, brief full acceleration and
speed variations contribute to a good
break-in. Continued wide open throttle
accelerations, prolonged cruising speeds,
and lugging are detrimental during the
break-in period.
-,.r CAUTION: Remove and dean
T spark plugs after engine break-in.
Belt
A new drive belt requires a break-in peri-
od of
25 km (15 miles).
1 0-Hour inspection
As with any precision piece of mechan-
ical equipment, we suggest
that after
the first
10 hours ofoperation or 30 days
after the purchase, whichever comes
first, that your vehicle be checked
by
your authorized dealer. This inspection
will give you the opportunity to discuss
the unanswered questions you may have
encountered during the first hours
of
operation.
The
10 hour inspection is at the ex-
pense of the vehicle owner.
16 --------------

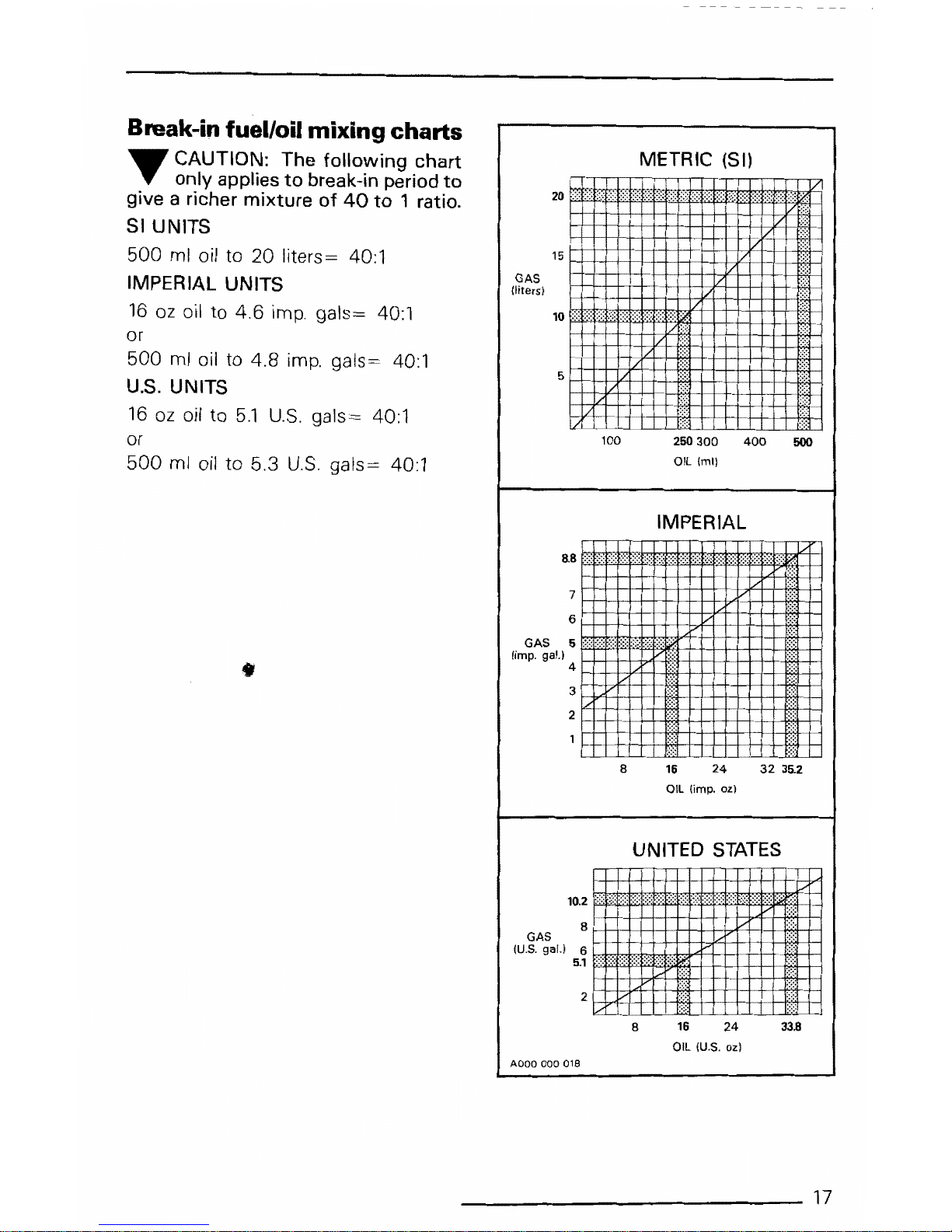

Break-in fuel/oil mixingcharts
,.,. CAUTION: The following chart
T only applies to break-in period to
give a richer mixture of 40 to 1 ratio.
Sl UNITS
500 ml oil to 20 liters= 40:1
IMPERIAL UNITS
16 oz oil to 4.6 imp. 40:1
or
500 ml oil to 4.8 imp. gals= 40:1
U.S. UNITS
16 oz oil to 5.1 U.S. gals= 40:1
or
500 ml oil to 5.3 U.S.
40:1
•
GAS
{liters)
7
6
100
METRIC (SI)
250 300 400 500
OIL (ml)
IMPERIAL
GAS 5~:~~;q:..:.:y:~
(imp. gal.) 4
3
2
AOOO 000 016
8 16 24 32 35.2
OIL (imp. ozl
UNITED STATES
8
16
24
33.8
OIL (U.S. ozl
17

10-HOUR INSPECTION CHECKLIST
./
Engine timing
Fan belt tension
Spark plugs condition (Remove and clean)
Carburetor adjustment
Engine head
nuts
Drive pulley screw (torque)
Engine
mount nuts
Muffler attachment
Gearbox oil level
Drive chain tension
Battery electrolyte level
Brake operation and lining condition
Ski alignment (runner condition)
Handlebar bolts, retorque
to 26 N•m (19 lbf•ft)
•
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubrication (steering, suspension, drive axles, etc.)
Electrical wiring,
tighten all loose bolts, nuts and linkage
Operation
of lighting system (HI/ LO beam, brake light, etc.),
test operation of emergency cut-out switch and tether switch
We recommend that you have your dealer sign this inspection list.
Date of 10 hour inspection Dealer signature
18 ----------------------------
