Ski-Doo Escapade 1987 User manual

operator's
manual
1987
414 5982 00

model
V.I.N.
purchase date
warranty expiry date
To be completed by dealer at time of sale
DEALER IMPRINT AREA
AFTER SALES SERVICE The following are trademarks
of Bombardier Inc.
BOMBARDIER INC. ALPINE®
FORMULA*
SAFARI*
VALCOURT (QUEBEC) BLIZZARD® FUTURA® SKANDIC®
CANADA, JOf 2LO BOMBARDIER®
GRAND PRIX SPECIAL® SKI-DOO®
CARRY-BOOSE® MIRAGE® SONIC®
H
~
CITATION® MOTO-SKI® SPIRIT®
ELAN® NORDIK® STRATOS*
Duality
ELITE® NUVIK®
T'NT®
Service
ESCAPADE* OLYMPIQUE®
TUNDRA*
EVEREST® ROTA X®
Litho'd in Canada ®*Trademarks of Bombardier Inc.
All rights reserved © Bombardier. Inc.

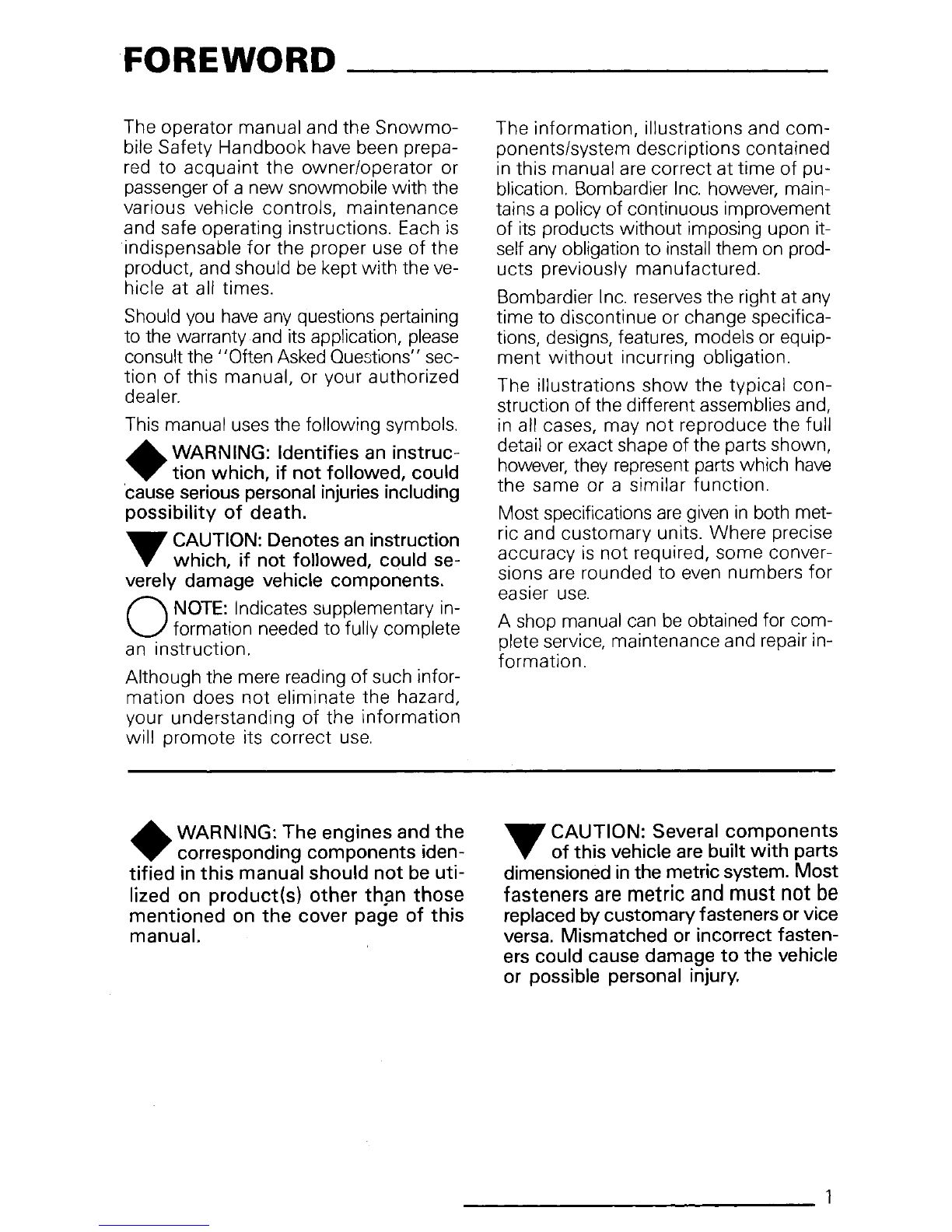

FOREWORD
The operator manual and the Snowmo-
bile Safety Handbook have been prepa-
red to acquaint the owner/operator or
passenger of a new snowmobile with the
various vehicle controls, maintenance
and safe operating instructions. Each
is
indispensable for the proper use of the
product, and should be kept with the ve-
hicle at all times.
Should
you have any questions pertaining
to the warranty and its application,
please
consult the ''Often Asked Questions'' sec-
tion
of this manual, or your authorized
dealer.
This manual uses the following symbols.
• WARNING: Identifies
an instruc-
tion which, if not followed, could
cause serious personal
injuries including
possibility of death.
-.r CAUTION: Denotes an instruction
T which, if not followed, could se-
verely damage vehicle components.
0 NOTE: Indicates supplementary in-
formation needed to fully complete
an instruction.
Although the mere reading of such infor-
mation does
not eliminate the hazard,
your understanding
of the information
will promote its correct use.
•
WARNING: The engines and the
corresponding components iden-
tified
in this manual should not be uti-
lized
on product(s) other th9n those
mentioned on
the cover page of this
manual.
The information, illustrations and com-
ponents/system descriptions contained
in this manual are correct at time of pu-
blication. Bombardier
Inc. however, main-
tains a policy of continuous improvement
of its products without imposing upon it-
self any obligation to install them on prod-
ucts previously manufactured.
Bombardier
Inc. reserves the right at any
time to discontinue or change specifica-
tions, designs, features, models or equip-
ment
without incurring obligation.
The illustrations
show the typical con-
struction of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape of the parts shown,
however, they represent parts which
have
the same or a similar function.
Most specifications
are given in both met-
ric and customary units. Where precise
accuracy
is not required, some conver-
sions are rounded to even numbers for
easier use.
A shop manual can be obtained for com-
plete service, maintenance and repair in-
formation.
-.r CAUTION: Several components
T of this vehicle are built with parts
dimensioned
in the metric system. Most
fasteners are metric and
must not be
replaced by customary fasteners or vice
versa. Mismatched
or incorrect fasten-
ers could cause damage to the vehicle
or possible personal injury.

SAFETY MEASURES
Observe the following
precautions:
• Throttle mechanism should be check-
ed for free movement before starting
engine.
• The snowmobile engine can
be stop-
ped
by activating the emergency cut-
out or tether switches or turning off
the key.
• Clean and check operation ofthe head-
light tail light and brake light.
• Engine should be running only when
belt guard and/or pulley guard
is se-
cured
in place.
•
Never run the engine without drive belt
installed. Running
an unloaded engine
can prove to
be dangerous.
• Never run the engine when the track
is raised off the ground.
• It
can be dangerous to run engine with
the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always ma-
nipulate
in a well ventilated area. Do
not smoke or allow open flames or
sparks
in the vicinity. If gasoline fumes
are noticed while driving, the cause
should
be determined and corrected
without delay.
• Maintain your vehicle
in top mechan-
ical condition at all times.
• Your snowmobile
is not designed to
be driven or operated on black top,
bare earth, or other abrasive surfaces.
On such surfaces abnormal and ex-
cessive wear
of critical parts is inevi-
table.
• Your snowmobile
is not designed to
be operated on public streets, road or
highways.
In most States and Prov-
inces, it
is considered an illegal oper-
ation.
• Installation
of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could se-
verely
affect the stability and safety
of your vehicle. Avoid adding on ac-
cessories that alter the basic vehicle
configuration.
• Whenever the vehicle
is parked out-
doors, overnight or for a long period,
it
is suggested to protect it against
the inclemency of the weather with a
snowmobile cover.
• Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as detailed
in this manual. Unless otherwise spec-
ified, engine should
be turned OFF for
all lubrication and maintenance proce-
dures.
• The Stratos model
is designed for the
driver only. No provisions have been
made for a passenger.
• Should removal of a nylon lock nut
be
required when undergoing repairs/dis-
assembly, always replace by new ones.
Tighten as specified in the applicable
Shop Manual.
PLEASE READ AND UNDERSTAND ALL
WARNINGS AND CAUTIONS
IN THIS
MANUAL AND ON THE VEHICLE.
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE
AT THE TIME OF RESALE.
2 ---------------------------

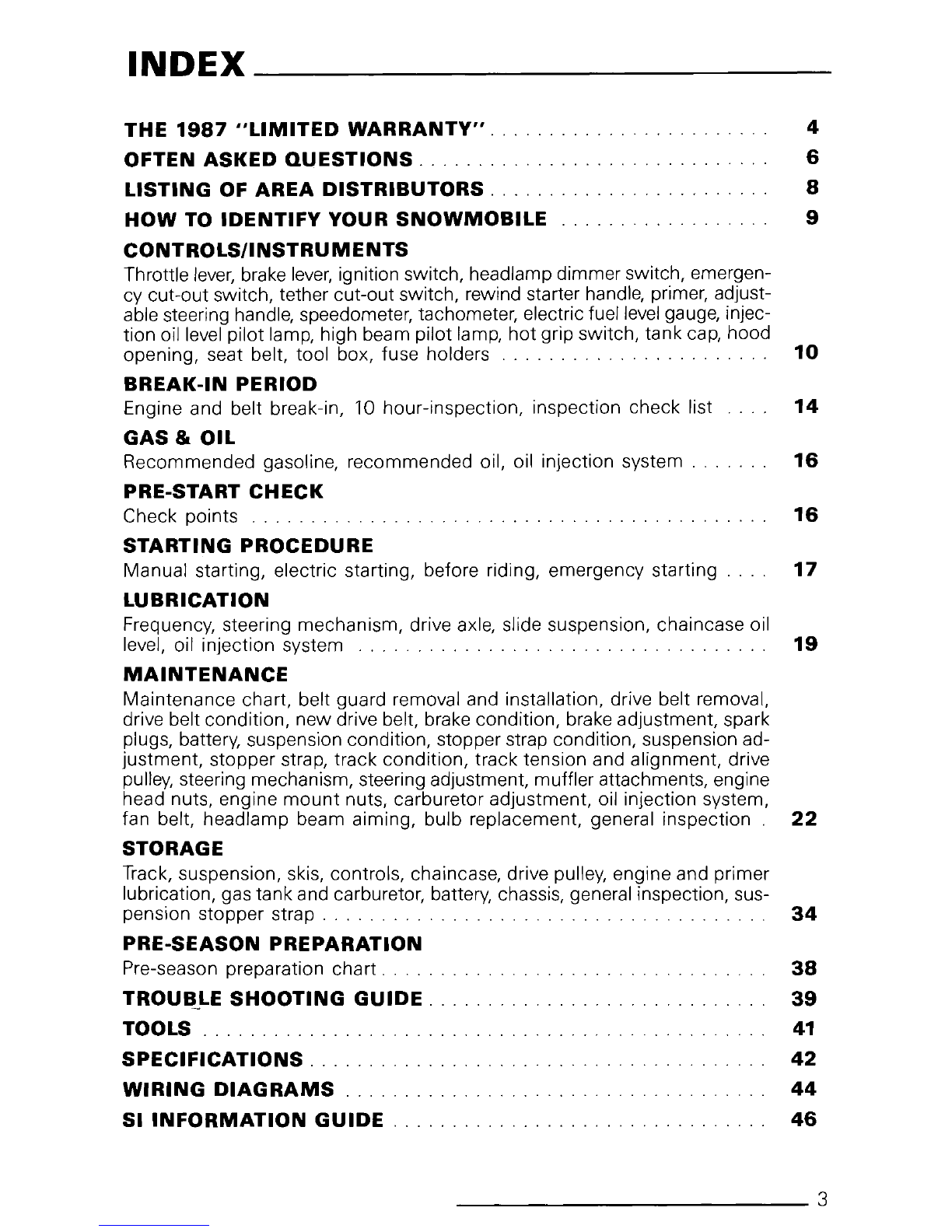

INDEX-------------
THE 1987 "LIMITED WARRANTY".
OFTEN ASKED QUESTIONS ..
LISTING OF AREA DISTRIBUTORS ...... .
HOW TO IDENTIFY YOUR SNOWMOBILE .

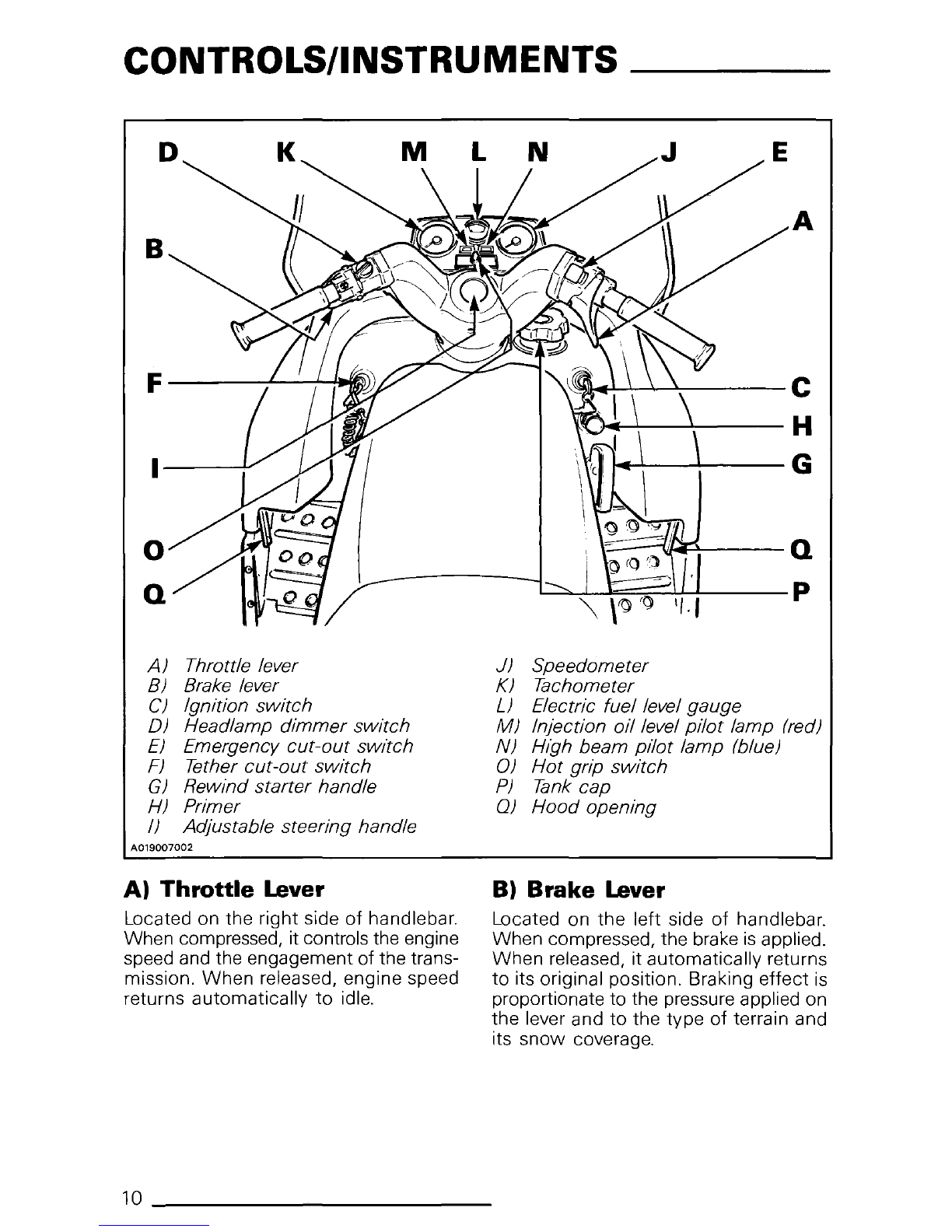

CONTROLS/INSTRUMENTS
Throttle lever, brake lever, ignition switch, headlamp dimmer switch, emergen-
cy cut-out switch, tether cut-out switch, rewind starter handle, primer, adjust-
able steering handle, speedometer, tachometer, electric fuel
level gauge, injec-
tion oil level pilot lamp, high beam pilot lamp,
hot grip switch, tank cap, hood
4
6
8
9
opening, seat belt, tool box, fuse holders . . . . . . . . . . . . . . . . . . . . . 10
BREAK-IN PERIOD

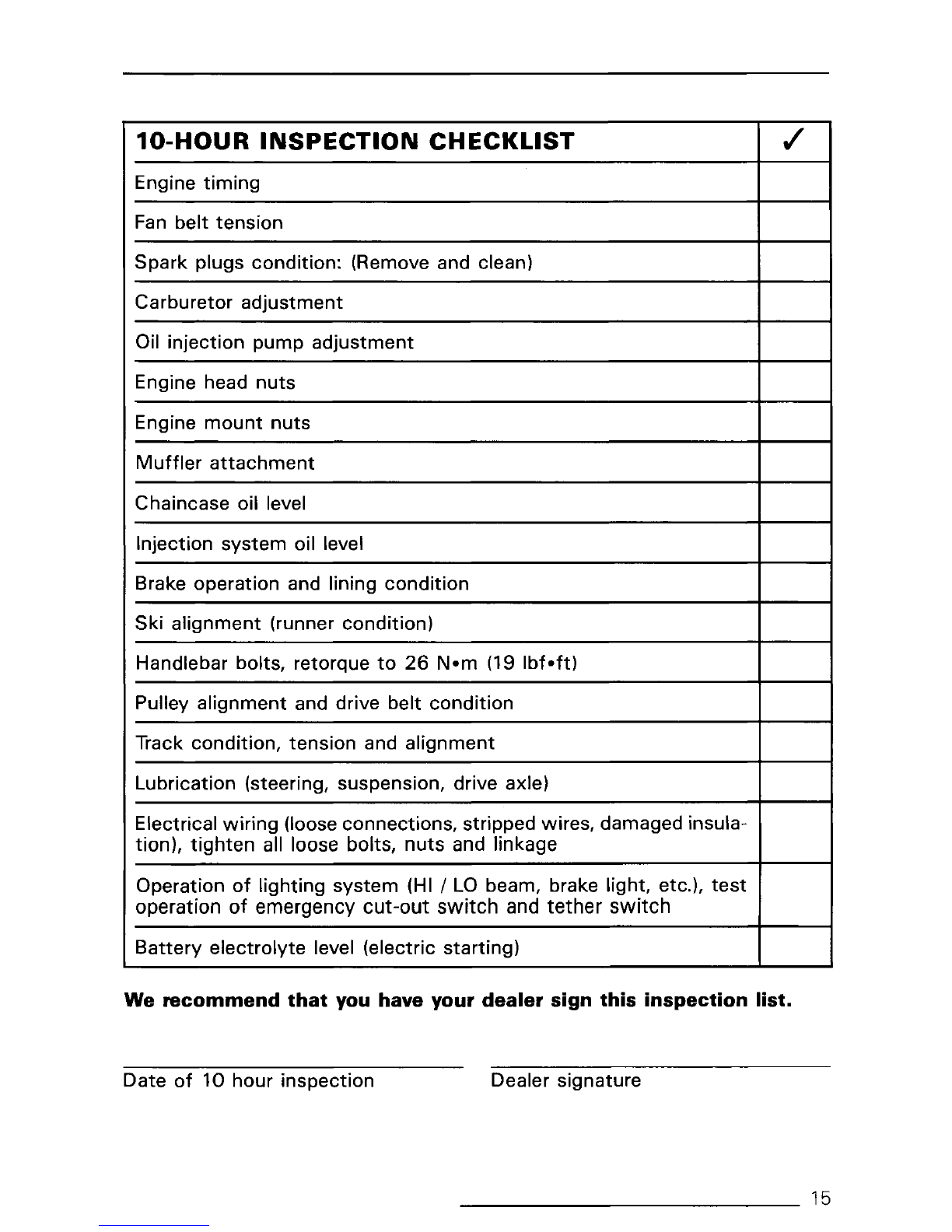

Engine and belt break-in, 10 hour-inspection, inspection check list 14
GAS & OIL
Recommended gasoline, recommended oil, oil injection system . . 16
PRE-START CHECK
Check points .............. .
16
STARTING PROCEDURE
Manual starting, electric starting, before riding, emergency starting . . 17
LUBRICATION
Frequency, steering mechanism, drive axle, slide suspension, chaincase oil
level, oil injection system . . . . . . . . . . . . . . . . .
19
MAINTENANCE
Maintenance chart, belt guard removal and installation, drive belt removal,
drive belt condition, new drive belt, brake condition, brake adjustment, spark
plugs, battery, suspension condition, stopper strap condition, suspension ad-
justment, stopper strap, track condition, track tension and alignment, drive
pulley, steering mechanism, steering adjustment, muffler attachments, engine
head nuts, engine
mount nuts, carburetor adjustment, oil injection system,
fan belt, headlamp beam aiming, bulb replacement, general inspection
22
STORAGE
Track, suspension, skis, controls, chaincase, drive pulley, engine and primer
lubrication, gas tank and carburetor, battery, chassis, general inspection, sus-
pension stopper strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
PRE-SEASON PREPARATION
Pre-season preparation chart .... .
TROUEtLE SHOOTING GUIDE .. .
TOOLS
.............. .
SPECIFICATIONS ........ .
WIRING DIAGRAMS ........ .
Sl INFORMATION GUIDE ...... .
38
39
41
42
44
46
---------------------------3

THE 1987 SNOWMOBILE
LIMITED WARRANTY----------
1 -PERIOD
BOMBARDIER® INC. as manufacturer, warrants FROM THE DATE OF FIRST CON-
SUMER SALES, every
1987 BOMBARDIER snowmobile, sold as NEW AND UN-
USED, and predelivered by an authorized BOMBARDIER dealer for a period of:
• 12 consecutive
months.
2 - WHAT BOMBARDIER WILL DO
BOMBARDIER will repair and/or replace, at its option, components defective
in material and/or workmanship (under normal use and service,) with a genuine
BOMBARDIER
component without charge for parts or labour, at any authorized
BOMBARDIER dealer during said
warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER Warranty
Registration card or proof of purchase received by the customer from the sel-
ling dealer
at time of purchase.
4- WARRANTY TRANSFER
This warranty is transferable to subsequent owner(s) for remainder of warran-
ty period from original date of sale.
5- EXCLUSIONS- ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
-drive belts -bulbs
-slider shoes -runners on skis
-spark plugs
• Replacement parts and/or accessories
which are not genuine BOMBARDIER
parts and/or accessories.
• Damage resulting from installation
of parts other than genuine BOMBARDIER
parts.
• Damage caused by failure
to provide proper maintenance as detailed in the
Operator's Manual. The labour, parts and lubricants costs of all maintenance
services, including
tune-ups and adjustments will be charged to the owner.
• Vehicles designed and/or used
for racing purposes.
•
All optional accessories installed on the vehicle.
(The normal
warranty policy for parts and accessories, if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse or ne
glect.
• Damage resulting
from operation of the snowmobile on surfaces other thar
snow.
• Damage resulting
from modification to the snowmobile not approved in writ
ing by BOMBARDIER.
4 ----------------------------

• Losses incurred by the snowmobile owner other than parts and labour, such
as, but not limited to, transportation, towing, telephone calls, taxis, or any
other incidental or consequential damage.

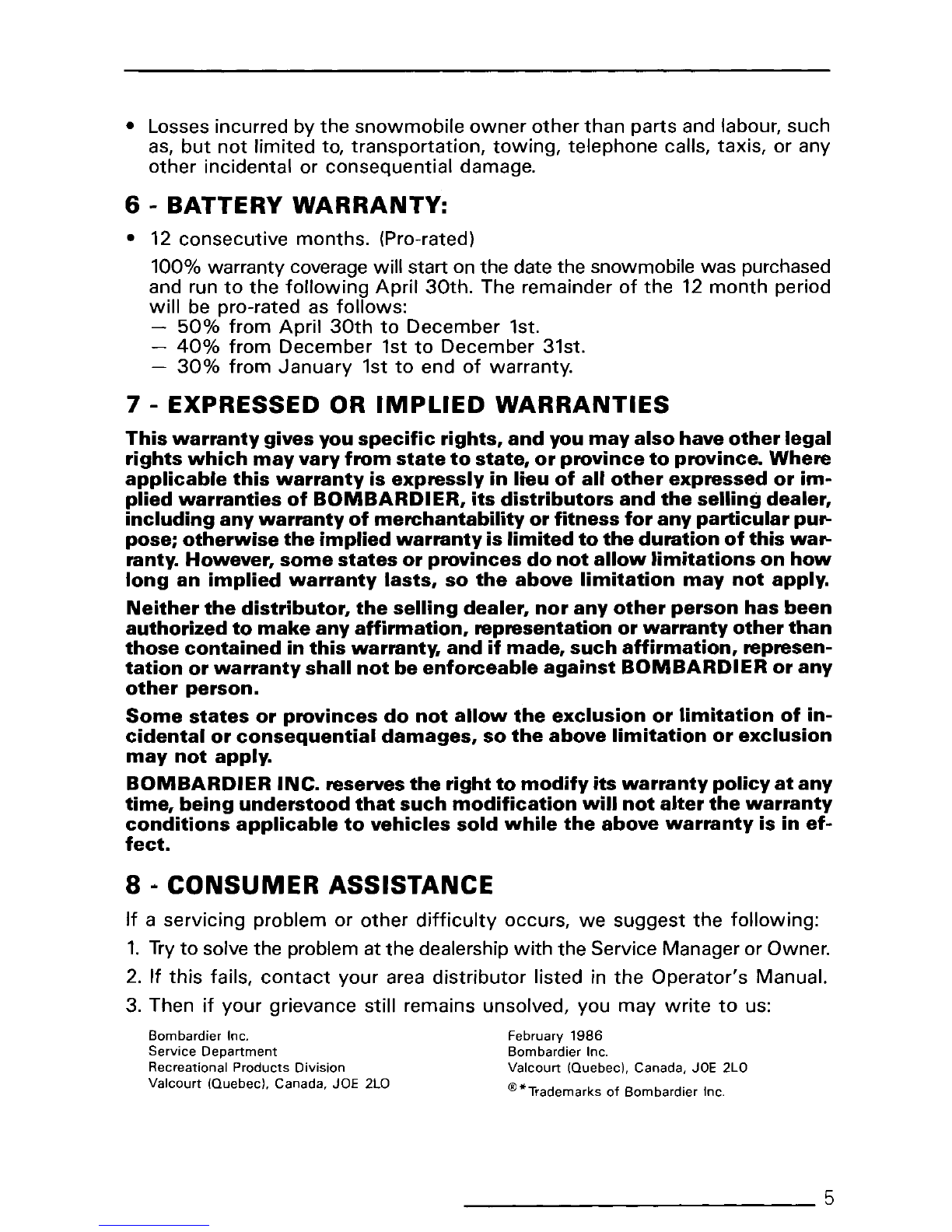

6 - BATTERY WARRANTY:
• 12 consecutive months. (Pro-rated)
100% warranty coverage will start on the date the snowmobile was purchased
and run
to the following April 30th. The remainder of the 12 month period
will be pro-rated as follows:
- 50% from April 30th to December 1st.
-
40% from December 1st to December 31st.
-
30% from January 1st to end of warranty.
7 - EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights, and you may also have other legal
rights
which may vary from state to state, or province to province. Where
applicable this warranty is expressly in lieu of all other expressed or im-
plied warranties of BOMBARDIER, its distributors and the selling dealer,
including any
warranty of merchantability or fitness for any particular pur-
pose;
otherwise the implied warranty is limited to the duration of this war-
ranty. However,
some states or provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been
authorized to make any affirmation, representation or warranty other than
those contained in this warranty, and
if made, such affirmation, represen-
tation or warranty shall not be enforceable against BOMBARDIER or any
other person.
Some states or provinces do not allow the exclusion or limitation of in-
cidental or consequential damages, so the above limitation or exclusion
may not apply.
BOMBARDIER INC. reserves the right to modify its warranty policy at any
time, being understood that such modification will not alter the warranty
conditions applicable to vehicles sold while the above warranty is in ef-
fect.
8 · CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2. If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us:
Bombardier Inc.
Service
Department
Recreational Products Division
Valcourt (Quebec). Canada, JOE 2LO
February
1986
Bombardier Inc.
Valcourt (Quebec). Canada,
JOE 2LO
®*Trademarks of Bombardier Inc.
___________________________ 5

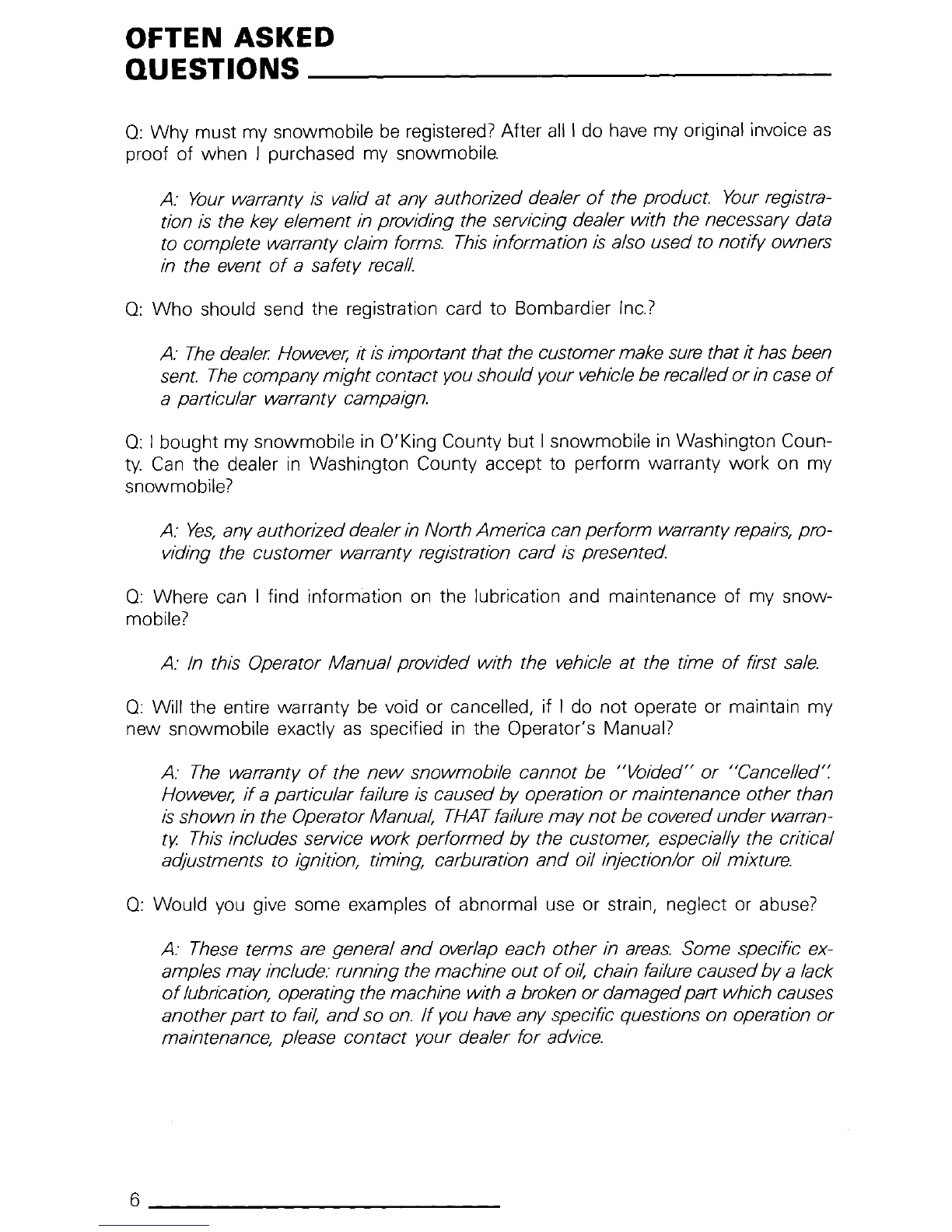

OFTEN ASKED
QUESTIONS-------------
0: Why must my snowmobile be registered? After all I do have my original invoice as
proof of when I purchased my snowmobile.
A: Your warranty is valid at any authorized dealer of the product. Your registra-
tion is the key element in providing the servicing dealer with the necessary data
to complete warranty claim forms. This information is also used to
notify owners
in the event
of a safety recall.
0: Who should send the registration card to Bombardier Inc.?
A: The dealer. However, It is important that the customermake sure that it has been
sent.
The company might contact you should your vehicle be recalled or in case of
a particular warranty campaign.
0: I bought my snowmobile in O'King County but I snowmobile in Washington Coun-
ty. Can the dealer in Washington County accept to perform warranty work on my
snowmobile?
A: Yes, any authorizeddealerin North America can perform warranty repairs, pro-
viding the
customer warranty registration card is presented.
0: Where can I find information on the lubrication and maintenance of my snow-
mobile?
A: In this Operator Manual prov1ded with the vehicle at the time of first sale.
0: Will the entire warranty be void or cancelled, if I do not operate or maintain my
new snowmobile exactly
as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be "Vo1ded" or "Cancelled':
However,
if a particular failure is caused by operation or maintenance other than
is
shown in the Operator Manual, THAT failure may not be covered under warran-
t)!. This includes service work performed by the customer, especially the critical
adjustments to ignition, timing, carburation
and oil injection/or oil mixture.
0: Would you give some examples of abnormal use or strain, neglect or abuse?
A: These terms are general and overlap each other in areas. Some specific ex-
amples
may include: running the machine out of 01/, chain fa1lure caused by a lack
of lubrication, operating the machine with a broken or damaged part which causes
another part to fa1/, and so on. If you have any specific questions on operation or
maintenance, please contact your dealer for advice.
6 _____________ _

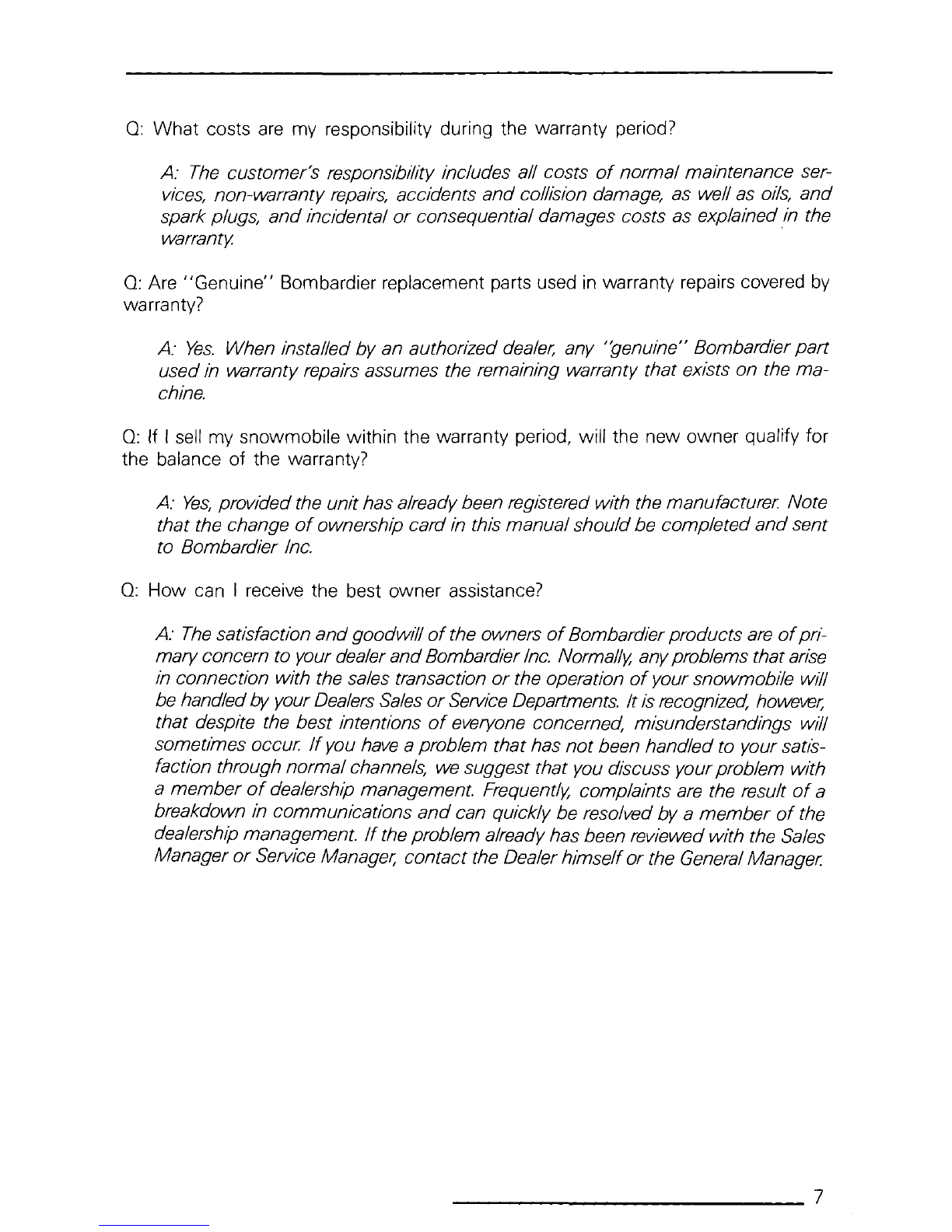

0: What costs are my responsibility during the warranty period?
A: The customer's responsibility includes all costs of normal maintenance ser-
vices, non-warranty repairs, acc1dents and collision damage, as well as oils, and
spark plugs, and incidental or consequential damages costs as explained in the
warranty.
0: Are "Genuine" Bombardier replacement parts used in warranty repairs covered by
warranty?
A: Yes. When installed by an authorized dealer, any "genuine" Bombardier part
used in warranty repairs assumes the remaining warranty that exists on the ma-
chine.
0: If I sell my snowmobile within the warranty period, will the new owner qualify for
the balance of the warranty?
A: Yes, prov1ded the unit has already been registered with the manufacturer. Note
that the change
of ownership card in this manualshouldbe completed and sent
to Bombardier
Inc.
0: How can I receive the best owner assistance?
A: The satisfaction and goodwill of the owners of Bombardierproducts are of pri-
maryconcern to your dealer
and Bombardier Inc. Normally, anyproblems that arise
in connection with the sales transaction
or the operation of your snowmobile will
be handledby your Dealers Sales
or Service Departments. It is recognized, however,
that despite the best intentions of everyone concerned, misunderstandings will
sometimes occur.
If you have a problem that has not been handled to your satis-
faction through normalchannels,
we suggest that you discuss yourproblem with
a
member of dealership management. Frequently, complaints are the result of a
breakdown in communications
and can quickly be resolved by a member of the
dealership management.
If the problem already has been reviewed with the Sales
Manager
or Service Manager, contact the Dealerhimself or the General Manager.
--------------------------- 7

LISTING OF AREA
DISTRIBUTORS------------
CANADIAN DISTRIBUTORS
Quebec Branch
1350 Nobel
Boucherville (Quebec) J4B
1A1
[phone]
Province of Quebec
Ontario Branch
230 Bayview Drive
Barrie !Ontario) L4N
4Y8
[phone]
Province of Ontario
Technical office
P.O. Box
7060
Riverview (New Brunswick) E1B 1 VO
[phone]
Atlantic Region
BROOKS EQUIPMENT LIMITED
1
61 6 King, Edward Street
P.O. Box
985
Winnipeg (Manitoba) R3C 2V8
1204) 633-7247
British Columbia, Manitoba, Saskatchewan,
Alberta, Yukon
CHARLES R. BELL LIMITED
Newfoundland, Labrador
Offices
-Riverside Drive
P.O. Box
1050
Corner Brook (Newfoundland) A2H 6J3
[phone]
- 81 Kenmount Road
P.O. Box
8127
St-John's (Newfoundland) A1B 3N 1
(709)
722-6700
HUDSON'S BAY CO. LTD
165 Hymus Blvd
Pointe-Claire (Quebec) H9R 1G2
1514) 697-8500
North-West Territories, Franklin District &
Keewatin
AMERICAN DISTRIBUTORS
BOMBARDIER CORPORATION
All States (excluding Alaska)
SERVICE OFFICES
- East Main Street Road
Malone, New
York 12953
[phone]
Technical office
[phone]
-
4505 West Superior Street
P.O.
Box 6106
Duluth, Minnesota
55816-016
1218) 628-2881
-P.O. Box 1569
Idaho Falls, Idaho, 83403
[phone]
NATIONAL SALES OFFICE
- 0' Hare Lake Plaza
2350 Devon Avenue
Suite 150
Des Plaines, Illinois 60018
1312) 298-9540
MILLER EQUIPMENT AND RECREATIONAL
CENTER
1049 Whitney Road
Anchorage, Alaska 99501
[phone]
Alaska
8 --------------

HOW TO IDENTIFY
YOUR SNOWMOBILE-----------
The main components of your snowmobile (engine, track and frame) are identified by
different serial numbers. It may sometimes become necessary to locate these num-
bers for warranty purposes or to trace your snowmobile in the event of theft.
A019000001
Vehicle serial number meaning:
0000 00000
---r-
Model no Vehicle no
A000000013
A009005002
0 NOTE: We strongly recommend
that you take note of all the serial numbers
on your vehicle and supply them
to your insurance company. It will surely help
in the event a snowmobile is stolen.
---------------------------- 9

CONTROLS/INSTRUMENTS
B
0
Q
A) Throttle lever
8) Brake lever
C) Ignition switch
D) Head/amp
dimmer switch
E) Emergency cut-out switch
F) Tether cut-out switch
G) Rewind starter handle
H) Primer
I) Adjustable steering handle
A019007002
A) Throttle Lever
Located on the right side of handlebar.
When compressed, it controls the engine
speed and the engagement
of the trans-
mission. When released, engine speed
returns automatically
to idle.
10 -------------
A
~~1-..1...-~---c
~...J....._____J._ __ H
~'-------L--- G
\----4l!J.4=j'------ Q
L.....::::~~=--U--!----P
J) Speedometer
K) Tachometer
L) Electric fuel level gauge
M) Injection oil level pilot lamp (red)
N) High beam ptlot lamp (blue)
0) Hot grip switch
P) Tank cap
0) Hood opening
B) Brake Lever
Located on the left side of handlebar.
When compressed, the brake
is applied.
When released, it automatically returns
to its original position. Braking effect is
proportionate to the pressure applied on
the lever and
to the type of terrain and
its snow coverage.

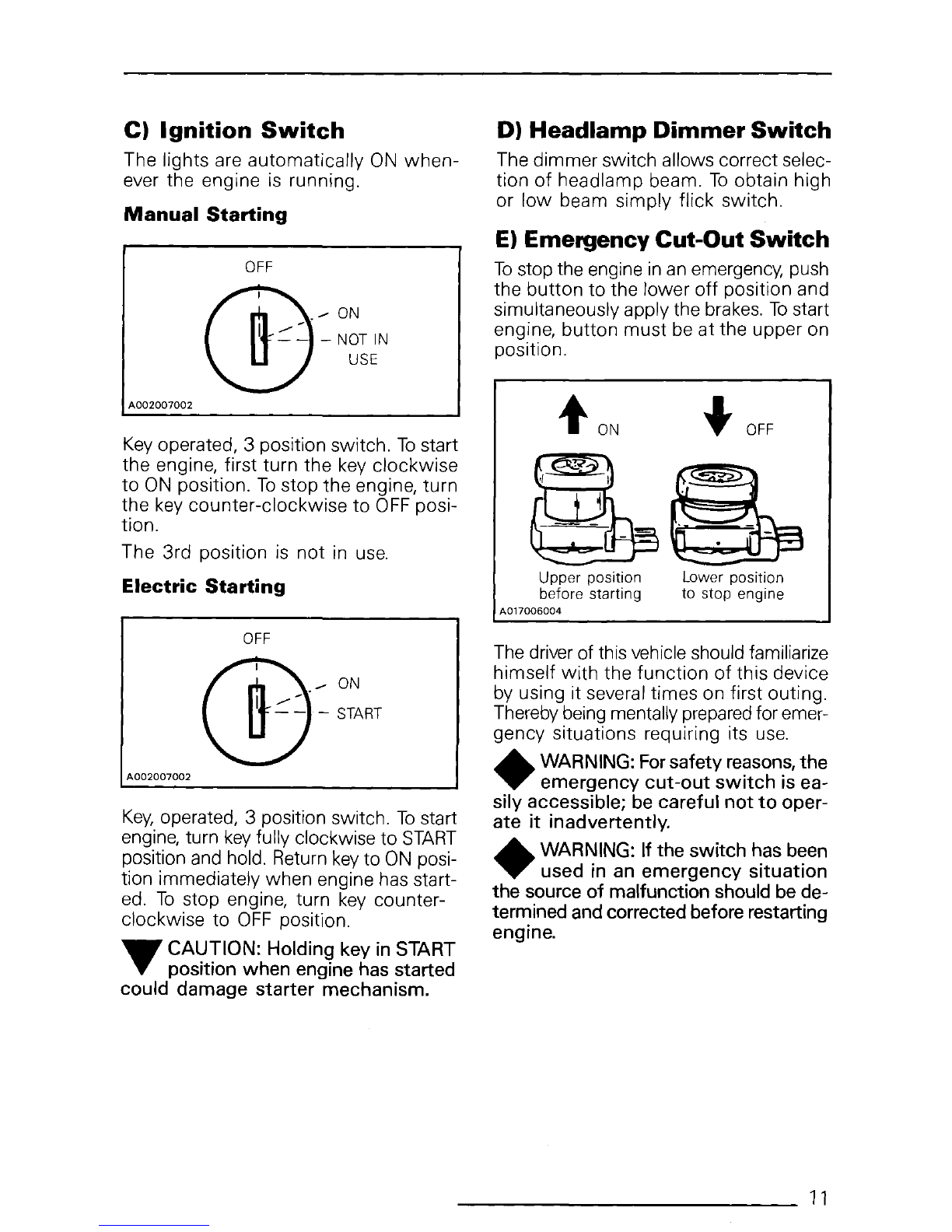

C) Ignition Switch
The lights are automatically ON when-
ever the engine is running.
Manual Starting
OFF
CB
-ON
-NOT IN
USE
A002007002
Key operated, 3 position switch. To start
the engine, first turn the
key clockwise
to ON position. To stop the engine, turn
the
key counter-clockwise to OFF posi-
tion.
The 3rd position
is not in use.
Electric Starting
OFF
CB
- ON
-START
A002007002
Key, operated, 3 position switch. To start
engine, turn
key fully clockwise to START
position and hold. Return key to ON posi-
tion immediately when engine has start-
ed. To stop engine, turn key counter-
clockwise to
OFF position.
,., CAUTION: Holding key in START
T position when engine has started
could damage starter mechanism.
0) Headlamp Dimmer Switch
The dimmer switch allows correct selec-
tion of headlamp beam.
To obtain high
or low beam simply flick switch.
E) Emergency Cut-Out Switch
To stop the engine in an emergency, push
the button to the lower
off position and
simultaneously apply the
brakes. To start
engine, button must
be at the upper on
position.
Upper position
before starting
A017006004
+OFF
Lower position
to stop engine
The driver of this vehicle should familiarize
himself
with the function of this device
by using it several times on first outing.
Thereby
being mentally prepared for emer-
gency situations requiring its use.
• WARNING:
For safety reasons, the
emergency cut-out switch
is ea-
sily accessible; be careful not
to oper-
ate it inadvertently.
• WARNING: If the switch has been used
in an emergency situation
the source of malfunction
should be de-
termined and corrected before restarting
engine.
11

F) Tether Cut-Out Switch
Attach tether cord to wrist or other con-
venient location of the driver's clothing.
Snap tether cut-out cap over receptacle
before starting engine.
If emergency engine
"shut off" is re-
quired, completely pull cap from safety
switch and engine power will
be auto-
matically shut
"off".
0 NOTE: The cap must
be installed
on the safety switch at all times in
order to operate the vehicle.
•WARNING: If the switch
is used
in an emergency situation the sour-
ce of malfunction should be determined
and corrected before restarting engine.
G) Rewind Starter Handle
Auto rewind type located on right hand
side of vehicle.
To engage mechanism,
pull handle.
H) Primer
Pull and push button (2-3 times) to ac-
tivate primer. The primer should always
be used for cold engine starts. When en-
gine
is warm however, it is not necessary
to use primer when starting.
I) Adjustable Steering Handle
-Remove steering pad.
-Loosen the four (4) retaining screws.
-Adjust the handle to the desired po-
sition.
• WARNING: Do not adjust too
high
as the brake lever may contact
the windshield when turning.
-Lock the steering handle in place by
tightening the four
(4) retaining screws
to 26
N•m (19 lbf•ft).
-Reinstall steering pad.
J) Speedometer
The speedometer is linked directly to the
drive axle. Direct-reading dial indicates the
speed
of the vehicle. Odometer records
the total distance travelled
in kilometers.
K) Tachometer
The tachometer registers the impulses of
magneto. Direct-reading
dial indicates the
number of revolutions per minute
(RPM)
of the engine.
"W' CAUTION: The tachometer is pro-
T tected by a fuse, if tachometer
stops operating check fuse condition
and if necessary replace. The fuse
is
0.1 amp. Do not use a higher rated fuse
as this can cause severe damage to the
tachometer.
L) Electric Fuel Level Gauge
The electric fuel gauge is located in the
dashboard and allows driver to observe
the fuel
level while riding the snowmobile.
M) Injection Oil Level Pilot
Lamp (Red)
Will light up when injection oil level is low.
Check level and replenish as soon as pos-
sible.
"W'CAUTION: Do not run engine un-
T til it is out of oil. Serious engine
damage will occur.
Whenever brake lever is compressed, oil
level pilot lamp should light up. If not, re-
place lamp.
N) High Beam Pilot Lamp
(Blue)
Lights up when headlamp is on high
beam.
12 --------------------------

0) Hot Grip Switch
The 3 position toggle switch is located
in dashboard underneath pilot lamps. Se-
lect the desired position to keep hands at
a comfortable temperature.
OFF
WARM
HOT
A019007003
P) Tank Cap
Unscrew to fill up tank then fully tighten.
• WARNING: Never use a lit match
or open flame to check fuel level.
Q) Hood Opening
Pull down the latches to unlock the hood
from the anchor.
0 NOTE: Always lift hood gently up
until stopped
by restraining device.
• WARNING: It
is dangerous to run
an engine with the hood open, un-
fastened or removed.
Seat Belt
(Escapade only)
Located on middle of seat. Provide a grip
for the rear passenger.
Tool Box
Located under the hood. To gain access,
tilt hood. Ideal location for spare plugs,
rope, first aid kit, flashlight, etc.
Fuse Holders
Starter (electric starting)
Starting system is protected with a 30
amperes rated fuse. Fuse holder is located
near the starter. If starter does not oper-
ate, check fuse condition and if neces-
sary replace.
Tachometer
The tachometer is protected with 0.1 am-
pere rated fuse. Fuse holder
is located
under the hood behind the tachometer.
If it stops operating, check fuse condi-
tion and replace if necessary.
13

BREAK-IN PERIOD
Engine
With Bombardier-Rotax snowmobile en-
gines, a break-in period
is required be-
fore running the vehicle at full throttle.
Engine's manufacturer recommendation
is 10 to 15 operating hours. During this
period, maximum throttle should not ex-
ceed 3/4, however, brief full acceleration
and speed variations contribute to a good
break-in. Continued wide open throttle
accelerations, prolonged cruising
speeds,
and lugging are detrimental during the
break-in period.
0 NOTE:
To assure additional protec-
tion during the initial engine break-
in, 500 ml (18 imp. oz) of BLIZZARD OIL
should
be added to gas for the first full
gas tank filling.
'W' CAUTION:Remove and clean spark
T plugs after engine break-in.
Belt
A new drive belt requires a break-in pe-
riod of
25 km (15 miles).
1 0-Hour Inspection
As with any precision piece of mechanical
equipment, we suggest that after the first
10 hours of operation or 30
days after the
purchase, whichever comes first, your
ve-
hicle be checked by your dealer. This in-
spection will give you the opportunity to
discuss the unanswered questions you
may have encountered during the first
hours
of operation. Remember that it is
easier to remedy at this time than to al-
low the snowmobile to operate until a
possible failure occurs.
The 10 hour inspection is at the ex-
pense of the vehicle owner.
14 -------------

10-HOUR INSPECTION CHECKLIST
.I
Engine timing
Fan belt tension
Spark plugs condition: (Remove and clean)
Carburetor
adjustment
Oil injection pump adjustment
Engine head nuts
Engine mount nuts
Muffler attachment
Chaincase oil level
Injection
system oil level
Brake operation and lining
condition
Ski alignment (runner condition)
Handlebar bolts, retorque to 26 N•m (19 lbf•ftl
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubrication (steering, suspension, drive axle)
Electrical
wiring (loose connections, stripped wires, damaged insula-
tionl. tighten all loose bolts, nuts and linkage
Operation
of lighting system (HI I LO beam, brake light, etc.), test
operation of emergency cut-out switch and tether switch
Battery electrolyte level (electric starting)
We recommend that you have your dealer sign this inspection list.
Date of 10 hour inspection Dealer signature
---------------------------- 15

GAS & OIL
Recommended Gasoline
Use regular leaded or unleaded gasoline
available from all service stations.
,.,. CAUTION: Never experiment with
T different fuel, never use naphtha,
methanol, gasohol or similar products.
• WARNING: Never
"top up" the
gas tank before placing the vehi-
cle
in a warm area. At certain temper-
atures, gasoline will expand and over-
flow. Always wipe off any gasoline spill-
age from the snowmobile.
Recommended Oil
Use "Bombardier Snowmobile Injection
Oil" (P/N 496 0133 00- 1 liter) available
from the dealer. This type of oil will flow
at temperatures
as low as minus 40°C
(-40°F).
If "Bombardier Snowmobile Injection Oil"
is unavailable, substitute with BLIZZARD
OIL. (P/N 496 0135 00- 500 ml).
,.,- CAUTION: Never use outboard or
T straight mineral oils.
Oil Injection System
Always maintain a sufficient amount of
Bombardier Snowmobile injection oil
in
the injection oil tank.
,.,-CAUTION: Check level and refill
T every time you refuel. Do not over-
fill.
0 NOTE:
To assure additional protec-
tion during the initial engine break-
in, 500 ml (18 imp. oz) of BLIZZARD OIL
should be added to gas for the first full
gas tank filling.
PRE-START CHECK ______ _
Check Points
• ACTIVATE THE THROTTLE CONTROL
LEVER SEVERAL TIMES to check that
it operates easily and smoothly. The
throttle control lever must return to
idle position when released.
• Check that the skis and the track are
not frozen to the ground or snow sur-
face and that steering operates
freely.
• Activate the brake control lever and
make sure the brake fully applies be-
fore the brake control lever touches
the handlebar grip.
• Check injection oil level.
• Check gas level.
• Verify that the path ahead
of the ve-
hicle
is clear of bystanders and ob-
stacles.
• WARNING: Only start the snow- mobile once all components are
checked and functioning properly.
16 ________________________ _

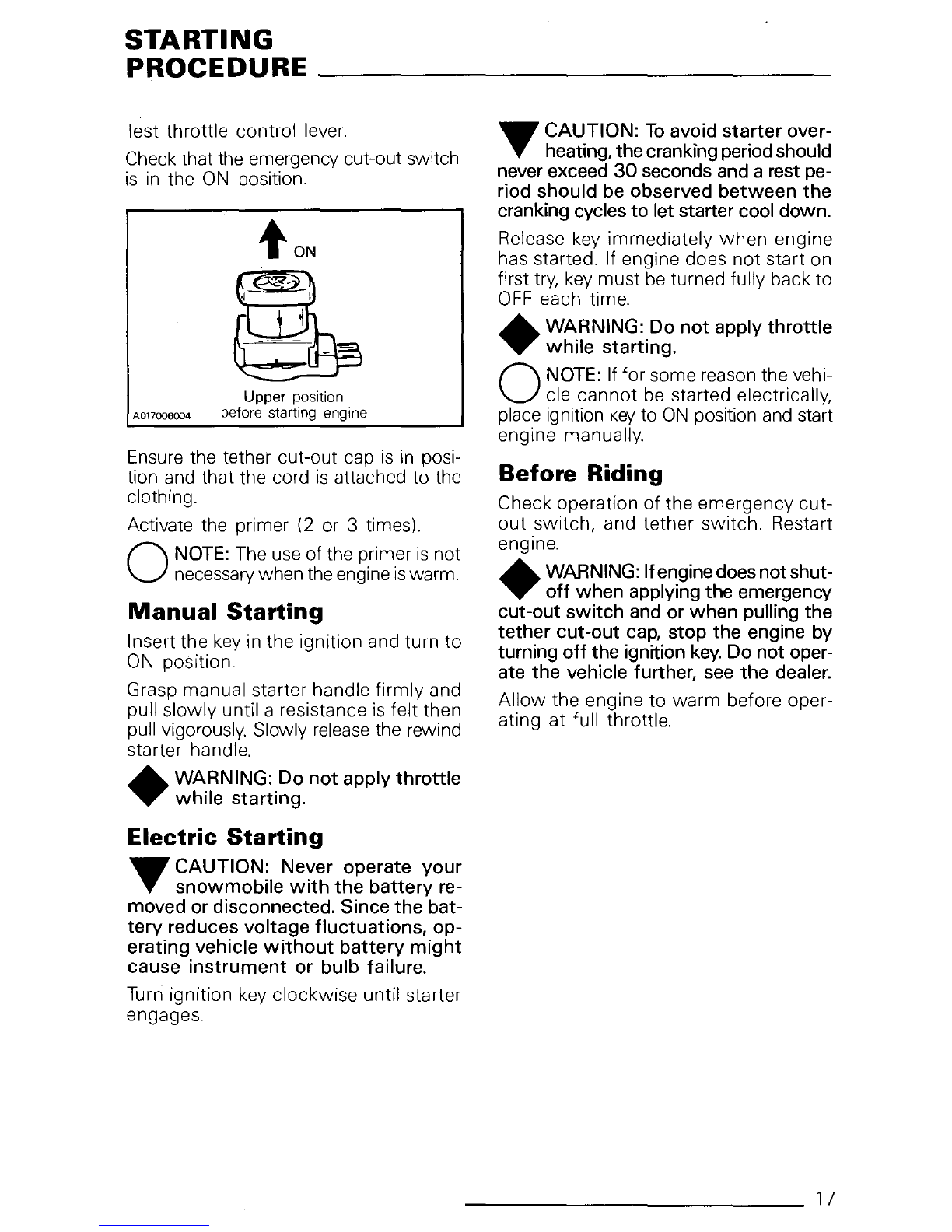

STARTING
PROCEDURE __________________________ _
Test throttle control lever.
Check that the emergency cut-out switch
is in the ON position.
Upper position
A017ooaoo4 before starting engine
Ensure the tether cut-out cap is in posi-
tion and that the cord
is attached to the
clothing.
Activate the primer (2 or 3 times).
0 NOTE: The use of the primer
is not
necessary when the engine is warm.
Manual Starting
Insert the key in the ignition and turn to
ON position.
Grasp manual starter handle firmly and
pull slowly until a resistance
is felt then
pull vigorously. Slowly
release the rewind
starter handle.
• WARNING: Do not apply throttle
while starting.
Electric Starting
.,.,. CAUTION: Never operate your
T snowmobile with the battery re-
moved
or disconnected. Since the bat-
tery reduces voltage fluctuations, op-
erating vehicle
without battery might
cause instrument or bulb failure.
Turn ignition key clockwise until starter
engages.
.,.,. CAUTION: To avoid starter over-
T heating, thecranking period should
never exceed 30 seconds and a rest pe-
riod should be observed between
the
cranking cycles to let starter cool down.
Release key immediately when engine
has started. If engine does not start on
first try,
key must be turned fully back to
OFF each time.
• WARNING: Do not apply throttle
while starting.
0 NOTE: If for some reason the vehi-
cle
cannot be started electrically,
place ignition
key to ON position and start
engine manually.
Before Riding
Check operation of the emergency cut-
out switch, and tether switch. Restart
engine.
•WARNING: lfenginedoesnotshut-
off when applying the emergency
cut-out switch
and or when pulling the
tether cut-out
cap, stop the engine by
turning off the ignition key. Do not oper-
ate the vehicle further, see the dealer.
Allow the engine to warm before oper-
ating at full throttle.
-------------- 17

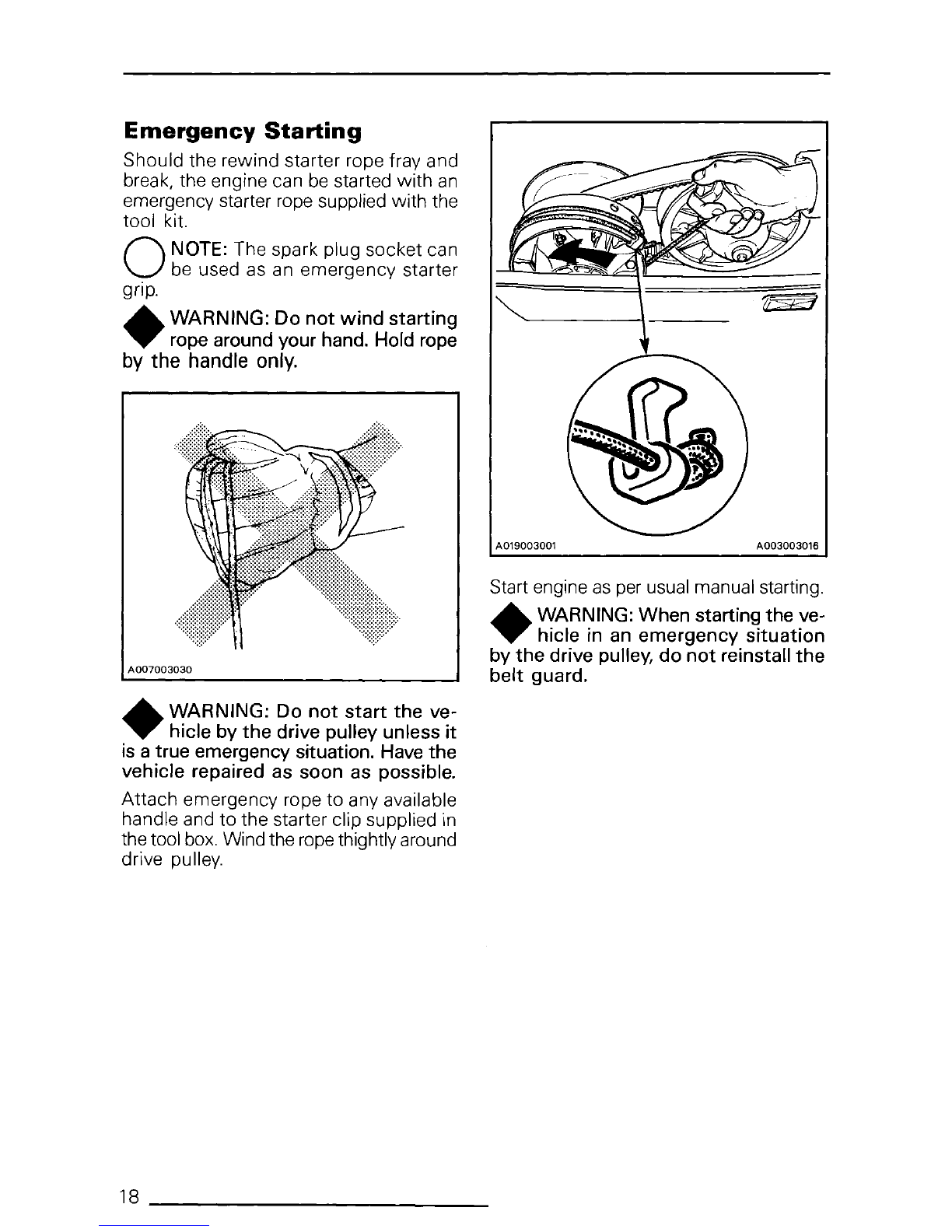

Emergency Starting
Should the rewind starter rope fray and
break, the engine can be started with an
emergency starter rope supplied with the
tool kit.
0 NOTE: The spark plug socket can
be used as an emergency starter
grip.
• WARNING:
Do not wind starting
rope around your hand. Hold rope
by the handle only.
A007003030
•
WARNING: Do not start the ve-
hicle by the drive pulley unless it
is a true emergency situation. Have the
vehicle repaired as soon as possible.
Attach emergency rope to any available
handle and
to the starter clip supplied in
the tool box. Wind the rope thightly around
drive pulley.
18 -------------
A019003001 A003003016
Start engine as per usual manual starting.
• WARNING: When starting the ve-
hicle
in an emergency situation
by the drive pulley, do not reinstall the
belt guard.
