DL21
Installation Manual
Dual axis Doppler Speed Log System (SOG+STW)
for vessels >50.000GT.
Document no: DM-M006-SA
Rev: 2017
For software ver 1.0.16
Date: 2021-03-22
BRIDGE
FORE PEAK
115-230VAC
/ 24VDC
CD402CU-SC
Operator Unit for DL1
JB70D1-SA
Electronic Unit
24VDC
DL21SG-SA
DL21 sensor
w/40m cable
in Sea valve
SB-100-SB
JB21-SA
Junction box
JB70D21-SA
Electronic Unit
Sensor extension cable.
Yard supply.
6 x twisted shielded pairs
Dimension: see DL2 manual Chapter 3.
CU-M001-SA Operator Unit for DL2
LAN cable. CAT6. Max. 100m
24VDC

Page 2 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
INSTALLATION MANUAL
DL21 DUAL AXIS DOPPLER SPEED LOG SYSTEM
Copying of this document, and giving it to others and the use
or communication of contents thereof, are forbidden without
express authority. O󰀨enders are liable to the payment of dam-
ages.
Sin nuestra expresa autorización, queda terminantemente
prohibida la reproducción total o parcial de este documento,
asì como su uso indebido y/o su exhibición o comunicación
a terceros. De los infractores se exigirá el correspondiente
resarcimiento de daños y perjuicios.
Weitergabe sowie vervielfältigung dieser unterlage, verwertung und mitteilung ihres
Inhaltes nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen
verpichten zu schadenersatz.
Toute communication ou reproduction de ce document, toute Exploitation ou
communication de ou son contenu sont interdites, sauf autorisation expresse.
Tout manquement à cette règle est illicite et expose son auteur au versement de
dommeges et intèrèts.

2021-03-22 Page 3 of 61
Installation DL21 Doppler Speed Log System
COMMUNICATING WITH US
If you need more information, support or other assistance from us, do not hesitate to contact us:
SKIPPER Electronics AS
P. O. Box 151, Manglerud
NO-0612 Oslo
Norway
Phone: [phone], Fax: [phone]
E-mail: [e-mail]
SOFTWARE UPDATES AND TECHNICAL SUPPORT
Find us on the internet: www.skipper.no
YOUR FEEDBACK IS APPRECIATED
If you nd errors, misspellings or poorly explained sections in this document, please do not hesitate
to contact us at:
[e-mail]

Page 4 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
CONTENTS
TERMINOLOGY ....................................................................................................................... 5
Terms used in this manual................................................................................................................................... 5
CHAPTER 1: GETTING STARTED......................................................................................... 7
Overview DL21.................................................................................................................................................... 7
Optional items DL21............................................................................................................................................ 8
Items Not supplied by SKIPPER ......................................................................................................................... 9
Power supply requirements................................................................................................................................. 9
CHAPTER 2: HARDWARE MOUNTING ................................................................................ 10
Placement of the Operator unit ........................................................................................................................... 10
Placement of the electronic unit .......................................................................................................................... 11
Placement of JB21 Junction box ......................................................................................................................... 12
Placement of repeaters ....................................................................................................................................... 12
Placement of the sea valve ................................................................................................................................. 13
Placement of the Sensor in sea valve ................................................................................................................. 14
CHAPTER 3: WIRING.............................................................................................................. 17
Clamping the cables............................................................................................................................................ 17
CU-M001-21-SB Operator unit wiring ................................................................................................................. 18
JB70D21-SA Electronic Unit Wiring .................................................................................................................... 19
Connectors supplied with JB70D2 ...................................................................................................................... 20
SENSOR CONNECTION DL21 .......................................................................................................................... 21
NMEA CONNECTION ......................................................................................................................................... 22
NMEA CONNECTION ......................................................................................................................................... 23
AUX/Alarm CONNECTION J2............................................................................................................................. 24
Additional NMEA, Aux and analog Out................................................................................................................ 24
Yard supplied extension cable from sensor to JB70 Electronic unit.................................................................... 25
The junction box (JB12)/splice ............................................................................................................................ 25
CHAPTER 4: SETUP PROCEDURE ...................................................................................... 28
CONFIG .............................................................................................................................................................. 29
CU-M001 setup ................................................................................................................................................... 30
JB70D2 setup...................................................................................................................................................... 31
DL2 setup ............................................................................................................................................................ 32
Reset.............................................................................................................................................................. 35
Software options............................................................................................................................................. 36
Communications setup (NMEA/UDP) ................................................................................................................. 38
NMEA............................................................................................................................................................. 38
LAN UDP........................................................................................................................................................ 38
NMEA sentences received ............................................................................................................................. 40
NMEA sentences transmitted ........................................................................................................................ 41
Alarm/Alert setup................................................................................................................................................. 42
Setup AUX........................................................................................................................................................... 46
System Diagnostics ............................................................................................................................................ 47
Available options in the diagnostic page ............................................................................................................. 47
Error messages ................................................................................................................................................... 47
Saving and locking ............................................................................................................................................. 48
Hardware options ................................................................................................................................................ 49
CHAPTER 6: SOLVING PROBLEMS..................................................................................... 50
Software upgrade ................................................................................................................................................ 50
APPENDIX 1: INSTALLATION DRAWINGS.......................................................................... 51
APPENDIX 2: DATA SHEETS................................................................................................. 56
APPENDIX 4: COMMISIONING CHECKLIST ....................................................................... 59

2021-03-22 Page 5 of 61
Installation DL21 Doppler Speed Log System
TERMINOLOGY

_________________________________________________________
Units
Unless otherwise stated, all values shown on the display are as follows:
Speed Knots
Distance (Vessel) Nautical miles
Depth Meters
Tilt ° Degrees
Temperature ° Centigrade
Rotation Degrees per minute
Heading Degrees
Abbreviations
In addition, the following symbols are used
WT Water track
BT Bottom track
STW Speed through water
SOG Speed over ground
Trip Text for trip/total
ECDIS Electronic Chart Display and Information System
INS Inertial Navigation System
VDR Voyage Data Recorder
ROT Rotation from Gyro
GYRO Gyroscopic heading / rotation sensor
HDG Heading
DL2 2 Axis Doppler Log (with speed over bottom and Speed through water)
DL1 1 Axis speed through water sensor (part of DL21 system)
DL21 A system with combined DL1 and DL2 in the same housings
UDP User Datagram Protocol.
SFI System function Id
LAN Local Area Network
Symbols
In addition, the following symbols are used
Indicating that the information presented is partly from the GPS input, and therefore not
from this sensor. (Outputs may show invalid data in this mode)
Symbolising that the data presented is longitudinal (forward or backwards)
Symbolising the data is transversal (port or starboard)

Page 6 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
Alarm active. Unacknowledged (ashing)
Alarm active. Silenced (ashing)
Alarm active. Acknowledged
Alarm active - Responsibility transferred alarm
Alarm rectied - Unacknowledged
Simulator mode - The system is using a simulator to generate the speed and depth
Option - Mute mode. The system has a sync option activated and is currently being
muted (No acoustics)
Symbolising the resultant speed direction

2021-03-22 Page 7 of 61
Installation DL21 Doppler Speed Log System
CHAPTER 1: GETTING STARTED

The DL21 Doppler speed log is a Dual STW and SOG Navigational Doppler Speed log system.
The new DL21 Speed Log is designed for ships over 50.000 GT with simultaneous and independent
measurement of speed through water and speed over ground.
The DL21 is a DL1 ( single axis STW) + DL2 (Dual axis STW + SOG), built into 1 sensor housing,
1 electronic unit and 2 Display units.
The system fullls all class and type regulations based on MED B (wheelmark) and is manufactured
in Norway under stringent production controls.
The DL21 system consist of:
2 x Operator units.
• CU-M001-21-SB for DL2
• CD402CU-SC for DL1
1 x Dual Electronic Unit
JB70D21-SA Electronic unit
1 x Junction box
JB21-SA
(Optional for extension of 40 m sensor cable)
1 x Sensor DL21SG-SA
• 1 x (STW) Single axis + 1 x (STW + SOG)
Dual axis sensor in one housing.
• Fits into SB-100-XX/DB-100-XX sea valves
BRIDGE
FORE PEAK
115-230VAC
/ 24VDC
CD402CU-SC
Operator Unit for DL1
JB70D1-SA
Electronic Unit
24VDC
DL21SG-SA
DL21 sensor
w/40m cable
in Sea valve
SB-100-SB
JB21-SA
Junction box
JB70D21-SA
Electronic Unit
Sensor extension cable.
Yard supply.
6 x twisted shielded pairs
Dimension: see DL2 manual Chapter 3.
CU-M001-SA Operator Unit for DL2
LAN cable. CAT6. Max. 100m
24VDC
CU-M001-21-SB
CD402CU-SC

Page 8 of 61 2021-03-22
Installation DL21 Doppler Speed Log System

The following items are optional SKIPPER supplied items.
- Speed Repeater
- External dimmer
- LAN switch
BRIDGE
FORE PEAK
115-230VAC
/ 24VDC
CD401MR-SB
Repeater NMEA
IR31DIM-SA
External
dimmer
NMEA
24VDC
24VDC
I/O DL1
I/O DL2
CD402CU-SC
Operator Unit for DL1
JB70D1-SA
Electronic Unit
24VDC
DL21SG-SA
DL21 sensor
w/40m cable
in Sea valve
SB-100-SB
JB21-SA
Junction box
JB70D21-SA
Electronic Unit
Sensor extension cable.
Yard supply.
6 x twisted shielded pairs
Dimension: see DL2 manual Chapter 3.
CU-M001-SA Operator Unit for DL2
LAN cable. CAT6. Max. 100m
24VDC LAN switch (option)
LAN switch
(option)
CU-M001-21-SB

2021-03-22 Page 9 of 61
Installation DL21 Doppler Speed Log System

The following items are not SKIPPER supplied:
- LAN cable (minimum CAT6) from Operator unit to Electronic unit.
- The sensor is manufactured with a 40m cable. The cable may be cut or extended. Extension cable
is 6 pairs with individual screens. See chapter 3 for lengths and dimensions.

The JB70D21-SB power supply includes separate power for DL1 and DL2
DL2:
- CU-M001-21-SA. Operator Unit. 24V DC. Max 10 W, Typical 6 W.
- JB70D21-SA. Electronic unit (DL2 Power): 24V DC and/or 115/230V AC. Max 60 W typical 15 W.
DL1:
- CD402CU-SA. Operator Unit. 24V DC. Max 10 W, Typical 6 W.
- JB70D21-SA. Electronic unit (DL1 Power): 24V DC. Max 20 W.
There are no power switches on the CD402CU-SA, CU-M001-21-SB orJB70D21-SA.
The separate power inputs should be including a manual circuit breaker.
There are no input fuse on the CD402CU-SA, CU-M001-21-SB or JB70D2-SA.
The power input should be including a fuse rated for 100 % - 200 % of max power installed
components.
Example:
Two separate 24V supplies for DL1 and DL2.
Each 24V supply should have a 3A slow blow fuse.
Optional items power supply requirement:
- CD401MR-SB repeater. 24V DC. Max 10 W, Typical 6 W.
- IR31DIM-SA. External dimmer: 24V DC
- LAN switch: 24VDC
DL1 Power
24V DC
DL2 Power
24V DC
DL2 Power
115-230V AC

Page 10 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
CHAPTER 2: HARDWARE MOUNTING

The operator unit is placed on the bridge.
Some standards require some operations of the unit to be available from ‘standing position’.
These operations are available from the operator unit and multi-repeaters if both input and output
are connected.
Dimensional drawings are found in Appendix 1.
Flush mount installation

2021-03-22 Page 11 of 61
Installation DL21 Doppler Speed Log System

The electronic unit can be installed on a DIN rail or directly screwed onto the wall.
All parts of the system are connected to the electronic unit.
There are no buttons (like ON/OFF) in the electronic unit. Access is only required for service purpose.
Placement is typically in or near the bridge where the interfaced systems are available, but no
nearer than 0.5 m to the GYRO heading sensor. IP rating: IP20.

Page 12 of 61 2021-03-22
Installation DL21 Doppler Speed Log System


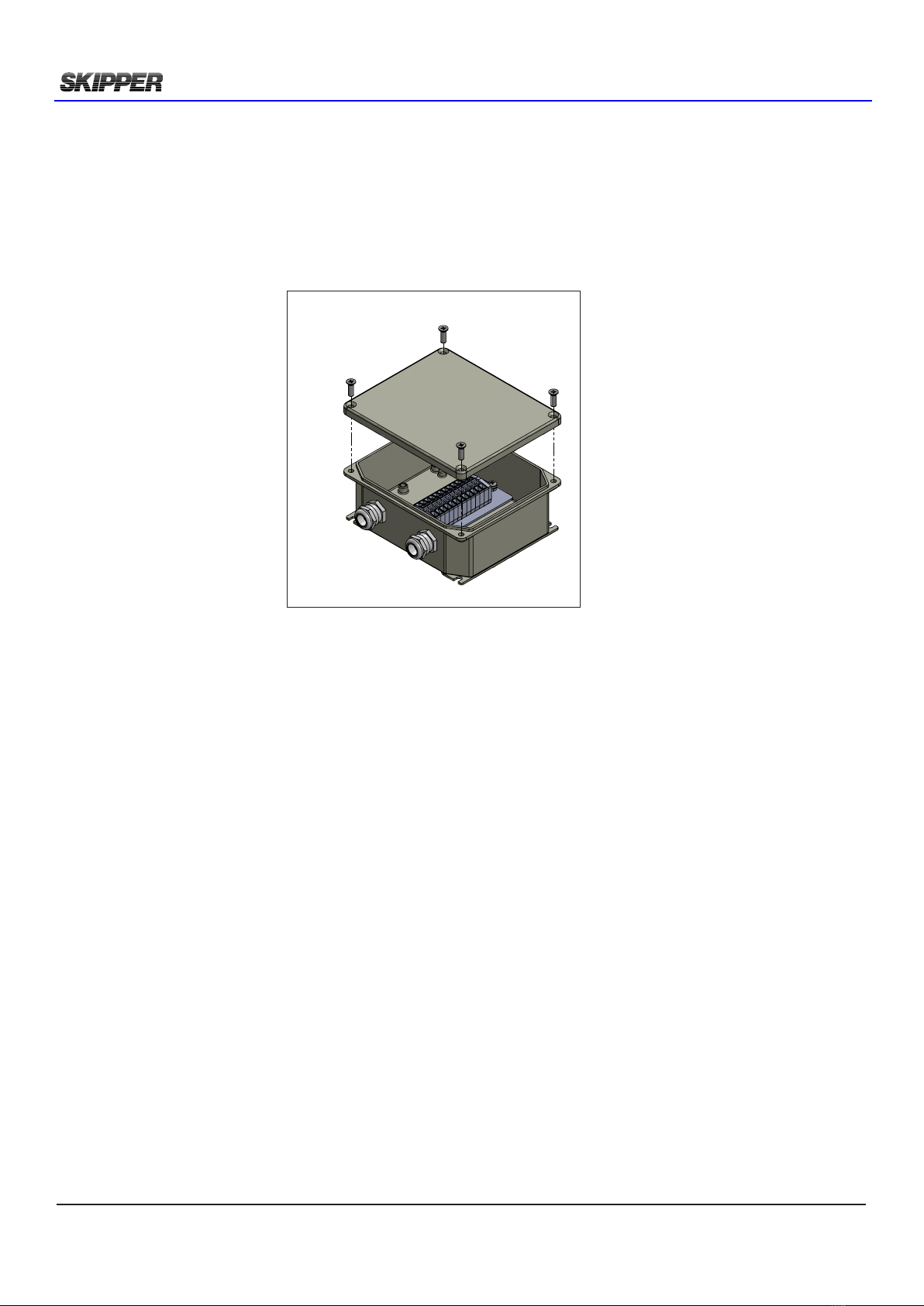

The junction box JB21 is an option for connecting sensor cable to a yard supplied extension cable
(See chapter 3).
It is placed in a dry place within reach of the 40m sensor cable.
66
31,5
165,5
141
161
70
125
144
6,1 (4x)
Approved by - date
HK 2012.02.09
Designed by - date
1 of 1
JB12 Outline Drawing
Scale
OD-JB12
Revision
X0
Sheet
Edition date
Name
Drwg. no.
CN
Checked by
Material
Eur. projection Gen. tolerance
1:2 ISO2768m
E
D
Electronics AS
B
A
8 7 6 4
D
C
5 1 2 3
A
B
4 3 2 1
C
F
E

Repeaters are typically installed on the overhead console and/or the bridge wings. These can be
routed using NMEA signals. These require a local +24 V DC supply. Please note that STW NMEA
output from DL1 part and SOG NMEA is from DL2 part.

2021-03-22 Page 13 of 61
Installation DL21 Doppler Speed Log System

Mounting instructions for the sea valve is available from the SKIPPER web site in separate manual
depending on the chosen type. When placing the speed log sensor, consider the following moments:
• Free sight to the bottom (it should be possible to draw a cone of +-45 degrees from the
sensor to the bottom).
• The active face of speed sensor must be in parallel to the horizontal line, max o󰀨set +-1°.
• Do not mount transducers aft of bow thruster, propeller outlets or aft of other hull
installations (such as outlets, vents or other protruding details) that may create aeration or
turbulence.
• It is necessary to select a part of the hull that is submerged and free from turbulence and
aeration under all load and speed conditions, and to avoid positions where air is trapped in
heavy weather.
• If a at, horizontal section is not available for transducer tting, the shipyard must construct
a suitable bed. Welding seams in this area and forward should be smoothed and rounded
o󰀨 in order not to create turbulence or aeration and maintain a laminar waterow at all
speed ranges of the vessel.
• Select an area that is acoustically quiet. The DL2 operates at frequencies between 270 kHz
and 284 kHz. The DL1 between 710-720kHz.
There are 4 acoustic channels in DL21
DL1 has 2 channels(Blue forward and blue aft)
DL2 has 2 channels (Brown forward and Green starboard).
The acoustic signal is sent in a 30deg angle from vertical.
A tilt sensor internally inside the DL21SG-SA sensor is used to
compensate for vessel movement.

Page 14 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
The generally best placement on larger vessels is in the front region of the vessel just behind the
bulbous bow (see g above). This area is generally designed such that the bubbles are pushed to
either side of the bulb, leaving a clear area under the bulb and just behind. The sensor is installed in
a sea valve in order to service the sensor (clean or replace) without docking the vessel.
It is recommended (but not required) to install the sea valve in a dry area, like a bow thruster room.
This will enable easy cable access to junction box and additionally increase the lifetime of the sea
valve.
The sensor DL21 is installed into sea valve
100mm for single bottom SB-100-SB or
double bottom DB-100-SB.
Please see sea valve manual for installation
procedure.
Manuals available as downloads from
www.skipper.no
The sensor includes 40m moulded in cable.
The cable is 11 mm in outer diameter with a
bending radius of 56 mm. The cable can be
cut or extended if required

NOTE
During physical installation of sensor into sea valve please make special care of the following points:
• Sensor to be lowered completly into bottom ange making sensor head ush with outer hull.
• Sensor forward direction to be aligned +/-10deg. (Fine adjust by software in calibration page)
• Clamping unit nuts and nut M50 to be tighten to secure sensor position.

2021-03-22 Page 15 of 61
Installation DL21 Doppler Speed Log System
Sensor forward direction.
It is important to align sensor forward direction.

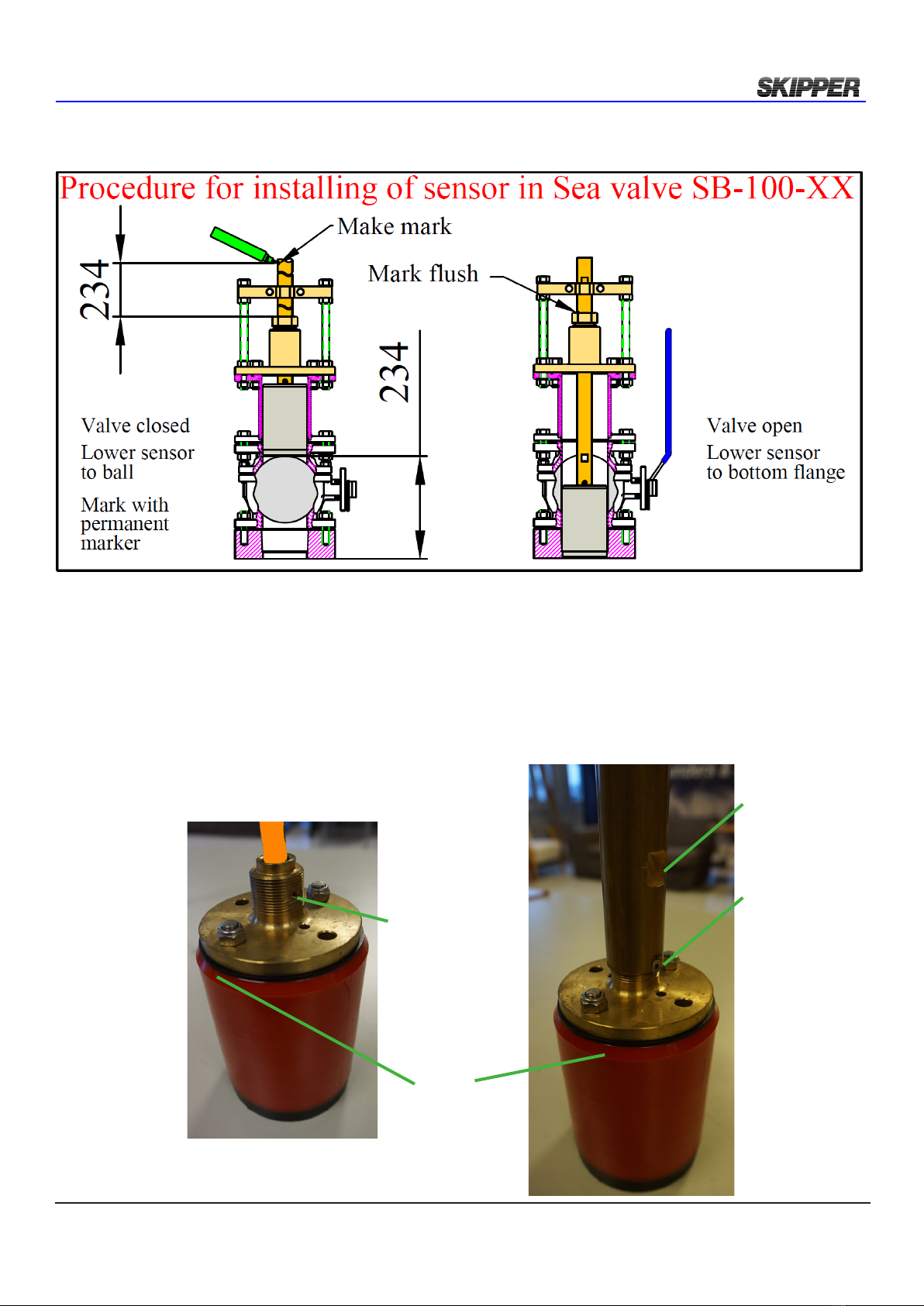

Pictures showing forward direction alignment in sea valve SB-100-SB.
Sensor lowered ush with outer hull.
Pictures showing lowering procedure in sea valve SB-100-SB.
Threaded hole
Port side
Forward
position mark
in moulding
Screw M4
In threaded
hole
Port side
Flat area
Port side

Page 16 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
A at object points fore/aft. The at side should be on the port side.
DB-2039
Nut M28
DB-2037
Washer (2x)
Gasket
DB-2038
Final Assembly
1. Tighten the Nut M50 (DB-2036). Torque : 98 Nm
2. Push down the Clamp Unit (DB-2033) onto the Nut M50.
and tighten the 2 screws M8 (with lock washer).Torque : 40Nm
3. Screw the 2 Nuts M16 sligtly up to the Clamp Unit.
4. Tighten the 2 Nuts M16 (with lock washer) on
1
2
3
4
Mounting order Nut M50 and Clamp Unit :
the opposite side: Torque : 98 Nm
The Clamp Unit must be fitted on Top of Nut M50
to lock the Nut.
(This is done to give extra security.)
Extention TubeCente Line
Guide Bar Ship
Secure sensor by tightening clamping unit and nut M50

2021-03-22 Page 17 of 61
Installation DL21 Doppler Speed Log System
CHAPTER 3: WIRING
Two separate 24VDC supplies are required
The JB70D21-21-SA does not contain a physical switch and should be connected to a circuit breaker.
Power may be nominal 24V DC (No more than 32V DC) and/or 115-220V AC. Max 60W typical 15W.
The AC input is an optional back up for DL2 part of JB70D21-SA only.
There are no input fuse on the CU-M001-21-SB or JB70D21-SA.
The power input should be including a fuse rated for 100% - 200% of max power installed components.
Example: A 24V DC to power both CU-M001-21-SB and JB70D21-SA should have a 3A slow blow
fuse.

Cables should be connected to WAGO connector, leaving
approximately 3 cm of tail. They should be stripped with 6-7 mm of
metal showing and these should be connected as in the diagram
above. A small screwdriver with blade size approx 3.5 mm can be
used. WAGO part no 210-719 is ideal for this use.
Outer shields should be collected and grounded in a ground stud on
the edge of the cabinet. The outer insulation should be cable tied to
the plastic handle of the connector, and securely anchored nearby.
The plugs when retted, must be installed such that their clips are
fully in the up position.
DL1
24V DC. 3A
DL2
24V DC. 3A

Page 18 of 61 2021-03-22
Installation DL21 Doppler Speed Log System

The operator unit has 2 connectors.
1 LAN connector for communication with Electronic unit.
2: WAGO connector CN1 for 24V power. Max 10W, Typical 6W.
Items supplied with CU-M001-21-SB
1 x ZZN-01120.
Connector Female w/ejectors 6x2 pole, black. (CN 1)
1 x ZZN-01123. Strain relief plate, 6x2 pole, width 11 mm. (CN 1)
Note:
CU-NMEA only in use for par-
allel systems. See appendix 4.
Standard NMEA I/O on
JB70D2-SA

2021-03-22 Page 19 of 61
Installation DL21 Doppler Speed Log System

The JB70D21-XX does not contain a physical switch (only software) and should be connected to a
circuit breaker for removal of power.
The DL2 is powered from nominal 24VDC (Max 32VDC) and/or 115-230V AC.
The DL1 is powered from 24V DC Isolated input.
For wiring of DL1 Operator unit (CD402) please see “Installation manual DL1” DM-M004.
For wiring of DL2 Operator unit (CU-M001) please see “Installation manual DL2” DM-M002.
DL1 Power
24V DC
DL2 Power
24V DC
DL2 Power
115-220V AC
DL1
Sensor
1 x NMEA In
2 x NMEA Out
Alarm
1 x Aux In
2 x Aux Out
DL1 LAN
DL2 Sensor
DL2
2 x NMEA In
4 x NMEA Out
DL2
Alarm
1 x AUX In
2 x AUX Out
DL2 2 x LAN
DL1 or DL2
Congurable
(See DL2 Installation
manual. Appendix 3)
2 x NMEA Out
2 x Aux Out
1 x Analogue Out

Page 20 of 61 2021-03-22
Installation DL21 Doppler Speed Log System
ZZN-01126 Relief Housing,
3 pole snap-on.
WAGO: 232-633
ZZN-01125 Plug, Female 3
pole,231-303 026
ZZN-01124 Plug, Female 2
pole, 231-302_032-000
ZZN-01123 Strain relief
plate, 6x2 pole, width 11 mm
WAGO 713-126
ZZN-01120 Connector Fe-
male w ejectors 6x2 pole, black
WAGO 713-1106/037-000
ZZN-01123 Strain relief
plate, 6x2 pole, width 11 mm
WAGO 713-126
ZZN-01130 Connector, Fe-
male w/ejectors 3x2 pole, black
WAGO 713-1103/037-000

ZZN-01136 Plug, Female
3 pole with locking levers,
231-303/037-000
