The new ŠkodaFabia

Cars have a language. When they talk, we listen. They tell us where they
are going and where they came from. They whisper clues about the people they
carry. Revealing their lives, lifestyles, habits and habitats. Every Škoda Fabia tells
such a story. Listen to the one that is telling yours.

Rear combined lights, with
their characteristic C-shaped
translucence, communicate
a message of belonging to
the Škoda brand.

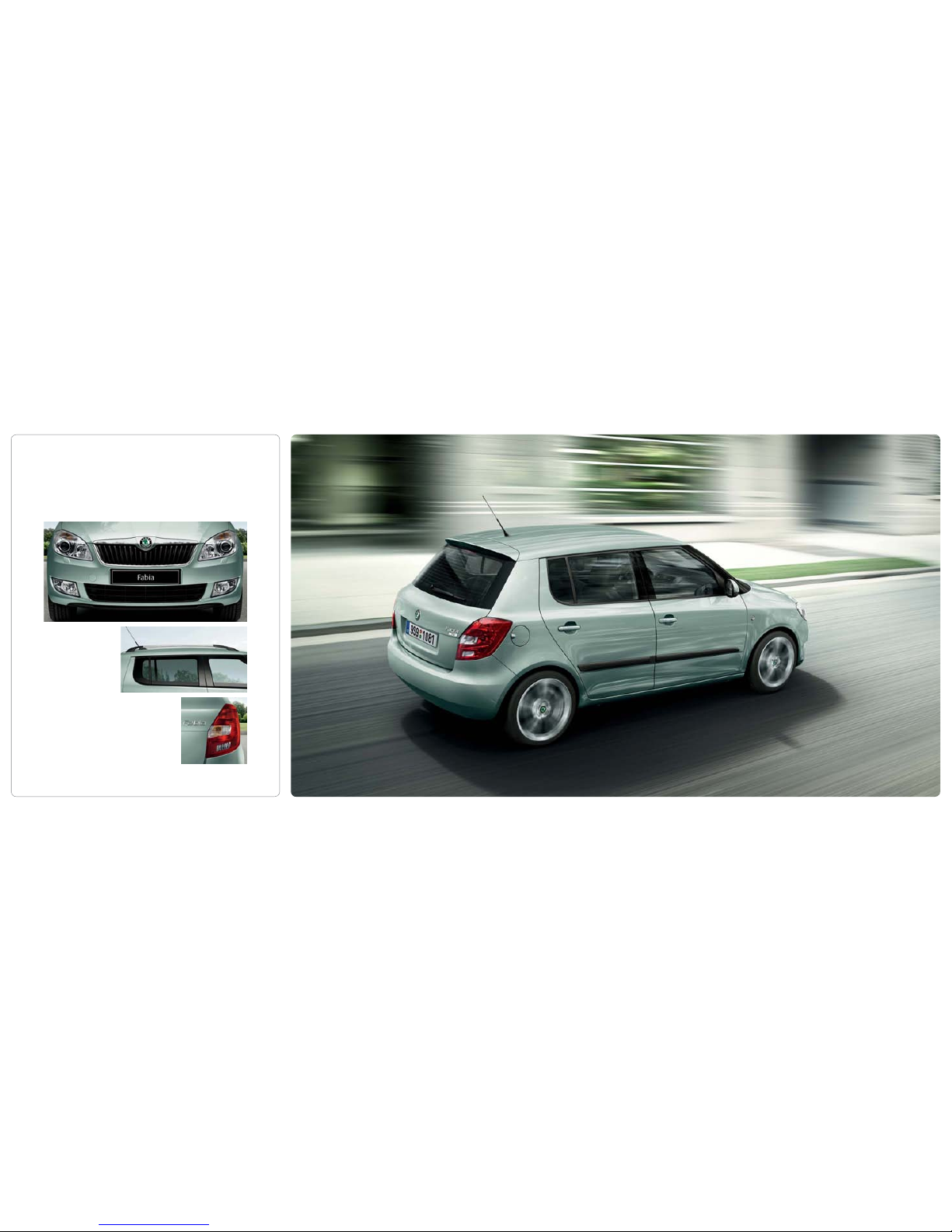

The new Škoda Fabia and Fabia Combi come with several distinctive
exterior changes giving them an entirely new expression. The front has undergone
the biggest facelift, lending the car a more self-confident and dynamic look. Both
models have a newly designed front bumper, front grille and headlamps. The
newly shaped front fog lamps are now available with daytime running lights.
The city is your first love. You flirt with its streets and embrace its neighbourhoods.
Life is young and so is the lifestyle. There is always enough time for work, play,
parties and groceries. All you need is a companion who is as street smart as you are.
Like the new Škoda Fabia.
One of the innovations of the
new Fabia is a longitudinal roof
railing in black or black/silver
colour combination.
Passengers in the rear seats will
enjoy higher comfort provided
by SunSet, a high-performance
tinted glass.

There are loved ones waiting for you to come home every evening.A home
which is big enough for children and their childhood, life and its responsibilities.
You don’t know what tomorrow may bring. But you know there’ll always be space
for it. In the back of your new Škoda Fabia Combi.
The interior
bicycle holder
will allow you
to comfortably
transport 2 bicycles
inside the car.
The 2-position luggage
compartment cover
allows, when fixed in
the lower position, the
transport of objects that
would otherwise impede
the driver’s view.
The flexible partition
net may be used to fix
smaller objects.
You may hang your shopping
bags on folding hooks available
on both sides of the luggage
compartment.
With the Net Programme, consisting
of 3 nets, your luggage will stay safely
in place while you are driving.

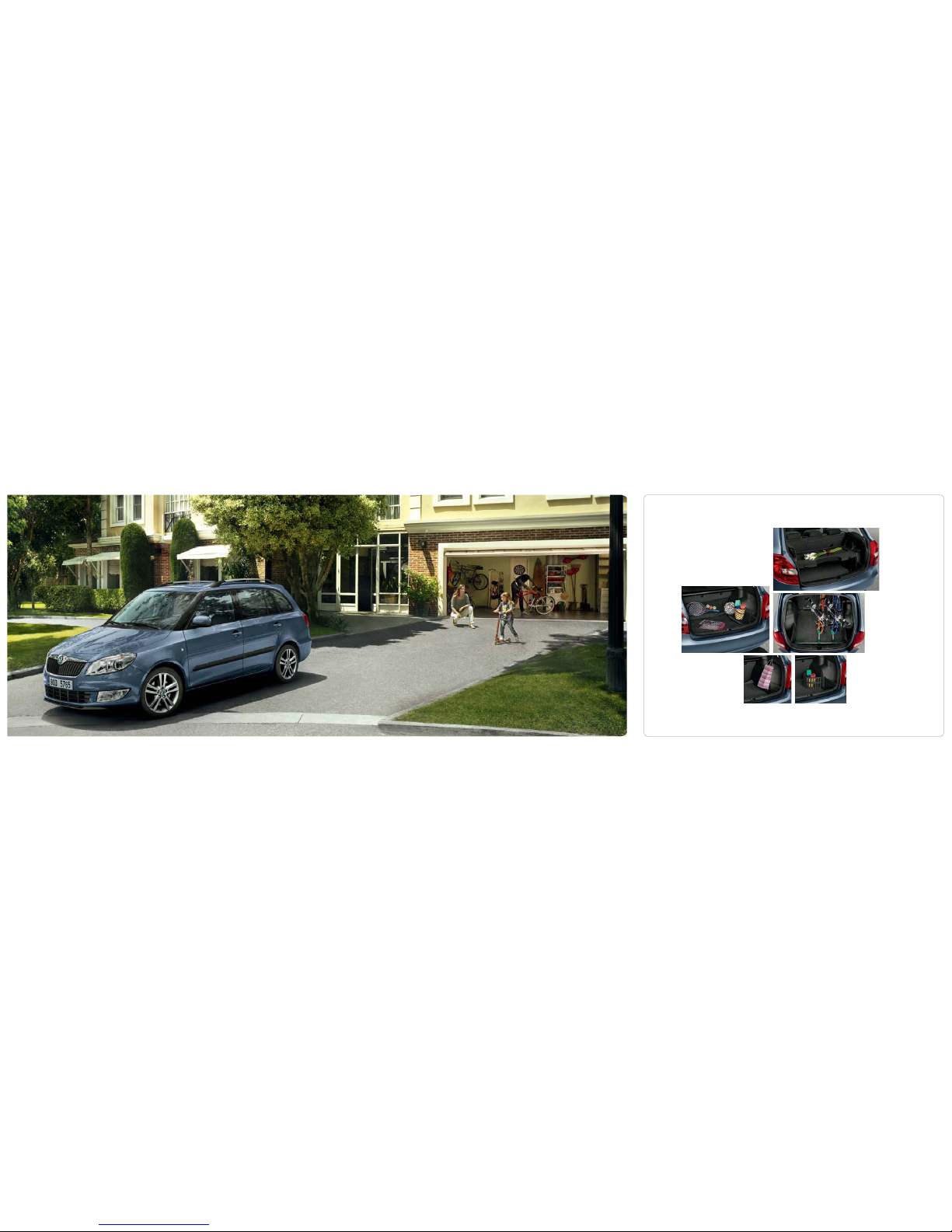

The essential feature of the new Fabia models is
practicality. It offers extraordinary space for both
the crew and luggage. In addition, we offer you
a whole range of practical accessories, which
help you maximise the utilisation of the luggage
compartment and keep the car tidy.

Family comes first. Even as you juggle between roles, you always find time to be there for
those who love you most. Your life is more fun because you get to share it.And with all that
space in your new Škoda Fabia Combi, there are even more memories waiting to be stored.
The mid-level luggage compartment floor for the Fabia Combi
model places the bottom of the luggage compartment on the level
of the loading edge, facilitating easier luggage handling. In addition,
it provides a suitable storage place to keep things that you don‘t want
to unload every day.
The new Škoda Fabia Combi
is a pleasant family vehicle,
which satisfies even the highest
requirements for space and storage
options. Thanks to its variability it‘s
a great choice for families with small
children as well as owners of four-
legged passengers. The luggage
compartment capacity is 505 litres,
which can be expanded to 1,485
litres after tilting the rear seats.
We deliver the roof railing in an exclusiveblack/silver
design or in elegant black.

You control the Amundsen
navigation system with
a 5" colour touch-screen.
The MDI (Mobile Device Interface) enables
(by means of interconnecting cables with
terminals for the iPod, Aux-in or USB,
available from Škoda Genuine Accessories)
control of a connected external device
through the radio or navigation system.
The Maxi DOT
multifunctional display
shows, in addition to other
information, the average
consumption or outdoor
temperature.

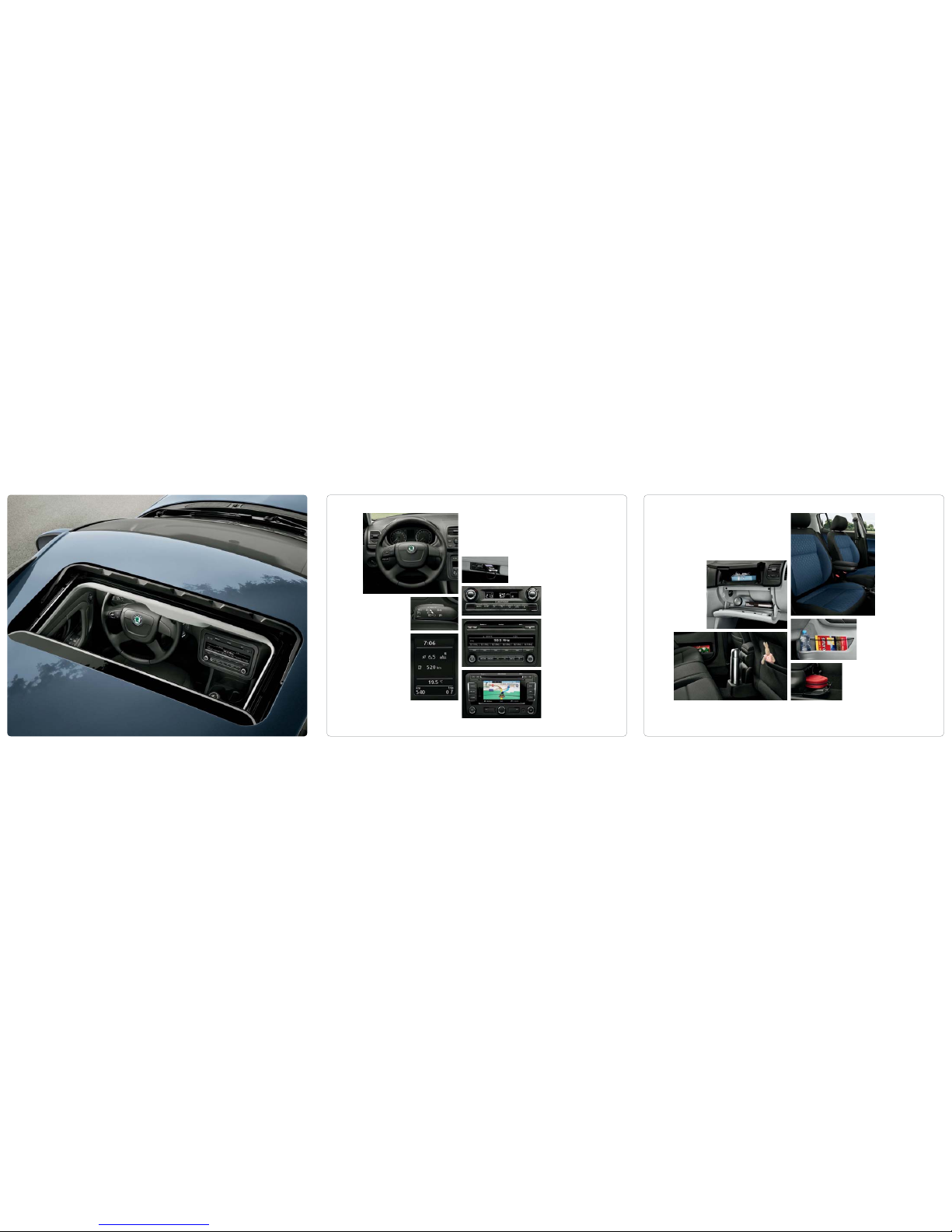

A look at the dashboard reveals not only design changes but also
innovations to the offered steering wheels and comfort features, such as
a navigation system, radios and MDI (Mobile Device Interface). The new
multifunctional 4-spoke leather steering wheel, which enables you
to control the radio and phone, is also available in a 3-spoke sports design.
All instrument panel versions feature new functionality, one of which is
the recommended gear shift function, depending on the engine version.
In addition, to maintaining the
preselected speed, cruise control
enables you to increase or reduce
speed without using the pedals. This
function is controlled by a button on
the side of the cruise control.
The Climatronic air
conditioning with
electronic regulation
comes with a new
control panel.
The Swing radio is furnished
with a dual antenna and
the music CD, CD-MP3
and CD-WMA player.

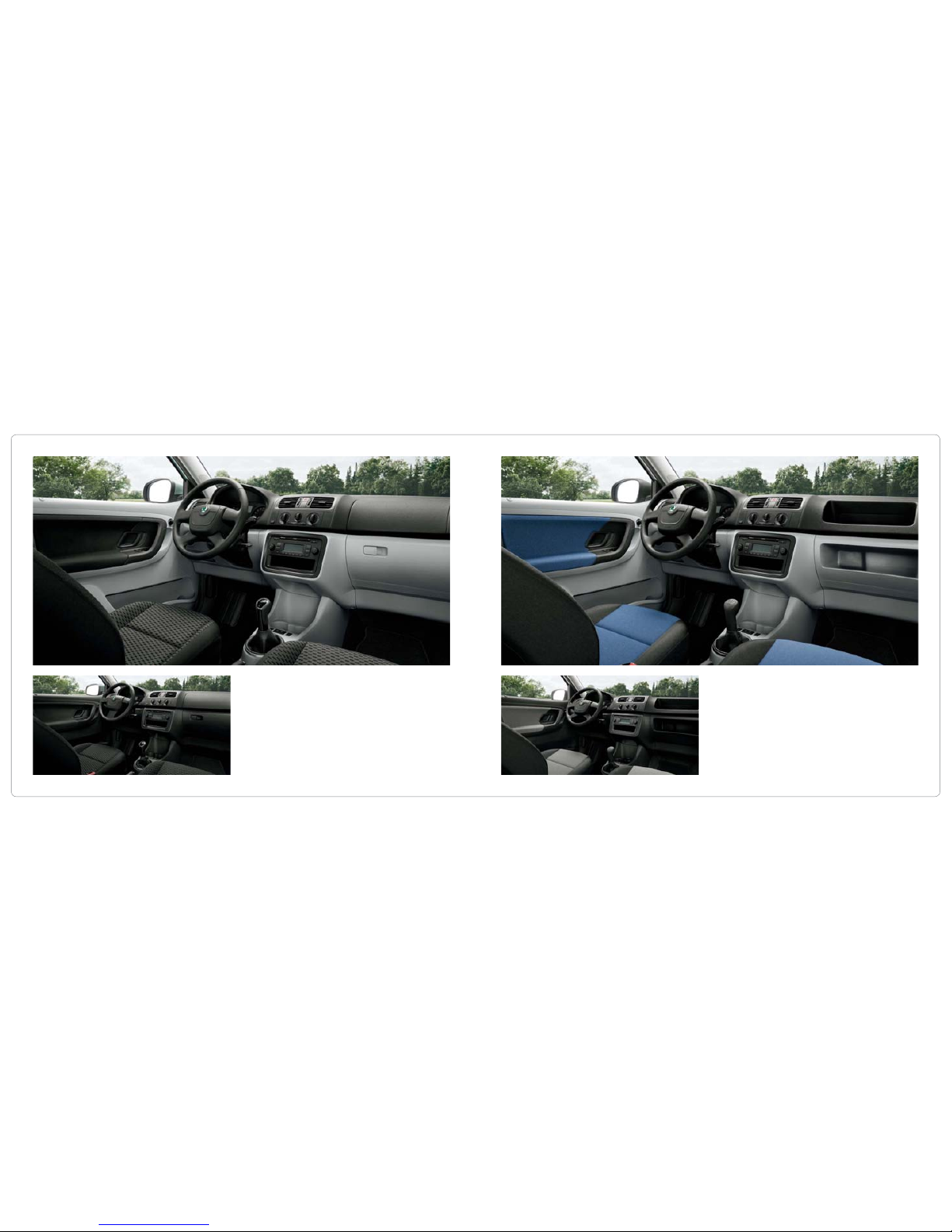

Comfort is a matter of personal feeling
as each of us has different expectations and
requirements. For all of those who associate
comfort with sufficient storage options we
have a simple solution.
The storage
compartments in the
dashboard are available
in two versions, either
open or covered. The
lower compartment
may be illuminated
and, in combination
with the Climatronic air
conditioning, cooled.
The central console drinks holder is a welcome addition, especially for
the rear seat passengers, but is easily accessible from the front seats as well.
Other storage options are provided by the pockets on the front seat backrests
and storage compartments in the rear door panelling.
The adjustable
armrest between the
front seats houses an
unexpectedly spacious
storage compartment of
1.2 litres. The driver and
passenger’s comfort is
further increased by the
heated front seats.
A hidden storage space for
various small objects can be
found in the drawers with
tilting lids situated under
the front seats.
The storage compartments
in both the driver and front
passenger’s door panelling
provide a 1.5l bottle holder
and a practical rubber band
to hold a map or magazines.

You love exploring your surroundings. But you also know how to respect them. You visit nature
in its own home. And quite often you invite it to yours too. In your new Škoda Fabia Scout, you
never seek to tame the environment, but to treasure it as your friendly neighbour.

You never live someone else’s life. You don’t blend in but stand out. The day may come with
daily chores but you are always dressed to be different. And when the city becomes predictable,
you set off for an adventure that’s as unique as your escape pod. The new Škoda Fabia Scout.

You know life isn’t always a smooth journey. It can be a bumpy ride full
of big and small challenges. Especially when you seek adventure by going
off the beaten path. Thankfully the new Škoda Fabia Scout Combi comes
with the space and the performance to enjoy each one of those challenges.

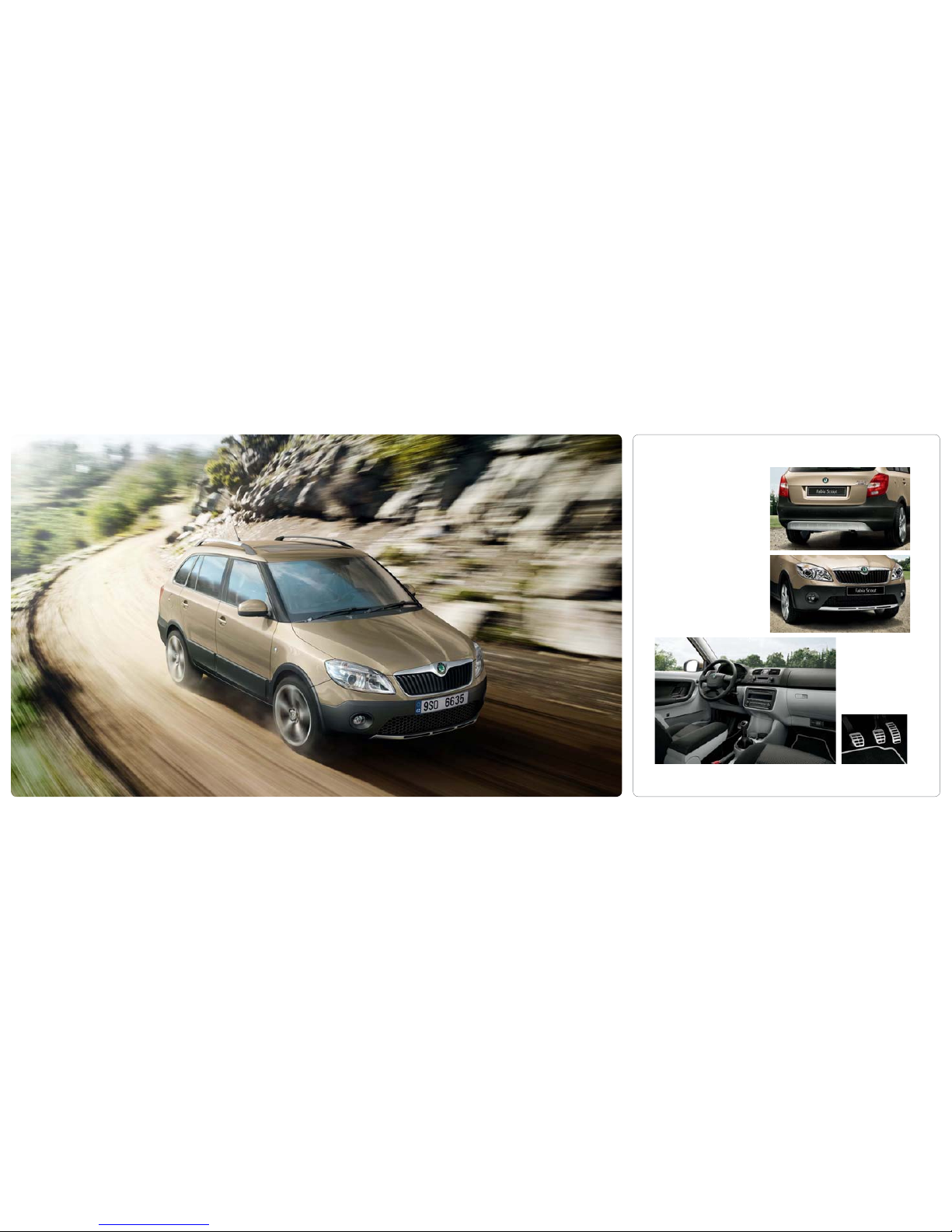

The new Škoda Fabia Scout
is ready to offer you an unusual riding
experience. Both the exterior and the interior
will attract you with their distinctive equipment,
including, among others, a rear bumper with
a diffuser.The Fabia Combi Scout is also
available.
The unique design of the Scout model
is distinctively represented by the
newly shaped front bumper.
The Scout interior is designed in a grey/black
colour with an Onyx/Silvergrey or Onyx/Onyx
dashboard. Options also include the Floss
interior (leather/artificial leather/fabric) or
the Pulse interior with sports front seats.
The Noble steel foot pedal
covers as well as removable
woven carpets with grey
stitching give the interior a sporty
and elegant style and enhance
the feeling of comfort.

Freedom is a place where you chase sunsets and not deadlines. Where nature becomes a welcome
escape and a healthy addiction. But being free doesn’t mean being alone. Thankfully there is
enough room in your new Škoda Fabia Combi Scout for your family and their own adventures.

With its design the new Škoda Fabia
Sportline provokes directly to the
active lifestyle. Its interior is dominated
by a 3-spoke steering wheel in black
perforated leather which is very pleasant
to touch.
The Pulse interior with sports
front seats is available for the
Sportline version in a dark blue
or red design.
The Noble steel foot pedal
covers and removable
woven carpets with
coloured stitching have
significant merit for both
a sporty and comfortable
interior appearance.
Sweat is your secret fuel. Life is a game where friends and fun are always on your team. You thrive
in places that have become your playgrounds. Being active means being alive. And when you
need a player as dapper and daring as you are, you can count on your new Škoda Fabia Sportline.

Power can simply mean knowing it’s there when you need it. Like the 180 horses
waiting at the command of your right foot. Welcome to a world of power and
performance where a healthy dose of adrenaline is served with an equal measure
of comfort and control, the world of the new Škoda Fabia RS.

The Tempo interior,
with specially
modelled sports front
seats for the driver and
passenger, is offered in
a grey or red design.
The 3-spoke sports leather steering
wheel multiplies the driving pleasure.
The car may also be furnished with
the multifunctional leather steering
wheel allowing comfortable control
of the DSG automatic transmission,
the radio and the phone.

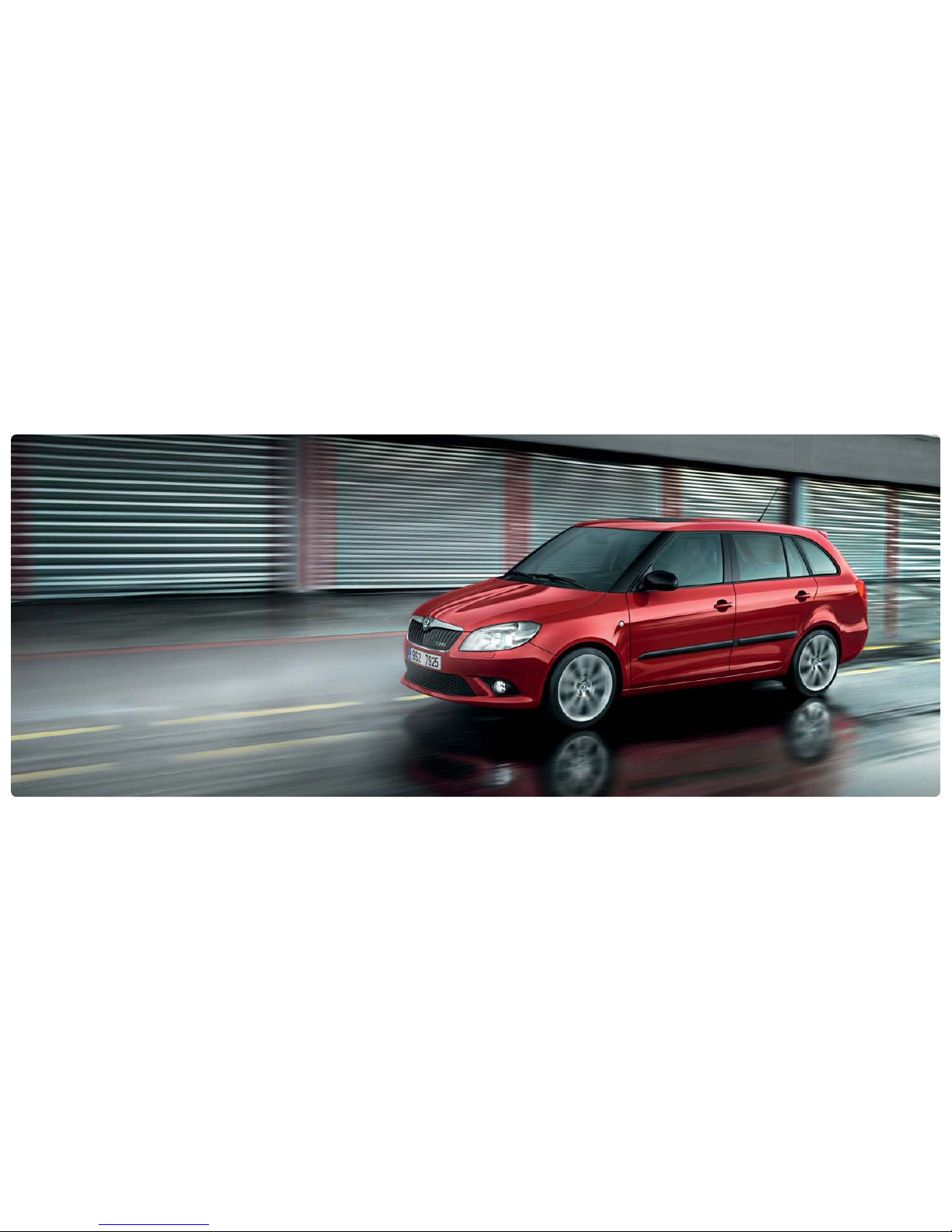

The new Škoda Fabia RS is characterised by
a robust front bumper. The front grille bears the
RS badge. For an even more sporty appearance
of the car, you may equip it with LED daytime
running lights instead of standard circular fog
lamps (see photo). We offer the RS models both
in the Fabia and Fabia Combi versions always with
the 1.4 TSI/132kW engine and the 7-speed DSG
transmission.
A number of elements, such as the
5th door spoiler, the diffuser, the
double exhaust tailpipe and the RS
badge, give the car rear a really sporty
look. The 7.0J x 17" Gigaro alloy wheels
with 205/40 R17 tyres were specially
developed for the RS model. You may
select from 4 colour variants: silver,
anthracite, white and black.
Some have the power within. Others are merely dressed for it.
But when true performance comes with the looks to match,
it’s a pleasure to watch and a thrill to experience. Like the potent
1.4 TSI/132kW engine wrapped in the sporty contours of the new
Škoda Fabia RS.

It’s good to know you have the performance. But it’s even better to know you have it in control.
Witness raw force being tamed by pinpoint precision, thanks to the 7-speed DSG. You can enjoy
this perfect balance of power and a lot more in the new Škoda Fabia RS.

Power is something which needs to be enjoyed. Pure performance can only be appreciated in pure
comfort. It’s when a thrilling ride can be stretched into a relaxing journey. After all, even adrenaline
needs to calm down in the comfortable sports seats of the new Škoda Fabia Combi RS.

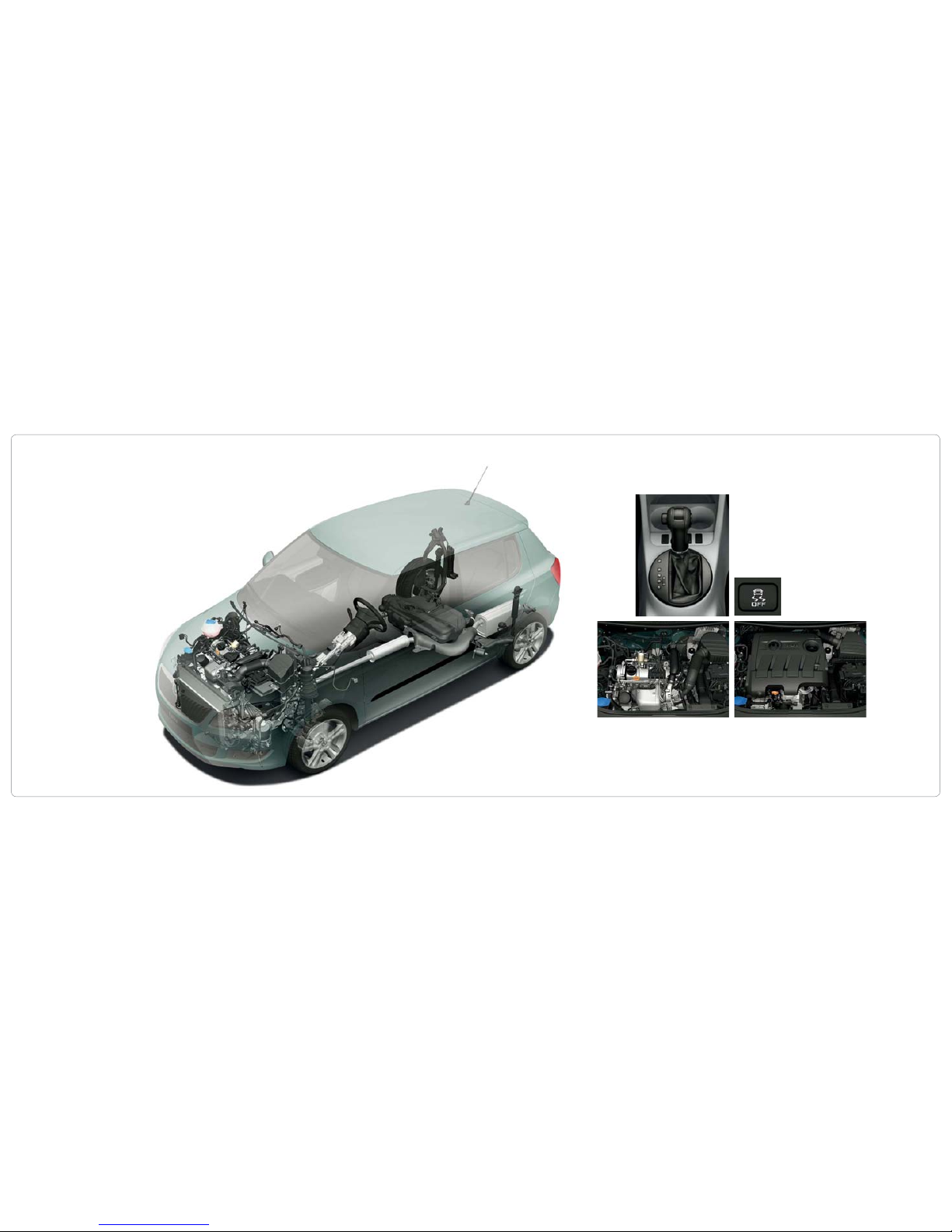

The technology innovations brought by the new Škoda Fabia are mainly represented
by the engines, which offer excellent performance resulting in your driving pleasure.
Technical development has led to a further reduction of CO2emissions, representing
a responsible approach to the environment. The 1.2 TSI petrol engines excel with their
flexibility, low noise and economy. Diesel engines, supplied with the common-rail fuel
injection system, are noted for their quiet and refined operation and extraordinarily low
consumption. All offered engines comply with the EU5 emissions standard.
The highest performance diesel engine developed for
the new Fabia is the 1.6TDI CR DPF/77kW turbocharged
4-cylinder engine.
Driving dynamics and low fuel consumption, along with
low CO2emissions, are the strengths of the 1.2 TSI/77kW
turbocharged petrol engine.
You may order additional features, such as
TPM (Tyre Pressure Monitoring) and start-up
assistant, supplementing the ESP (Electronic
Stability Programme), which always includes
ASR (Anti-Slip Regulation; deactivation button
shown on the photo).
The new automatic 7-speed DSG transmission
(Direct Shift Gearbox), designed exclusively for
the 1.2 TSI/77kW engine (Fabia, Fabia Combi)
and 1.4 TSI/132kW (Fabia RS), guarantees
comfortable yet dynamic drive with economic
fuel consumption.

The vehicle may also be
equipped with tilting
halogen projector
headlamps for increased
safety while cornering.
The standard safety equipment of
new Fabia cars includes a mount
preparation for two child seats
with the Isofix system including
special safety belt anchoring, which
is an essential part of the Top
Tether child seat. Child safety seats
for children of all age groups can
be found in the Škoda Genuine
Accessories range.
If you wish to place the child
seat on the front passenger
seat, you will need to equip
your car with the optional
deactivation of a passenger
airbag. Once installed, you
can turn off the airbag with
a key.
Your driving safety is determined by a variety of factors. As a car manufacturer we are able to
positively influence some of them and so of course we haven’t left anything to chance. In addition
to the essential prerequisites of safety, such as the exceptionally strong body and excellent driving
characteristics of the vehicle, we bring you a range of products for the protection of the whole crew.
Since the feeling of safety is an individual matter and depends on, for example, whether you transport
children in the car, you may select additional safety features that fit your specific requirements. In all
Fabia models you may be protected by up to 6 airbags: driver and front passenger airbags, front
side airbags and head airbags.
When manoeuvring the
vehicle in a tight space, you
will appreciate the parking
sensors, which monitor
the distance of the rear
bumper from a potential
barrier.
The car may be equipped with an
alarm with interior monitoring,
a horn with back-up power and
an inclination sensor. Optional
deactivation of interior monitoring
(see photo) will especially be
welcomed by dog owners.
The sun shields will prevent
unpleasant sun glare.
The rear seat passengers’
safety is enhanced by
three height-adjustable
headrests.
The fog lamps with the daytime
running lights are also available with
the optional Corner function. This
feature automatically switches on either
the right or the left fog lamp, depending
on the angle of the steering wheel and
the activation of the turn indicators,
at a maximum speed of 40 km/h.

Fabia Elegance represents the most attractive equipment version of the model.
It comes with the Chess interior in black with the Onyx/Onyx dashboard or, at request
(without extra charge), in beige with the Onyx/Ivory dashboard. The interior is decorated
with a number of chrome details. The standard equipment of the Elegance version
further includes an on-board computer, Climatic air conditioning with automatic
regulation, height-adjustable front seats, electrically adjustable heated external mirrors,
rear reading lamps and removable woven carpets.
Fabia Active is, as the name indicates, intended for active lifestyle. It’s offered with
the Domino interior in black or grey with the Onyx/Onyx dashboard and with 3-spoke
sports steering wheel. The chrome details are also included. The standard equipment
of the Active version further includes an on-board computer, small leather package,
height-adjustable driver seat, closed illuminated front passenger glove compartment,
sunglasses compartment and tinted windows.

Fabia Classic is the basic equipment version and it‘s equipped with the nice Stone
interior in grey or blue with the Onyx/Onyx dashboard.
Fabia Ambiente is an excellent version combining comfort with practicality. It‘s
available with the Domino interior in black or grey with the Onyx/Onyx or Onyx/Silvergrey
dashboard and with chrome details. The standard equipment of the Ambiente version
further includes on-board computer and closed illuminated front passenger glove
compartment.

Pulse interior in grey/black with sports seats and Onyx/Onyx
or Onyx/Silvergrey dashboard (top left photo).
Floss interior in black in fabric/leather/artificial leather with Onyx/Onyx
or Onyx/Silvergrey dashboard (top right photo).
Drops interior in blue with Onyx/Onyx or Onyx/Silvergrey dashboard
(bottom left photo).
The above shown interiors are available as extra equipment, from which you can select other
attractive products, such as the small leather package (steering wheel, handbrake handle
and gear stick knob), Climatronic air conditioning with electronic regulation, Swing and Blues
radios, Amundsen navigation system, roof racks, 14" - 17" alloy wheels and so on. For up-to-
date information on the wide offer of extra equipment for the Fabia model versions contact
your authorised Škoda partner.
