Skope TCE1000N User manual

TCE1000N
SKOPE Two Door Upright Fridge
Hydrocarbon
SKOPE ID: EM10BYN
Service Manual MAN80291 Rev. 1.3 Feb. 2023

TCE1000N:EM10BYN
Top Mount Fridge
Hydrocarbon
Service Manual
MAN80291
Rev. 1.3 Feb. 2023
© 2020 SKOPE Industries Limited. All rights reserved.
SKOPE Industries Limited reserve the right to alter specifications without notice.
is a registered trademark of SKOPE Industries Limited.
SKOPE INDUSTRIES LIMITED
Head Office
PO Box 1091, Christchurch
New Zealand
A.B.N. 73 374 418 306
AU: 1800 121 535
NZ: 0800 947 5673
E-mail: [email protected]
Website: www.skope.com
Trademark Infringement
The SKOPE trademark on this product is infringed if the owner, for the time being, does
any of the following:
• Applies the trade mark to the product after its state, condition, get-up or packaging
has been altered in any manner
• Alters, removes (including part removal) or obliterates (including part obliteration) the
trade mark on the product
• Applies any other trade mark to the product
• Adds to the product any written material that is likely to damage the reputation of the
trade mark
Notice of the above contractual obligations passes to:
• Successors or assignees of the buyer
• Future owners of the product

TCE1000N:EM10BYN
Service Manual iii
Contents
1 Servicing Hydrocarbon
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Specifications
Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3 Installation
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Door Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fitting Door Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Removing Door Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Shelf Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Repositioning Shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4 Electronic Controller
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Temperature Setpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Messages and Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Replacement Procedures
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sign Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Replacing the Gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removing and Refitting the Door . . . . . . . . . . . . . . . . . . . . . . . . .16
Adjusting Door Tension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Refrigeration System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Before Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
On-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Off-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Refrigeration Cartridge Assembly . . . . . . . . . . . . . . . . . . . . . . . . .19
Not Cooling Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Removing the Refrigeration Cartridge. . . . . . . . . . . . . . . . . . . . . .20
Replacing the Refrigeration Cartridge. . . . . . . . . . . . . . . . . . . . . .22
Cartridge Electrics Box Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 23
Refrigeration Cartridge Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Condenser Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Evaporator Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Compressor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Compressor Electrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Refrigeration System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Refrigeration Cartridge Removal. . . . . . . . . . . . . . . . . . . . . . . . . .29
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Controller Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Controller Flexes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Control Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

TCE1000N:EM10BYN
Service Manual
iv
6 Wiring
Model: TCE1000N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7 Spare Parts
Main Assembly – TCE1000N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cabinet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Glass Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Sign Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cartridge Assembly – HB0070832517C . . . . . . . . . . . . . . . . . . . . . . 39
Electrics Box Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8 Troubleshooting
Cabinet and Refrigeration Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . 42
Diagnostic Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
On-site Work Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5
TCE1000N:EM10BYN
Servicing Hydrocarbon
Service Manual
1 Servicing Hydrocarbon
Overview
This cabinet uses hydrocarbon (HC) R290 as its refrigerant. R290 is a natural refrigerant that
has a very low environmental impact.
Special service requirements are needed as R290 is a flammable refrigerant.
Safety hazards
The main R290 safety hazards are:
• Flammable refrigerant.
• Venting of R290 and compressor oil.
• Asphyxiation.
SKOPE does not recommend performing hazardous activities on the refrigeration system.
See “Refrigeration System” on page 29 for more information including examples of hazardous
activities.

6Servicing Hydrocarbon
Service Manual
TCE1000N:EM10BYN
SKOPE HC Service Requirements
Servicing must only be performed by Approved SKOPE Service Technicians, and must meet
all requirements in the SKOPE Hydrocarbon Service Policy (available from SKOPE), including
the following:
Hydrocarbon work – SKOPE Service Policy
It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy
and by accepting a service work order they agree to the following (where applicable):
xMUST – Ensure all workers are trained in the SAFETY of hydrocarbon products to the appropriate
level for the work required.
xMUST – Follow all Local Safety Regulations relevant to flammable refrigerant gases.
oAustralia should reference - AIRAH Flammable Refrigerants – Safety Guide
oNew Zealand should reference – Flammable Refrigerant Safety Documentation
(Refrigerant License NZ)
xMUST – Adhere to all on-site (workplace) Health and Safety requirements
xMUST – Not modify or alter the design of SKOPE equipment in any way
xMUST – In cases where the refrigeration system is not readily removable from the cabinet; then the
entire cabinet MUST be sent to the Hydrocarbon workshop for repair.
xMUST – ONLY use SKOPE OEM Spare Parts; or identical replacement parts. Any variation in
replacement part may render the system non-compliant and unsafe.
xMUST – Follow all best practice work activities for servicing hydrocarbon refrigerants (SKOPE
recommend attending specific hydrocarbon refrigeration handling training courses). Nitrogen must
be used for purging system before commencing “Hot Work” – brazing.
xMUST – Adhere to relevant SKOPE Service Manual. If any contradiction, the local Regulations take
precedence over SKOPE requirements
xMUST – Work only in suitable, safe and compliant work spaces. Personal Protective Equipment
must always be used when working on Hydrocarbon equipment.
xMUST – Service people diagnosing refrigeration faults must always carry and utilise Flammable Gas
detectors when working on Hydrocarbon equipment.
xMUST – Prior to any service work; know where and how to safely and quickly isolate power supply
to cabinet
xMUST – Not perform any Hot Work (brazing etc.) in the field. These are to be completed in a suitable
service depot / workshop (in a dedicated specific Hazardous Work Area compliant to local
flammable gas regulations)
xMUST – Not transport a refrigeration system with a known active leak. If there is an active leak the
refrigerant must be safely removed (with use of Bullet Piercing Valve or Line Tap valves) before
transporting. Valves must be removed at the hydrocarbon service depot once repair is completed.
xMUST – All hydrocarbon workshop areas must have emergency plans; that includes suitable
evacuation and fire control plans and equipment.
xMUST – Only use refrigerant grade hydrocarbon, to precise mass specified on removable
refrigeration system serial label.
xMUST – Be accurate refrigerant charge; The refrigerant mass is ultra-low charge and must only be
measured in by accurate scales to +/- 1.0gram. Refrigerant MUST not be overcharged; or added to
an already charged system.
xMUST – Use identical drier replacement; as any change will affect gas charge volume; and effect
reliability compliance and safety.
xMUST – Any pipework replacement, must be identical to genuine SKOPE parts.
xMUST – Not introduce a sparking device inside a cabinet or inside a removable refrigeration system.
Battery drills should not be used.
xMUST – Not perform any activity that could stress a refrigeration pipe (unless in a workshop).
xMUST – Get customer authorisation to permanently swap a removable refrigeration system.
xMUST – Have the Wellington Drive SCS Field app installed on a Bluetooth enabled device carried by
the service technician (exception is for cabinets that do not utilise the Wellington Drive Controller).
The app should be utilised for safe, accurate diagnosis of the system and it is required to complete
a controller replacement in the field.
xRECOMMENDED – Have the Wellington Drive SCS Track app installed on a Bluetooth enabled device
carried by the service technician. This passive app collects system data from the Wellington Drive
SCS Connect Controller and transmit it to the cloud.
xLogistics companies may be used to transport a complete refrigerator where no separation of the
refrigeration system occurs. Logistics companies are not required to be contracted to this SKOPE
Service Policy.

7
TCE1000N:EM10BYN
Specifications
Service Manual
2 Specifications
Model
This service manual is applicable to the Haier TCE Top Mount fridge described in Table 1.
Refer to the relevant product specification sheet (available on the SKOPE website:
www.skope.com) for detailed specifications.
Table 1: Model specifications
Series Model SKOPE ID
EM10BYN/W0591 TCE1000N EM10BYN

8Installation
Service Manual
TCE1000N:EM10BYN
3 Installation
Installation Guidelines
When installing this cabinet, ensure you consider and meet the installation guidelines below.
Ventilation Requirements

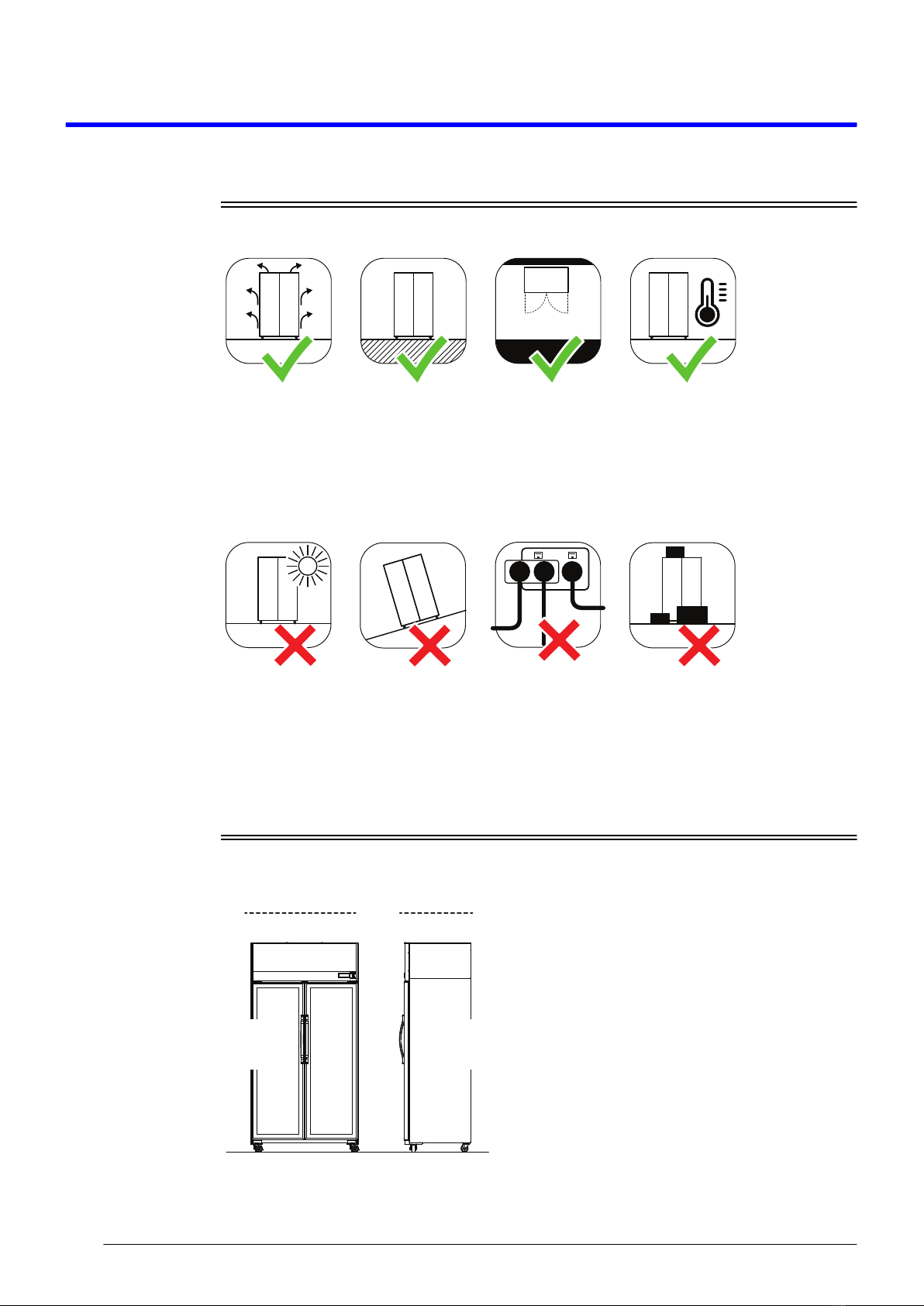

This cabinet must have the following ventilation clearances at all times:
Ventilation
Ensure all ventilation
requirements below
are met.
Door Opening
Allow adequate space
for the door/s to open
and close properly.
Sunlight
Do not install the fridge
in direct sunlight.
Uneven Surface
Do not install the
fridge on an uneven
surface.
Surface
The installation
surface must be
capable of supporting
the loaded cabinet.
Power Supply
Do not overload the
power supply.
Blocking
Ventilation
Do not store boxes or
items in front or on top
of the fridge.
Climate Class
The fridge must be
installed in an
environment within its
climate class.
The climate class is
stated on the cabinet
rating label inside the
fridge.
No below clearance required
Min. 300mm above
No behind
clearance
required
No side
clearance
required

9
TCE1000N:EM10BYN
Installation
Service Manual
Door Handles
Fitting Door
Handles

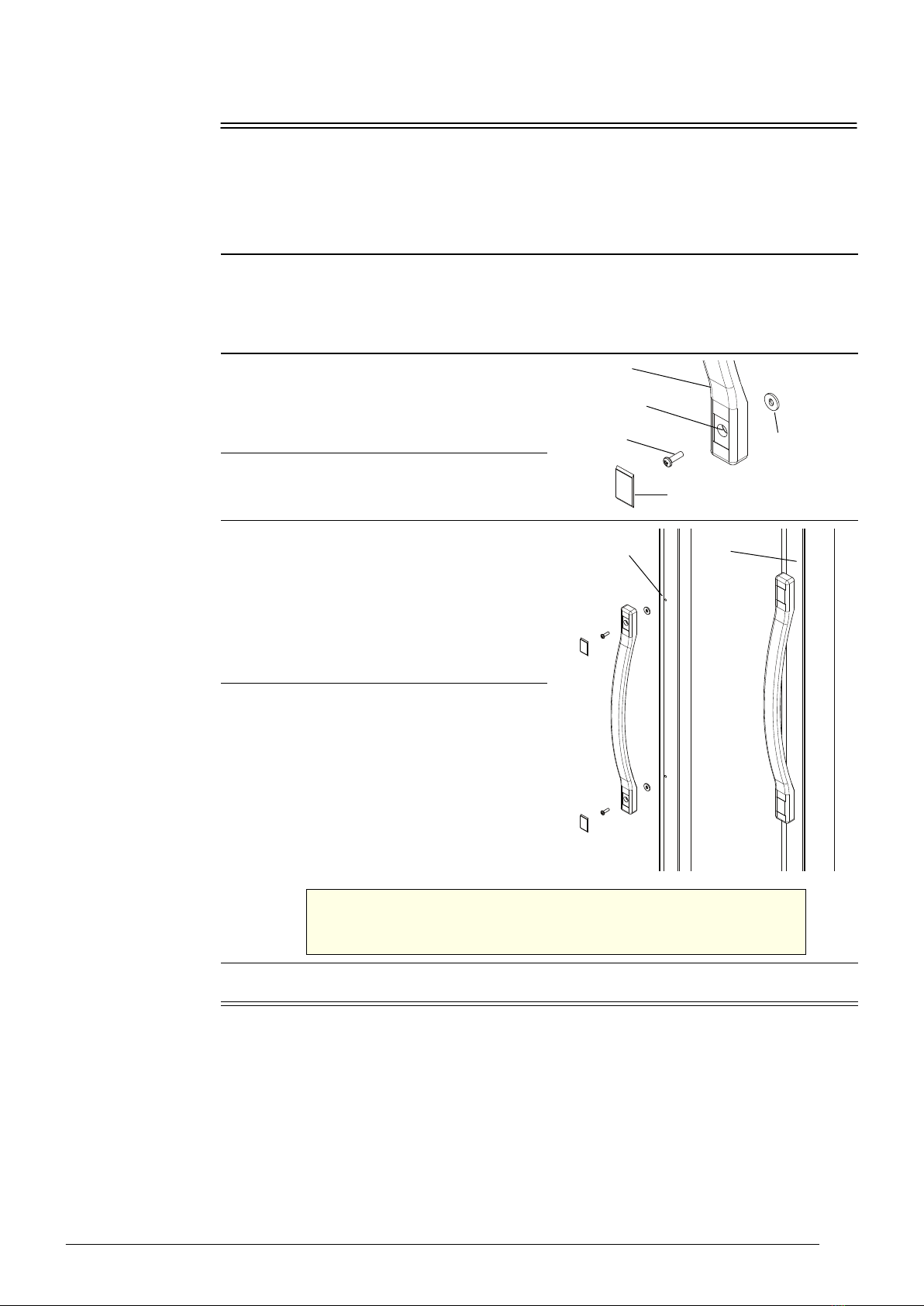

The cabinet is supplied with door handles when it is shipped. If you need to fit a handle, follow
Procedure 1.
Removing
Door Handles The door handles can be removed for transporting, moving the cabinet through doorways, or
for refitting.
Procedure 1: To fit a door handle
Before you start
1. Make sure all handle components are ready to assemble.
2. Ensure you have a screwdriver to fit the mounting hardware.
3. Note that the fixing screw is fastened through a counterbore hole, washer and into the nut bar in the
door frame. The handle is fixed to mounting holes in the door frame.
1. Fix the fixing screw through counterbore hole
and washer, and into the nut bar in the door
frame.
2. Fix the handle to the mounting holes in the door
frame.
3. Place both handle counterbore holes
simultaneously onto door frame mounting holes.
4. Fasten fixing screws through the handle to lock
the handle position.
5. Place the end caps over the screw heads to conceal the fasteners. The door handle assembly is
now complete.
Plastic handle
Counterbore hole
Washer
Fixing screw
End cap
Front of
door
Door frame
mounting hole
CAUTION
Ensure both handles are securely fixed to the door frames
before using the cabinet.

10 Installation
Service Manual
TCE1000N:EM10BYN
Shelves
The cabinet is fitted with five wire shelves per door. The shelves may be positioned at different
heights to suit various products.
Shelf Clips Each wire shelf is held in place with four shelf clips, which engage in the shelf support strips
and slide up and down to the required shelf position.
The support strips are numbered for to help you place the shelf clips. You can see the numbers
in the bottom left hand corner of the shelf clip.

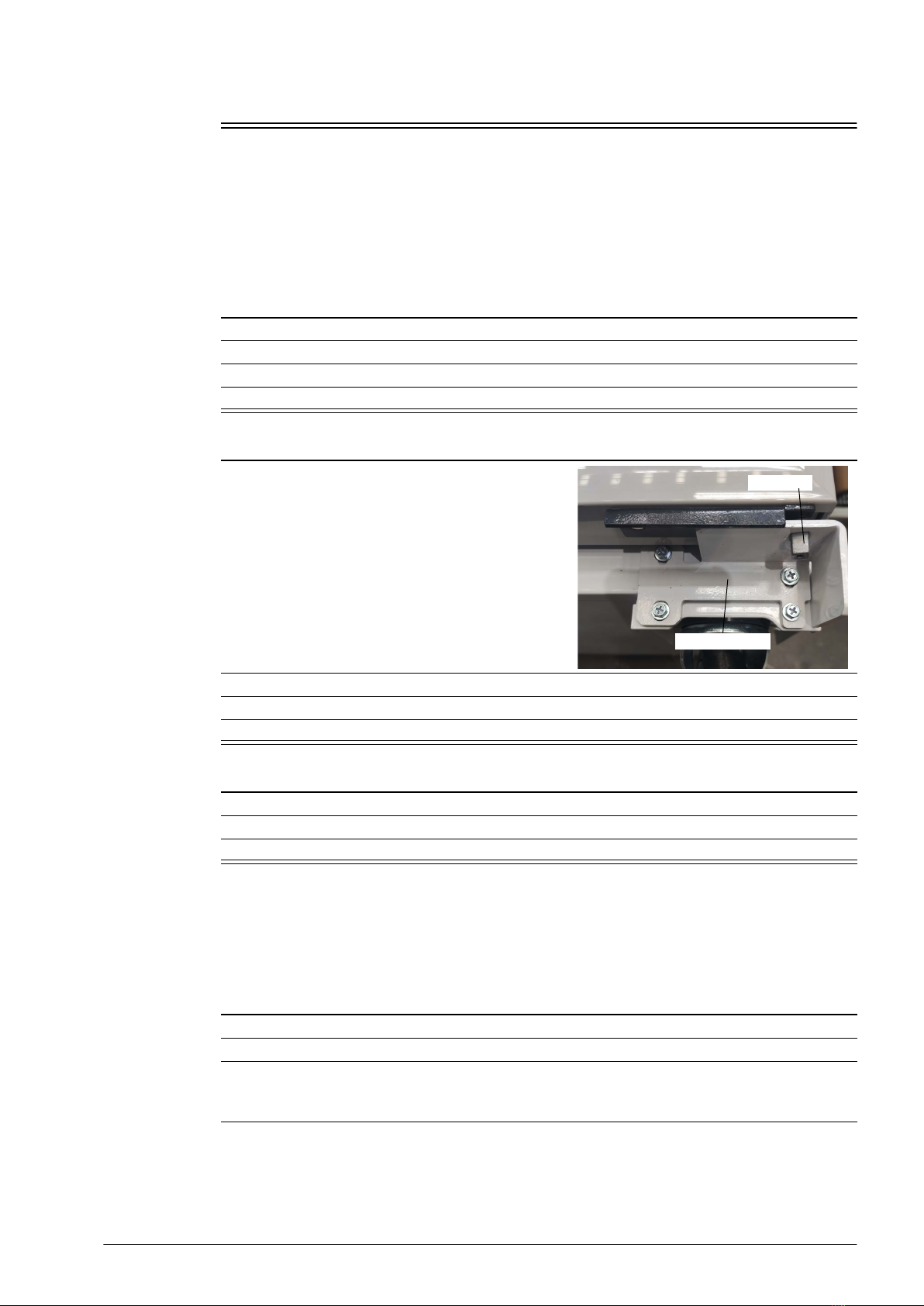

Procedure 2: To remove a door handle
Before you start
Make sure you have a screwdriver and a flat end tool, to remove the mounting hardware.
1. Use the flat end tool to gently pry off the handle end caps. This will expose fixing screw heads.
2. Unscrew handle fixing screws from both the top
and bottom mounting points. You can now
remove the handle.
Plastic handle
Counterbore hole
Washer
Fixing screw
End cap
Procedure 3: To fit a shelf clip
The shelf clip twists onto the shelf support strip.
1. Place the square pin on the back of the clip into
the support strip.
2. Twist the clip so that it sits level and locks in
place.
Procedure 4: To adjust the shelf clip height
1. Twist shelf clip off the shelf support strip.
2. Slide the clip up or down to the required
position.
3. Engage the square pin onto shelf clip location
point.
4. Twist the shelf clip back onto the support strip
and lock into position.
Procedure 5: To remove a shelf clip
1. Twist the shelf clip left or right at 45°.
2. Pull the clip directly back to release it.
Shelf support
strip
Shelf clip
Shelf clip location
point
Shelf clip
Shelf clip
location point

11
TCE1000N:EM10BYN
Installation
Service Manual
Repositioning
Shelves Procedure 6: To reposition a shelf
1. Unload and remove the shelf to be repositioned.
2. Adjust the height of the shelf clips (see Procedure 4).
3. Sit the shelves on the shelf clips.
4. Reload the product.

12 Electronic Controller
Service Manual
TCE1000N:EM10BYN
4 Electronic Controller
Introduction The cabinet is fitted with an electronic controller which is visible through a cutout below the
sign. The electronic controller is pre-programmed and requires no initial setup or additional
programming. SKOPE does not recommend changing the settings unless it is absolutely
necessary.
Temperature
Setpoint
The cabinet temperature is set to stay between 1.5°C and 3.5°C. The setpoint can be adjusted
to other temperature ranges for specialist applications if required (see Procedure 7).
SKOPE do not recommend that the setpoint range be changed unless it is absolutely
necessary, and then only by small increments at a time.
Messages and
Alarms
The following table explains messages and alarms that the electronic controller displays.
Procedure 7: To change the temperature setpoint range
1. Refer to the table below to determine the required temperature range.
Set Temperature range Set Temperature range
0 0.0°C to 1.5°C 5 3.5°C to 5.5°C
1 0.5°C to 2.5°C 6 4.0°C to 6.0°C
2 1.5°C to 3.5°C 7 5.0°C to 7.0°C
3 2.5°C to 4.5°C 8 6.0°C to 8.0°C
4 3.0°C to 5.0°C - -
2. Press and hold the up and down buttons on the electronic controller for 3 seconds to unlock the
controller.
3. Use the up and down buttons to scroll to the set number assigned to the required temperature
range, as shown in the table above.
4. Once the desired set is displayed, leave the controller for 5 seconds. The display changes back to
the cabinet internal temperature and the new set is saved.
Table 2: Messages and alarms
Display Description
The cabinet’s internal temperature
The temperature is what the sensor inside the fridge detects, and not necessarily the
temperature of the product. However, they may be very close depending on how the
controller is set to sense temperature.
Electronic controller lock indicator
• On when the electronic controller is locked.
• Off when the electronic controller is unlocked.
Press and hold the up and down buttons for 3 seconds to unlock the electronic controller.
Compressor indicator
• On when the compressor starts.
• Off when the compressor stops.
Temperature sensor fault
This indicates a fault with the temperature sensor. Arrange a service call.

13
TCE1000N:EM10BYN
Replacement Procedures
Service Manual
5 Replacement Procedures
Lighting
The cabinet is fitted with LED interior lights and LED sign lights. Ensure lights are replaced with
the same light type. Fluorescent or LED tubes cannot be used in place of LED modular lights.
Refer to Table 3 for replacement light specifications.
The lighting is made up of three components which are replaceable:
• LED modular light
• Light power supply (1 per cabinet)
• Interior wiring loom (1 per door)
Power is supplied to the lights by the power supply (located in the cabinet electrics panel above
the doors) via the wiring loom/s which run down the sidelight channel.
Lighting components are all non-serviceable items. If a component is faulty, remove it and
replace it with a SKOPE OEM new component.
Refer to:
• Table 4 to determine which component may be at fault.
• the procedures over the next few pages for replacement instructions.
Ensure the cabinet is disconnected from the power supply before removing parts.
IMPORTANT
Replace the light with the same SKOPE OEM part.
Do not use alternative LED strip or tube lights, or fluorescent
tubes.
Table 3: Replacement light specifications
Model Interior light Sign light
Description Part No. Description Part No.
TCE1000N interior light HB0074091499A Sign light HB0074091499A
Table 4: Lighting fault diagnostics
Problem Possible cause Repair
No lights working.
Cabinet is dark.
Lights switched off. Switch the lights on using the light switch.
Controller alarm. Check the controller for an alarm code.
Plug not connected properly. Check and clean the plugs on top of the cabinet.
Light power supply fault. Replace the light power supply (see page 14).
Light component not
working.
Plug not connected properly. Check and clean the plug connection in the
sidelight channel, behind the loom cover.
Faulty light. Replace the light.
Segment of light not
working. Faulty light. Replace the light.

14 Replacement Procedures
Service Manual
TCE1000N:EM10BYN
Procedure 8: To replace an interior light component
1. Unplug the cabinet from the mains power supply.
2. Remove the diffuser cover to expose the failed
LED light strip.
3. Unplug the failed LED strip and unscrew it from
the door frame to remove.
4. Fit the new light strip and plug into the circuit. Refit the diffuser.
5. Reconnect to the power supply and check for correct operation.
Procedure 9: To replace the LED driver power supply
1. Unplug the cabinet from the mains power supply.
2. Remove the sign panel.
3. Detach the refrigeration cartridge and carefully
push back or remove (page 21) to allow access
to the cabinet electrics cover.
4. Unscrew the cabinet electrics cover.
5. Remove the light power supply.
6. Replace the light power supply.
7. Reassemble the cabinet and check for correct operation.
Cabinet electrics cover
Light power supply

15
TCE1000N:EM10BYN
Replacement Procedures
Service Manual
Sign Light The sign is lit by an LED modular light which can be replaced by following the steps below.
Procedure 10: To replace an interior wiring loom
1. Unplug the cabinet from the mains power supply.
2. Unplug the light from the wire loom.
3. Gain access to the cabinet electrics panel (see Procedure 9 on page 14).
4. Move up to the cabinet roof, and unplug the wiring loom from the light power supply, and if
applicable the sign light.
5. Ensure the loom is disconnected from the light connector.
6. Remove the loom from the door by pulling it up through the exit point in the door hinge area.
7. Refit the new loom and reassemble. Ensure that:
• all plugs are clean, correctly fitted and plugged in.
• the loom is reconnected to the door light connector.
8. Reassemble the cabinet and check for correct operation.
Procedure 11: To replace the sign light
1. Unplug the cabinet from the mains power supply.
2. Use steps or a platform to access the back of
the sign, and unscrew the two wire cover
screws (located above the back of the
electronic controller housing).
Note: The image shows the back of the sign with
the cabinet side removed.
3. Swing the sign out from the cabinet and unplug
the 3 × plugs. Lift the sign off and place down
on your working area.
4. Remove the sign clips to release the front
panel. Unplug the failed LED strip and fit the
new LED strip.
5. Refit the sign panel and wire cover, and reconnect the 3 × plugs.
6. Reconnect to the power supply and check for correct operation.
Wire cover
screws
Illuminated Sign
Interior Light
Front panel
Front panel
Sign clips
LED light strip
LED light strip

16 Replacement Procedures
Service Manual
TCE1000N:EM10BYN
Doors
Replacing the
Gasket The one-piece door gasket clips into the door frame and runs around the perimeter of the door.
Remove the gasket by peeling it from the door frame, starting at a corner.
If the gasket is out of shape after refitting, use a hair dryer to heat and reshape it.
Removing and
Refitting the
Door
For ease of servicing the doors can be removed from the cabinet.
Adjusting Door
Tension The door has an internal torsion bar pre-tensioned at the factory which allows the door to
self-close. If necessary, you can adjust the door tension further by rotating the top and bottom
tension pins.
Procedure 12: To remove a door
1. Unplug the cabinet from the mains power supply.
2. Remove the sign panel and sign sides.
3. Unscrew and remove the door’s top door hinge(s).
4. Lift the door up, and off the bottom hinge.
Procedure 13: To refit the door
1. Fit the replacement door to the bottom hinge
using the door pin to position it correctly.
2. Fit the top hinge spacer under the top hinge.
3. Fit the top hinge to the top of the door, and partially fix in place on the top of the cabinet.
4. Align the door with the cabinet and tighten the fixing screws.
Procedure 14: To replace the top hinge bracket
1. Follow Procedure 12 to remove the top hinge bracket.
2. Remove the door’s top hinge and fit the new one.
3. Follow Procedure 13 to refit the door.
Bottom hinge
Door pin
Procedure 15: To adjust the door tension
1. Unplug the cabinet from the mains power supply.
2. Remove the sign and cabinet sides.
3. Place the bottom hinge over the tension pin, and slightly rotate the hinge as shown in the “Bottom
Hinge” images. Fix the hinge into position.
Tension has now been applied to the bottom tension pin.

17
TCE1000N:EM10BYN
Replacement Procedures
Service Manual
Refrigeration System
Before
Servicing Overview
Ensure you have read and understood this manual before starting any servicing.
Important
• SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled
and qualified refrigeration mechanics.
• Servicing a sealed refrigeration system must occur at a hydrocarbon workshop or service
area with dedicated hydrocarbon equipment and personal protective equipment (PPE).
• All local hydrocarbon storage and handling regulations and procedures must be followed at
all times.
Ensure all electronic controller alarms diagnostics and refrigeration system diagnostics are
performed to confirm a refrigeration system fault is present.
Check all components including the electronic controller and electrical systems.
4. Apply the same process to the top hinge as described in step 3.
Tension has now been applied to the door.
5. Check that door(s) can functionally open and close with the tension.
6. Refit the sign and cabinet sides.

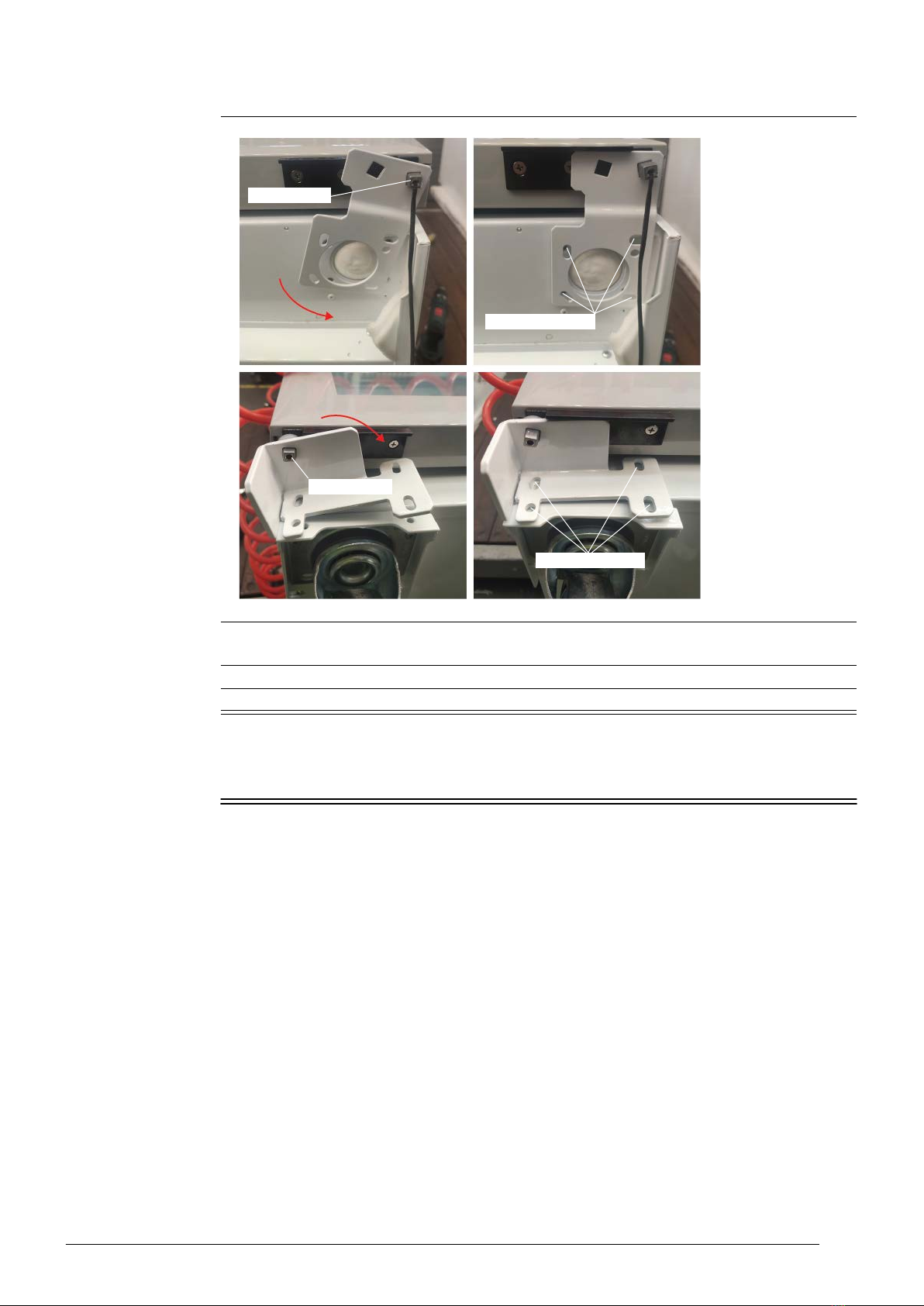

Procedure 15: To adjust the door tension (continued)
Bottom hinge
Top hinge
Tension pin
Tension pin
Fixing points
Fixing points

18 Replacement Procedures
Service Manual
TCE1000N:EM10BYN
Ensure your work area is well ventilated.
Safety hazards
The main hydrocarbon safety hazards are:
• Flammability
• Venting of hydrocarbon and compressor oil
• Asphyxiation
Refrigerant identification
Correctly identifying the refrigerant is critical to maintain safety and the correct functioning of
the cabinet.
• The cabinet rating label (located in the upper inside of the cabinet) states the refrigerant
type.
• Warning labels are fitted to hydrocarbon refrigeration cabinets to indicate the use of
hydrocarbon refrigerant.
Personal protective equipment (PPE)
Correctly wear or use all PPE required by local regulations and procedures during servicing.
Service equipment
Only use dedicated hydrocarbon service equipment which is hydrocarbon-compliant.
Electrical equipment that could be exposed to the refrigerant must be intrinsically safe.
In addition to standard tools for accessing and removing parts, specialist tools are required for
completing the refrigeration system service tasks in this manual:
• Intrinsically safe refrigeration vacuum pump, rated by the manufacturer as suitable for use
with hydrocarbon refrigerant
• Dedicated hydrocarbon gauge set
• Flammable gas detector to warn if flammable refrigerant is present
• Charging scales, rated by the manufacturer as suitable for use with hydrocarbon
refrigerant, accurate to 1.0 gm
Leak detector
A leak detector is used to track and locate the source of hydrocarbon gas leaks. It is:
• recommended for servicing hydrocarbon units on-site.
• required for servicing hydrocarbon units off-site.
Service vehicle
• Must be suitable for transporting flammable gas.
• Vehicle cargo area:
▪ Must be well ventilated to outside the vehicle only.
▪ Must have no ignition sources, nor any areas where the gas may pool.
• Must be able to transport swap units.
• Should carry minimum SKOPE hydrocarbon service parts.
On-site Work The service technician must have required knowledge, skills, qualifications, and tools before
beginning any on-site work on the refrigeration sealed system.
IMPORTANT
Use only dedicated hydrocarbon SKOPE OEM spare parts.
DO NOT use alternative parts.
For safety compliance, use only SKOPE-supplied components
specified for the appliance.

19
TCE1000N:EM10BYN
Replacement Procedures
Service Manual
Minimum knowledge and skills
• Qualifications and certifications required by local/state regulatory bodies to service
hydrocarbon refrigeration systems
• Safe working practices, including a safe working environment at all times
Minimum tools and equipment
• Safety signage and/or barrier – suitable to create a safe work zone 1.5 m around the
cabinet
• Hydrocarbon gas detector
• Dedicated hydrocarbon gauge set
• Bullet valves/line piercing valves suitable for a 6 mm tube
Off-site Work Hydrocarbon workshop
The following tools and equipment are required in the hydrocarbon workshop:
• Dedicated area for hazardous work – suitable for servicing and releasing flammable
hydrocarbon refrigerant
• Hydrocarbon leak detector
• Refrigeration gauge set – suitable for flammable hydrocarbon refrigerant
• Dry nitrogen – suitable for purging and high pressure testing
• Intrinsically safe refrigeration vacuum pump, rated by the manufacturer as suitable for use
with hydrocarbon refrigerant
• Charging scales, rated by the manufacturer as suitable for use with hydrocarbon
refrigerant, accurate to 1.0 gm
• Hydrocarbon refrigerant supply cylinder
Refrigeration
Cartridge
Assembly
The refrigeration cartridge is a top-mounted, electronically controlled, removable cartridge.
For safety and compliance, only repair the cabinet with SKOPE-supplied parts made
specifically for this appliance may be used for repairs. Other parts may appear to be suitable,
but may not be approved or safe for use in an appliance with hydrocarbon refrigerant.
The cartridge must only be used on a SKOPE hydrocarbon-compliant cabinet. Refer to the
cabinet rating label to determine if the cabinet is suitable for use with a hydrocarbon cartridge.
The rating label must state refrigerant as R290. If the label states a different refrigerant, or
does not state a refrigerant, it is not suitable for a hydrocarbon cartridge.
For servicing or transportation, the refrigeration cartridge unplugs and lifts off the cabinet.
Some minor servicing can be performed without removing the refrigeration cartridge.
WARNING
The hydrocarbon cartridge must only be used on an
hydrocarbon-compliant cabinet.

20 Replacement Procedures
Service Manual
TCE1000N:EM10BYN
The model and serial number are both printed on the unit rating/serial number label attached
to the top of the side of the cover.
Specifications for the model are in Table 5. Verify the model and basic requirements before
servicing.
Not Cooling
Fault If a customer reports a “not cooling” fault, and it has been established that the cabinet is not
cooling, follow the procedure on page 44 when making the service visit.
Removing the
Refrigeration
Cartridge
Follow the steps below to remove the refrigeration cartridge from the cabinet. Ensure that you
disconnect the cabinet from the power supply before removing the cartridge.
The cartridge is heavy and requires a minimum of two people to lift from the cabinet. SKOPE
recommends steps or a platform about one metre high to allow the cartridge to be safely lifted,
carried and put down at waist height.

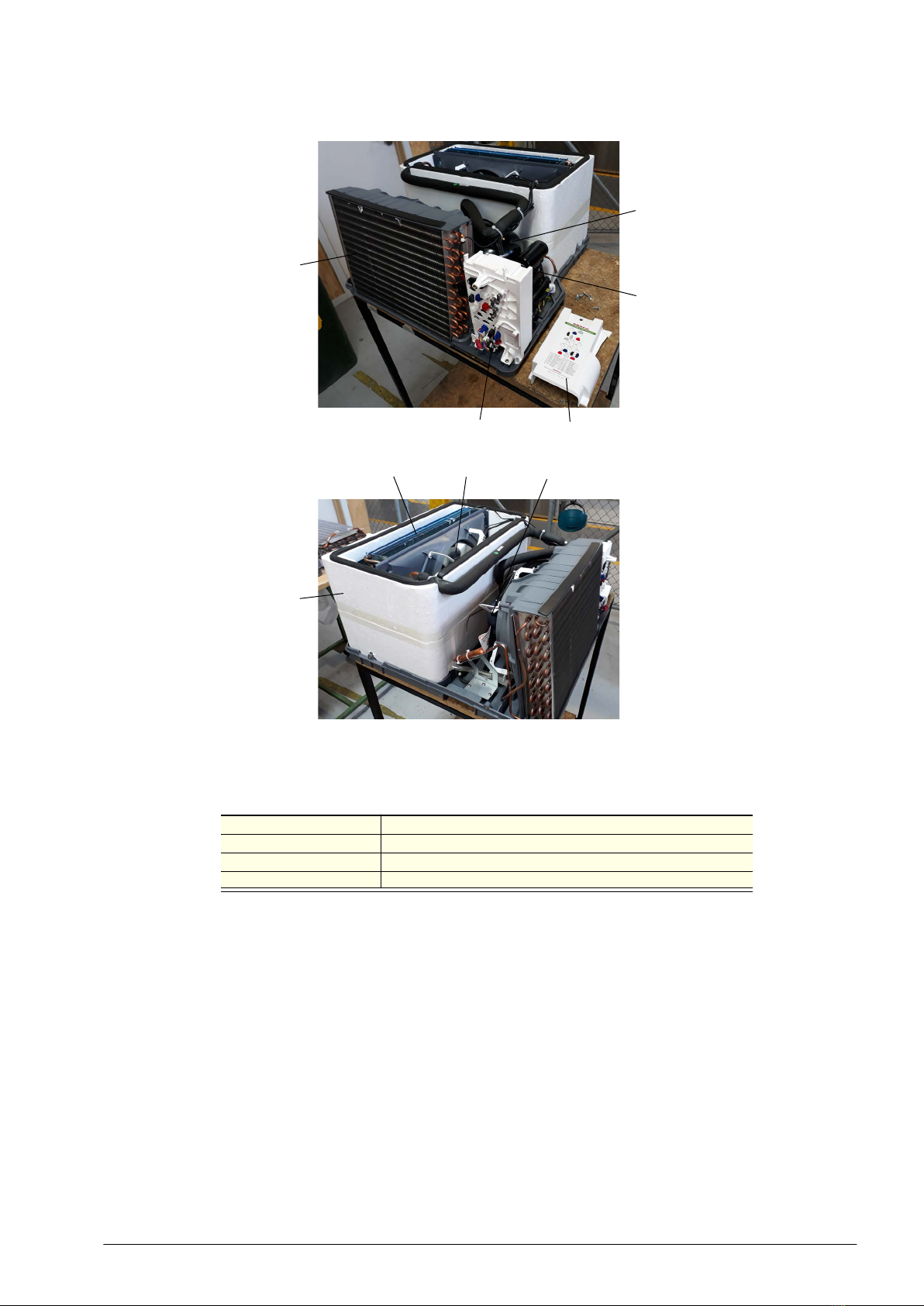

Cartridge electrics box
Evaporator coil
Compressor
electrics
Evaporator fan Condenser fan
Evaporator tub
Compressor
Condenser coil
Cartridge electrics box cover
Table 5: Refrigeration cartridge specifications
Cartridge model HB0070832517C
Compressor Wanbao FN90M
Compressor capacity 740 watts
Refrigerant/charge R290/95 g
