Information concerning the Instructions and the Manufacturer
Information concerning the Instructions and the Manufacturer
These instructions help you to use the “COMPIT“ and “COMPIT+“ product range safely.
The COMPIT is a smartphone holder for smartphones.
The COMPIT+ comprises the COMPIT and the +COM/UNIT.
The +COM/UNIT is a charging and communication station for smartphones.
The COMPIT and the +COM/UNIT are hereafter referred to as the “product“ as long as it is not necessary to
differentiate between different product functions.
Keep the instructions at hand
➤ These instructions are a constituent part of the product.
➤ Always keep these instructions.
➤ Please pass these instructions on if you sell the product or pass it on in another form.
Design characteristics of these instructions
Various elements in these instructions include clearly determined characteristics. You can easily differentia-
te between the following elements:
Normal text
➤ Enumerations
● Action steps
DESIGNATION OF PRODUCTS
4

Information concerning the Instructions and the Manufacturer
Copyright
These instructions include information that is protected by copyright. These instructions are not to be co-
pied, printed out, filmed, processed, duplicated or distributed in any form whatsoever, whether in part or in
its entirety without prior written approval of SKS metaplast Scheffer-Klute GmbH.
©2019 SKS metaplast Scheffer-Klute GmbH
All rights reserved.
Address of the Manufacturer
SKS metaplast Scheffer-Klute GmbH
Zur Huberstushalle 4
59846 Sundern, Germany
Tel.: [phone]
Website: www.sks-germany.com
GERMANY
5

GERMANY
Safety
Safety
Intended Use
The product is designed for private use.
The COMPIT serves to mount a smartphone on the handlebars of the bicycle. It is designed for use with
handlebars with the following diameters:
● 22.2 mm
● 25.4 mm
● 31.8 mm.
The max. front-end width is 49 mm (please refer to page 21).
The scope of delivery of the COMPIT + also includes the +COM/UNIT.
The +COM/UNIT is designed for the charging of smartphones with or without a Qi charging
function and it can be mounted on the COMPIT.
The smartphone and the +COM/UNIT can only be used on the COMPIT together with a cover that is
not included in the scope of delivery, please refer to the section headed Accessories, page 40.
The intended use also includes the observing and adhering to all of the information in these instructions,
especially the safety instructions. Any other use is explicitly deemed to be not an intended use.
6

GERMANY
Safety
Basic Safety Instructions
Avoid fire, explosions or electric shocks
Severe or mortal injuries resulting from an explosion, fire or electric shock are possible should the product
not be used correctly.
➤ Check whether the voltage stated on the power adapter is the same as the local mains voltage
before you connect the adapter to the power supply.
➤ Always only use authorised power adapters.
➤ Do not use the COMPIT or +COM/UNIT power adapter should it be damaged.
➤ Never open the housing of the COM/UNIT. Always have repair work carried out by qualified specialists.
➤ Do not adhere any metallic labels or other objects to the +COM/UNIT.
➤ Do not use the +COM/UNIT close to heated surfaces.
➤ Do not use an extension cable or overloaded multiple sockets.
➤ Ensure that children and persons with a mental handicap only use the +COM/UNIT under supervision.
Avoid a cardiac pacemaker or other implant failure
A cardiac pacemaker or other implant failure can occur when using the +COM/UNIT.
➤ Should you have a cardiac pacemaker or another implant, please consult your doctor or the
implant manufacturer before using the +COM/UNIT.
7

Instructions with the word CAUTION warn of a situation that could result in slight or
moderate injuries.
These instructions warn of a situation that could cause property damage and restricted
functions.
GERMANY
Safety
Design characteristics of the warning instructions
Design characteristics of property damage
8
CAUTION
!
!
IMPORTANT
Design characteristics of tips
Tips provide additional information.
i

GERMANY
Description
Description
9

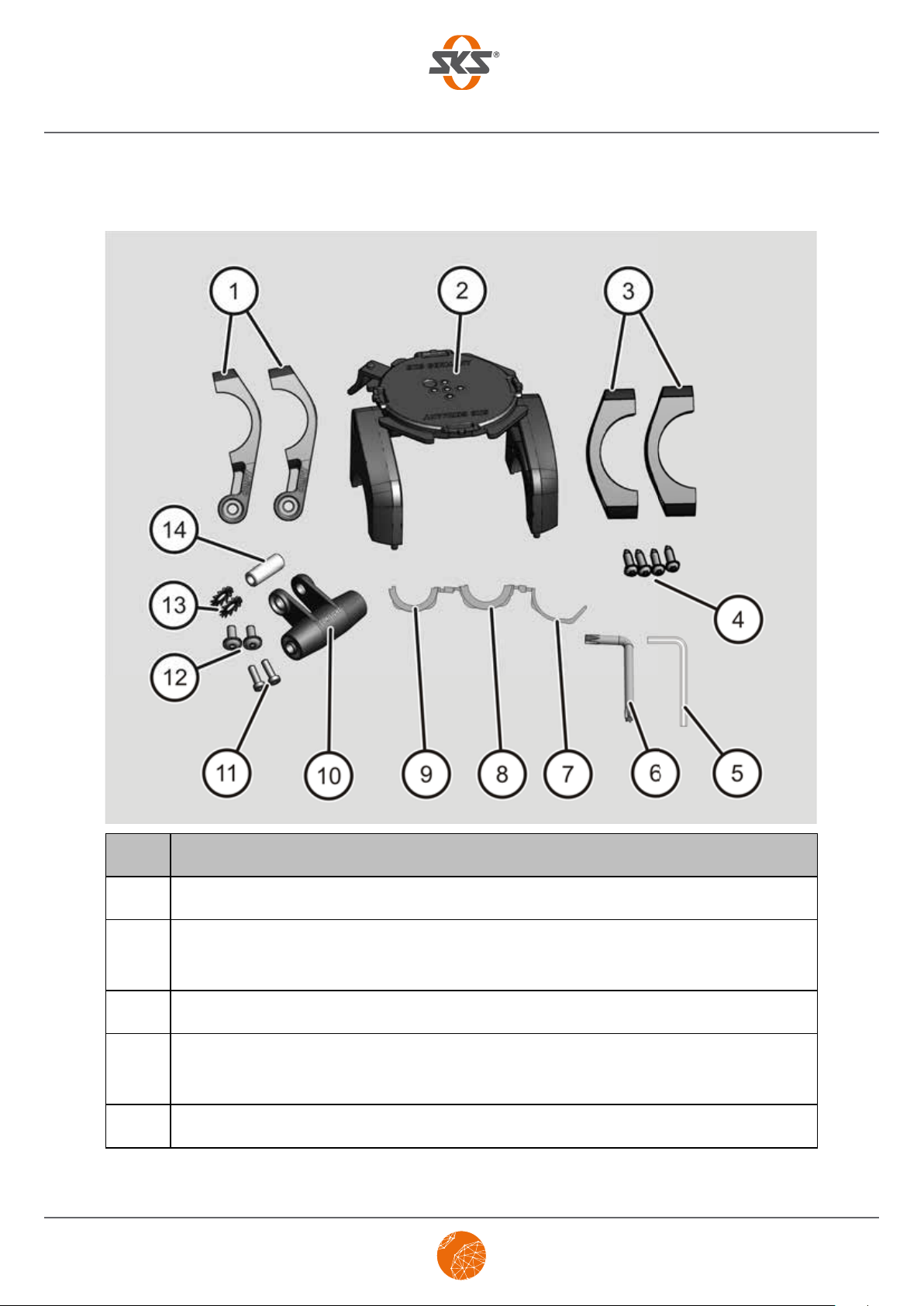

Clamping arms for the COMPIT with an adapter (R: right, L: left), 2x
Docking station for mounting the smartphone with a cover or the +COM/UNIT
Clamping arms for the COMPIT without an adapter
Allen key 3 mm
Screws for mounting the COMPIT with clamping arms on the handlebar of the
bicycle (4x20), 4x
DesignationNo.
1
2
3
5
4

GERMANY
Description
10
TorxR key Tx20
Rubber adapter for handlebars with a diameter of 31.8 mm, 4x
Rubber adapter for handlebars with a diameter of 22.2 mm, 4x
Rubber adapter for handlebars with a diameter of 25.4 mm, 4x
COM/LIGHT adapter
Screws for mounting the COM/LIGHT adapter (M5x16)
Screws for mounting the front light (M4x8), 2x
Locking washer for mounting the front light, 2x
Shaft for mounting the front light
DesignationNo.
6
7
8
9
10
11
12
13
14
The cover and the front light are not included in the scope of delivery.
i

GERMANY
Description

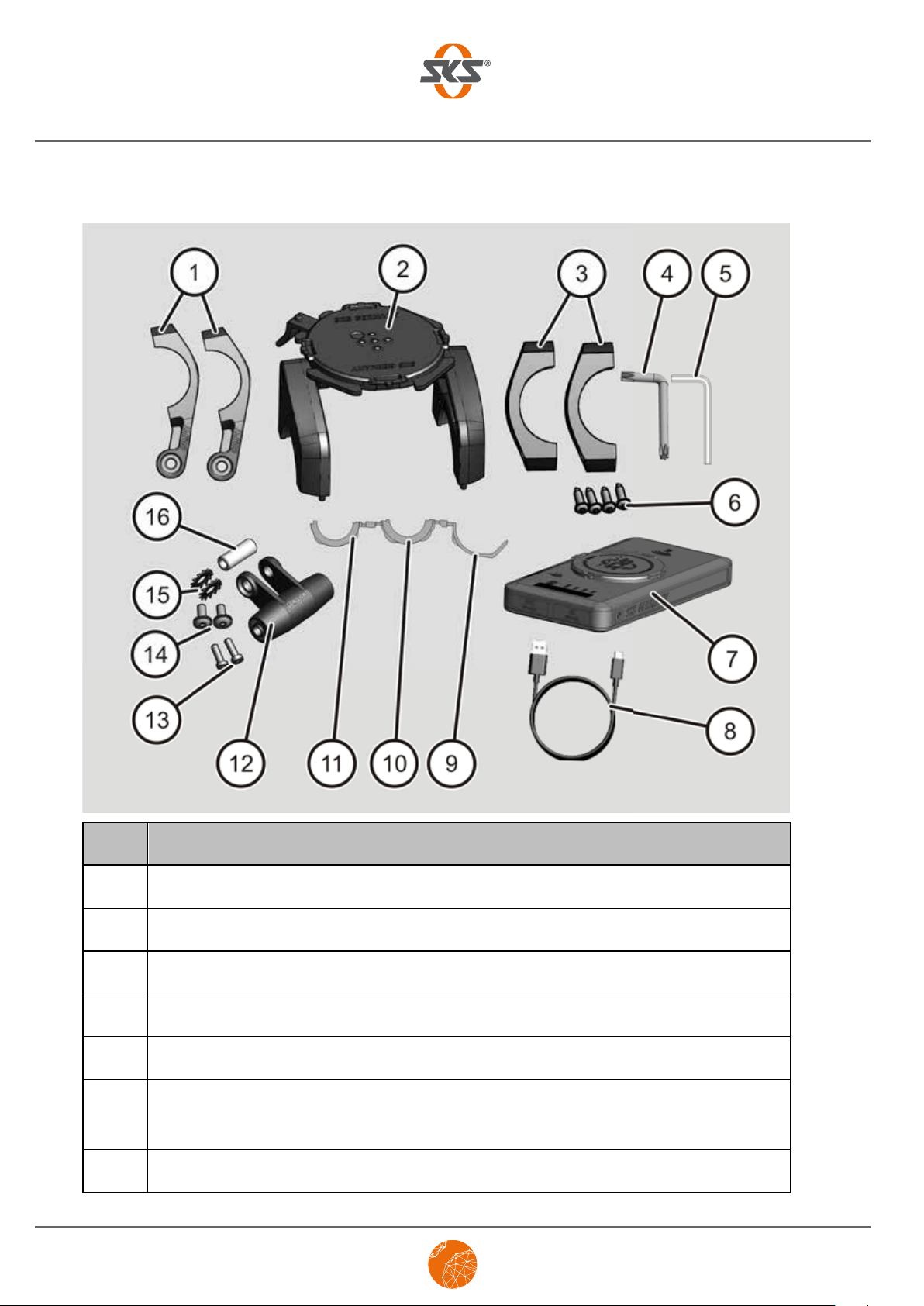

COMPIT+ scope of delivery overview
11
The cover and the front light are not included in the scope of delivery.
Clamping arms for the COMPIT with an adapter (R: right, L: left), 2x
Docking station for mounting the smartphone with a cover or the +COM/UNIT
Clamping arms for the COMPIT without an adapter, 2x
TorxR key Tx20
Allen key 3 mm
+COM/UNIT
Screws for mounting the COMPIT with clamping arms on the handlebar of the
bicycle (4x20), 4x
1
2
3
4
5
7
6
DesignationNo.

GERMANY
Description
12
USB cable for charging the +COM/UNIT
Rubber adapter for handlebars with a diameter of 31.8 mm, 4x
Rubber adapter for handlebars with a diameter of 22.2 mm, 4x
Rubber adapter for handlebars with a diameter of 25.4 mm, 4x
COM/LIGHT adapter
Screws for mounting the COM/LIGHT adapter (M5x16), 2x
Screws for mounting the front light (M4x8), 2x
Locking washer for mounting the front light, 2x
Shaft for mounting the front light
DesignationNo.
8
9
10
11
12
13
14
15
16
The cover and the front light are not included in the scope of delivery.
i

GERMANY
Description
13
The cover and the front light are not included in the scope of delivery.

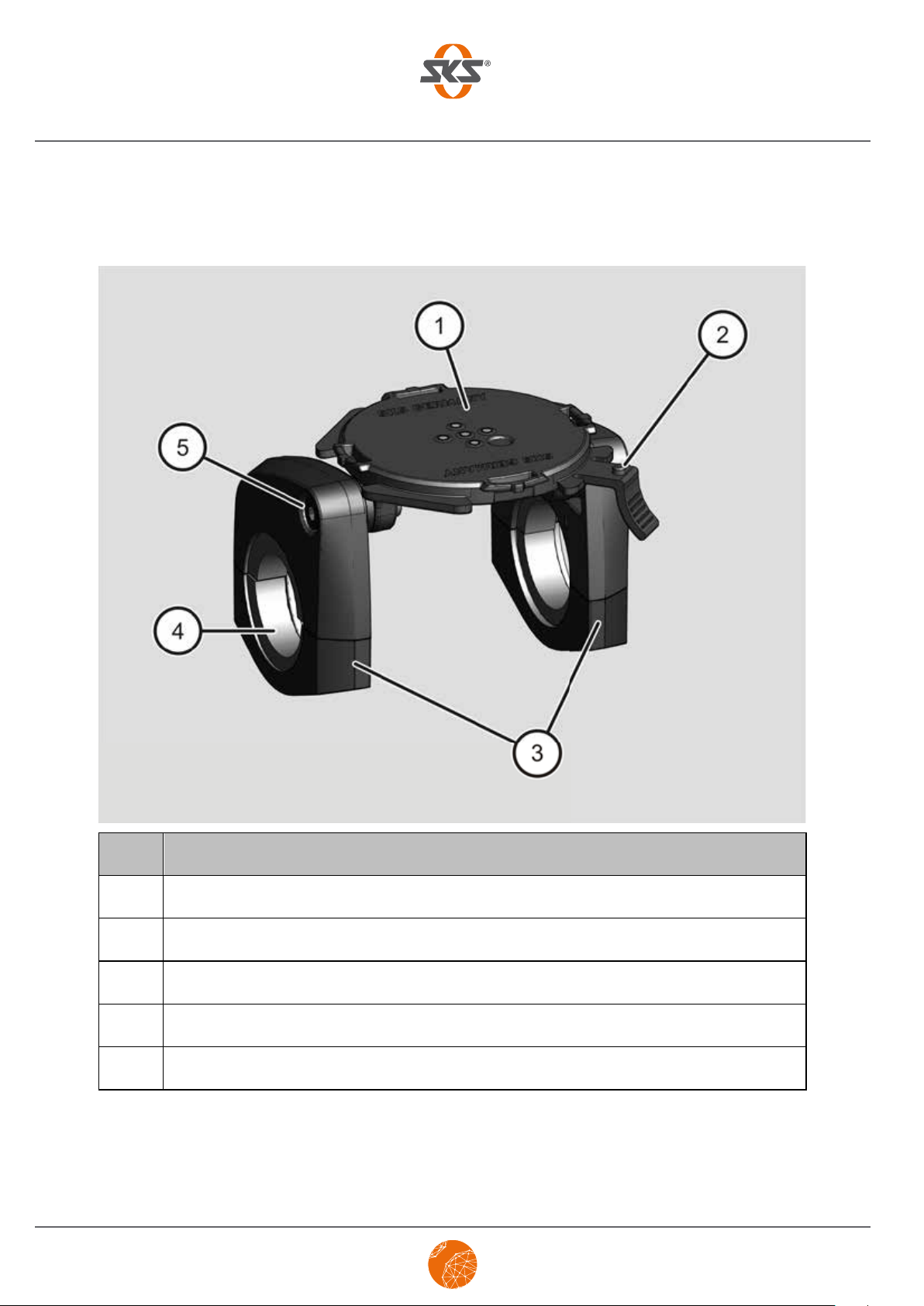

COMPIT Overview
Docking station for mounting the smartphone with a cover or the +COM/UNIT
Safety lever for locking the smartphone with cover or the + COM/UNIT in place
Clamping arms
Rubber adapter (on both sides)
Inclined screw (on both sides)
1
2
3
4
5
DesignationNo.

GERMANY
Description
14
COMPIT with COM/LIGHT overview
Docking station for mounting the smartphone with a cover
or the +COM/UNIT
Safety lever for locking the smartphone with cover or the + COM/UNIT in place
Clamping arms
Inclined screw (on both sides)
Rubber adapter (on both sides)
COM/LIGHT
DesignationNo.
1
2
3
4
5
6

GERMANY
Description
15

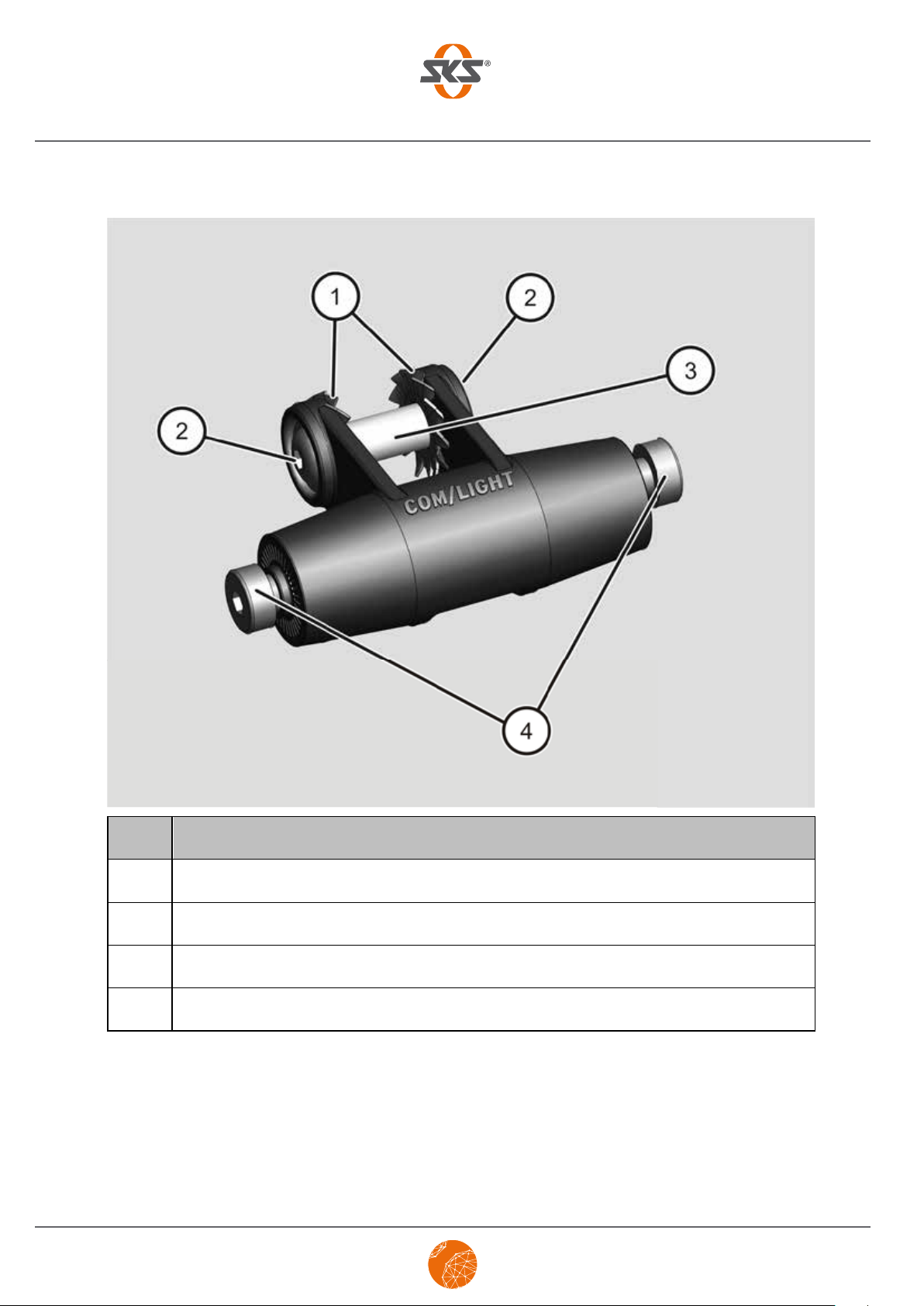

COM/LIGHT overview
Locking washer for mounting the front light
Screws for mounting the front light (M4x8)
Shaft for mounting the front light
Screws for mounting the COM/LIGHT adapter (M5x16)
1
2
3
4
DesignationNo.

GERMANY
Description
16

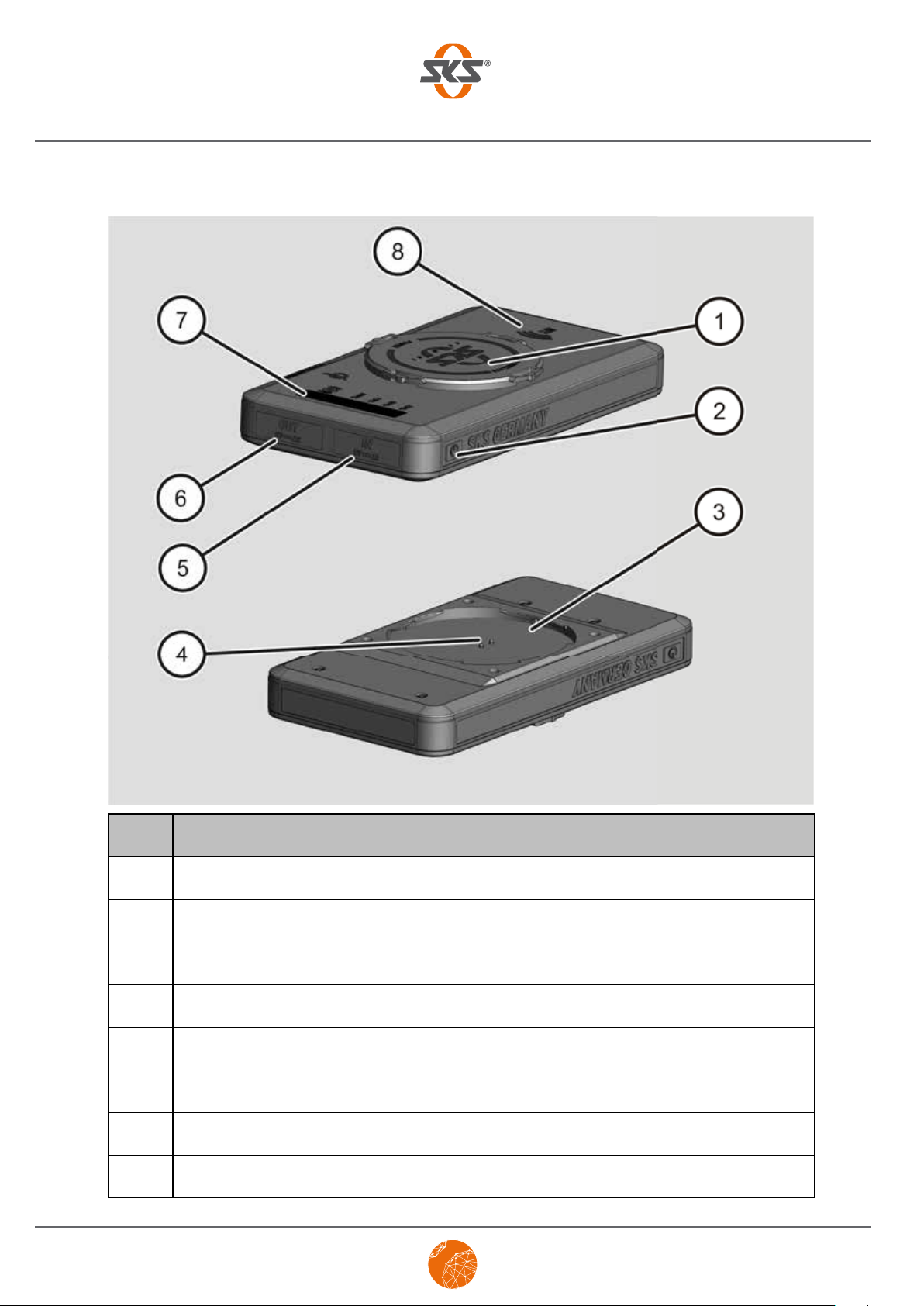

+COM/UNIT overview
Qi docking station (cableless charging) for mounting the smartphone with cover
Button for switching on and off
Docking station for mounting on the COMPIT
4 Housing input (two contact pins in the housing)
USB-Input
USB-Output
LED status indicator
NFC reading area
DesignationNo.
1
2
3
4
5
6
7
8

GERMANY
Description
17

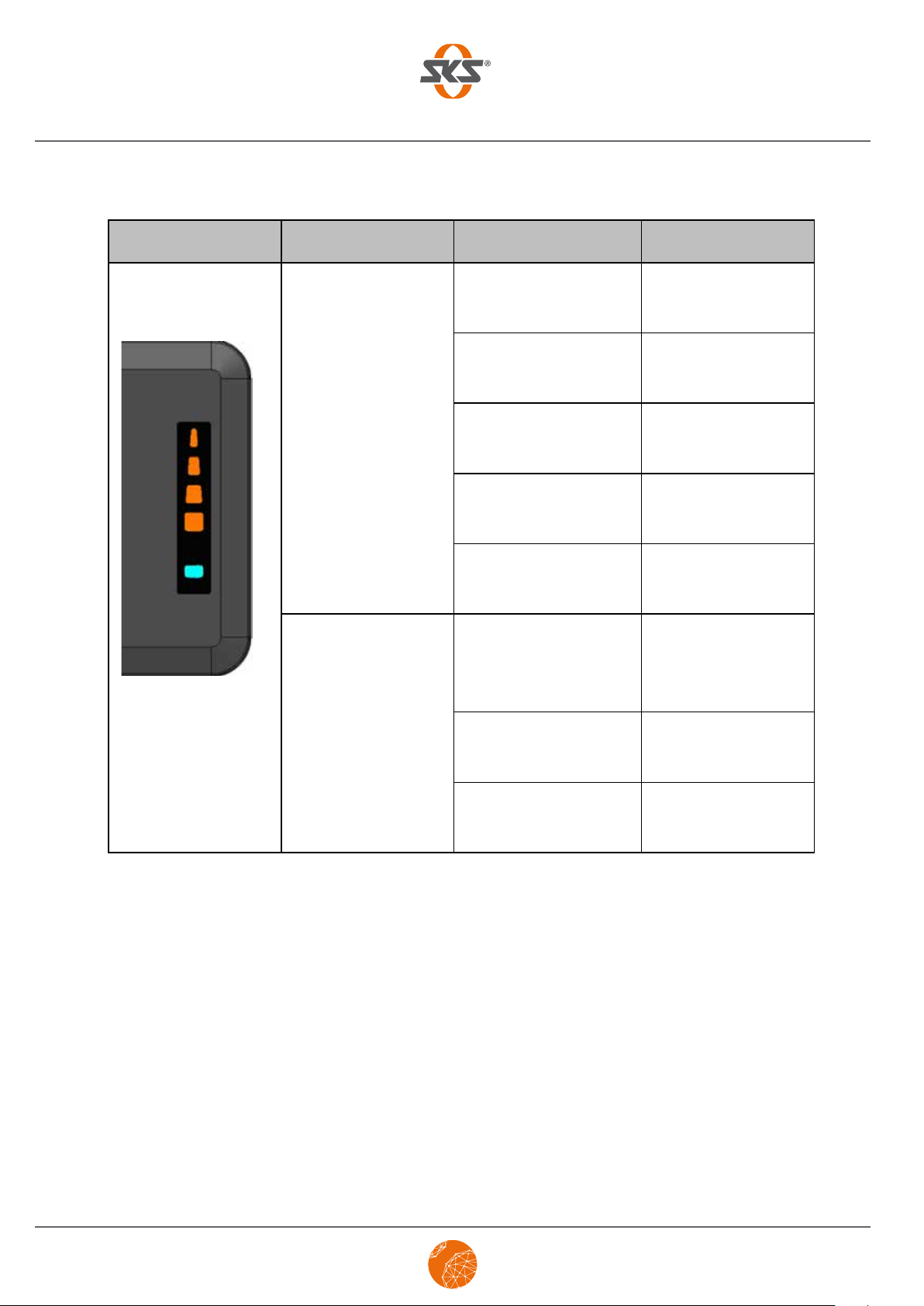

LED status indicator
LED Status Indicates
+COM/UNIT
Battery indicator 4 orange LEDs flash in
succession
1 LED illuminated
2 LEDs illuminated
3 LEDs illuminated
4 LEDs illuminated
Blue
Blue flashing approx.
1 x per second
Blue flashes fast
approx. 5x per second
Indicator for
cableless charging
+COM/UNIT is being
charged
0%-25% battery
capacity
25%-50% battery
capacity
50%-75% battery
capacity
75%-100% battery
capacity
Standby or
charging
completed
Charging in process
Charging error

GERMANY
Description
18
Task and Function
COMPIT
The COMPIT serves to mount the smartphone on the handlebars of the bicycle. The smartphone can be
mounted horizontally or vertically over the docking station on the COMPIT by it being turned with the
assistance of an optional cover. The inclined positioning makes it possible to place the smartphone in the
required position on the COMPIT.
The COM/LIGHT adapter can be used on the COMPIT in order to mount the front light that is not included
in the scope of delivery. The COM/CAM adapter that is also not included in the scope of delivery can also be
mounted on the COMPIT for the purpose of mounting a camera.
COMPIT+
The +COM/UNIT is additionally included in the COMPIT + scope of delivery.
The +COM/UNIT serves to charge and connect the smartphone during the journey. It can be mounted on
the COMPIT. Smartphones that are equipped with a cableless charging function are charged by the smart-
phone being mounted on the Qi docking station. Smartphones that do not have a Qi charging function can
be charged using an optional USB cable. It is mounted with the assistance of a cover that is not included in
the scope of the delivery, it then being possible to turn it over the docking station.
The inclined positioning makes it possible to place the +COM/UNIT in the required position on the COMPIT.
The +COM/UNIT is equipped with an NFC chip (NEAR FIELD COMMUNICATION). This can be provided with
various functions.
The + COM/UNIT can be charged using the USB cable that is included in the scope of delivery.

GERMANY
Description
19
Technical Data
* Only in conjunction with COMPIT/E
Dimensions 130 x 70 x 21,5 mm
Weight ~188 g
USB-Input DC 5 V/2 A
USB-Output DC 5 V/2 A
Housing input* DC 5–15 V/2 A
Wireless transmission power 5 W
Wireless efficiency >70%
Operating frequency 110 KHz–205 KHz
Wireless Output DC 5 V/1 A
Battery type Rechargeable lithium-polymer battery
Battery capacity 5000 mAh
NFC-Chip NTAG 216, 924 Byte
Type of protection IP54
Operating temperature -15 ~ 60° C
Charging temperature 0 ~ 45° C
+COM/UNIT

GERMANY
Unpacking and Checking the Scope of Delivery
20
Unpacking and Checking the Scope of Delivery
➤ Remove the product from the packaging.
➤ Keep the original packaging in case it is necessary to return the product to customer service.
➤ Check the scope of delivery for correctness and completeness (see from page 9).
➤ Ensure that none of the parts are damaged.
➤ Please contact the manufacturer or dealer without delay should there be any deviations.
