SkylinkHome Deluxe Home Monitoring Kit User manual

The sensor must be programmed to the Household Alert® Long Range
Receiver before they can communication. You may program the sensors
to one of the 4 zones. Follow the instructions below:
1. Plug in an AC adapter to the receiver.
2. The green LED will be on indicating it is turned on.
3. Open the back cover and there is a learn button. Press and hold this
learn button for 5 seconds, until both green LED and zone 1 red LED
You may now release the learn button.
4. If you would like to program the sensor to zone 1, activate the
sensor while the zone 1 red LED is Press the SET button
on the back of the sensor to activate it.
5. If you would like to program the sensor to other zones, press the
learn button again, until the red LED at the zone you want to
program the sensor to, then activate the sensor.
6. Once the sensor is programmed, the green LED will be steadily on
and none of the red zone LEDs will be on.
Note: Each zone can program up to 4 sensors. If you try to program a
sensor into a zone, the programmed sensor will be erased.
Erasing a sensor
You cannot erase a sensor. You must erase all sensors from
the receiver, then program the ones you would like to keep. To erase
all the sensors from the receiver:
1. Remove the adapter from the receiver.
2. Open the back cover, press and hold the learn button. Do not
release the learn button until step 4.
3. While holding onto the learn button, plug in the adapter to the receiver.
4. You may release the learn button when the LEDs on the receiver are on.
5. You have erased all sensors from the receiver.

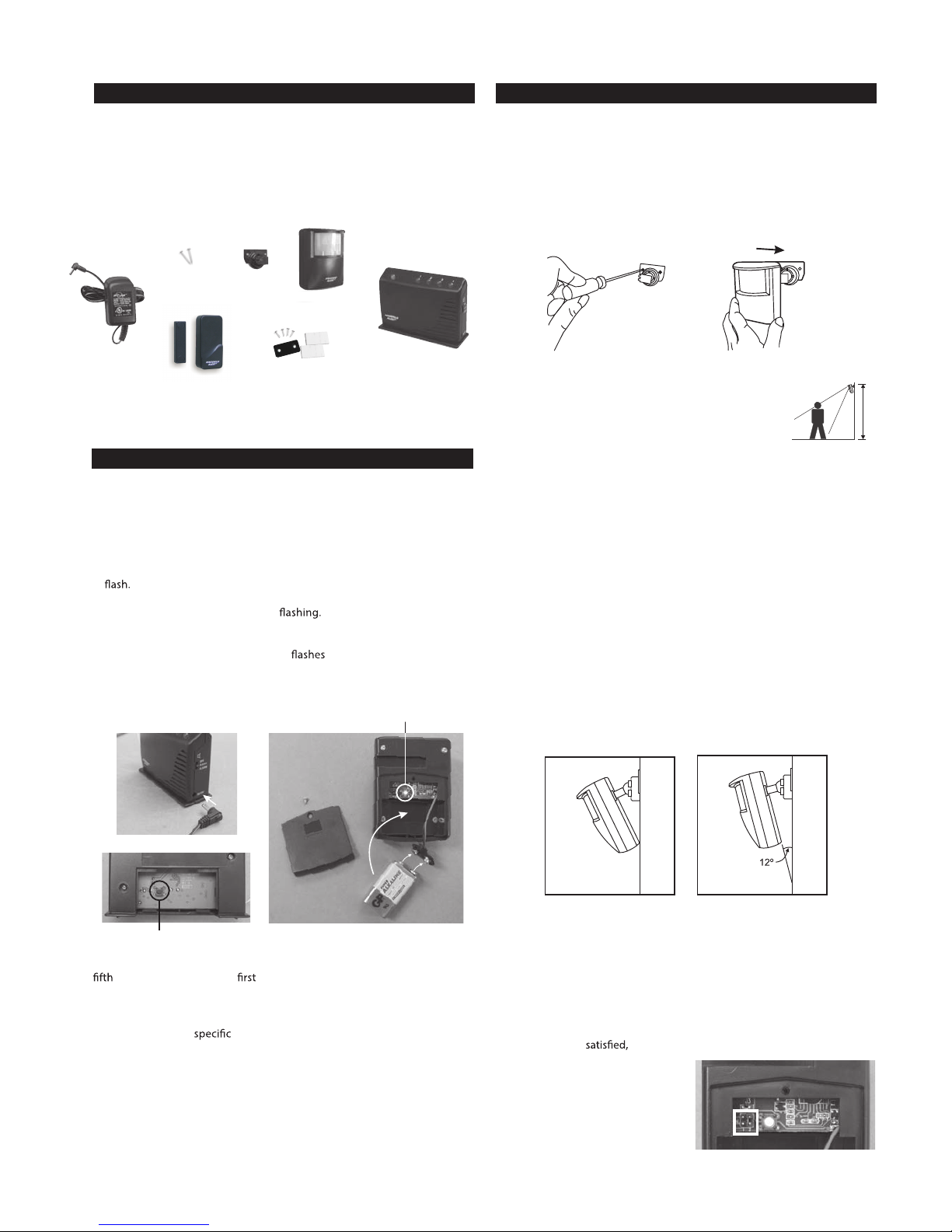

1.INTRODUCTION
Deluxe Home Monitoring Kit Model
HA-400
In this package, you should nd two Window/Door Sensors, a Motion Sensor,
a Household Alert Long Range Receiver, an adapter, ball-head joint, screws
and other mounting accessories.
Please follow the instructions below to setup your motion sensor and
the receiver.
Adapter
2 pcs 3x18screws
(Included)
Indoor/Outdoor
Motion Sensor
Ball-head joint
Plug in the adapter to the receiver
Insert 9V alkaline battery (option) to the sensor
2. PROGRAMMING MOTION SENSOR
3. MOTION SENSOR INSTALLATION
A ball-head joint is necessary to mount the sensor at a desire location.
A height of 7 ft is recommended, depending on your application. Once a
location is selected, mount the ball-head joint to this location by screws
provided. Once the ball-head joint is mounted to the wall, slide the back
of the sensor into the ball-head joint. The mounting angle can be
adjusted. Please refer to “Walk Test” to determine the best mounting
angle.
After mounting the sensor at the desired location, it is
important to perform a walk test in order to determine
if the sensor is detecting the things you want to detect.
In order to control how far the sensor can “see”, this can be done by
adjusting the angle of the sensor. To reduce the detection range, simply
move the sensor downward. To increase the range, move the sensor
up to around 12 degrees. This will give the maximum range. However,
this may not be desired if the sensor is placed outdoors, since a false
trigger may occur if the sensor is set to detect motion in a distance.
You should walk in the area that you would like the sensor to monitor.
Place the slide switch on the side of the receiver to “Alert” position. The
receiver will beep if the sensor detects your movement. If the receiver
does not respond, adjust the mounting angle accordingly. After motion is
detected once, the sensor will not be triggered unless no motion is
detected for 20 seconds. Therefore, wait for at least 20 seconds during
walk testing between 2 activations.
Perform walk test in the undesired area to ensure movement cannot be
detected.
Household Alert®
Long Range Receiver
SET Button
7 ft
Tips: The sensor should not face towards direct sunlight, placing near
heat or cold producing devices (i.e. A/C or furnance vents, fans, ovens,
heaters etc.) that may cause false triggers.
Move the sensor downward to
reduce the range.
Move the sensor up to around
12ºtogivemaximumrange.
The sensitivity of the motion sensor is adjustable. Change the setting by
placing the connector on either the ”High” (connector position “1”) or
“Low” (connector position “2”) position. When the sensitivity is set to
“Low”, more movement is required to trigger the sensor. It is recom-
mended to set the sensitivity to “Low” and perform a “Walk Test”. If the
walk test result is the sensitivity does not require to be
adjusted further. If the walk test
result shows the sensitivity is too
low, then you can change the
sensitivity setting to “High”. Please
perform the walk test after changing
the sensitivity setting.
1 - High 2 - Low
Learn Button
Mounting
Accessories
2 xMagnet Sensor
The Deluxe Home Monitoring Kit is designed to monitor movement or any
door and window around your house. The motion sensor can be placed either
indoor or outdoor. Once motion is detected or a window/door is opened, the
receiver will ash along with alert beeping or alarm.
®
SENSOR SENSITIVITY
WALK TEST
MOUNTING
Page 1 of 3

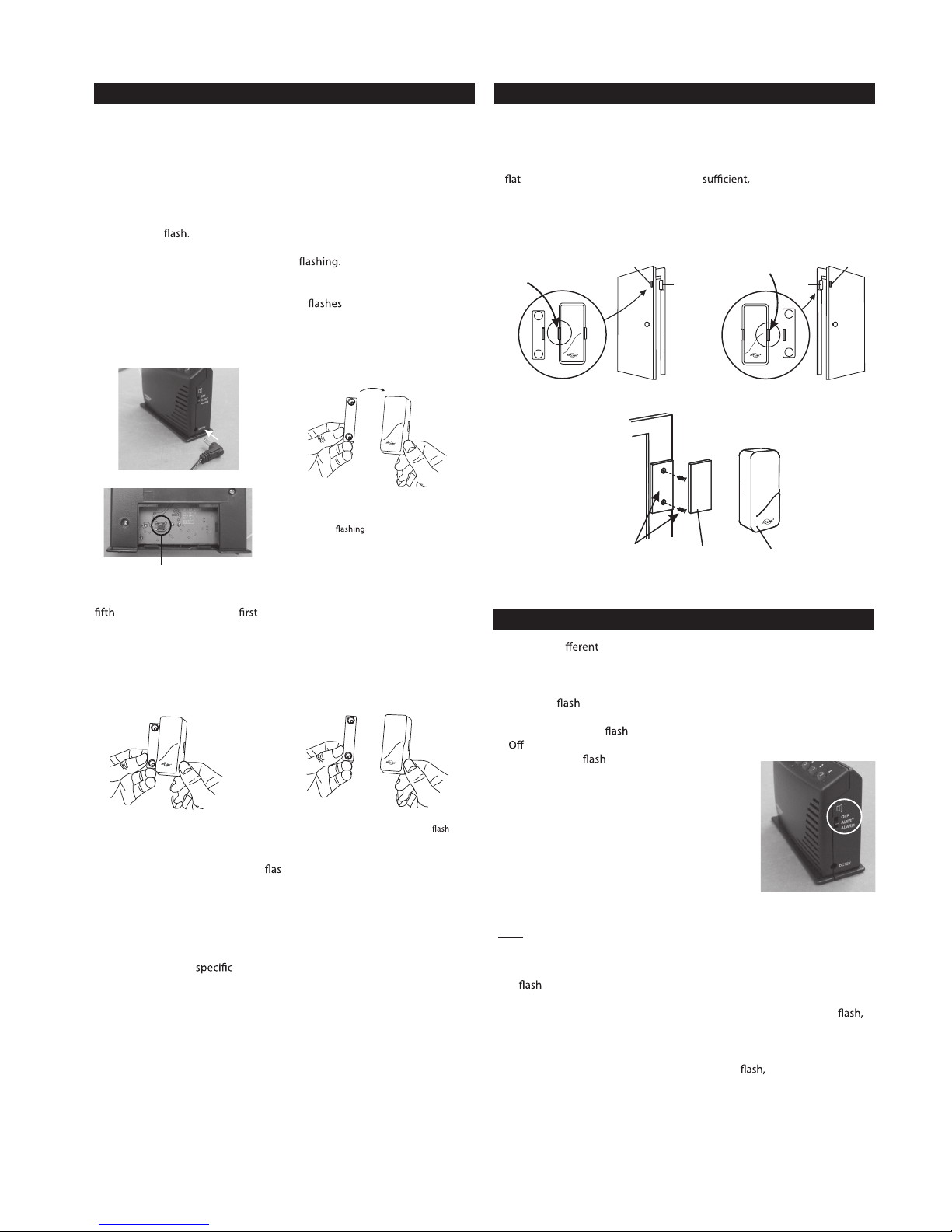

The sensor must be programmed to the Household Alert®Long Range
Receiver before they can communication. You may program the sensor
to one of the 4 zones. Follow the instructions below;
1. Plug in an AC adapter to the receiver.
2. Power up the Receiver unit. The green LED will be on indicating it
is turn on.
3. Open the back cover and there is a learn button. Press and hold
this learn button for 5 seconds, until both green LED and zone 1
red LED You may now release the learn button.
4. If you would like to program the sensor to zone 1, activate the
sensor while the zone 1 red LED is Activate the Sensor
by separating the magnetic contact from the sensor.
5. If you would like to program the sensor to other zones, press the
learn button again, until the red LED at the zone you want
to program the sensor to, then activate the sensor.
6. Once the sensor is programmed, the green LED will be steadily on
and none of the red zone LEDs will be on.
Note: Each zone can program up to 4 sensors. If you try to program a
sensor into a zone, the programmed sensor will be erased.
Plug in the adapter to the receiver
4. PROGRAMMING WINDOW/DOOR SENSOR
Learn Button
Separate the magnet from
the sensor, Receiver zone LED
stops .
After learning the sensor to the Receiver unit, you may test the com-
munication by placing the magnet beside the sensor (where the red
marking is) and remove the magnet from the sensor.
When the magnetic is closed, the
receiver will not beep.
When the magnetic contact is broken (open),
the receiver will beep and zone LED will .
1) Zone LED of this sensor will h.
2) Beeping according to the zone number [Operating mode is set to
“Alert”]. 1 beep for zone 1, 2 beeps for zone 2 and etc, until the
magnetic contact is closed.
You cannot erase a sensor. You must erase all sensors from
the receiver, then program the ones you would like to keep. To erase all
the sensors from the receiver:
1. Remove the adapter from the receiver.
2. Open the back cover, press and hold the learn button. Do not release
the learn button until step 4.
3. While holding onto the learn button, plug in the adapter to the receiver.
4. You may release the learn button when the LEDs on the receiver are
on.
5. You have erased all sensors from the receiver.
5. WINDOW/DOOR SENSOR INSTALLATION
Sensor
Sensor
Magnet
Magnet
"Red Marking"
on the side
"Red Marking"
on the side
The transmitters should be mounted on the door frame or window frame
by double sided tape. The magnet should be mounted on the door or
window by either double sided tape or screws. Make sure the magnet is
aligned with the red marking on the transmitter. If the surface of the frame
is enough, double-sided foam tape is otherwise, it is
recommended to screw the mounting plate to the frame, then apply
double sided tape. After mounting the sensor, if the Skylink logo is
inverted, remove the front cover and rotate it so the Skylink logo is in the
upright position.
Mounting plate
and screws (optional)
Double-sided
foam tape Sensor
6.OPERATION
There are 3 di operating modes for the Household Alert®
Long
Range Receiver.
1) Alert - Beeps when a sensor is activated, corresponding zone LED
will also .
2) Alarm - Sounds an alarm when a sensor is activated, corresponding
zone LED will also .
3) - No audio sound will be emitted when sensor is activated.
Zone LED will to indicate the activated
sensor.
To select the operating mode, place the
slide switch on the side at the desired setting:
OFF - No Audio
ALERT - Alert Mode
ALARM - Alarm Mode
Alert
When motion is detected in the monitored area, the sensor will send a
signal to the receiver. It will beep and the corresponding zone red LED
will for 15 seconds.
If the sensor is set to zone 1, zone 1 red LED on the receiver will
and the receiver will emit a continuous “single beep”, i.e. “beep” pause,
“beep”, pause….. etc.
If the sensor is set to zone 4, zone 4 red LED will and the receiver
will emit a continuous “4 beeps”, i.e. “beep beep beep beep” pause
“beep beep beep beep” pause ……etc.
By the number of beeps emitted by the receiver, user can identify which
zone is triggered.
Test Sensor
Erasing a sensor
Operation
Page 2 of 3

8.OTHERHOUSEHOLD ALERT ®SENSORS
The Household Alert ®Long Range Receiver can work with up to 4
di sensors: garage door monitor sensor, door / window sensor,
water sensor, indoor/outdoor motion sensor, etc. Please visit
www.skylinkhome.com or contact us at [e-mail] for
more information of how to fully utilize your Wireless Motion Alert.
6. OPERATION (CONT)
When the battery level on the sensor drops to a certain level, or the
sensor is out of the operating range, the receiver will show a “loss of
signal” indication. The red LED representing that zone will rapidly,
i.e. if zone 1 sensor is lost, the zone 1 red LED will rapidly.
When the loss of signal indication occurs, move the receiver closer to the
corresponding sensor and trigger that sensor. If the red LED stops
ing rapidly, that means the receiver or sensor needs to be relocated. If the
“loss of signal” indication persists, replace the battery of that sensor.
7. LOSS OF SIGNAL INDICATION
10. WARRANTY
If, within one year from date of purchase, this product should become defective
(except battery), due to faulty workmanship or materials, it will be repaired or
replaced, without charge. Proof of purchase and a Return Authorization are required.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
WARNING:
Changes or to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equi pment dose cause harmful interference to radio or television
reception, which can be determined by turning the equipment and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
9. FCC
CUSTOMER SERVICE
17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3
Email:[e-mail]
http://www.skylinkhome.com
P/N.101Z756
©2010SKYLINKGROUP
If you would like to order Skylink’s products or have getting them to
work or download information and user manual, please :
1. visit our FAQ section at www.skylinkhome.com, or
2. email us at [email protected], or
3. call our toll free at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST.
Fax [phone]
11. CUSTOMER SERVICE
Mute
When a sensor is triggered for a long period of time, you may stop the
buzzer by pressing the mute button. When another signal comes again,
you can disable the buzzer for all currently activated sensors by pressing
the mute button. The receive will beep again if it receives another signal.
For instance, if you are working in your
garage, you may want to disable the
buzzer for this garage only. Then you can
press the “Mute” button after it starts to
sound. If any other sensor is triggered,
the receiver will sound again.
Alarm
When the receiver is in Alarm operation mode, it will sound its siren
when a sensor is activated. The maximum alarm duration is set for 3
minutes. To terminate the siren during the 3-min interval, press the mute
button. Although the alarm siren is terminated, if that sensor is still
activated, its corresponding LED will continue to
Note: This audio siren is not intended to prevent intruder break-in, it is
rather an alert signal indicating a sensor is activated. Therefore,
turning the siren does not require password.
O
No audio will be emitted even sensor is activated. Only zone LED will .
Page 3 of 3
