Skywatch GPS/GSM ALARM & TRACKING SYSTEM User manual

DISTRIBUTED BY:
SKYWATCH MARKETING SDN. BHD. (796983-K)
29-3, JALAN METRO PERDANA BARAT 1, TAMAN USAHAWAN KEPONG,
52000 KUALA LUMPUR, W. P., MALAYSIA
VOICE [phone], FAX [phone]
SKY WATCH 2.1
GPS / GSM ALARM & TRACKING SYSTEM
USER GUIDE
MANUAL

Introduction:
This GPS/GSM Car Alarm and Tracking System is not only an advanced
car security product but also a precise GPS tracking system. It is a
combination of Global Positioning System (GPS), Short Message System
(SMS), and Radio Frequency Identification Solution (RFID). It provides a
safe solution for protecting your vehicle.
This system is specially designed for individual user. User could supervise,
control and locate their vehicle by mobile phone or the help of Central
Monitoring Service (CMS) if available.
Warning:
We strongly suggest user to let a professional vehicle electrician to install
the device.
Function & Features:
1) Automatically sends SMS to mobile phone when alarm is triggered.
2) Cut off the vehicle’s power and fuel supply by SMS (to stop a
moving vehicle).
3) Hijack button, sends out SMS for help in case of hijack.
4) Lock and unlock the vehicle’s door by remote control (KRA) or by
mobile phone (SMS).
5) Able to request vehicle’s location, speed (in Miles), and status of
alarm.
6) Anti-tamper design with back up battery, stable and reliable.
1
Maintenance:
The system is a maintenance free product. With proper usage and care, it
will function perfectly for many years. If there is any problem with the
system please contact your local dealer for advice.
Specifications:
GSM frequencies: 900MHz/1800MHz;
Working voltage: +10~14 VDC
Power Consumption: Idle current :<=50mA, Working current: <= 300mA;
Maximum sending power: 1 W;
RF receiving sensitivity: -102dBm;
Working temperature: -20 ~ 80 degree;
Humidity: 0 ~ 95%;
Dimension of main unit: 135.0 x 82.0 x 36 0mm;
Net weight: 0.8kg
14

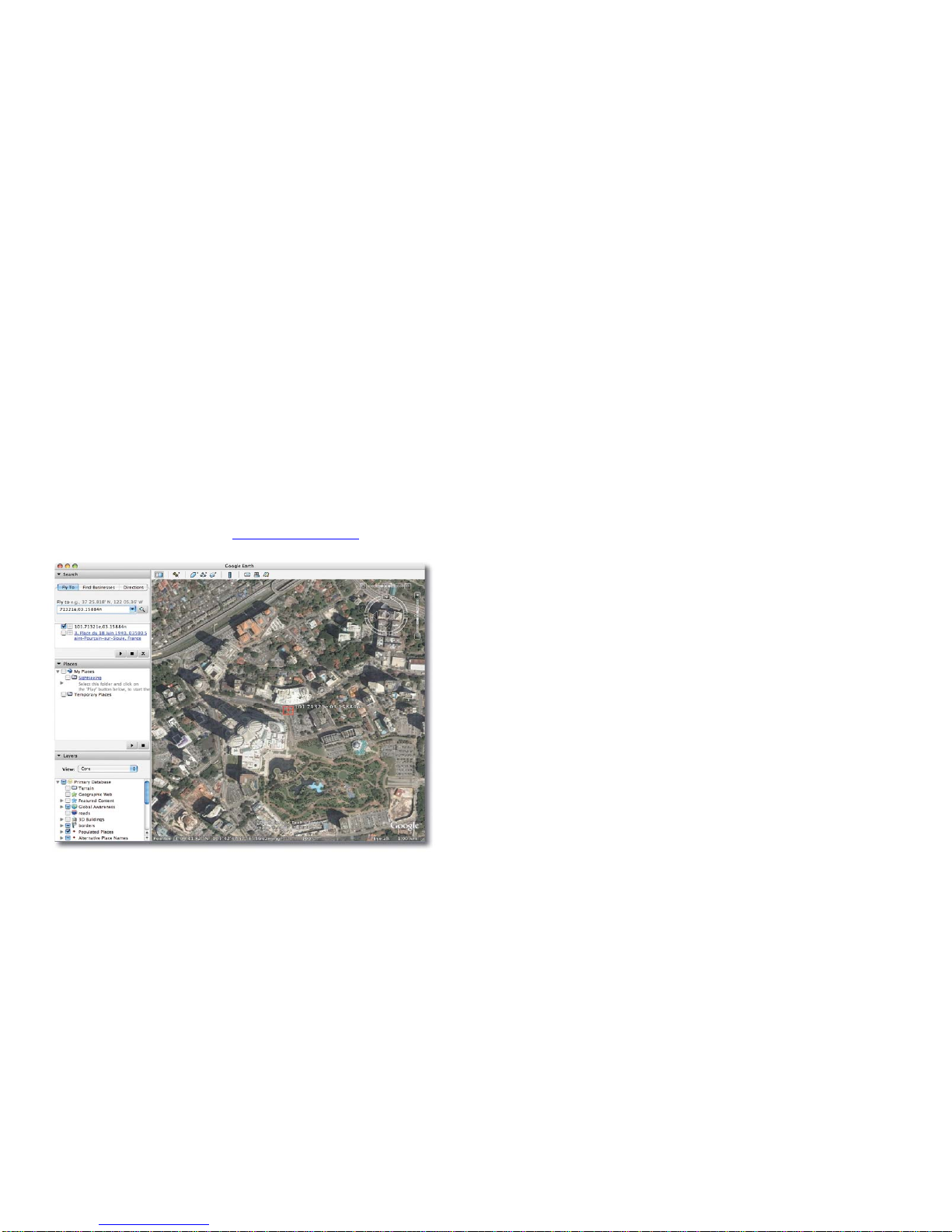

How to Located Vehicle:
Take the SMS Longitude and Latitude, and input into Google Earth.
After input press enter, and Google Earth will point to the location.
13
Remote Control (KRA):
Disarm Button
Press the disarm button once to unlock vehicle and disarm alarm system.
Arm Button
Press the arm button once to lock vehicle and arm alarm system.
Emergency Help Button
Press the emergency help button to notify users by SMS that they need
help
Car Finder Button (Panic)
Press the car finder button once to activate the signal lights to flash 5 times
and the siren to sound 5 times.
Mute Arming & Mute Violation
Press the car finder button once when the system is in disarm status to lock
vehicle and arm alarm system in silent mode.
2

SMS Control Instructions:
The format of the instruction is: “user password (111111) + control code
(XXX)”.
The default user password is 111111. XXX is the control code; control
code could be capital letters or small letters. There is no space between the
user password & the control code instruction.
Lock Doors & Arm System
Command: 111111ARM
This instruction is to arm the system and lock the vehicle’s doors. The
signal lights on the vehicle will flash once and the siren will sound once.
SMS Response: Arm Settled! vehicle position: ……
Unlock Doors & Disarm System
Command: 111111DSM
This instruction is to disarm the system and unlock the vehicle’s doors.
The signal lights on the vehicle will flash twice and the siren will sound
twice.
SMS Response: Disarm! vehicle position: ……
Check System Status
Command: 111111CHK
This instruction is to inquire the system status and the location of the
vehicle.
If system is arm
SMS Response: Arm! vehicle position: ……
If system is disarm
SMS Response: Disarm! vehicle position: ……
3

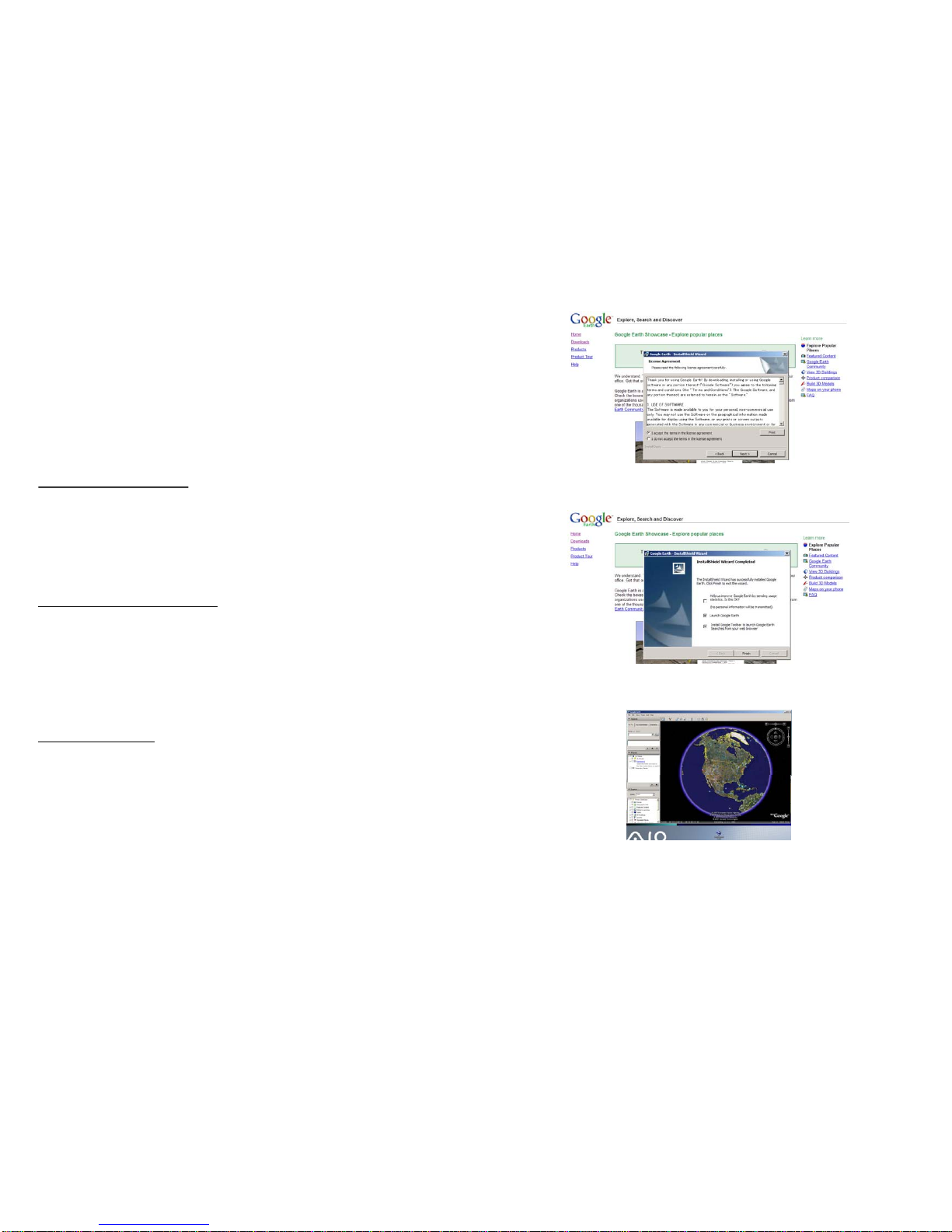

Select “I accept” and click on the next button.
Select the last two options and click on the finish button.
Google Earth is now downloaded and ready to be use. Anytime you want
to use it just click on the “Lunch Google Earth” Icon.
12

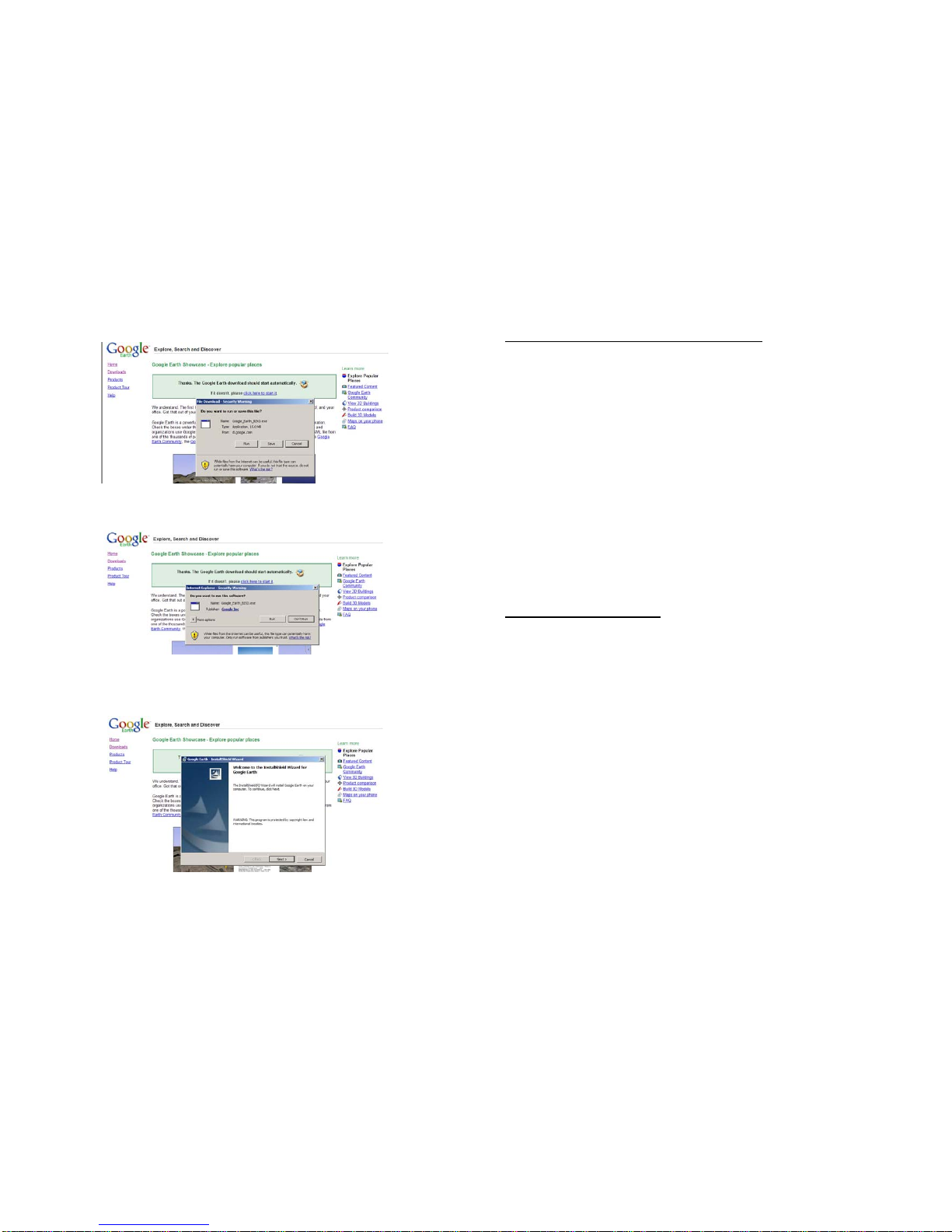

Click on the “Run” button.
Once download is completed, click on the “Run” button again, and wait
until the following screen:
Click on the “Next” button. 11
Progressive Fuel Cut (Stop a Moving Vehicle)
Command: 111111STP
This instruction is to cut off the vehicle’s power supply and fuel supply
progressively, so as to stop a moving vehicle. The signal lights on the
vehicle will flash and the siren will sound until the system is reset by SMS
only. The vehicle will be controlled to a stop gradually.
SMS Response: Vehicle stopped! vehicle position: ……
WARNING: It is very dangerous to Fuel Cut the
vehicle while it is moving. We will not take any
responsibility to the consequence caused by this
action. Activating the Progressive Fuel Cut function
is at your own risk.
Reset System after Fuel Cut
Command: 111111RES
This instruction is to restore the vehicle’s system to normal status after
stopping the vehicle.
SMS Response: Set OK! vehicle position: ……
4

Summary of SMS Control Instructions:
SMS Function SMS Command SMS Response
Lock Doors & Arm 111111ARM Arm
Unlock Doors & Disarm 111111DSM Disarm
Fuel Cut (Stop Vehicle) 111111STP Vehicle stopped
Reset after Fuel Cut 111111RES Set OK
Check System Status 111111CHK Arm / Disarm
Arming the System:
There are 2 ways to arm the system:
1) Press the arm button once.
2) Use mobile phone and send SMS control instruction (111111ARM)
to the system.
Response:
1) Signal lights will flash once and siren will sound once.
2) Doors will be locked automatically.
3) If the vehicle’s door is not closed properly, the signal light will flash
and siren will sound for 15 seconds. The system will also send
SMS message to users.
4) If the ignition key is at ON position, the car door cannot be lock and
system cannot be armed.
5

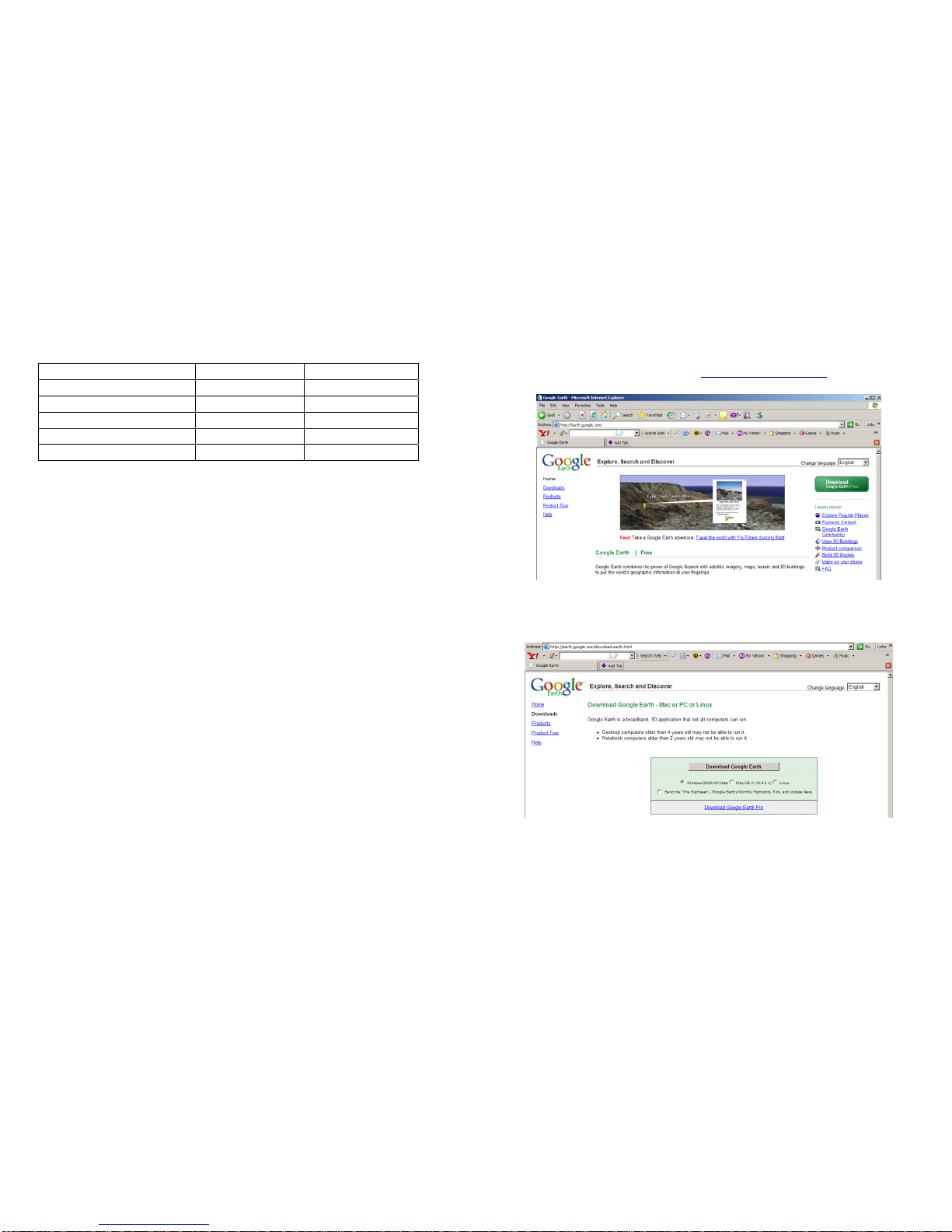

How to Download Free version of Google Earth:
Open Internet Explorer on and type http://earth.google.com
Click on the GREEN button on the top right corner that says “Download
Google Earth (Free)”.
Please select operating system and click on the download button again.
Wait until the following screen to appear:
10

Backup Battery:
There is an internal backup battery in the system. The backup battery will
ensure SMS message is sent whenever the 12 volt battery fails to function.
However, the backup battery CANNOT be used to operate other functions
in the vehicle.
Tracking Vehicle:
When user received the SMS message by means of a violation SMS or
Check System Status (111111CHK), the message includes the GPS latitude
and longitude. With this information, user can input the points on
GOOGLE EARTH to check on the precise location of the vehicle. Please
download GOOGLE EARTH from http://earth.google.com
9
Disarming the System:
There are 2 ways to disarm the system:
1) Press the disarm button once.
2) Use mobile phone and send SMS control instruction (111111DSM)
to the system.
Response:
1) Signal lights will flash twice and siren will sound twice.
2) Doors will be unlocked automatically.
3) If the vehicle’s door is not opened in 45 seconds, the system will
automatically enter into arming status. If the vehicle’s door is
opened during this period, the system will not arm automatically.
4) If the system has been triggered, SMS message “Disarm” will be
sent to users when the system is disarm.
5) If the system is triggered by Fuel Cut, it cannot be disarm by
Remote Control (KRA). It can only be disarmed by SMS control
instruction (111111RES).
6

Triggering SMS Violation Messages:
The following conditions will trigger the system to send out violation SMS
message:
In arming status, there is movement inside the vehicle (Ultrasonic
Sensor).
Vehicle’s signal lights will flash and siren will sound. SMS message
“Shock on” will be sent out to users twice.
In arming status, the vehicle’s door/bonnet/boot is open.
Vehicle’s signal lights will flash and siren will sound. SMS message “Door
opened” will be sent out to users once.
In arming status, the engine is started.
Vehicle’s signal lights will flash and siren will sound. SMS message
“Engine on” will be sent out to users once.
In arming status, the vehicle’s power supply is disconnected.
SMS message “Power supply failed” will be sent out to users once.
In arming status, press Emergency Help button on the Remote Control
(KRA) for 3 seconds.
Vehicle’s signal lights will flash 3 times quickly and siren will sound 3
times quickly. SMS message “Urgent help” will be sent out to users once.
When ignition is on, press the Hijack switch for 3 seconds.
Vehicle’s signal lights will NOT flash and siren will NOT sound. ONLY
COMMAND MANAGEMENT SERVICE (CMS) CENTER will receive
SMS message “Be robbed”. 7
SMS Violation Message:
Violation SMS Message
Door opened “Door Opened”
Boot opened “Door Opened”
Bonnet opened “Door Opened”
Ignition on “Engine On”
Sensor on “Shock On”
12V Battery Disconnected “Power Supply Failed”
Hijack NO MESSAGE WILL BE SENT OUT
SMS Violation Message Display:
8
